COB blaster Characteristics
The CRYONOMIC® COB series is a single hose dry ice blaster.
Its new and unique concept results in:
• low air consumption
• powerful cleaning performance
• ergonomic design - light & easy manipulation
• Best price/performance ratio on the market
An ultra light, easy-to-handle gun, the MG 1004, has been designed specially for this series.
The COB series complete the CRYONOMIC® range of blasting equipment.
Specific application areas are:
• high performance cleaning with low air consumption
• focalised cleaning

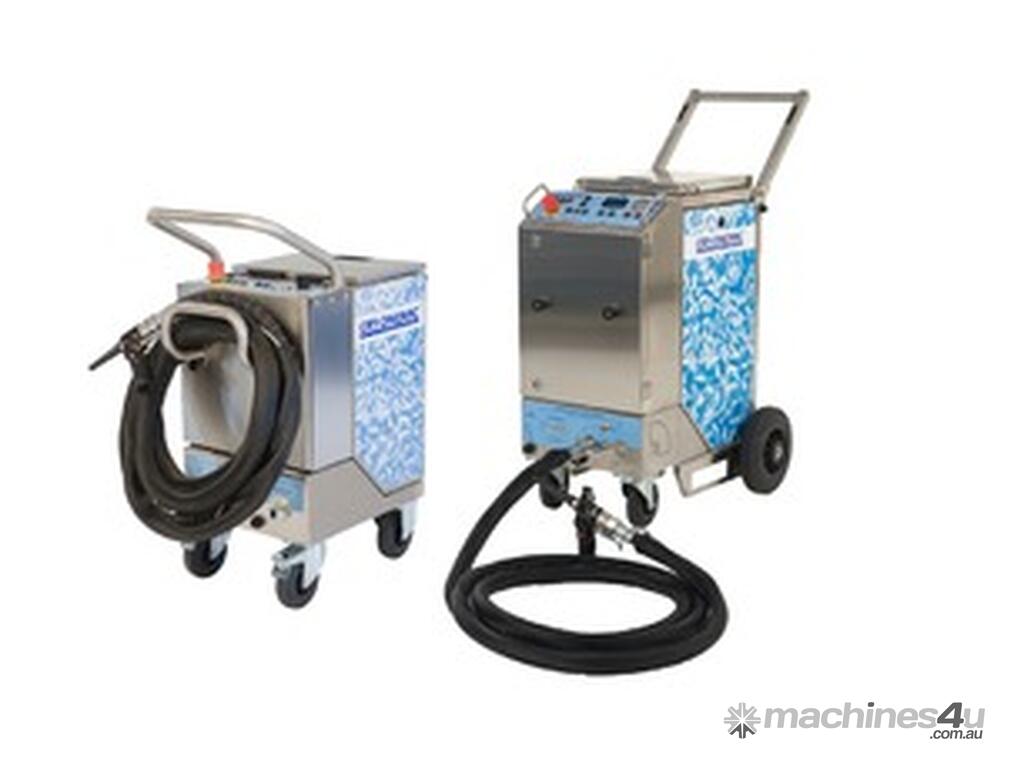

The COB series consists of 4 types of robust single hose blaster:
• the compact COB 62 and COB 62 plus blasters
• the larger COB 71 and COB 71R blasters
The COB series dry ice blasters are standard delivered with:
• Ergonomic blast gun MG1004
• Hose set consisting of:
- heavy duty blast hose with quick coupling and stainless steel earthing
- one control cable (for start/stop and gun light!)
- protecting sleeve
• Dry ice or air-only blasting option
• Hour counter
• Safety soft start
• Start safety protocol
Intuitive control panel:
• Emergency stop and ON/OFF buttons
• Robust industrial grade single touch control buttons :
- dry Ice feed rate: LED-indicated (COB 62(plus)) or digital indication (COB
71(R))
- gun light: LEDS
- abrasive module selector (LED-indicated) on COB 62plus and COB 71(R)
• Blast pressure regulator and manometer
• Remote control activator on COB 71R
Fast and easy connections:
• Quick coupling for blasthose
• One multifunctional control cable to gun
• Power cable
• Connection for optional earth cable
• Compressed air inlet
• Abrasive Module connection on COB 62plus and COB 71(R)
Ergonomic, safe and lightweight MG1004 gun
• Quick-fit nozzles changed within seconds: no tools required
• Nozzles can be turned in any desired position during operation
• Equipped to plug-in the CRYONOMIC® gun light
• Integrated safety catch: avoids undesired blast activation (legally imposed for CE)
• The control cable plugs into the gun! No more annoying dangling
connectors at the gun
• Ergonomic shockproof thermoplastic handle
The CRYONOMIC gun light
• Clear white spot on the object
• Plug-in gun light (no additional cable)
• Adjustable intensity: to avoid surface reflection
• Allows fast nozzle switching: without gun light removal
• Integrated protective slide keeps the gun light connector clean and protected
COB series dry ice blaster leaflet
Guns & Nozzles for COB Blasters
Variety of CRYONOMIC® NT- nozzles:
• High performance nozzles for any circumstances
• Changed within second: no tools required
• Models : Round, flat, angled, custom made
• Length : from 55 mm up to 1 m and more
• Available in stainless steel, aluminium or thermoplastic
• Special low air consumption nozzles (< 1m³/min up to 4 bar)
Compact CRYONOMIC® ‘All-in-one' nozzle and accessory box
• Contains:
- Commonly used round, flat and angled nozzles
- Crusher
- Empty space to store blastgun, gun light and second crusher
- Optional spare parts set
Pellet crusher
• Crushes dry ice pellets for cleaning delicate surfaces and objects
• Easy to mount at machine and/or gun (in a matter of seconds with quick coupling)
• Nozzle-independent :
- can be used with every nozzle
- nozzle does not have to be exchanged or removed

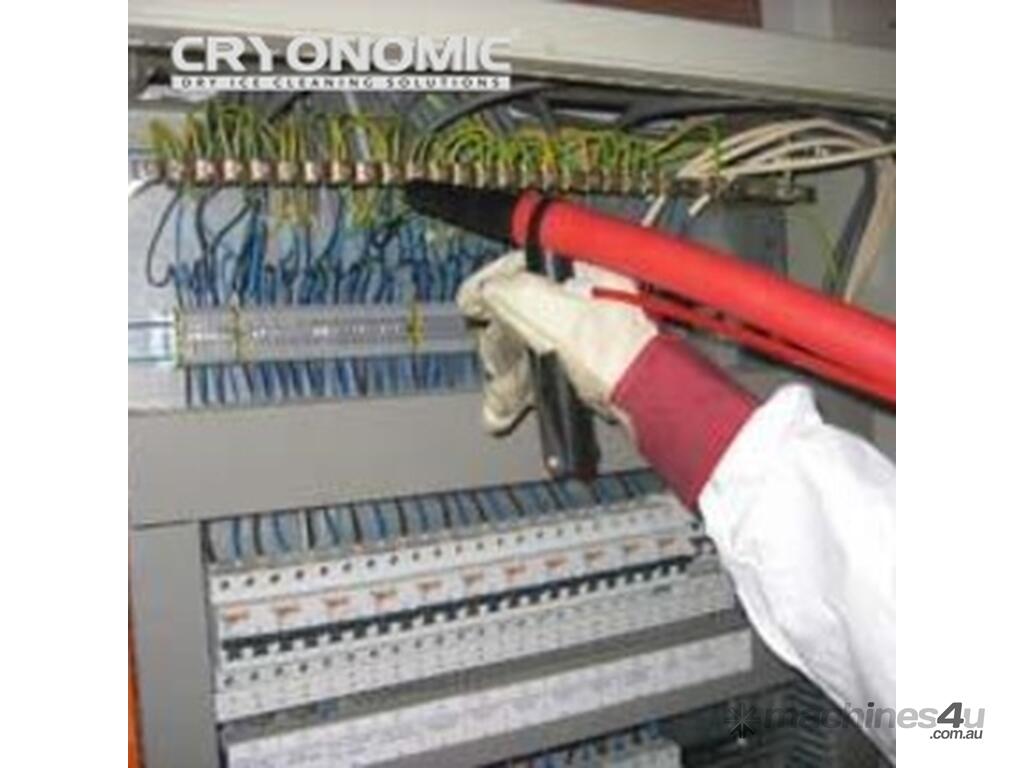

Electrically isolated blastgun MG1003

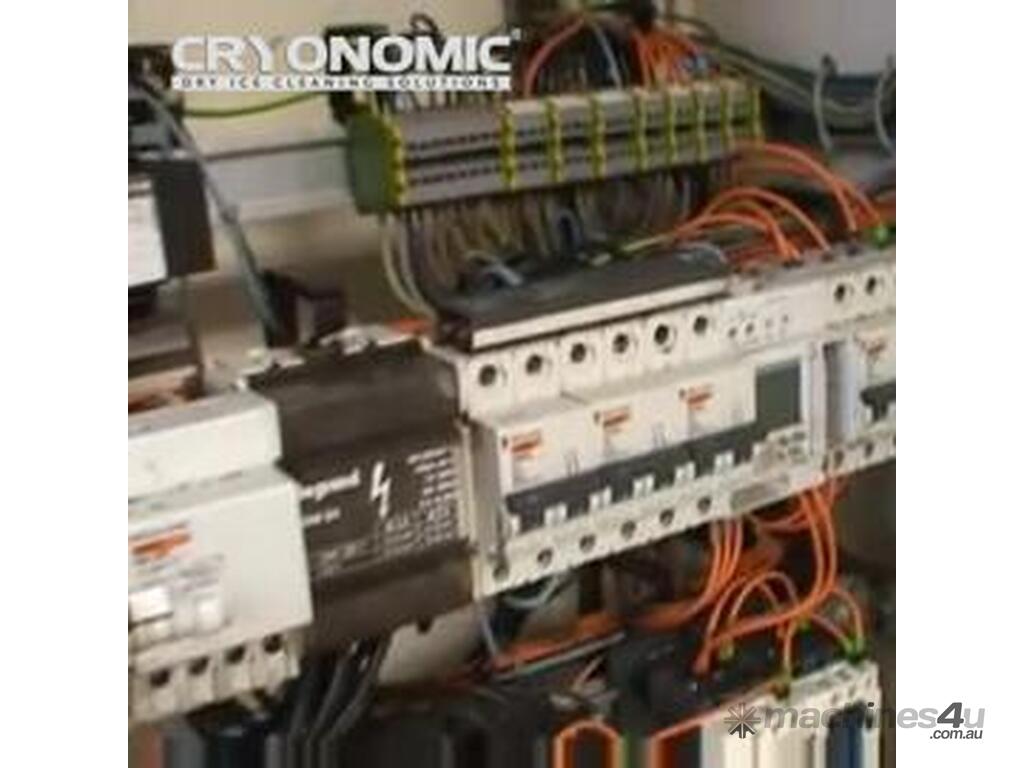

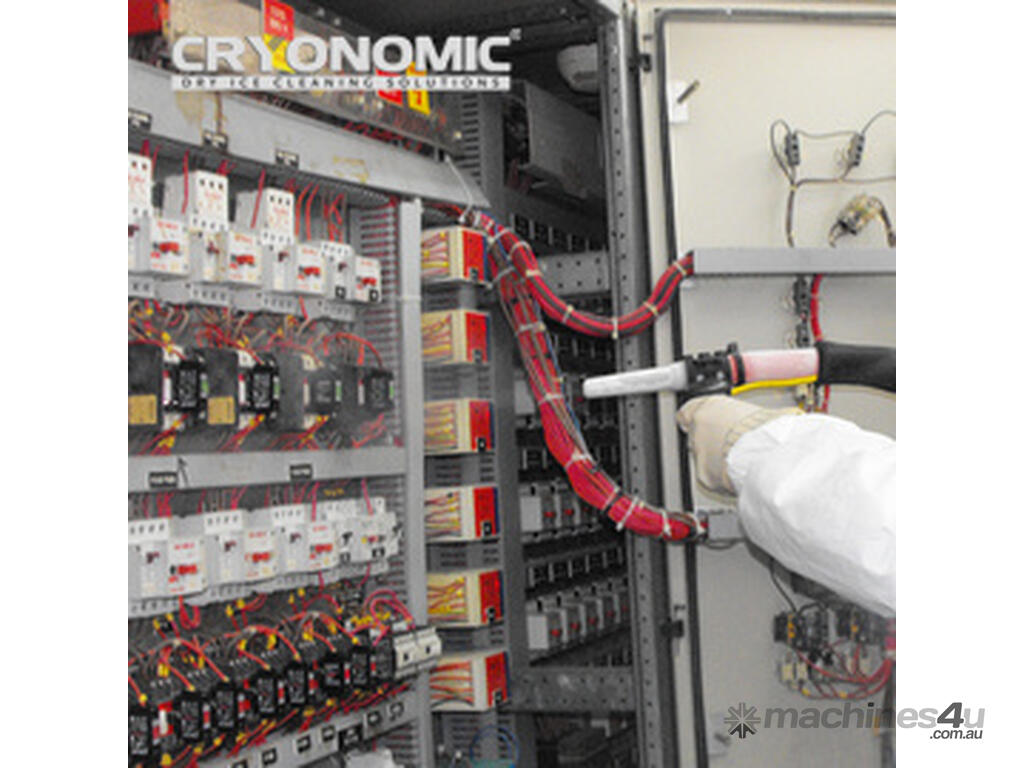

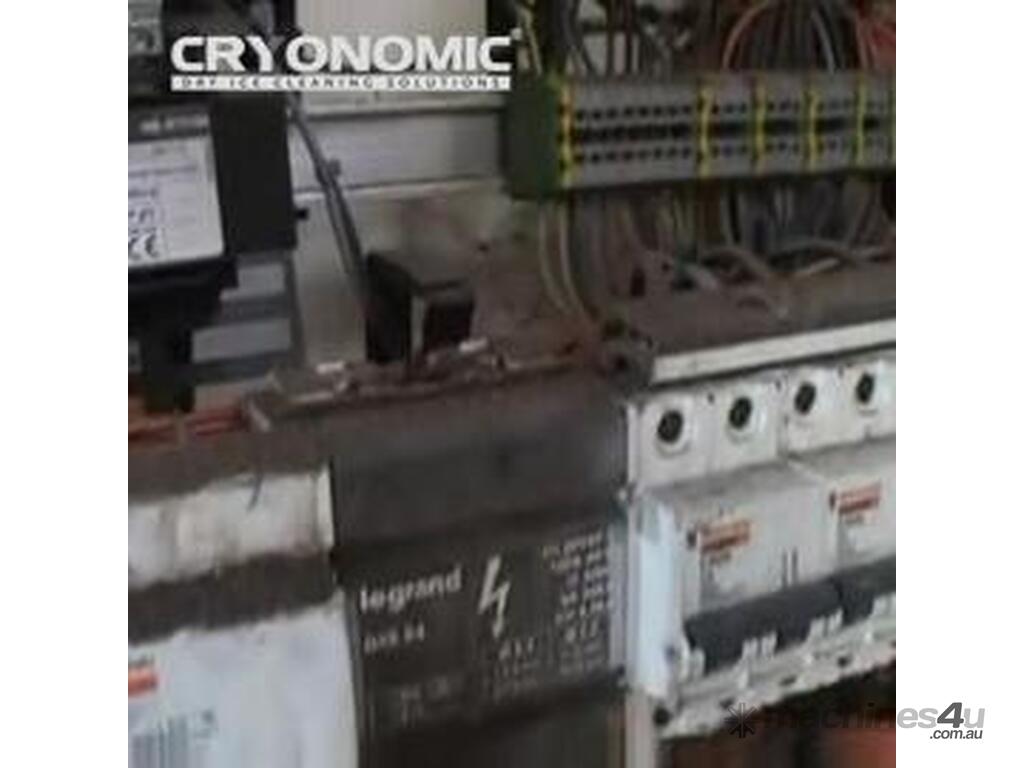

• To clean live (low- to mid-voltage) equipment
• Full plastic isolated blastgun for applications where non-conductive tooling is a safety requirement
The Abrasive Module:
• Combines benefits of dry ice and abrasive blasting
• Allows to mix a controlled quantity of abrasive granulate in the dry ice flow
• Ecological : reduces significantly the abrasive granulate requirements
compared to conventional abrasive blasting (less secondary waste, less clean-up)
The system consists of:
• stainless steel module easily mountable at the front of the machine
• additional abrasive granulate hose
• a special abrasion resistant nozzle for standard gun
Some applications:
• rust removal, paint stripping,...
• stubborn material removal
• surface roughening before painting,coating,...
We can offer different kinds of abrasive granulate going from fine to rough depending on the required abrasive effect (from 0.1 mm to 2 mm).
