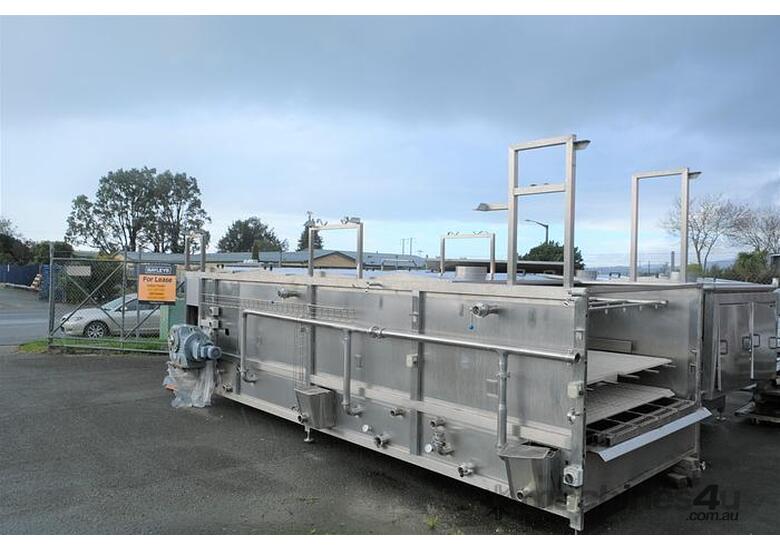

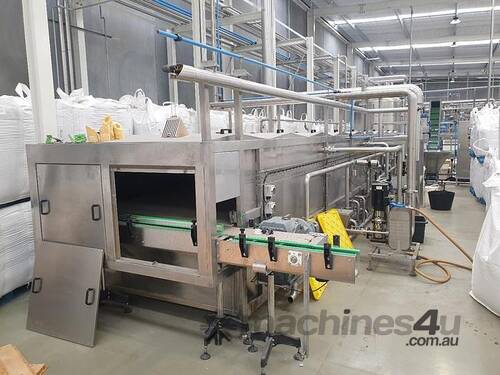

Thermaflo Tunnel Pasteuriser

Throughput:
275ml 7,272 BPH – 330ml 6,060 BPH – 500ml 4,000BPH – 1000ml 2,000 BPH
Steam pressure 0.3mpa – 0.4 mpa
Steam requirement, 600kw 840kgHr from cold start.
Water volume in hot well bath– 3,200L
Water volume in hot well bath– 680L
Water volume in cold crash bath– 2,590L
Water volume in cooling tower loop – 320L
Inward feed temperature – 20°C
Pre heat Zone – 12 min to 72°C
Max spray temperature 95°C
Retention zone – 19 min 72°C 513PU lethal
Cold crash - 13 min exit temperature 25 – 30°C
Hot well circulation per min – 26,000L
Cold crash circulation per min – 18,000L
Water draw on start up – 80 L
Power 20 amp supply.

INPUTS
Potable water feeding all baths off mains supply with level switches.
Direct injection of steam to bath, (Condensate return can be added)
Air supply to MCCB control cabinets – 90psi (Solenoid)

OUTPUTS
Overflow bath to drain

ADDITIVES
Hydrogen peroxide
