Tilco Custom Designed Chisel Ploughs

Tilco custom design chisel ploughs for any application and to suit any operation. With a complete array of tine spacings using our single jump HYDRAMAX unit or SJ series spring units.

Options include:
Ripper points or sweeps both attachable to our standard Tilco MultiShank.
Row spacings from 250mm to 500mm, including multiple spacing applications on a single plough frame.
Frames from 4-18m in single and dual fold.
3-5 rank frame designs.
Range of wheel and tyre options.
Frame sizes 100x100, 150x150 or 178x178.
Options of crumble rollers and harrows.

HYDRAMAX Single Jump

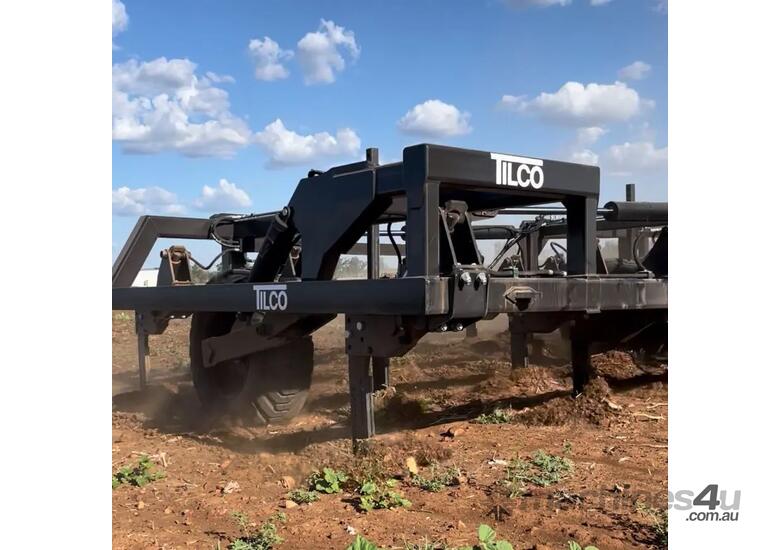

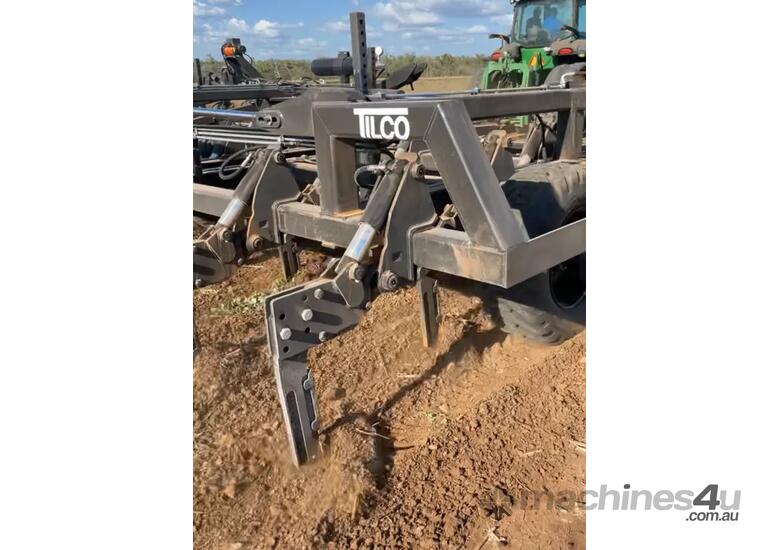

At the heart of the Tilco HYDRAMAX chisel plough is the HYDRAMAX Single Jump shank assembly, the most versatile shank system on the market. When paired with our MultiShank system it can run a standard range of 50 degree sweeps or be fitted with Tilco ripping points. With adjustable breakout starting at 6.5T, even the widest sweeps can be pulled at depth.

Endless Versatility

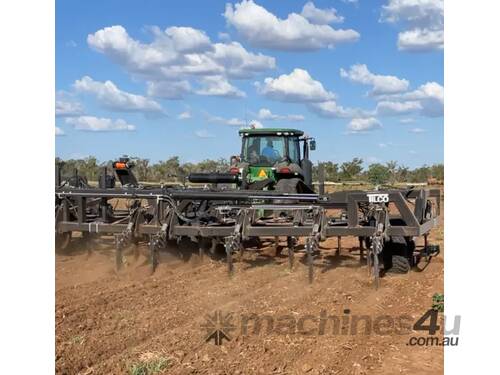

A HYDRAMAX Chisel Plough is highly configurable. The example pictured here is arranged as 37 shanks at 333mm spacing for excellent coverage, running 450mm sweeps. By removing 2 bolts we can drop out every second shank and deep rip up to 400mm with 18 shanks on 666mm spacing. Alternatively, for pasture work the same can be achieved by removing additional shanks to achieve 13 tynes at 1m spacings. The customer is able to rapidly reconfigure the plow to fulfill three different applications with minimal downtime and low maintenance, giving them the best bang for their buck.

Drawbar options
HYDRAMAX Chisel Ploughs come standard with fixed pull with a full swivel tongue. They can be optioned with either dual-folding drawbars with electric winch for easy transport, parallel lift drawbars for smoother, simpler operation, or basic turnbuckle levelling adjustment.

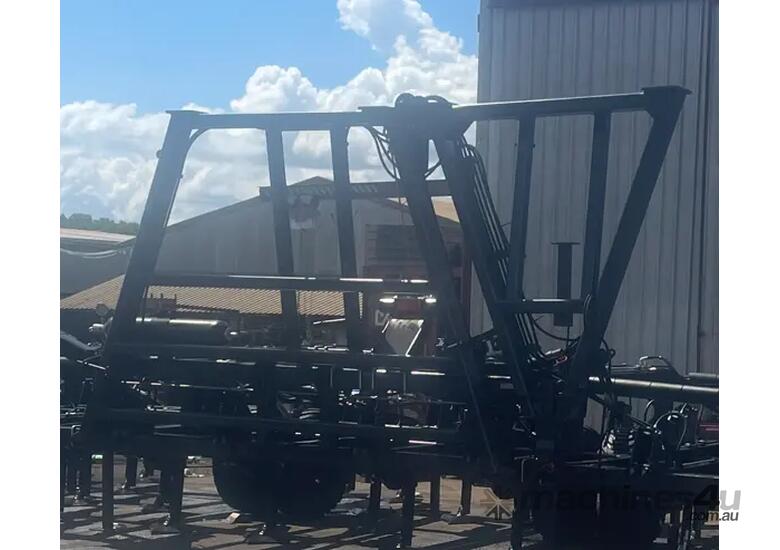

Pictured here, this chisel plough has a dual folding hitch with winch that allows this machine to be backed onto a drop deck and be transported under 4.5m wide and 4.5m high. The incorporation of solar-charged remote operated electric winch and multiple redundant safety pins makes this an achievable, safe, quick operation even for a solo operator.

Heavy Duty Frames
100x100x9mm main frame components backed up by a 150x100x9mm drawbar with heavy duty levelling turnbuckle keeps it simple and reliable.

Trailing or linkage
Our heavy duty spring jump chisel ploughs are available as a trailing unit with a heavy duty levelling screw and 150x100x9mm drawbar or with a category 3/4 Quickhitch pin arrangement

650-800lbs Units
The Tilco spring jump unit is available with 650lbs springs that can also be set to 800lbs preload. Standard 3"x1" spring steel shanks with pin location. oil impregnated nylon wear surfaces
