The Titan Tunnel 250 is a Heavy Duty and automatic flow coating machine, supplied with a mechanical feed system and 8 motorized brushes. This machine will coat all types of timber from hardwood, softwood and laminated with just about any coating product. *Current Special - Cutek Machine Coat Included*
SPECIFICATIONS:
Conveyor: 10~30 M/min
Work piece size: 250 x 250mm
Work piece weight: 100 KGS
Inverter: 7.5HP
Dust off air knives: 4 x 8 PCS

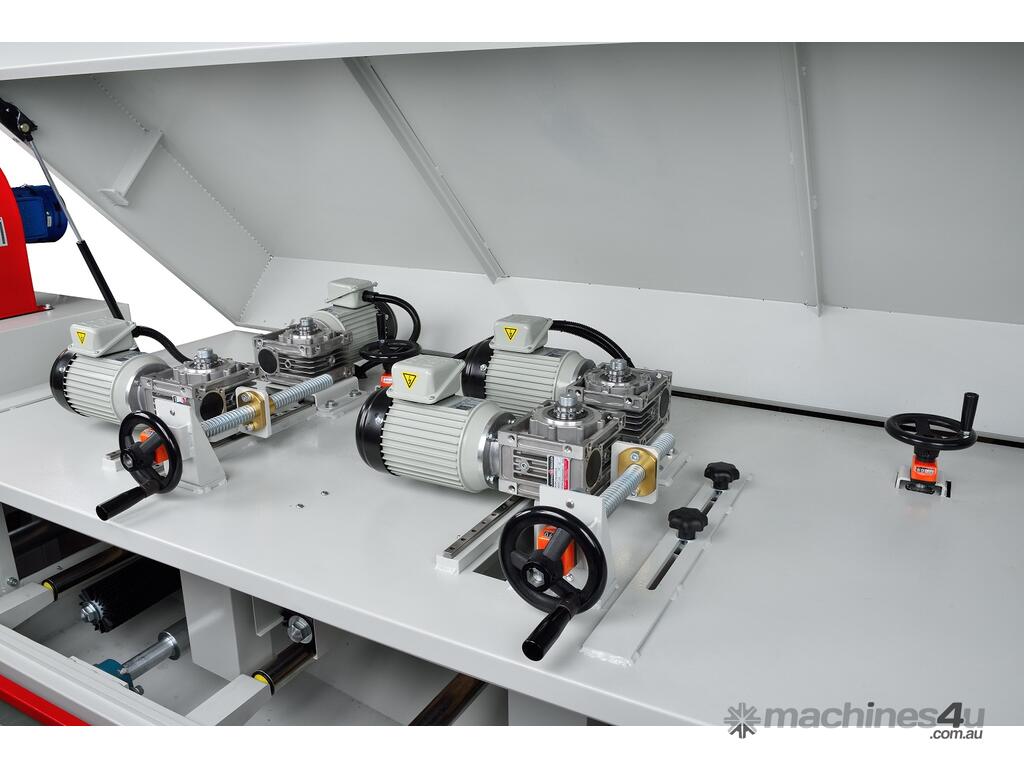

First Brush Set 400W: 4 PCS
Top brush: Adjustable
Bottom brush: Fine adjustment
Side brusher: One is fixed and one is adjustable
Second Brush Set 400W: 4 PCS
Top brush: Adjustable
Bottom brush: Fine adjustment
Slide brush: One is fixed and one is adjustable
Pump 1/2hp ¾: 2 PCS
Blower 1/2hp: 1 PCS
Roller Conveyer 1/2hp: 1 PCS
Lower roller conveyer is adjustable
OPTIONAL EXTRAS:
Infeed Roller Conveyor
Size: L 1620 x W 610 x H 900 mm
Roller diameter: ø100 mm
Roller pitch: 300 mm
Power: 1/2HP with inverter
Loading guide: 1 PCE
Outfeed Multi-Groove Conveyor
Size: L 1620 x W 610 x H 900 mm
Multi-groove roller diameter: ø100 mm
Multi-groove roller pitch: 300 mm
Power: 1/2HP with inverter
