Tombstone Chucks for Horizontal Machining Centres

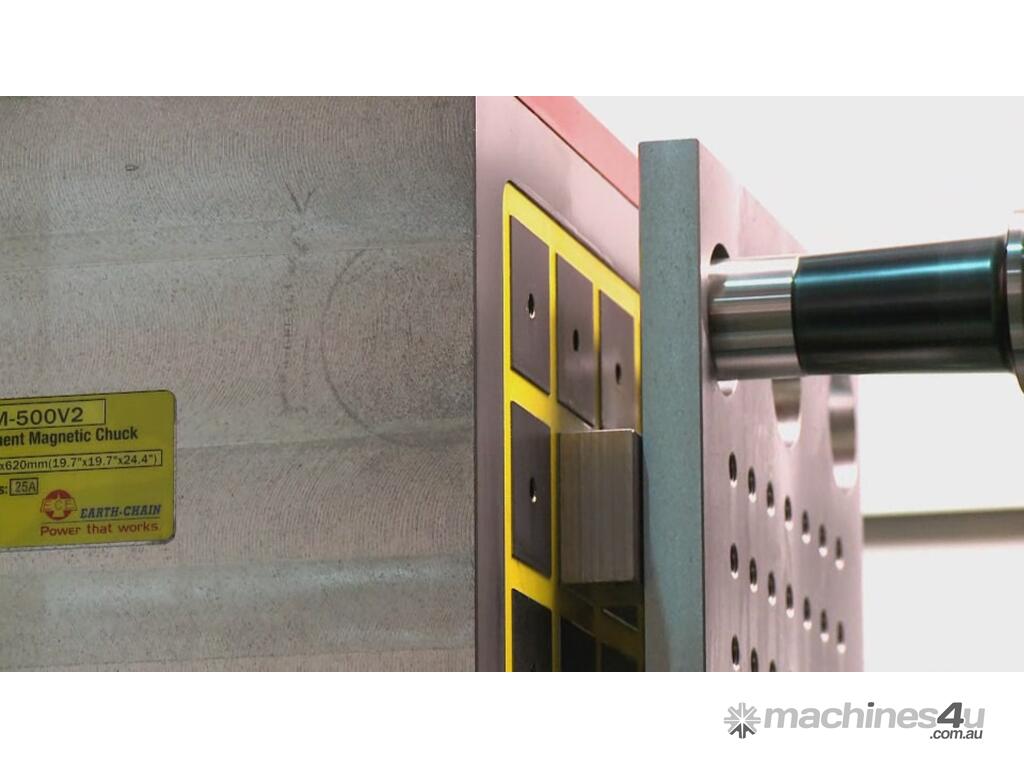

CNC MACHINERY SALES AUSTRALIA PRESENTS - MagVise Electro-Permanent Magnetic Tombstone Chucks for Horizontal Machining Centres.

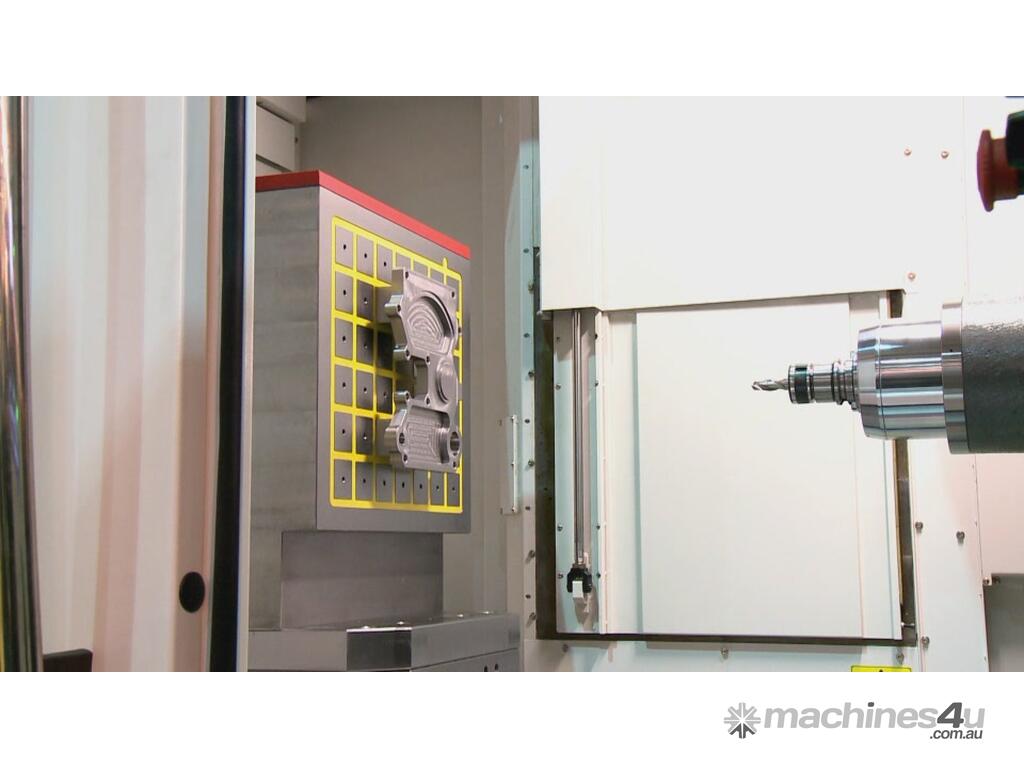

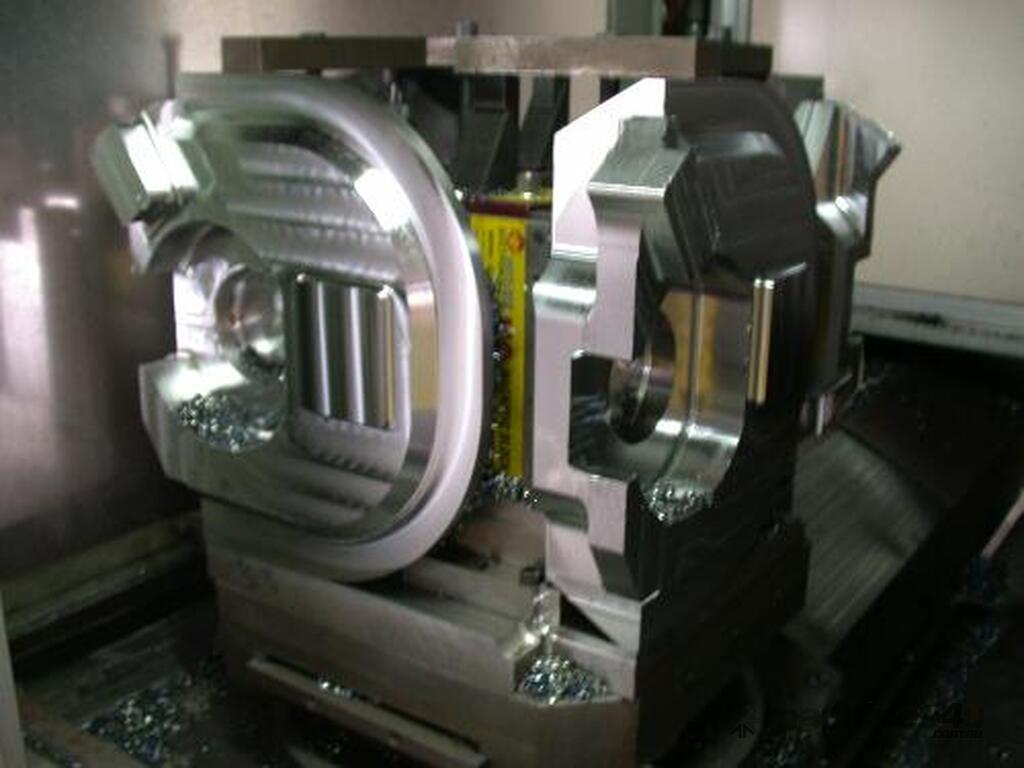

Machine 5 sides of a workpiece with unobstructed movement of the cutter. Only one cycle is required to finish a workpiece helping to achieve the best machining accuracy and increasing efficiency.

Super power magnetic force of 1000kgf/sq metre. (4 Poles)

You can control each work face for ON / OFF to allow for loading and unloading.
3~10 seconds control for power on and off. No electric power supply is required to keep the magnetic chuck on, providing safety in the event of a power failure.

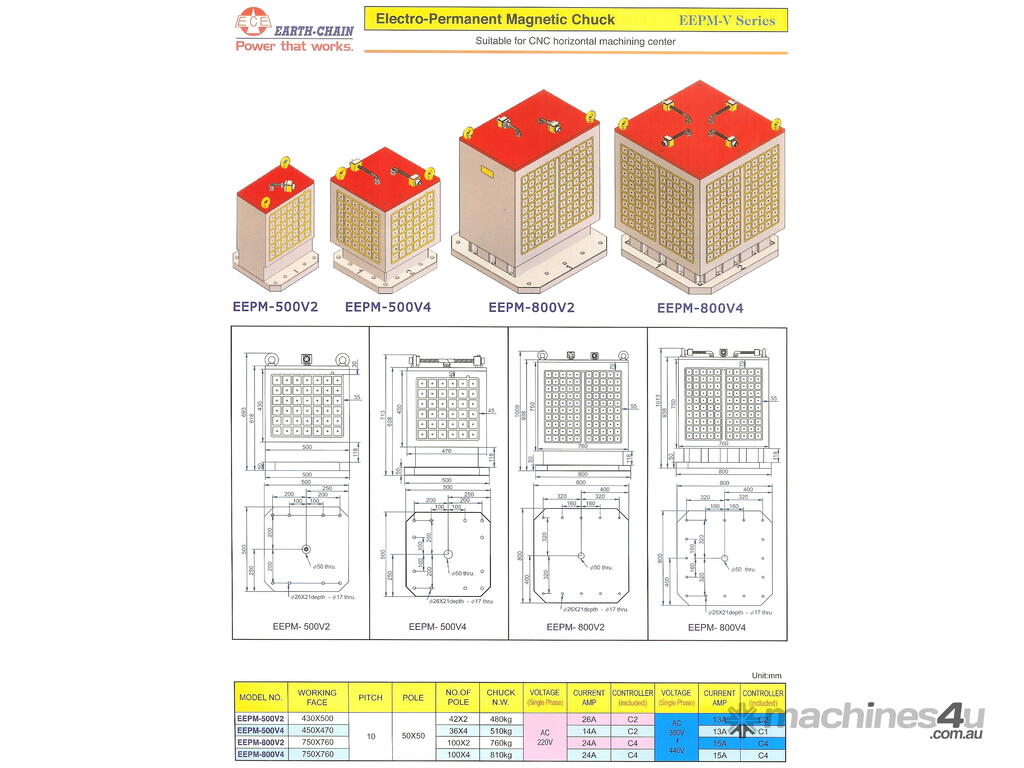

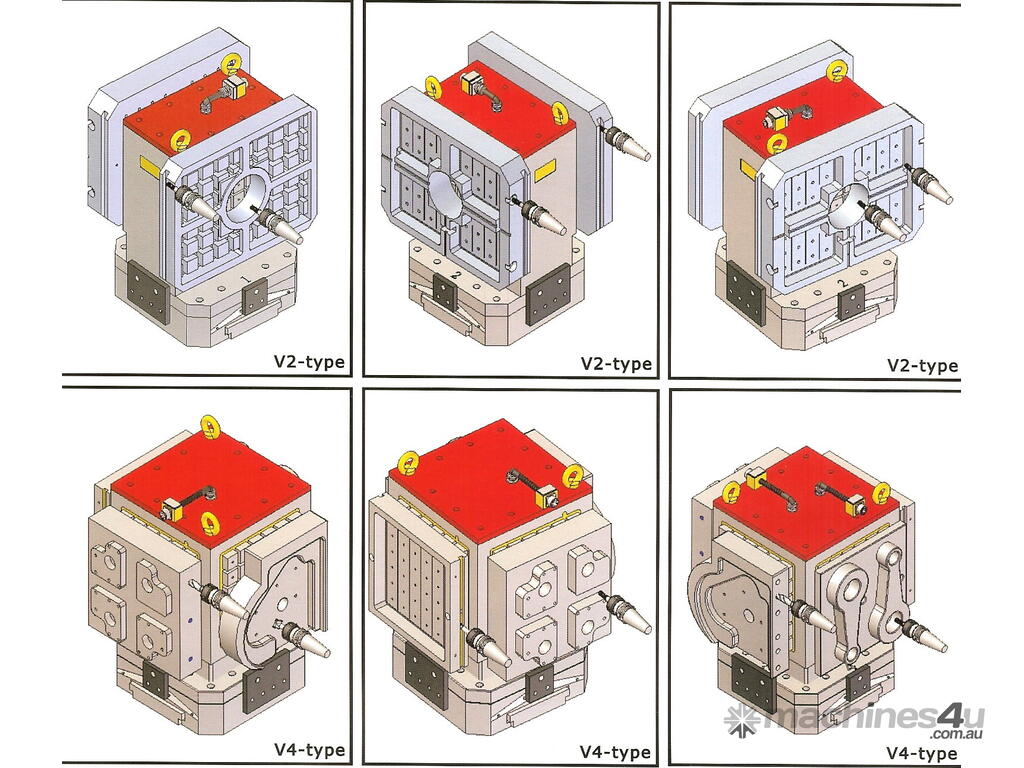

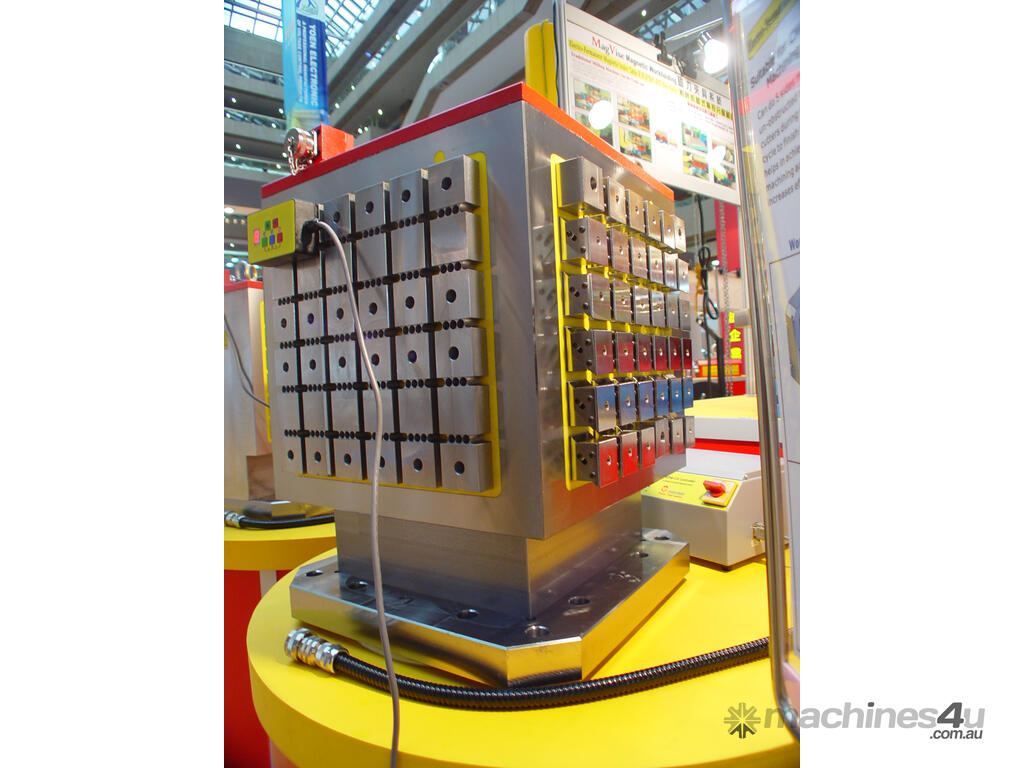

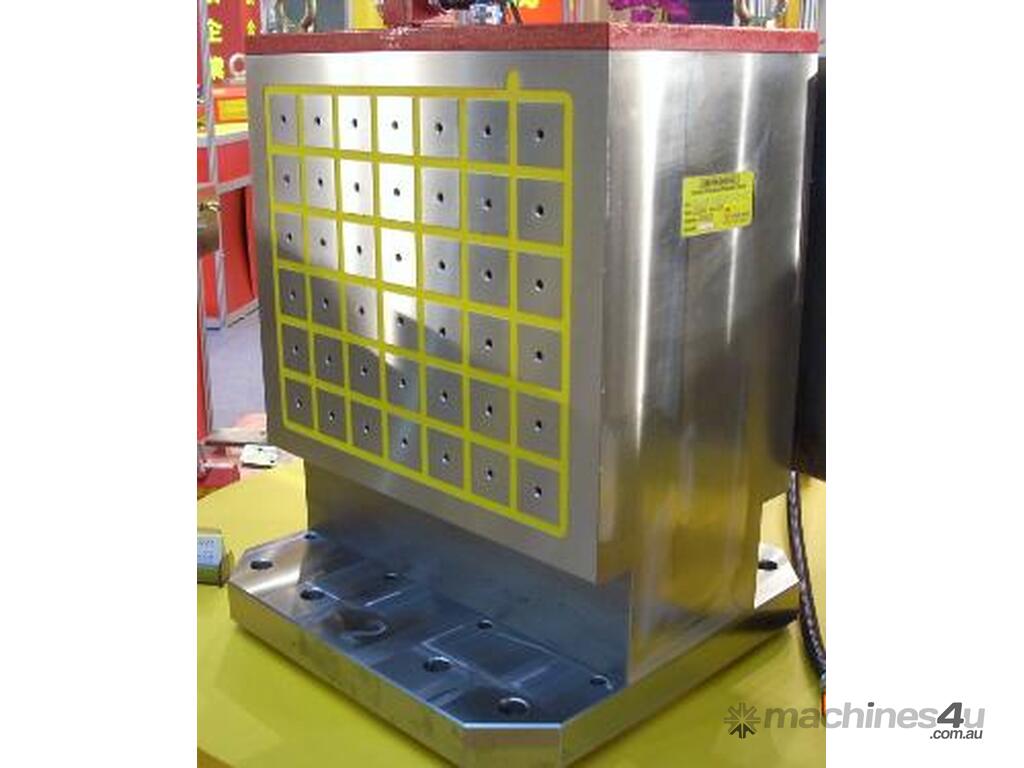

EEPM-V2 has 2 working faces and is suitable for larger workpieces.

EEPM-V4 has 4 working faces and is suitable for medium workpieces.

Minimum thickness of workpiece 10mm.

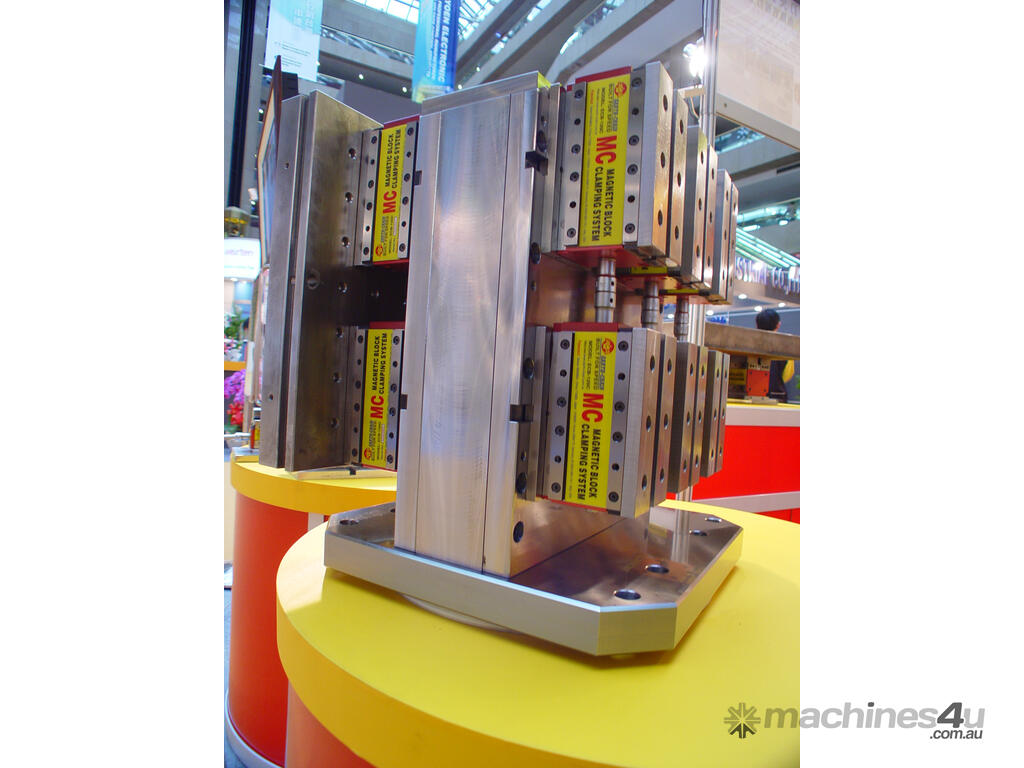

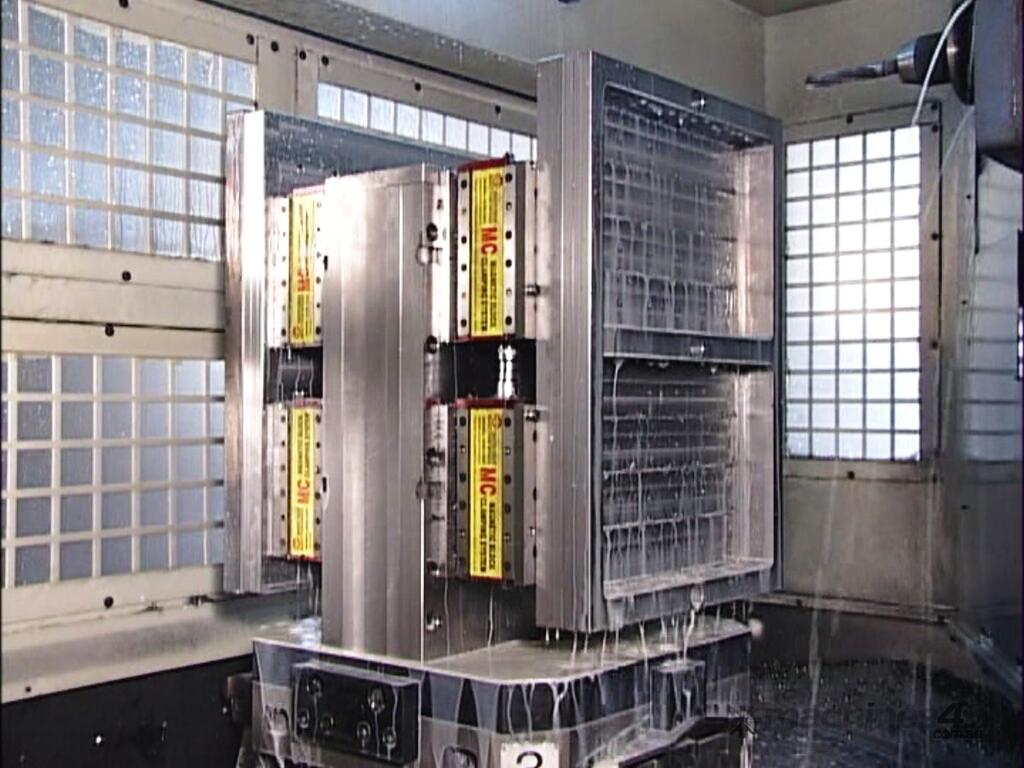

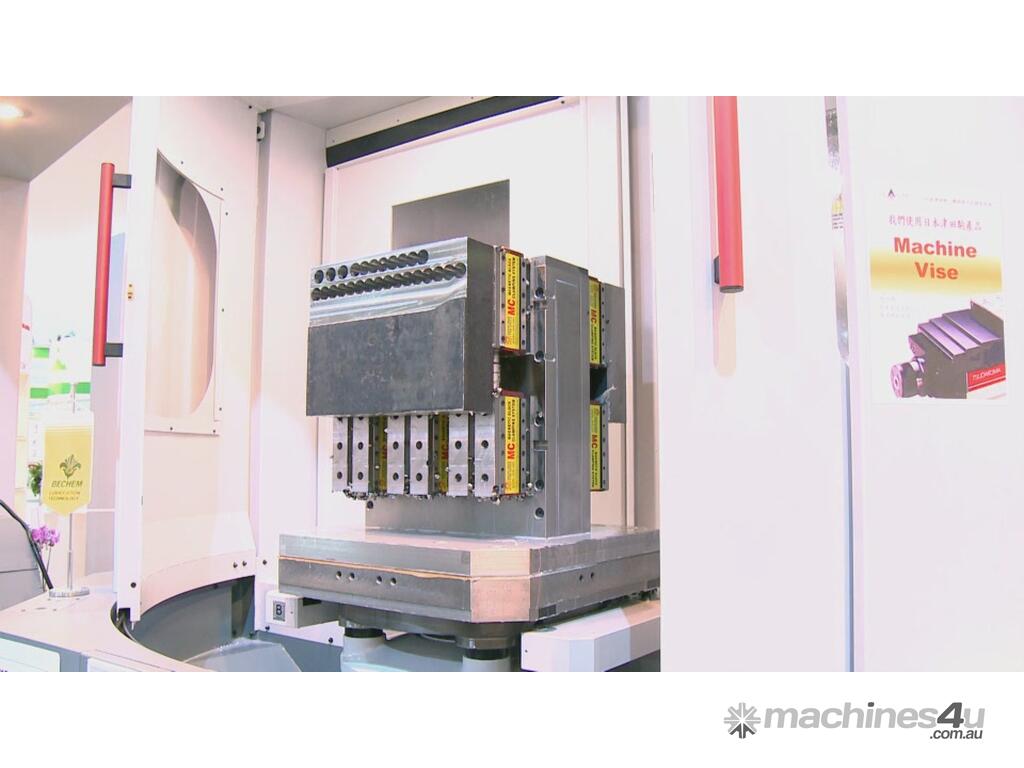

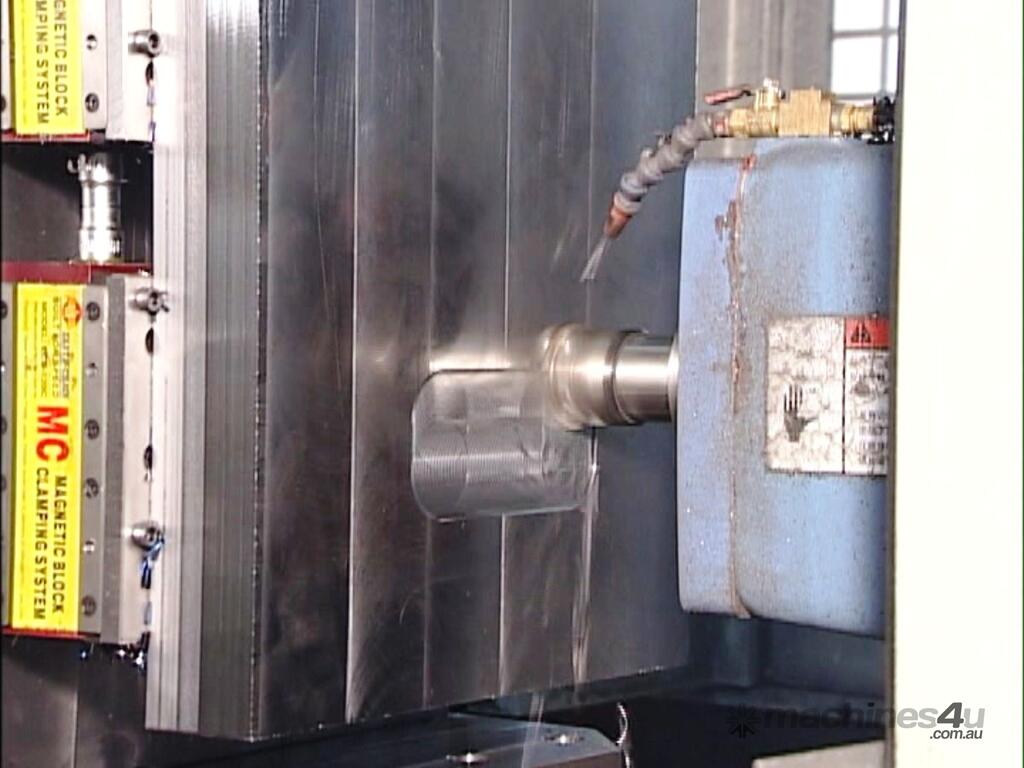

A broader range of functions are available with the addition of Induction Blocks and Spring Blocks

Magnetic work holding simplifies setups and increases flexibility!
Magnetic work holding has a long and successful history in surface grinding applications. Now new advances in magnet technology have made magnetic work holding fast and effective for milling and machining applications too.

If reduced setup times and flexible work holding solutions are important to you, then you should consider magnetic work holding. The MagVISE lineup includes permanent and electro-permanent magnetic work holding solutions designed to handle a wide variety of work pieces and 5 side machining.

What is magnetic work holding best suited for?

MagVISE magnetic work holding securely holds ferrous materials (iron and steel) for all general drilling, milling, boring and other types of machining operations. Warped, round, rough, or irregular work pieces can be quickly secured using magnetic work holding without tricky setups.
The MagVISE system is so flexible, you can even magnetically clamp a traditional vise to your machine bed, and then use the vise to hold non-ferrous material and still reduce set-up time over traditional toe-clamp systems.

What are electro-permanent magnets?

Electro-permanent magnets use a controller that electronically turns the magnet on and off. Electricity is only used to turn the magnet on and off, so a continuous supply of electricity is NOT needed. Magnetic holding power is maintained in the event of a power outage, so electro-permanent magnets are just as safe as permanent (non-electric) ones. Electro-permanent magnets feature increased holding power and reduced size compared to permanent magnets.

Electro-Permanent Magnetic Chucks, Work holders, Blocks and Indexing Tables,
Manual Permanent Magnetic Clamping Blocks,
Permanent Lifting Magnets.

Delivery and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
