Tool Room Quality Precision Lathe - Single or Three Phase

Price starts $15384.00 +GST, Delivered to Adelaide, Brisbane, Perth, Sydney or Melbourne. (Conditions apply)
Manufactured to order. One currently in stock (single phase). Larger or smaller machines can be supplied in both single and 3 phase. Enquire if you are ready to purchase. These are excellent quality, Chinese built machines. Similar Taiwanese machines can be purchased, at estimate double the price.

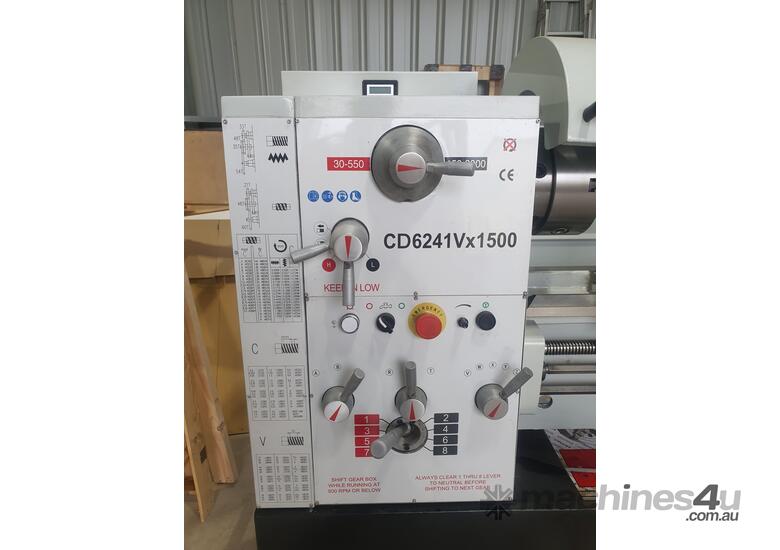

CD6241Vx1500
Get that perfect finish 30-3000 rpm infinitely variable speed.

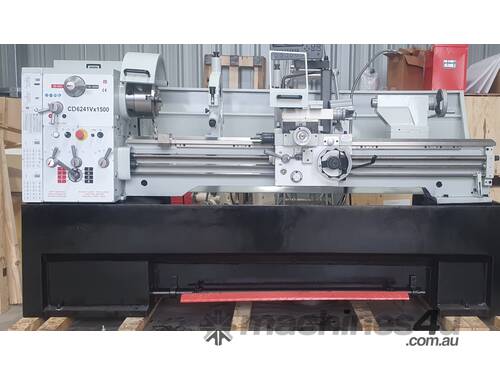

CD6241Vx1500 (SINGLE OR THREE PHASE)
Heavy Duty tool room quality lathe.
SKF SPINDLE BEARINGS AVAILABLE.
5.5 kw SINGLE or 3 phase.
410 swing x 1500 between centres.
30-3000 rpm (Stepless Speed)
Powerful 5.5 kw single phase
3 phase only geared head version also available.

Machine Capacity

Max. swing over bed: 410mm
Max. swing over cross slide: 255mm
Max. swing in gap: 580mm
Width of bed: 250mm
Spindle

Spindle speed range:
LOW: 30-550r/min
HIGH: 150-3000r/min
Spindle bore: 52mm
Spindle nose: 01-6
Taper of spindle bore: MT6
Centre height: 205mm
Thread Cutting

Threads metric pitches: 0.2-14mm (39 kinds)
Threads imperial pitches: 2-72 T.P.I (45 kinds)
Threads diametral pitches: 8-44 D.P. (21 kinds)
Threads module pitches: 0.3-3.5M.P. (18 kinds)
Range of Feeds

Compound rest travel: 140mm
Cross slide travel: 210mm
Max section of tool: 20x20mm
Longitudinal feeds range: 0.05-1.7 mm/rev
Cross feeds range: 0.025-0.85mm/rev
Tailstock Sleeve

External diameter: 50mm
Max. travel: 120mm
Taper of bore: MT4
Motor

Main motor power: 5.5KW (1PH or 3PH)
Coolant pump power: 120W (1PH)
Machine Dimensions

Packing size (LxWxH): 2575x926x1635mm
Net weight before attachments: 1550Kg
Gross weight: 1800Kg
