Total Control Systems 682-15AF8AL3 Piston Positive Displacement Flow Meter Fuel Metering Diesel etc

Name: Total Control Systems 682-15AF8AL3 Piston Positive Displacement Flow Meter Fuel Metering Diesel etc
Brand: Total Control Systems VEEDER-ROOT
SKU: 883627
Price: 2181 AUD
Availability: InStock

OTTOWAY, SA - Delivers Nationally

$2,182 AUD($2,400 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Wondering about delivery costs?
Get your instant quote today!

120+ million km

Freight posted per year

80,000+

Loads posted per year

Get Instant Transport Quote

Specifications

Condition:

Used

Category:

Flow Meter

Make:

TOTAL CONTROL SYSTEMS VEEDER-ROOT

Model:

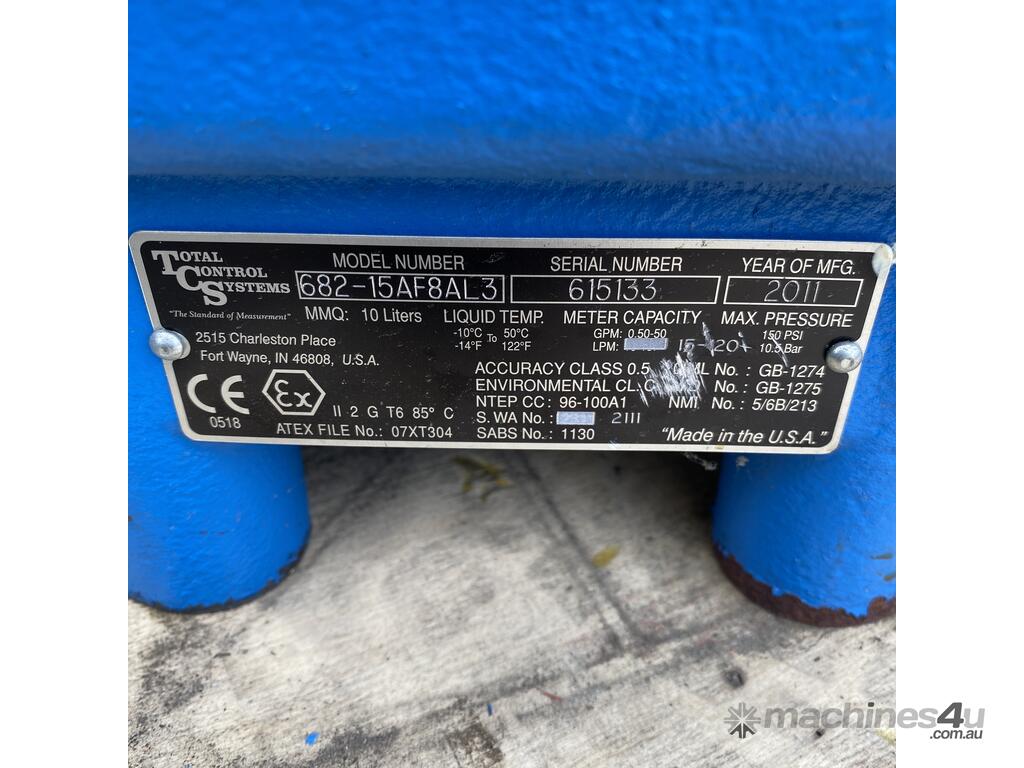

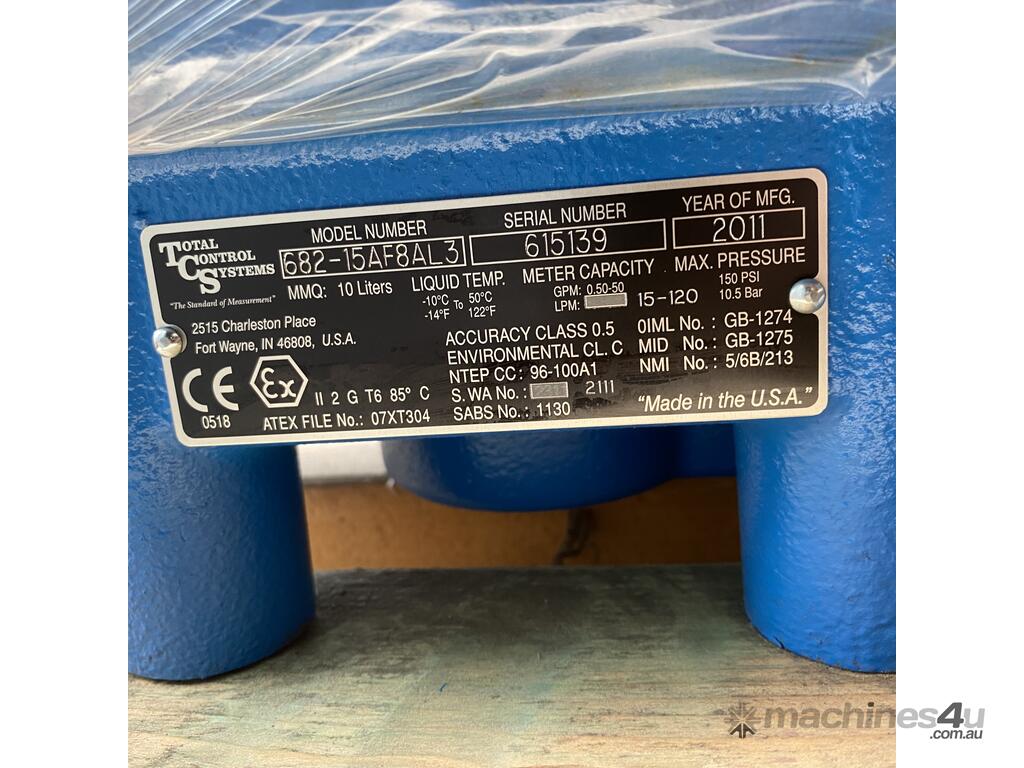

682-15-2-A / 682-15AF8AL3

Year:

Not specified

Member Since: Oct 2015

Gold Member

Listings: 1149

Description

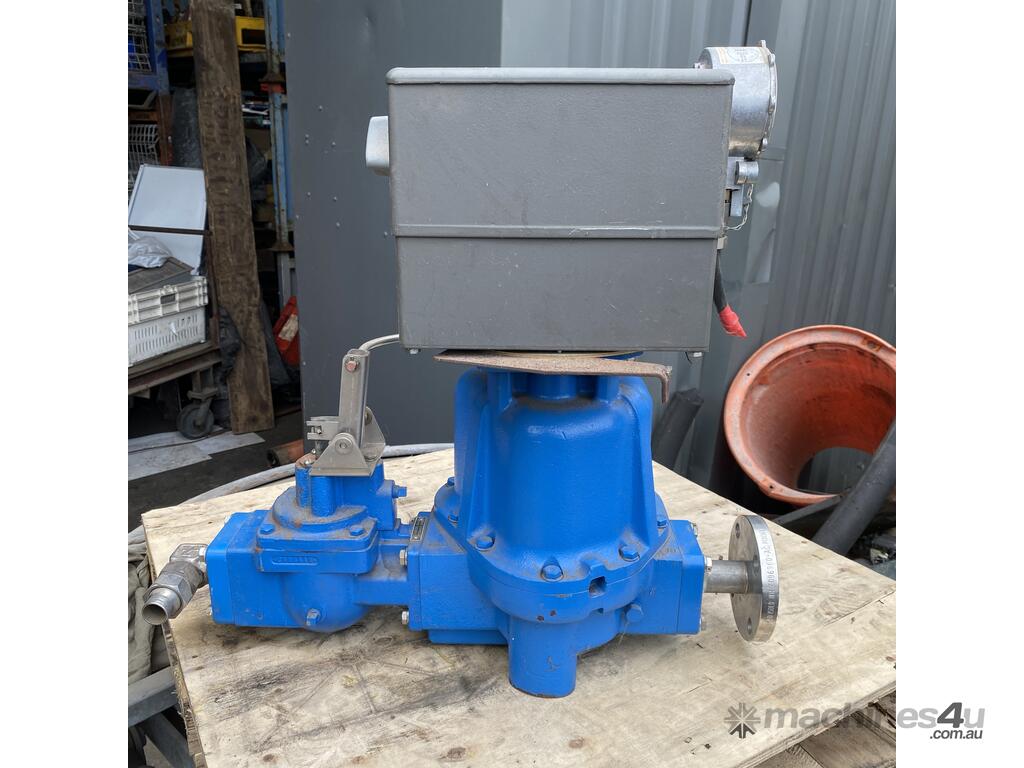

VEEDER-ROOT Total Control Systems -A Piston Positive Displacement Flow Meter

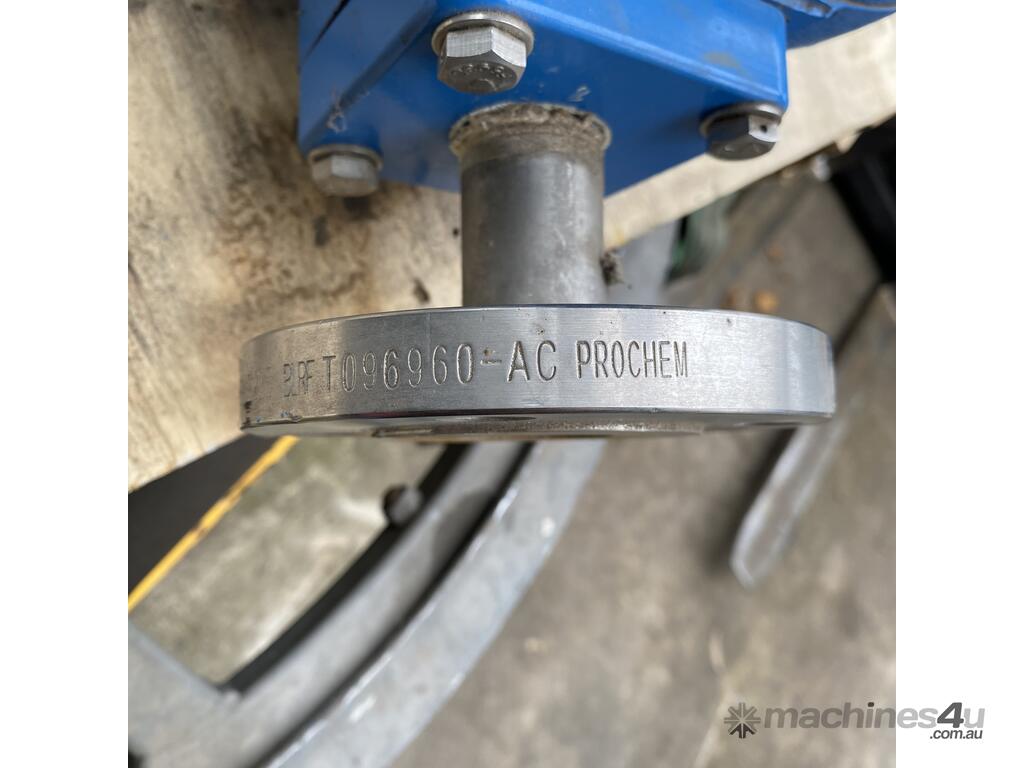

Three units have adapters on the flange to take the size down to 1 inch.
One unit has an adapter on the flange to take the size up to 2 inch.

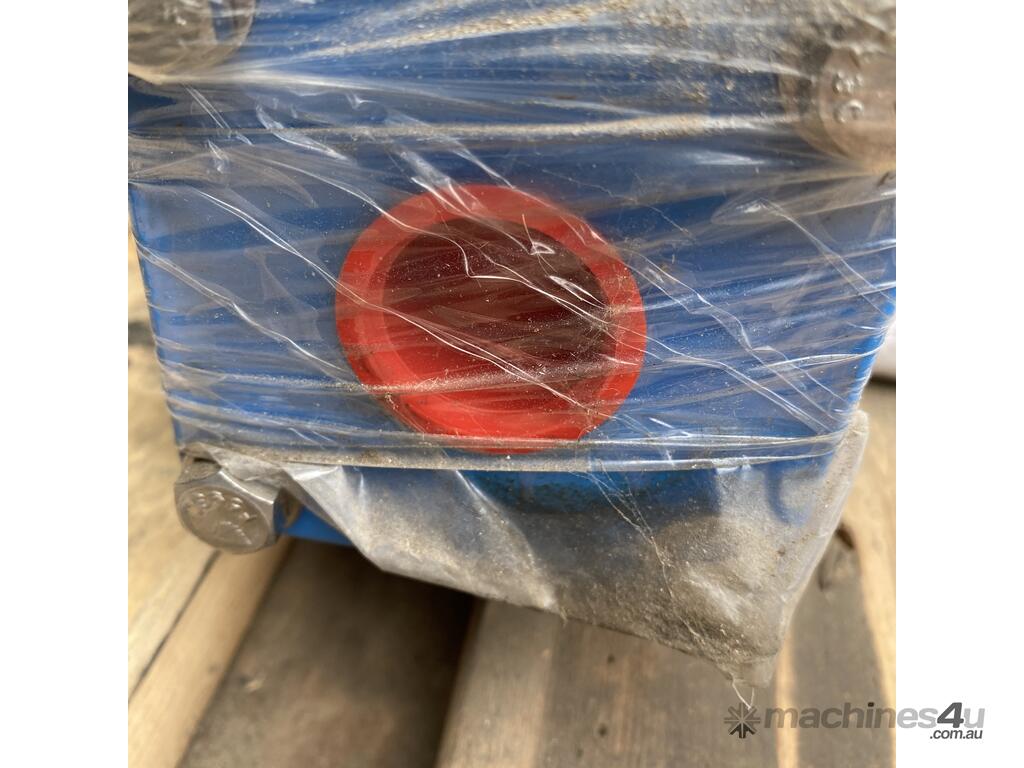

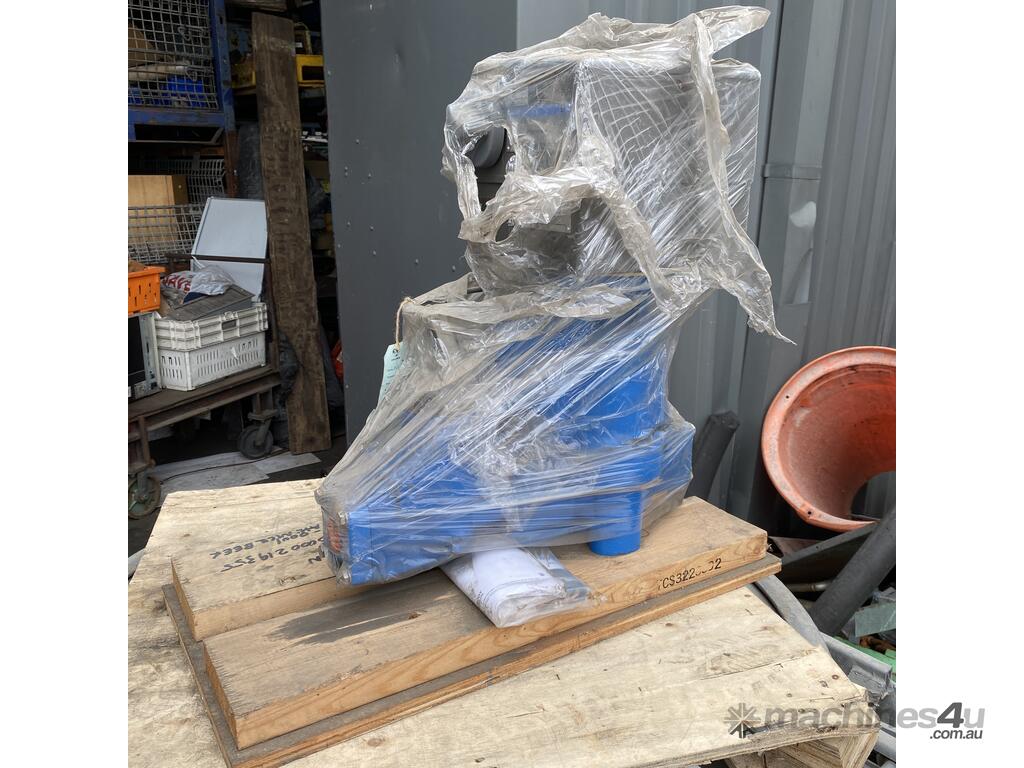

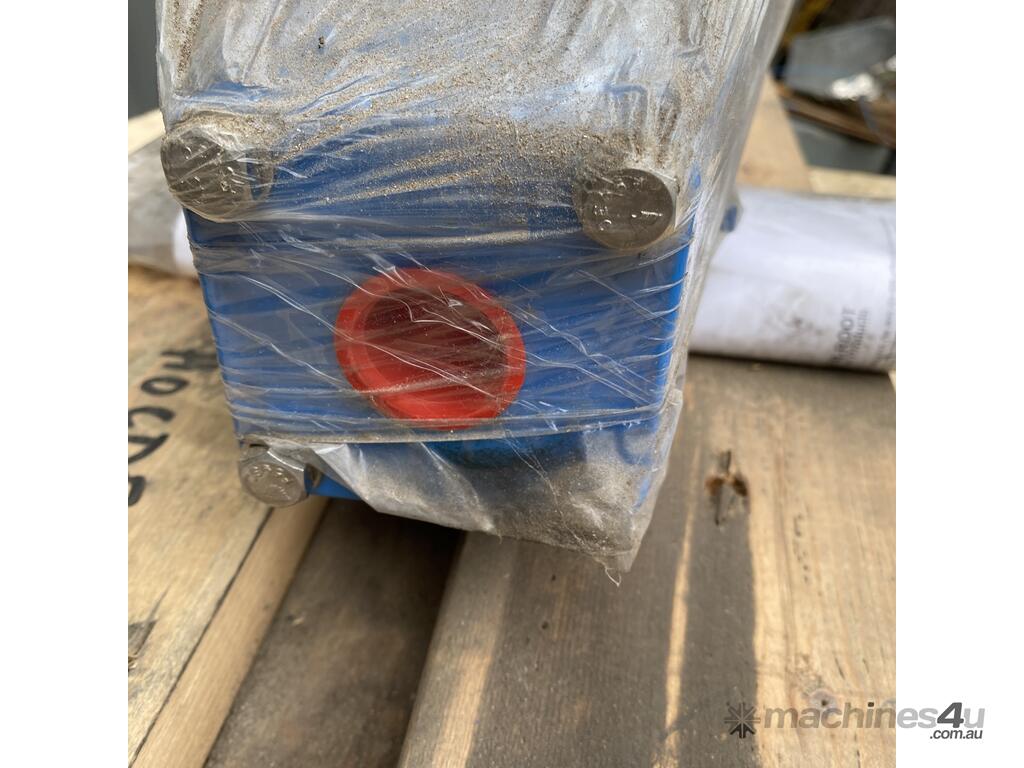

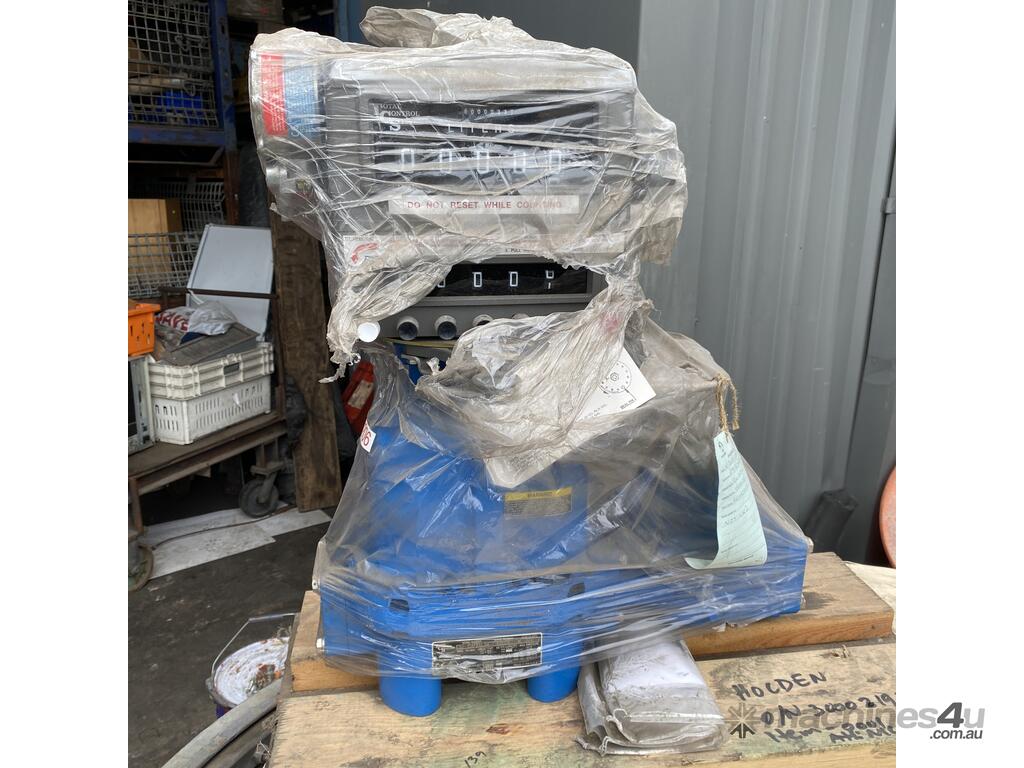

We also have a NEW UNUSED UNIT AVAILABLE, please enquire, shown in last lot of photos.

Fuel Diesel Petrol Solvents Metering Totalizing Flow Meter
1-1/2 in. NPT, 50 GPM, 150 PSI, Meter and Register, With Veeder Root Registration

7889 METER PRESET K0 50

NTEP CC NO. 04-070 METER REGISTER

The TCS 682 reciprocating piston flow meter is a true positive displacement meter that has a unique inline design consisting of three reciprocating pistons operating within their respective measuring chambers. Each piston works in a manner similar to an automobile engine. The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it.

The valve pivot drives a sliding valve from piston to piston as a known amount of product flows through each cylindrical bore, controlling the sequence of events in a smooth mechanical motion. This smooth mechanical motion is then transferred through the drive shaft to the register.
