New wacker neuson Site Dumper for sale - Track Dumpers

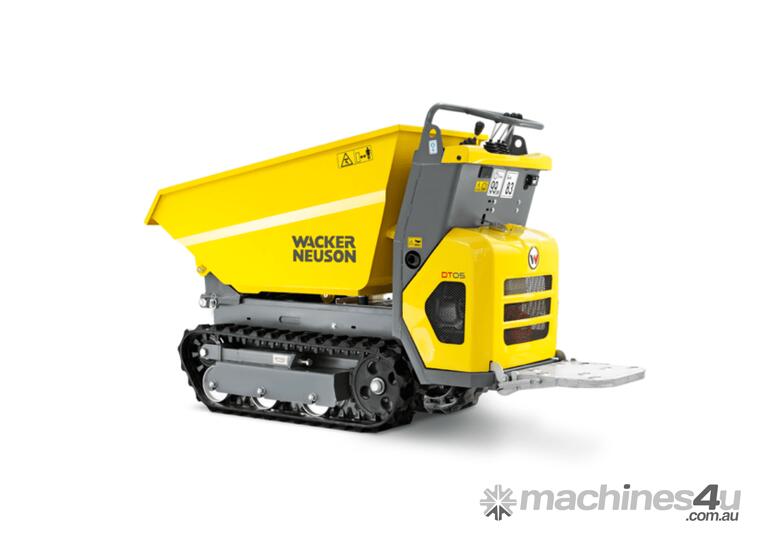

Wacker Neuson’s track dumper DT05 can be maneuvered on any surface with centimeter-accuracy, thanks to its compact dimensions and precision control. It really comes into its own where space is very tight and agility is a must.
The hydrostatic drive enables easy and comfortable operation.
Powerful engines (gasoline or diesel); 2-stage speed adjustment.
Robust crawler design guarantees long service life with low wear and tear.
Optimal ratio between low net weight and maximum payload.

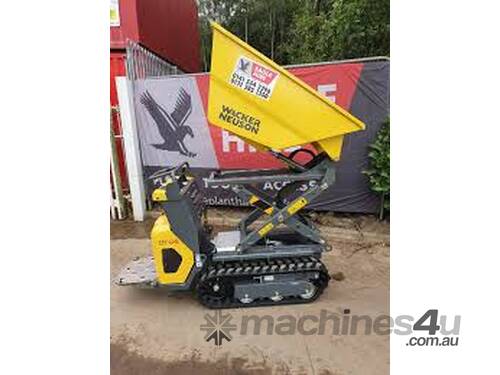

Ultra-compact dimensions (66 cm), ideal for working in confined spaces and making its way through standard doors; high ground clearance. Optional high-tipping skip available.


Diesel engine

Dual variable displacement pump
High pressure lines from the pump to the motor
Distributor transmission/axle

Hydrostatic drive system
Simply start and off you go: Thanks to the hydrostatic drive system, no frequent gear changing is required and the operator can focus entirely on his work. Ideal for rental parks or frequently changing operators.

Hydraulically activated, pilot-controlled forward + reverse travel lever for sensitive operation
Hydraulically activated drive system and work hydraulics can be operated independently from each other
Low service and maintenance costs thanks to the low-wear drive system

Maintenance
Valuable time can be saved during maintenance and therefore money can also be saved. The better and faster the access to the hydraulics or engine are, the faster the machine is back in application.

Good service access in order to safely take care of daily control procedures
Quick access to the maintenance points
High degree of safety due to the lockable engine hood

Always constant propulsion,
because the suspension-mounted rollers adapt to the underground.

Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.

DT05 Standard components
General

Payload max. 500 kg
Length / Width / Height: 1.630 / 660 / 1.185 mm
Hour meter
Engine hood and operator platform
Without skip

DT05 P (Gasoline Engine)
Air-cooled Honda gasoline engine, type GX 200, 1-cylinder / 163 ccm, max. power output 4.5 kW (6.1 HP), rated speed 3.600 min-1
With pull starter cord

DT05 D (Diesel Engine)
YANMAR diesel engine L70N6, 6.6 PS
With E-starter

Hydraulic
Hydrostatic drive with two travel speeds
3 gear pumps (25 l/min)
Hydrostatic parking brake
