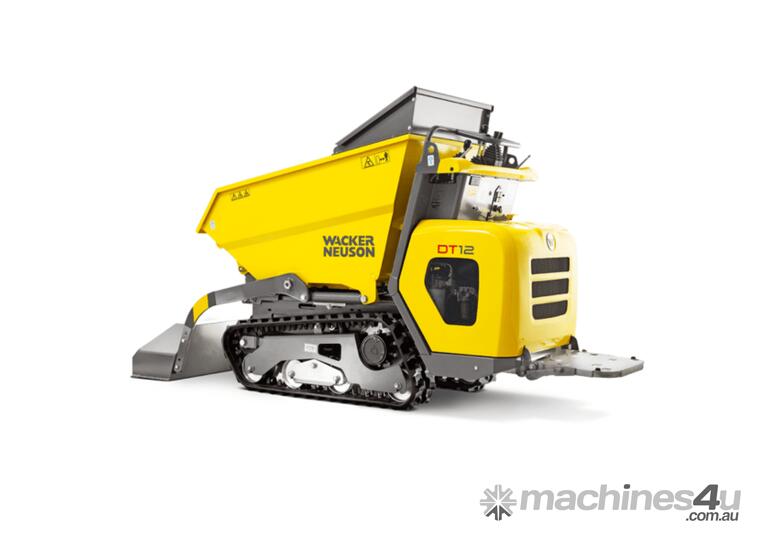

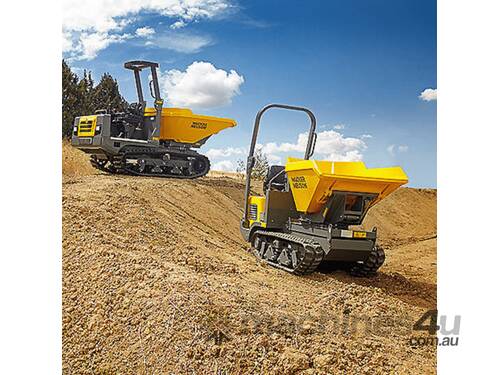

The track dumper DT 12 is the ideal transporter on all types of soil, such as gravel or sand, as well as boggy or hilly terrain. The tailor-made cooling system guarantees safe operation of the machine in high-temperature conditions.
The hydrostatic drive enables easy and comfortable operation.
Robust crawler design guarantees long service life with low wear and tear.
The one-piece engine hatch and optimal configuration of the service points make daily maintenance easy.
The rubber tracks and optimum weight distribution reduce the ground pressure and prevent damage to delicate surfaces.
Optional self-loading system and high-tipping skip available.
Diesel engine
Dual variable displacement pump
High pressure lines from the pump to the motor
Distributor transmission/axle
Hydrostatic drive system
Simply start and off you go: Thanks to the hydrostatic drive system, no frequent gear changing is required and the operator can focus entirely on his work. Ideal for rental parks or frequently changing operators.
Hydraulically activated, pilot-controlled forward + reverse travel lever for sensitive operation
Two driving positions: optionally sensitive with a high tractive force or fast
Hydraulically activated drive system and work hydraulics can be operated independently from each other
Low service and maintenance costs thanks to the low-wear drive system
Maintenance
Valuable time can be saved during maintenance and therefore money can also be saved. The better and faster the access to the hydraulics or engine are, the faster the machine is back in application.
Good service access in order to safely take care of daily control procedures
Quick access to the maintenance points
High degree of safety due to the lockable engine hood
Always constant propulsion,
because the suspension-mounted rollers adapt to the underground.
DT12 Standard components
General
Safe payload max. 1.200 kg
Length / Width / Height: 1.823 / 790 / 1.303 mm
Operating hour meter
Engine cover and running board
Without skip
Engine
Kubota-diesel engine, type D-722, 3-cylinder / 719 ccm, max. power output 12 kW (16,32 HP), rated speed 2.700 min-1
Hydraulic
Hydrostatic drive with one speed
2 variable pumps and 1 gear pum (35 l/min)
Hydrostatic parking brake
Hydraulic pilot control
