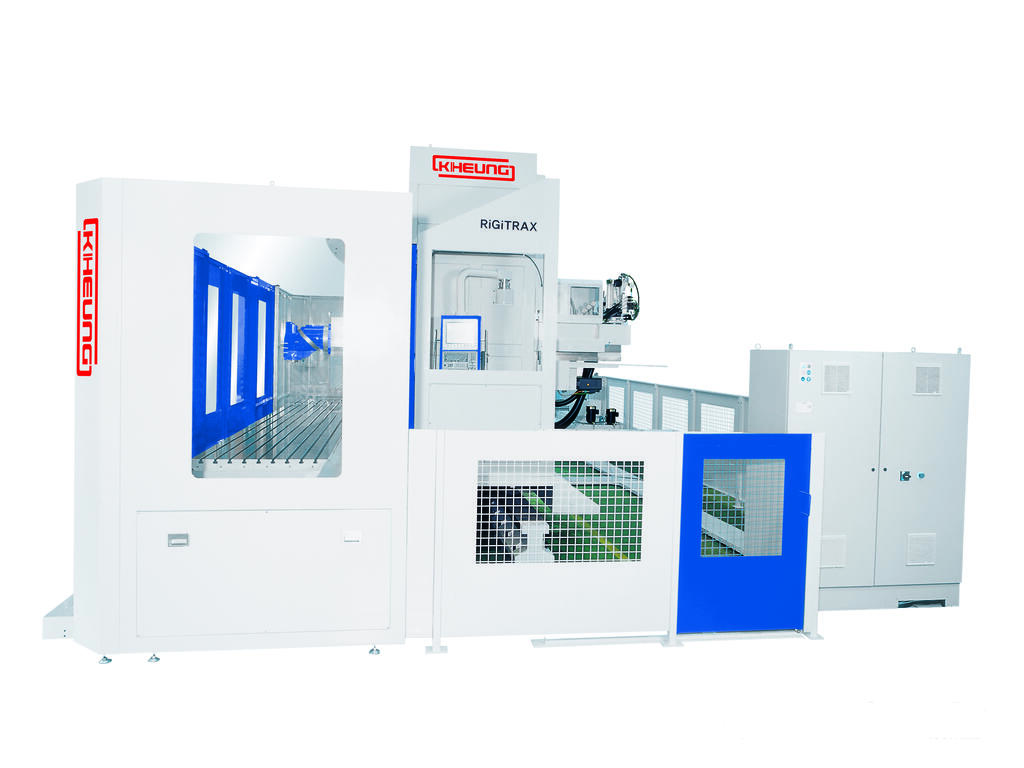

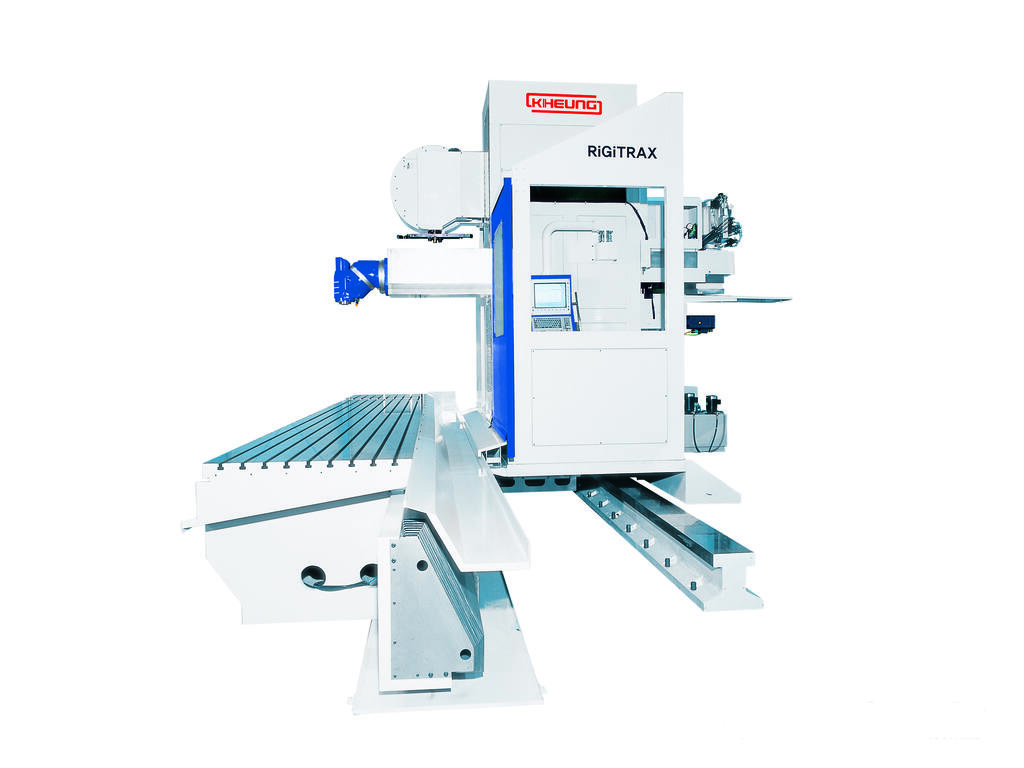

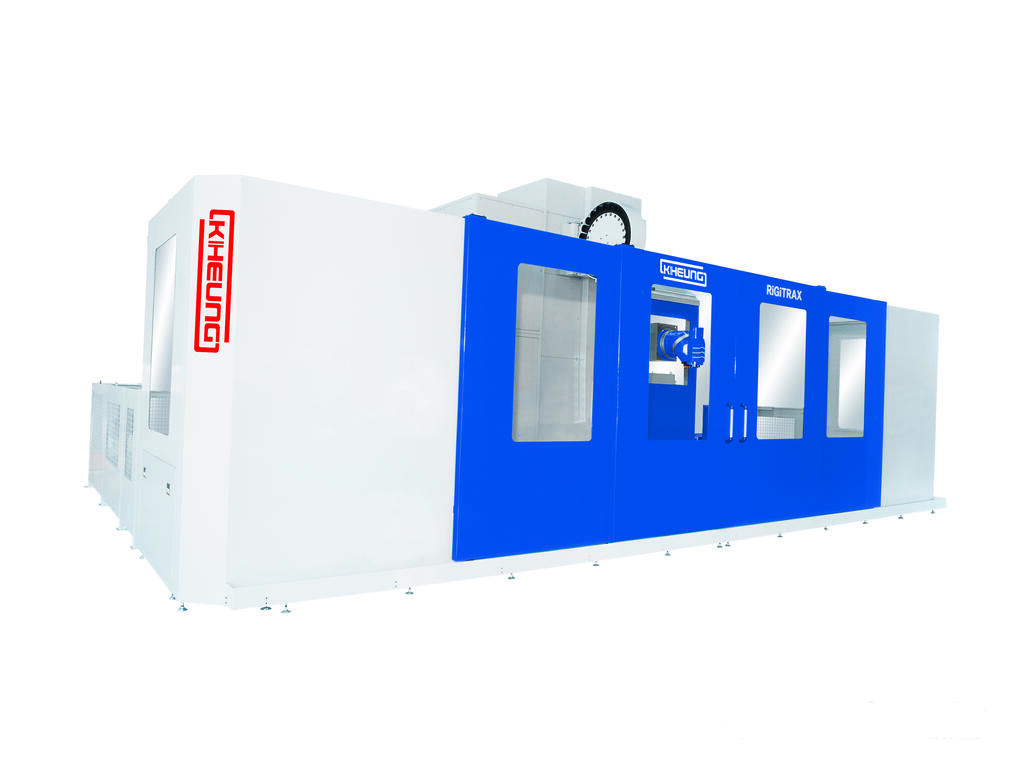

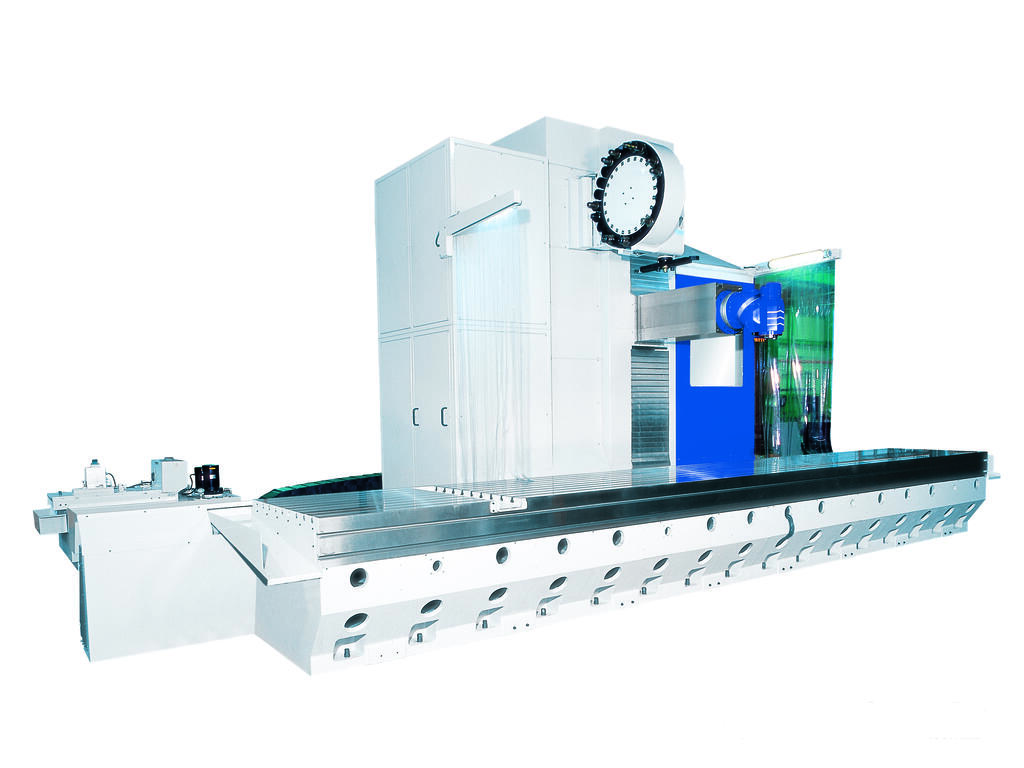

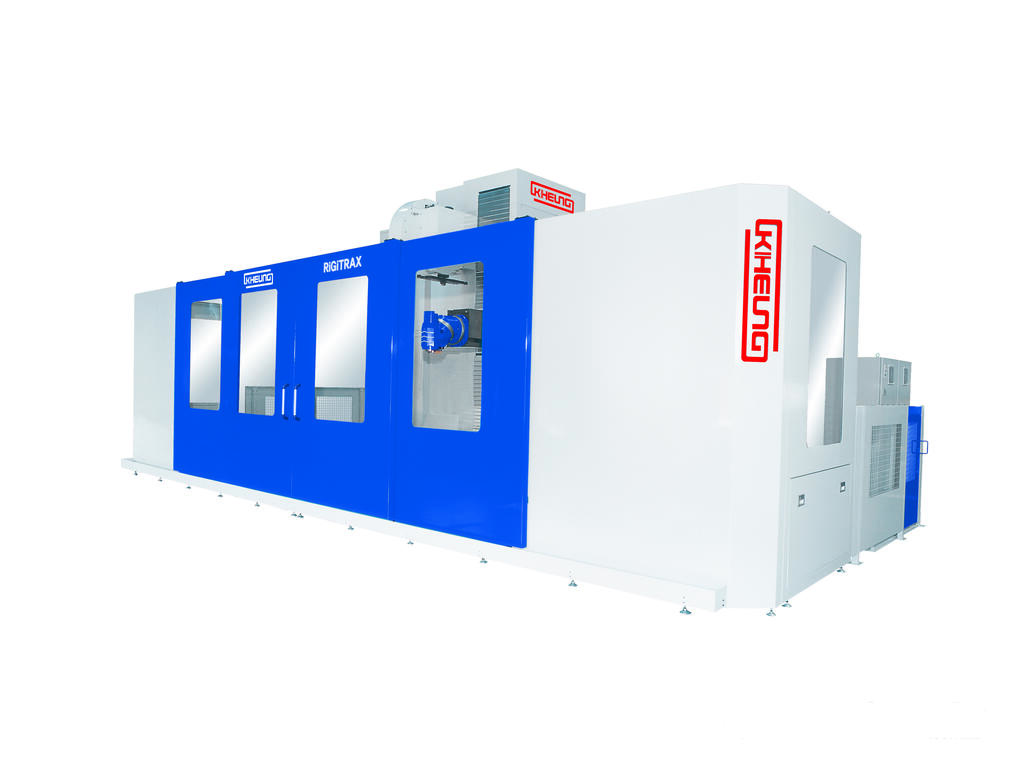

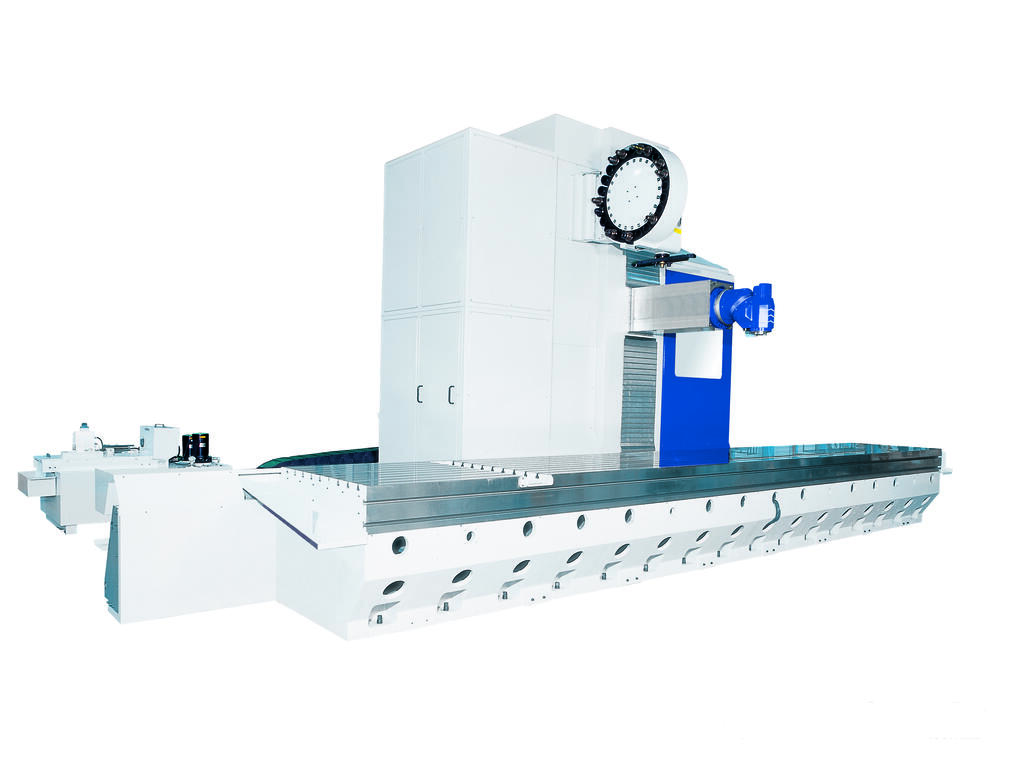

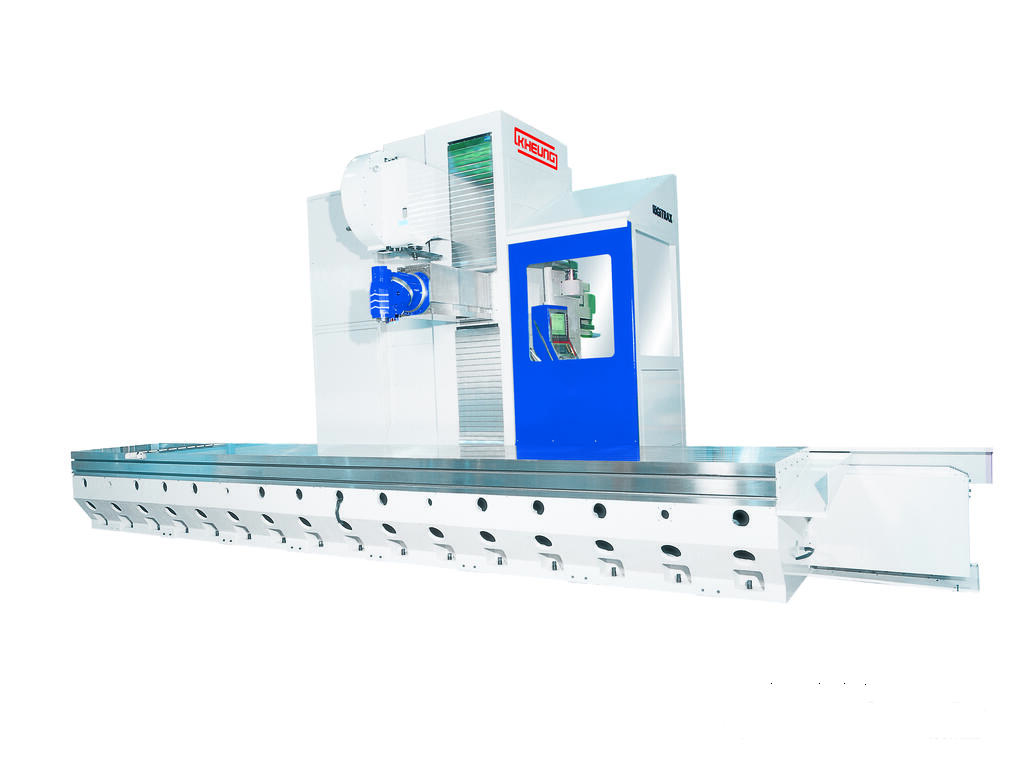

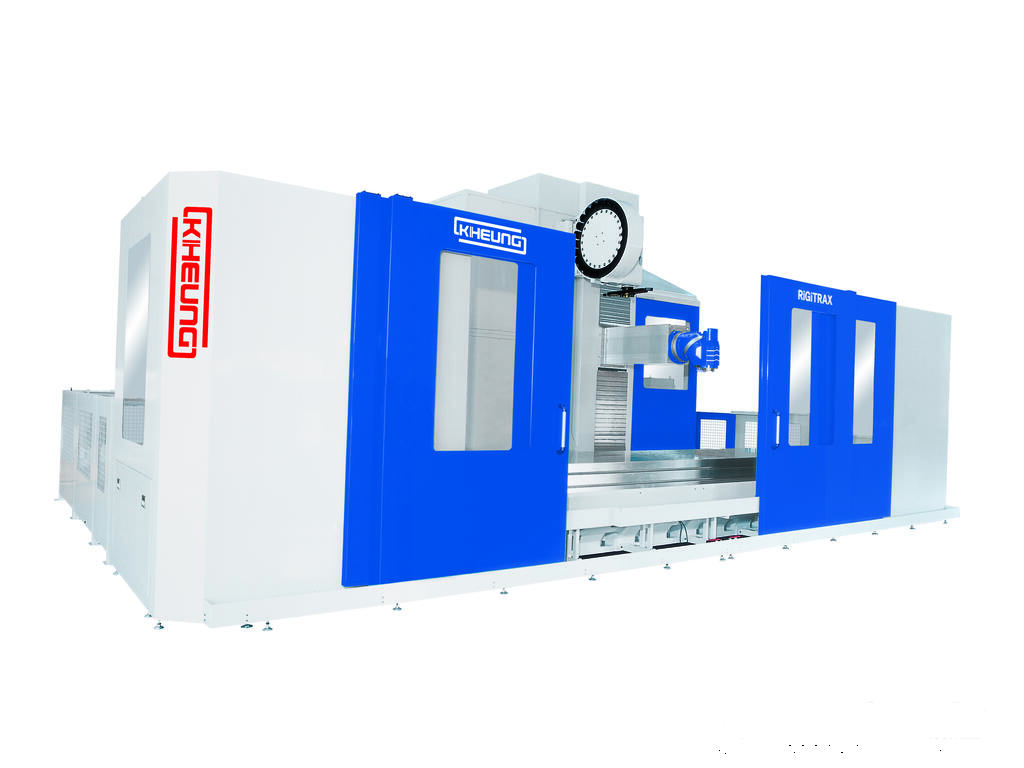

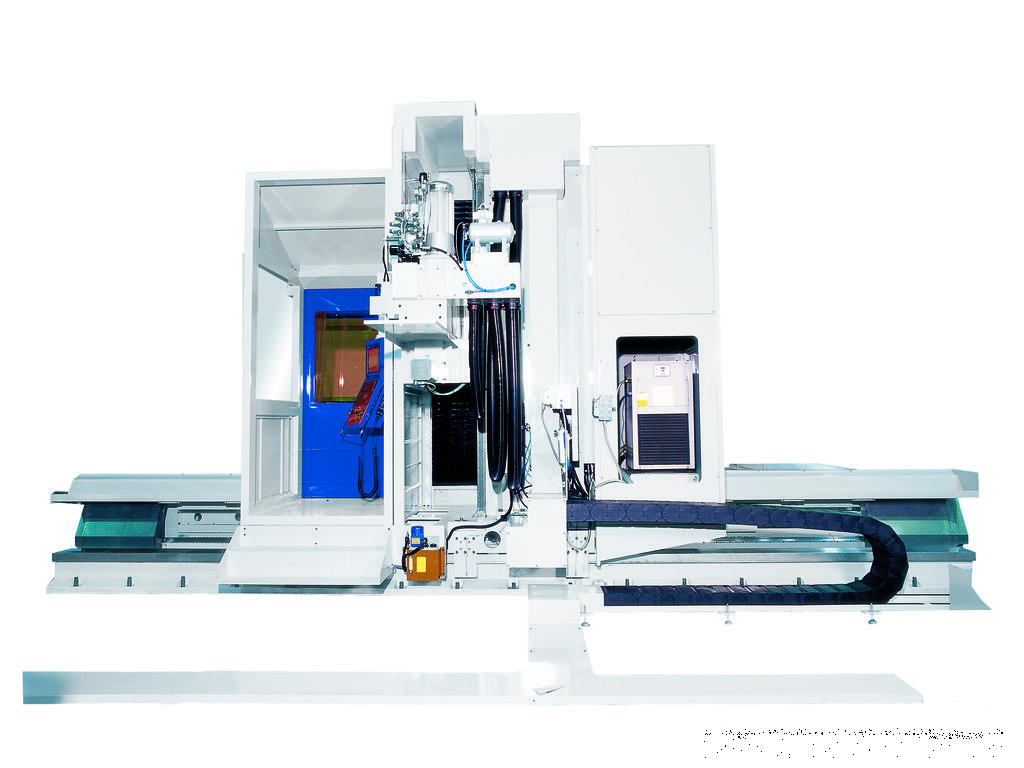

RiGiTRAX Travelling Column Universal Machining Centre manufactured by Kiheung Machinery Co in South Korea
This machine can also be used for production Shuttle operations by using the quickly installed work space "partition"
SPECIFICATIONS:
Table Surface........................................5000 - 12000mm Long x 1150 or 1300mm Wide
TRAVELS
Longitudinal Travel................................ 3000- 10000 mm
Cross Travel..........................................1350 -1500mm
Vertical Travel...................................... 1350- 2000mm
Axis Feedrate.........................................8000mm/min
Rapid Feedrate.......................................16000 mm/min
Spindle Taper........................................50 BT
Spindle Speed........................................4000 rpm x 2 steps (0-1000 / 1001-4000)
Spindle Drive Motor................................28/42kw: Rated speed 1000rpm
Feed Drive Motor....................................Axis 2x70Nm, YAxis 27 Nm ,ZAxis 50 Nm
Machine net Weight..................................44-58 ton
STANDARD EQUIPMENT
•Heidenhain iTNC530 BF150 15 inch LCD with smart TNC & Mouse pad & DXF converter
•.Heidenhain feedback Linear Scales
•4000 spindle rpm - Infinitely variable
•Ram with ZF gear box & Oil Cooler
•Spindle Orientation for Rigid Tapping
•Manual Head - Manual positioning of upper head & lower head through 360?
•Hydraulic tool clamp/unclamp with foot switch
•Lift up link type chip conveyor in the rear of the bed
•Hydraulic counter weight balance with French Olear accumulator
•Heidenhain DA300 compressed air unit to provide clean & dry air to Heidenhain linear scales
•Preparation of Heidenhain TT140 tool touch probe & supply TT140 cable
OPTIONAL EQUIPMENT
Automatic Tool Changer
CTS (Coolant through spindle
Lift up link type chip conveyor in front of table
A2 head , DIN69871- Automatic 2 positioning (horizontal/vertical
A4 head ISO 50, DIN69871.Universal bi-rotary automatic 144x144 positioning head
KIHEUNG use only High quality European components in their machines
