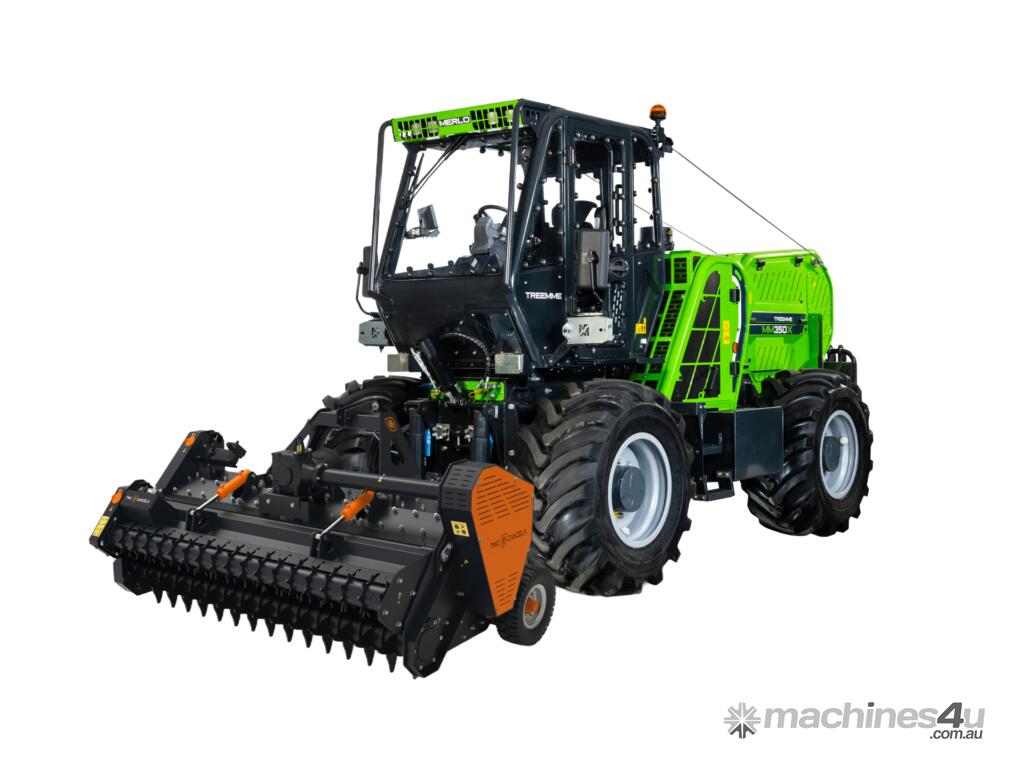

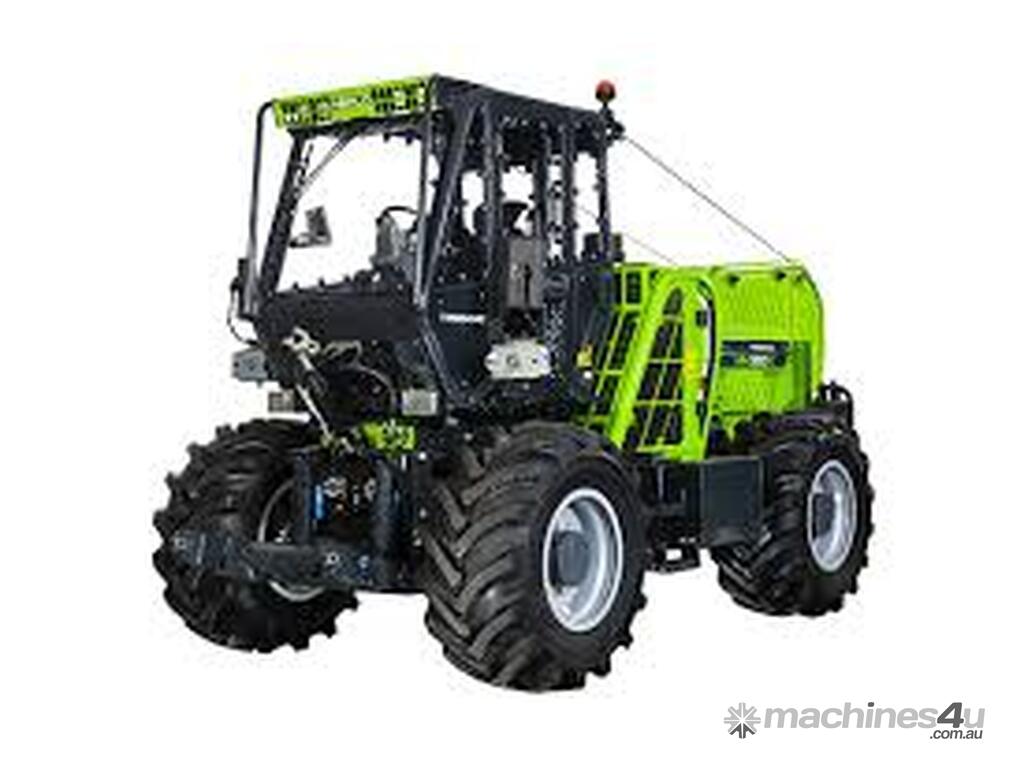

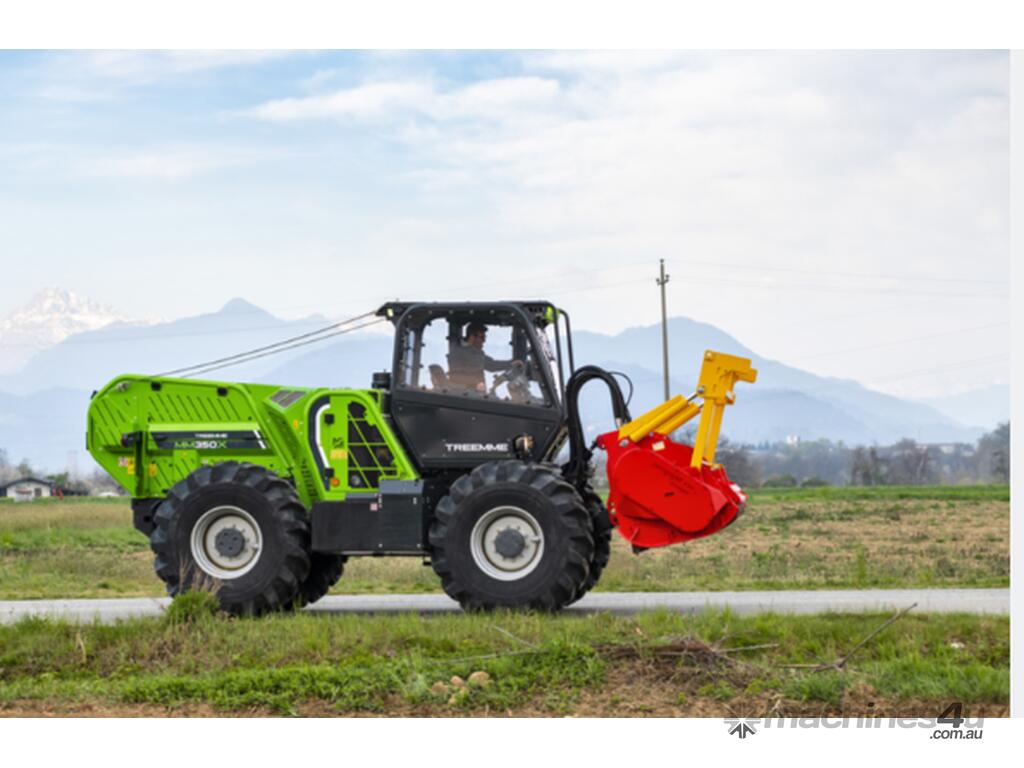

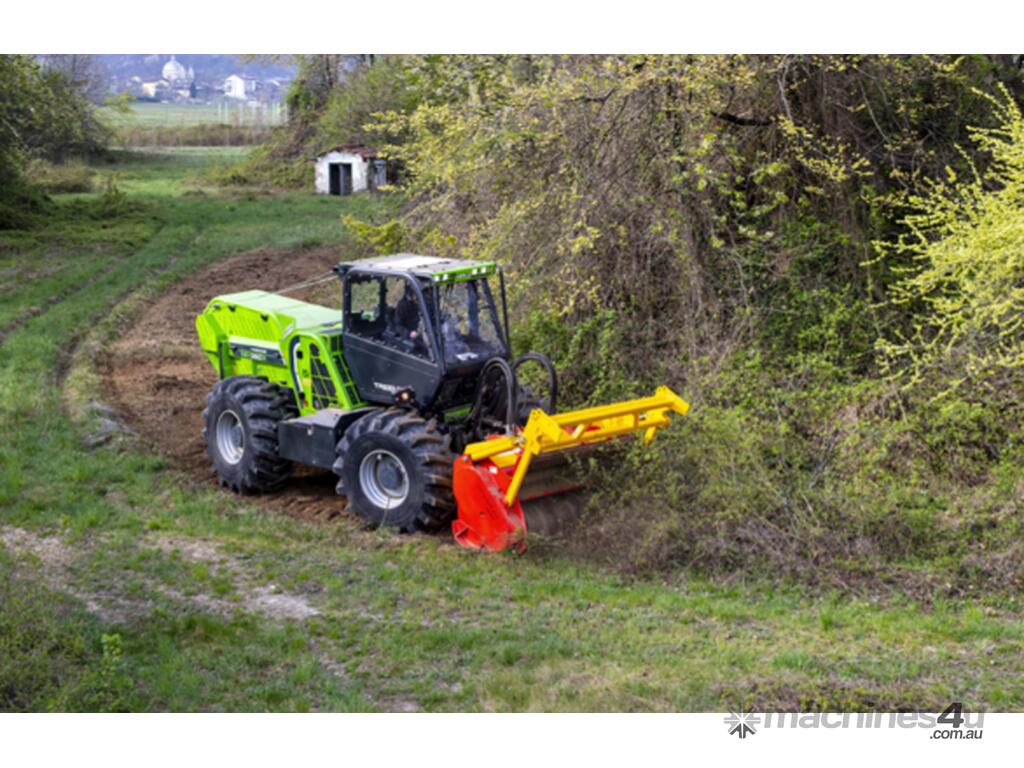

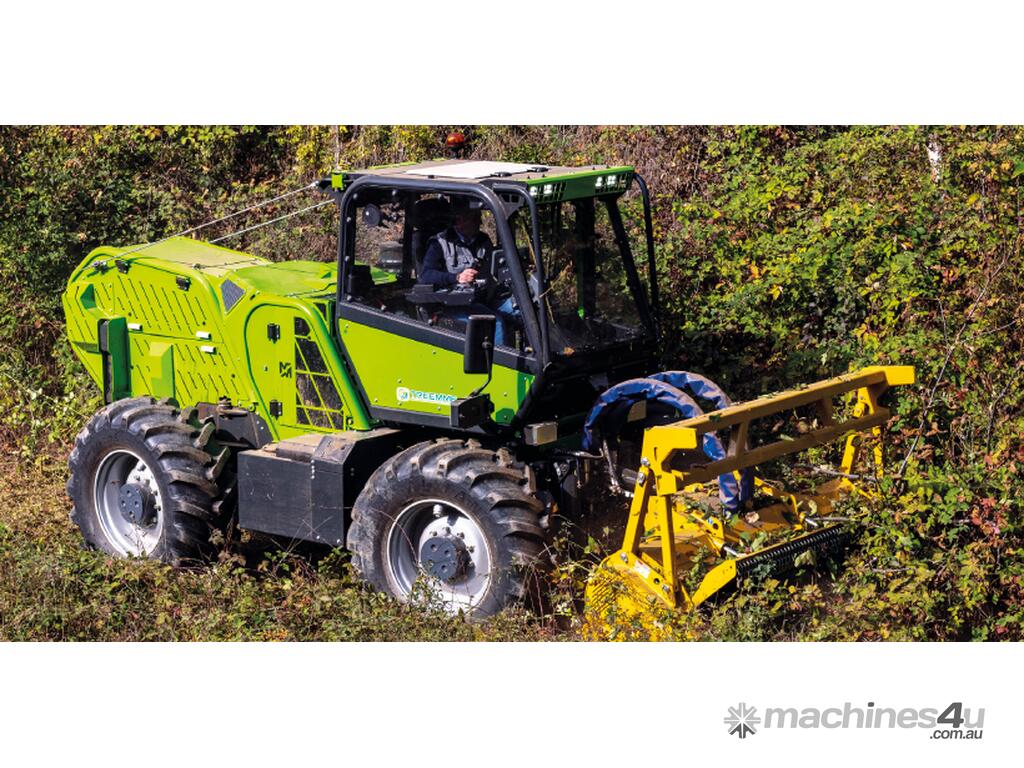

Treemme MM200B Forestry Machines

ENGINE
Deutz 6 -cylinder turbo diesel intercooler common rail, 150 kW, 2300 rpm, displacement 6.1 l, Tier III A,
liquid-cooled, electronic rpm control, on silent blocks.
Air flow inversion for dust removal from the radiator grille.

TRANSMISSION
Hydrostatic, with variable displacement pump and motor, electronic control, two-speed gearbox with electro-hydraulic
engagement control.
Two displacement systems:
1) Automotive road type. Combined variation of engine rpm and forward speed through accelerator pedal;
2) Work. Engine rpm control by hand accelerator and forward speed control by accelerator pedal or potentiometer on joystick.
Speed:
1st speed (hare): 0-40 km/h forward/reverse;
2nd speed (turtle): 0-15 km/h forward/reverse;
3rd speed (duble turtle): 0-5 km/h forward/reverse in Work mode only.

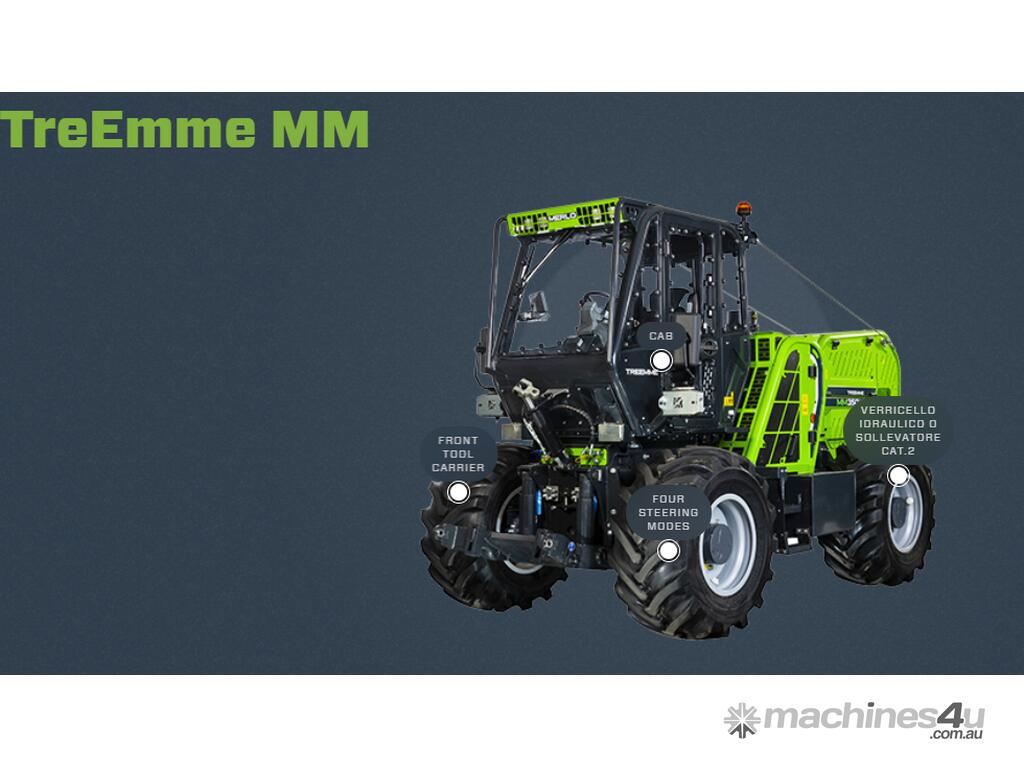

STEERING
Four different steering modes:
- on front wheels;
- pivot steering;
- crab steering;
- on the rear wheels (OPT).
DRIVE
Permanent 4-wheel drive

AXLES
Front axle: Dana 223 type, fixed with reducers, built-in steering cylinders and planetary gearboxes.
Rear axle: Dana 212 type, oscillating with reducers, built-in steering cylinders and planetary gearboxes.
Full lock of the two electro-hydraulically controlled differentials.
SERVICE BRAKE
Wet discs, acting outside the differentials.
Foot pedal control, with double pump in the cab for dual circuit brake booster control.
PARKING BRAKE
Negative type, with hydraulic control, acting outside the differential of the front axle.

CHASSIS
High-resistance steel

TANKS
Hydraulic oil 200 l, with cooling.
Diesel 260 l.
Coolant 32 l.
Engine oil 16 l.

SERVICE HYDRAULIC SYSTEM
No. 1 “Load Sensing” pump for auxiliary controls.
Operating pressure: 230 bar. Flow and return filters.
Handler and 3rd point boom on proportional control distributor.
No. 1 Service line on ON-OFF control distributor.

FRONT TOOLBOX TRANSMISSION
Hydraulic with closed loop variable displacement pump. Maximum flow rate 285 l/min.
Maximum valve calibration pressure 420 bar.

DEVICES AND ACCESSORIES ON REQUEST
Rear pull winch with towing force from 7.5 tonnes to 12.5 tonnes.
Rear axle oscillation lock.
Floating function and S/A of the front handler that can be operated by means of a push button on joystick.
Right side wipers.
Second removable beacon.
Arctic climate starting device (engine coolant preheating).
Use of biodegradable hydraulic oil, type Panolin HP46.
Air compressor for cleaning radiators.
Rear-view camera.
UNLADEN WEIGHT
MM200B: 8.000 kg.
TYPE APPROVALS AND CERTIFICATIONS
Forestry machine according to ISO 11850.
