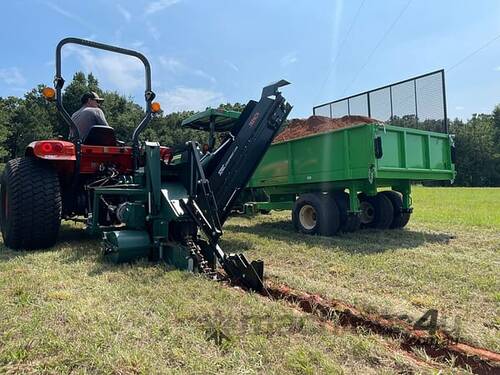

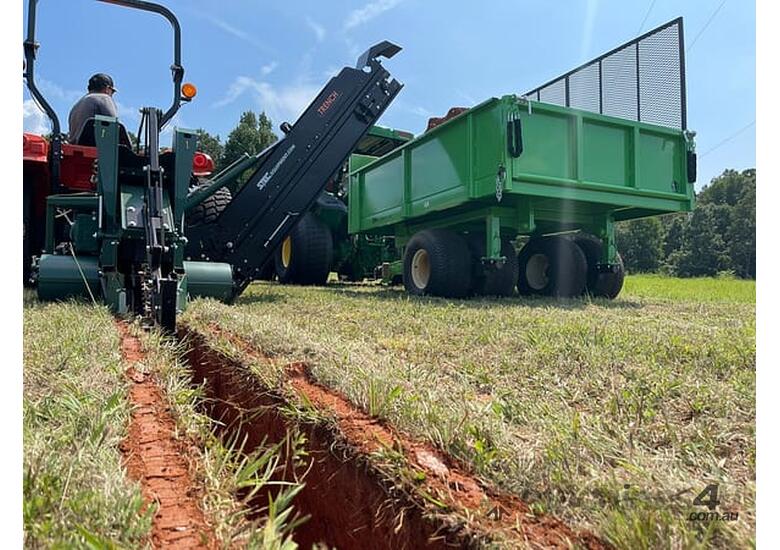

The TrenchIt TCT Pro Trencher has been designed specifically for the sports and turf industries drainage and irrigation projects. It is a chain trencher that provides a complete soil clear up system and a clean tidy trench. The soil is elevated up using the conveyor system and then deposited onto a running vehicle alongside the machine, thus ensuring clean up time is minimal. This model can also be easily converted into a conventional trencher, with the conveyor system being easily removed. Also being a three-point linkage the trencher can be easily taken off to fit other implements.
ADVANTAGES
•This is a PTO driven trencher.
•Driven via a reduction gearbox and chain drive this allows an optimum digging speed.
•Versatile and powerful trencher. It can be used with elevating conveyor system or it can be used as a conventional trencher by removing elevating conveyor and placing soil neatly to one side of machine.
•It is designed for tractors with horsepower (HP) from 50 -100HP with hydrostatic transmission or creep gearbox transmission that does not exceed 0.3 kph or 0.12 miles/hr.
•Low maintenance machine, built to last and made in New Zealand.
FEATURES
•DIGGING DEPTH: 1000mm standard boom, 800mm, 1200mm boom – Extra options
•DIGGING WIDTH: 100mm standard, 150, 200, 250, 300mm – Extra options
•WEAR PARTS: Quality USA trenching parts, with tungsten carbide cutting teeth.
•SLIP CLUTCH: This protects tractor and trencher from undue shock.
•CRUMMER BAR: Grades trench as you go.
•CONVEYOR SYSTEM: Catches soil directed via a plate on the trencher, elevating it onto a small vehicle or trailer running alongside, leaving a clean surface. It can be easily detached.
EXTRA OPTIONS
•CRUMMER CHUTE: Feeds pipe as you go
•SPINNING GENIE: Unwinds pipe and feeds it into crummer chute
•LASER MOUNTS: Attached to crummer bar for automatic or manual laser control
•LASER EQUIPMENT: Available for laser setup
