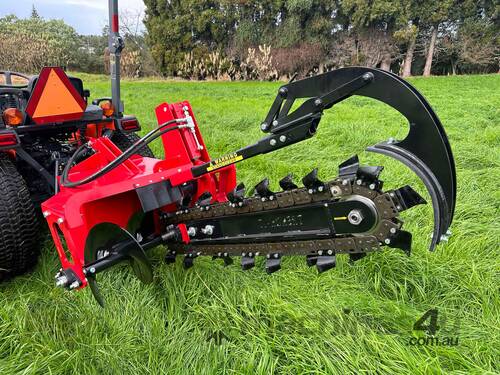

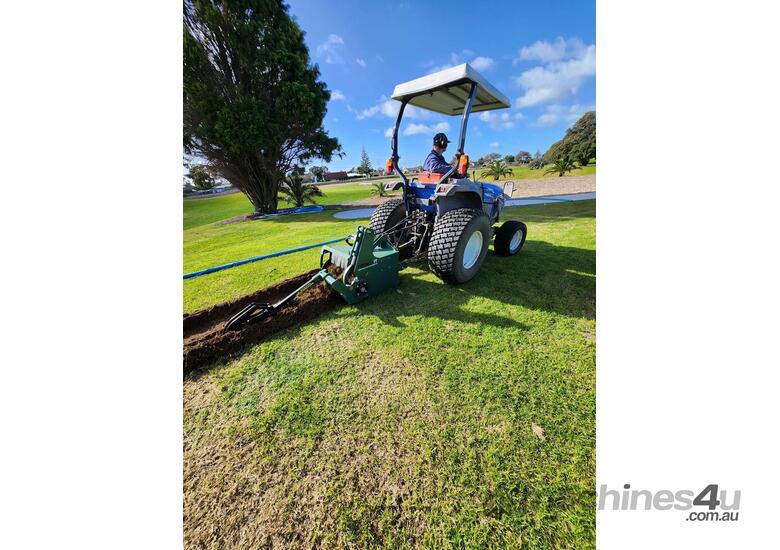

The TrenchIt TPL Trencher is rugged, strong and a powerful three point linkage PTO driven trencher designed for the contractor, horticultural blocks, agricultural owners, electricians & plumbers.
What you need:
• The TPL trencher is designed to operate on tractors with hydrostatic drive transmission or creep gear box that does not exceed 0.2kph or 0.12 mile/hr.
• Tractors most suitable should not exceed 45HP.
• The tractor should be fitted with rear auxiliary hydraulics, this is for the operation of the hydraulic ram for depth control.
ADVANTAGES
• A versatile easily attachable trencher built for compact tractors.
• Driven via a reduction gearbox and chain drive, giving optimum trenching speed.
• Large auger places soil neatly beside trench ready for backfilling.
• Manufactured in New Zealand.
FEATURES
• PRIME MOVER is a 30 – 40 HP tractor with hydrostatic transmission (automatic).
• DIGGING DEPTH: Up to 1200mm with various chain options.
• DIGGING WIDTH: from 100, 150, 200 mm wide trench with various chain options.

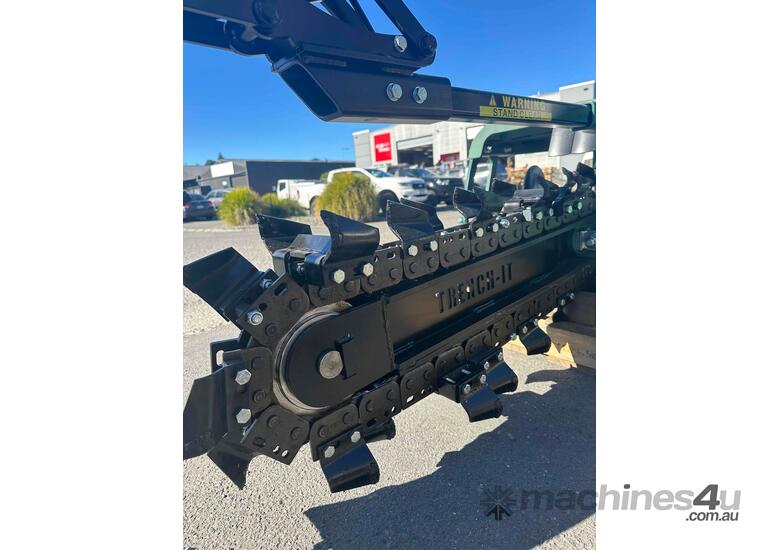

• WEAR PARTS: Easily replaced. Quality USA trenching parts, with tungsten carbide cutting teeth.
• SLIP CLUTCH: This protects the tractor and trencher from undue shock loading.
• SPOIL HANDLING: Auger places soil neatly to one side, to allow easy access to trench.
• CRUMBER BAR: Grades trench as you work.
