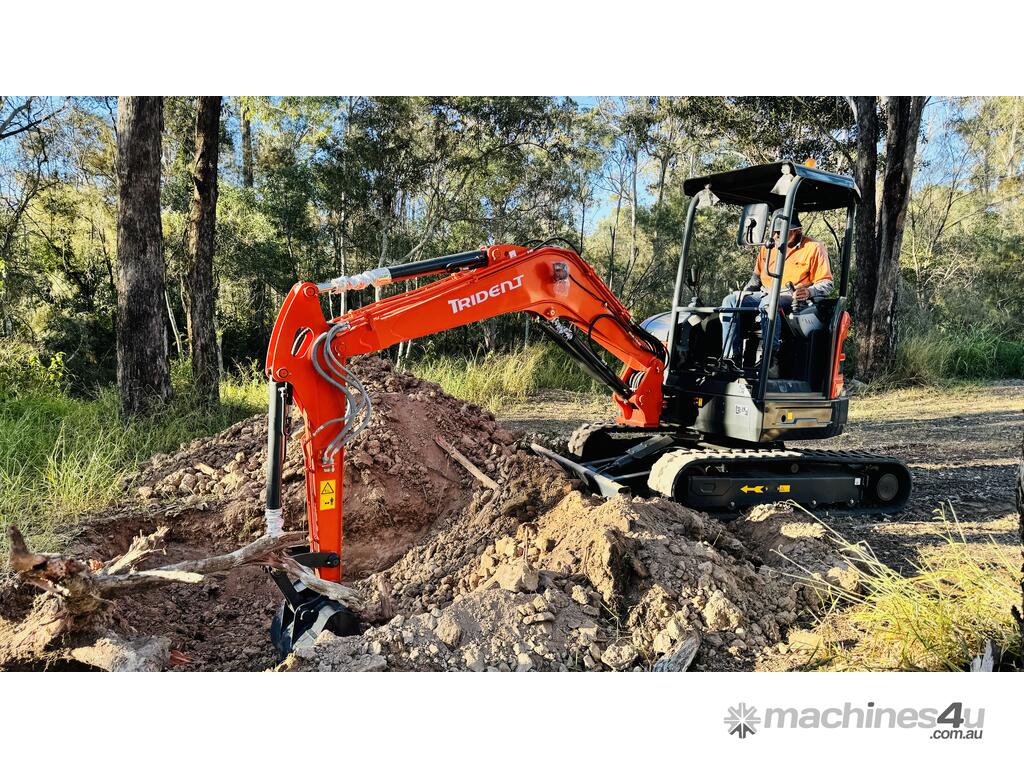

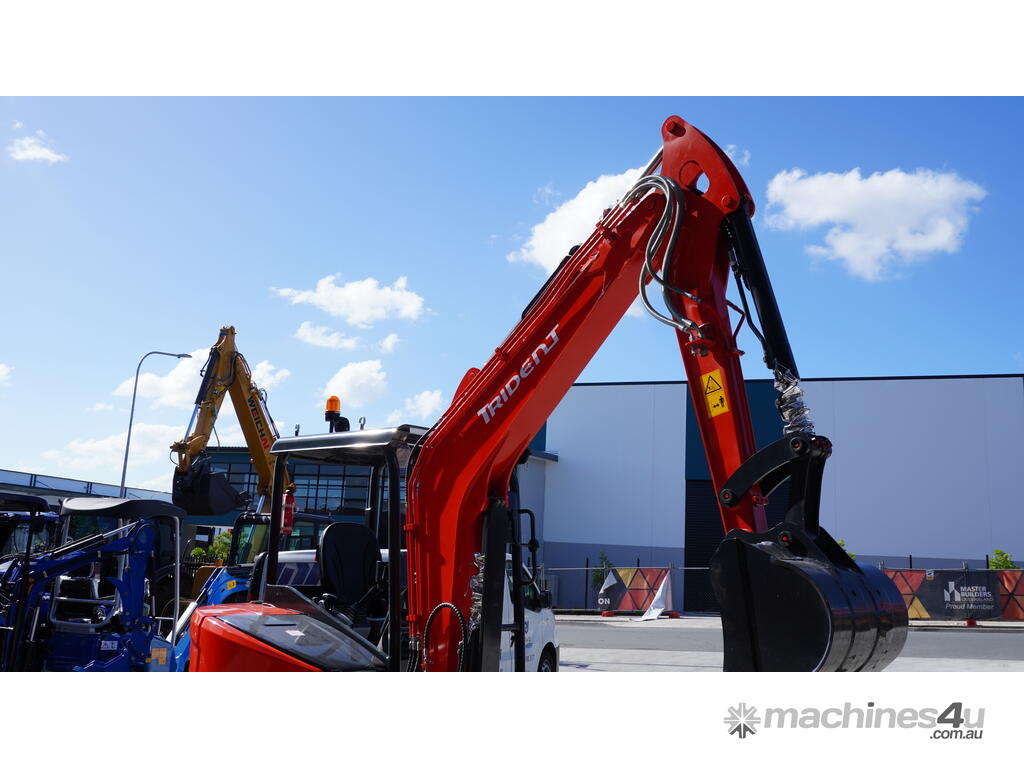

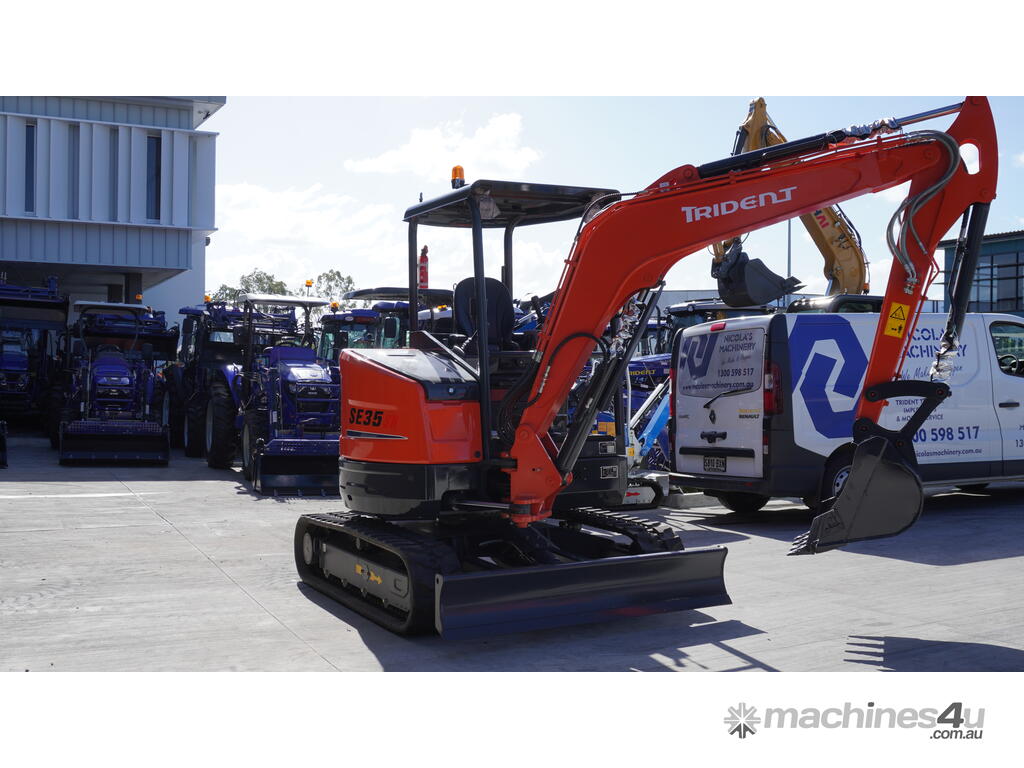

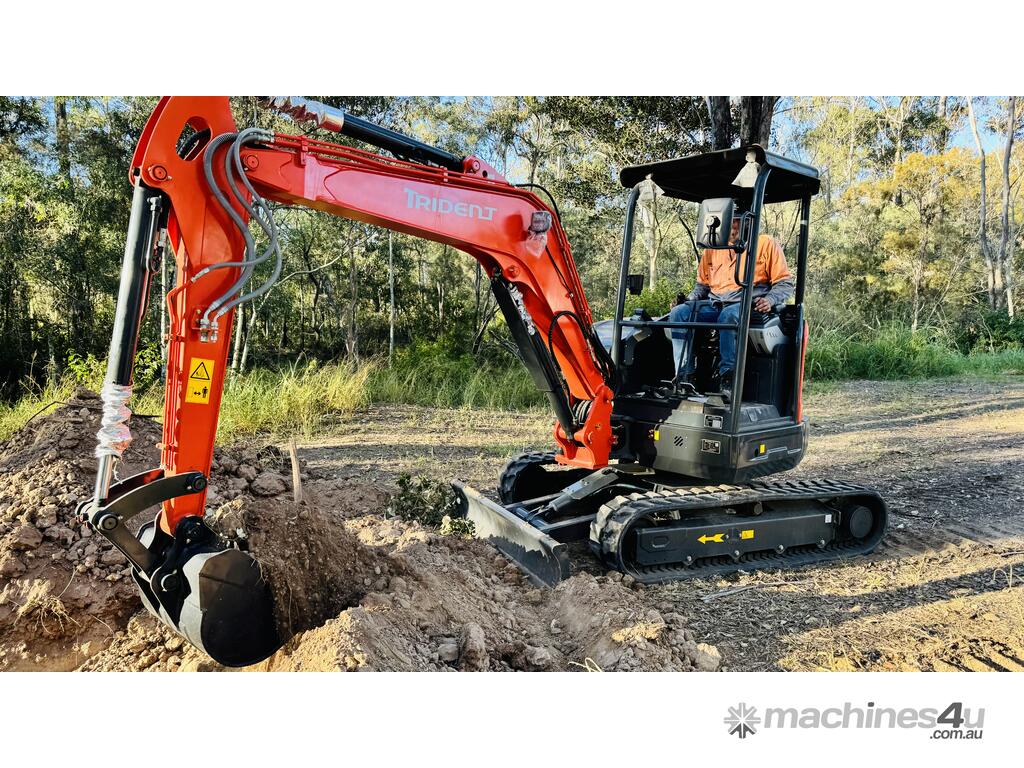

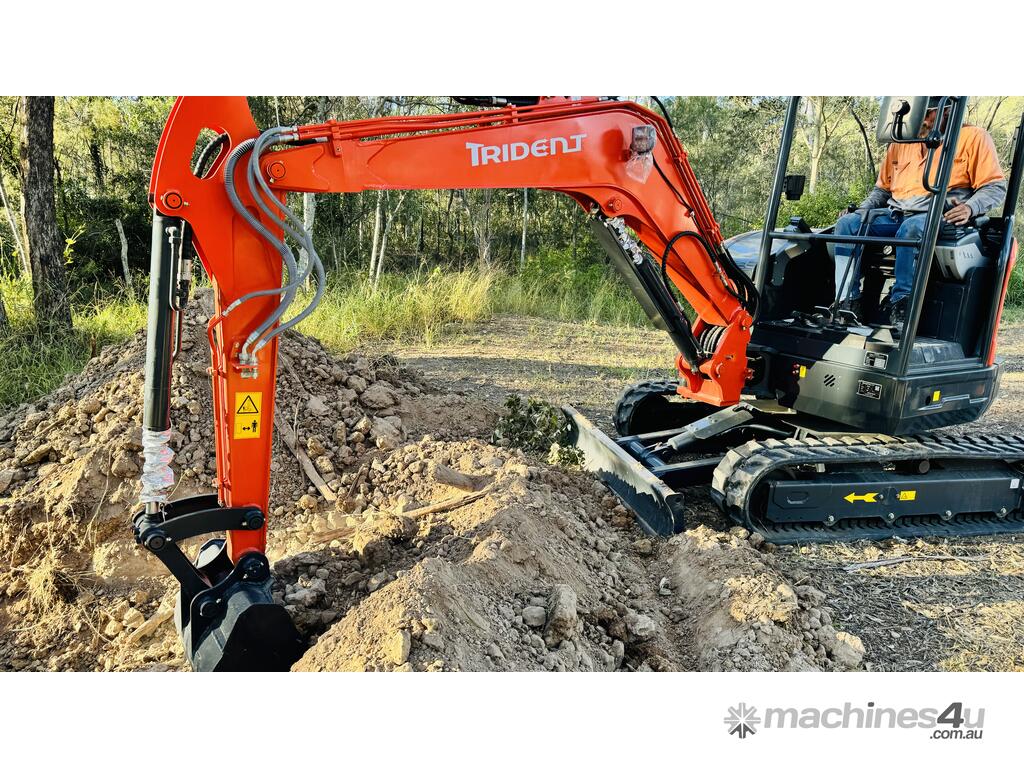

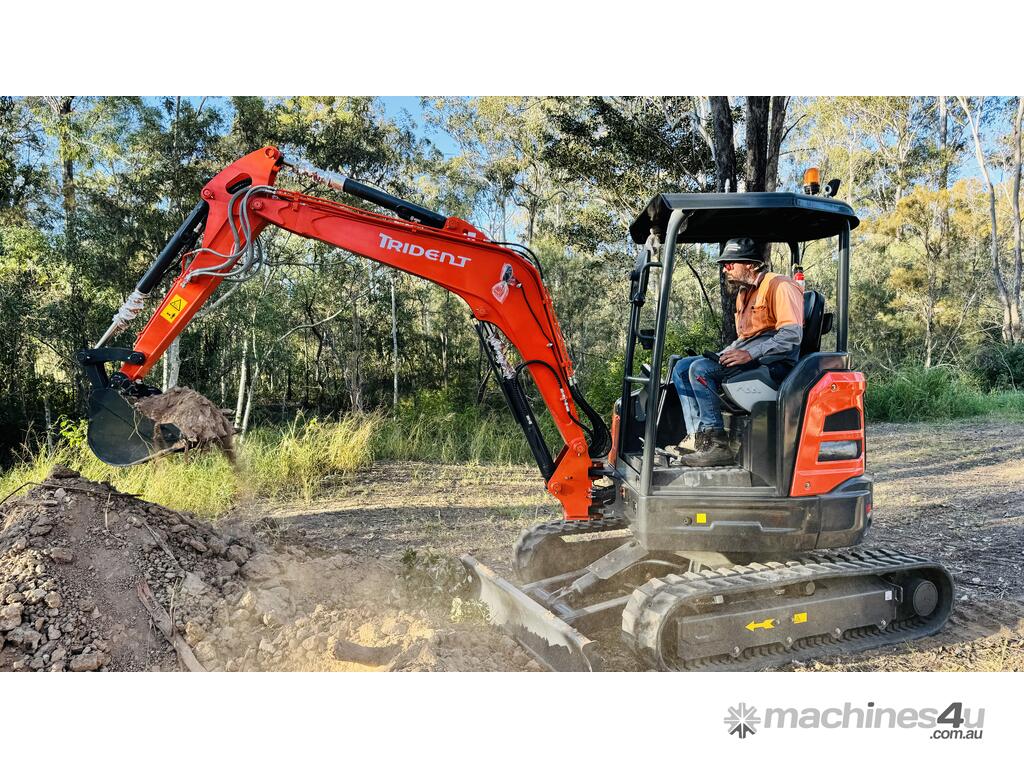

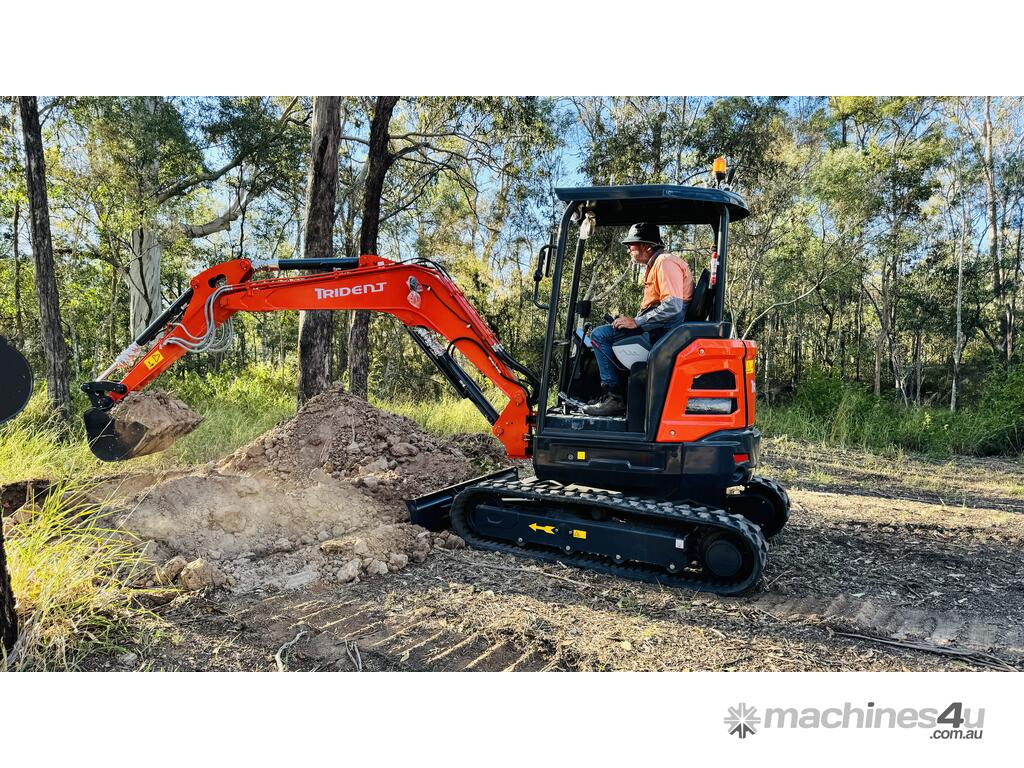

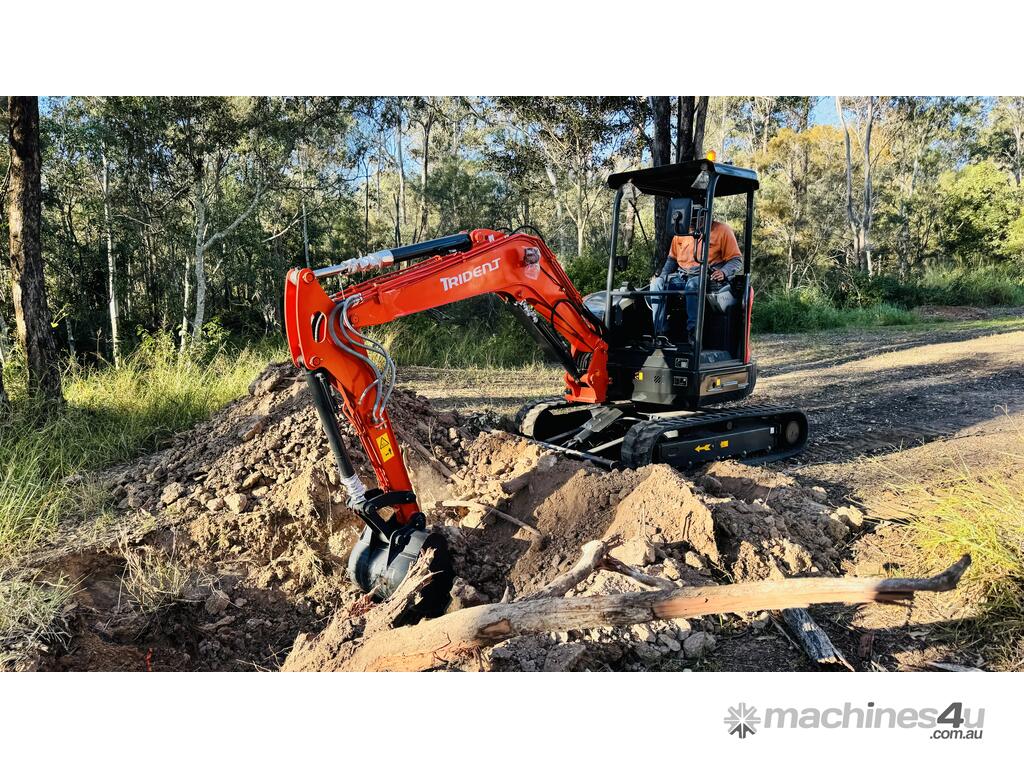

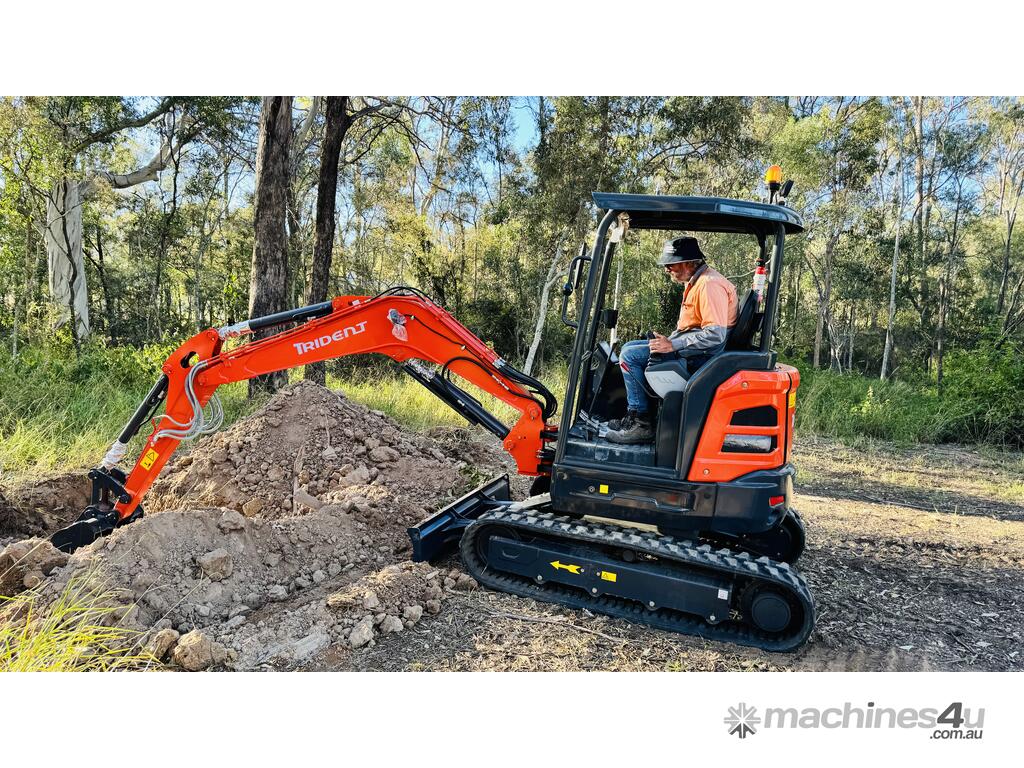

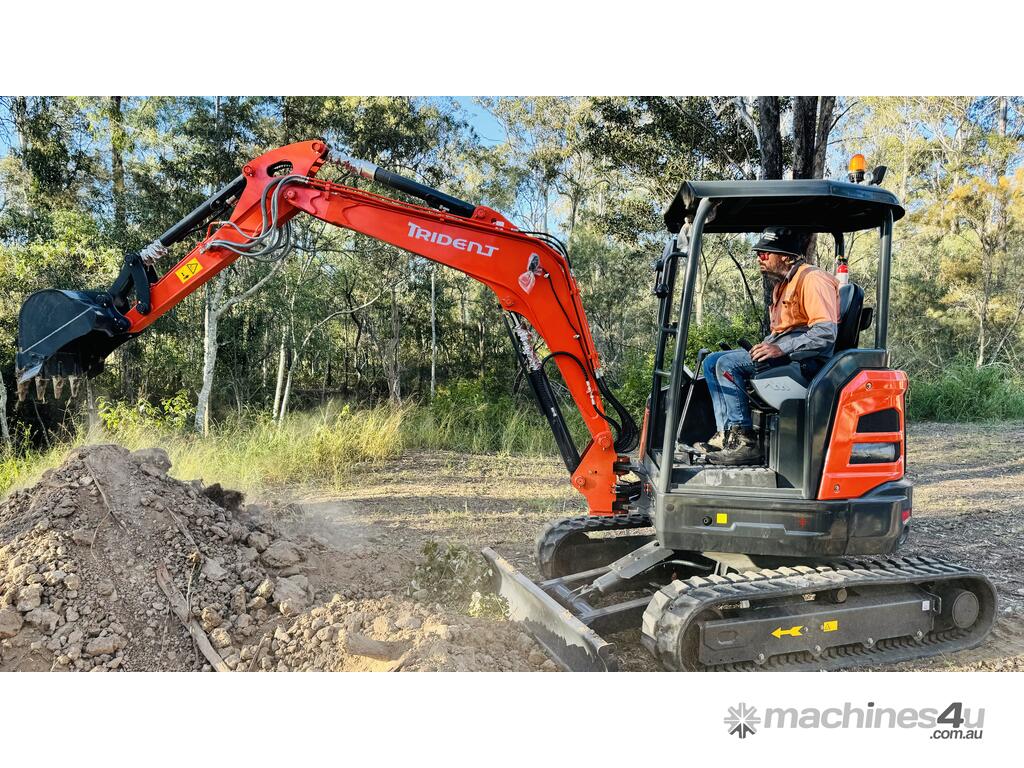

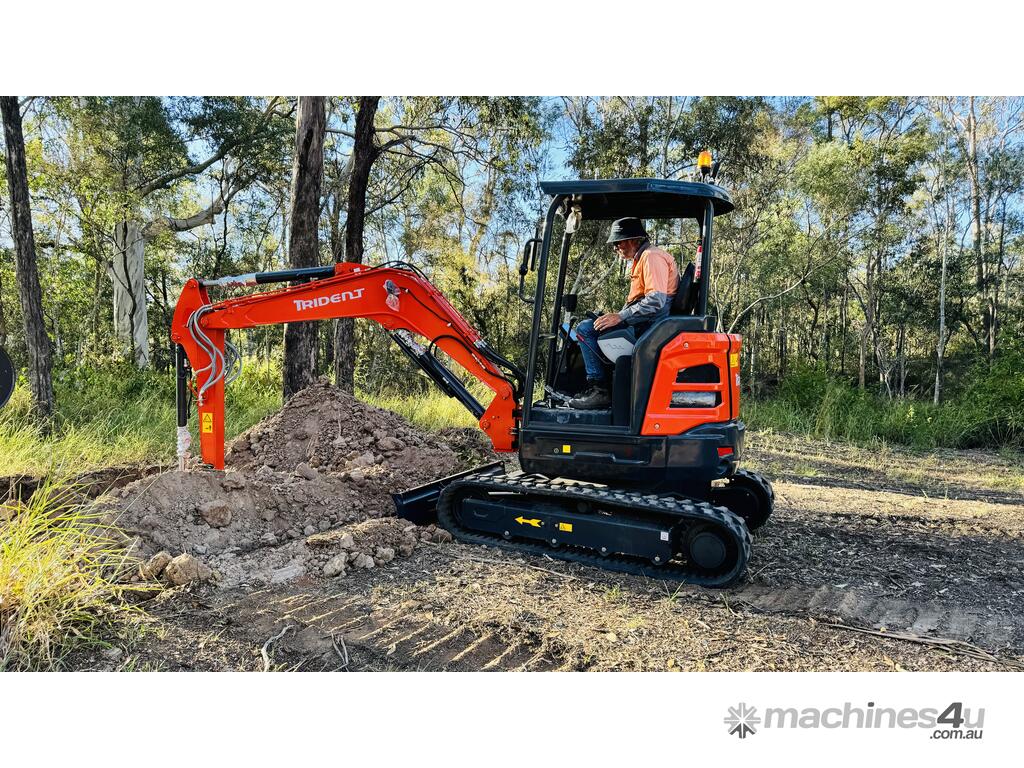

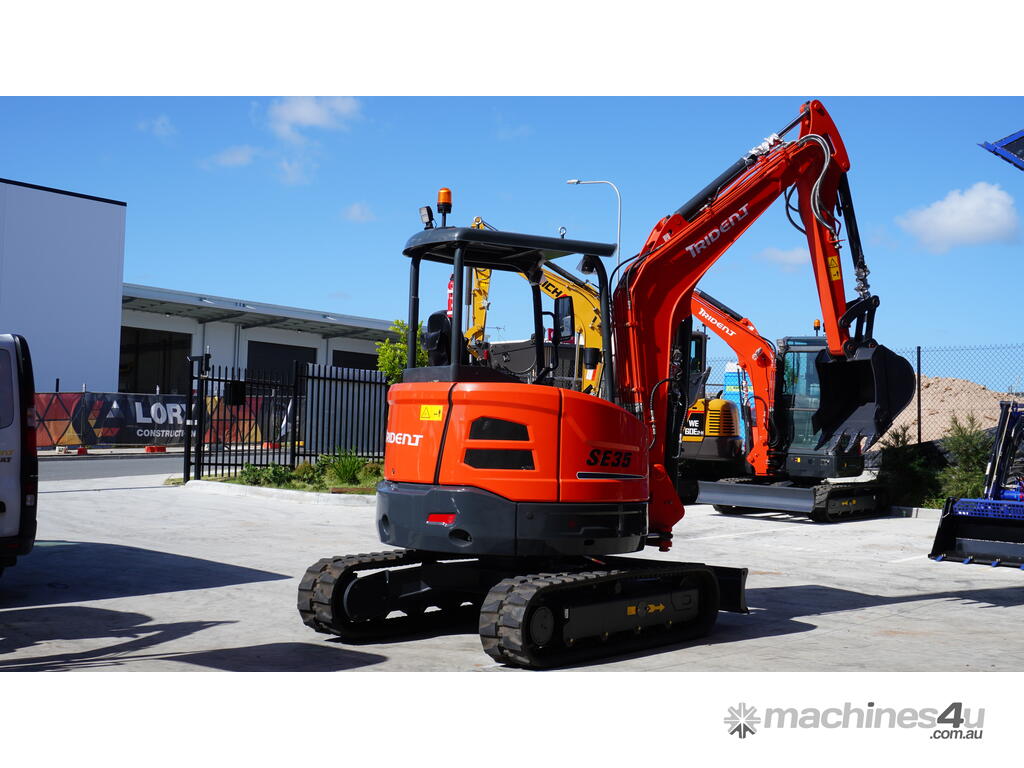

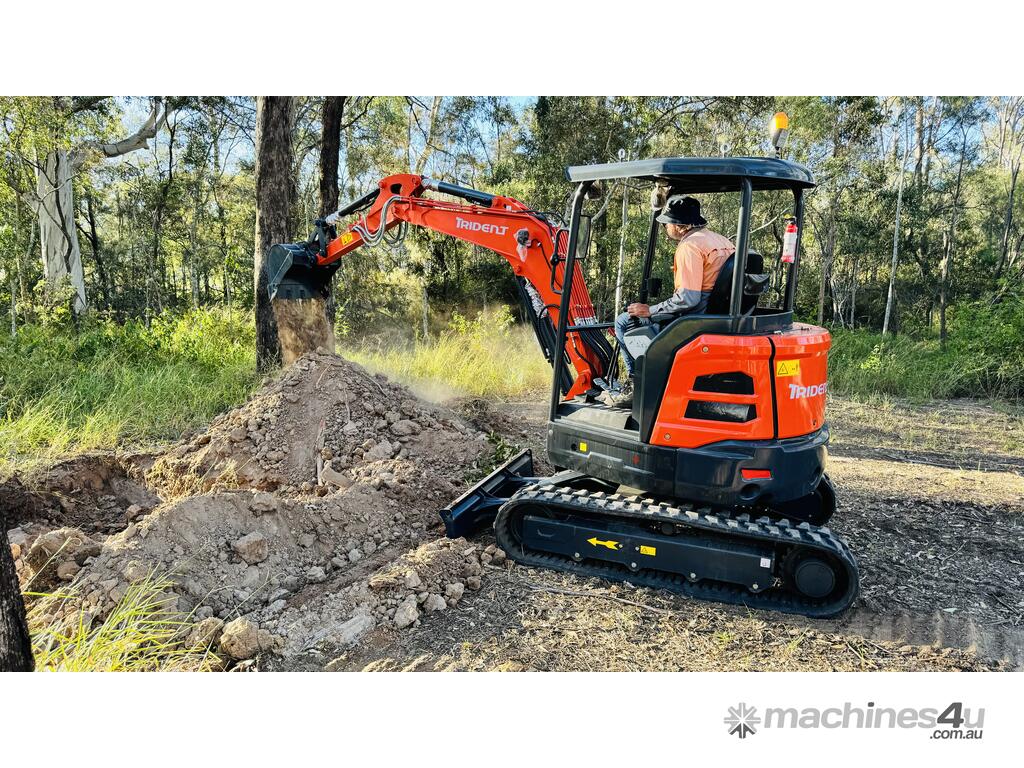

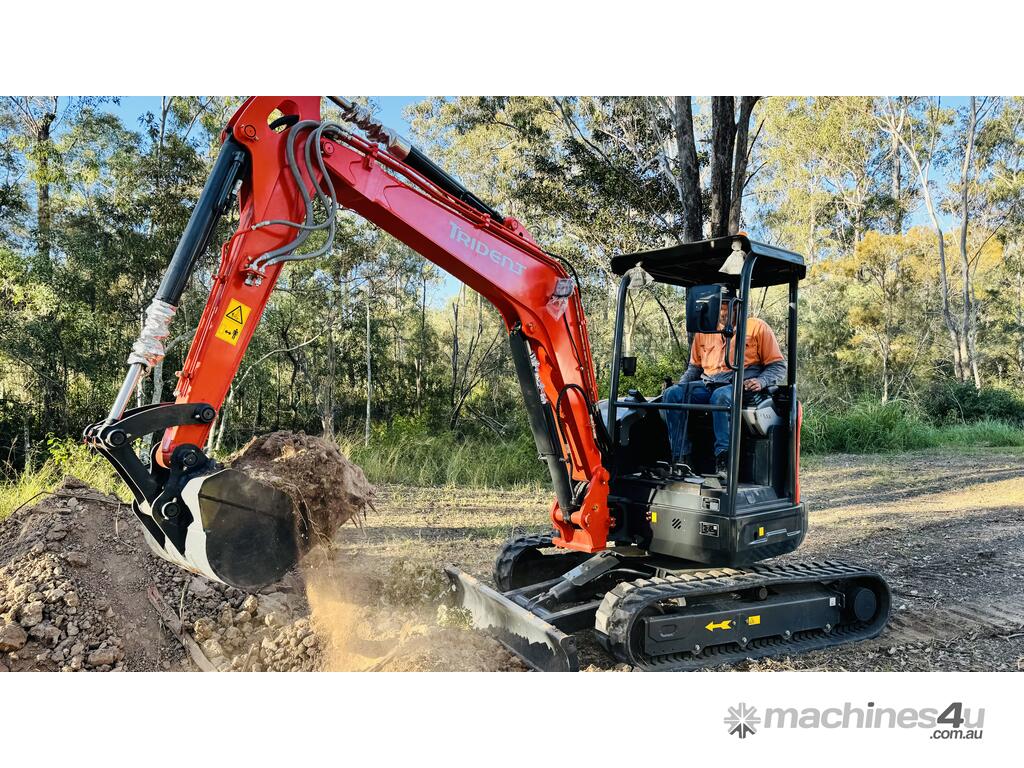

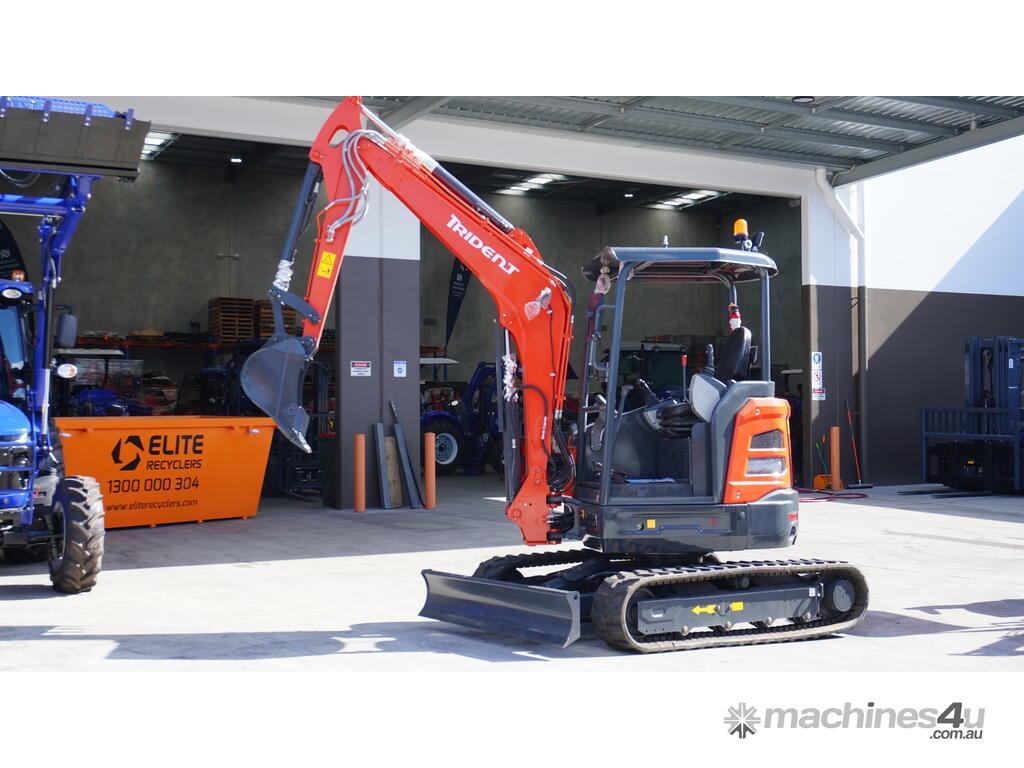

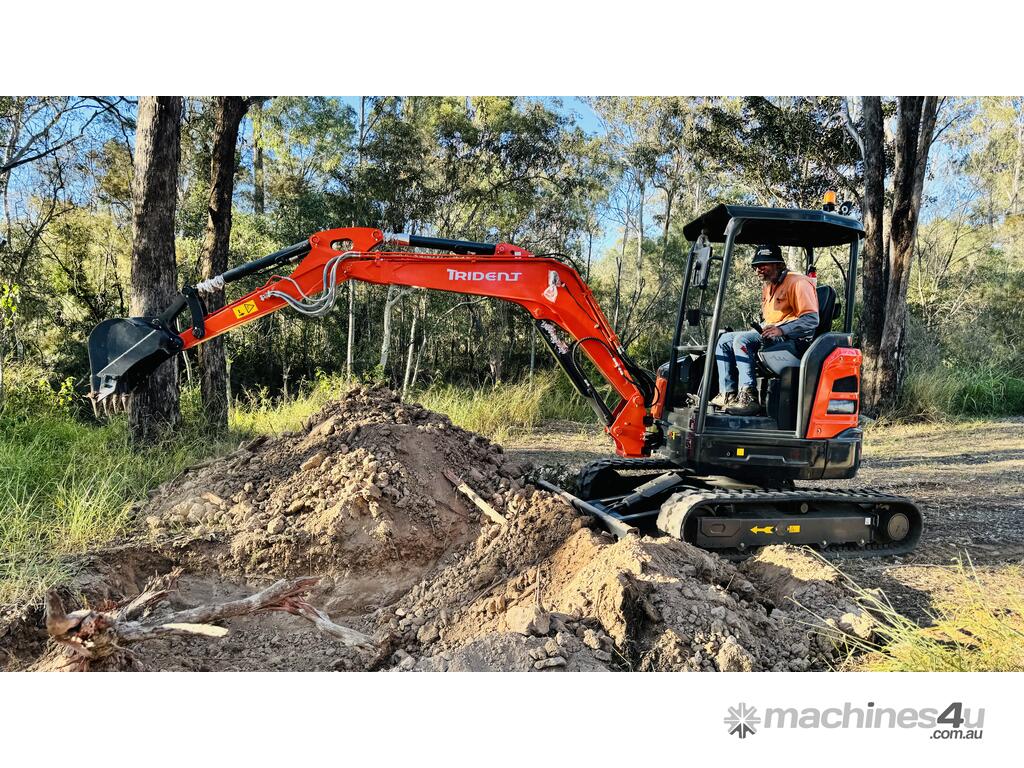

Trident 3.8T ROPS excavator plus 350mm, 500mm, 700mm and 1000mm Bucket, Thumb Grab, 50mm Ripper and Hydraulic Quick Hitch for $48,990 inc GST.
Key Features:
Zero swing

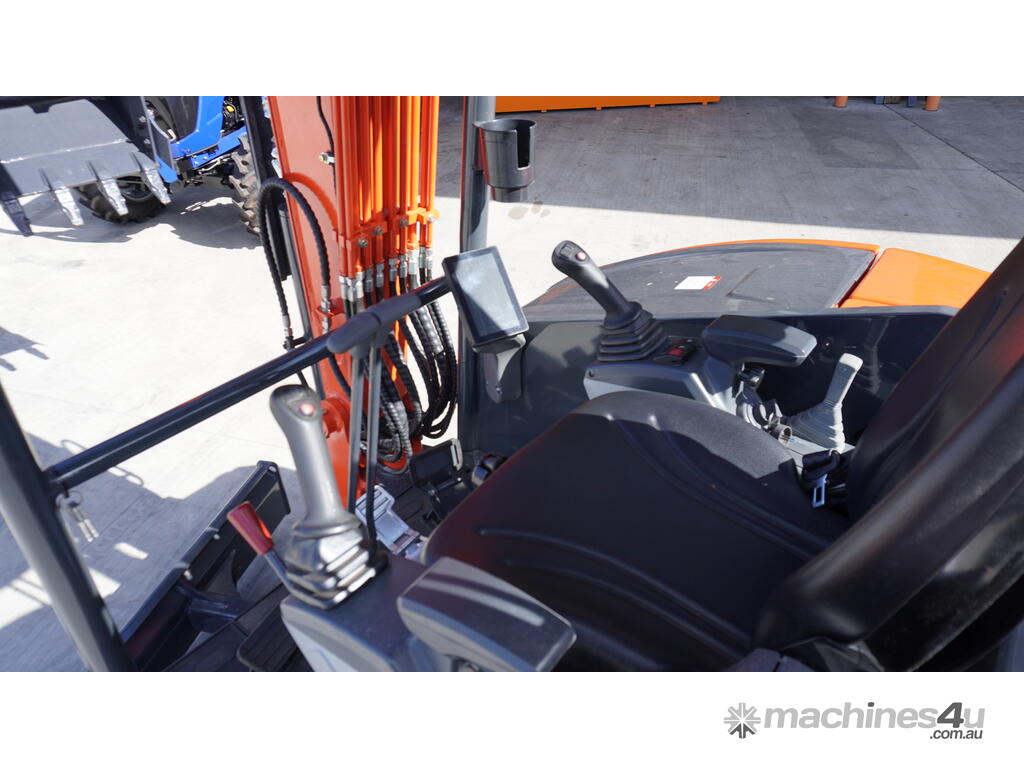

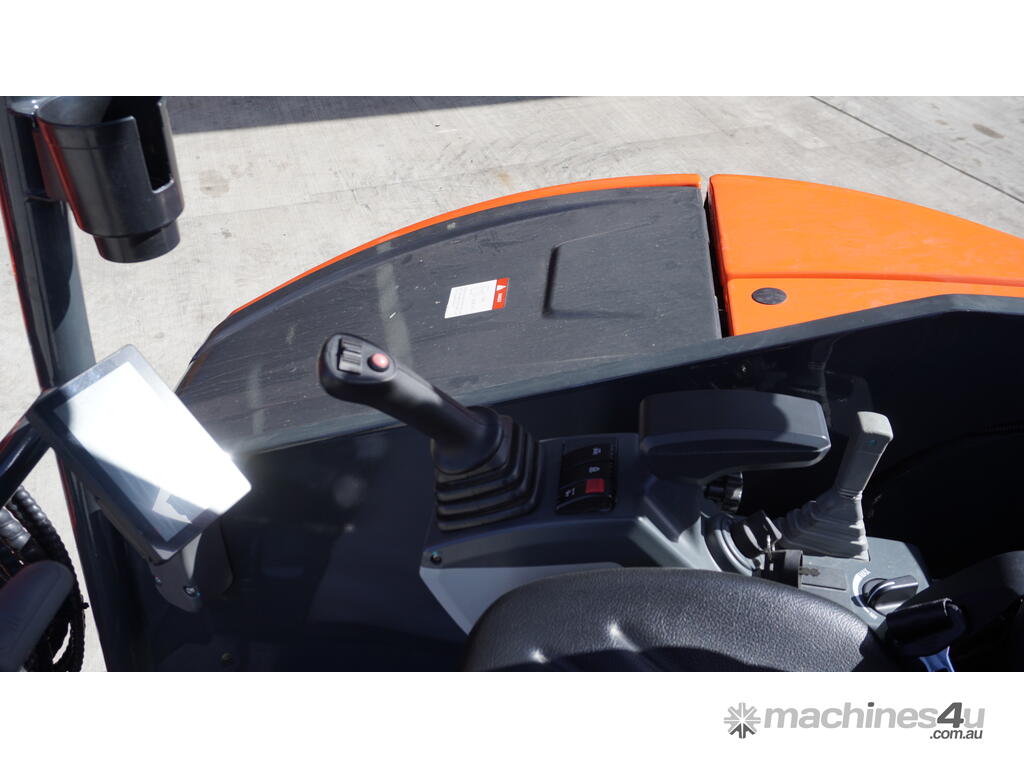

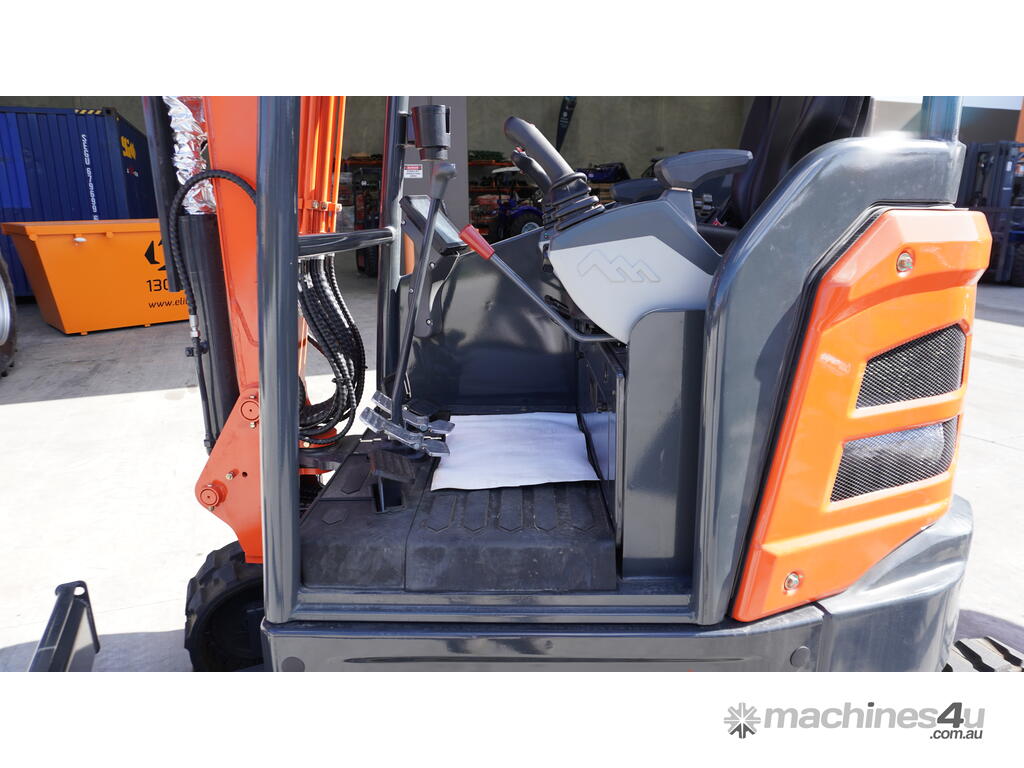

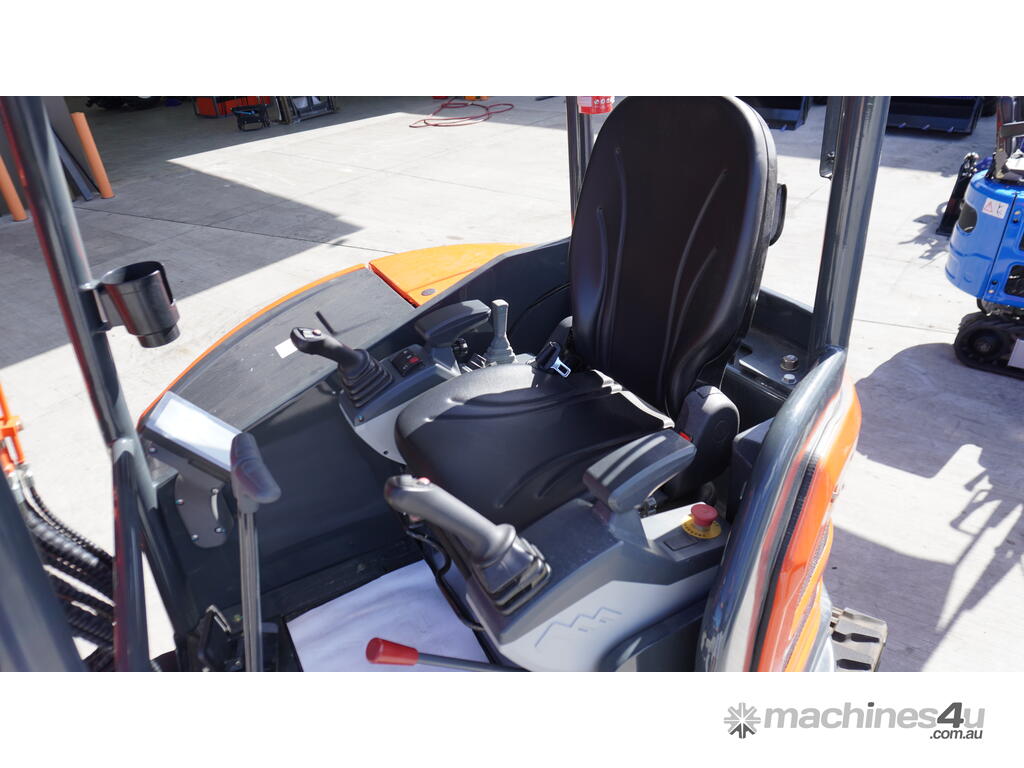

Pilot controls

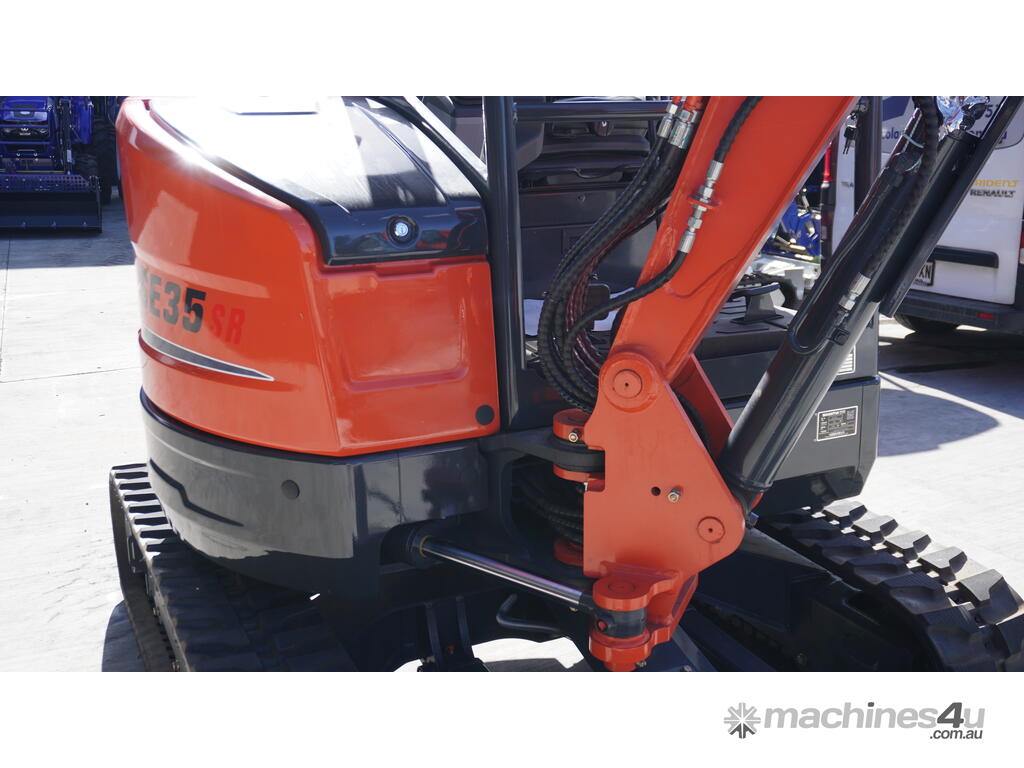

Swing boom
Yanmar engine
Auto engine rev match
Touch screen control panel
Mechanical fuel pump (No engine ECU)
Hydraulic outputs for multiple attachments
Engine/Hydraulic:

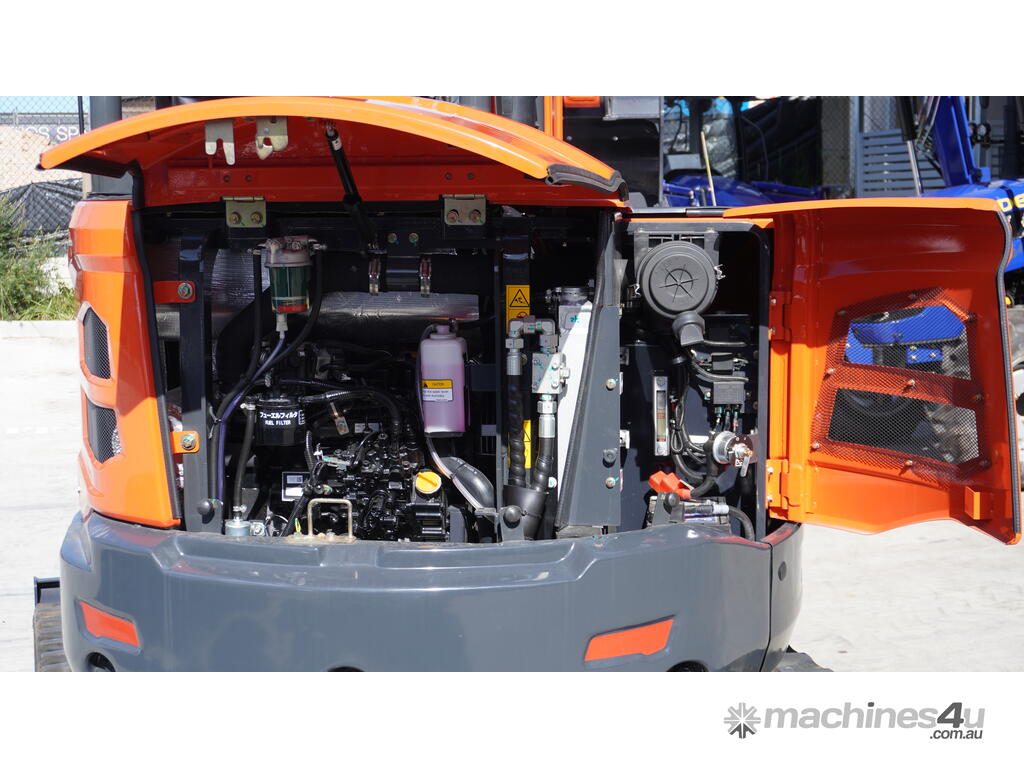

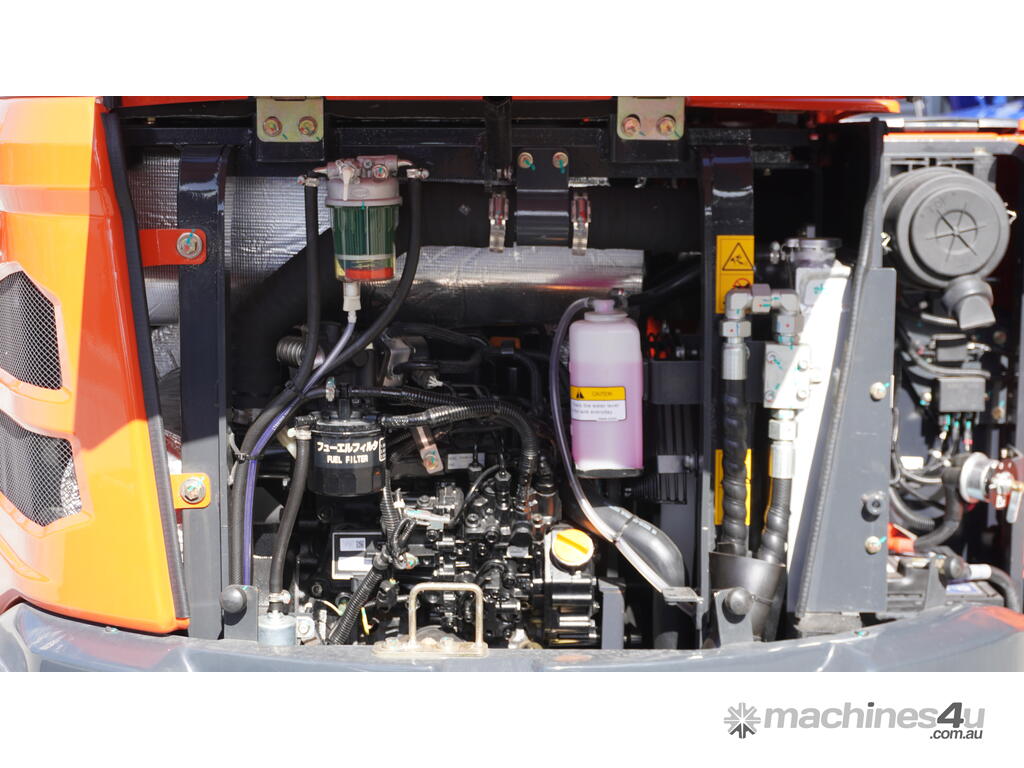

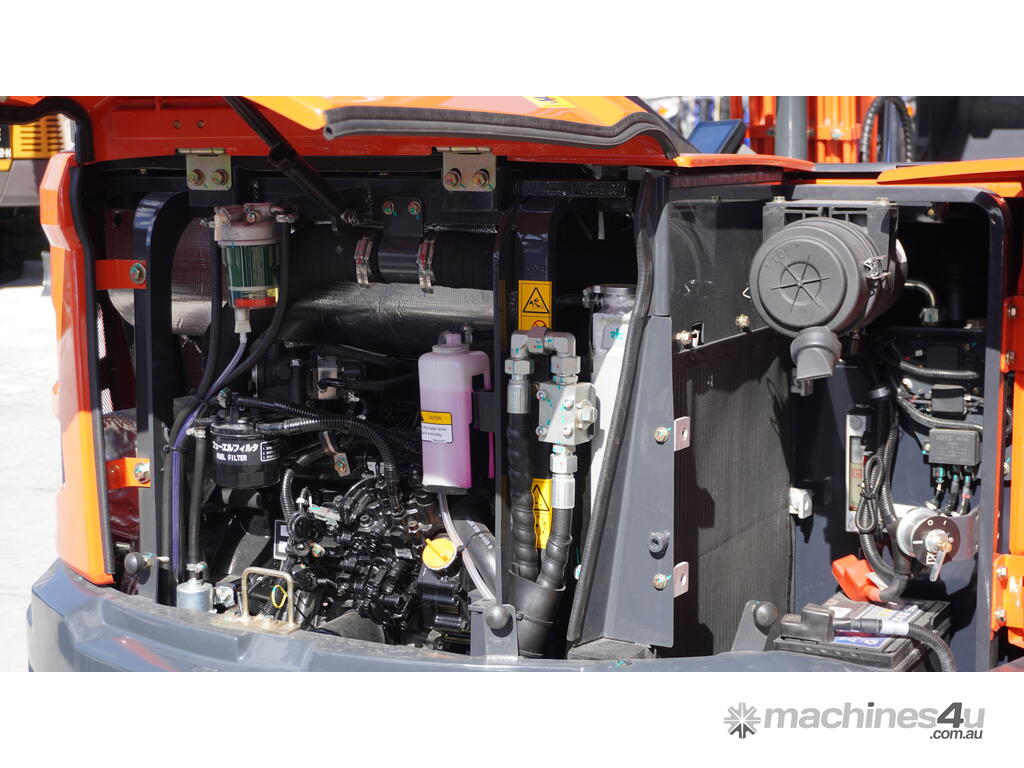

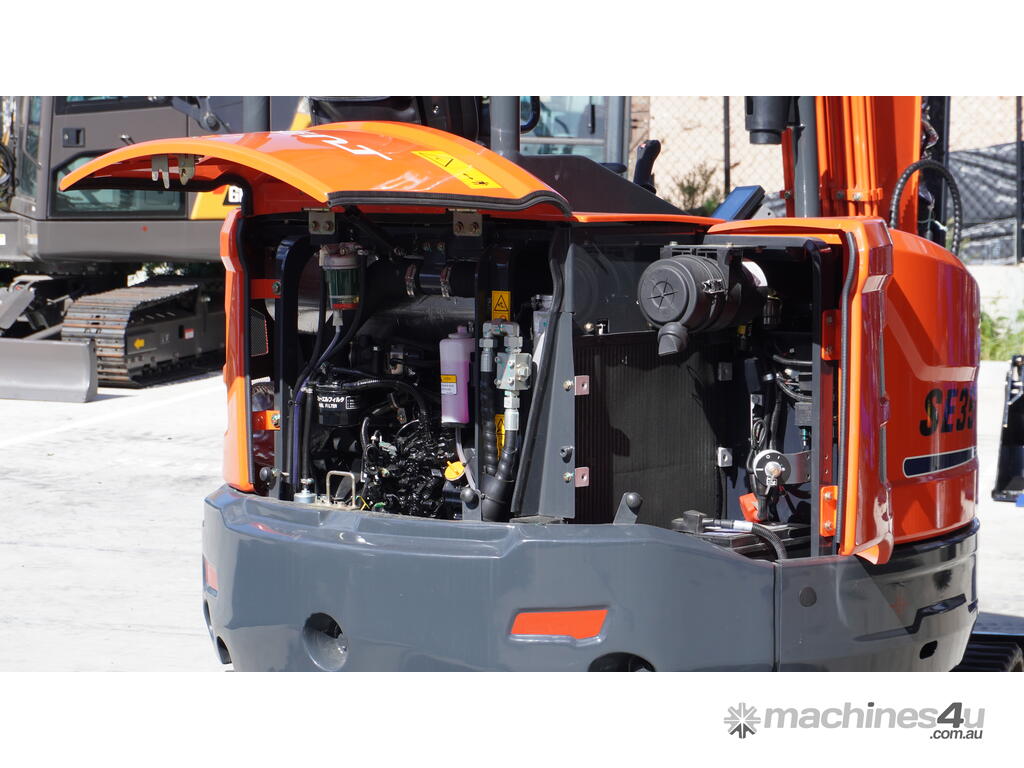

Engine model YANMAR 3TNV88F
Rate power 24.41HP/18.2kW/2200rpm
Displacement 1.642L
3 cylinder direct injection EPA Tier 4 Final/Europe Stage V Emission
Flow rate 96.8L/min
Operating Parameters:
Vehicle working weight 3800kg
Travel speed 2.4/4.4 km/h
Gradeability 30%
Swing speed 0-9rpm
Ground Pressure 32kPa
Bucket digging force 30.4kN
Arm digging force 18.2kN
Maximum digging radius 5345mm
Maximum digging depth 3075mm
Maximum vertical digging depth 2640mm
Maximum digging height 4910mm
Maximum digging distance 5500mm
Maximum dumping height 3545mm

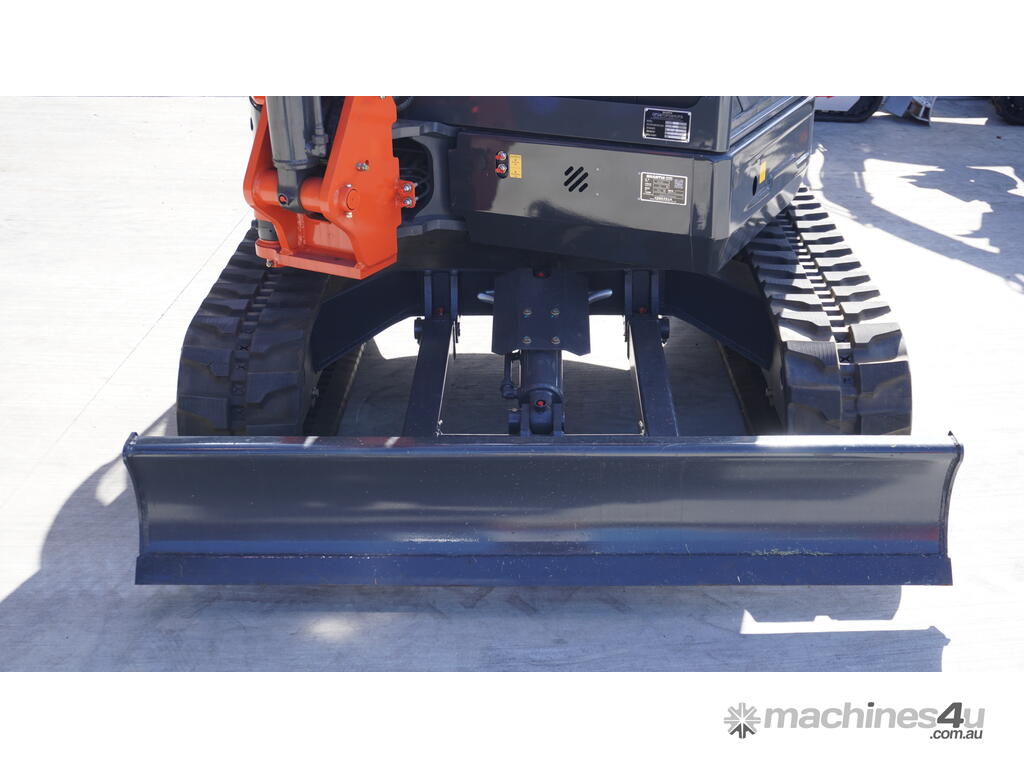

Maximum Lifting height of dozer blade 375mm
Maximum Digging depth of dozer blade 370mm
Excavator Dimensions:
Bucket capacity 0.12 m3
Bucket width 650mm
Overall length 4880mm
Ground contact length(transportation) 3360mm
Overall height (to top of boom) 1880mm
Overall width 1740mm
Overall height (to top of cab) 2550mm
Counter weight ground clearance 595mm
Ground clearance 295mm
Tail Swing radius 860mm
Crawler wheel base 1670mm

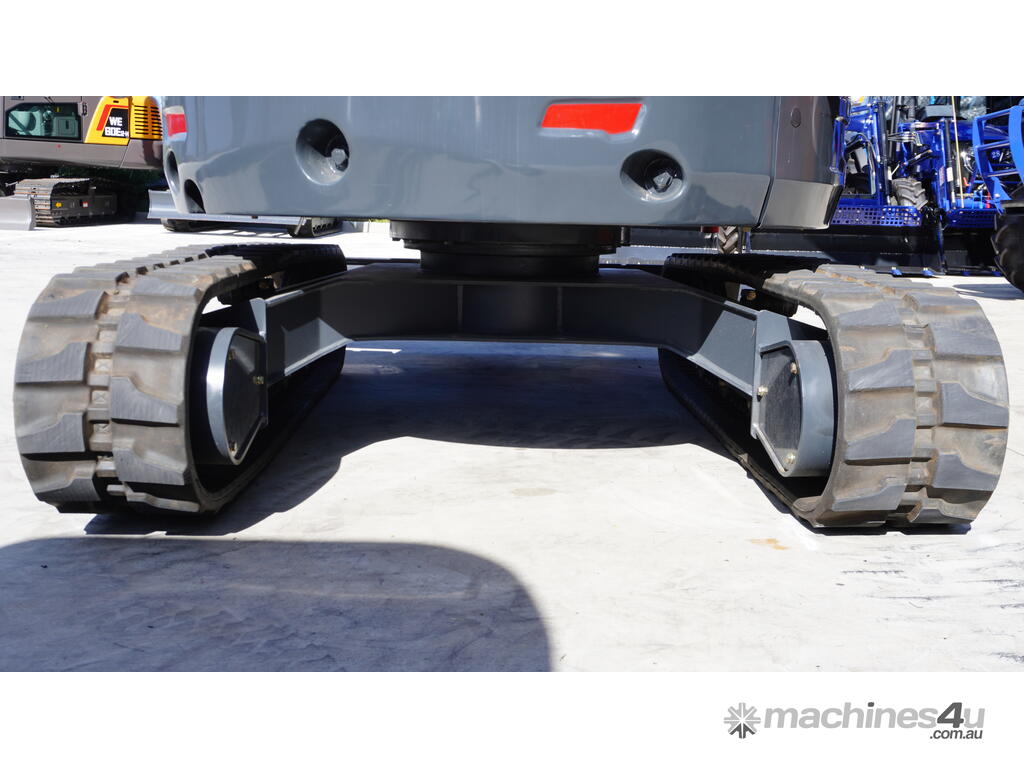

Track length 2155mm
Track gauge 1440mm
Track width 1740mm
Shoe width 300mm
Bonnet height 1550mm
Revolving frame width 1550mm
Distance from swivel center to tail 860mm
Choose Nicola's Machinery for reliable tractors that fit your needs. With the versatile Trident series or premium LOVOL tractors, backed by fast delivery and top performance, we ensure customer satisfaction. Contact us today!
