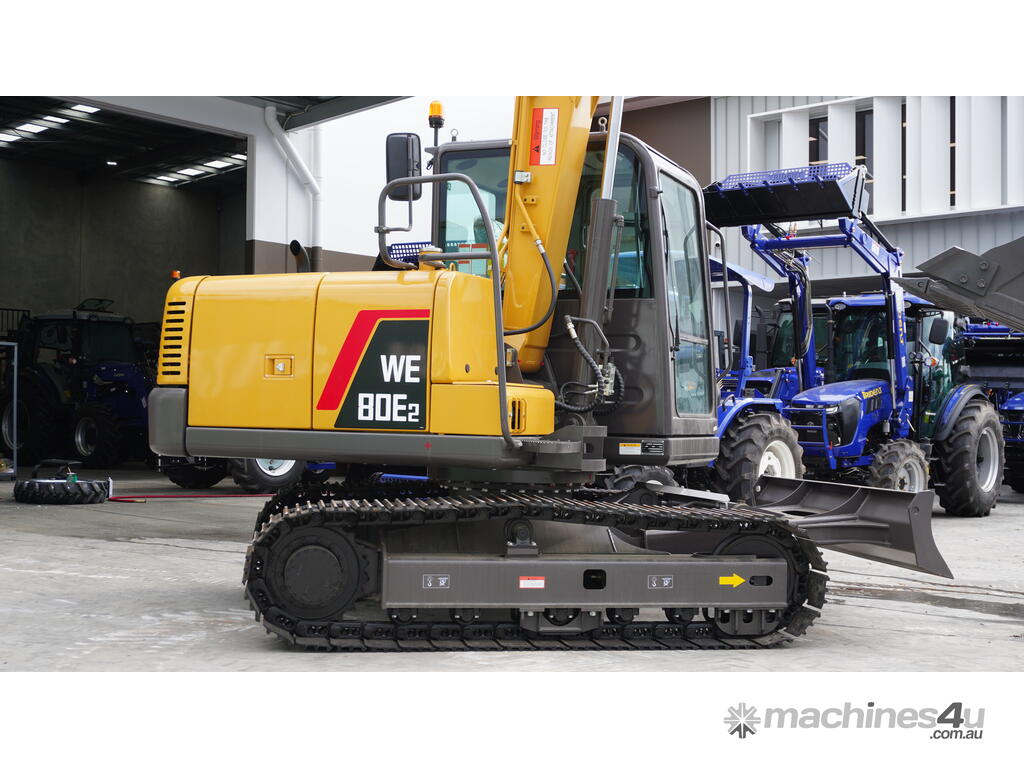

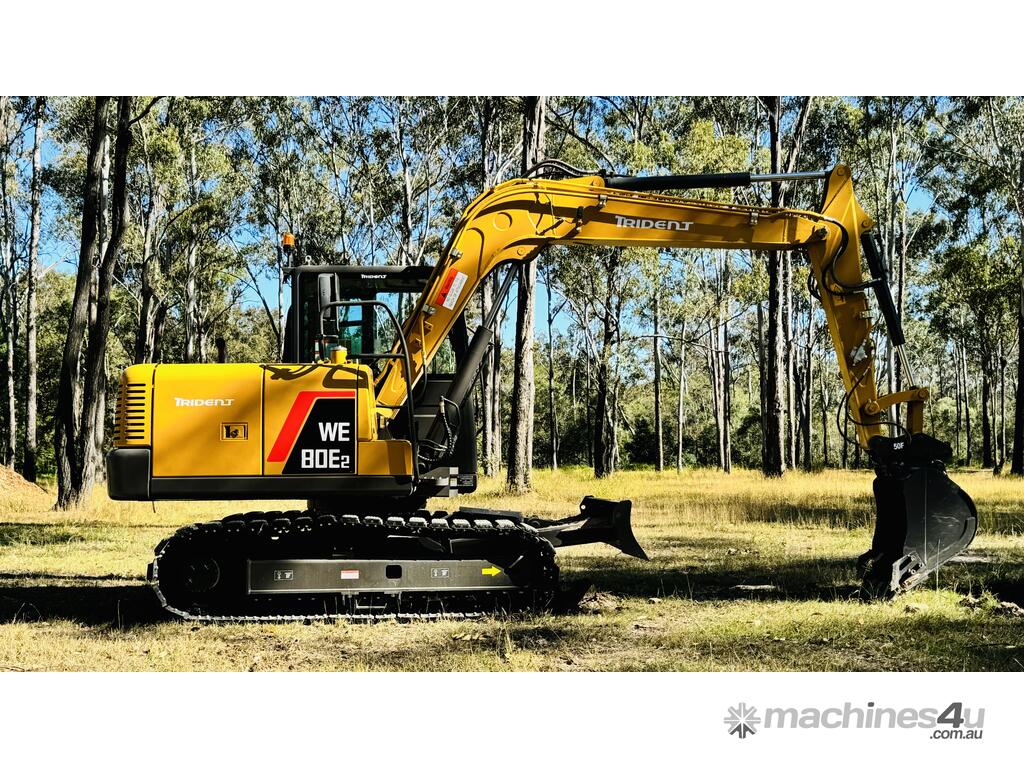

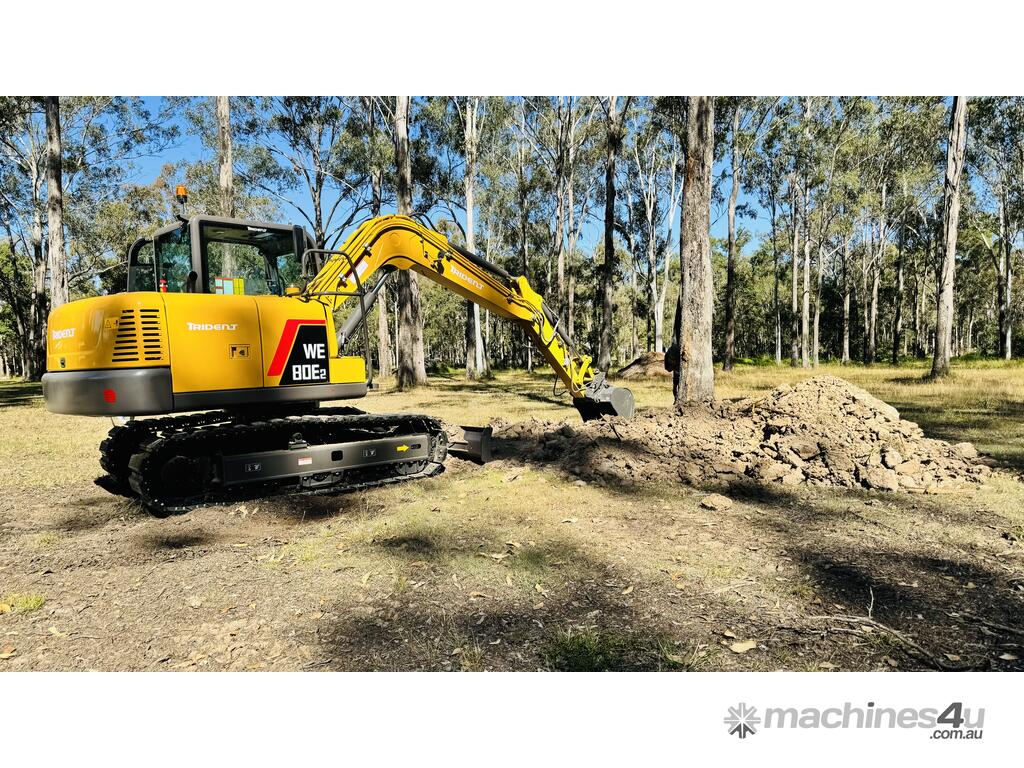

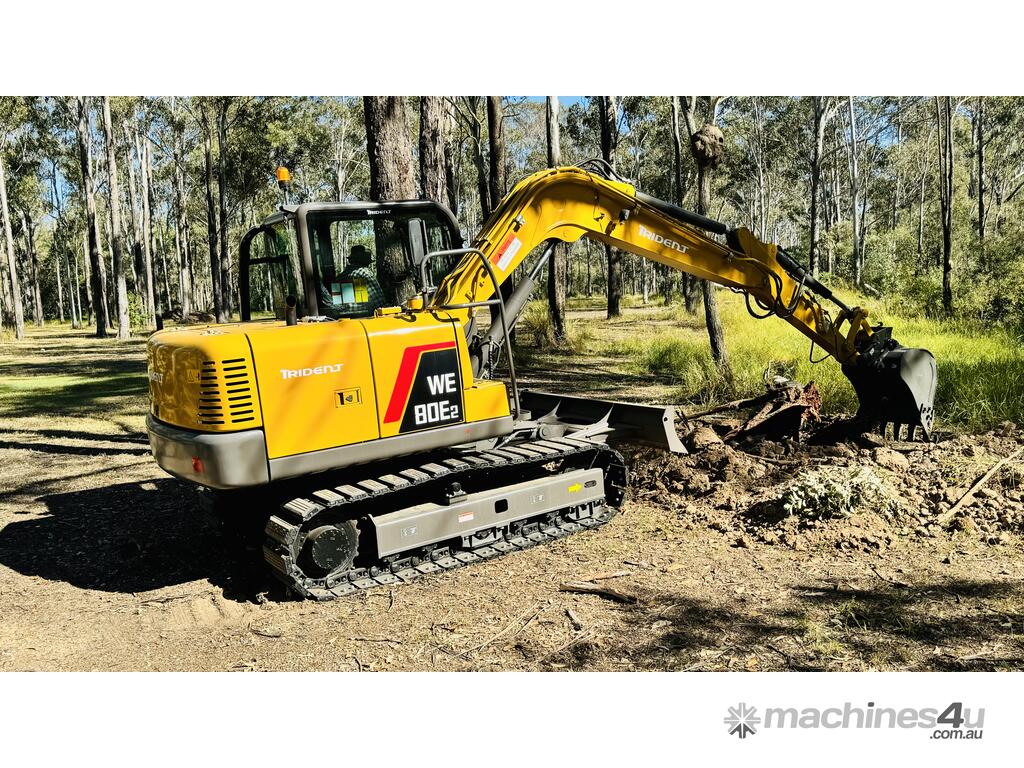

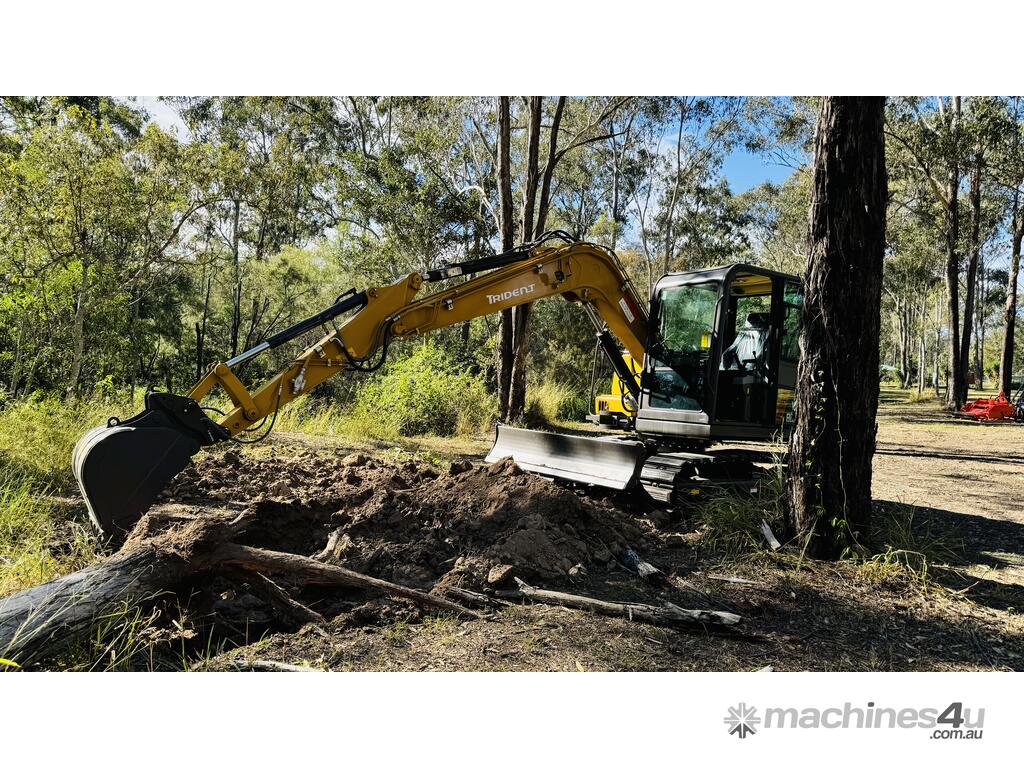

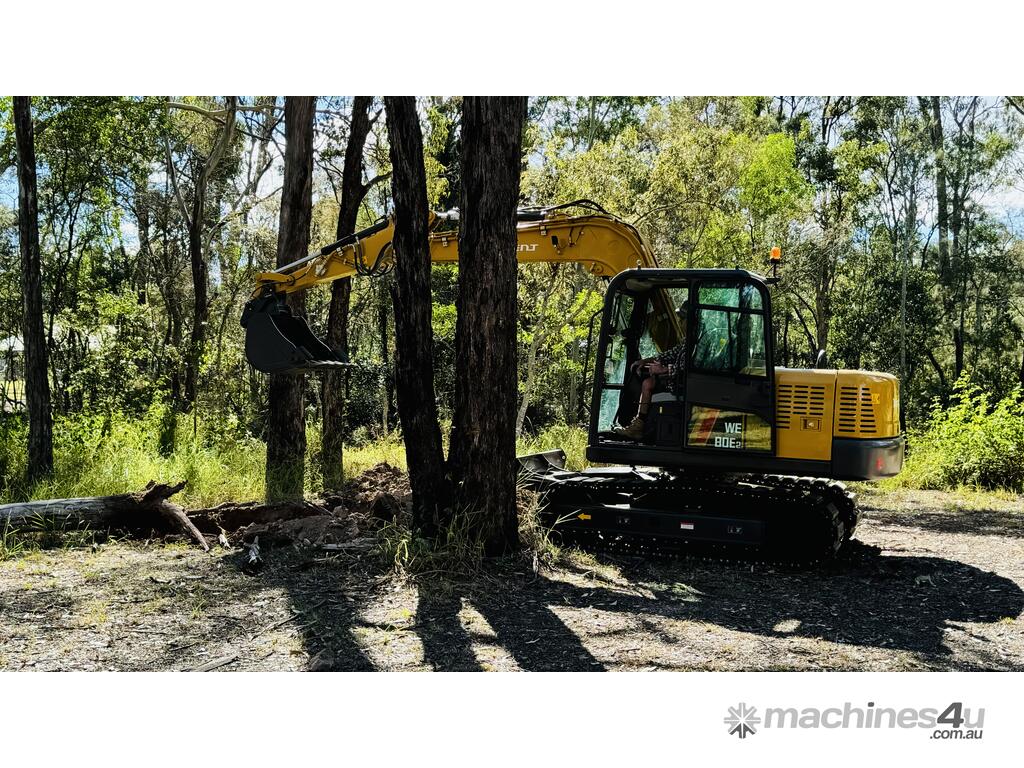

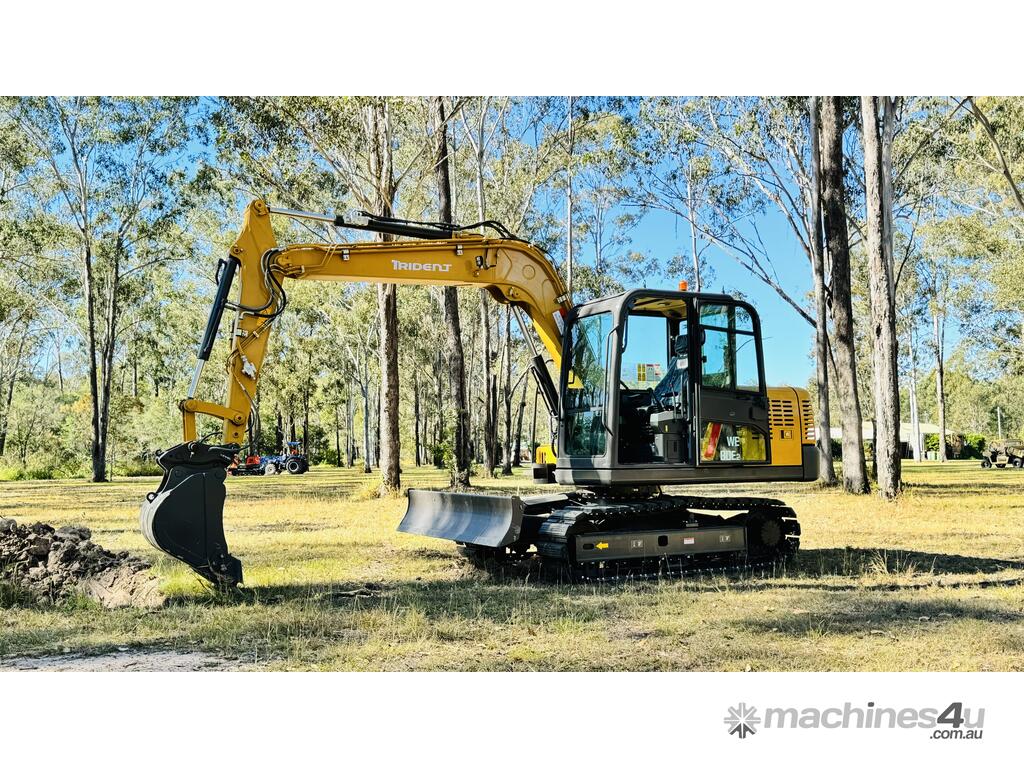

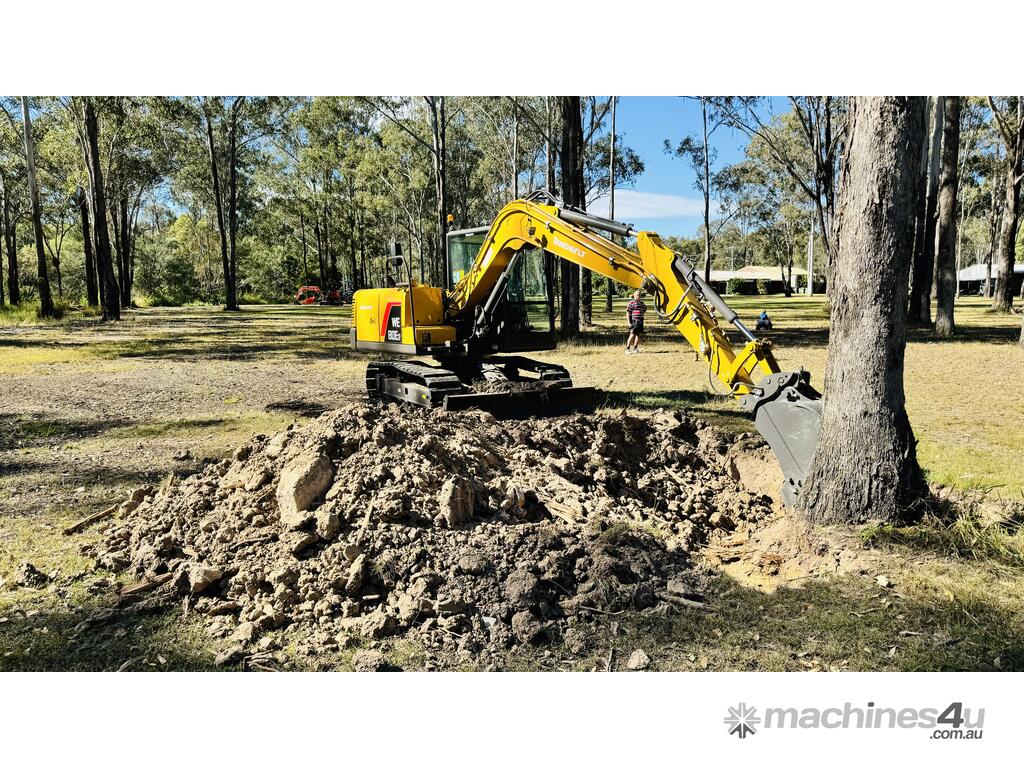

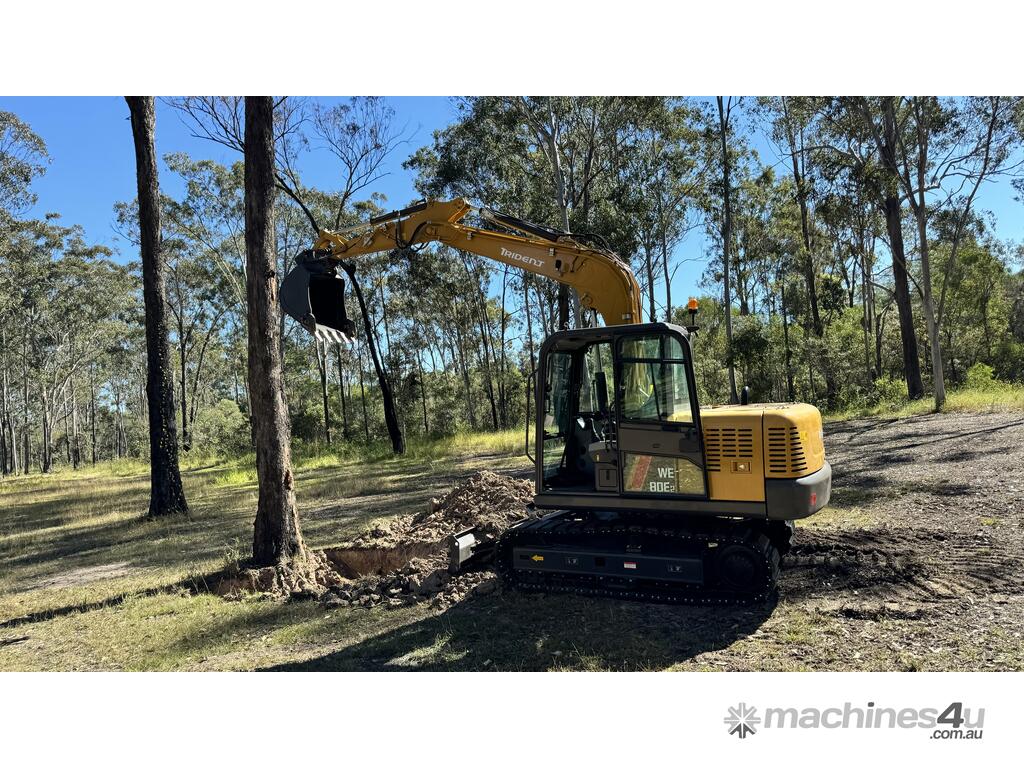

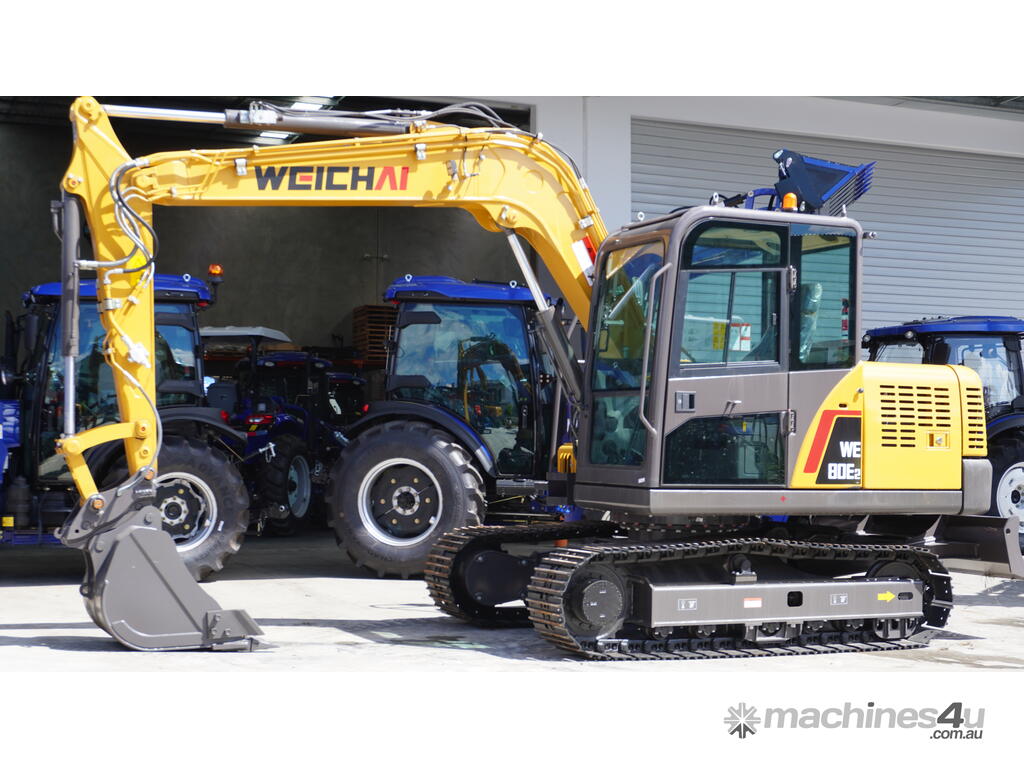

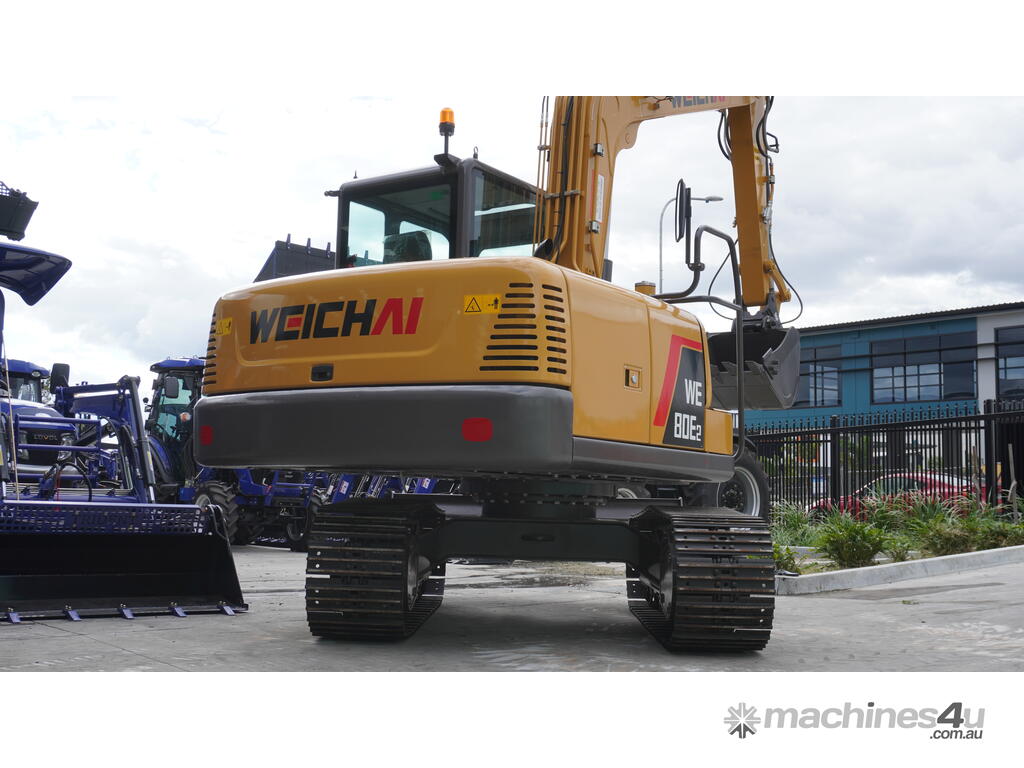

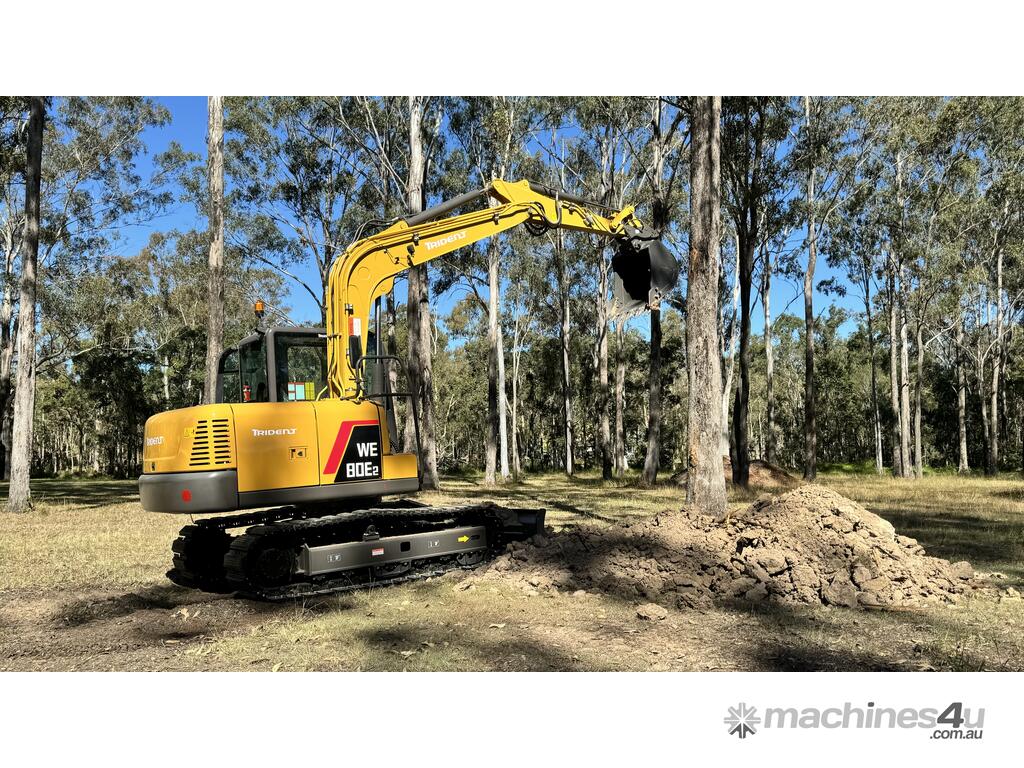

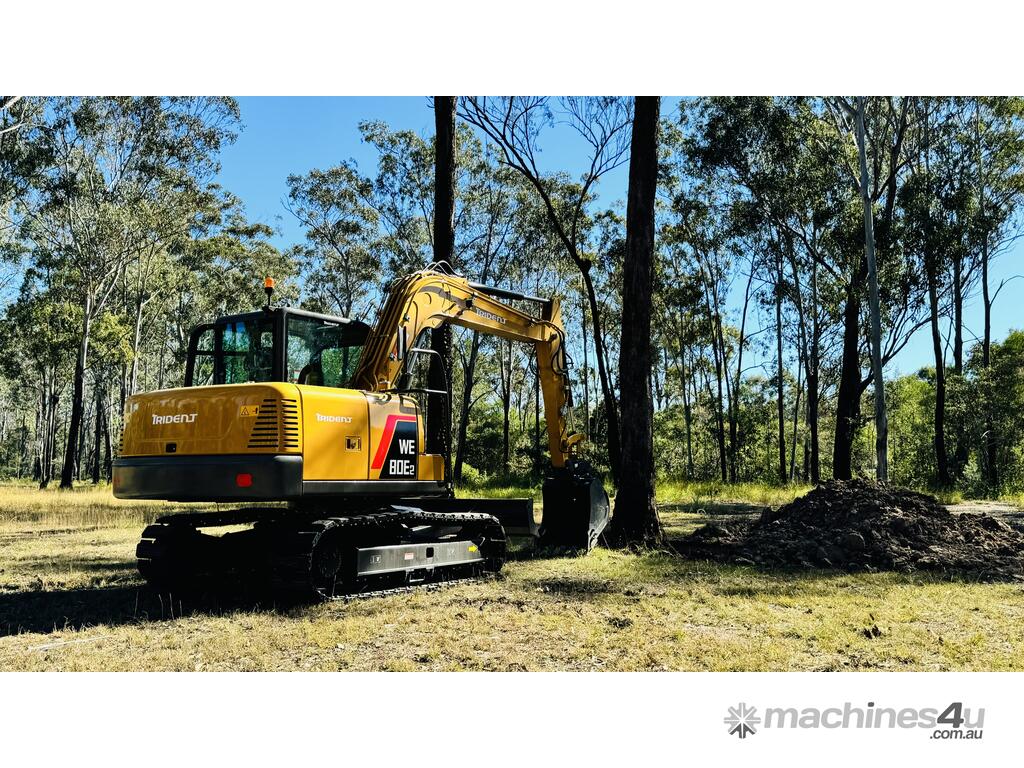

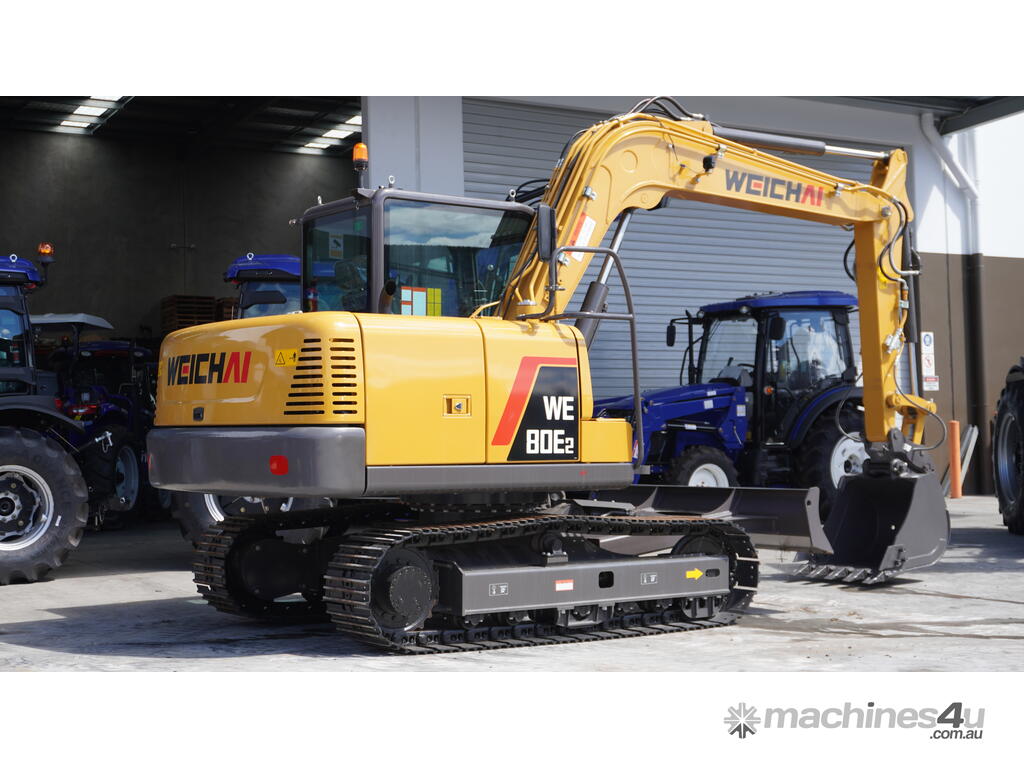

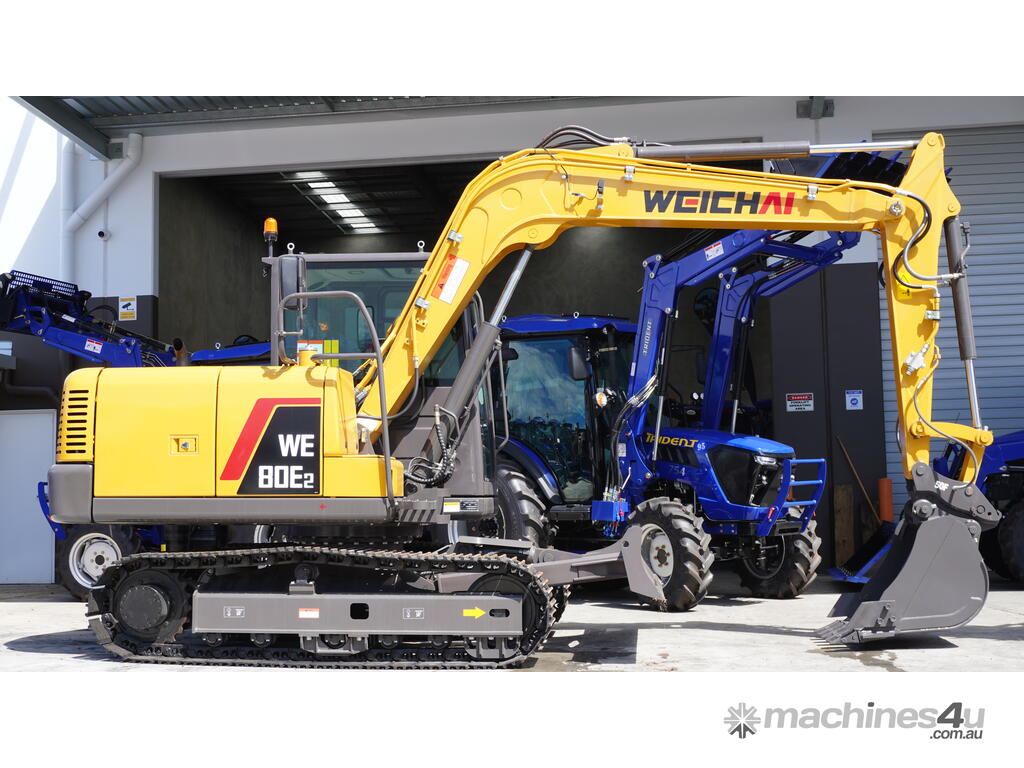

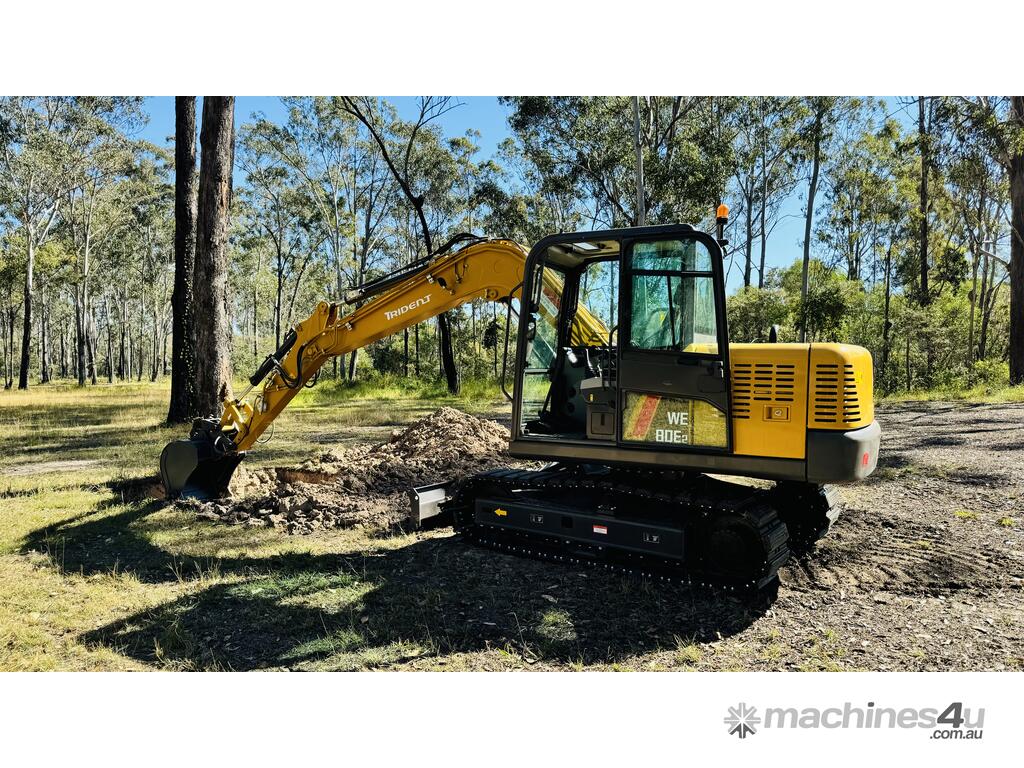

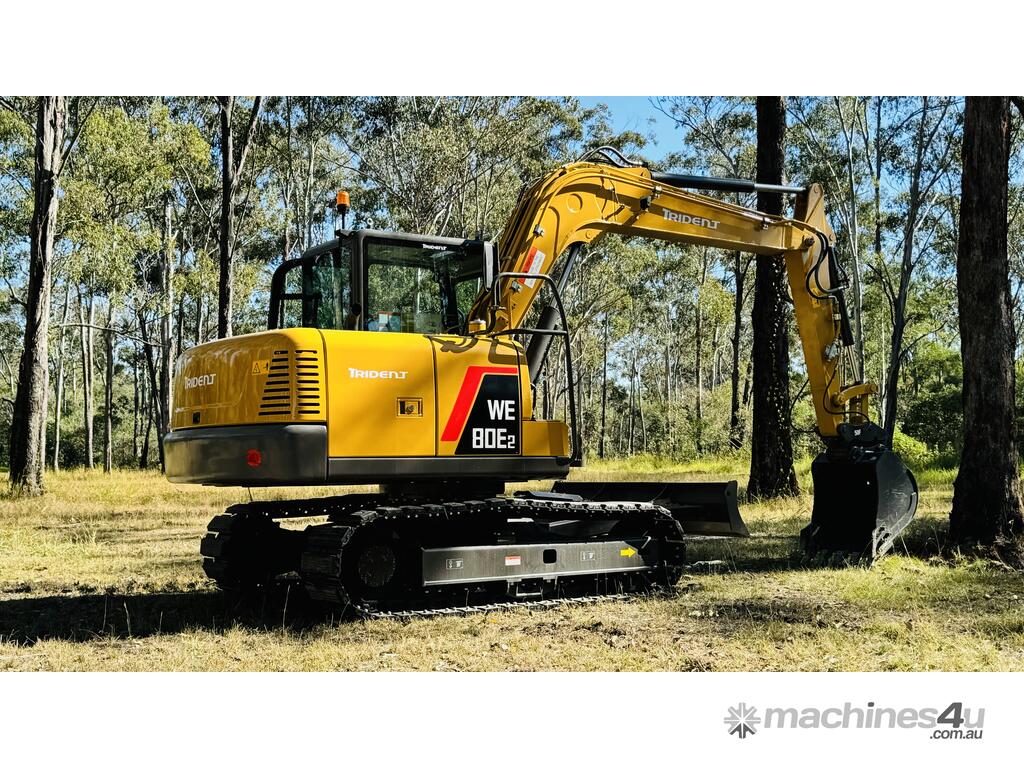

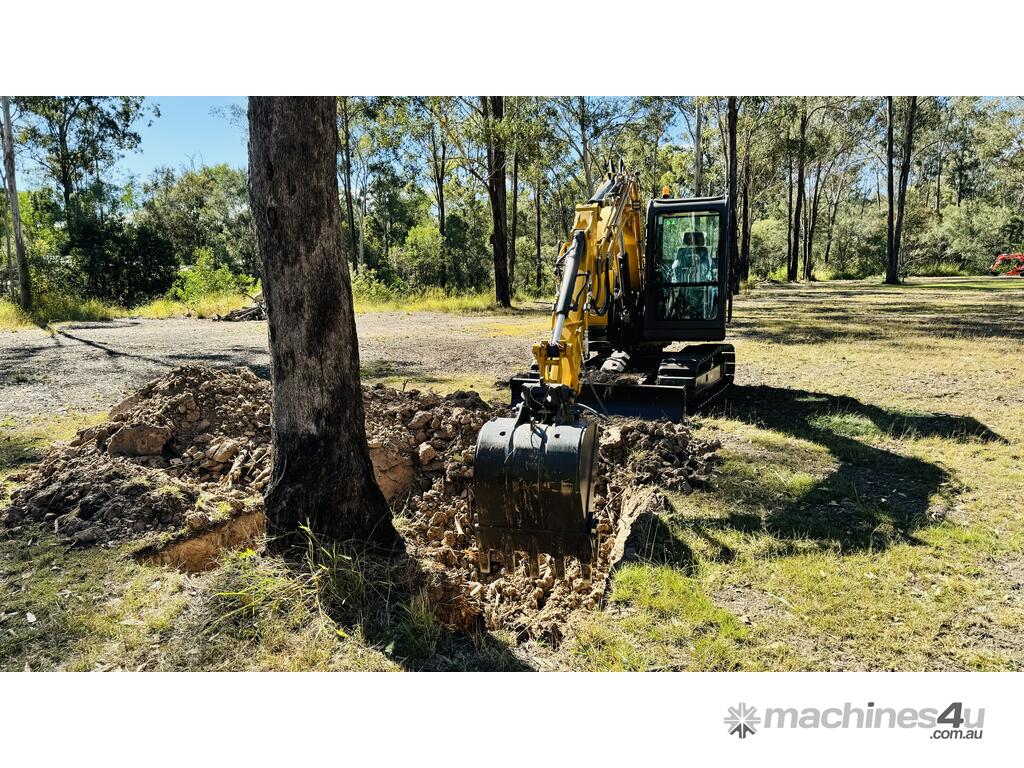

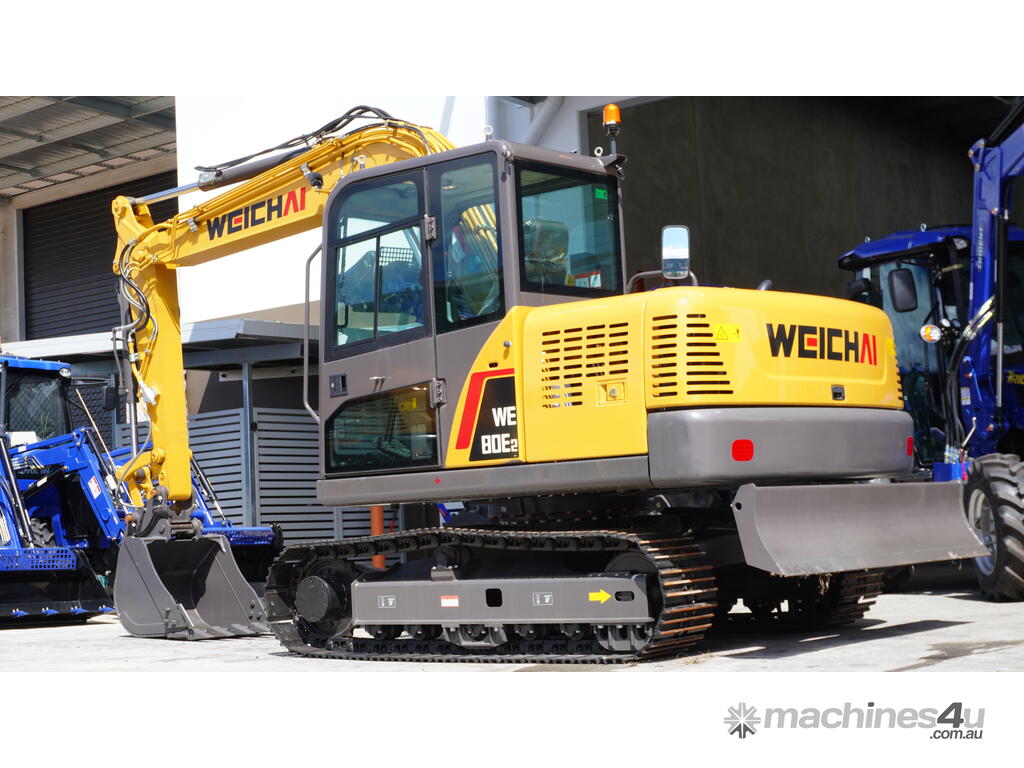

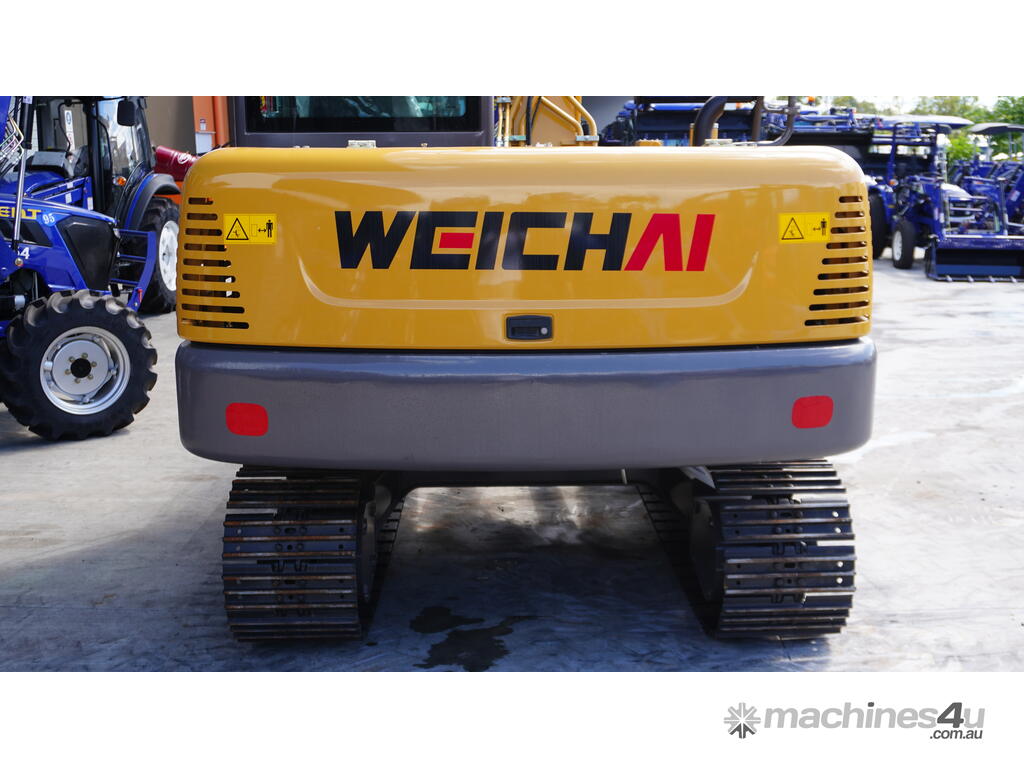

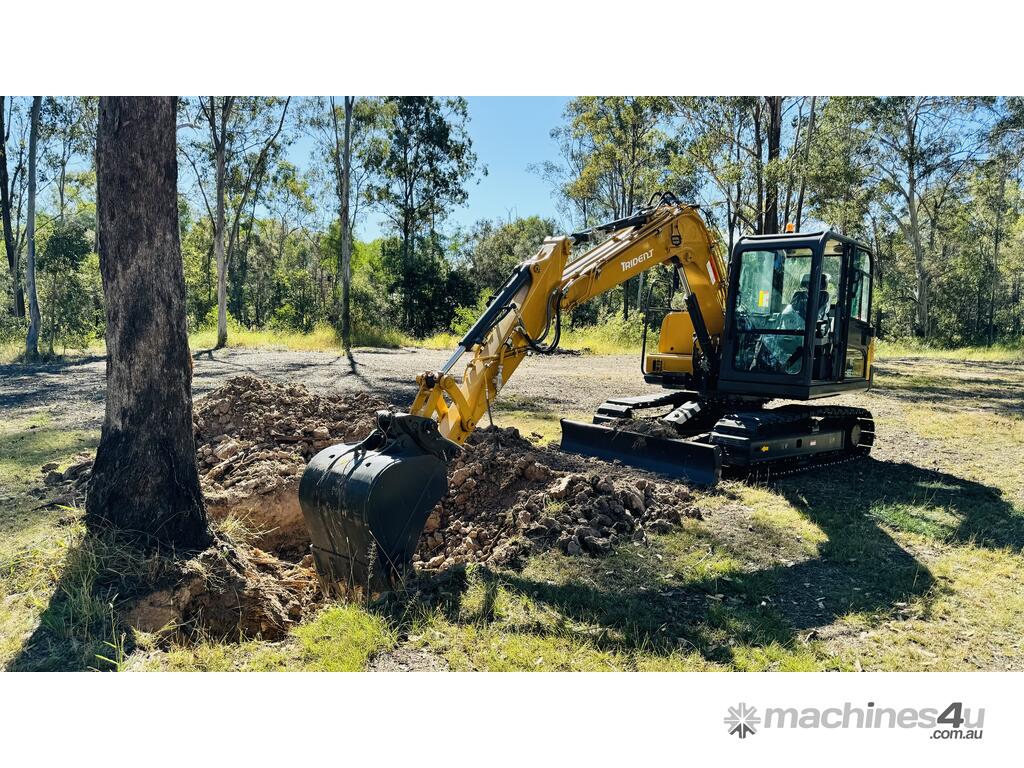

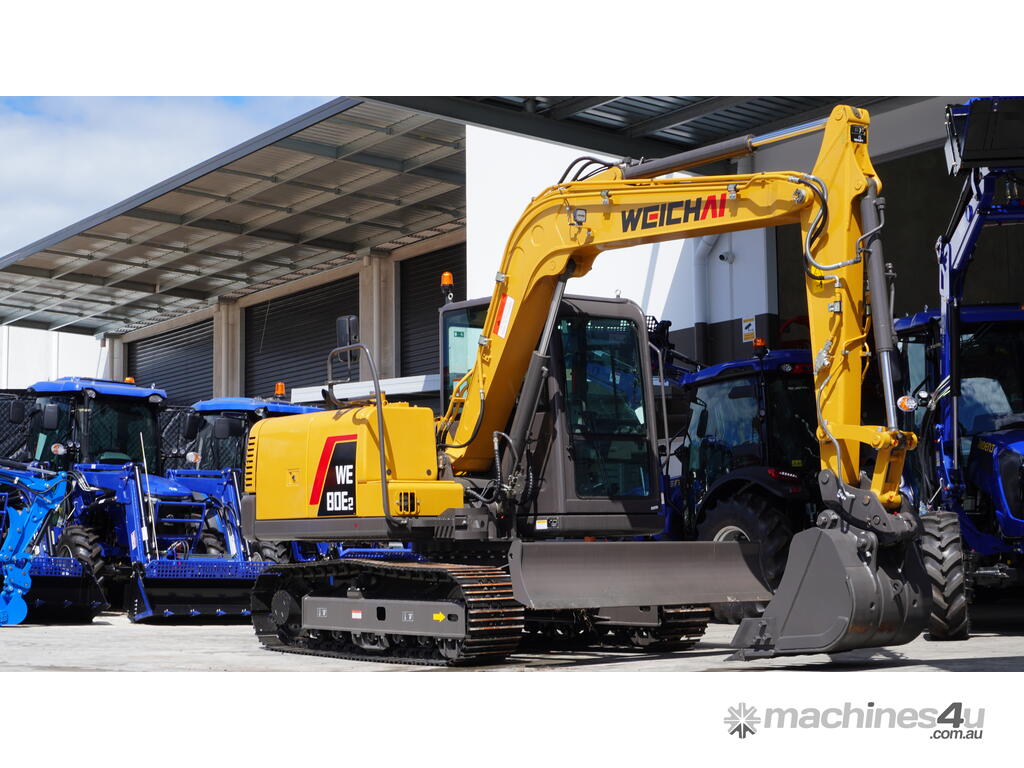

Trident 8T steel tracked excavator with hydraulic quick hitch
Key Features:
A/C cabin

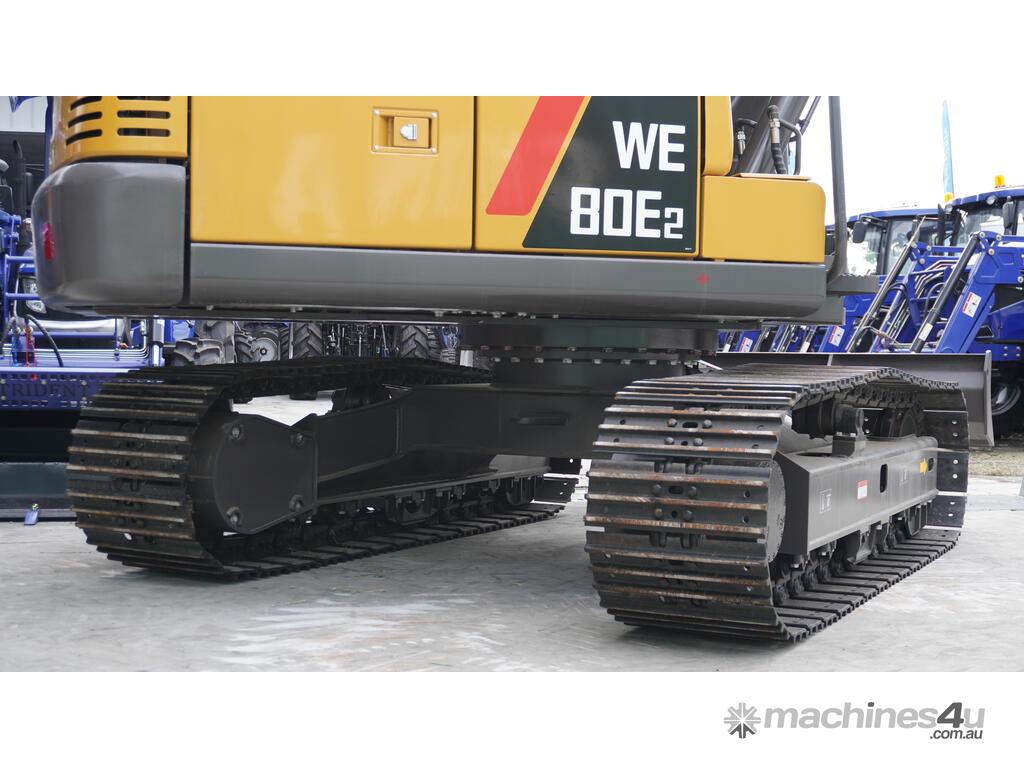

Heavy duty chassis with steel track (rubber pads available)
High flow rate 159L/M

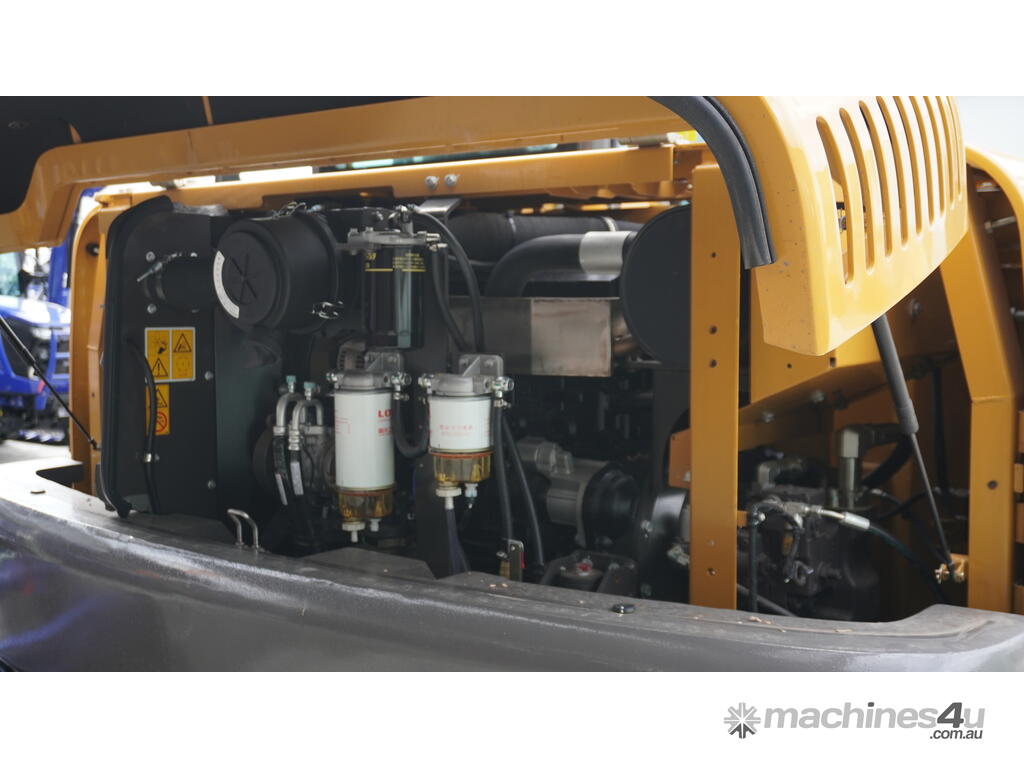

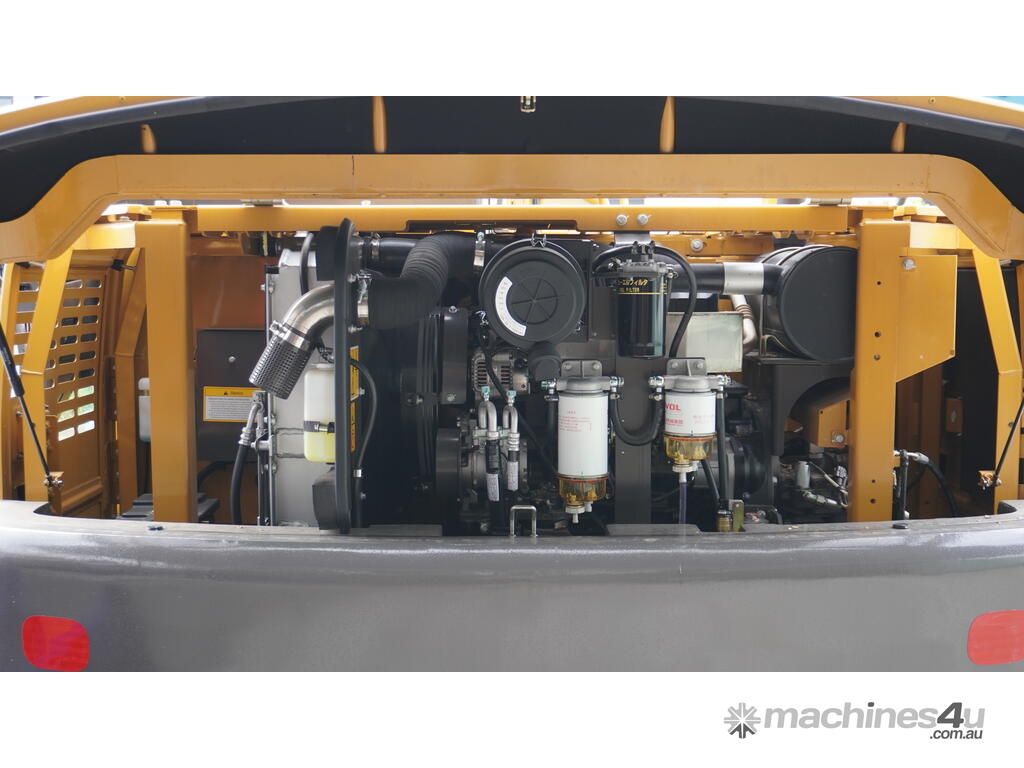

Yanmar direct injection engine, no computer, easy to service
High quality hydraulic pump

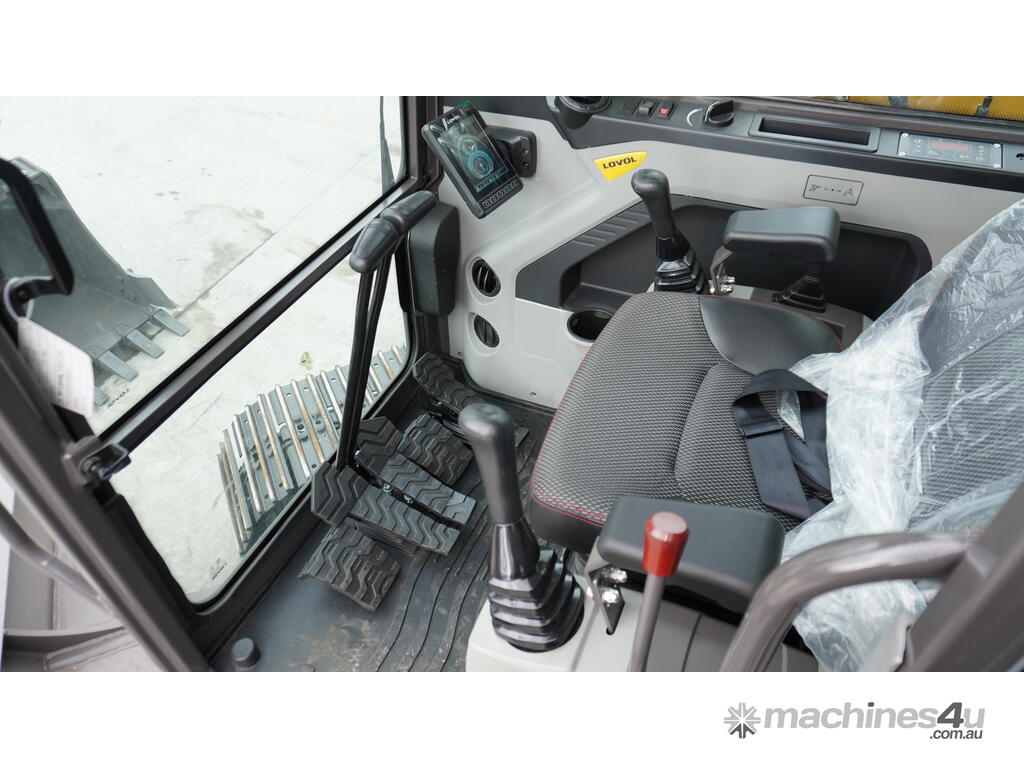

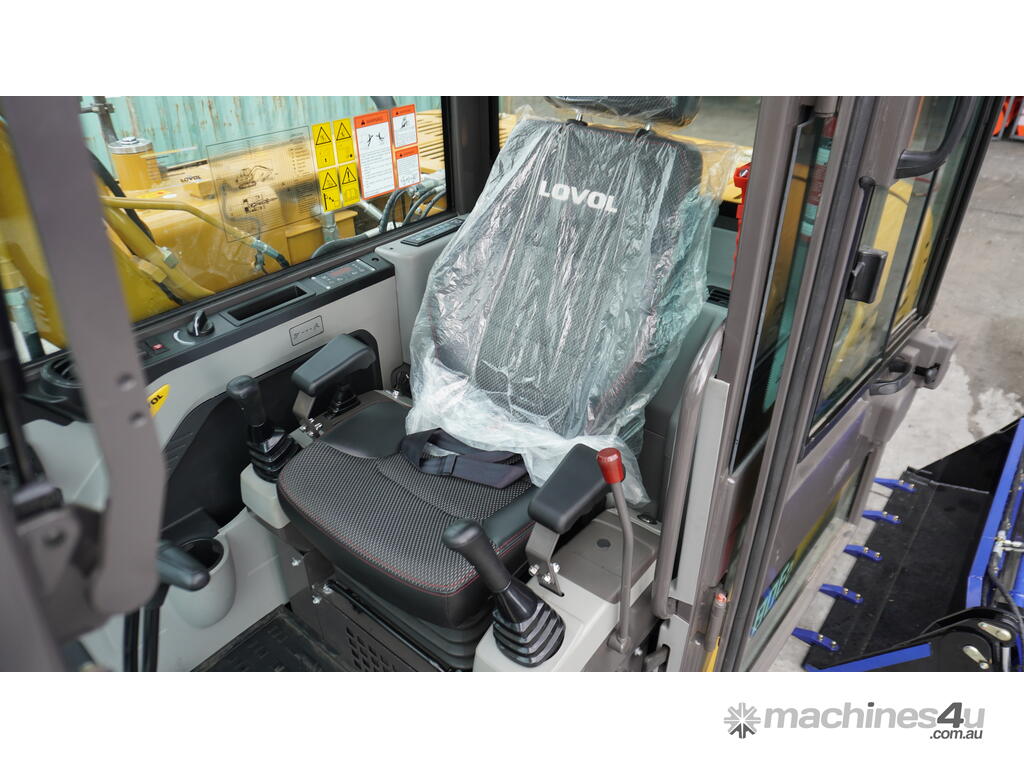

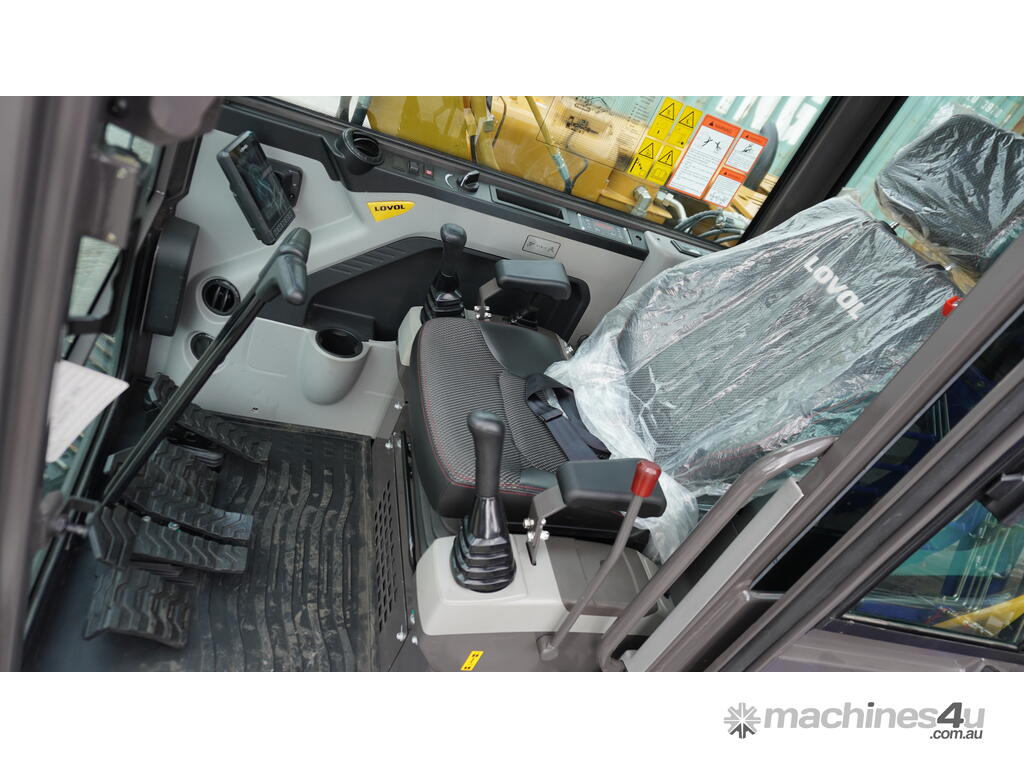

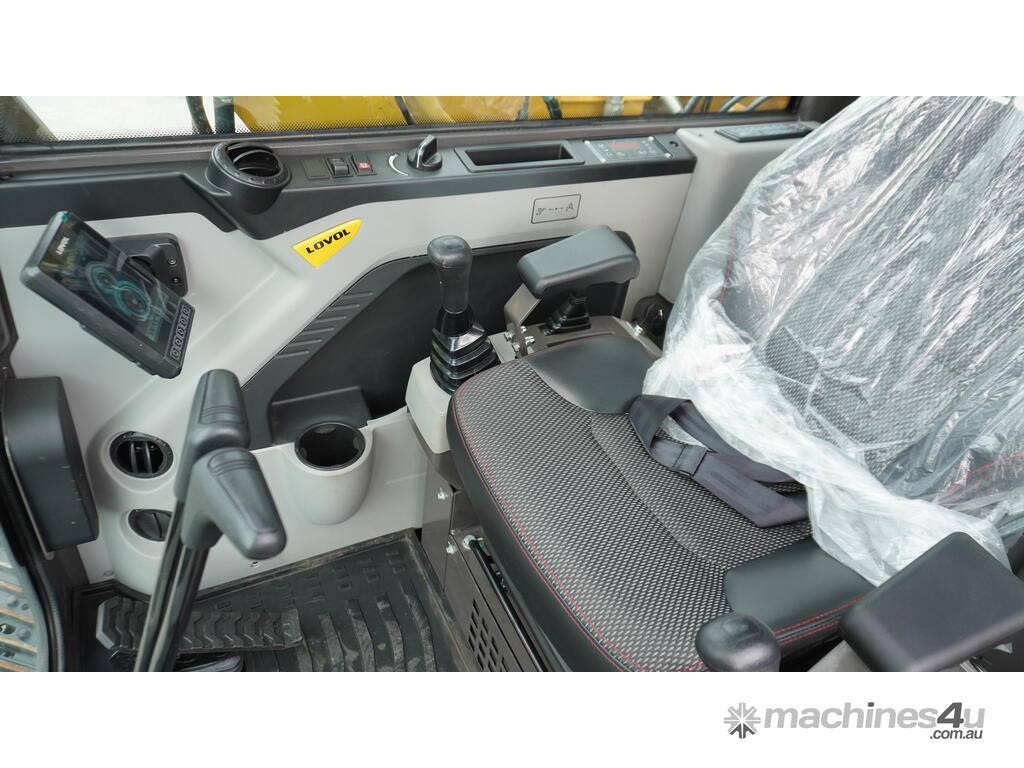

Pilot controls

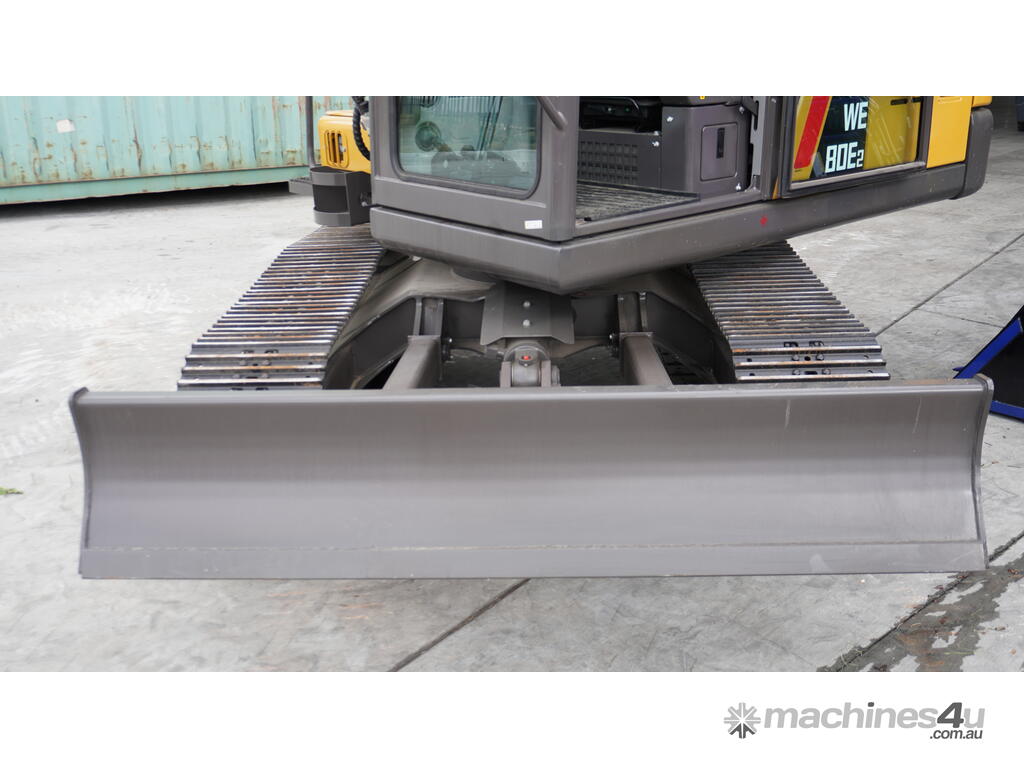

Dozer blades

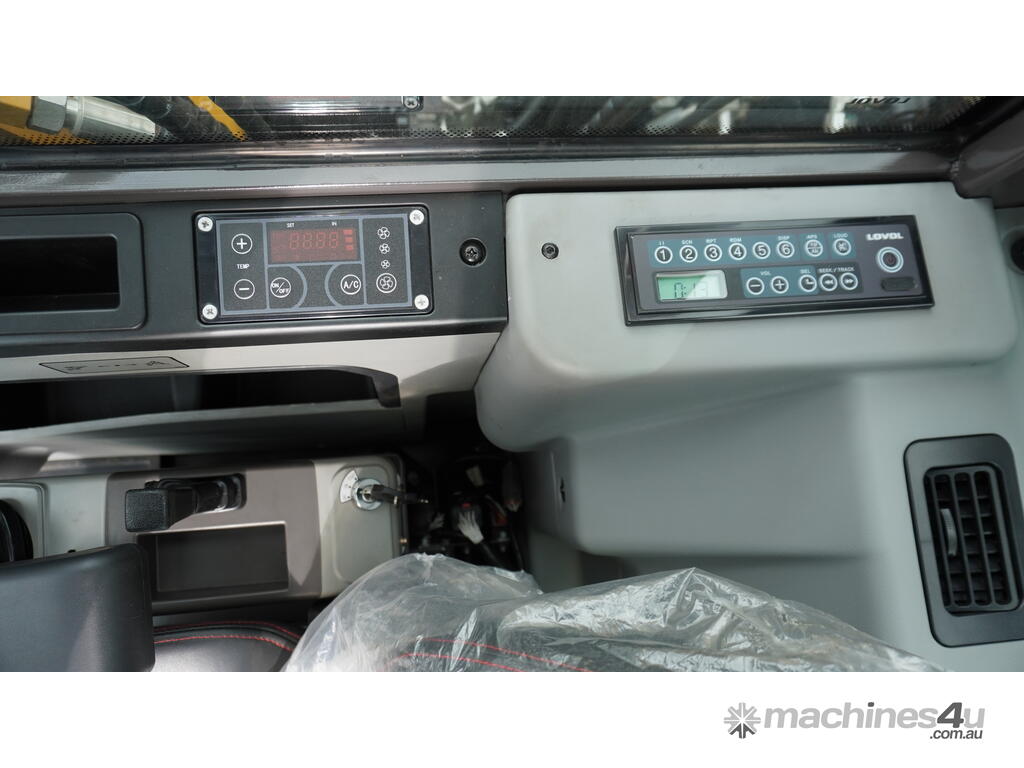

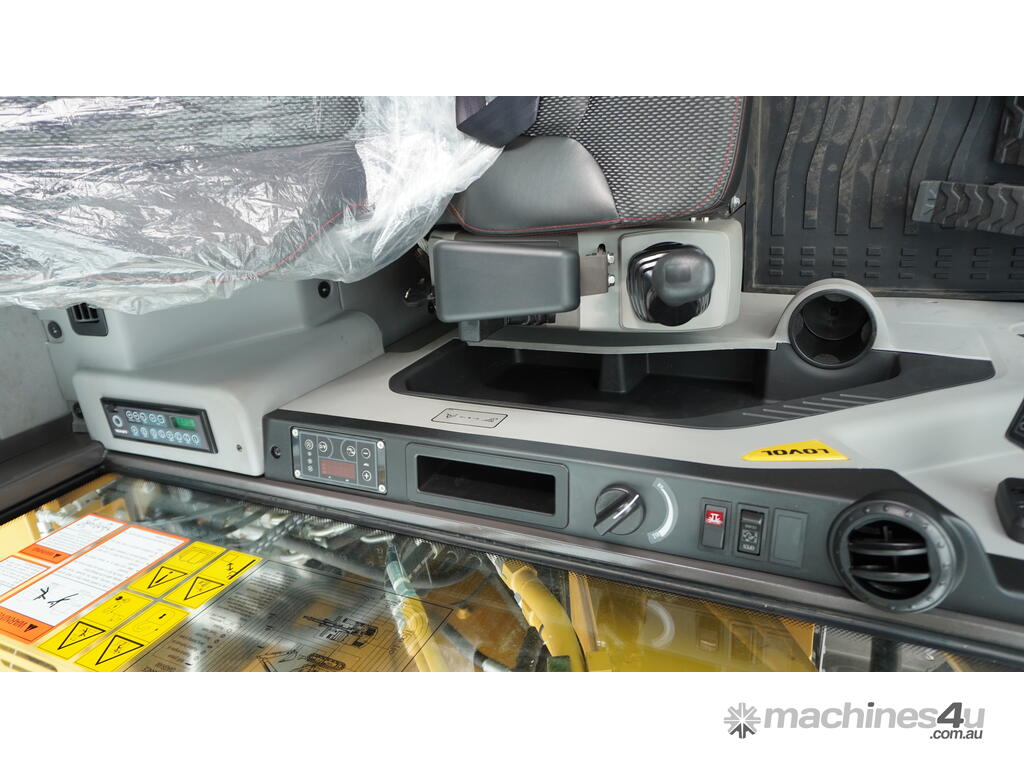

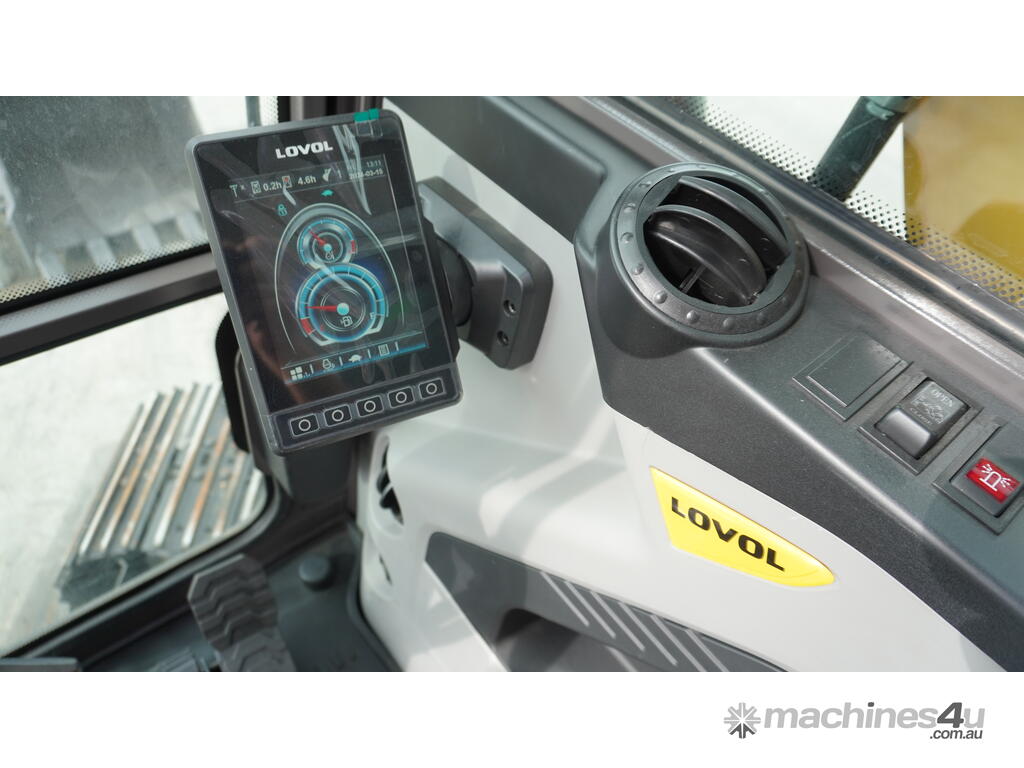

Touch screen control panel

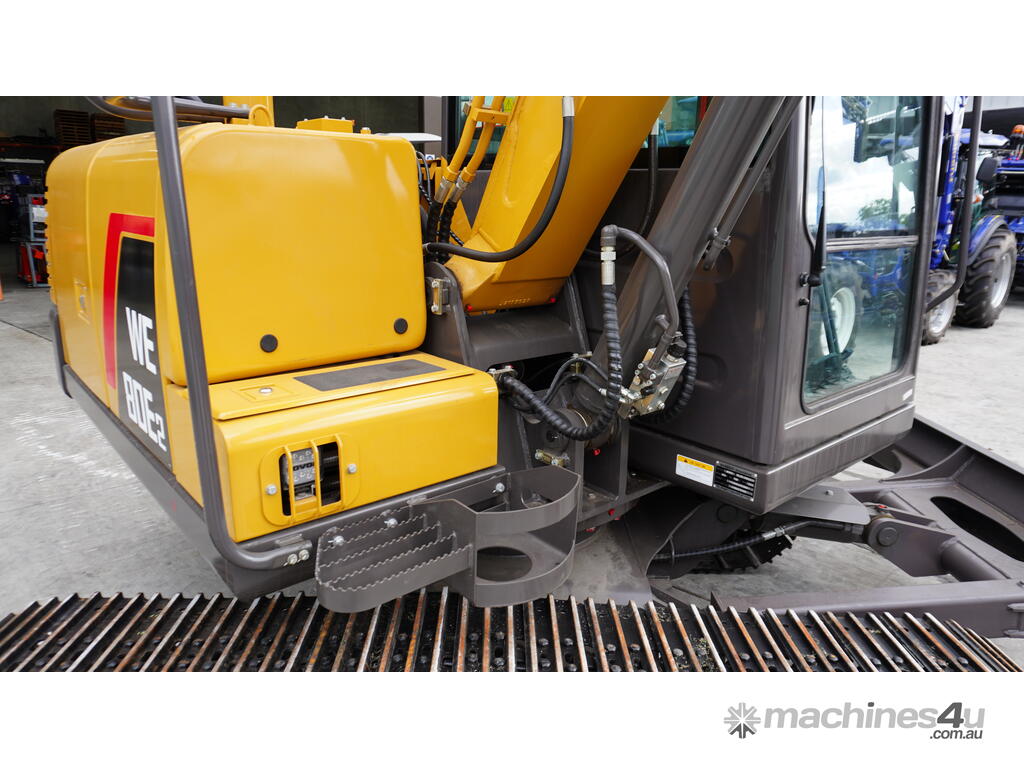

Hydraulic outputs for multiple attachments
Engine/Hydraulic:

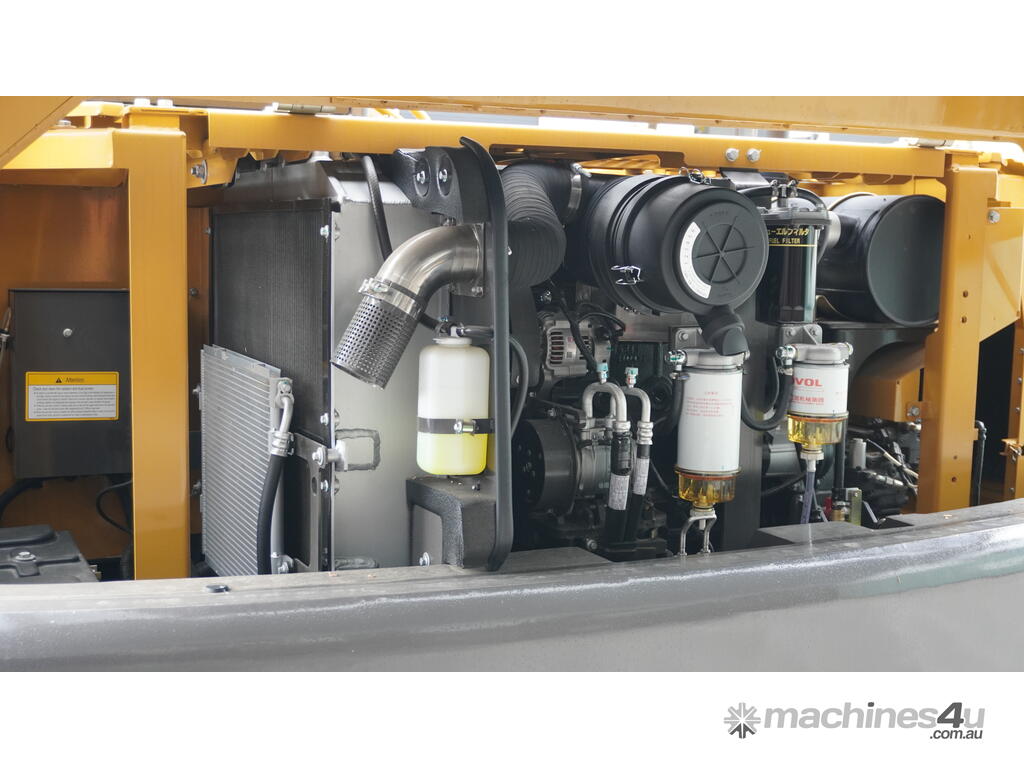

Engine model YANMAR 4TNV98
Rate power 44.4kW/2100rpm
Displacement 3.32L
Maximum Torque/Speed 237Nm/1400rpm
4 cylinder
Flow rate 159L/min
Main Safety Valve Pressure 28MPa
Fuel Tank 160L
Hydraulic Tank 100L
Engine Oil 5-9.4L
Operating Parameters:
Vehicle working weight 7800kg
Travel speed 2.7-4.3km/h
Gradeability 35%
Swing speed 11.5rpm
Ground Pressure 35.1kPa
Bucket digging force 56kN
Arm digging force 38kN
Maximum traction force 61kN
Maximum digging radius 6335mm
Maximum digging depth 4050mm
Maximum vertical digging depth 3670mm
Maximum digging height 7150mm
Maximum dumping height 5030mm
Maximum Lifting height of dozer blade 375mm
Maximum Digging depth of dozer blade 295mm
Excavator Dimensions:
Bucket capacity 0.32m3
Shipping length 6100mm
Shipping ground length 3665mm
Boom height 2575mm
Shipping width 2275mm
Cab height 2650mm
Ground clearance of counter weight 820mm
Minimum ground clearance 378mm
Tail turning radius 1830mm
Length to center of rollers 2130mm
Track length 2770mm
Track gauge 1700mm
Track shoe width 450mm
Hood height 1750mm
Rotary platform width 2275mm
Boom length 3708mm
Arm length 1650mm
Track section number ?each side?38
Track roller number 5
Dozer blade height 425mm
