TRILO offers contractors the best vacuum sweeper for the job. With the S-series, you will get exactly the machine suitable for the job. By using our product configurator the machine can be assembled exactly to meet your needs and wishes. No matter if you wish to sweep litter, leaves, debris or grass or cut fine or rough grass, the S-line offers the perfect solution for you.
Maximum capacity
All of the new S-series vacuum sweepers are equipped with a powerful, 6 blade fan in a TRILO centrifugal pump. The air capacity has been increased by maximising the filter surface, by enlarging the air intake and by redesigning the brush hood. The position of the spout has been altered, increasing the filling degree of the container. The S-series is available with loading capacities of 8 up to 20 m3.
Efficient and manoeuvrable combination
One of the Key points of the new design is a compact and short trailer, which allows easy manoeuvring. The new design also gives the improved brush hood and suction hose more space.

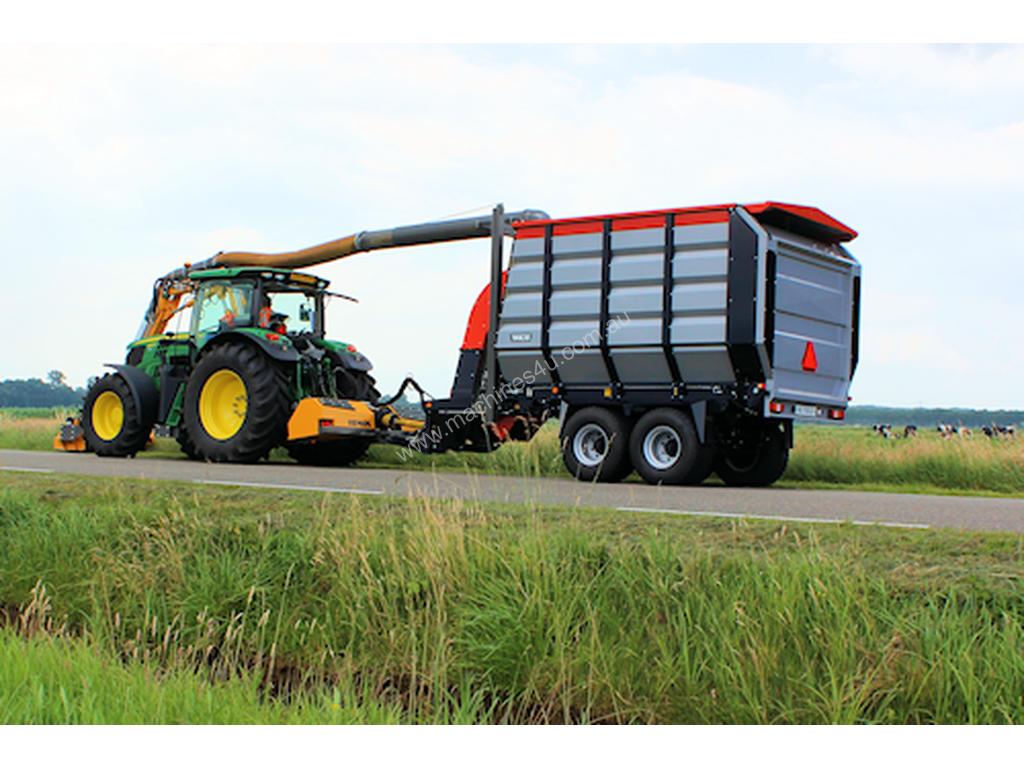

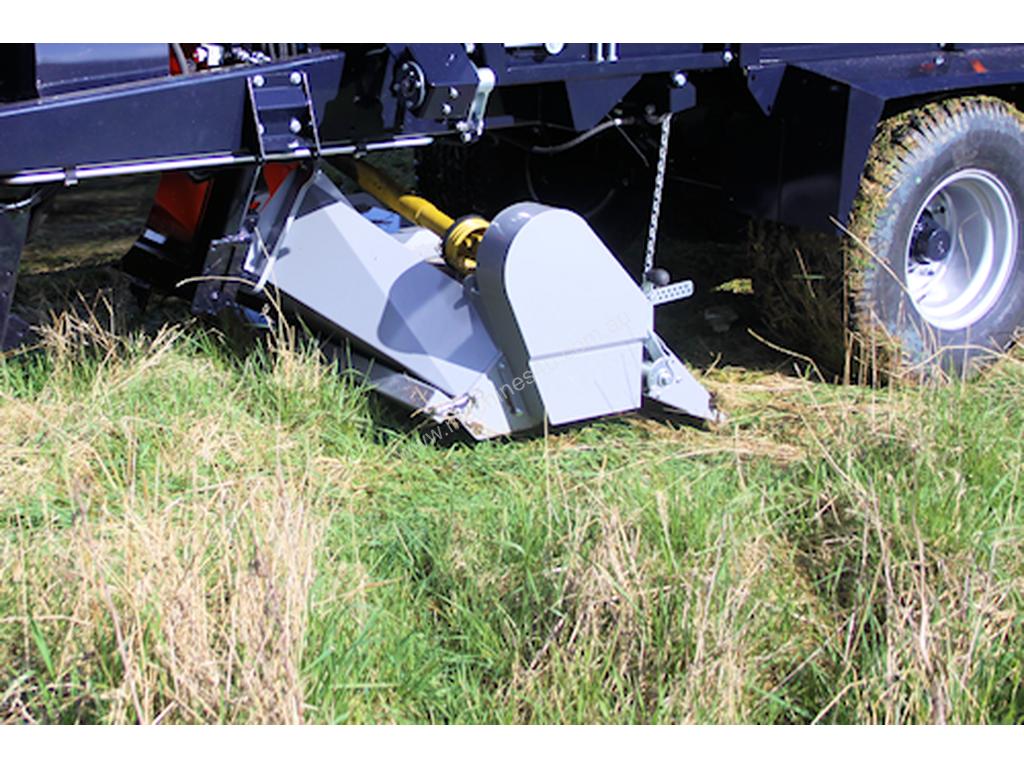

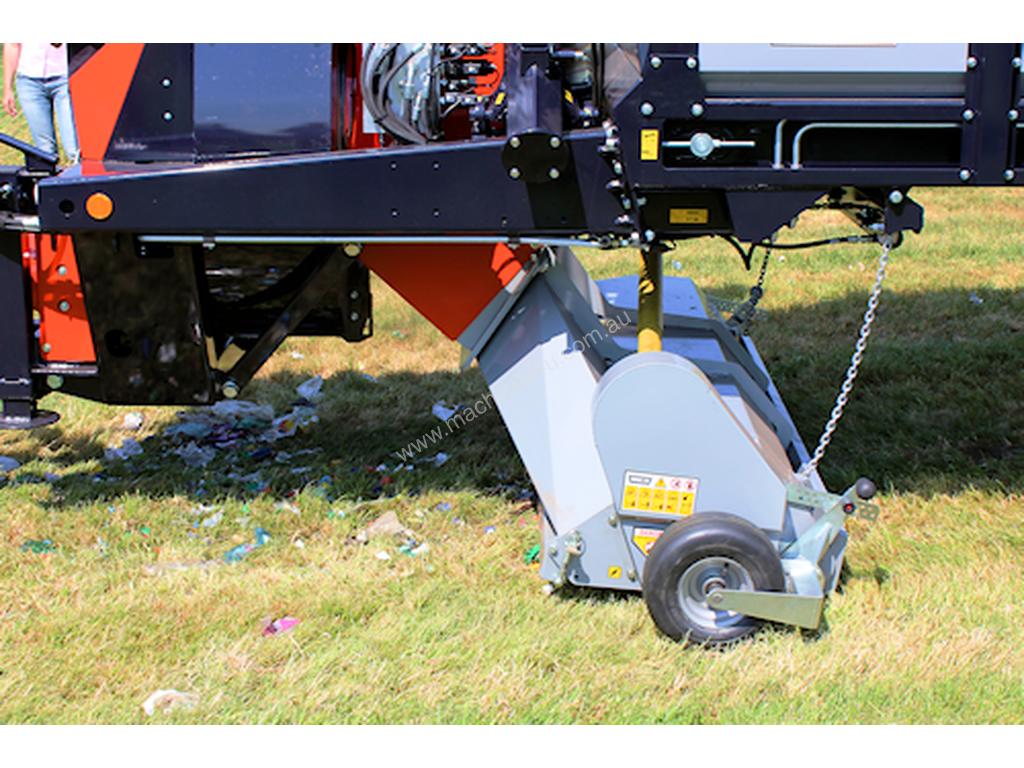

The brush hood has been improved in life span, capacity, multi functionality and easy maintenance. The boom with the suction hose has been enlarged by 50%, to a lenght of 2,5 meters, which allows
the driver to collect materials from even further distances from the sweeper. The suction hose is placed closer to the sweeper which improves the sight to the rear. The boom can be
placed at both sides of the machine.
Maintenance friendly
All S-series models are driven by XPB belts with automatic tighteners. The grease points have been replaced with maintenance free bearings, for example in the boom, the front rollers of the
unloading floor and the hinges of the back door. The remaining grease points are easily accessible.
Technical specifications
Fan diameter: Ø 960mm
Number of fan blades: 6
PTO output: > 70 hp
PTO: 540/750/1000 RPM
Drive: Power take-off
Required hydraulics: 180 bar – 40 l/min.
Required hydraulic connections: 2x double acting minimum
Weight: depending on configuration
Measurements (LxWxH): depending on configuration
Air capacity: 390 m3/min.
Noise level: 85 dB(A)
Loading capacity: - m3
Wander hose: Ø 250 – 5 +1 m
Suction hose: Ø 350mm – 4 m
Working width -300cm
Tyres: 505/50R17 or 435
