New Trilo Turf Vacuum Sweeper for sale - Trilo S3

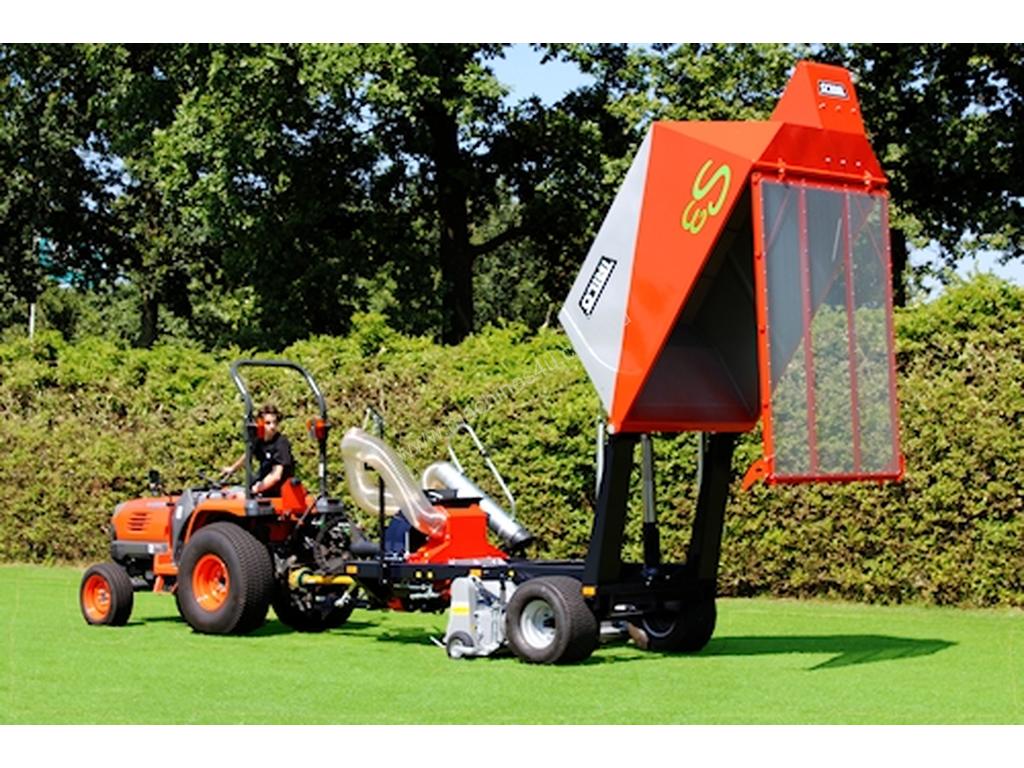

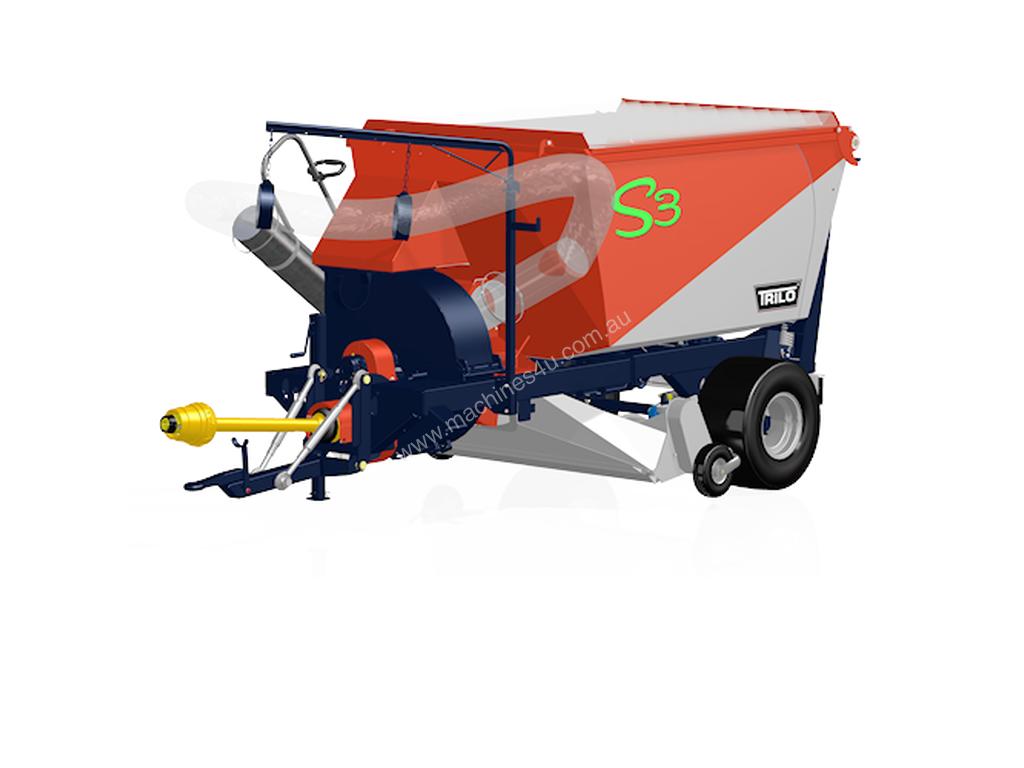

The TRILO S3 is a compact and economical vacuum sweeper with a loading capacity of 3 m3 and large, air filled tyres for low soil pressure. The S3 is standard equipped with a brush hood, which brushes the mowed grass or leaves together for more efficient vacuuming. Optionally you can also equip the S3 with a mowing shaft, verticutting shaft or a combined shaft for simultaneously mowing and verticutting. The castor wheels are mounted in the heart of the shaft, ensuring that the sweeper follows the contours of the soil perfectly. This vacuum sweeper is suitable for tractors from 28 HP (20 kW) and is driven by a Walterscheid PTO shaft with wide angle and overrun clutch. The Ø 700 mm 4 blade fan is placed inside a TRILO centrifugal pump with replaceable lining for extra-long life. The optional wander hose has a reach of 6 meters and is equipped with a sturdy end pipe with handgrip.

Technical specifications

Fan diameter: Ø 700 mm
Number of fan blades: 4
PTO output: > 28 hp
PTO: 540 RPM
Drive: Power take-off
Required hydraulics: 180 bar – 20 l/min.
Required hydraulic connections: 1 x double acting
Weight: 1240 kg
Measurements (LxWxH): 4,05 x 1,90 x 1,85 m
Air capacity: 280 m3/min.
Noise level: 90 dB(A)
Loading capacity: 3 m3
Wander hose: Ø 200 mm, length 5 + 1 meter
Working width: 1,50 m
Tyres: softtrac 26.5×14.00-12
