Can be retro-fitted to ANY truck
The Scorpion On-Board Weighing solutions is ideal on any truck needing to check their loads anywhere and anytime.
Key Features of Scorpion On-Board Weighing:
-Can be retro-fitted to ANY truck
-Weighs truck in stationary position

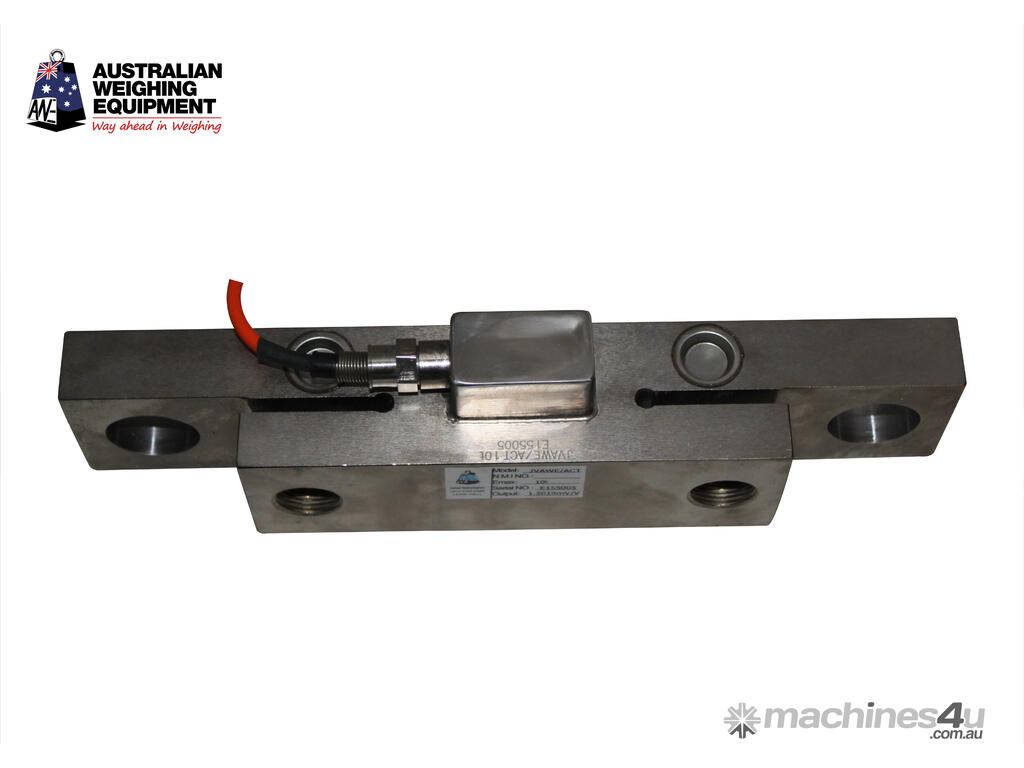

-Loadcells made from 4340 high tensile steel
-Hermetically sealed loadcells work in harsh environments
-Suitable for trucks & trailers that carry payload using chassis & body structure
-Installation requires separation of the Body from the Chassis so loadcells can be fitted between them
Ideal for these vehicles:
Flatbeds
Semi-Trailers
Tauliners
Dump Trucks
Tankers
Van for Refuse Collection
Tippers
Scorpion On-Board Weighing Technical Specifications:
Loadcell Material: 4340 High Tensile Steel
Weight: 6.3 KG
Loadcell Protection::: P67
Dynamic Capacity:: 5,000 KG
Static Capacity:10,000 KG
Rated Output :(mV/V) 1.50 (±) 0.015
Nonlinearity: (±) 0.03% of Full Scale
Repeatability: (±) 0.03% of Full Scale
Creep (30 Minutes): (±) 0.02% of Full Scale
Zero Balance: (±) 1.0% of Full Scale
Temperature Effect on Zero: 0.02% of Full Scale/10ºC
Temperature Effect on Output: 0.02% of Full Scale/10ºC
Input Resistance: 350 Ohms
Output Resistance: 350 Ohms
Excitation Voltage up to: 15V (DC)
Cable: - Orange Polyurethene 4 Core
- 10 Metres
Cable Colour Code: Signal: Green (+) White (-)
Input Excitation: Red (+) Black (-)
