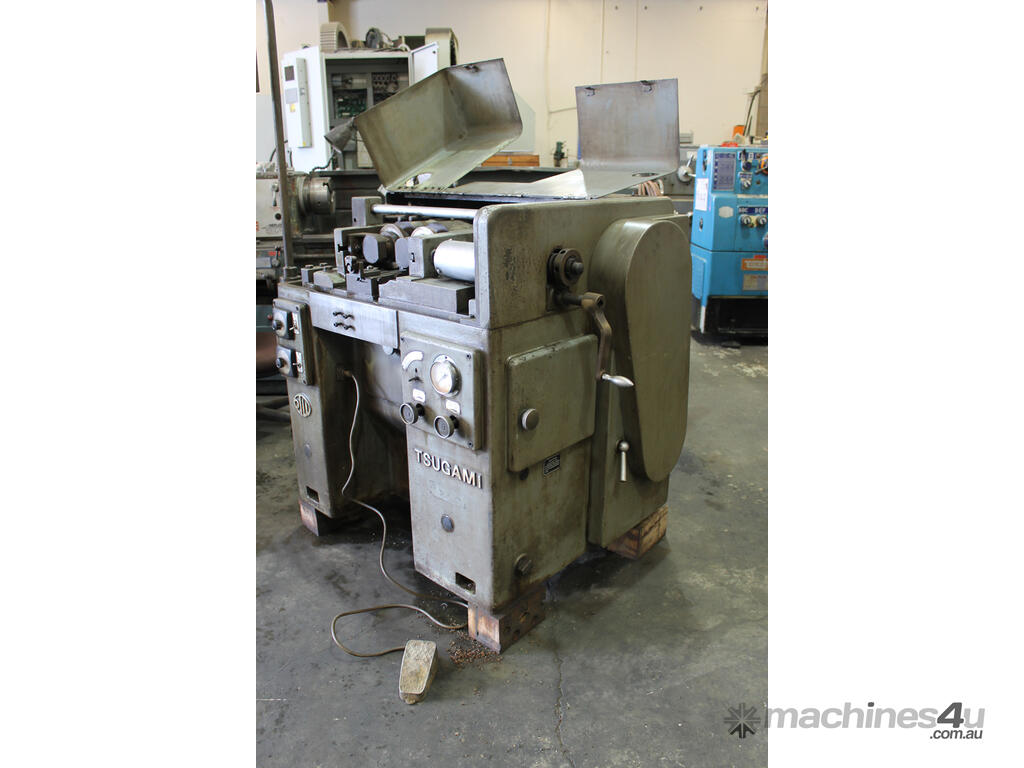

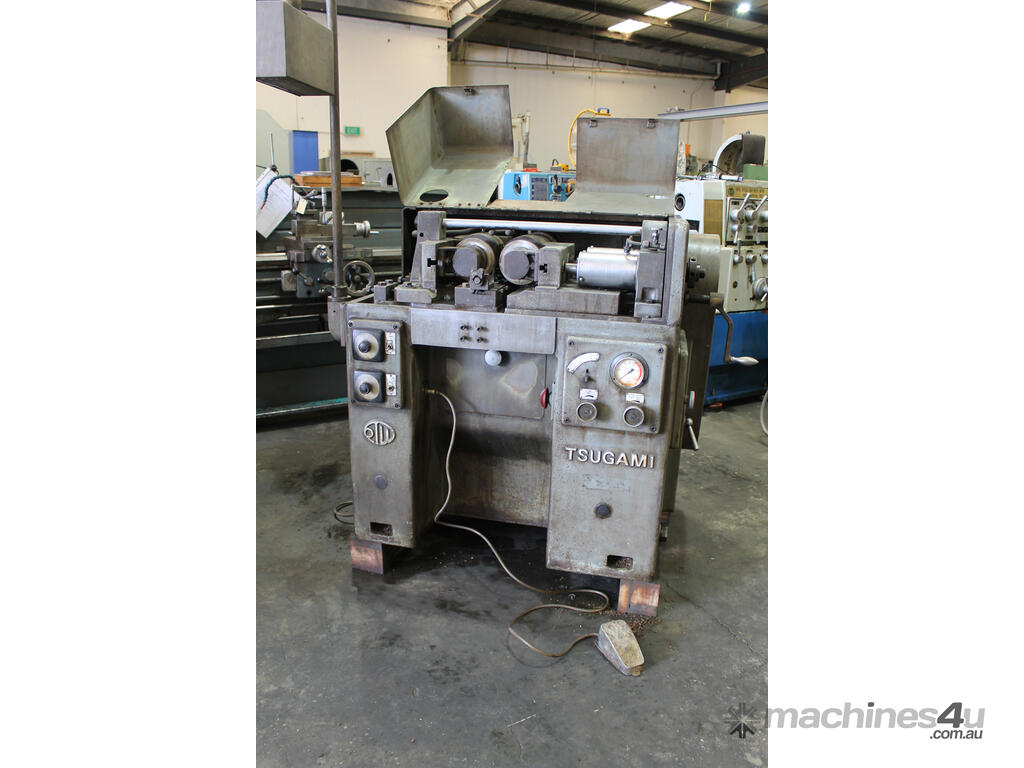

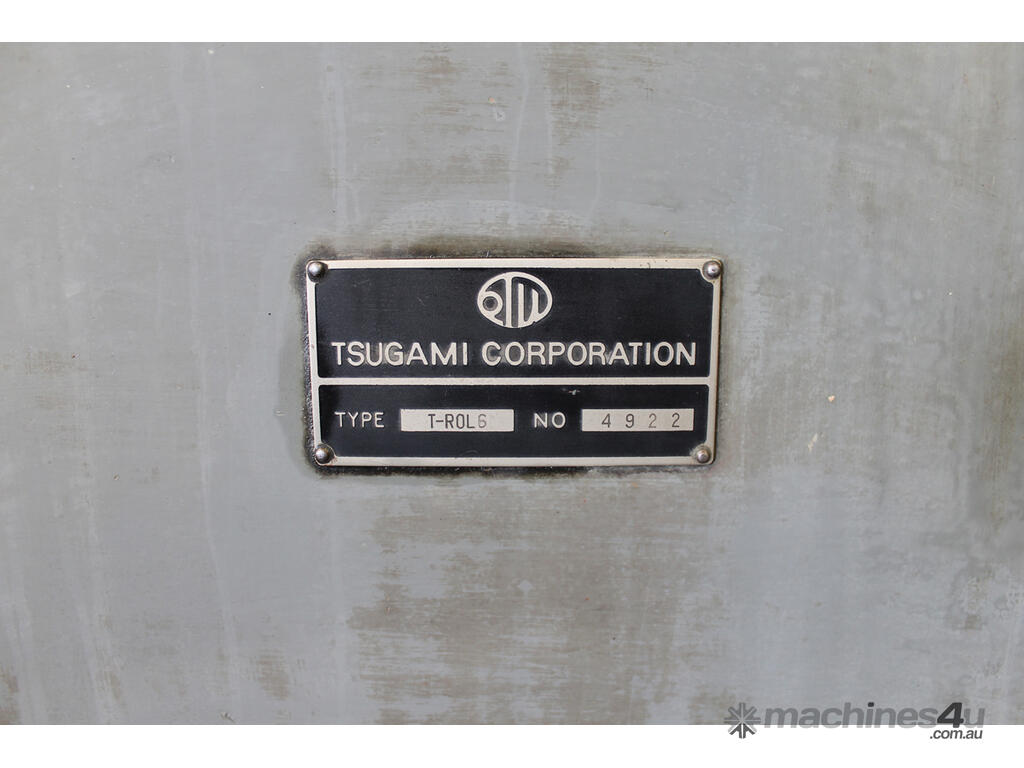

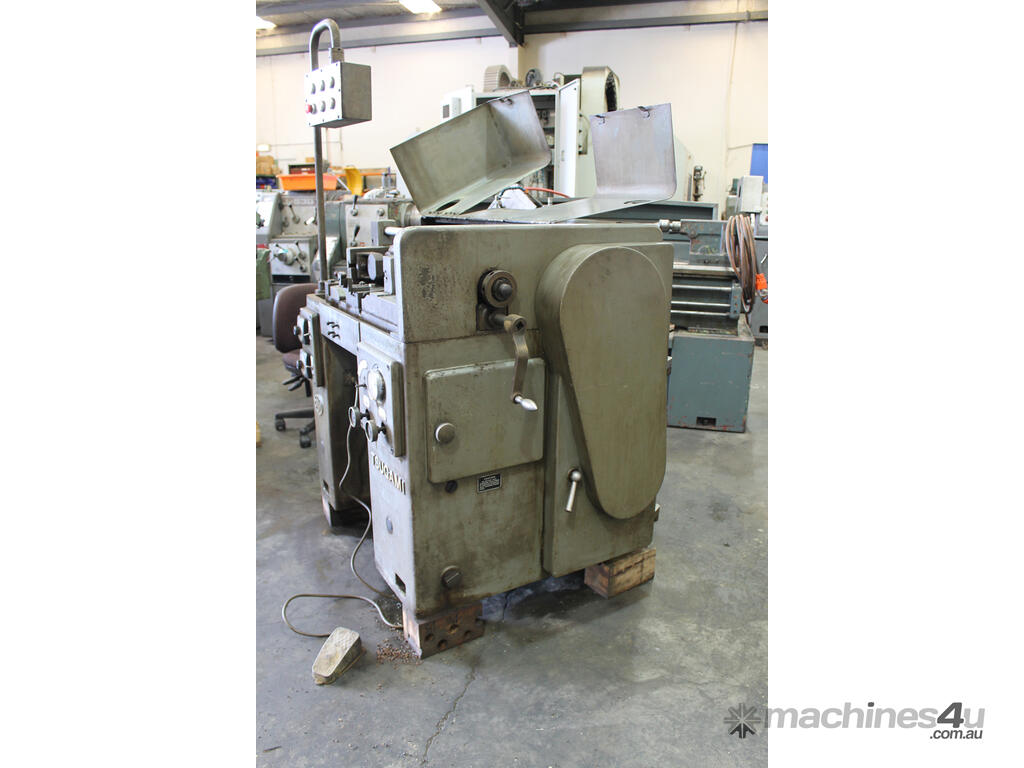

Tsugami T-ROL6 Thread Rolling Machine

We have for sale a Tsugami T-ROL6 Thread Rolling Machine

Stock #4031

This machine is suitable for mass production of small threads, worms, knurls and serrations

Specifications

Work Range

Max Thread Pitch 2.5mm (10TPI)
Max Modul (diametrical pitch) 1.5m (16DP)
Max Roll Length 60mm (21/4”)
Max Diameter 45mm (1-3/4?)
Max Elongation 8%
Roll Spindle Speeds 38rpm and 58rpm 50Hz

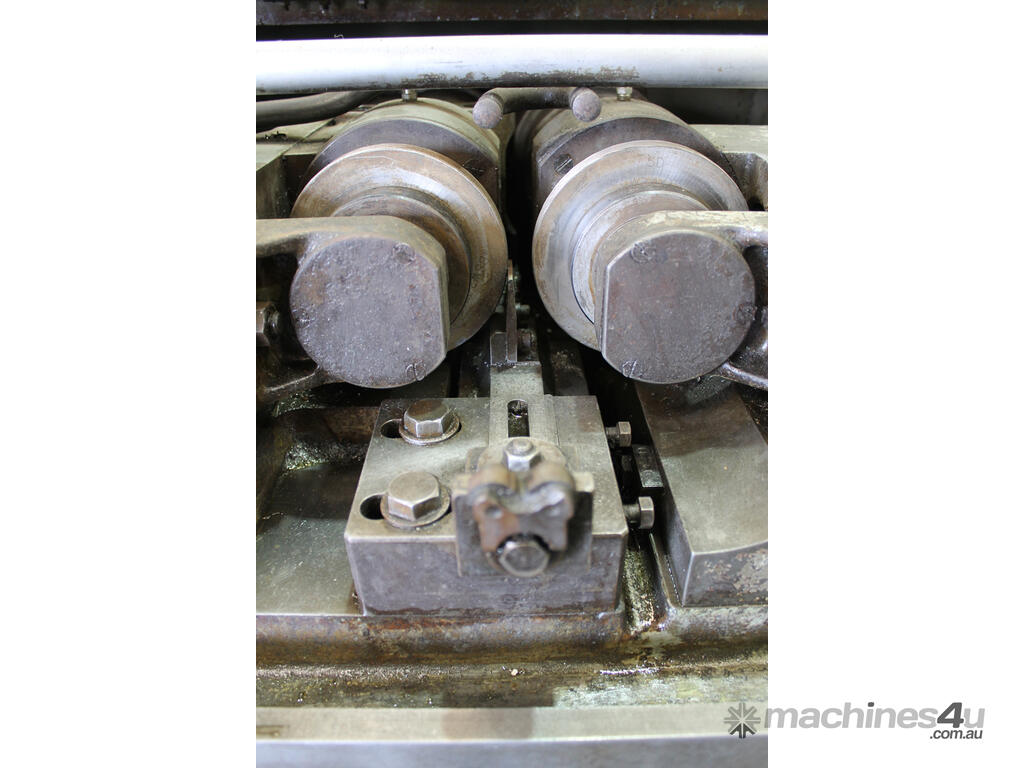

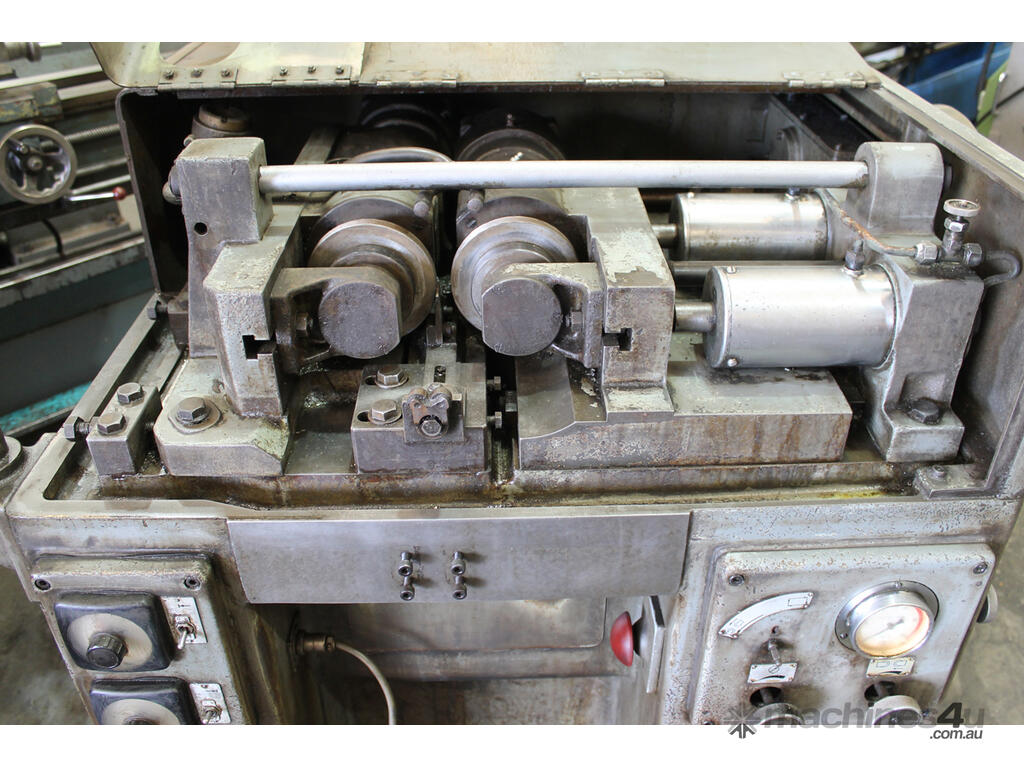

Roll Dies

Max Diameter 150mm
Bore Diameter 54mm
Roll Width 40,60mm
Motors

For Roll Spindle 2hp 1,500rpm
For Hydraulic Pump 1 hp 1,500rpm
For Coolant Pump 0.2hp 3,000rpm
Dimensions for Transport 1,130 x 905 x 1,015mm (High)
Weight 1,230kg

Accessories

Comes with the following sets of thread Rolls

3/16 BSW 24 x 60
1/2 BSW 12 x 60
1/4 UNC 20 x 60
5/16 UNC 18 x 60
3/8 UNC 16 x 60
M6 x 1.0mm
M8 x 1.25mm
M10 x 1.5mm

We recommend customers pay us a visit to inspect machinery, where we are happy to test run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job prior to purchase.

This centre lathe is in our warehouse so please feel free to call us on for more information & price or pop in to inspect the machine at your convenience.

We are always interested in purchasing metalworking machinery & surplus equipment. Should you be looking at Downsizing, Relocating, Closing Down or have machinery that is surplus to requirements, we would appreciate the opportunity to assist in any way we can.

We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
