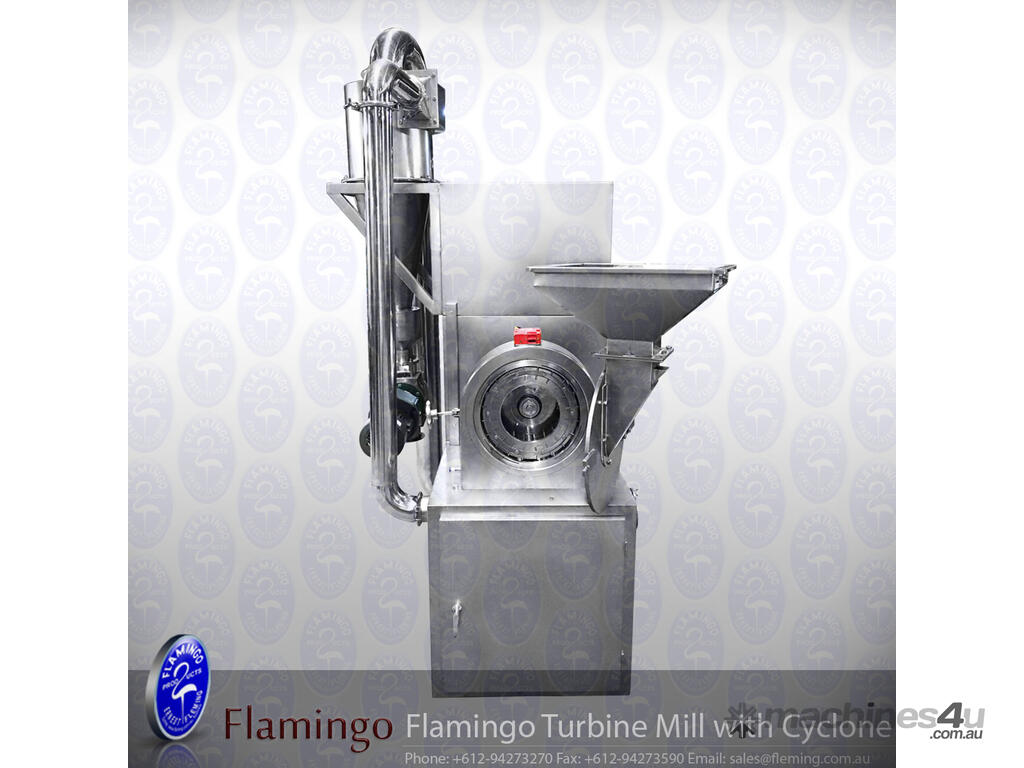

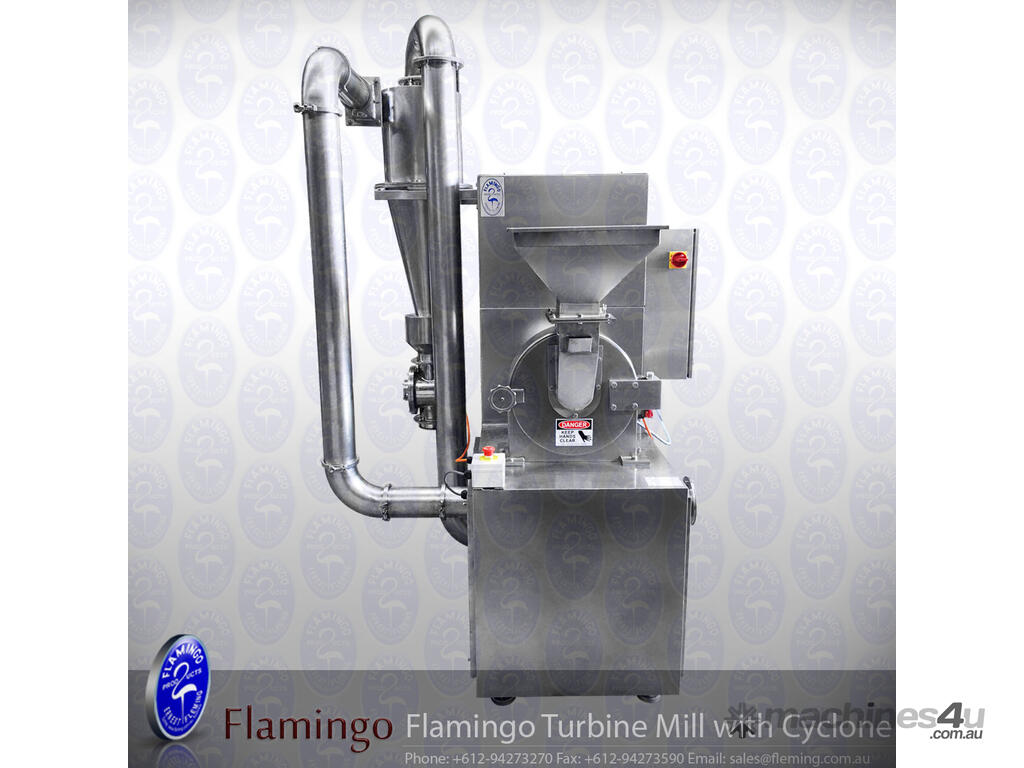

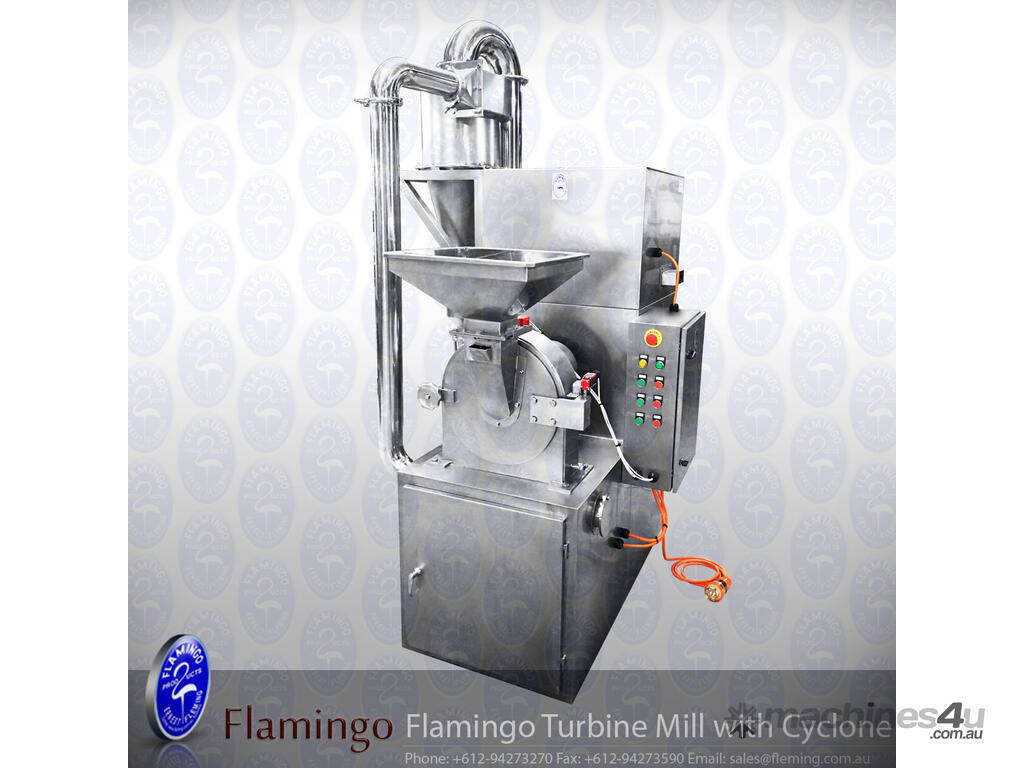

Turbine Mill with Cyclone

EFTM Turbine mills are used for pharmaceutical, food and chemical industry milling various type of materials with range of characteristics, hardness and fiber.

It gives effective pulverization results on many material, especially herbs and fibrous materials.
Working Principle:
The material is fed into the pulverizer chamber and ground by the rotating attrition head. The fineness of the resulting powder is controlled by the adjustment of the gap between gear and impact ring assembly of the unit.

Also, the units can be supplied with Air cooling system or without screen as request.

Qualified material transfers to the receiving cyclone and filter collector for discharge. All contact parts are made of stainless steel.
Suitable for:
- Fertilizers

- Chemicals

- Detergents

- Pigments

- Minerals

- Clays

- Food

- etc...
Features:
- Operator Friendly

- Simple Structure

- High Capacity

- Lower Noise

- Stainless Steel design

- No dust rise when running
