Used Amada Turret Punch Presses for sale - Turret Punch Press

Sydney-based manufacturing company selling its punching machine Amada Vipros 255 (year 2000).

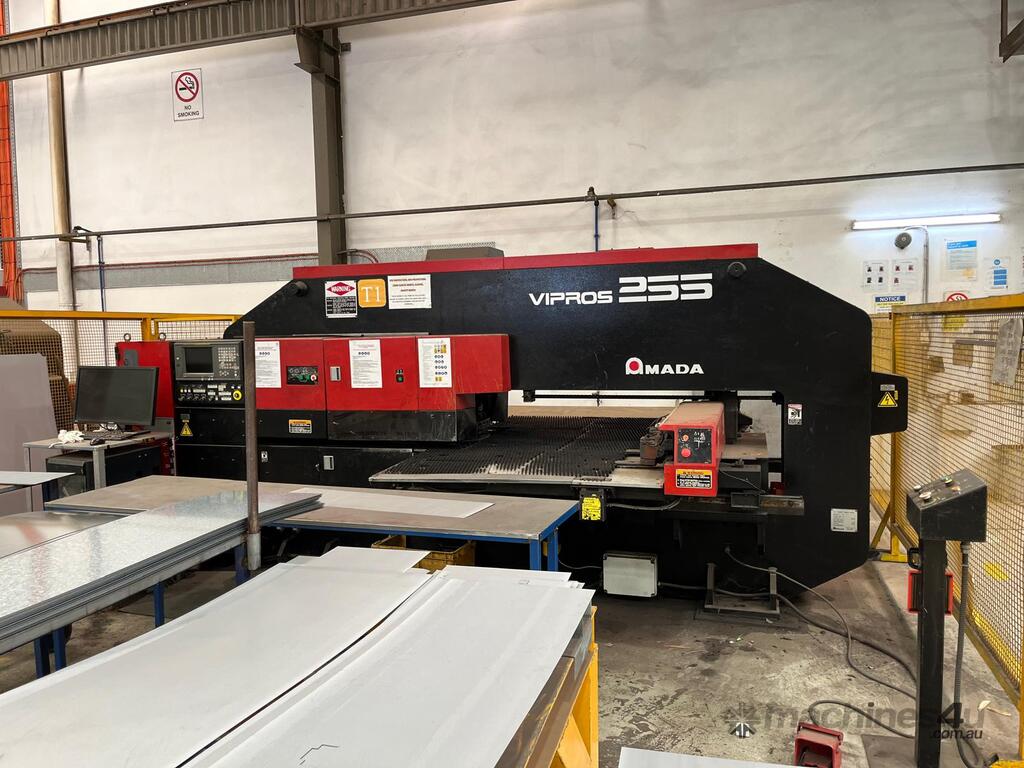

This AMADA Vipros 255 was manufactured in 1997. A robust punching machine featuring a Fanuc 18P control, it offers a maximum punching force of 200 kN and can handle materials up to 6.4 mm thick. The machine supports a maximum workpiece weight of 100 kg and has a working area of 2.540 x 1.270 mm. A great opportunity to buy this AMADA Vipros 255 punching machine.

For more information about this punching machine, please reach out to us on (.

FEATURES:
Machine width: 2630
Machine depth: 5030
Machine height: 2160

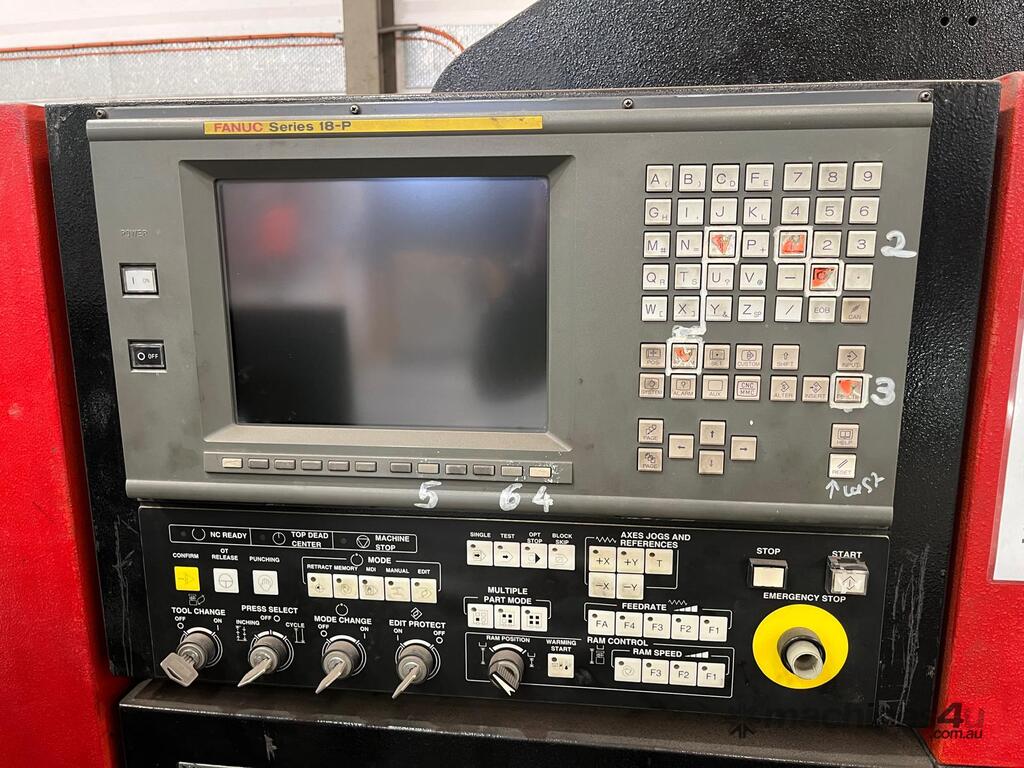

CNC: Fanuc 18P
Punching force: 200 KN
Maximum sheet thickness: 6.4 MM
Main motor power: 25 kva
Workpiece drm over bed: 88.9 mm
Workpiece weight: 100 kg

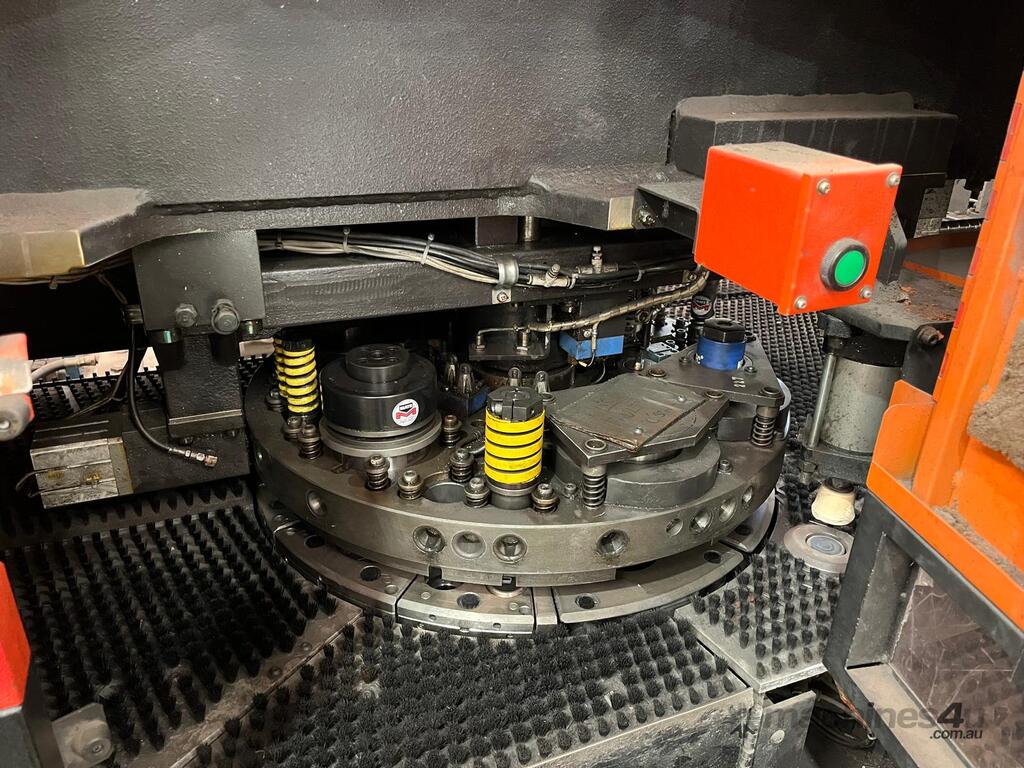

Number of turrets: 31

Max. Compressed air consumption: 4,16 l/s.
Simultaneous positioning speed (x / y): 89 m/min.
Max. Number of indexed tools: 3
Max. Tool rotation: 35 r/min.
Max. Working area: 2540 x 1270 mm.

Machine is still under power

Note there are four Vipros Punch Presses available on the same site. Ranging in year of manufacture from 1997 to 2004. Be quick to secure the machine/budget that suits you.

Tooling at this stage is not included.
