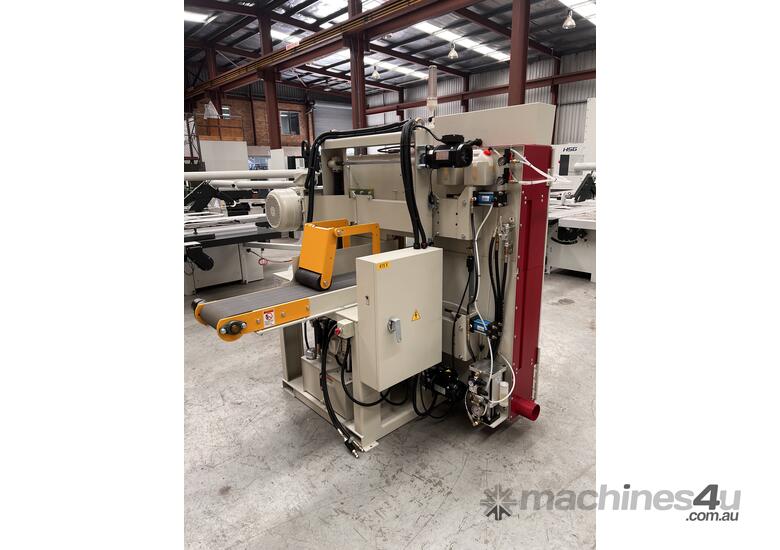

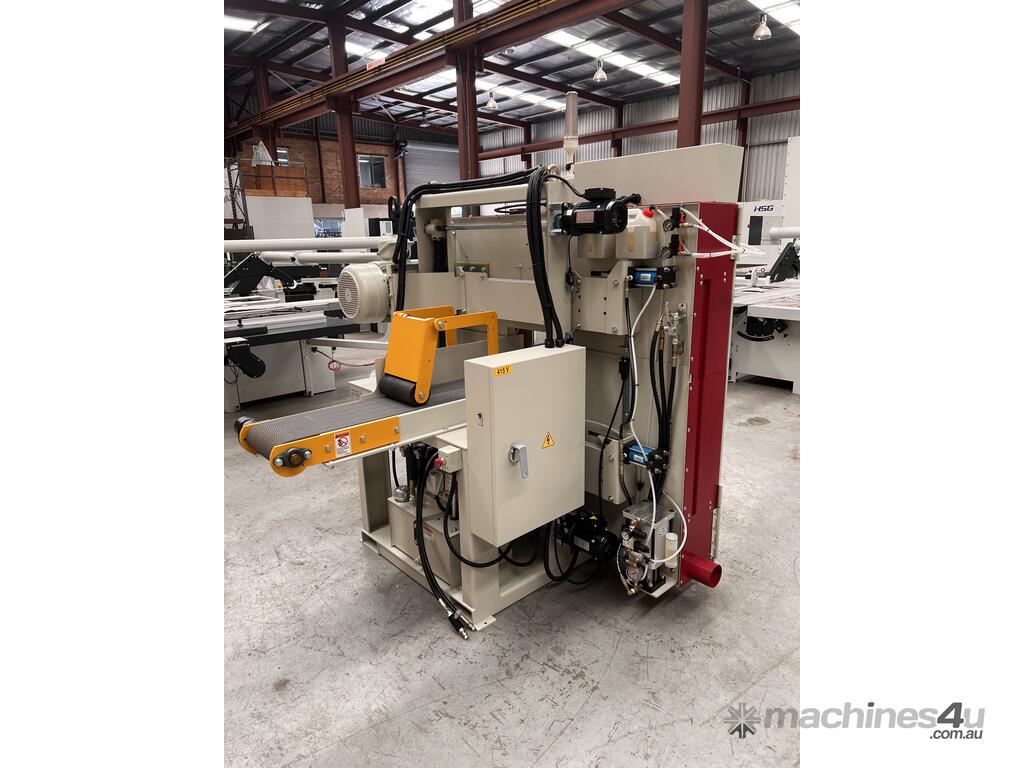

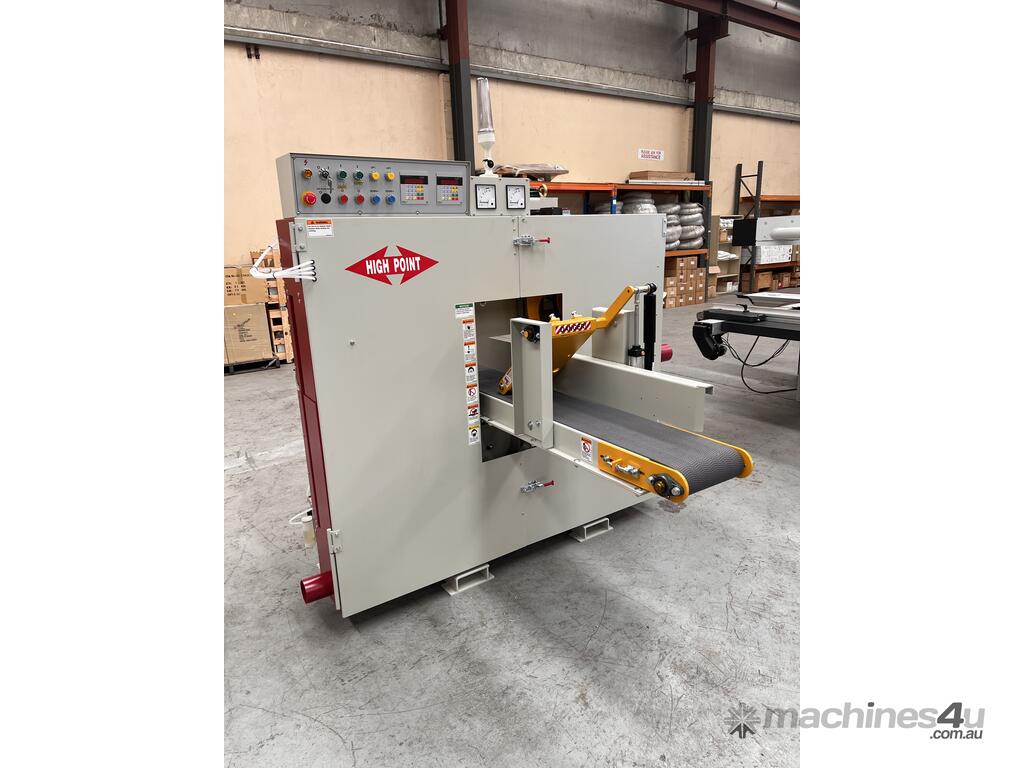

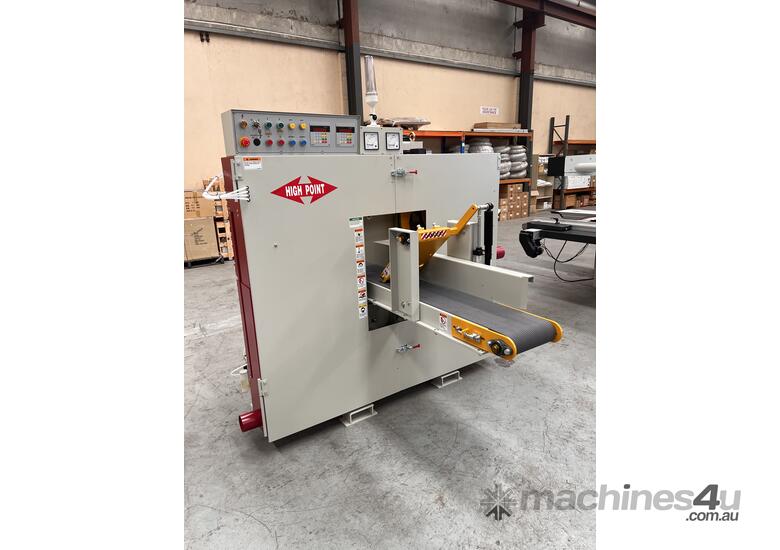

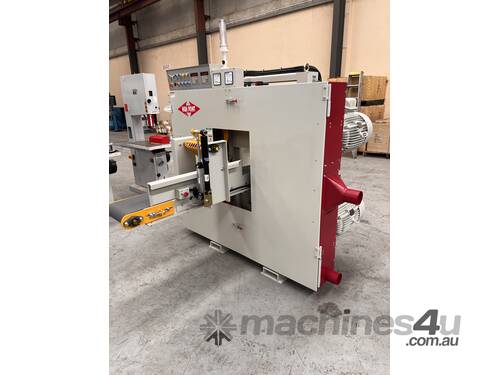

Twin Head Horizontal Resaw

Two head saw head configuration.
• Motor powered set works for accrate saw wheel elevation.
• Digital position controllers permit accurate saw wheels height positioning.
• Automatic blade tension is controlled by hydraulic cylinder.
• Variable feed speed by hydraulic motor drive.

Max workpiece size (W x H) 300 x 250 mm
Distance from upper blade to conveyor table 20~170 mm
Distance from lower blade to conveyor table 5 to 125 mm
Distance between two blades 12 mm
Conveyor belt size 285x5470 mm
Saw wheel diameter ø28" x 2"(W)
Feed speed 5 to 25 M/min
Saw blade size (L x W x T) 4265 x 27 x 0.90 mm
Saw wheel motor 20 HP x 2
Hydraulic motor OMP 80
Dust hood diameter ø4" x 3
Net weight 1300 kgs
Packing dimensions-Frame / Conveyor 2180 x 1140 x 2180 mm + 2870 x 640 x 750 mm

Hydraulic Blade Tension
The saw blade tension is controlled by hydraulic cylinder for positive control at all times.

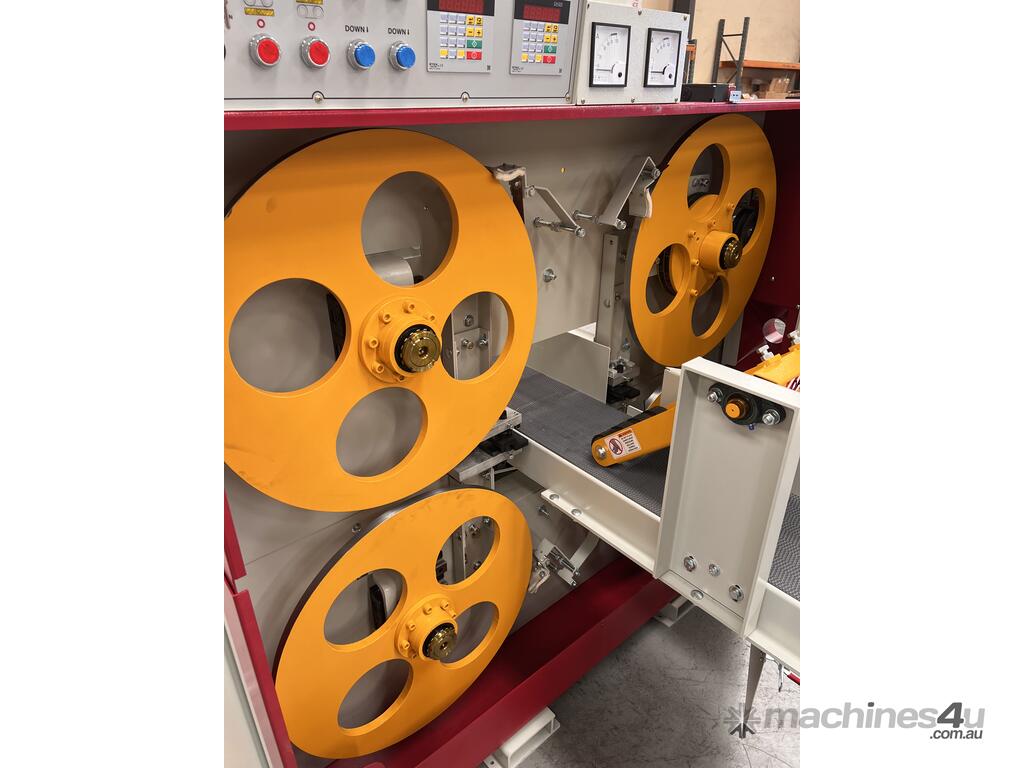

Saw wheel Elevation Motor
The top and bottom saw wheels elevations are driven by individual motors, providing fast and convenient adjustment for thickness of cut.

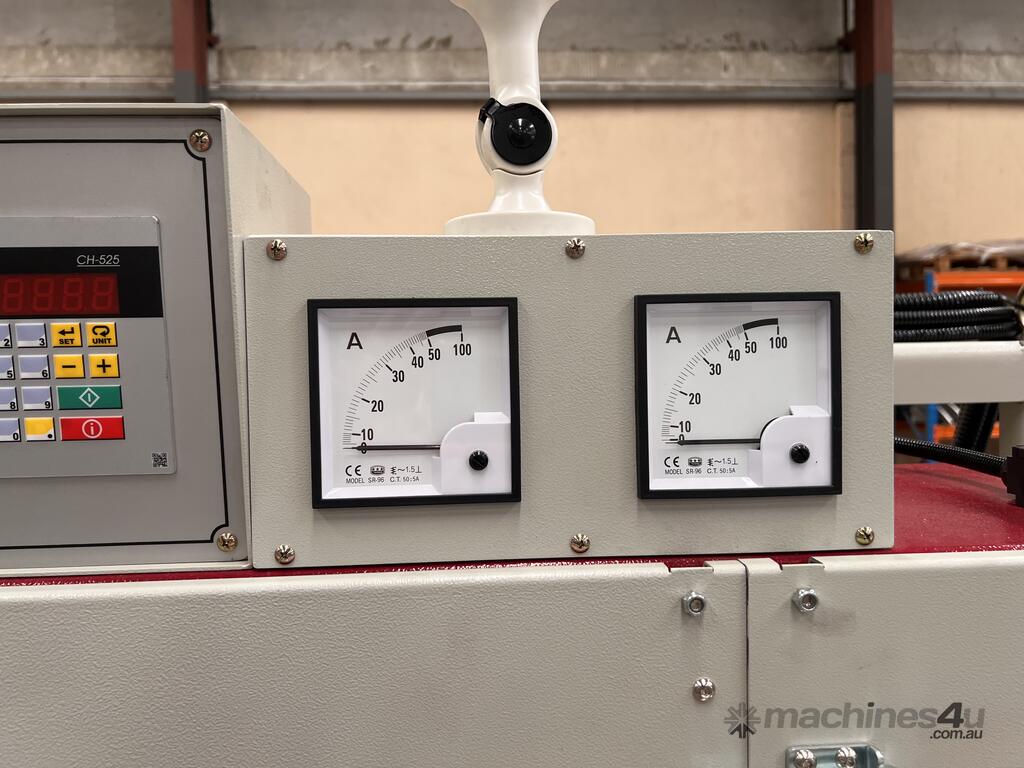

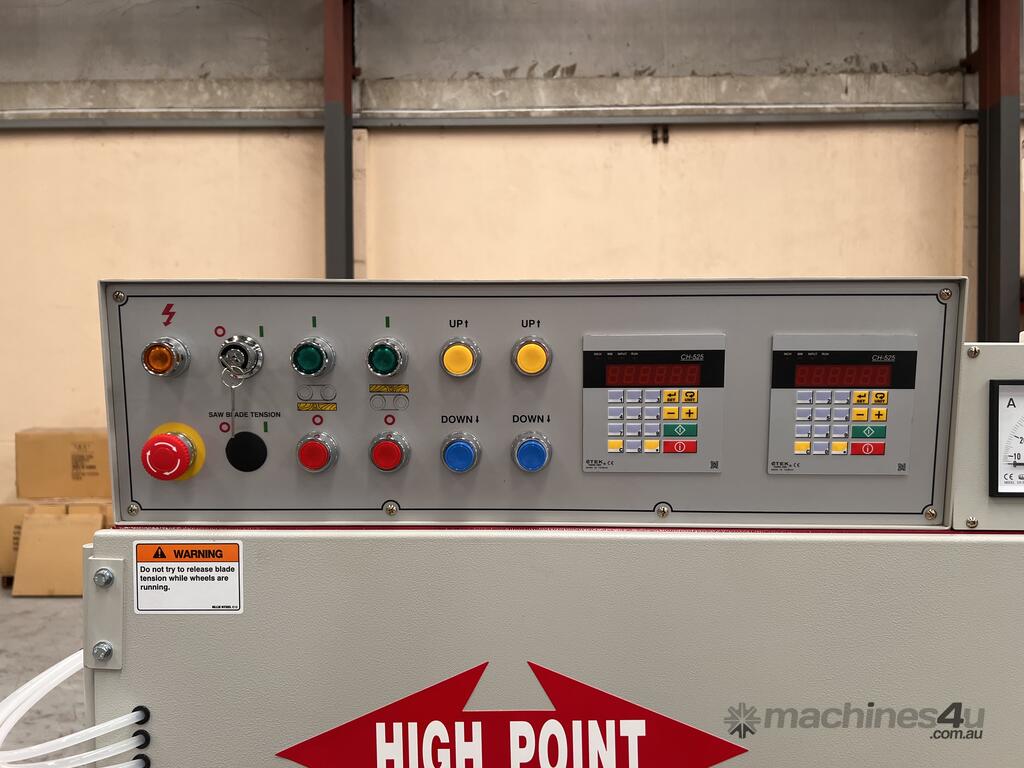

Centralized Control Panel
All motion controls of the machine are centralized on a control panel for operation convenience.

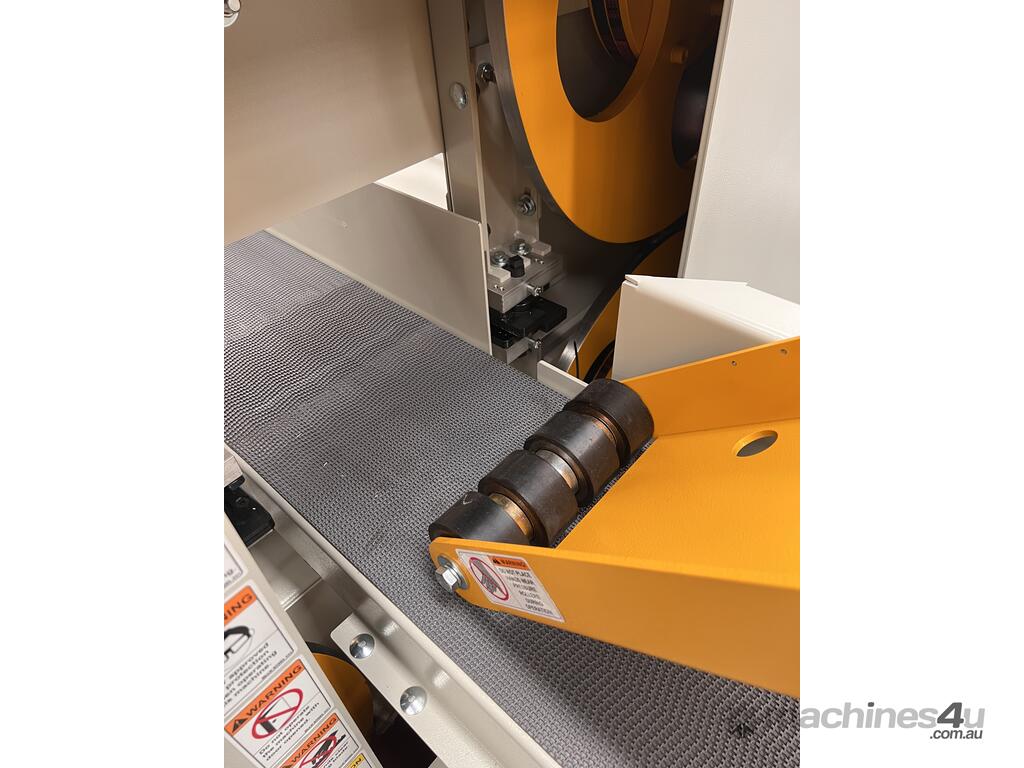

Conveyor Drive Hydraulic Motor
The conveyor belt is driven by a high performance hydraulic motor. The adjustable feed speed feature allows flexibility to saw hard or soft wood.

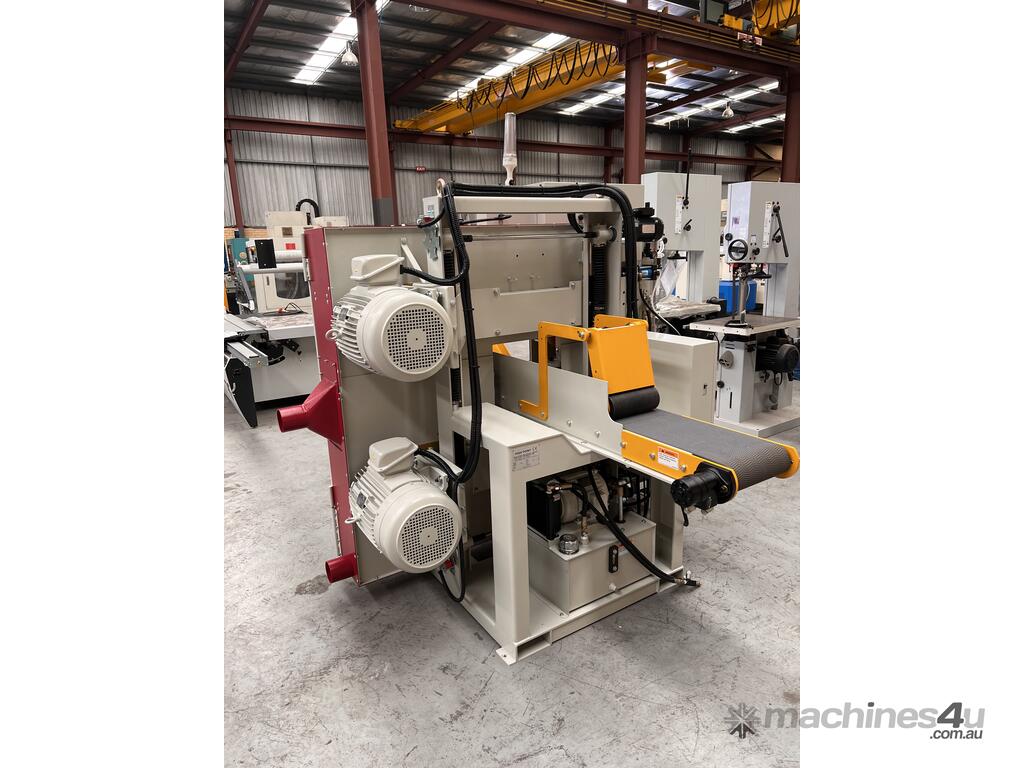

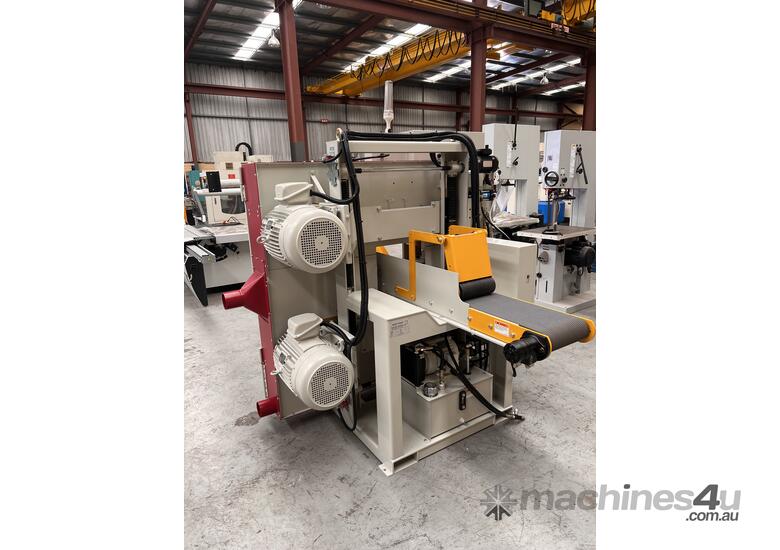

Powerful Saw Wheel Drive
• The top and bottom saw wheels are driven by individual big horsepower motors, that transmit ample power to the saw blades. The powerful motors allows for heavy duty cutting.
• Siemens (or equivalent) saw wheel motor features maximum dependability.
