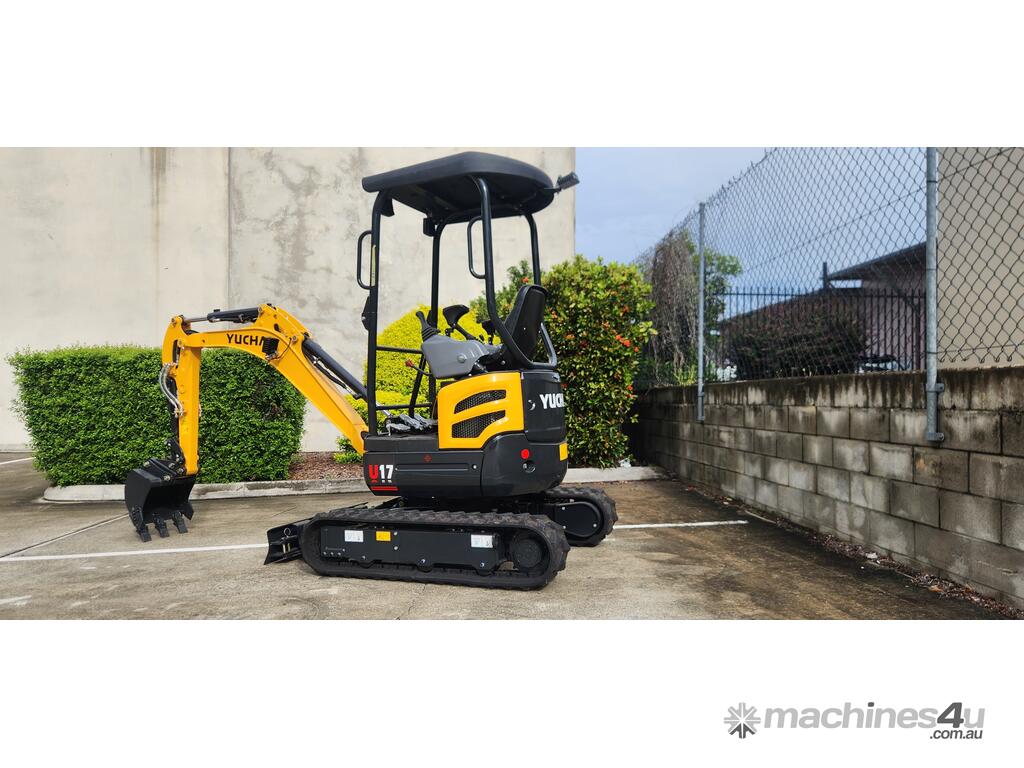

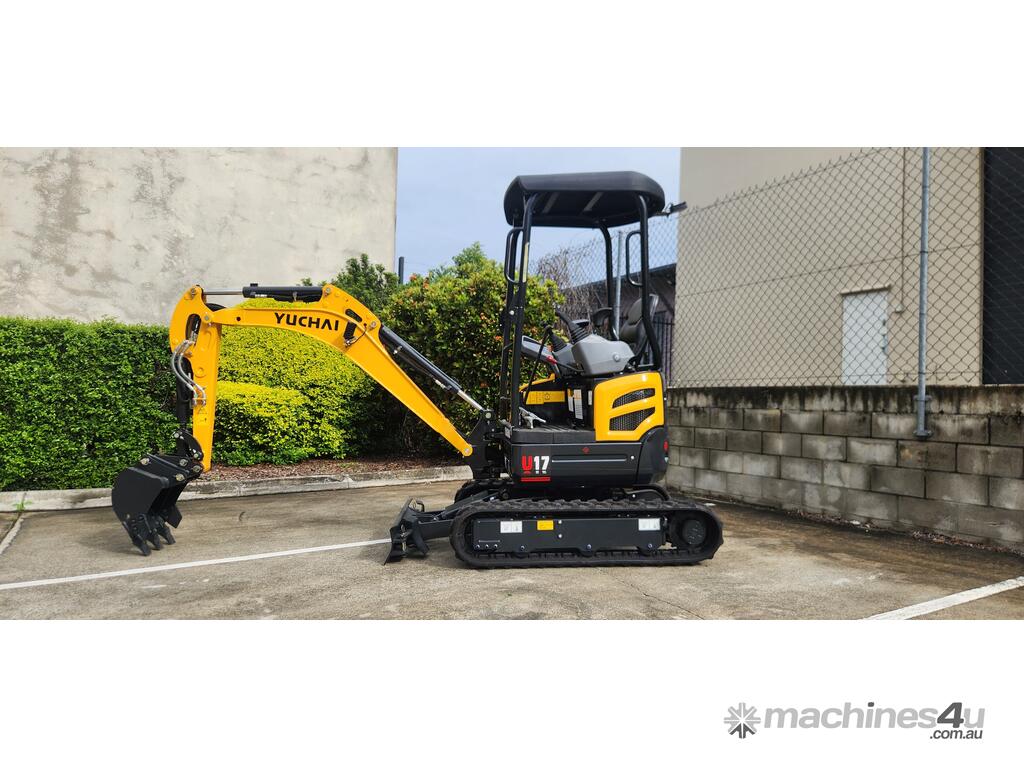

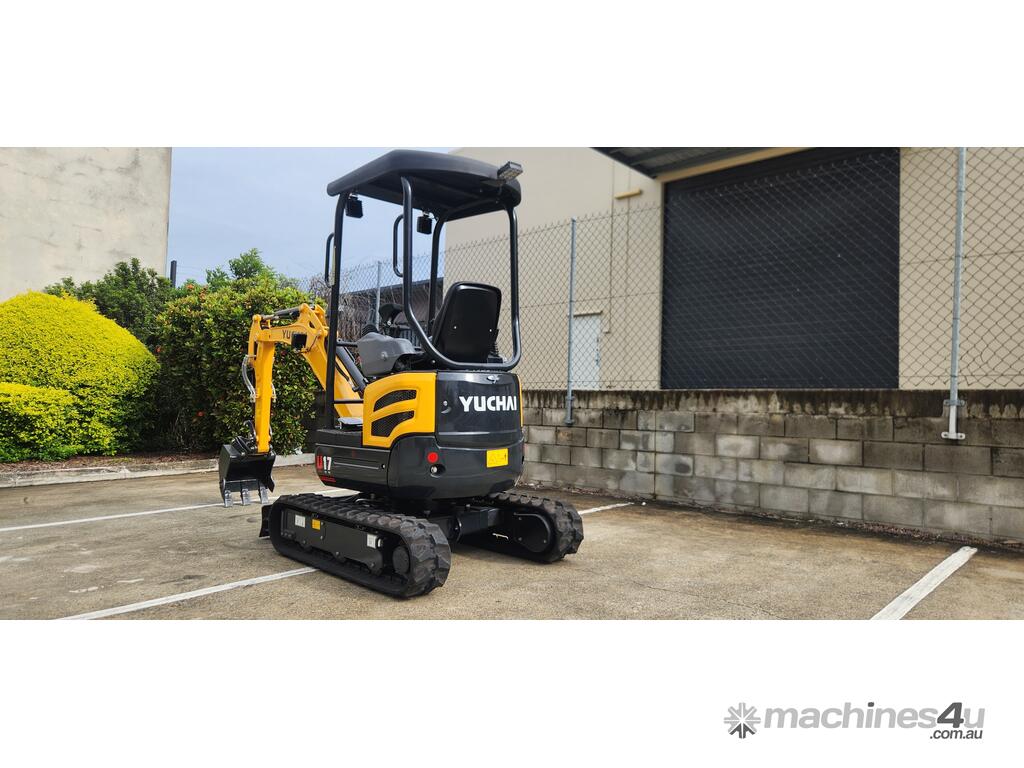

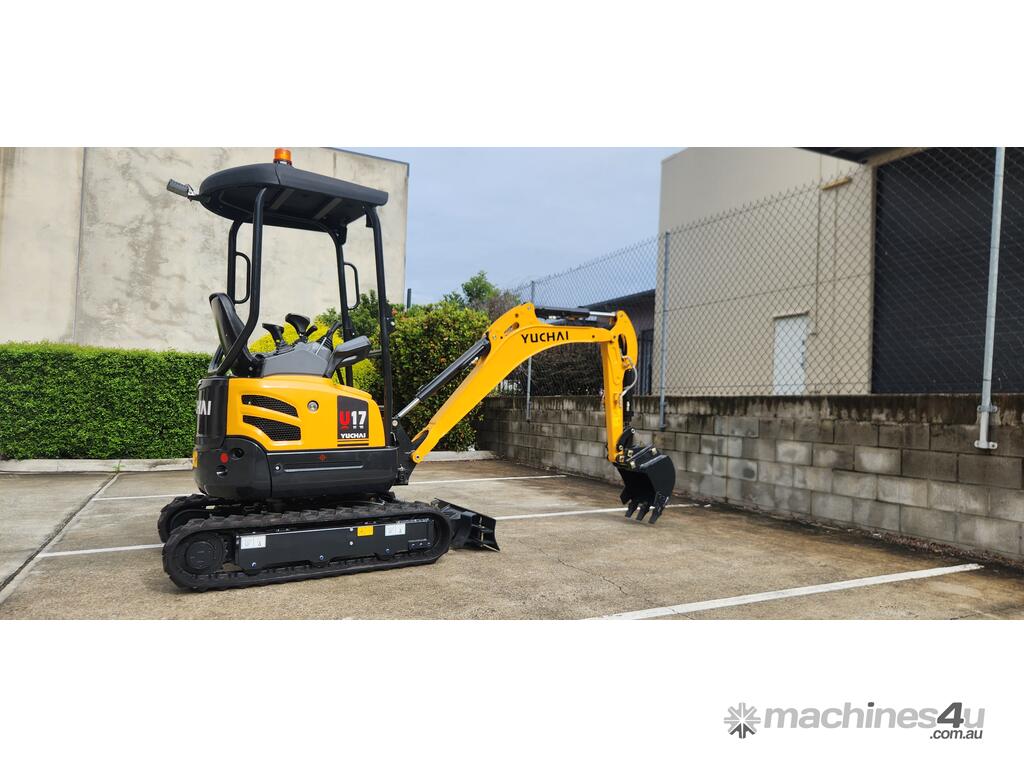

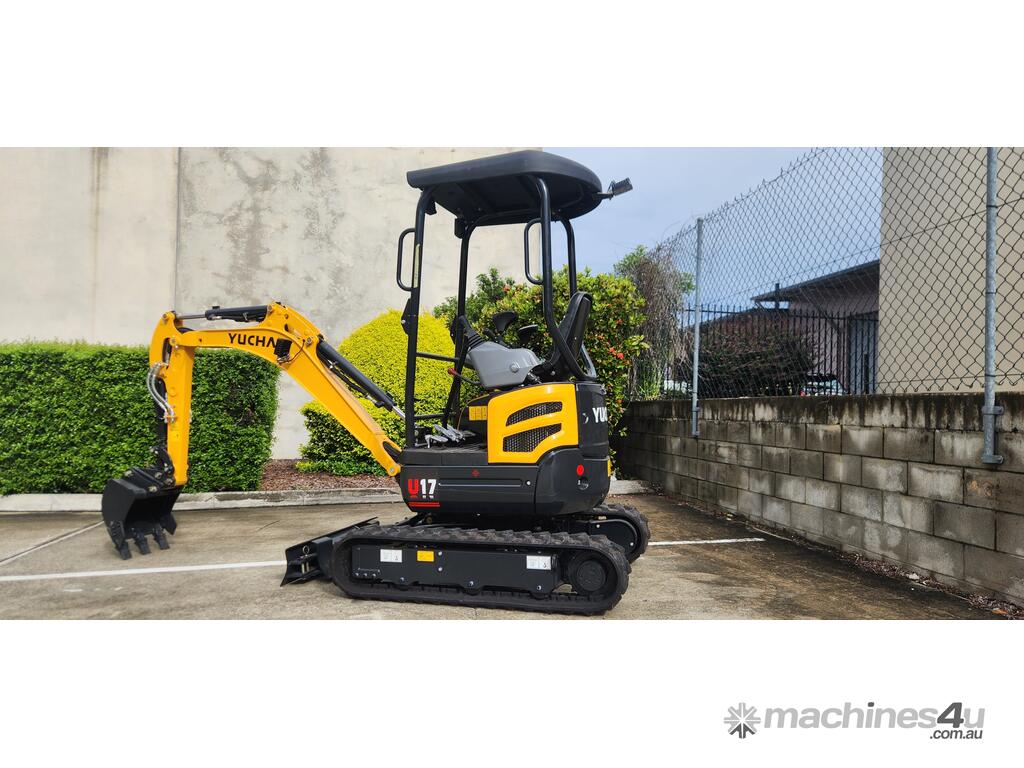

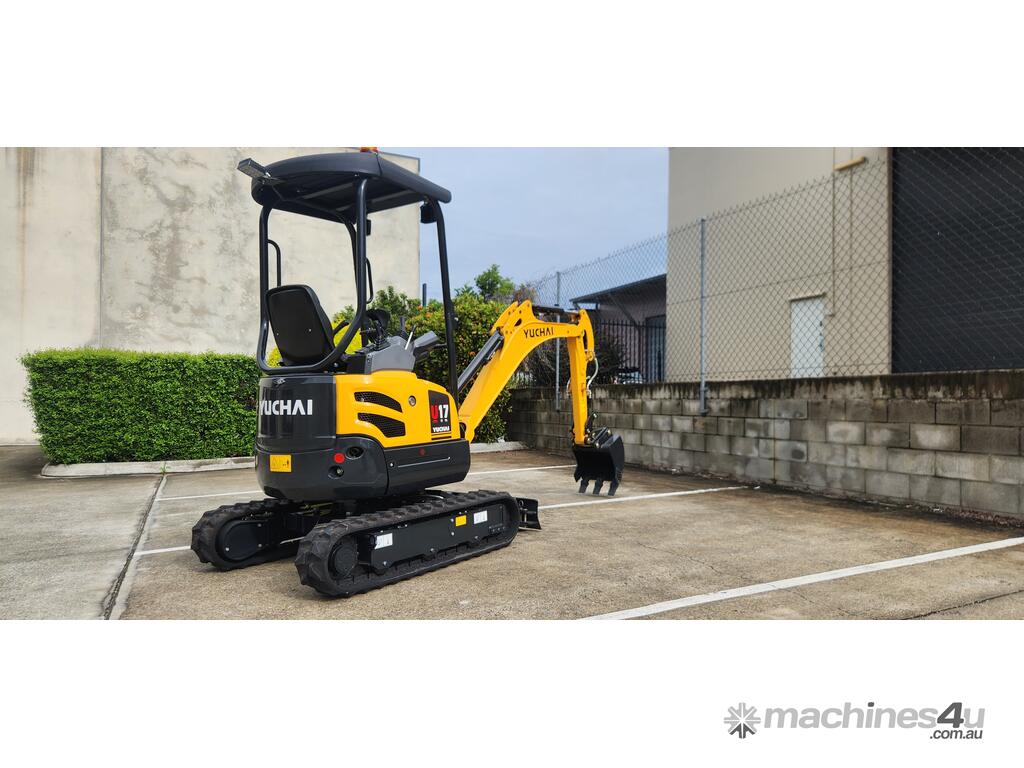

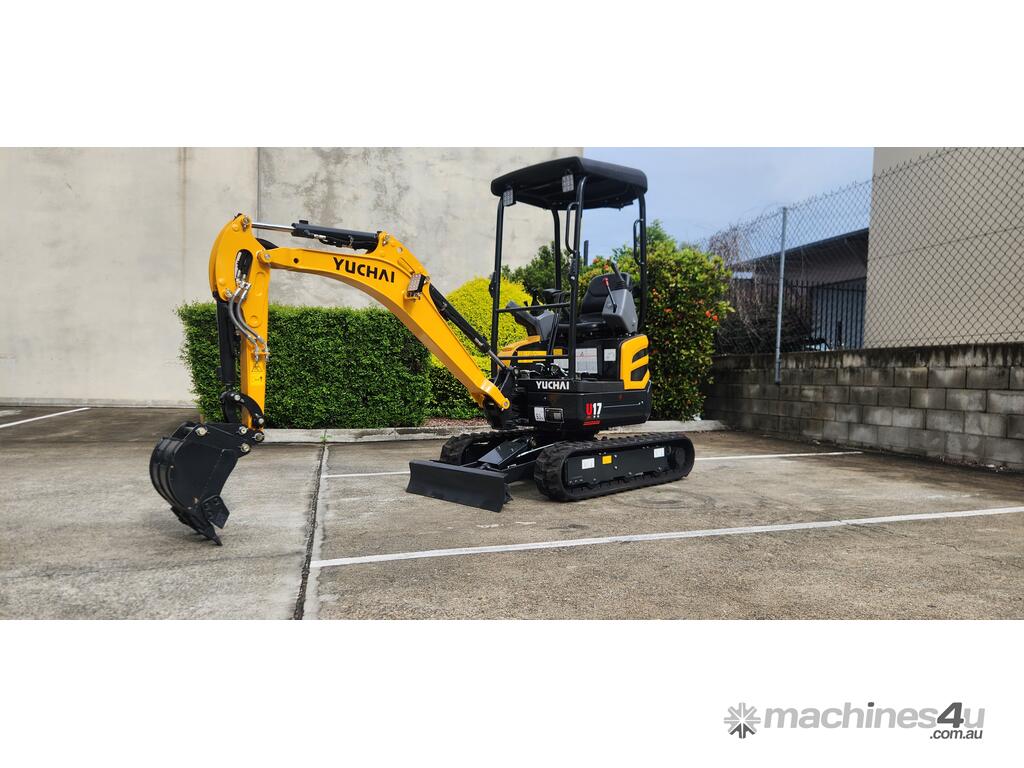

The all new Yuchai U17- 15Hp Kubota powered hydraulic mini excavator
Don't settle for poor quality just to meet a price point. The Yuchai U17 is a professional quality excavator with
- 15Hp Kubota diesel engine
- Only 990mm wide for tight access

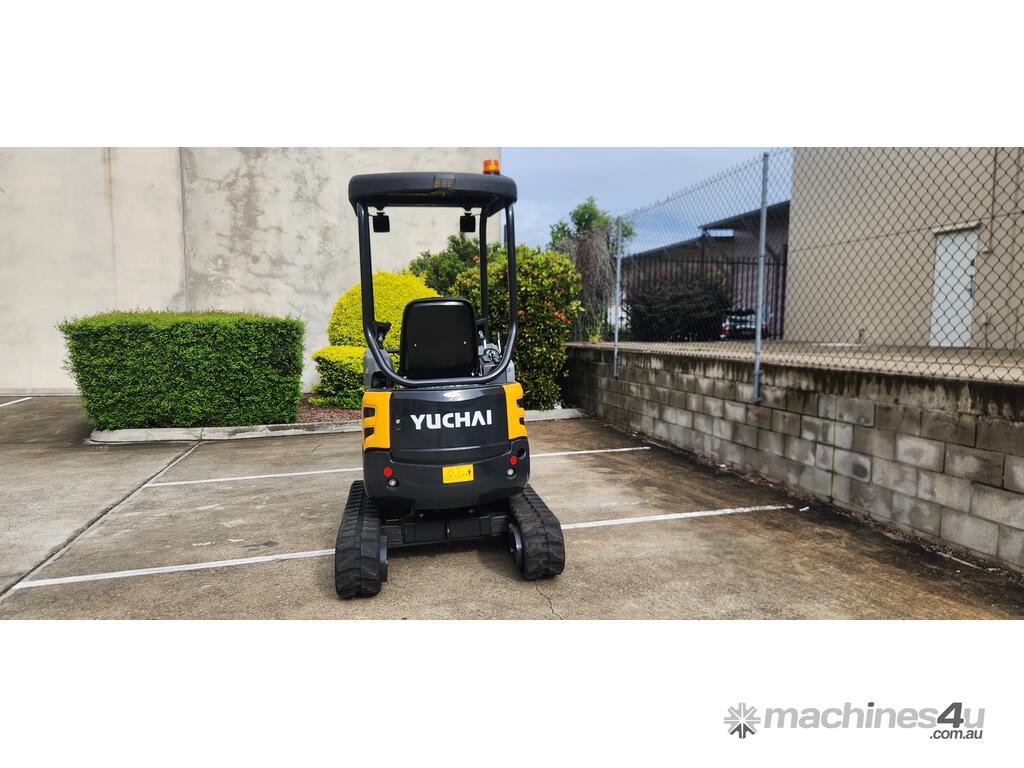

- True Zero Tail Swing for working in tight areas
- Quality high pressure Piston pump for exceptional digging power

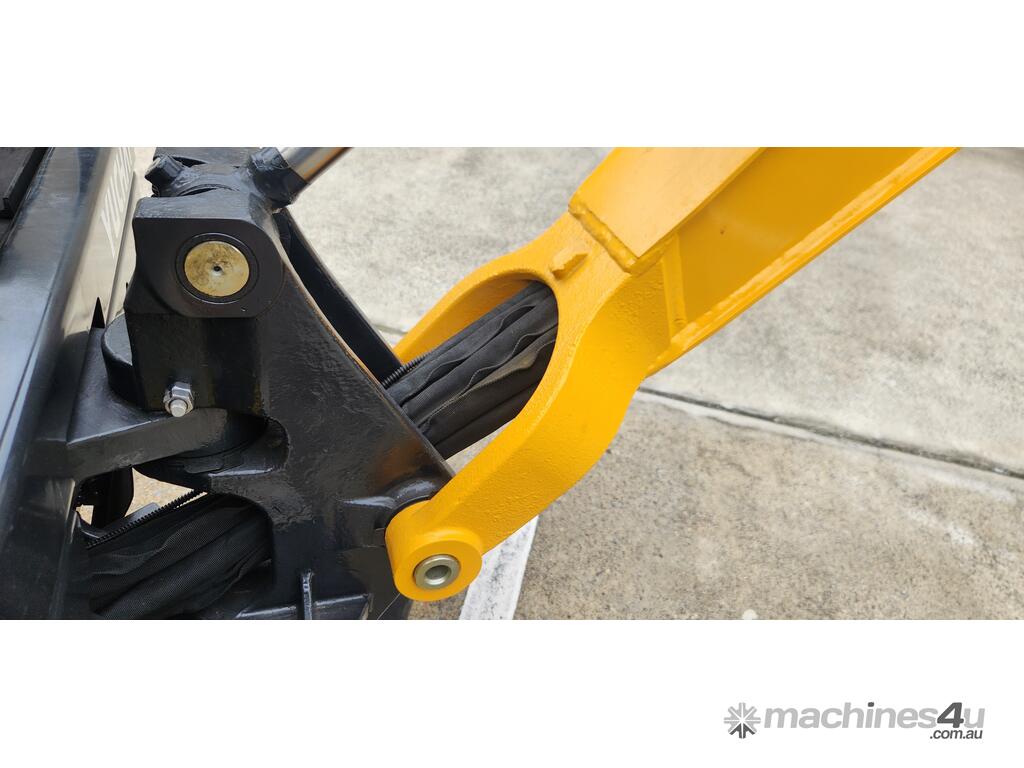

- Swing Boom

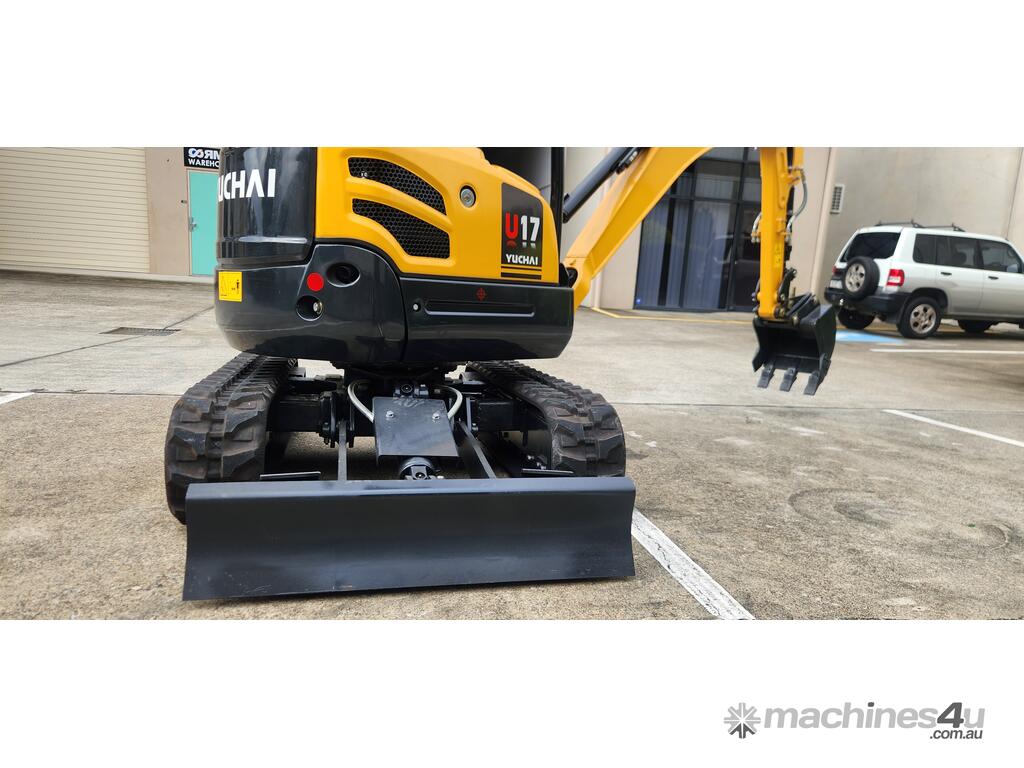

- Expanding Tracks
- 2 speed travel motors

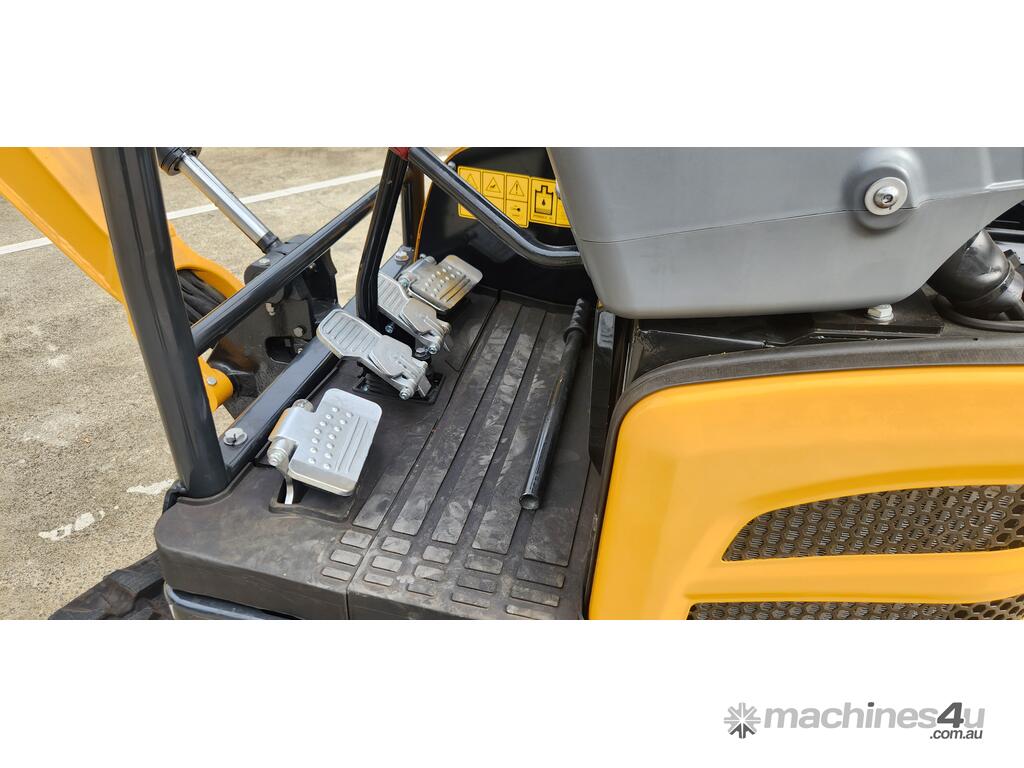

- Hammer Auger piping with 30l/m flow with pilot foot control
- Swing Boom on pilot foot control
- Large rear door for easy servicing
- Large operator seat and pilot controls for smooth and accurate control
- 3yr parts and labour warranty
- 450mm GP Bucket
- 300mm GP bucket
- 1000mm Mud Bucket

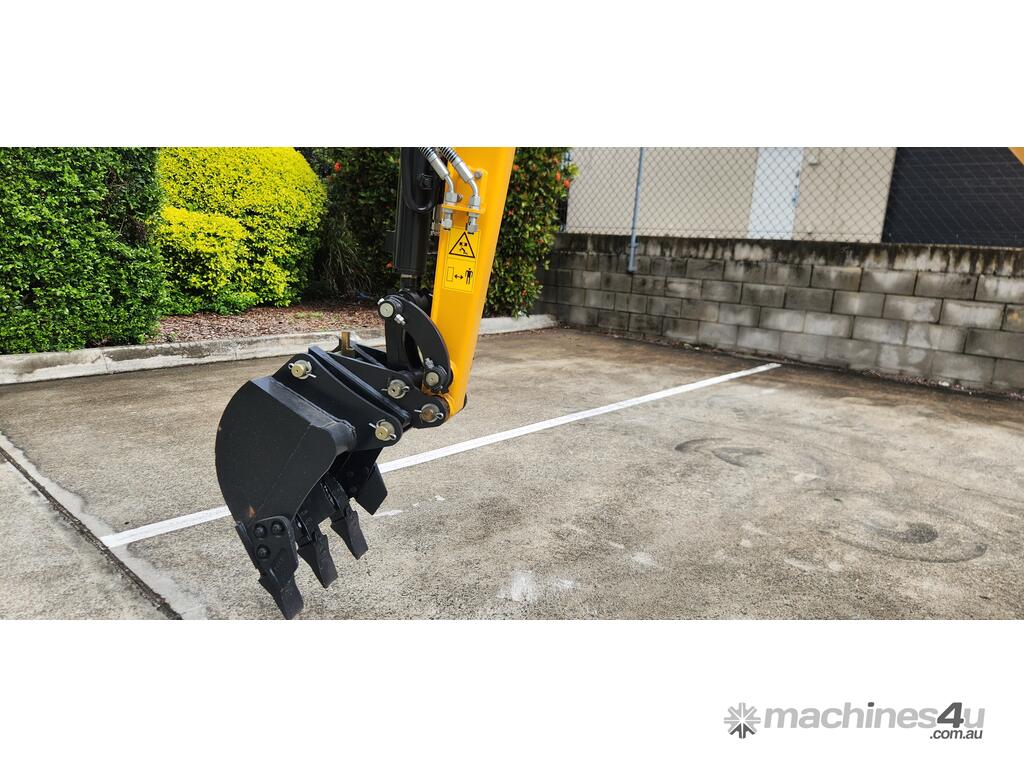

- Spring 1/2 hitch for quick and easy bucket changes
This machine has it all with Japanese hydraulics, expanding tracks, 2 speed crawler and hammer piping all standard equipment. A large operator seat and fully adjustable arm rests make the machine a breeze to use.
The excavator comes with 3 buckets and spring 1/2 hitch.. A large range of optional accessories are available including extra buckets, rippers, auger drives, grabs and tilt buckets and trailer packages.
The 3yr 3600hr warranty gives you peace of mind that you are buying a quality machine with solid backup and support.
Basic Specification
Weight: 1700kg
Rated power: 12.7kW / 2200rpm
Standard bucket capacity: 0.05m3
Standard bucket width: 434
Operation Hydraulic Pressure: 20.6Mpa
Maximum Digging Force: 13kN
Gradeability: 30°
Pressure To The Ground: 27kPa
Walking Speed: 1.7/3 km/h
Maximum Hauling Force: 14.6kN
Swing Speed Of Platform: 11 rpm
