U2 Smart Ink Jet Coder *NO MAINTENANCE*

Description

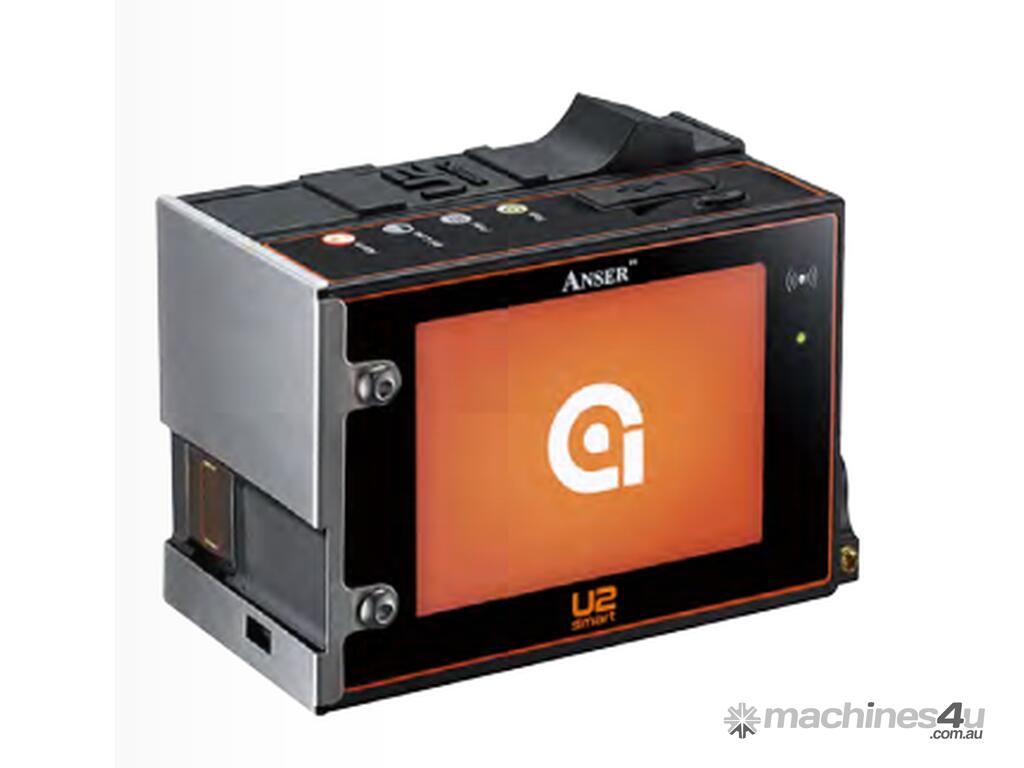

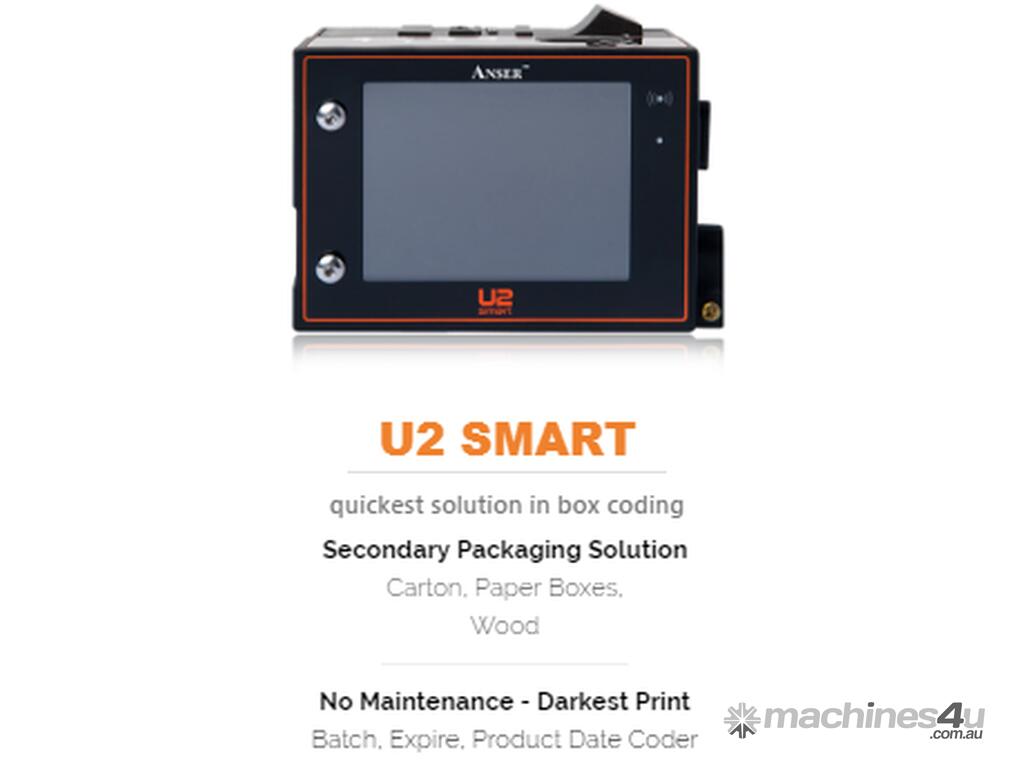

The U2 smart offers a very high printing quality at a massive 300dpi it creates images that are of amazing quality. The U2 smart is 100% maintenance-free and is equipped with the most modern features such as database connection or network capability.

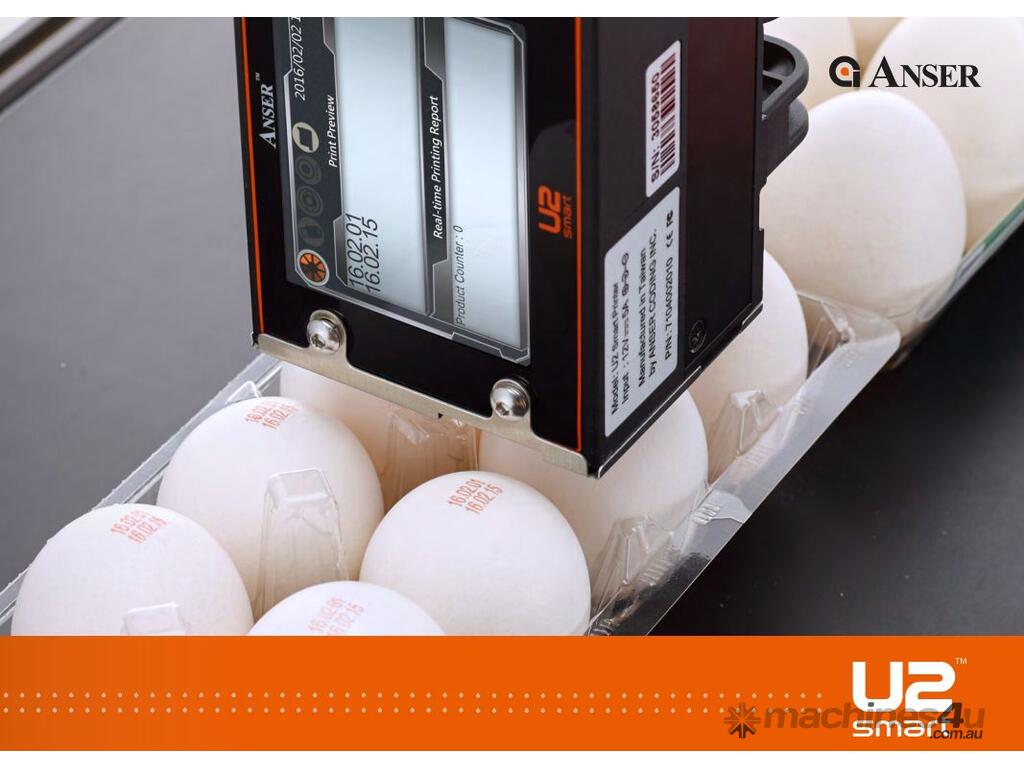

It prints on almost every surface putting it in the range of high quality and versatile printers. Even 2-D barcodes achieve the highest level of printing quality. Powered by Anser. They are particularly suited for users who value quality features such as a sharp-edged 2-D code or network integration and want to find a cost-efficient solution.


What’s in the box?
U2 Smart: Complete inkjet system for small character marking and coding. Everything you need to get started: U2 Smart Printing Head, Remote controller, mounting brackets and posts, and starter ink cartridge.

Package Dimensions
BOX DIMENSIONS 300 x 300 x 600 mm
BOX WEIGHT 2.4 Kg
PRODUCT DIMENSIONS 110 x 76 x 60 mm



Additional information

Weight 490 g
Dimensions 110 × 76 × 60 mm
Display
3.5” LCD with LED backlight

User Interface
Simple and easy-to-use operating system

Input Device
Compact 7’ tablet PC with multi-touch (optional), Pocket-sized IR remote keypad

LED Indicators
Alarm, Ink low, Print, Remote on/off, Run

Max Print Distance
8 mm (0.3")

Max Print Height
12.7 mm (0.5 inch)

Print Speed
60 m/min

Printable Lines
up to 4 lines

Print Capability
Alphanumeric, Barcode, Batch code, Date / Time (Auto), Expire Date (Auto-calculated), Logo (bitmap), Product Counter, Shift

Print Color
Black, Blue, Green, Red

Printable Substrates
Porous, Semi-Porous

Electrical Requirements
AC 100V~240V, 50/60Hz

Mounting Orientation
Downside, Horizontal

Operating Temperature
5?-50? (41?-122?)

Data Interface
RS232/RS485, USB port

Cartridge
NP3 (42ml), NP4 (42ml), SP4 (42ml)

Features

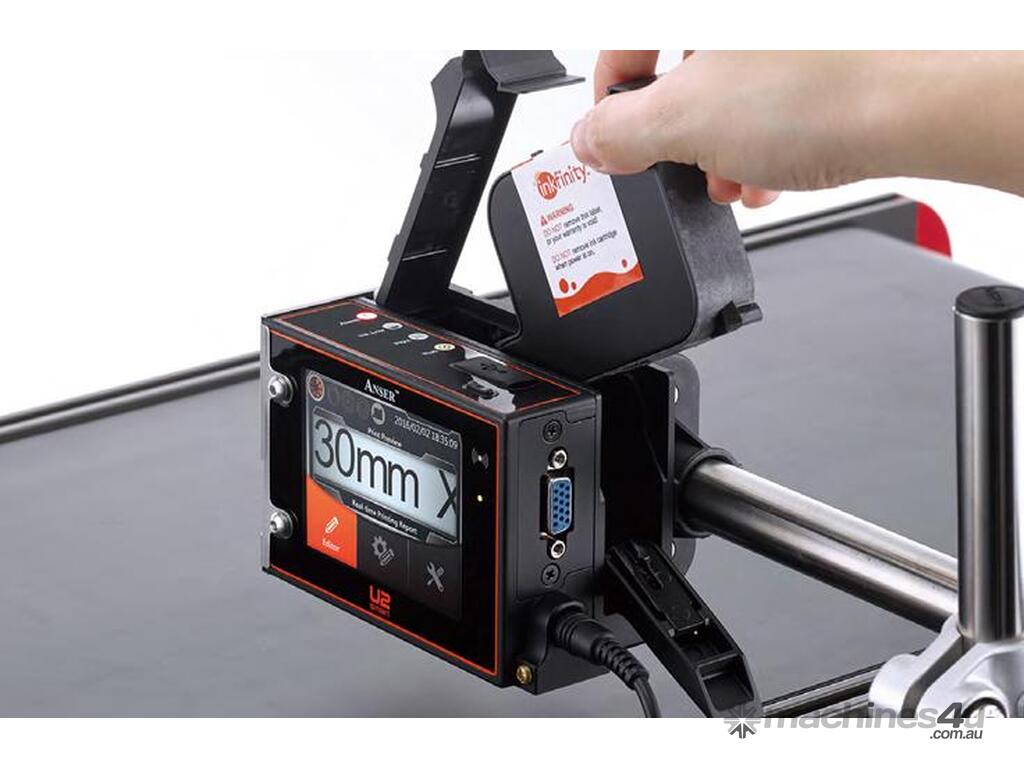

4-in-1 Compact Design (controller, screen, print head, cartridge), AntiShock Mechanism for printhead protection, AUX I/O port (external encoder wheel, external photocell, alarm kit), Built-In Photocell, no additional cost, Cartridge shutter, Complete stand-alone (no PC required), Daylight Saving Time function, Group network management, Hot-swap: Circuit safeguard for quick cartridge changeover, LOG report for security check, Multi-Level password protection, Setup wizard, Software upgrade / Data backup

Warranty
12 months
