UK 125 / S Manual segmented bending machine

Name: UK 125 S Manual segmented bending machine
Brand: schechtl
SKU: 1712-0001
Price: 18625 AUD
Availability: InStock

KEYSBOROUGH, VIC

Play Video

Priced From
$18,625 AUD($20,488 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$64.88
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Metal Bending Machines

Make:

SCHECHTL

Model:

UK 125 / S

Year:

2023

Member Since: Jul 2012

Silver Member

Listings: 82

Sellers stock ID:

1712-0001

Description

• specialist for closed special forms
• bending beam can be lowered by handwheel and scale
• clamping beam pressure adjustable with a lever
Standard equipment
• segments with quick clamping system on clamping beam, bending beam and lower beam

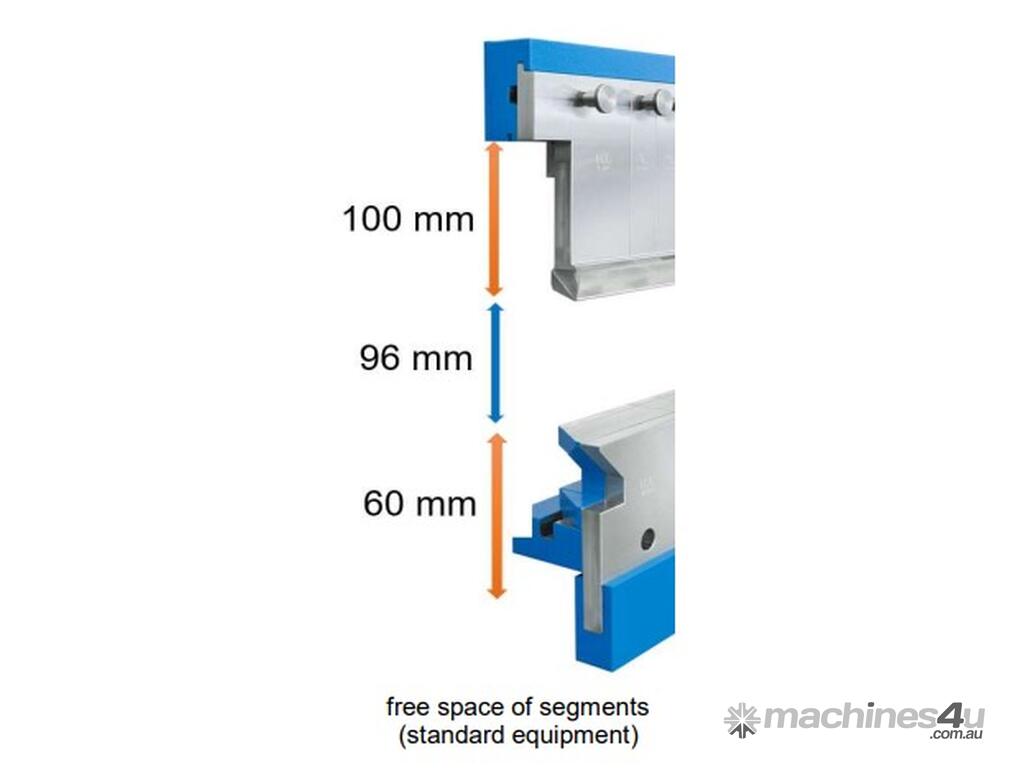

• 100 mm height of clamping beam segments, standard radius 1,1 mm
• 60 mm height of lower beam and bending beam segments
• clamping beam pressure setting and bending beam lowering device

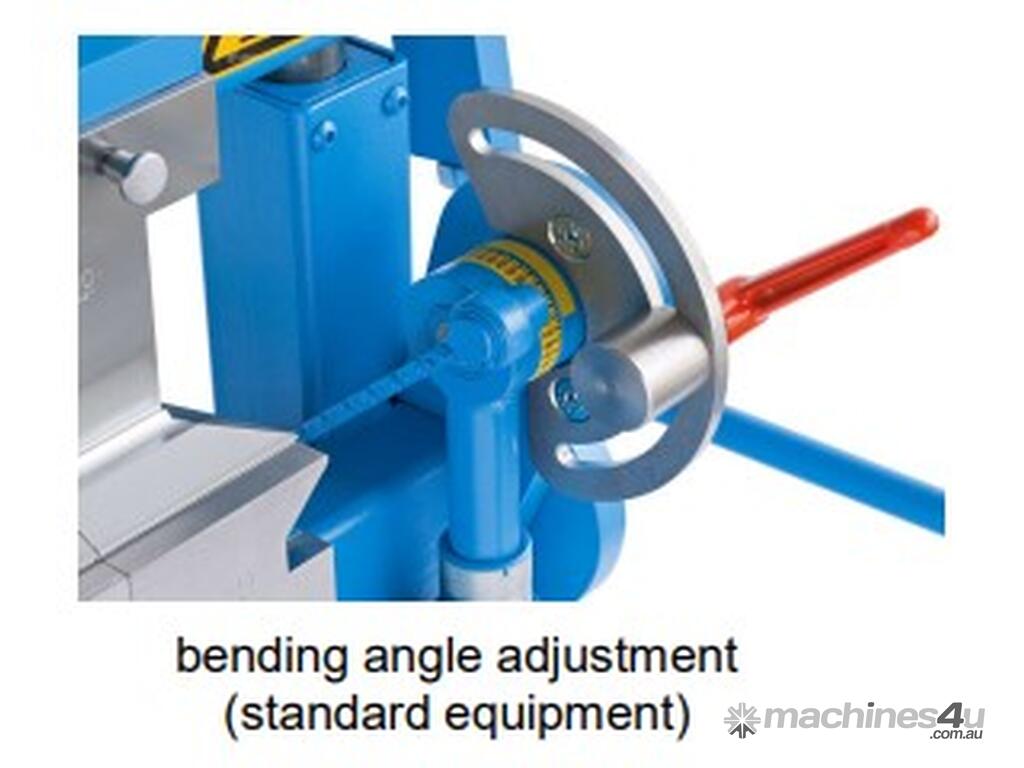

• foot pedal, storage box and bending angle adjustment

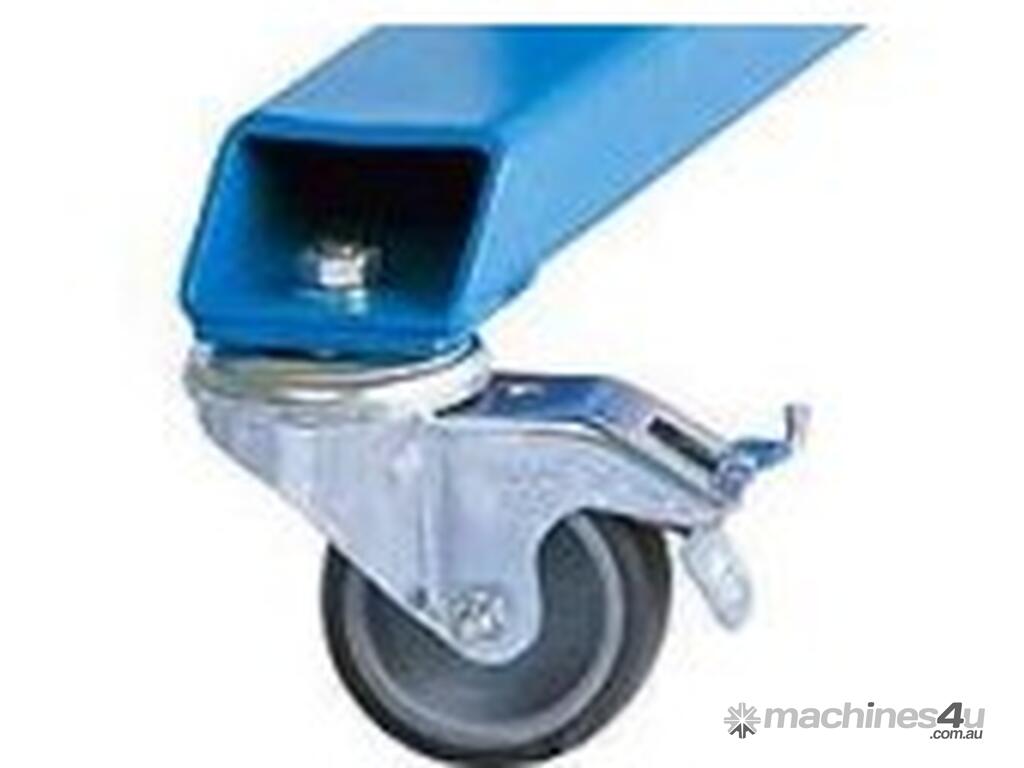

• 4 wheels
A conversion of the segment height is no longer possible after machine delivery!
Model UK 125
Working length 1.250mm
Bending capacity:
Steel 400 N/mm² 1.25mm
Aluminium 250 N/mm² 2.00mm
Stainless steel 600 N/mm² 0.80mm
Copper 300 N/mm² 1.50mm
Zinc 150 N/mm² 2.00mm
Overall dimensions
Length 1,730mm
Depth (only the machine) 740mm
Total height 1,180mm
Weight 290kgs
Clamping beam opening height 96mm
