ULTIMO Network Remote Technology, Combo CNC Plasma & Etching - Offline Software Included

Complete with Network Remote Technology, IPC Computer Control, Windows 10 – Allowing Direct Uploading of Cutting Programs from Office Straight to your CNC Plasma!

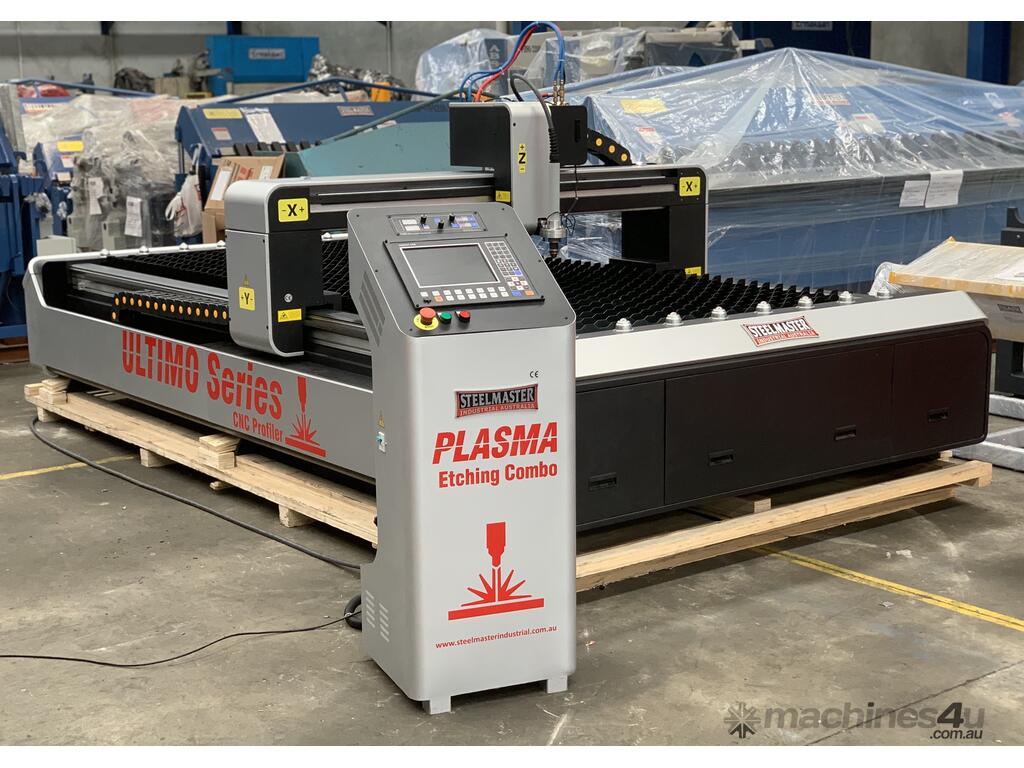

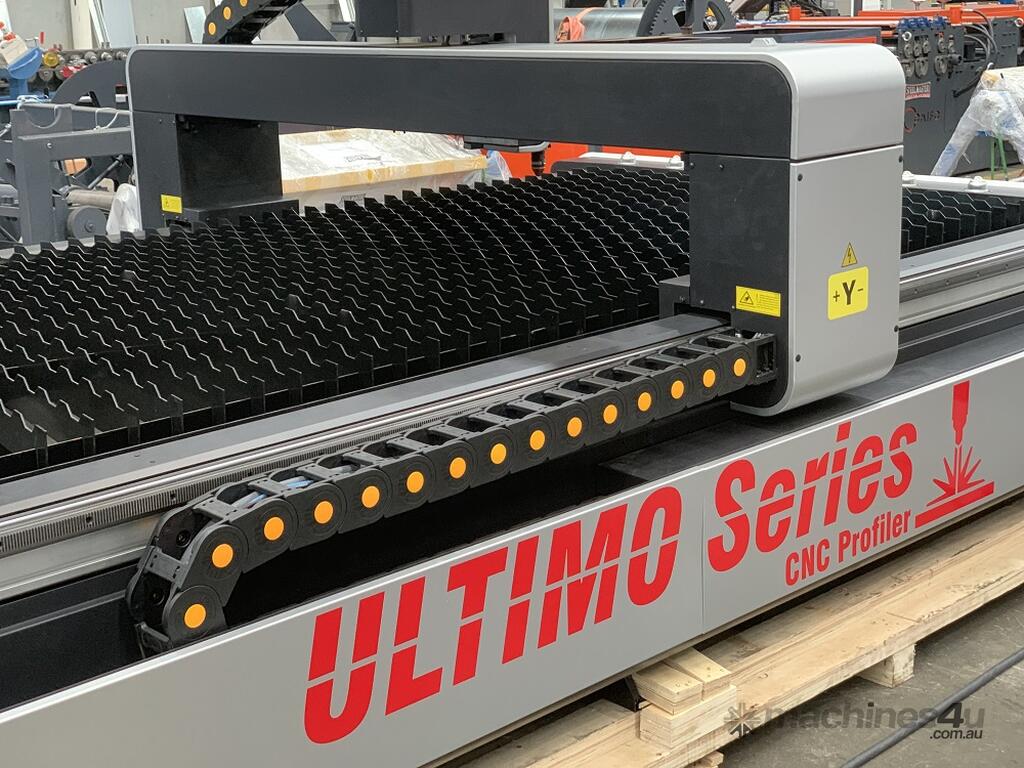

Plasma / Etching Combo – STEELMASTER ULTIMO - Networkable - CNC Plasma & Etching, 1500mm x 3000mm Table
Table, Heavy Duty Build, Fastcam CNC Software System, Torch Height Control. Plasma Power Source To Be added

Give yourself the competitive edge from all the other cnc plasma owners with you new Steelmaster Industrial ULTIMO Plasma / Etching Combo!
Complete with Network Remote Technology, IPC Computer Control, Windows 10 – Allowing Direct Uploading of Cutting Programs from Office Straight to your CNC Plasma!

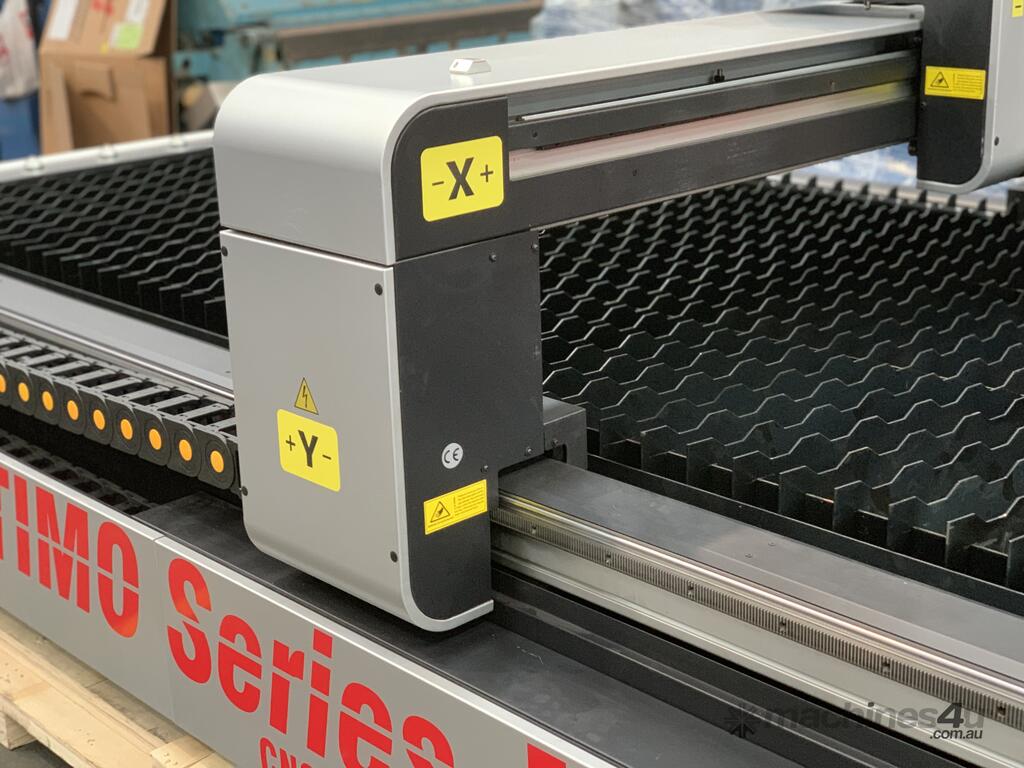

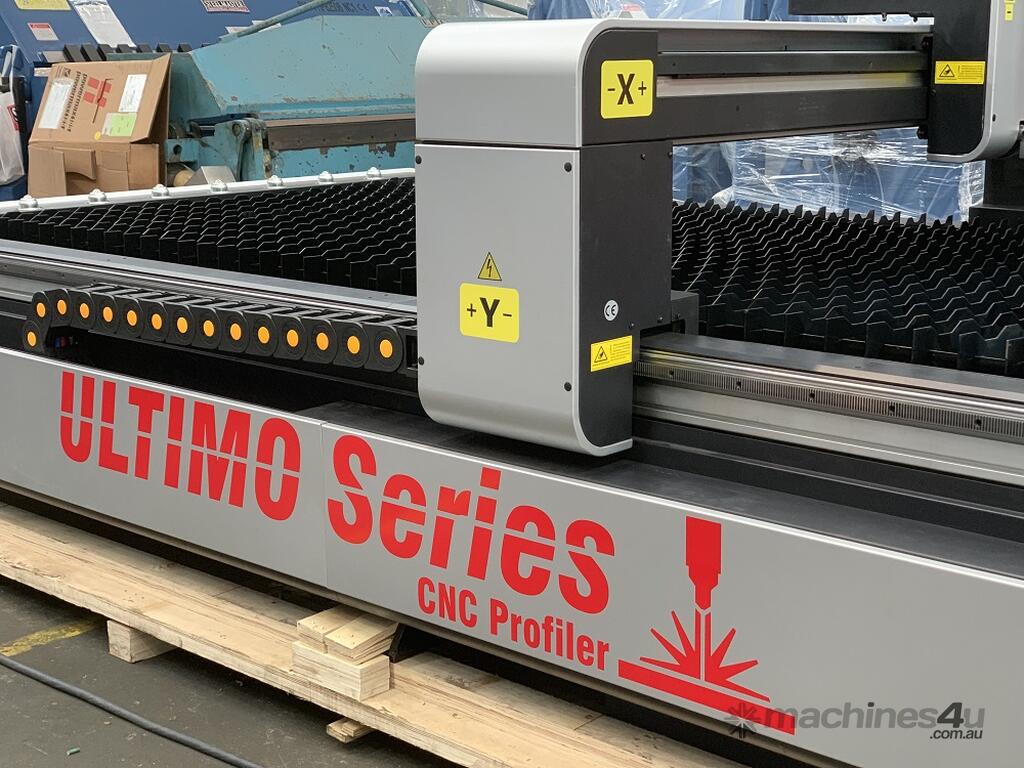

This heavy duty Industrial designed Gantry Type CNC Plasma Etching Combo ticks all the boxes.
Attractive price, robust heavy duty industrial build design, Fastcam CNC operating system with drawing package and full nesting, backed up with second to none service.
Simply select your Plasma Power Source to be added and away you go!

Description

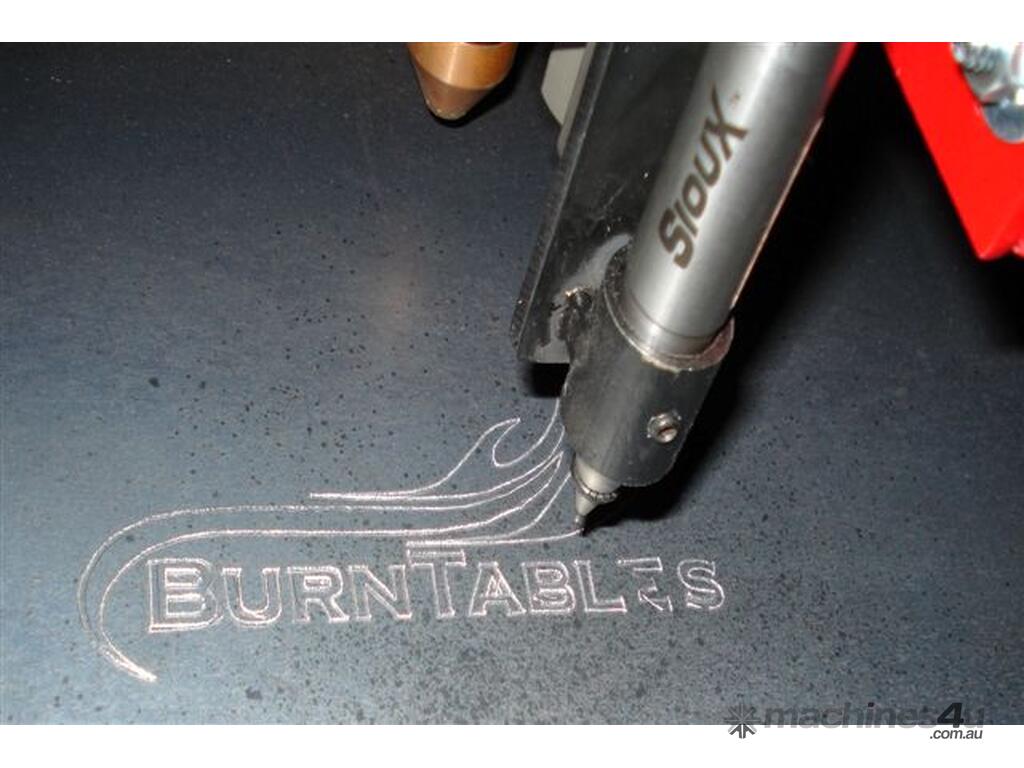

Heavy duty industrial build quality - combining cnc plamsa cutting & Etching Head perfect for marking fold lines prior to folding, pattern work and general marking
The New ULTIMO Combo – Your first choice in CNC Plasma Cutting.
Its heavy weight table is designed for convenient loading and unloading of steel plate.

Features

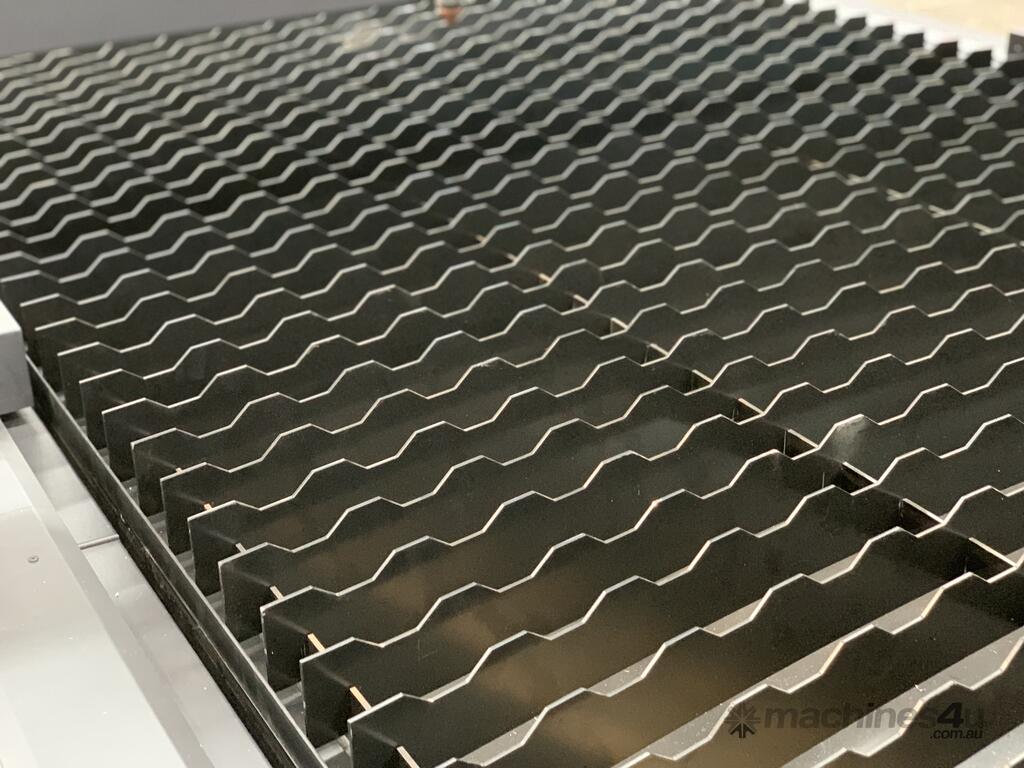

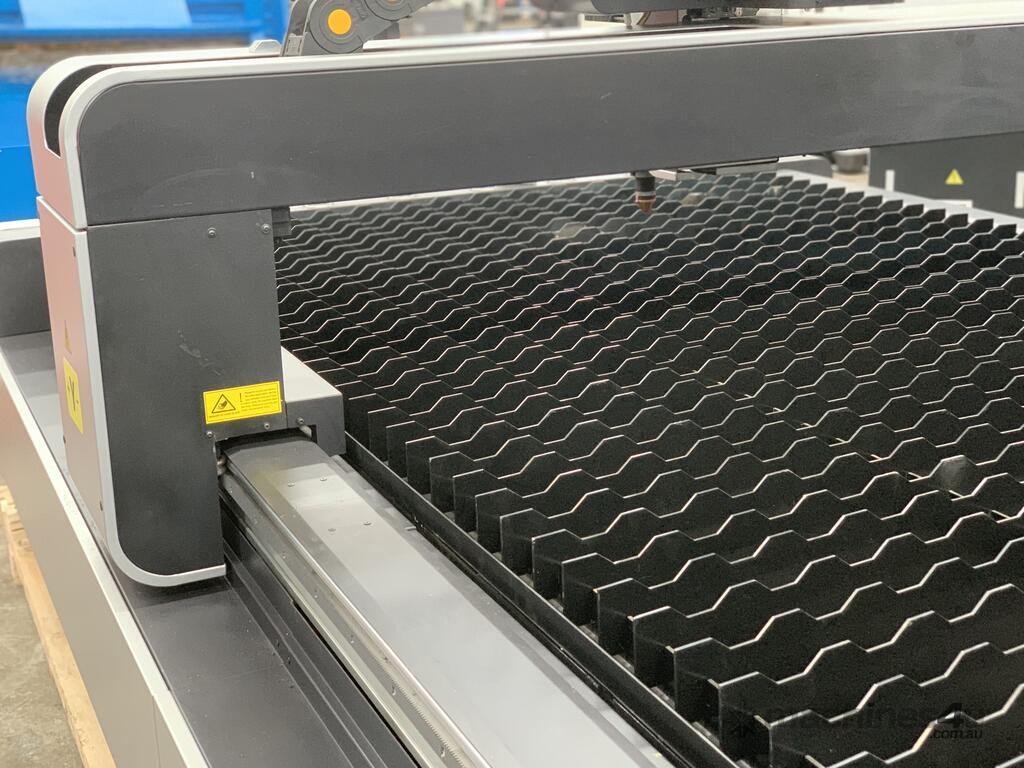

? Heavy Duty Industrial Build 1500mm x 3000mm downdraft cutting table

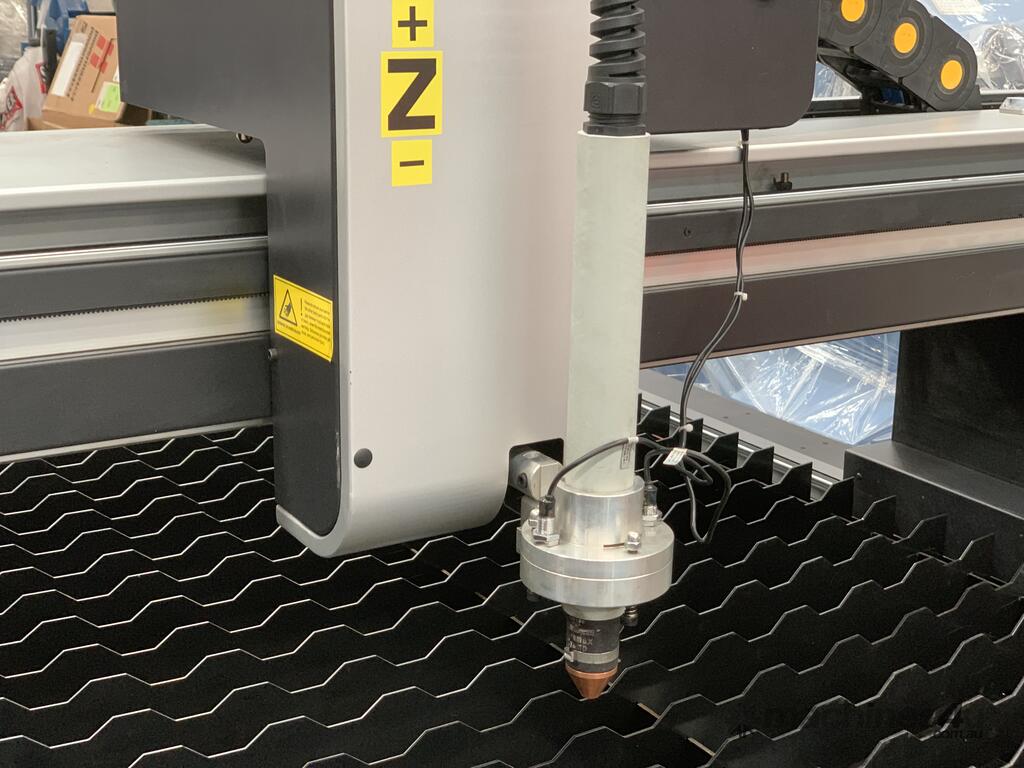

? Dual head machine with Plasma & Etching
? Network Remote Technology
? THC torch height control fitted
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? Huge LCD display
? Fast Cam base module supplied standard

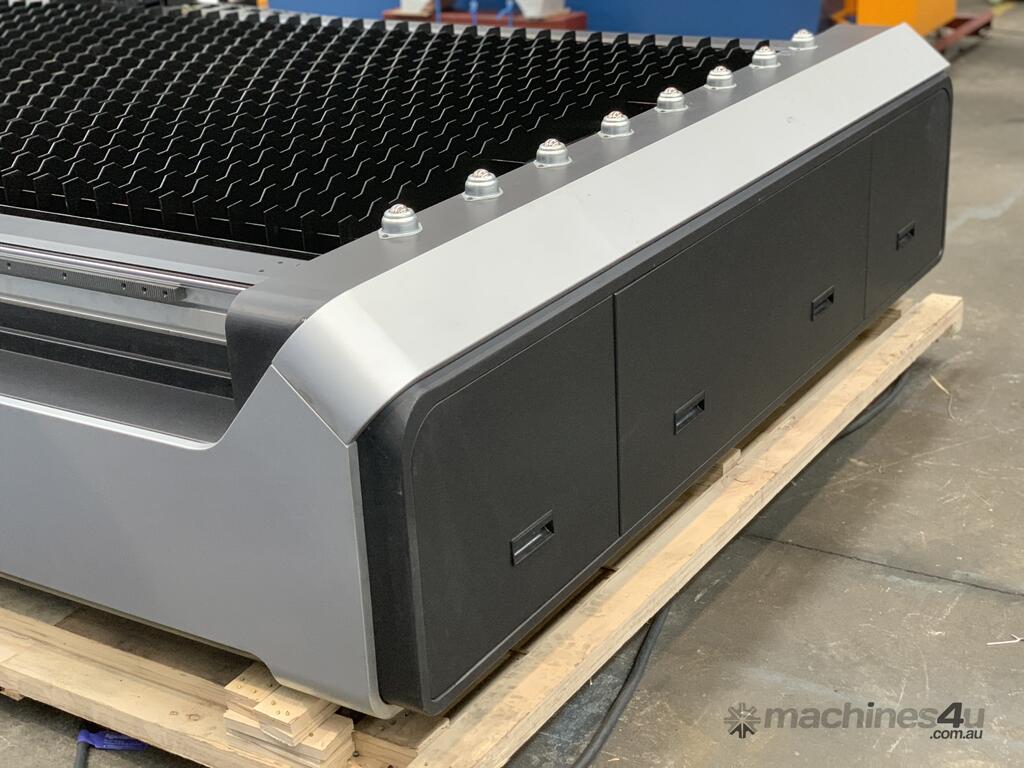

? Roller balls to assist with material loading and unloading
? high quality CNC controller options offering options, accepting G & M codes.
? Plasma Power Source, Lead & Torch need to be added to suit customers cutting requirements.

Technical data
? cutting area – 1500mm x 3000mm
? Z travel - 100mm
? cutting speed - 0 ~ 8000mm / min
? MAX cutting speed – 12,000mm / min
? accuracy – 0.2mm
? plasma torch diameter – 35mm
? work mode of plasma – non contact ignition
? dimensions - 3800mm x 2200mm
? crate dimensions - 3900mm x 2300mm x 1750mm (H) x 1600Kg
? weight – 1500Kg
? power source – volt
? 12 month warranty

Suggested Power Sources
? Hypertherm PMX45 ~ 125 based on your cutting requirements


CNC Software
? Fastcam Professional (Auto-Nesting)
? Save drawings to USB
? All popular DXF and DWG files supported
Webpage:
.fastcam/fastcam.html

Network Remote Technology
? IPC Computer Control, Windows 10
?19” Industrial Touchscreen PC
?Joystick Control

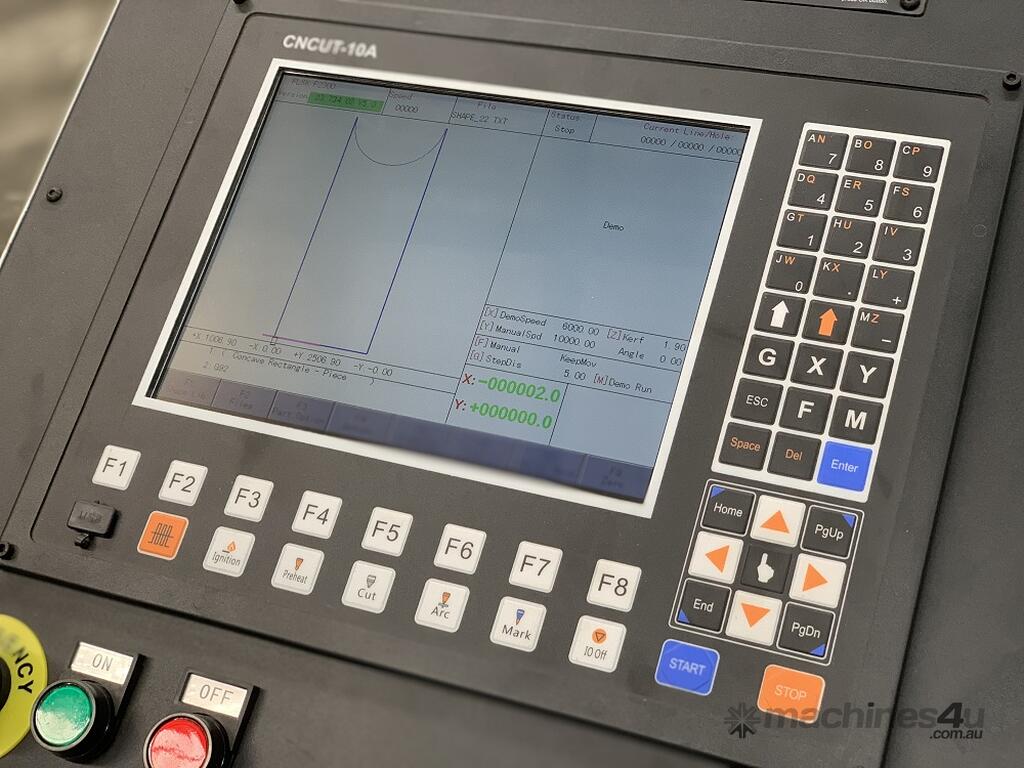

CNC Control
? FLCNC
? Huge 19” LCD colour display
? USB input

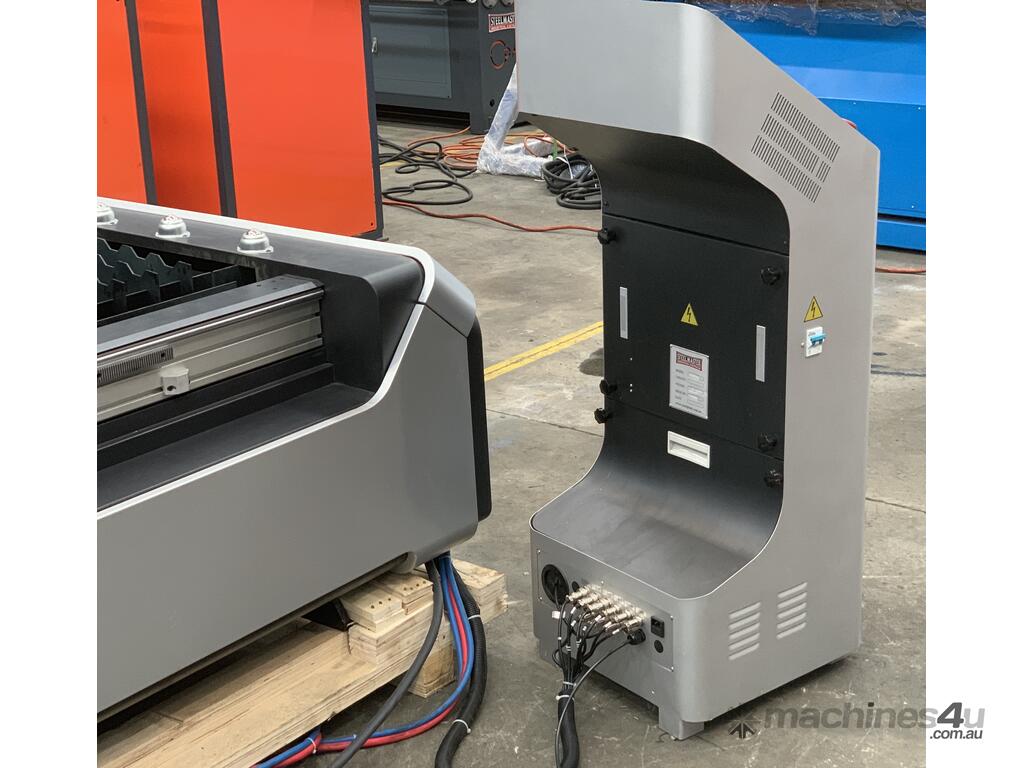

? Mobile console

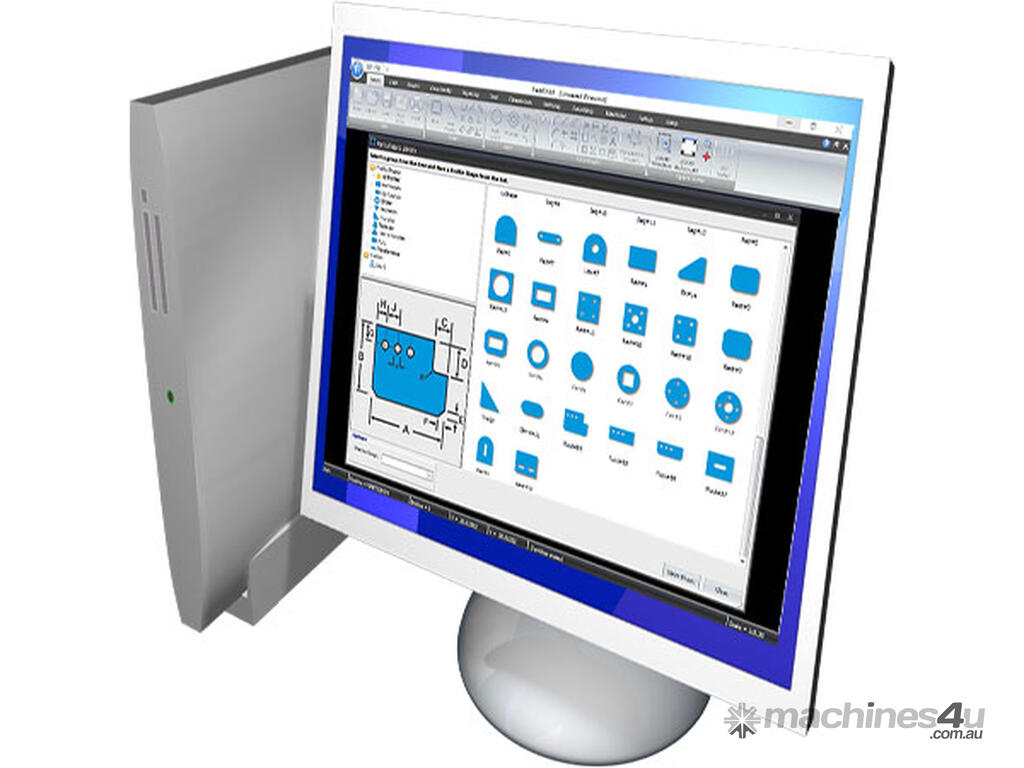

? Template library for quick and easy cutting of standard shapes and angles
? Real-time cutting path

Services required to be provided by customer
? electrical connection.
? compressed air.
? fume extraction provisions.
? Asset can offer you the above additional items on request.

Other options available if not already noted above
? water table available (note - aluminium cannot be cut on water table systems due to safety issues)
? servo drives
? Network Technology - Windows 10 upgrade.

We guarantee the best service & technical advice
*** BUY DIRECT FROM THE IMPORTER & SAVE ***
*** EX STOCK FOR IMMEDIATE DELIVERY AUSTRALIA WIDE ***

Recommended Add On Accessories
?25-0258 - Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
?25+0258 - Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
?25+0259 - Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
?21+0805 - CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
?21+0806 - CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
?25-0259 - Power System Model NB7/270 - 35 CFM Piston Compressor. 7.5 H.P- v
?25-0220 - AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0112 - Digital LCD Vernier Calliper - 150mm Length.
?Full Range of Consumables Available In Store or Online
