UNIA ARES HP XL 8 SPEED DISCS (8.0M)

Tilling your land can be a bit of a hassle especially if you have to do multiple passes just to get the right soil consistency. Get it right the first time around with the UNIA Ares HP.

Premium Heavy Speed Disc
The UNIA Ares HP comes from a long line of Ares heavy-duty speed discs and is in fact, the heaviest of the bunch. It is a semi-mounted disc cultivator available in 4-m, 5-m, and 6-m wide models. Each requires a 210-, 230-, and 260-HP power output from any tractor
s respectively.

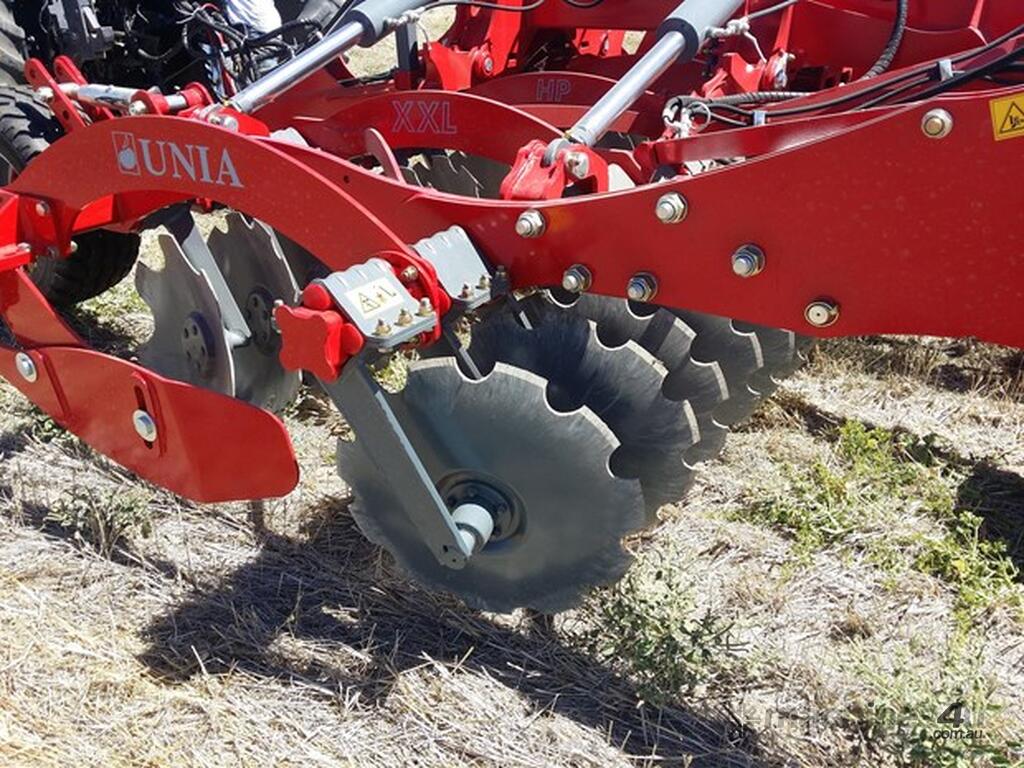

These machines come with two rows of corrugated discs angled in opposite directions from each other. These large-diameter discs enable aggressive cultivation and mixing of soil with large amounts of crop residues at a working depth of 15 cm.

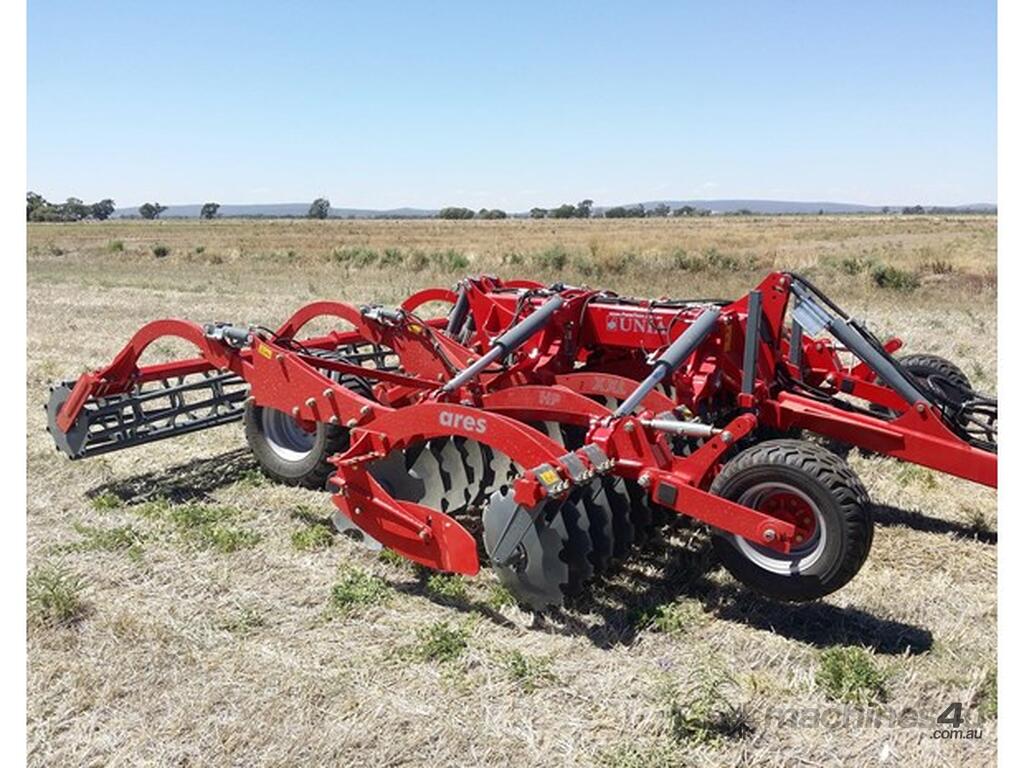

Robust Foldable Platform
The platform is built around a chassis made with high-strength stainless steel which is mainly supported by two durable and massive center wheels and a pair of smaller-support wheels in the forward section.

A powerful Hydraulic System is used to retract the machine in a folding position, especially during transport; deploy it and lock it in place when out in the field.
All models have similar make-up and configuration except that each model is further subdivided into three more categories—the HP XL, HP XXL, and HP TX—differentiated by the following:

ARES HP XL: 2 rows of ø560/6 mm CLASSIC discs, protected by 42×160 mm dampers
ARES HP XXL: 2 rows of ø660/6 mm CLASSIC discs, protected by 52×160 mm dampers
ARES HP: TX2 rows of ø660/6 mm CLASSIC discs, spring-protected

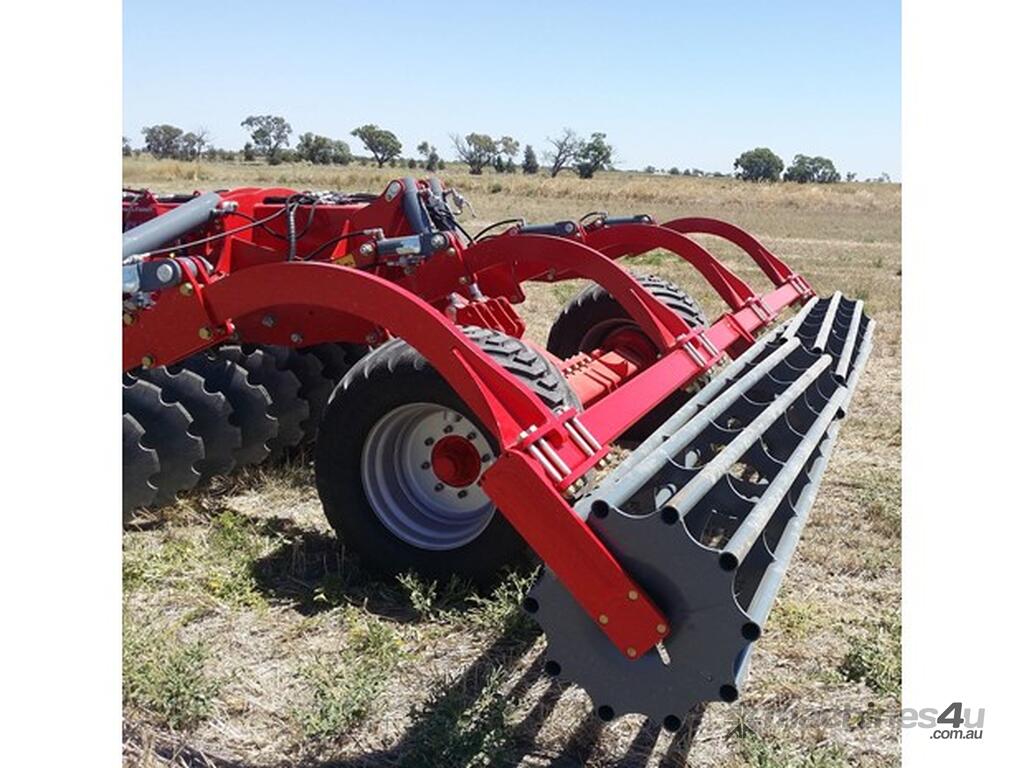

Whatever the model, all Ares Speed Discs come with a rear-trailing roller which can be changed depending on your needs and the ground conditions. The most popular choices are the Pipe Roller and the alternating U-roller.

FEATURES
Semi-mounted axle: 965/ø36 mm
2 rows of ø560/6 mm CLASSIC discs, protected by 42×160 mm (ARES HP XL) dampers
2 rows of ø660/6 mm CLASSIC discs, protected by 52×160 mm (ARES HP XXL) dampers
2 rows of ø660/6 mm CLASSIC discs, spring protected (ARES HP TX)
ø600 mm pipe roller
mechanical adjustment of working depth
hydraulically folded frame
chassis with air brake and complete wheels
size 550/45-22.5
disc spacing: 120 cm

Specifications - ARES HP XXL 8
Type: Semi-Mount
Working Width: 8,000 mm
Number Of Discs: 64
Max Working Depth: 150 mm
Diameter Of Disc: 660 mm
Working Speed: 10-15 km/h
Working Efficiency: 8.0-12.0 HA/h
Power Demand: 270 HP
Dimensions Without Optional Extras: 7490 x 8550 x 1680 mm
Transport Width: 3,000 mm / 3700 Wide Axis
Weight Without Optional Extras: 8,820 kg

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
