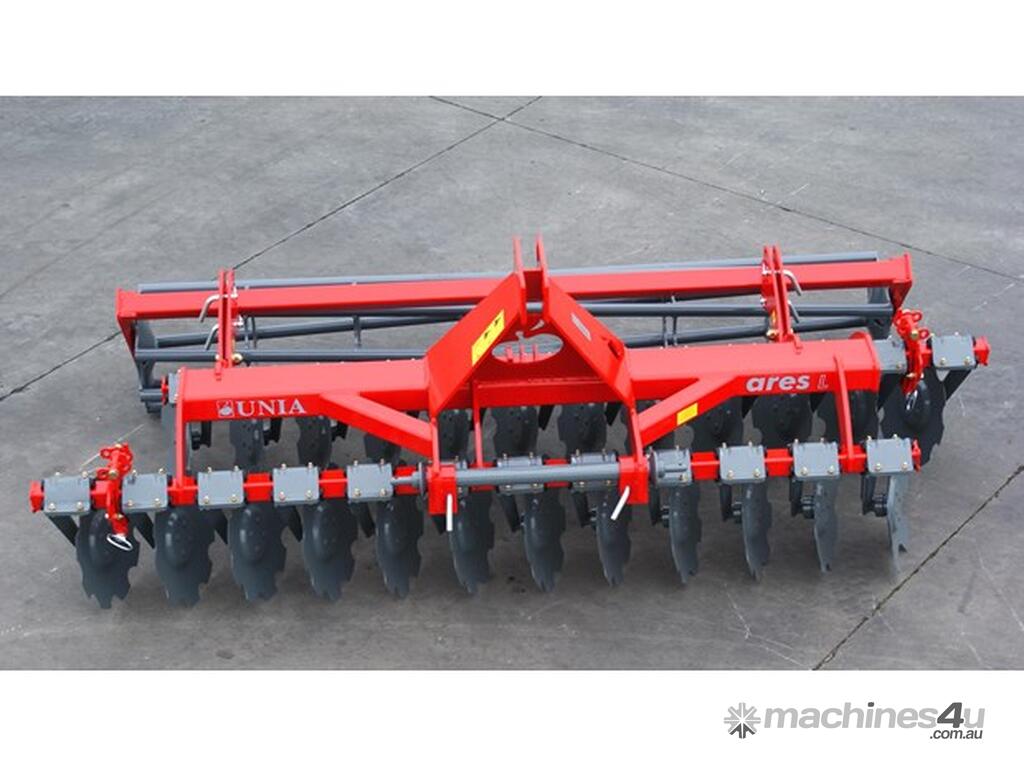

UNIA ARES L PLUS 2.5 SPEED DISCS (2.5M)

FEATURES
Suspension axles: ø60-825/ø28mm (versions 2.5-3.0m)

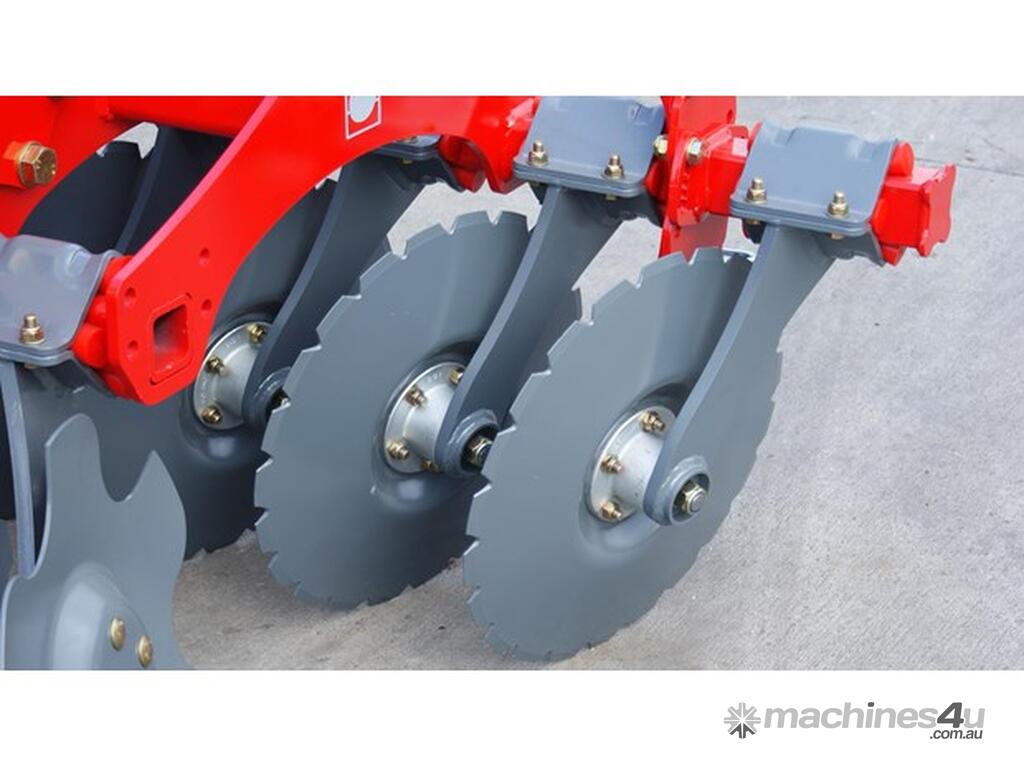

2 rows of ø510/4 mm CLASSIC toothed discs, protected by ø35×160mm shock absorbers
ø500 mm tyre roller

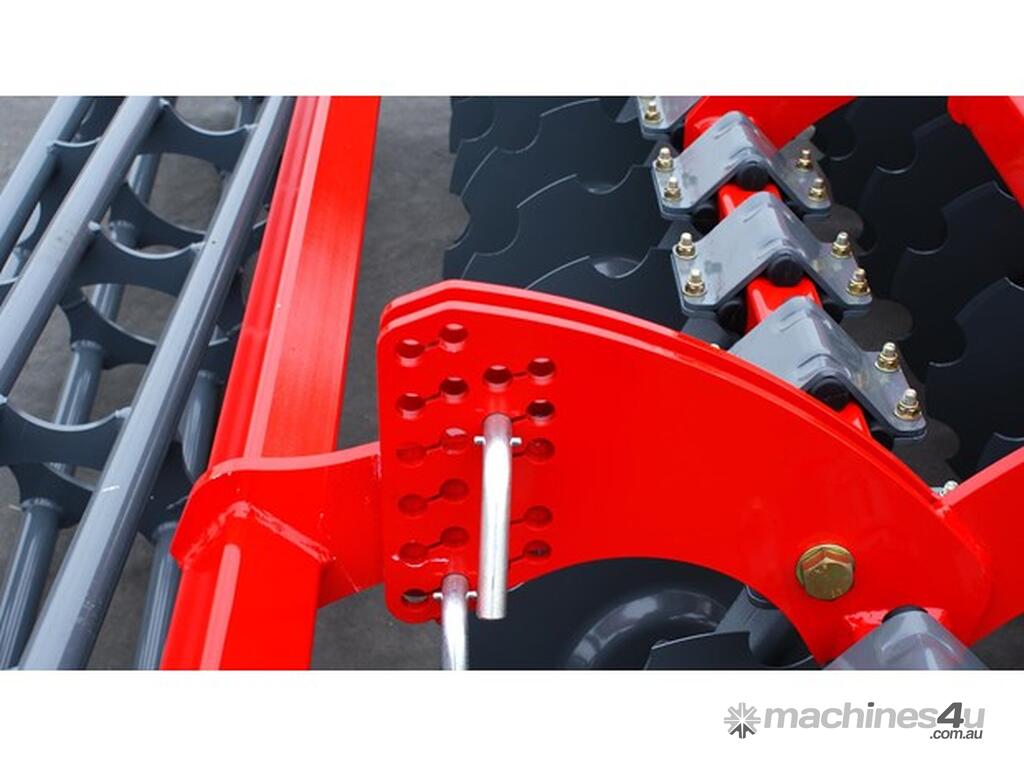

Mechanical adjustment of working depth
Rigid frame
Disc Spacing: 640mm
Replaceable maintenance-free hub

The pictured trailing kit is an optional extra for this machine (add $8,500 to the listed price)

OPTIONS EXTRAS
Hydraulic front board (only w. DRIVE system or in semi-mounted version)
DRIVE system w. 1 800 mm long drawbar
Surcharge for a set of AGRESSIVE discs ø485/4 mm
Chassis w. wheels 10.0/80-12 and 1 800 mm long drawbar
Chassis w. wheels 480/45-17 and 2 200 mm long drawbar and air brake
Surcharge for a set of side deflectors
Seeder mounting kit (internal deflector, supports, coupling screw)
HYDROPAK seeder coupler
Hydraulic adjustment of the working depth (4 points adjustable)
Surcharge for suspension axle, ø60-825/ø36mm (version 2.5÷3)
Surcharge for suspension axle, ø60-965/ø36mm (version 3.5÷6)

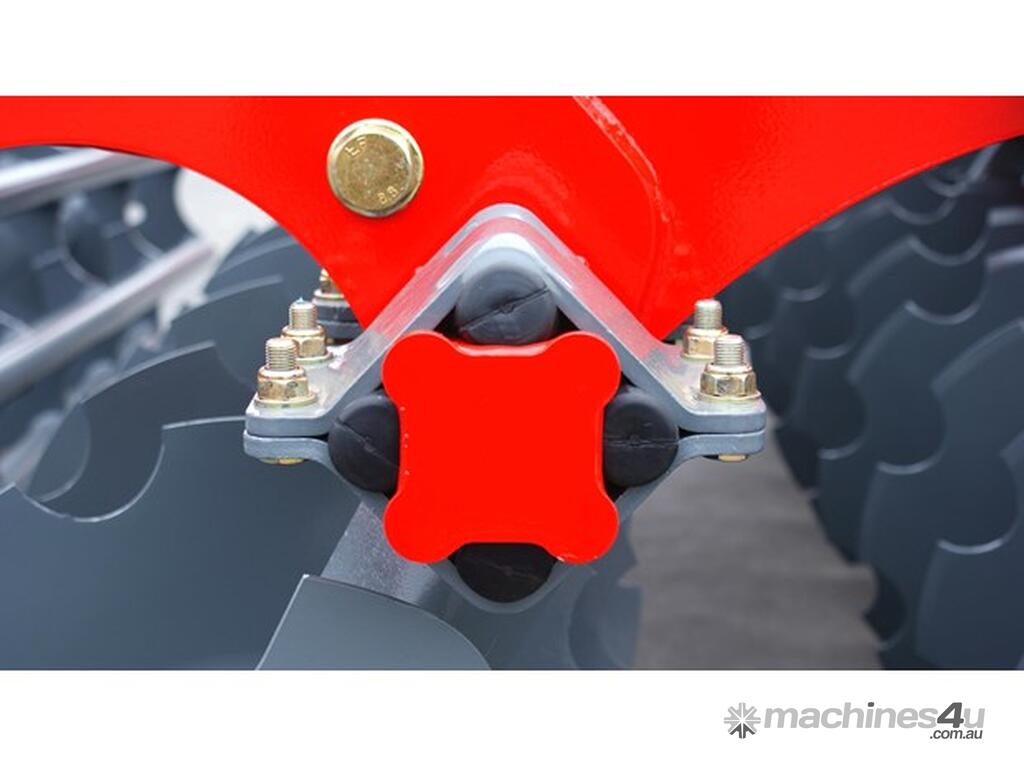

Surcharge for polyurethane shock absorber (one set per disc)
Warning plates kit
Warning plates kit with lamps
Possibility of mounting the ETA seeder

Specifications - Ares L Plus 2.5M
Weight with ø500 mm pipe roller [kg]: 900
Power demand [HP]: 75-90
No. of discs [pc.]: 18
Spacing between rows of discs [cm]: 64

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
Refcode TA856867
