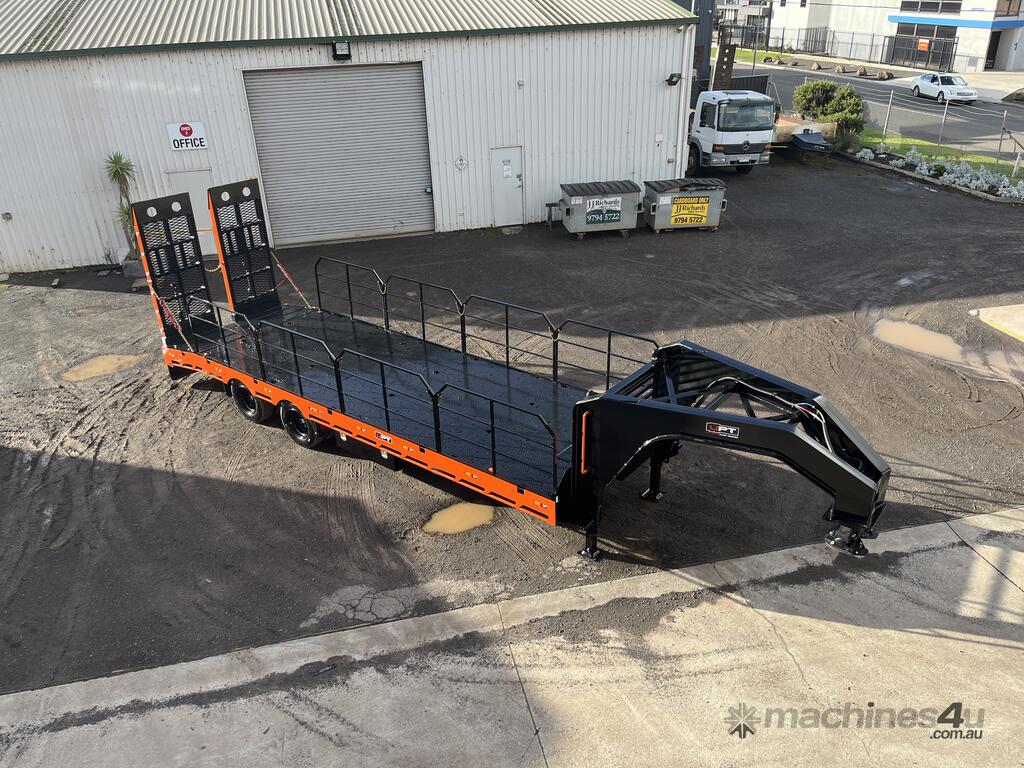

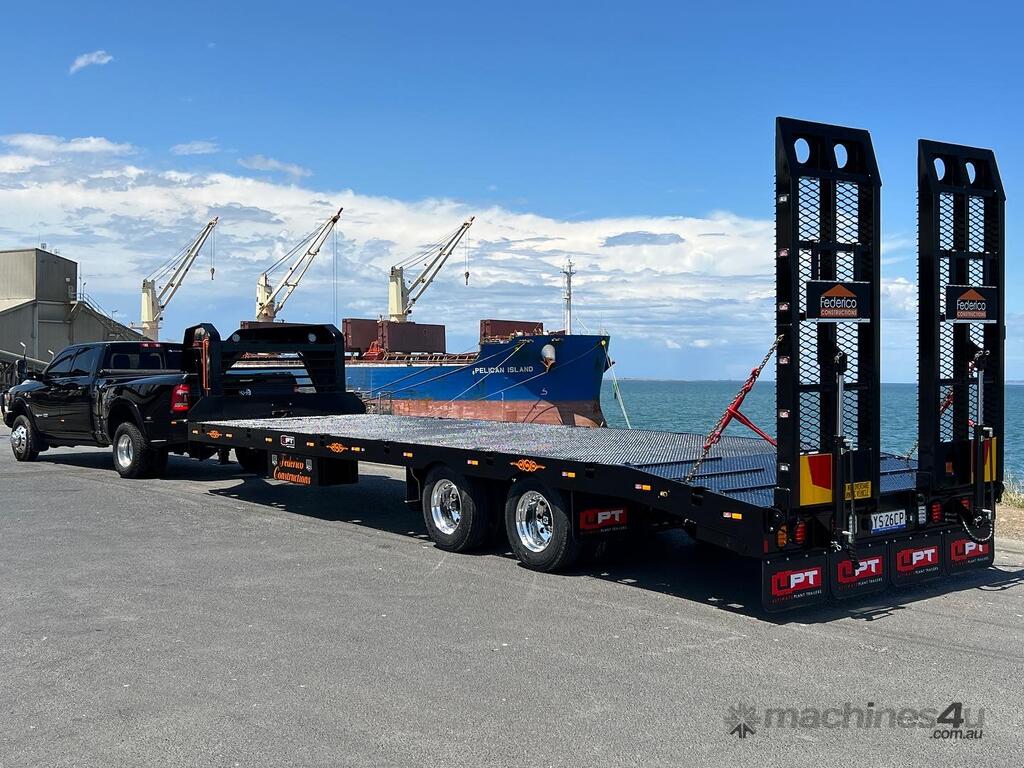

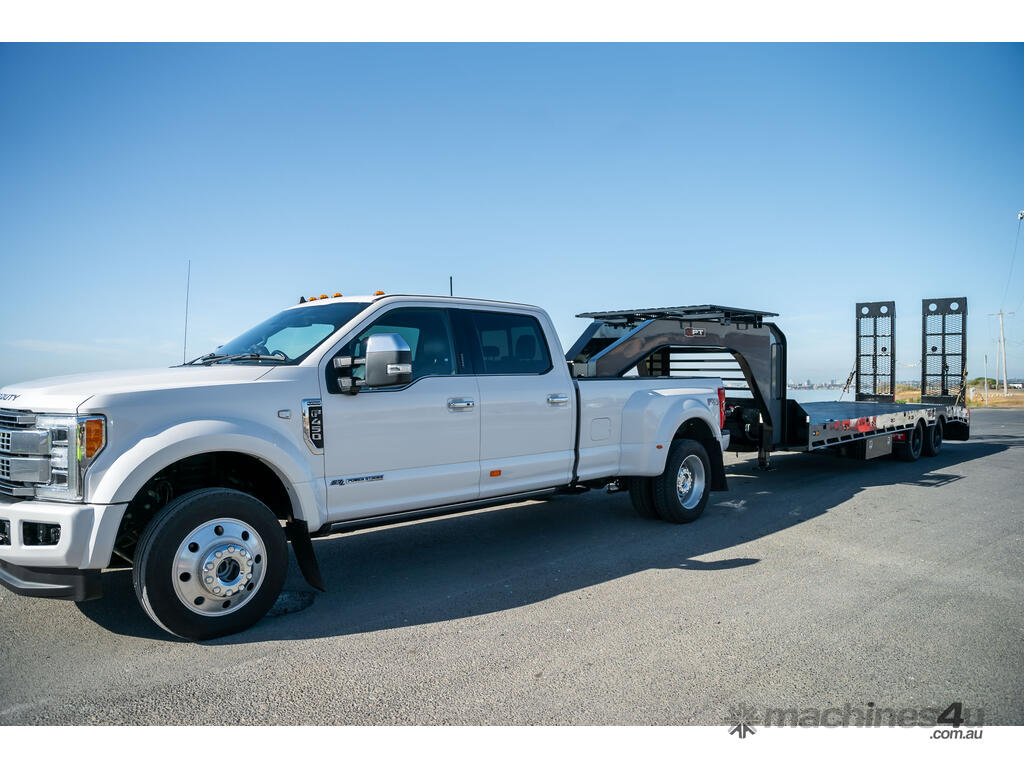

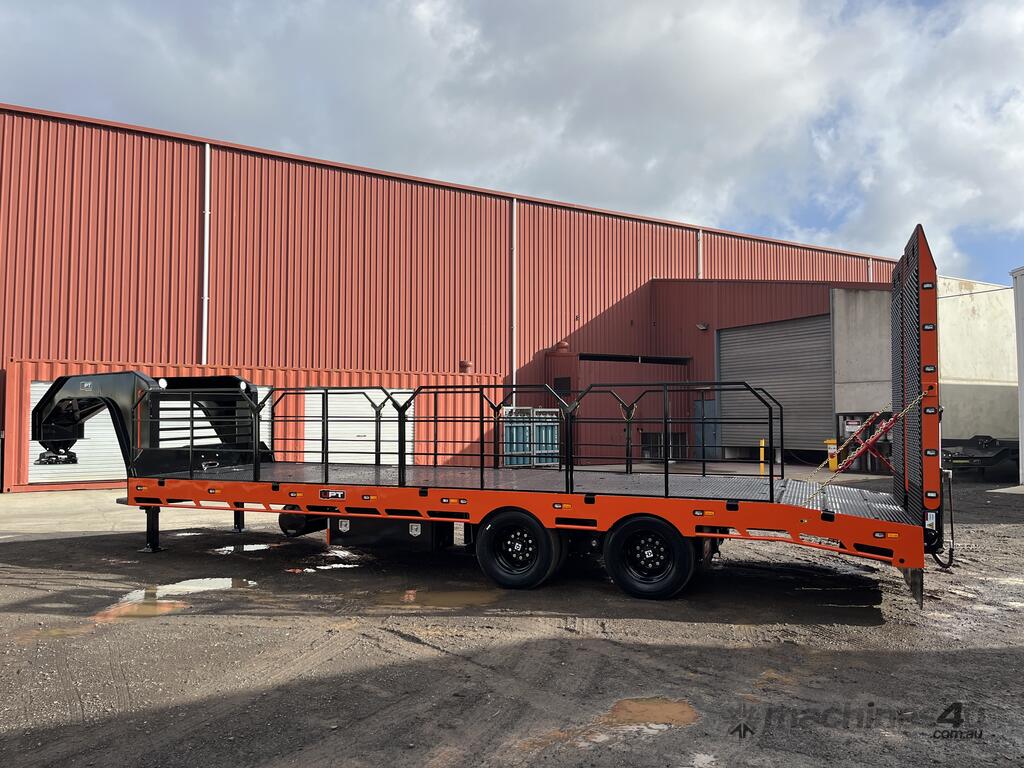

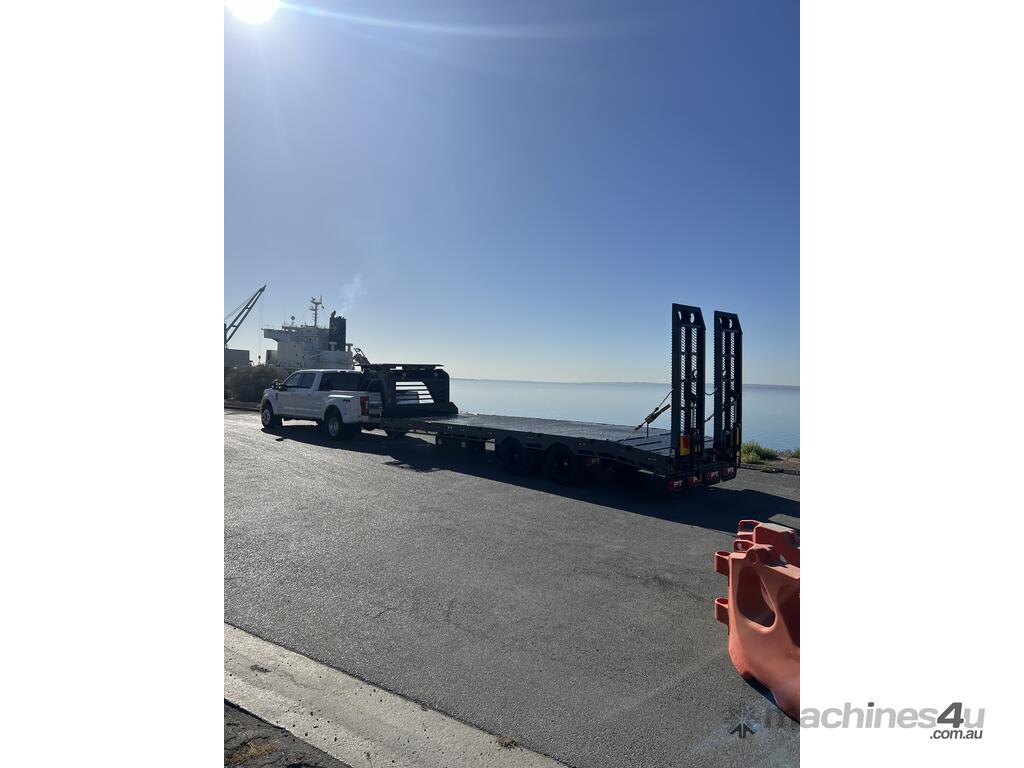

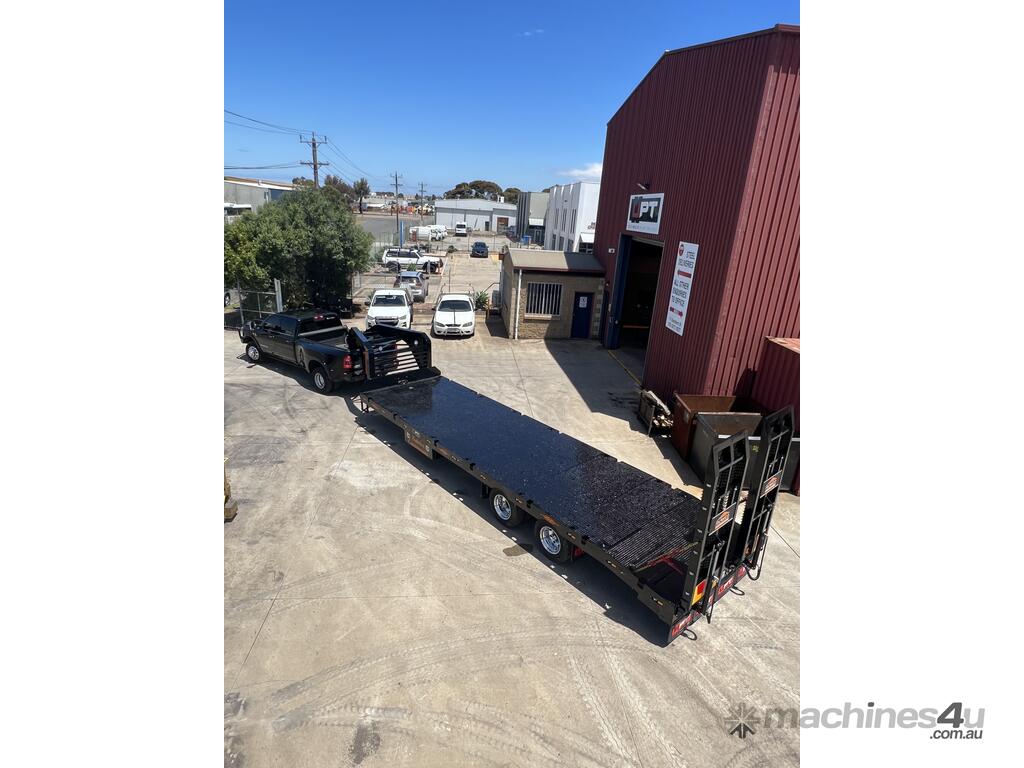

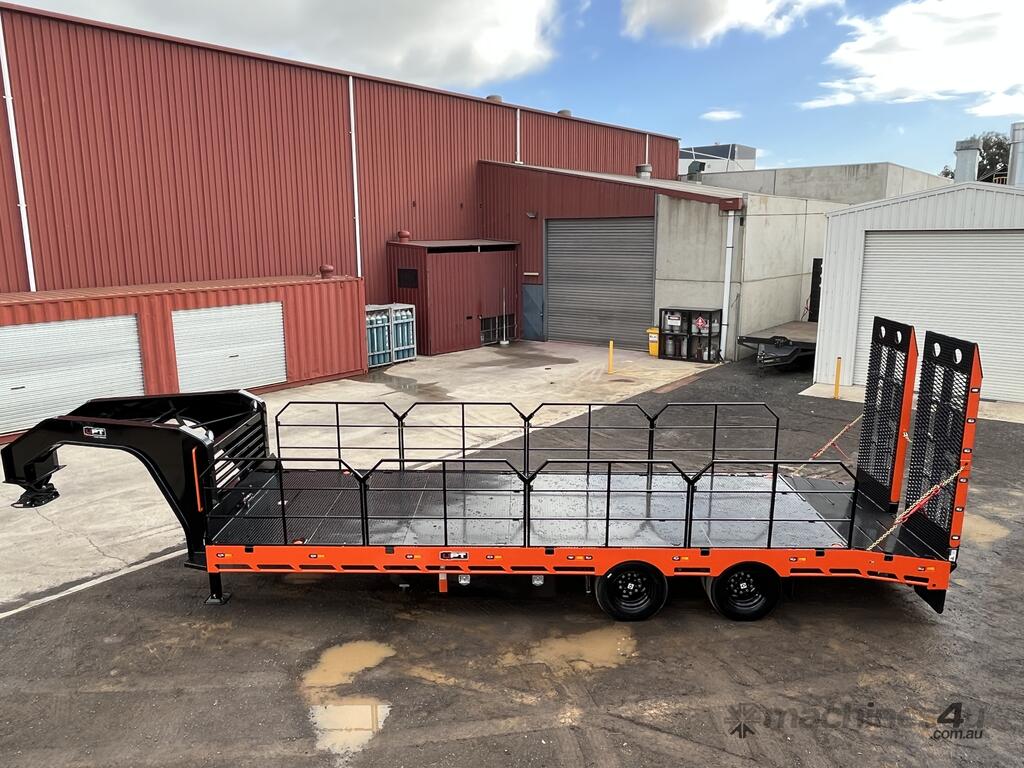

UPT Gooseneck Tandem Axle 16T Trailers are engineered for unrivalled strength, durability and versatility. Each trailer is meticulously hand-fabricated using premium materials and advanced techniques to deliver outstanding performance in the toughest environments.
One of its standout features is the custom chassis, built from 6mm Grade 350 steel, the web is manufactured with a camber built into the plate, dual side welded to a 100mm x 16mm thick Grade350 bottom strap, it is a strong foundation to support the trailer suspension. With 10mm Grade 350 - 1 piece coaming, which is precision-cut to your custom spec rounding out a quality build.
Our Gooseneck Tandem Axle Trailers are designed with customization in mind, allowing you to tailor the build to your specific needs. Whether it's hydraulic front loading ramps, extra wide ramps or custom storage solutions, Ultimate Plant Trailers can incorporate features that enhance both functionality and convenience.
Built to last, our trailers are proven to hold their value, with exceptional resale value that reflects the quality and craftsmanship invested into each build. this makes them a solid long-term investment, offering both reliability and a higher return when its time to upgrade.
UPT Custom Tandem Axle - Standard Inclusions:

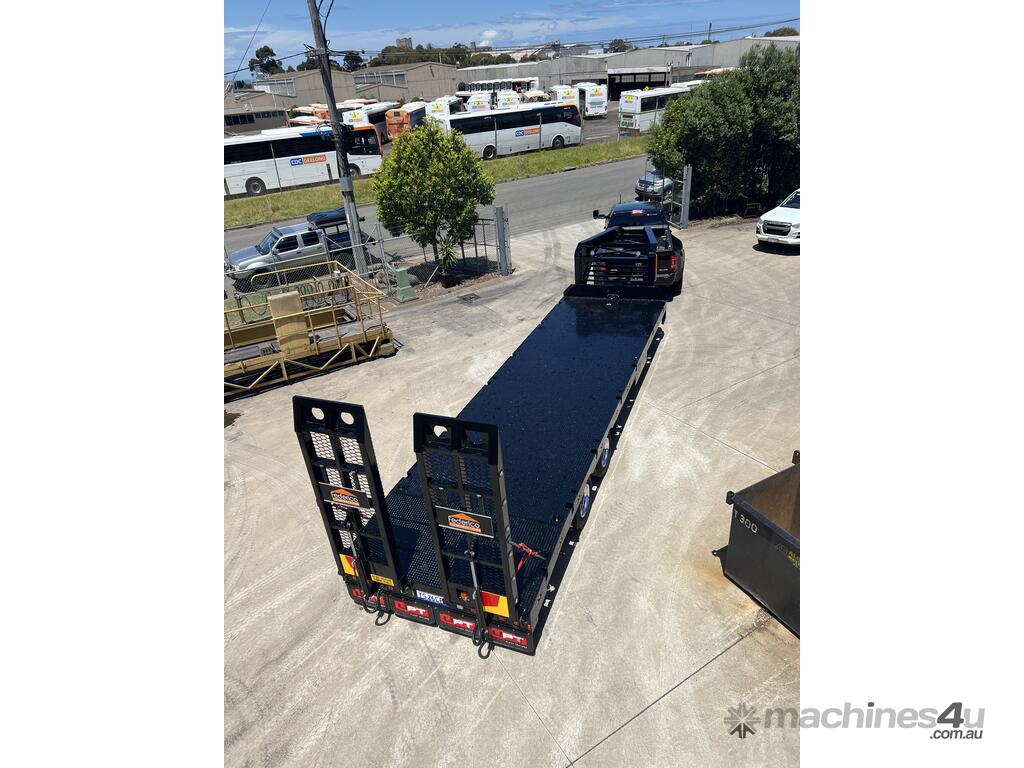

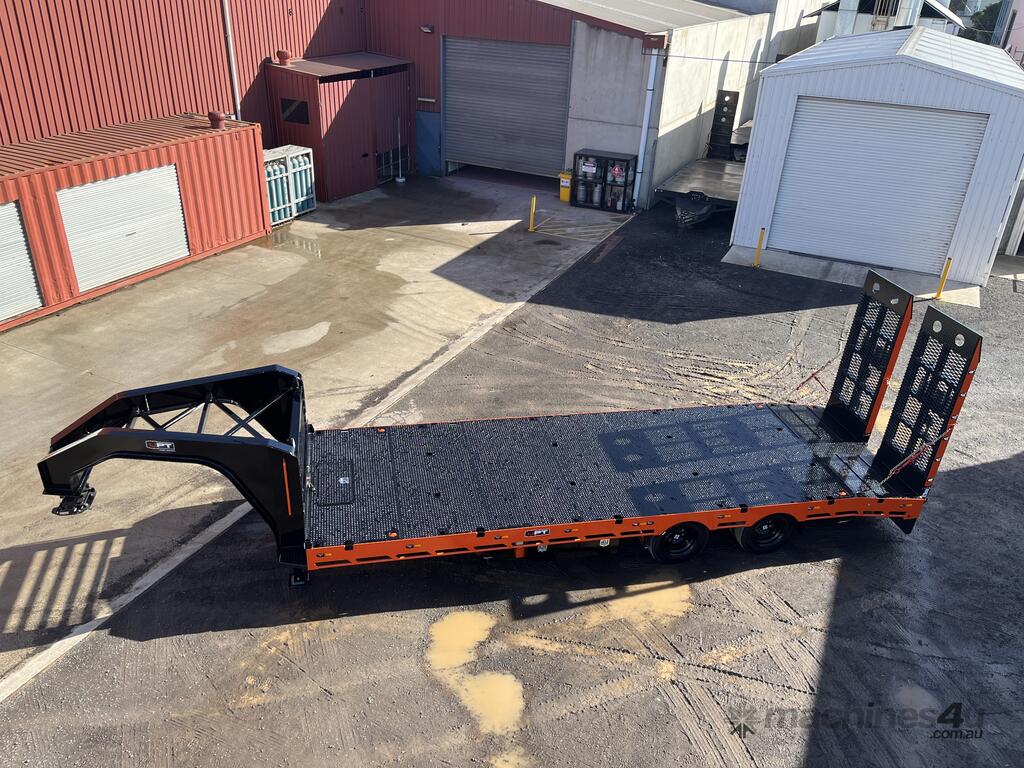

- Deck & Beavertail (7m deck & 1.2m Beavertail ) - Customisable to your needs

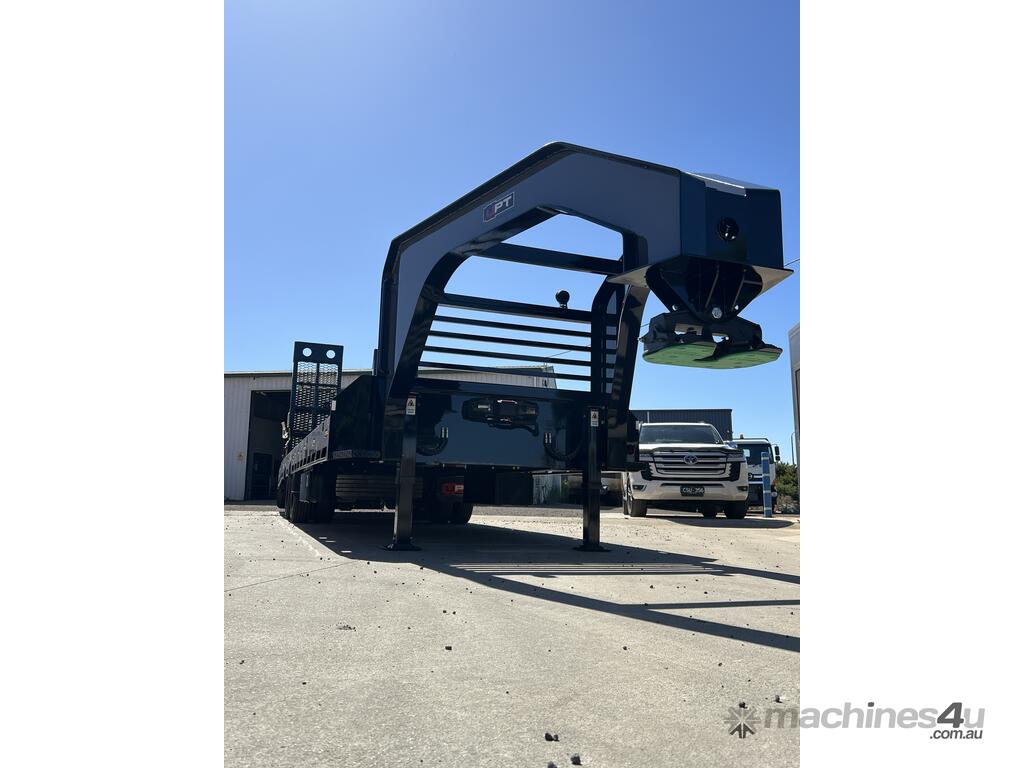

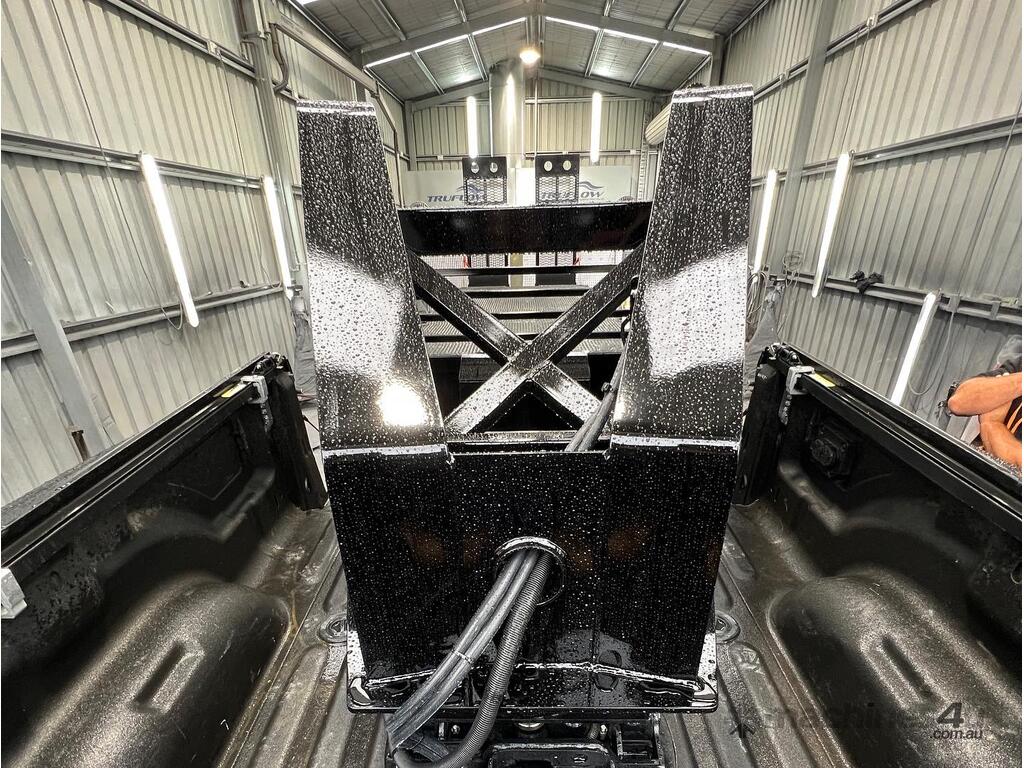

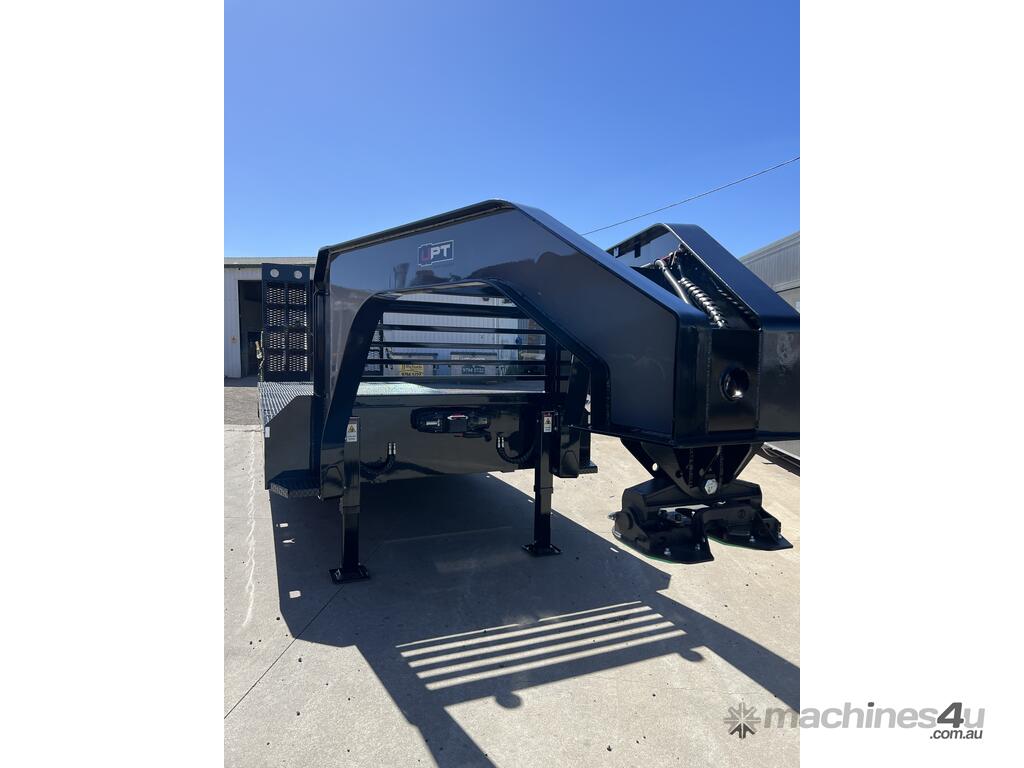

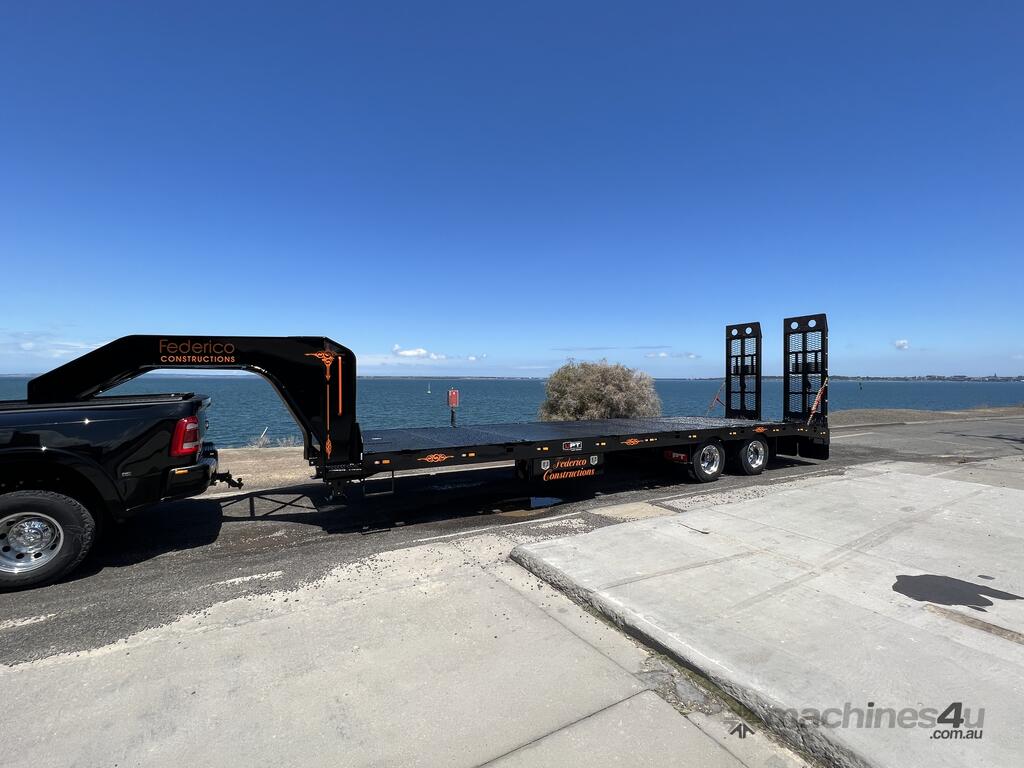

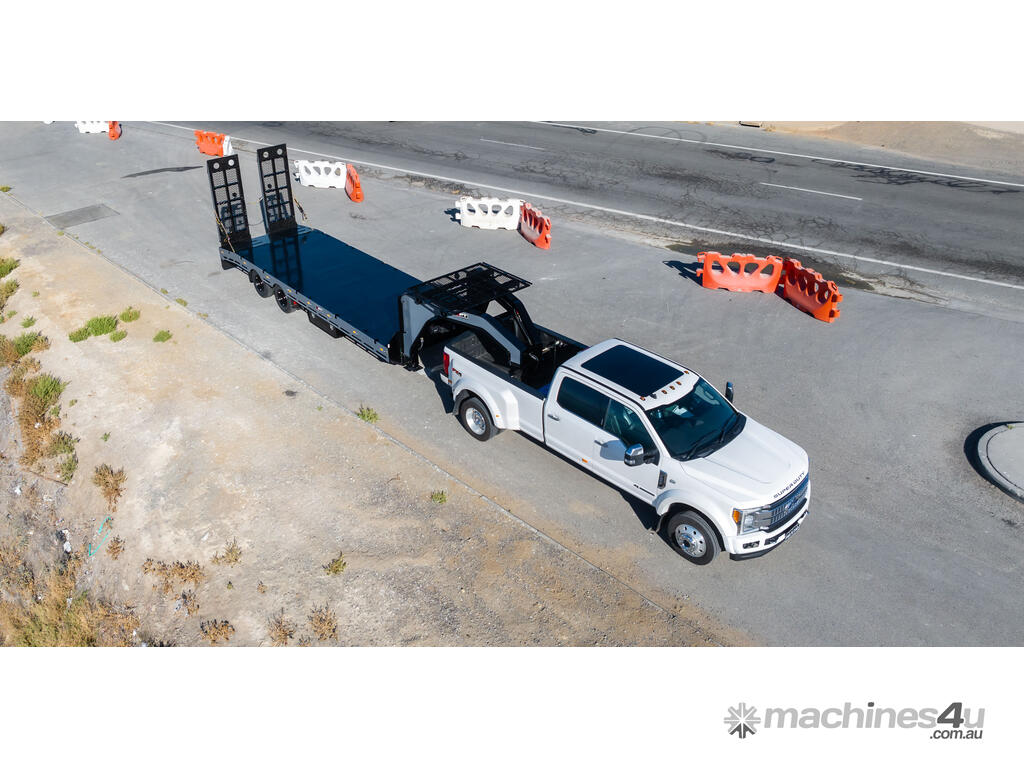

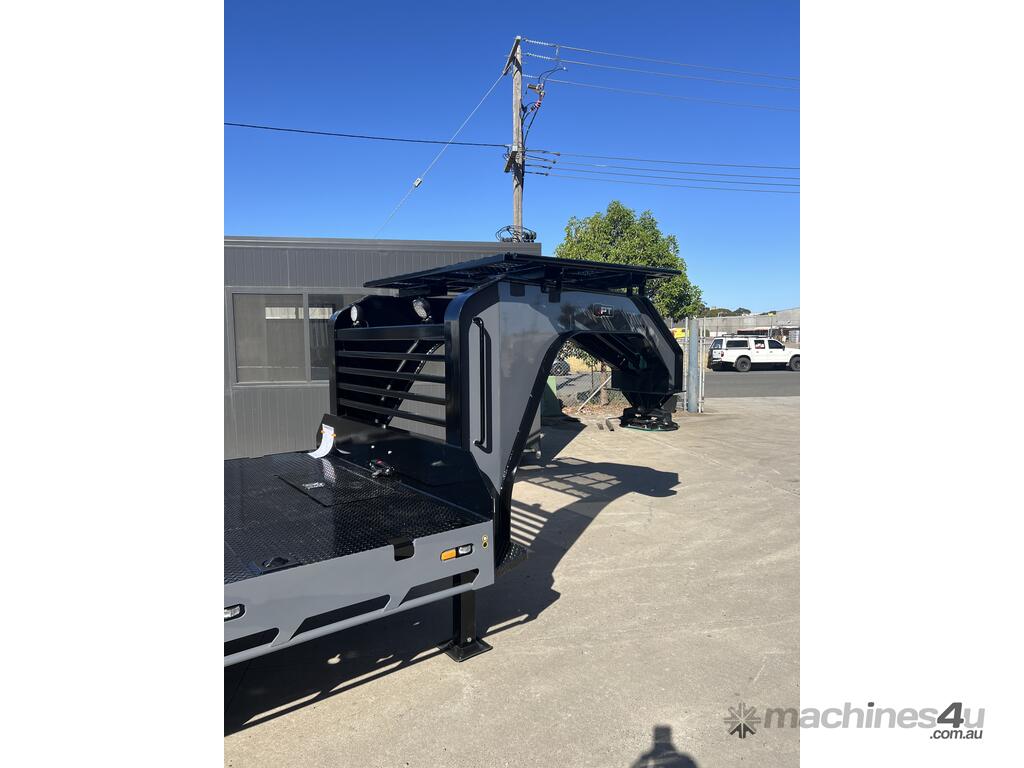

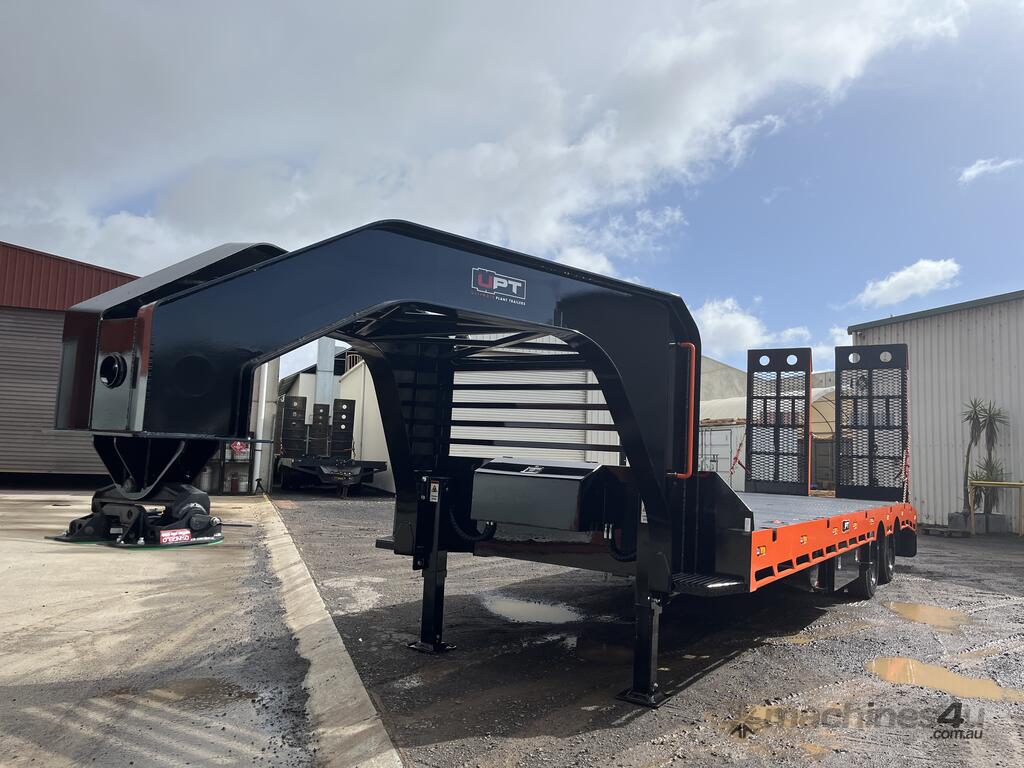

- 2.5m Custom Gooseneck (Height and length manufactured to suit your truck)

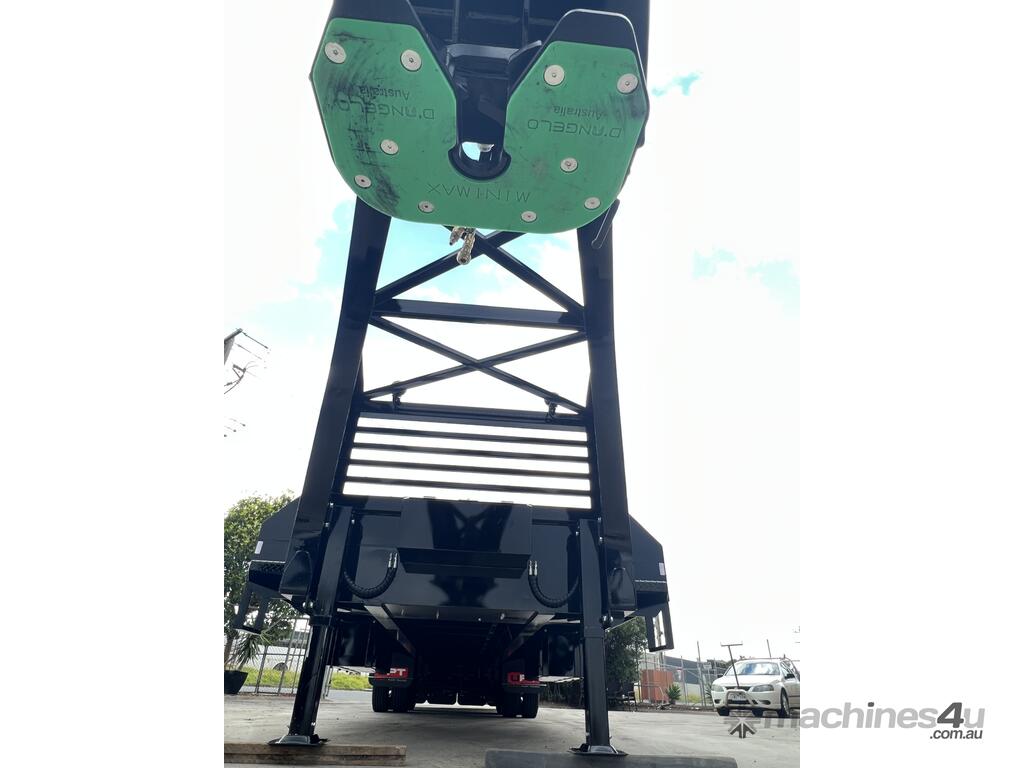

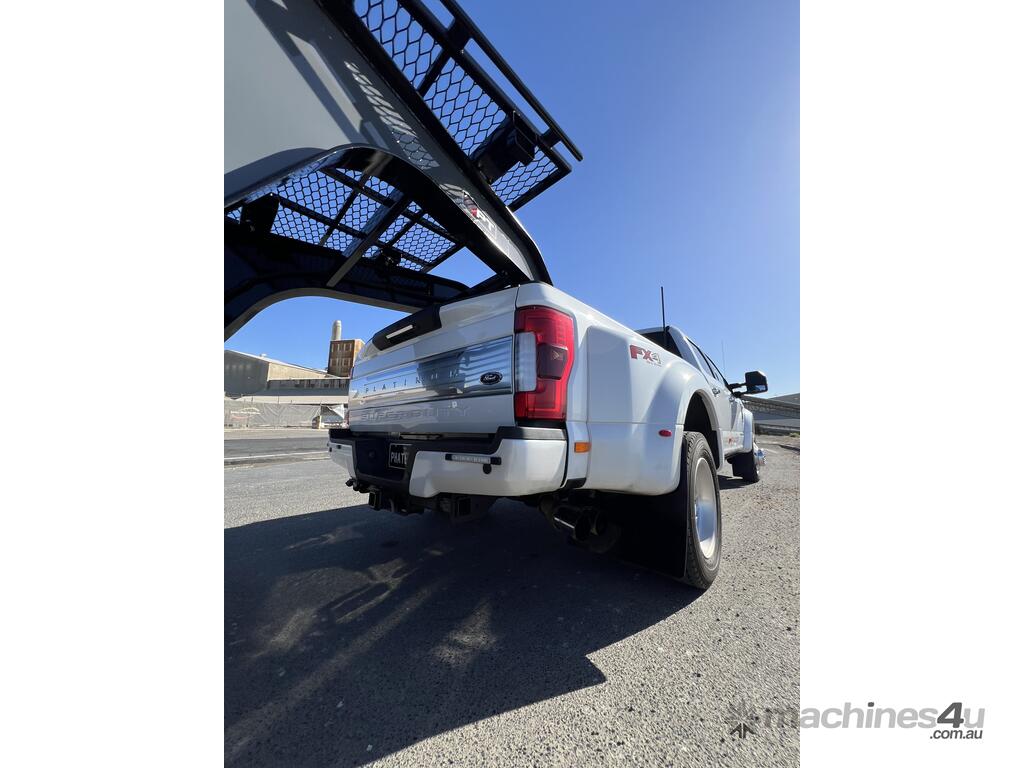

- King Pin / Upside down D'Angelo Minimax (Other hitches available)
- 50 amp or 175 amp Anderson
- Greaseable hinges to all doors
- Up to 16 T ATM rated trailer
- Dual Double acting hydraulic front legs with drawbar-mounted pendant
- Double acting hydraulic ramps with coaming-mounted pendant
- Built-in deck hydraulic power pack box with seal and keyed lock
- Heavy-duty truck battery with additional fuse protection

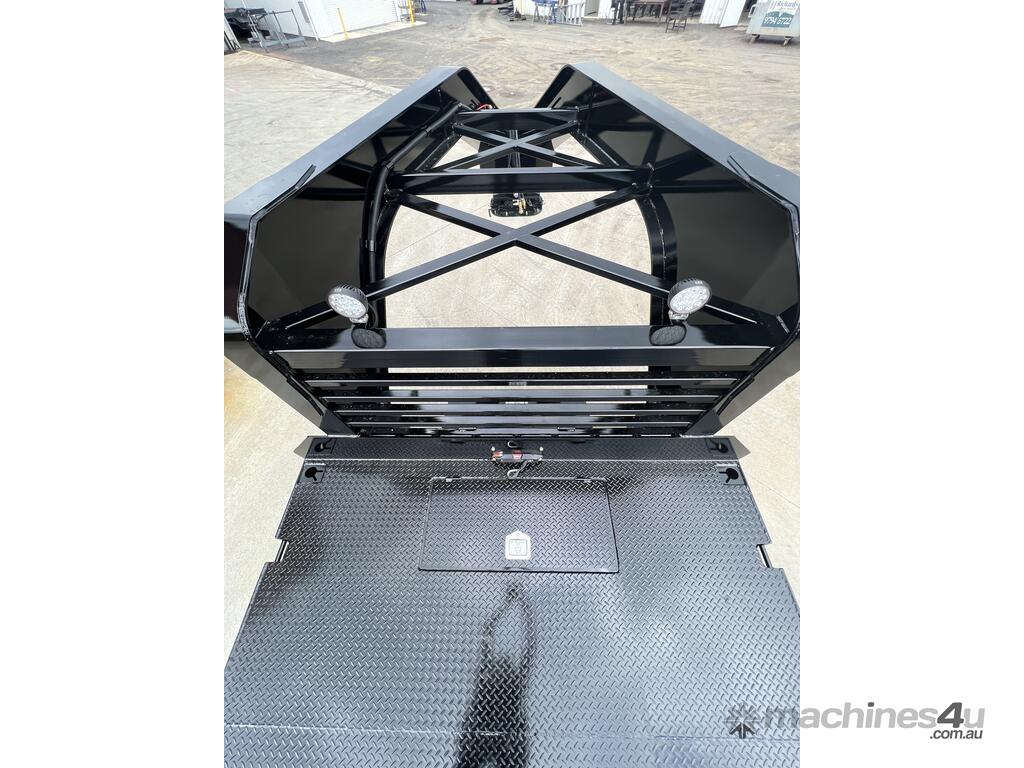

- 5mm checker plate steel floor
- 100mm x 50mm x 4mm cross members passing through the chassis
- 8mm Grade 350 coaming
- 6mm Grade 350 pre-cambered web plate
- 100mm x 16mm Grade 350 bottom strap

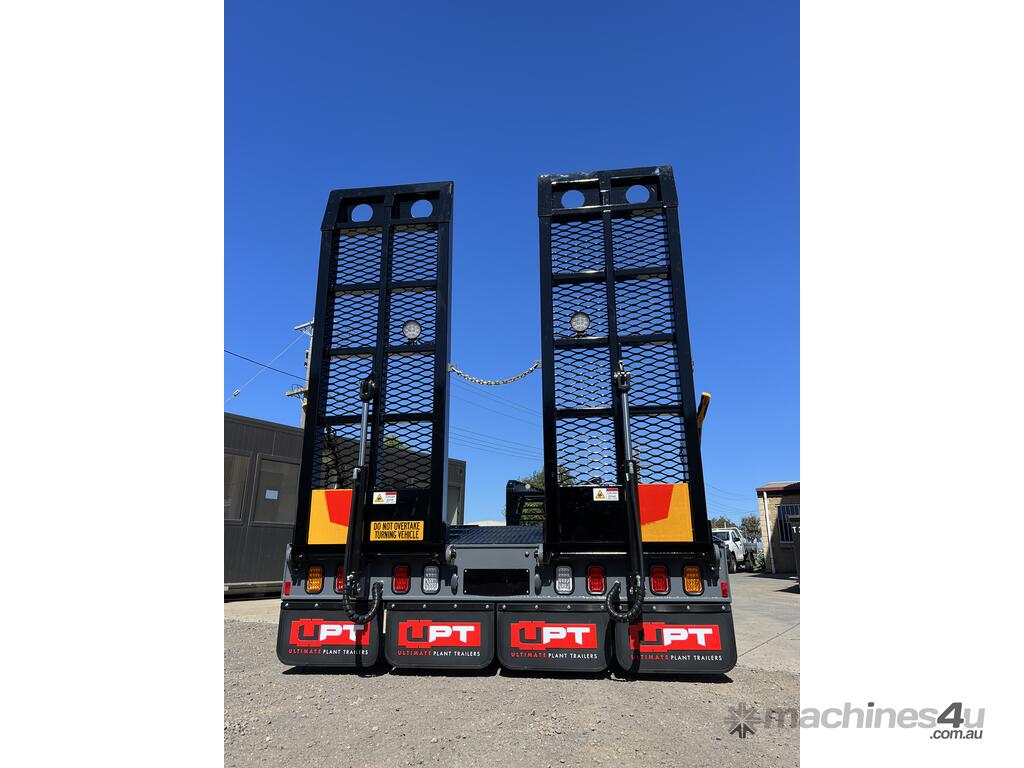

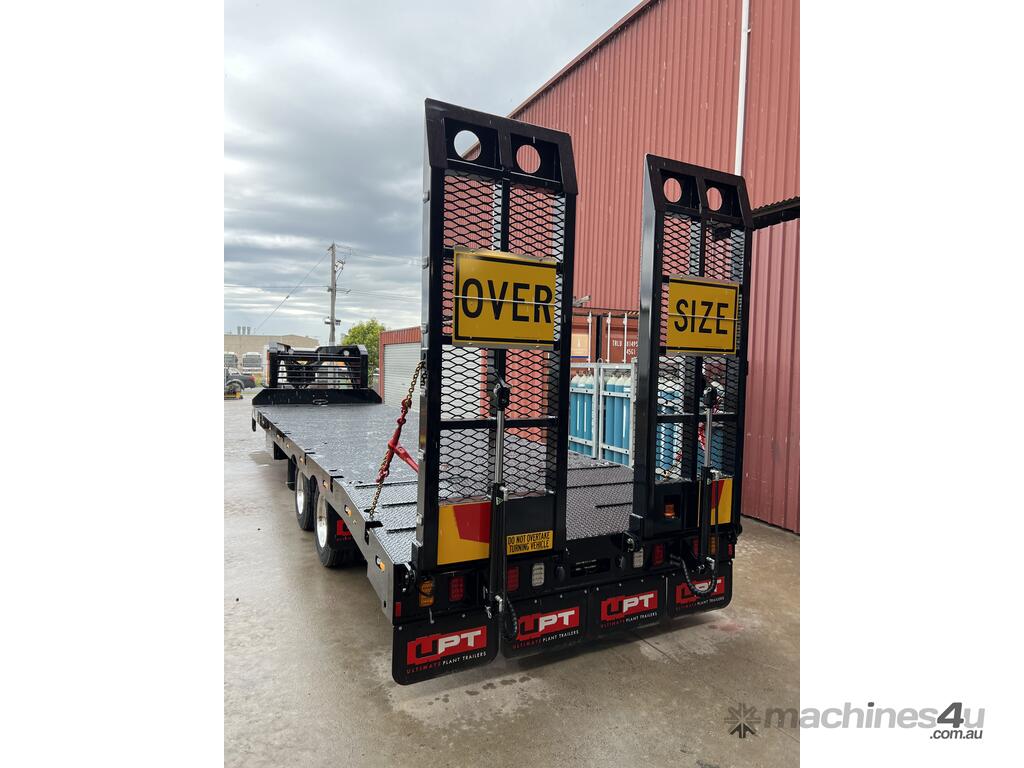

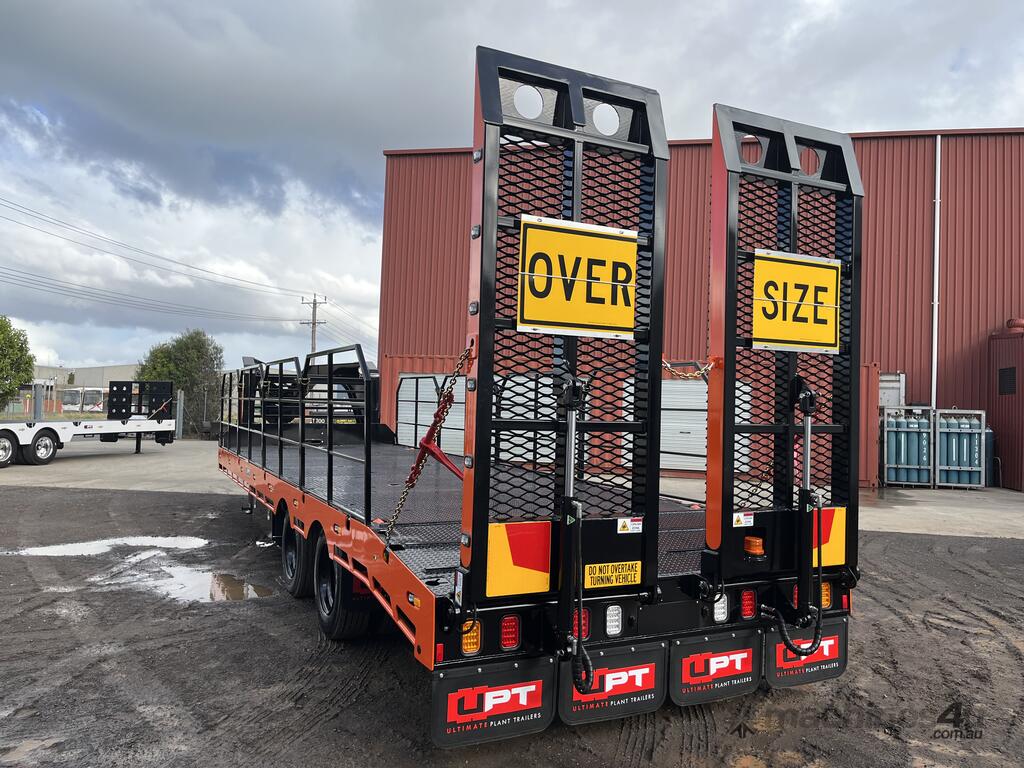

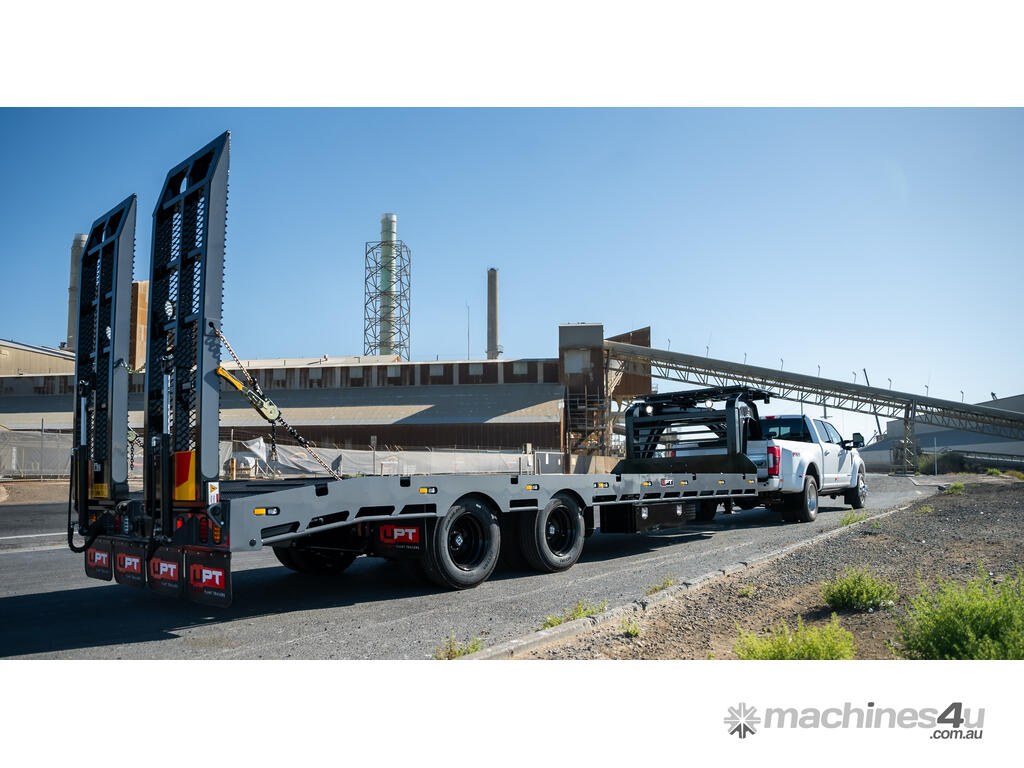

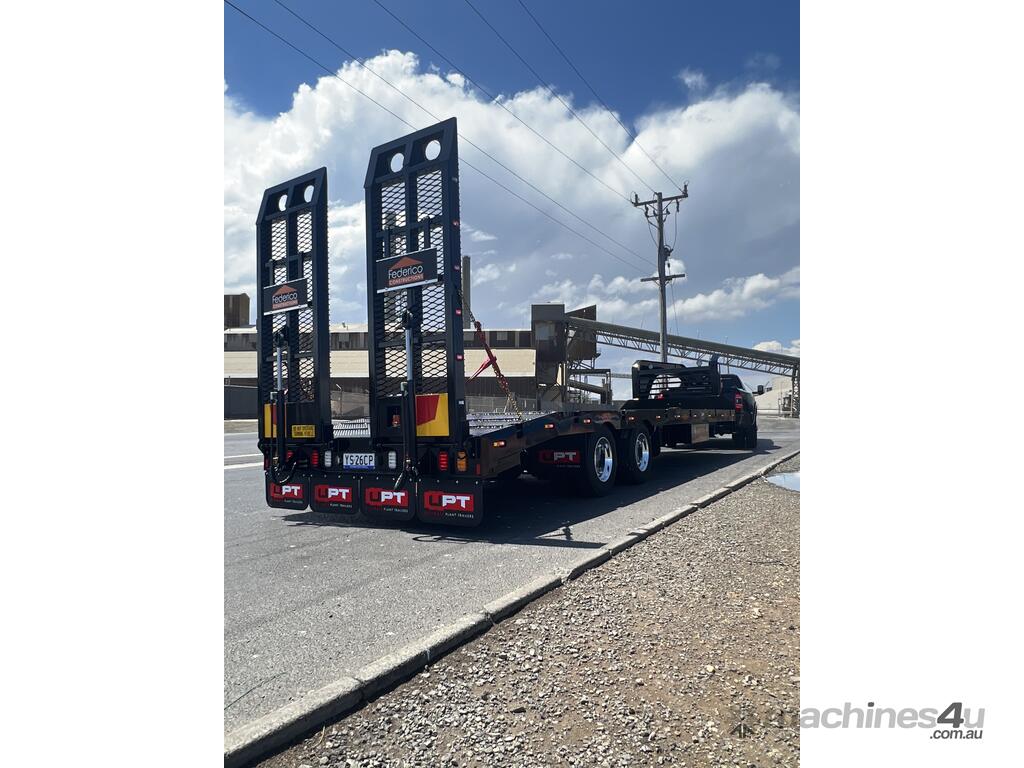

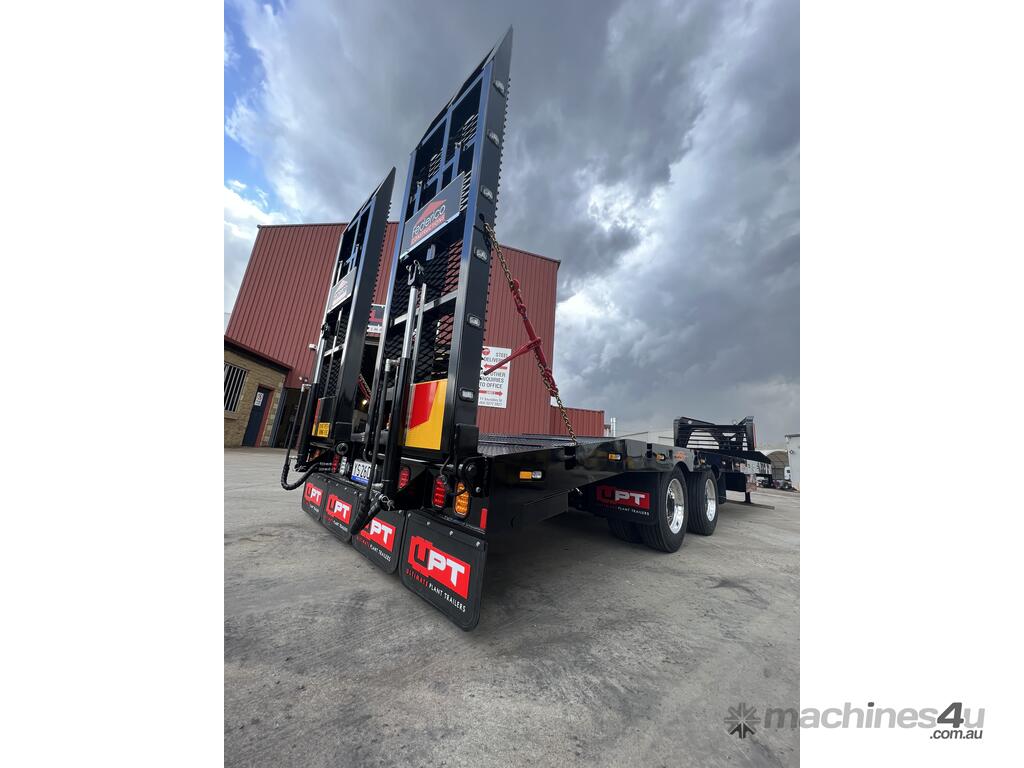

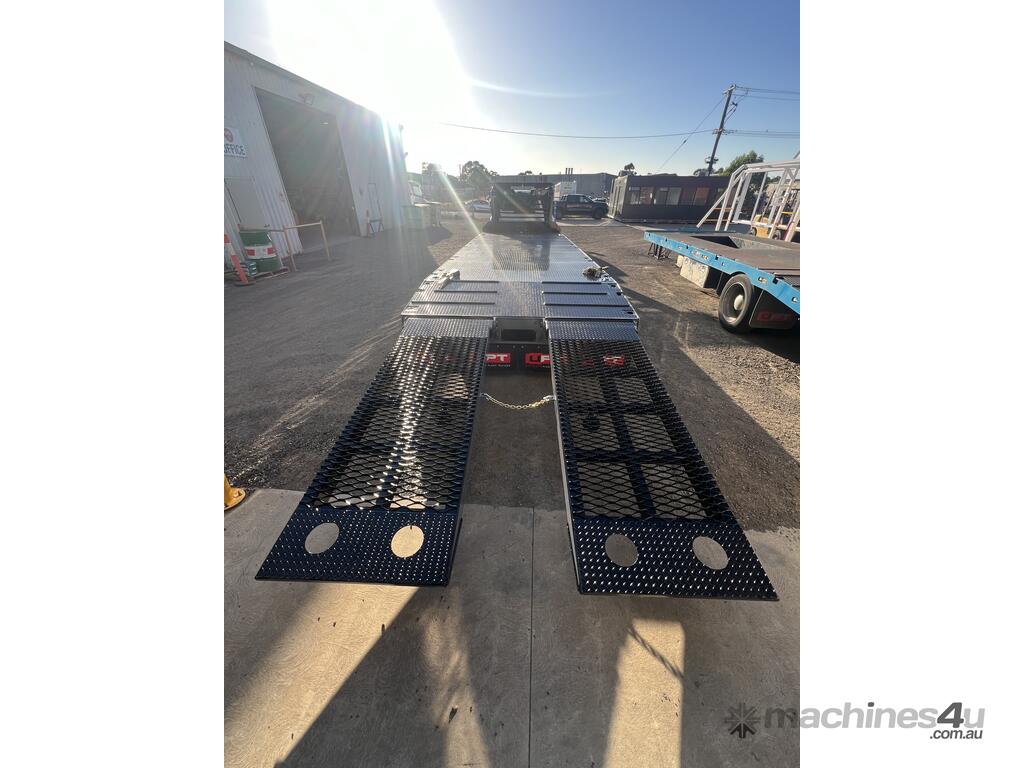

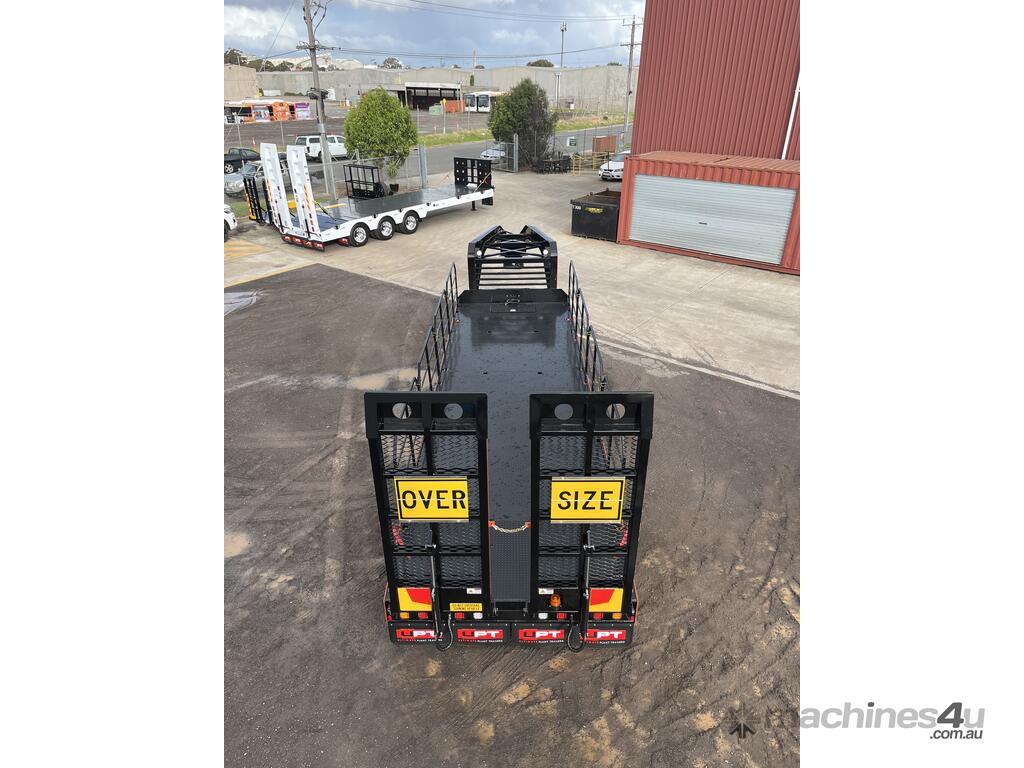

- 2700mm x 850mm Mesh Sheeted Hydraulic ramps with greaseable bushes
- K-Hitch 17.5 axles
- Mechanical spring suspension
- Wabco EBS multi-volt braking with rollover and stability control
- ADR approved multi-volt lighting
- Anti-sail mudflap brackets
- 10 x 10mm in-deck BisAlloy chain tie points

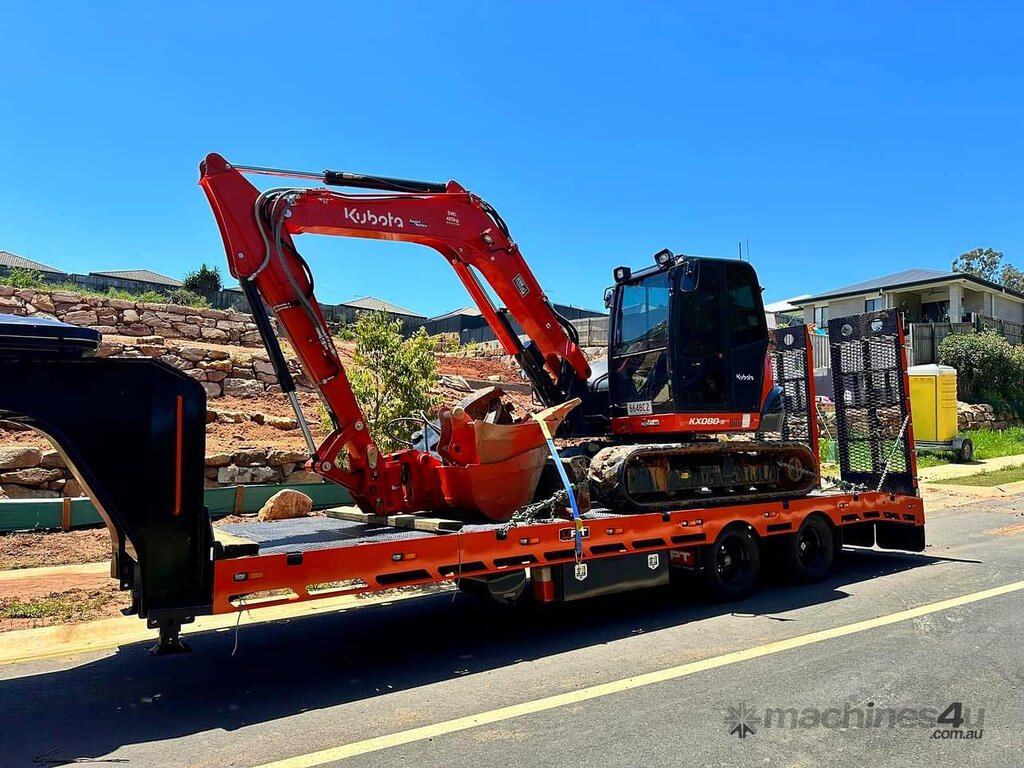

- 12 coaming chain bars designed to sit under machine tracks
- Haulmax tyres (Designed & engineered for Australian conditions)
- Drop-down rear landing legs
- Class 3 sandblasted full trailer, including the underside
- PPG Protec EX-408 zinc phosphate primer
- PPG Protec 625 2-pack
- 2 maxibinders for ramp dogging
- Chrome nut covers to axle studs
- Digital hub odometer
- 2 side steps
- 1 beavertail step at rear of trailer
- 3-year warranty on workmanship
Choose the Ultimate Plant Trailers Gooseneck Tandem Axle Trailer for a product that not only meets the demands of your work but exceeds expectations for durability and performance.
UPT is a Family owned business manufacturing trailers out of Geelong Victoria, we will get your build right first time, with detailed Cad drawings with all your chosen options, you get a visual representation before the build starts.
Contact us today for expert advice from industry professionals you can trust.
