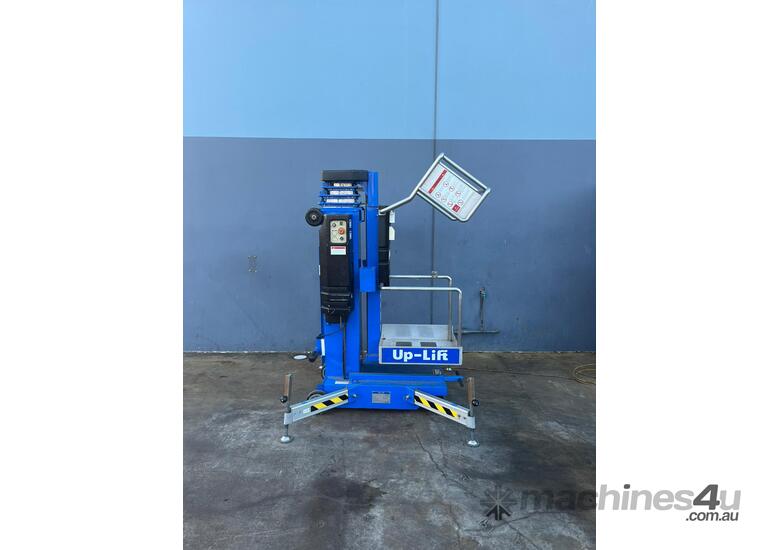

Used Single man Push around Vertical Lift
Max Platform Height - 7.6m
Max Working Height – 9.6m
Rated Load – 159kg
Width – 0.74m
Length – 1.29m
Height – 1.99m
Cage Dimension – 0.68m x 0.66m
Outrigger footprint – 1.47m x 1.55m
Wall Access Distance – 0.1m
Power – 240V AC
Total Weight of machine – 361kg

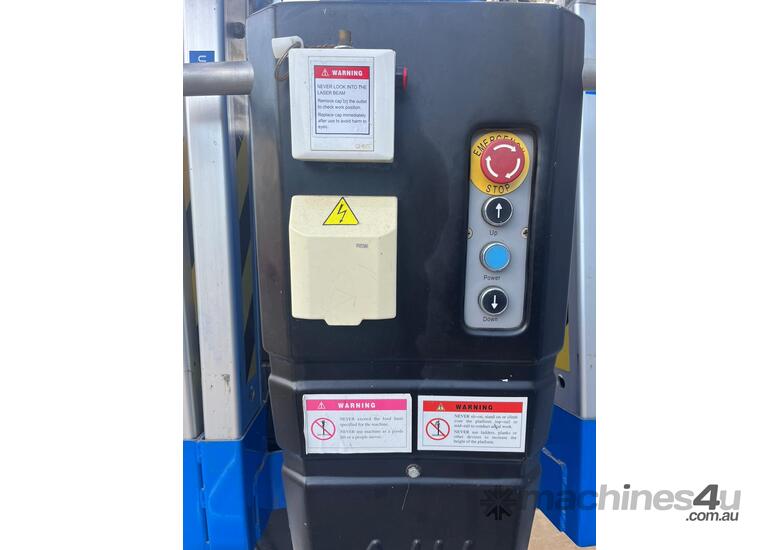

MULTI- FUNCTION CONTROL PANEL - Power supply indication, outrigger indication lights and back-up power for AC modes in the form of a 24-watt battery included in control box.

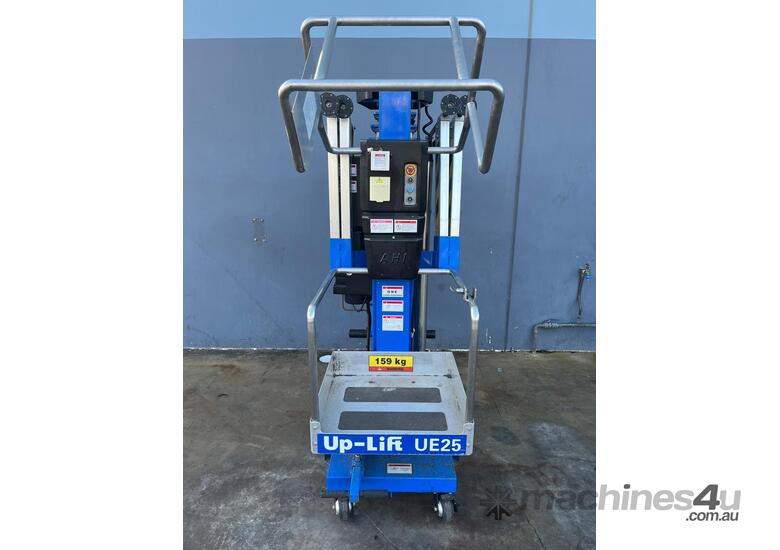

STAINLESS STEEL CAGE - Ergonomically designed cage results in easy operation and also enhances ease of access.
OUTRIGGER STORAGE - Extruded aluminium outriggers are stored on the side below the top of the machine, keeping the stored height to a minimum and facilitating the movement of machine through standard doorways with outriggers in its stored position.
PLATFORM CONTROLS - Critical push button controls (i,e. ascending, descending, and emergency stop buttons) are all accessible from the platform.
MOBILITY - Designed to allow passage through standard doorways, lifts and elevators.
STABILITY AND WEIGHT ADVANTAGE - High strength and high durability aluminium aircraft materials greatly reduce weight and enhances the stability of the machine. Unique central mast design ensures high stability and minimises machine vibration.
