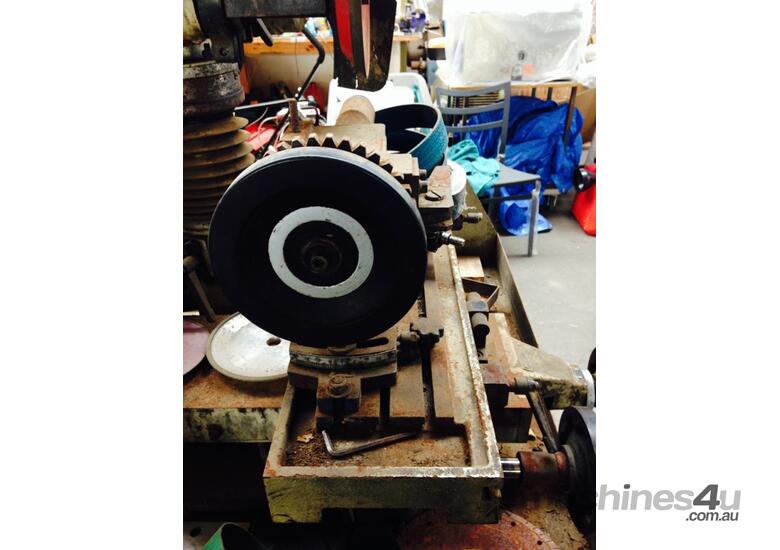

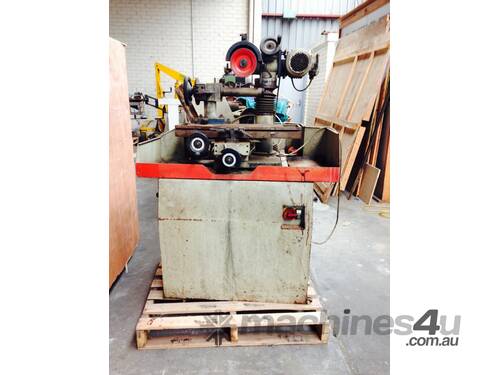

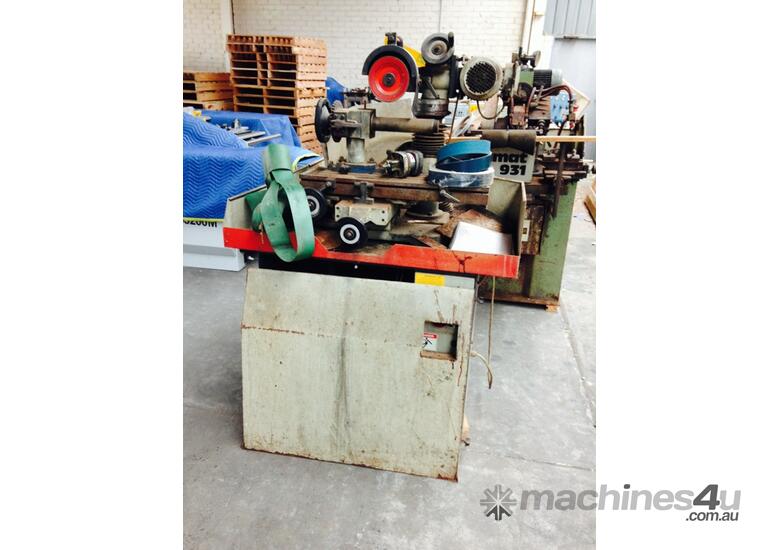

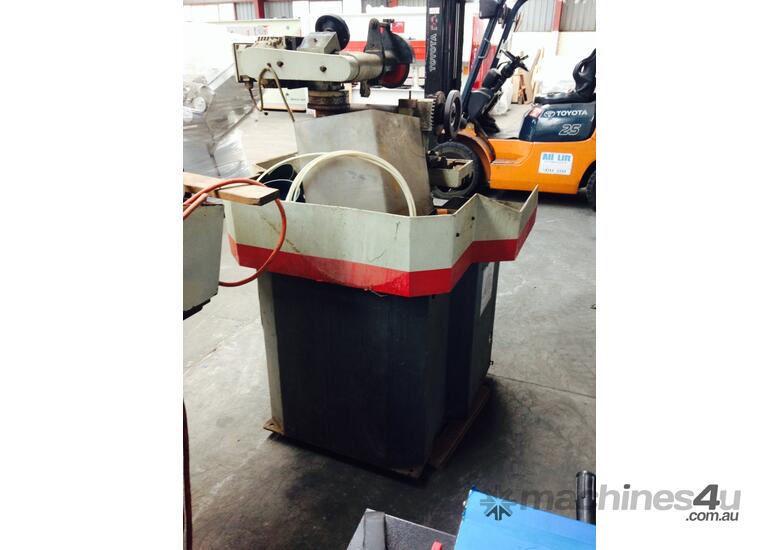

USED WEINIG RONDAMAT 168 TOOL & CUTTER GRINDER
Working when removed; welcome for inspection Seaford VIC 3198
YOM 2000.
PRICE REDUCED FROM $8,950 TO $4,500 +gst FOT Seaford VIC
Coolant Pump Motor; 0.09kW
Coolant Tank Capacity; 40 lt
Stroke lengths
Max. table displacement, longitudinal/transvers; 300mm/140mm
Height adjustment; 180mm
Maximum tool dimensions
Planing heads, back grinding
Length / diameter; 240mm / 125mm
Straight cutters, face grinding
Length / diameter; 240mm / 230mm
Cutters with axis angle, face grinding
Angle / diameter; +/- 20 Degrees, 230mm
Saw blades, face grinding
Max. number of teeth / diameter; Z36, 350mm
Grinding wheel
Drive rating of motor; 1.1kW (1.5Hp)
Speed; 4500 l/min.
Wheel diameter; 150mm
Wheel bore; 20mm
Swivel range +/- 25 Degrees
Tool mounts
Length, diameter; 110mm, 30mm
Length, diameter; 110mm, 35mm
Length, diameter; 240mm, 40mm
