GARRICK LIFTING UTECRANE500 Swivel Crane - Truck or Ute *800kg Lifting Capacity 12V - DC Lifting Winch
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A356

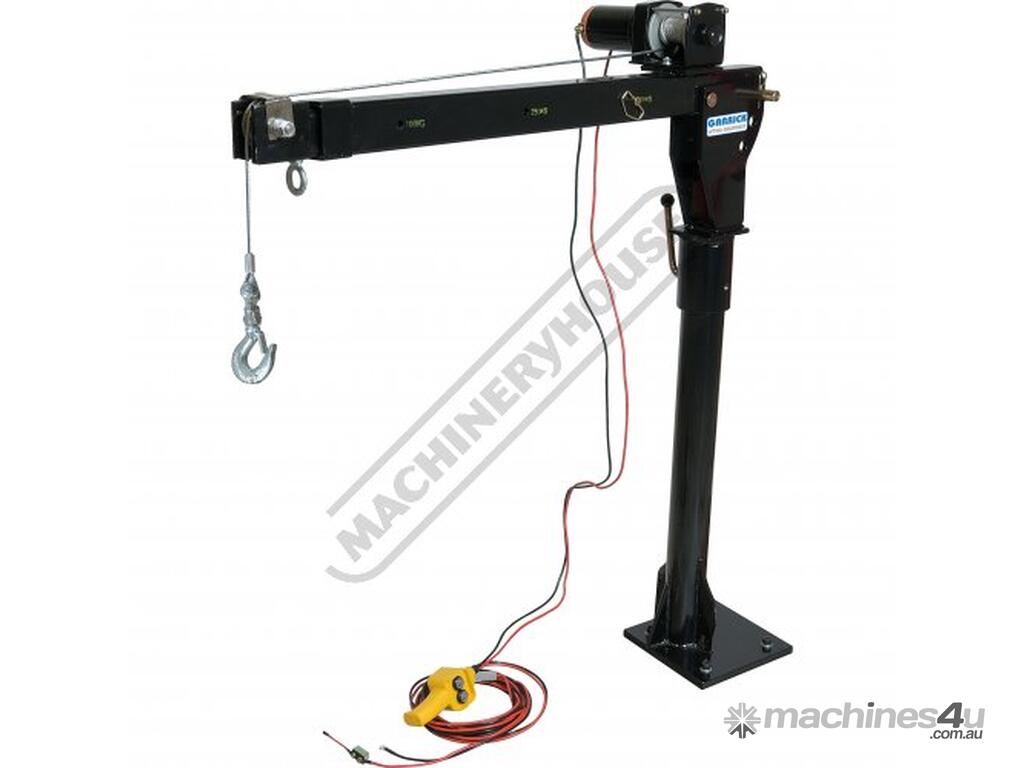

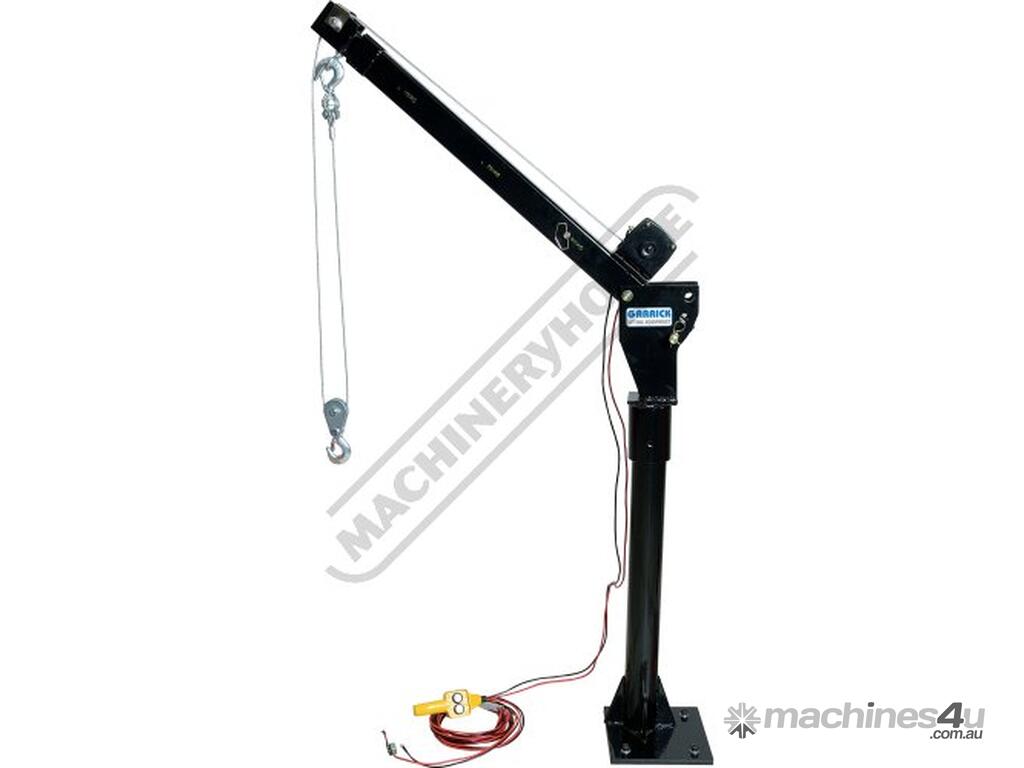

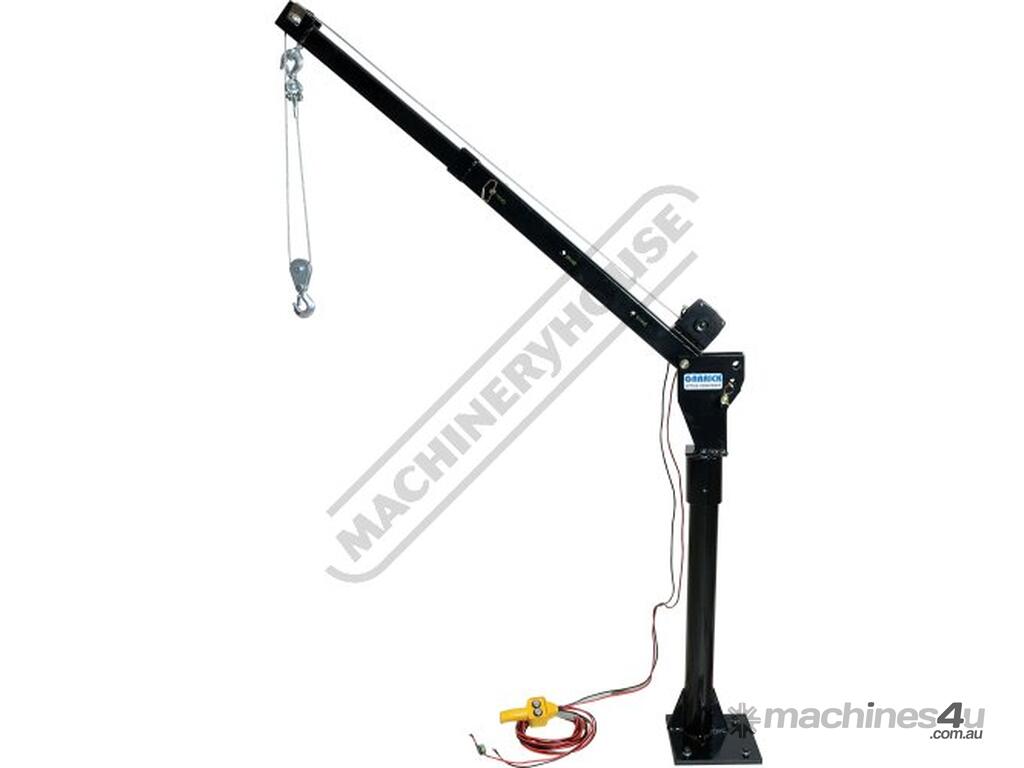

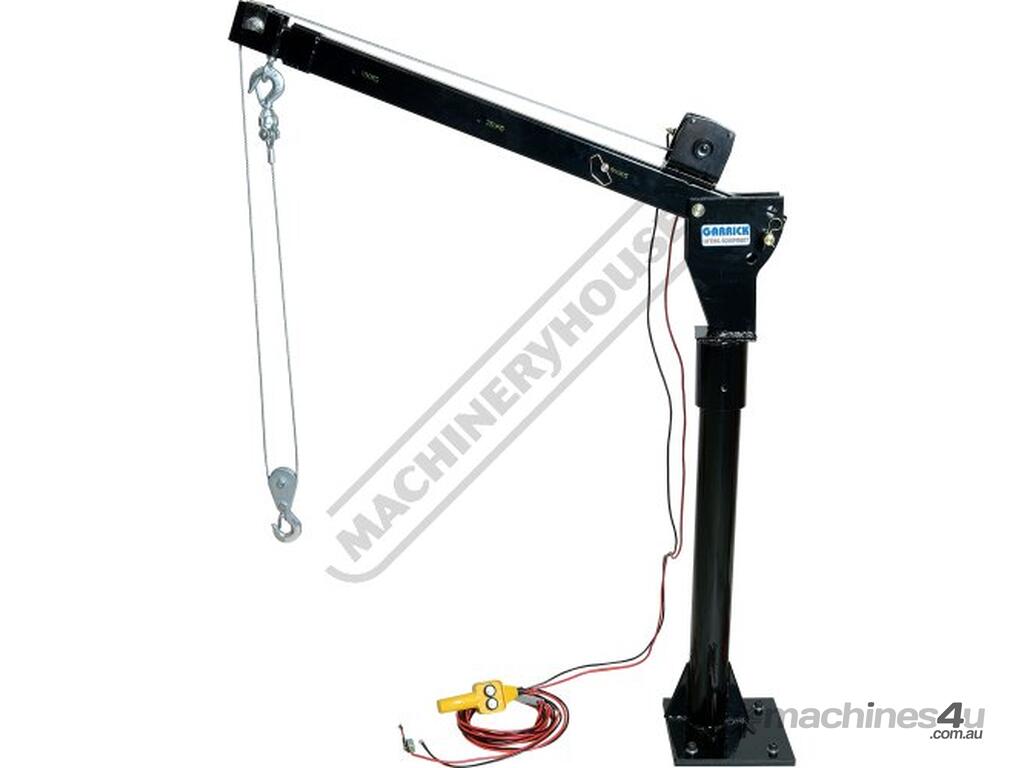

The CR500EL utility crane is lightweight, portable & compact design for mounting onto ute's, service bodies, vans, trucks, loading docks, platforms for lifting goods on and off up to 500kg with a single line lift via the powerful 12 volt DC winch.
Features:

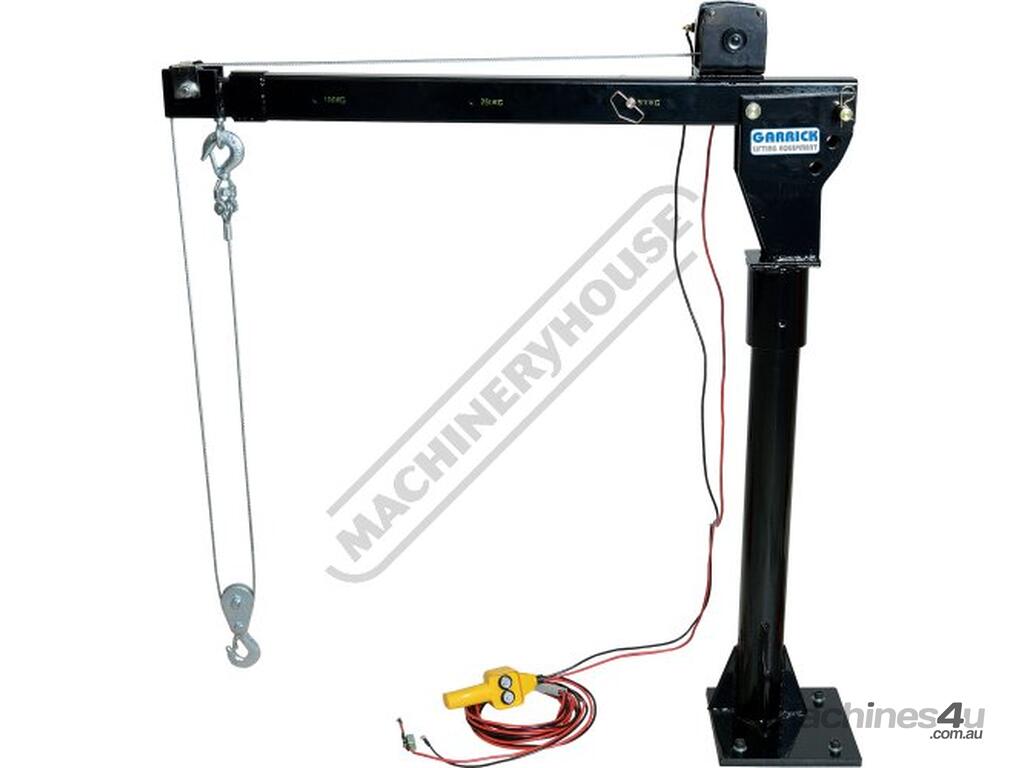

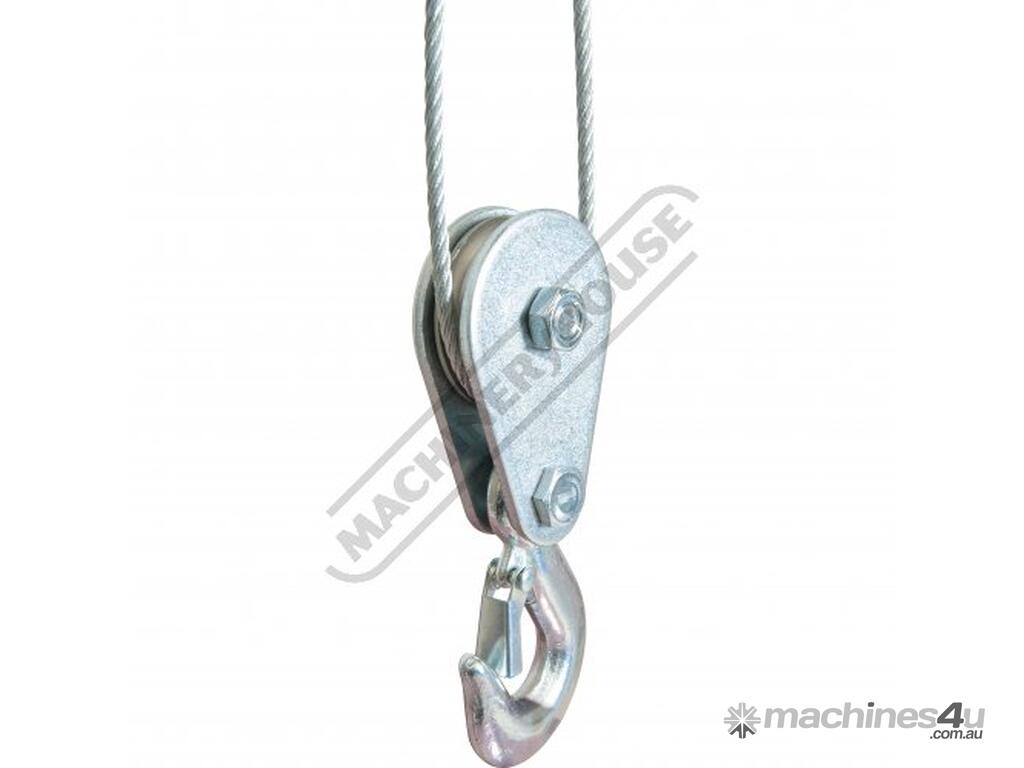

*800kg capacity when set up with double line lifting

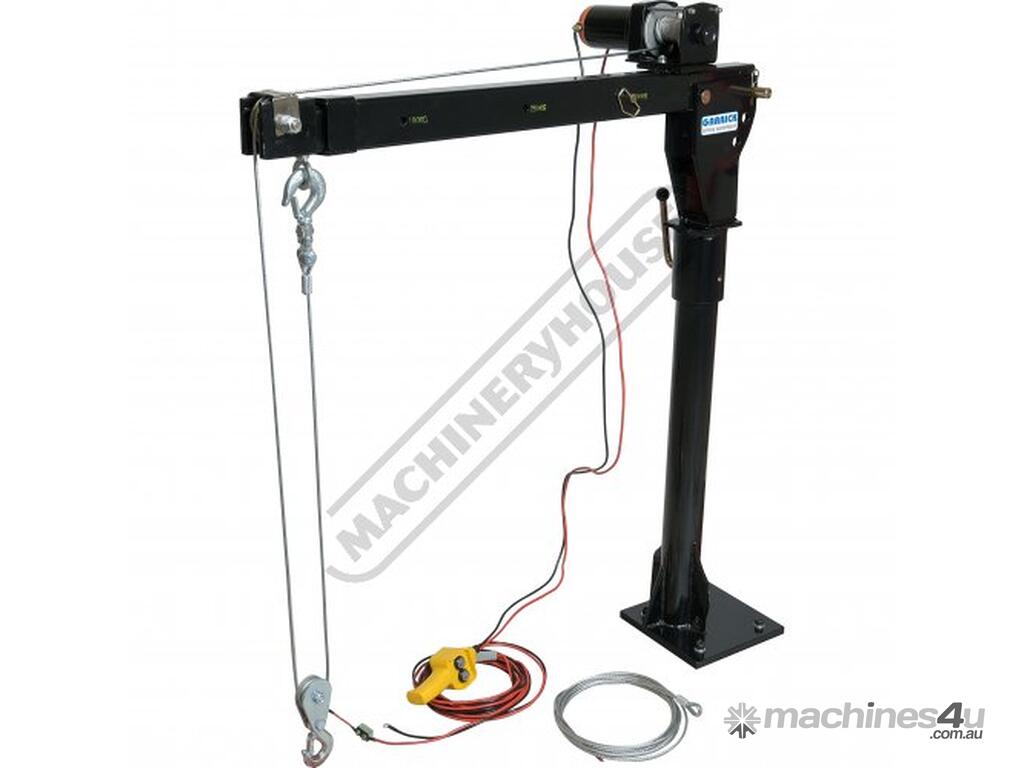

500kg capacity when set up with single line lifting

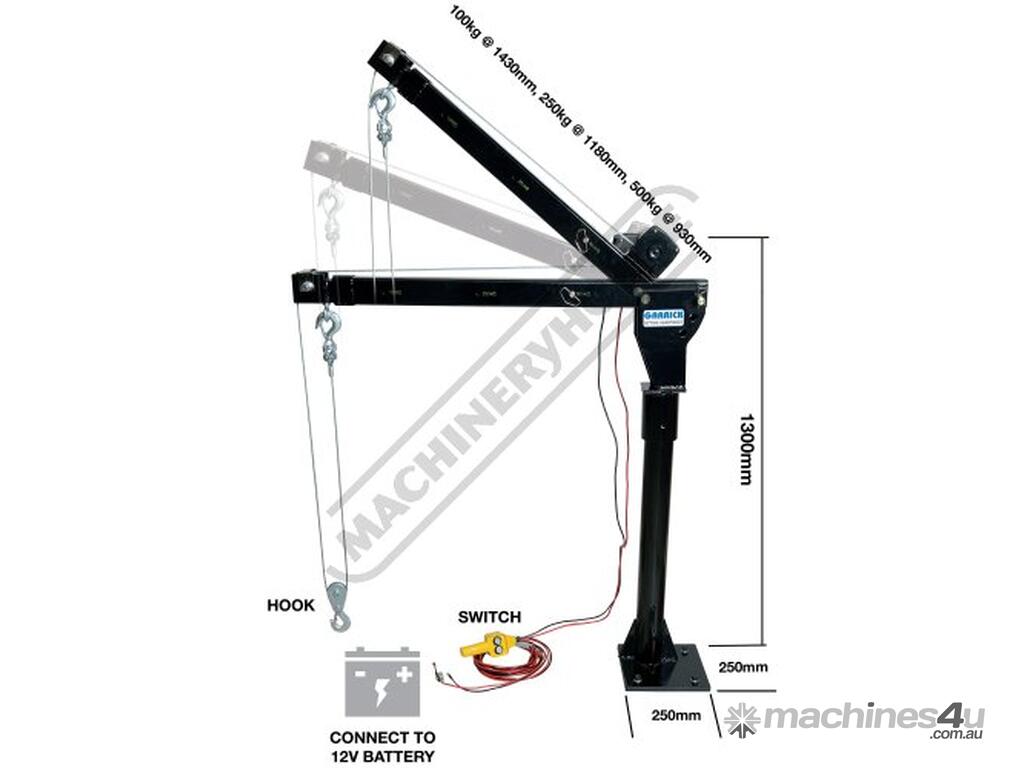

3 position telescoping boom : 500kg 930mm 250kg 1180mm 100kg 1430mm when set up with single line lifting

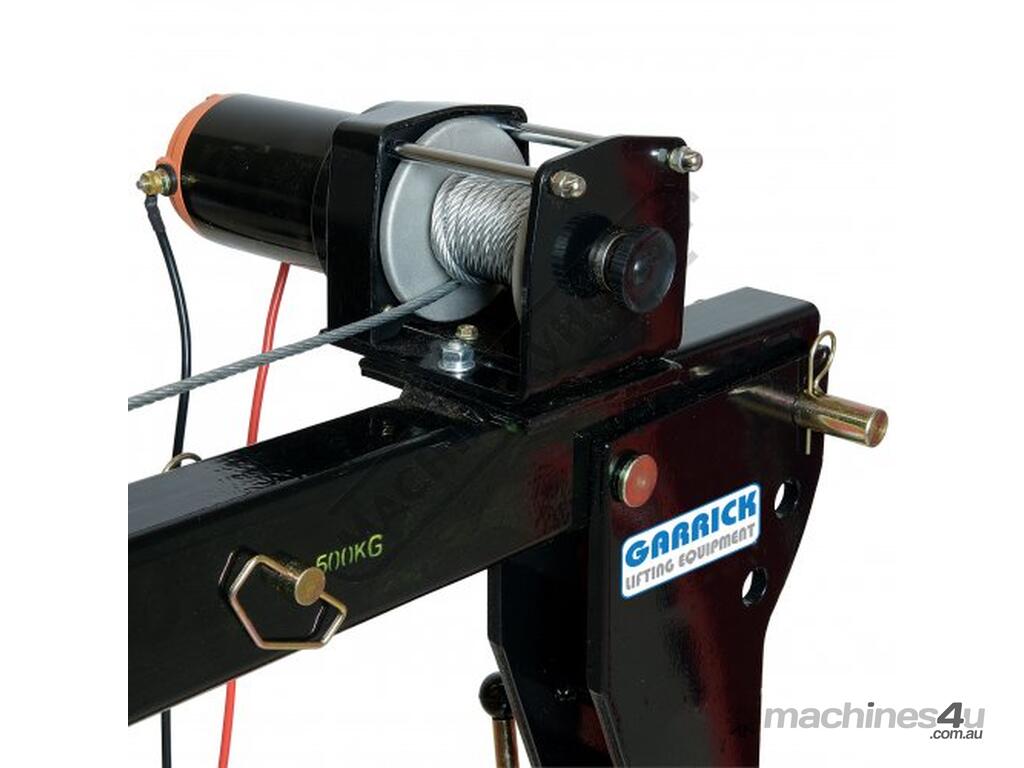

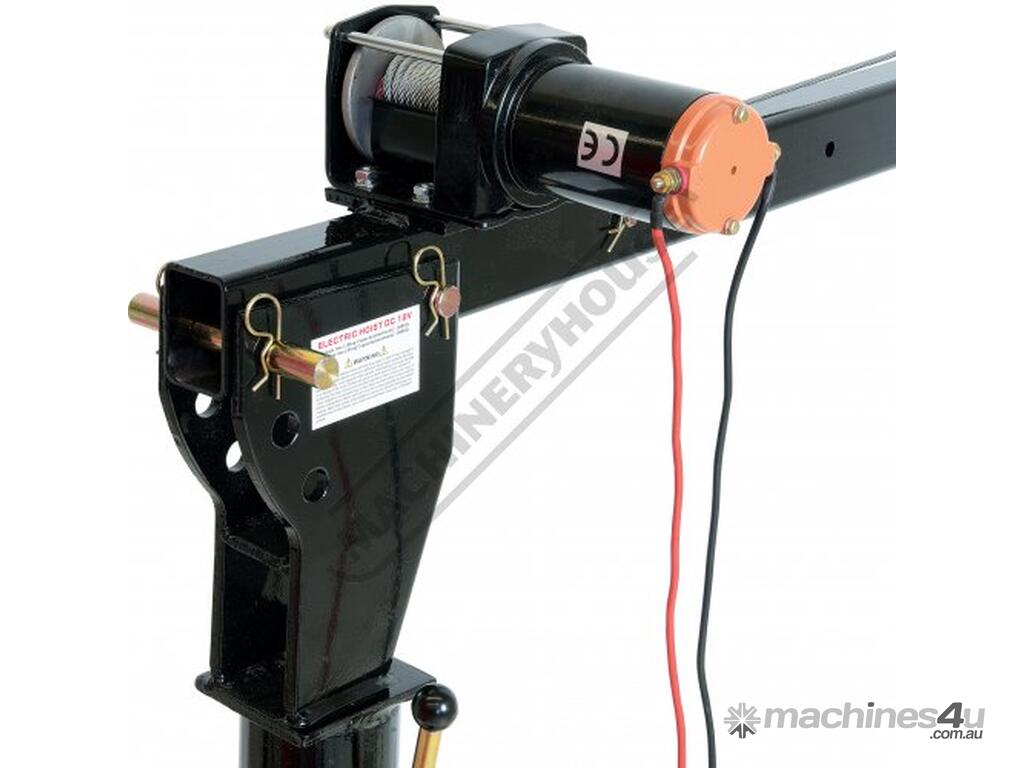

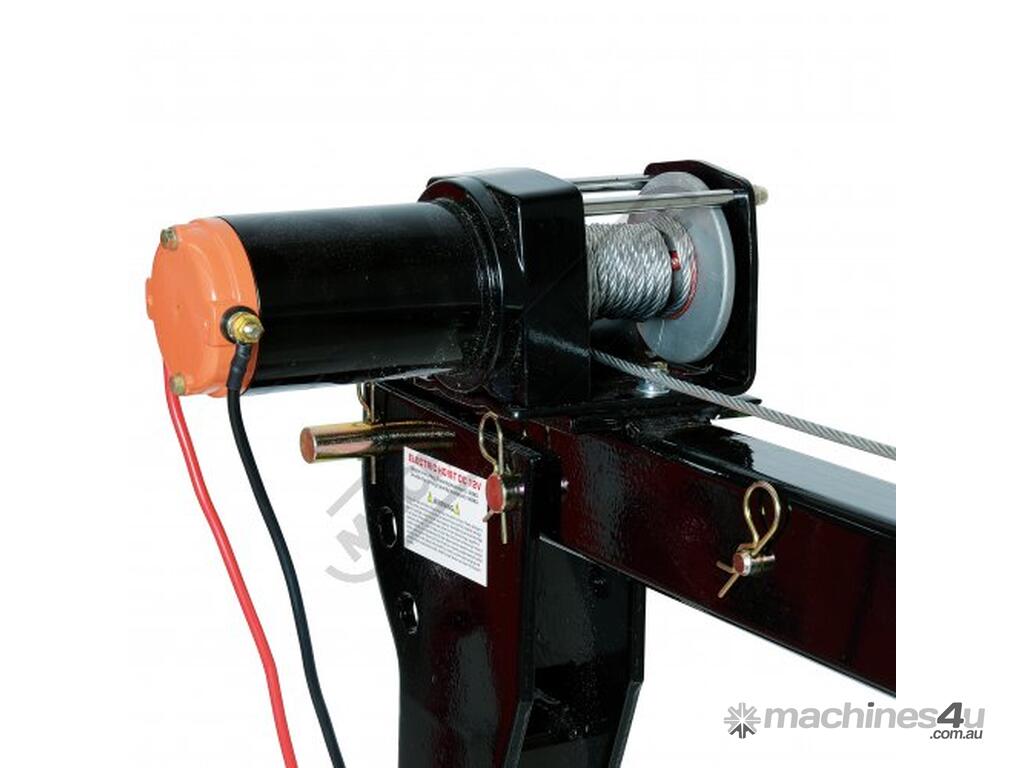

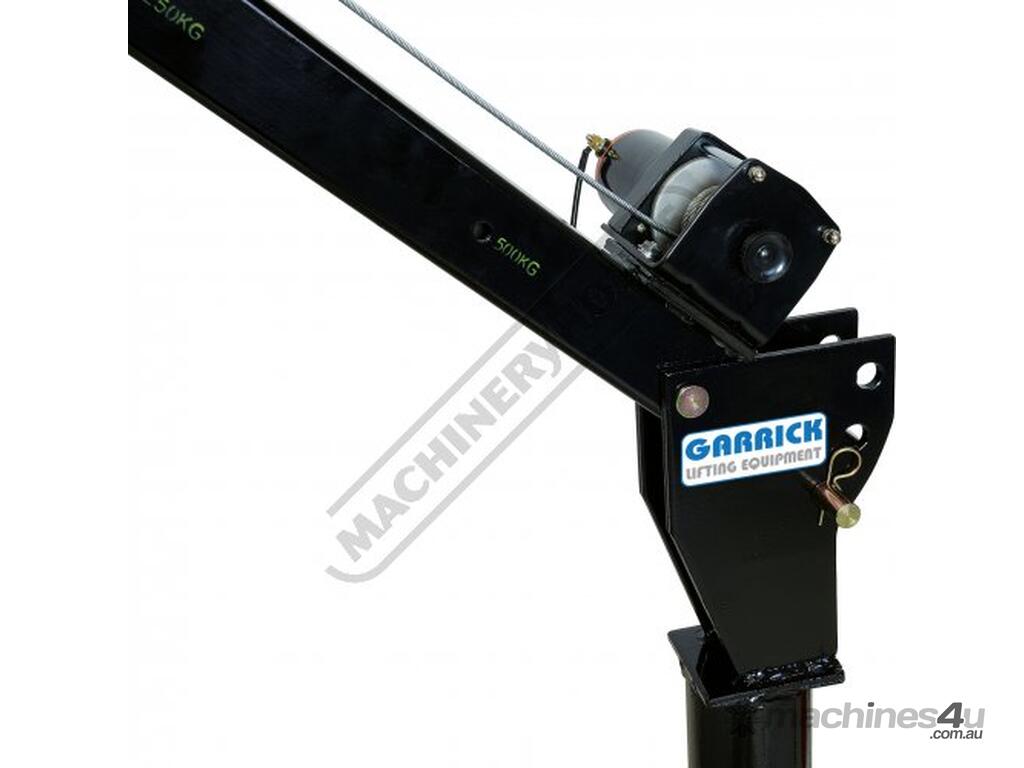

Lifting electric winch: 12V DC 125amps
3 boom elevation angles: 3° 20° 40° raised manually
3.6m/min speed with no load & single line lift
360° continuous manual rotation of sealed thrust bearing

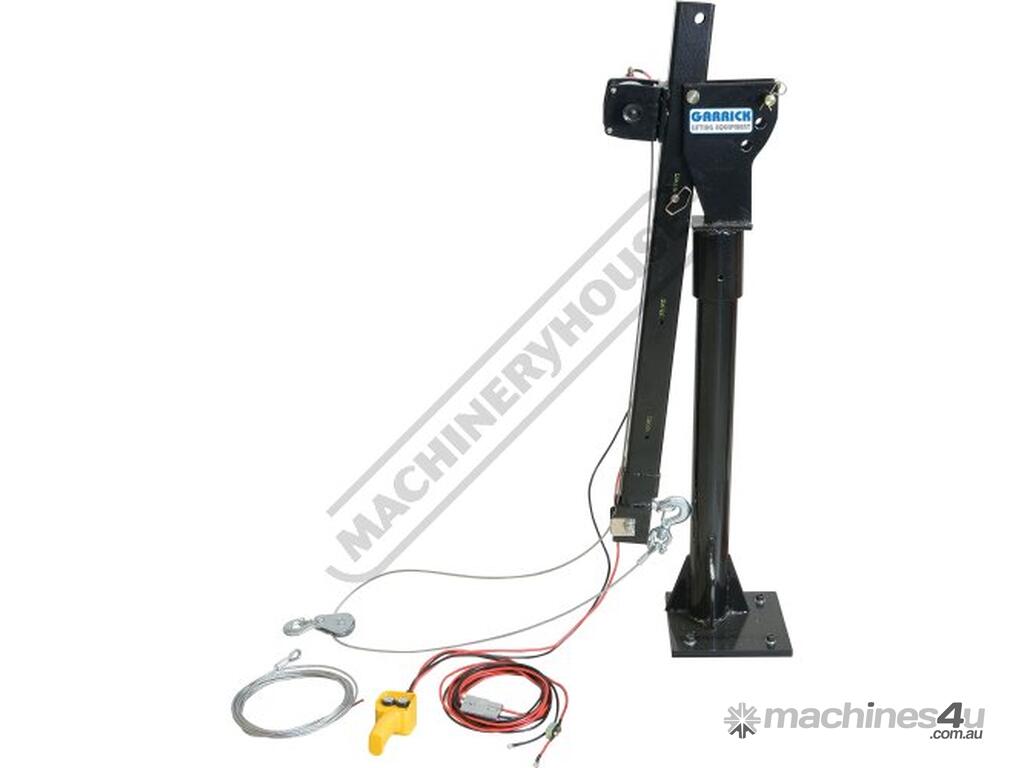

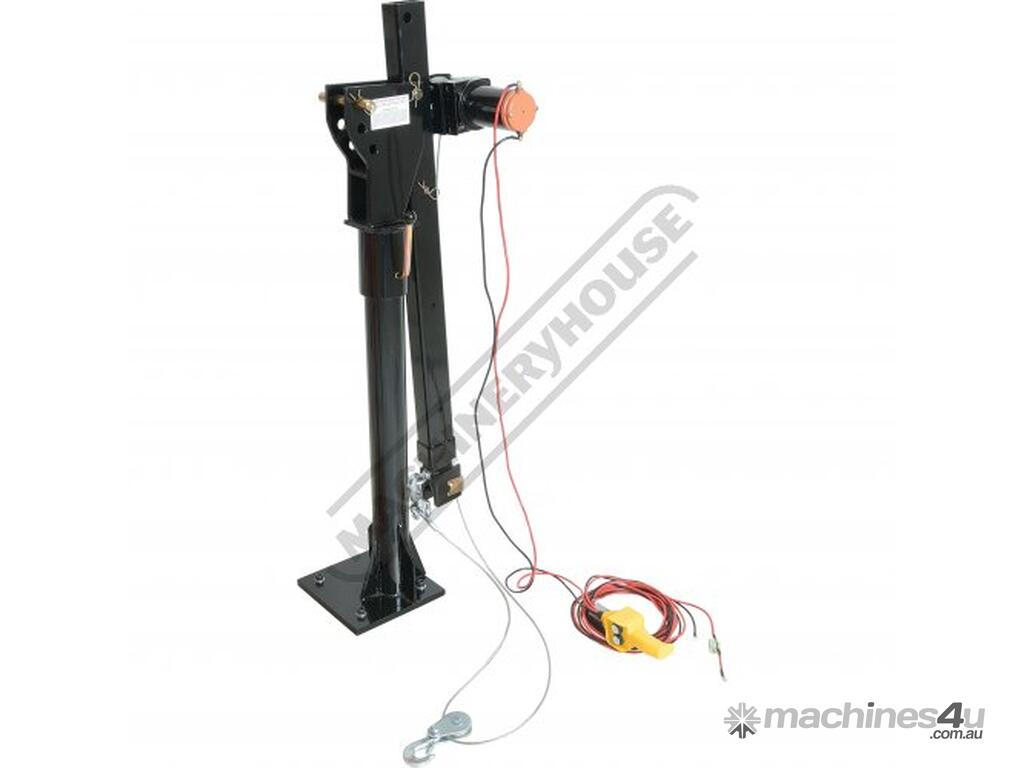

Storage height folded (from base): 1300mm
Lifting height (Base to hook): 1940mm
250 x 250 x 16mm mounting base plate with 170 x 170mm bolt holes centres

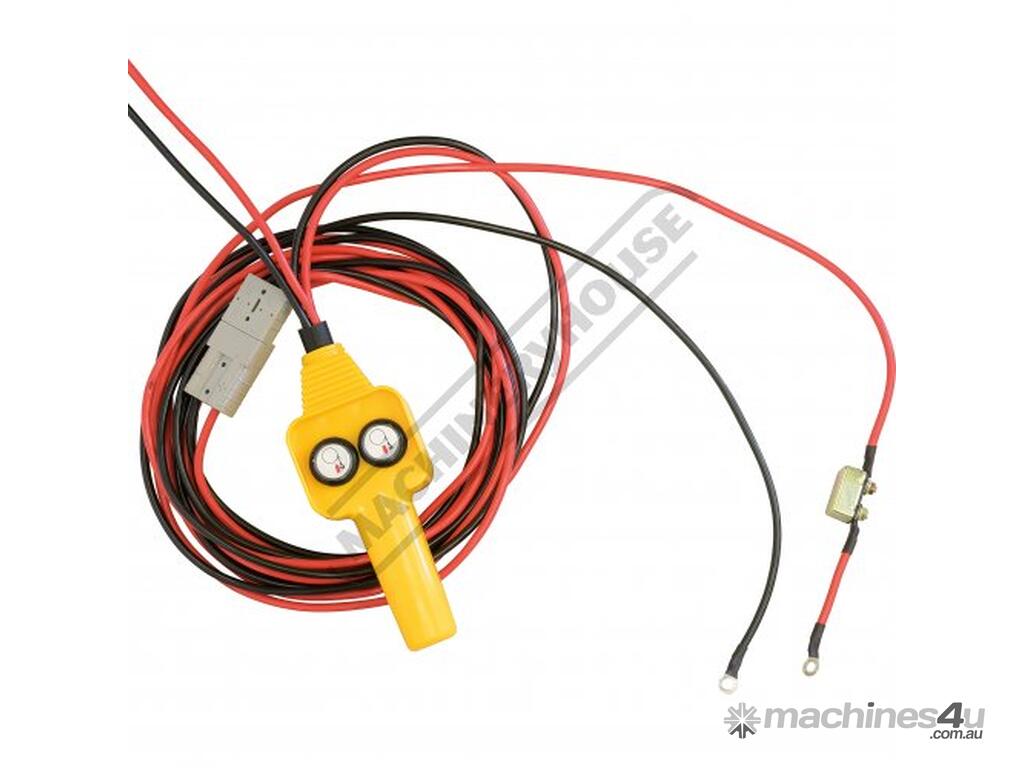

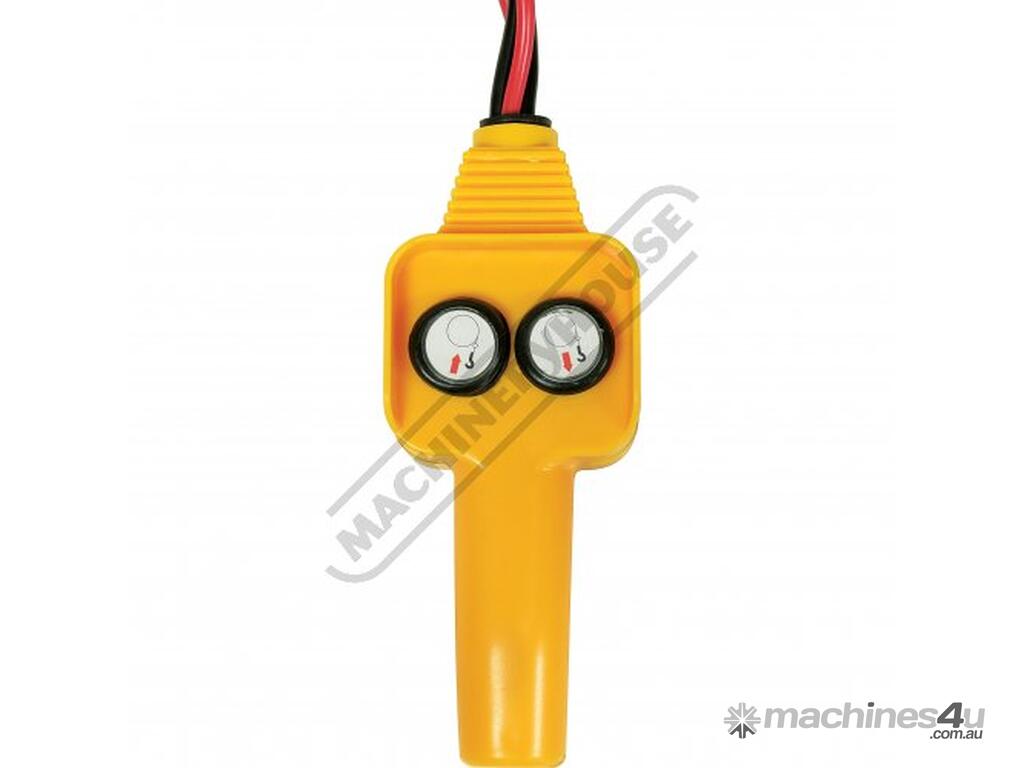

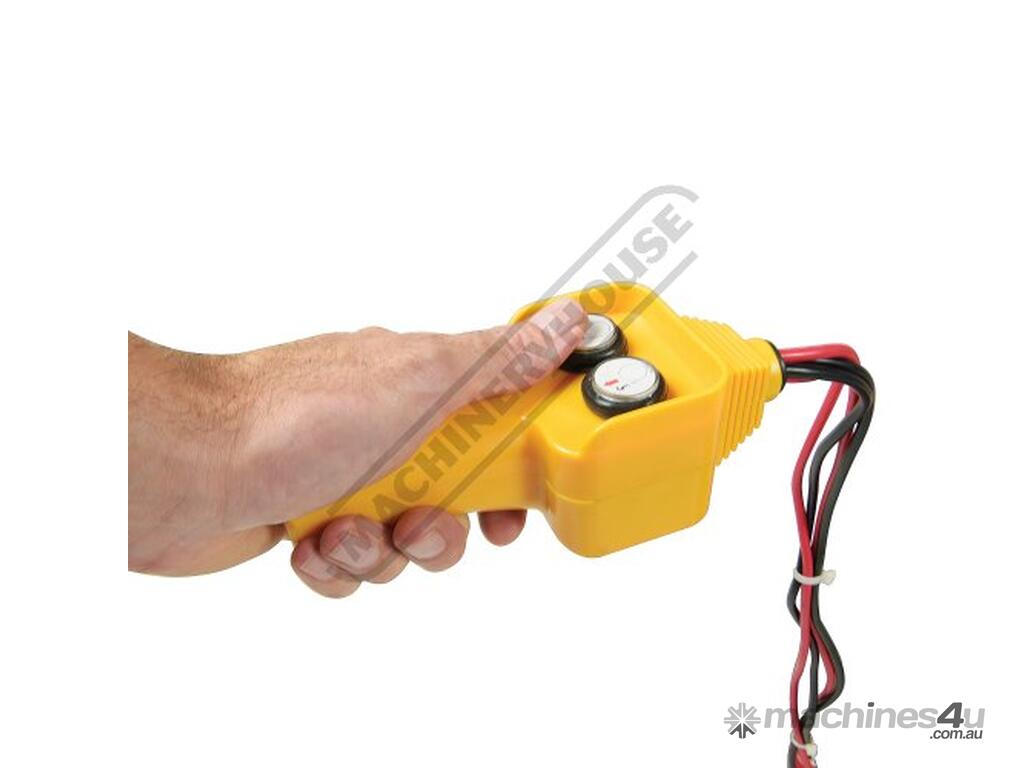

Hand control with 4.2 metre cable
Rotation hand lock
Complies with Australian Standard AS1418.2
Supplied with test certificate
Specifications:
Order Code: A356
MODEL: UTECRANE500
Single Line Lifting Capacity (kg): 500
Double Line Lifting Capacity (kg): 800
Lifting System (Type): Electric Winch
Power Supply (V): 12

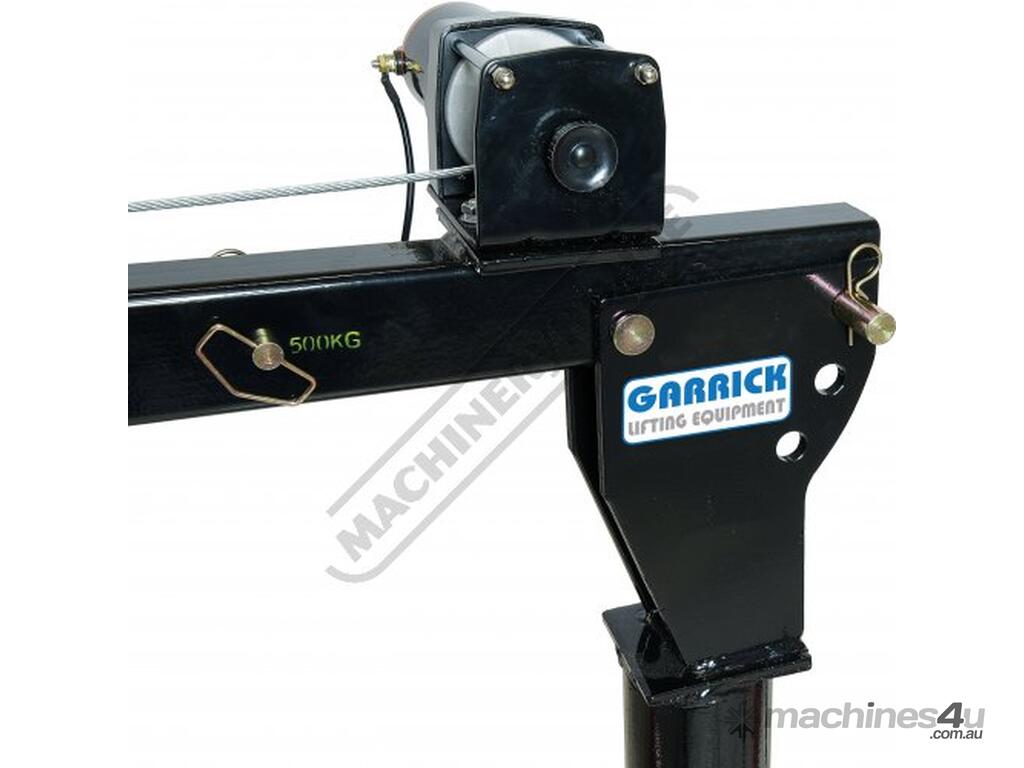

Lift Capacity Pin Locations: 500, 250 & 100
Vertical Support (mm): Ø86
Extension Arm Support (mm): 75 x 50
Hydraulic Ram (Tonne): ~
Overall Height - Lowest Position (mm): 1300
Nett Weight (kg): 64
