Tray Length: 3000mm
Tray Width: 1300mm
Overall length: 4580mm
Overall Width: 1900mm
Tare Weight: 880kg
Gross ATM: 3500kg
*Price includes inspection and licence costs but excludes Stamp Duty (Western Australia Only)
235/75 R15 Light Truck Tyres
Checker plate and main chassis beams are hot-dip galvanised prior to welding
100x50x3mm bracing runs the length of the tray and across the tray in line with the middle spring hangers
Electrical wiring is run through steel pipe wherever possible and split

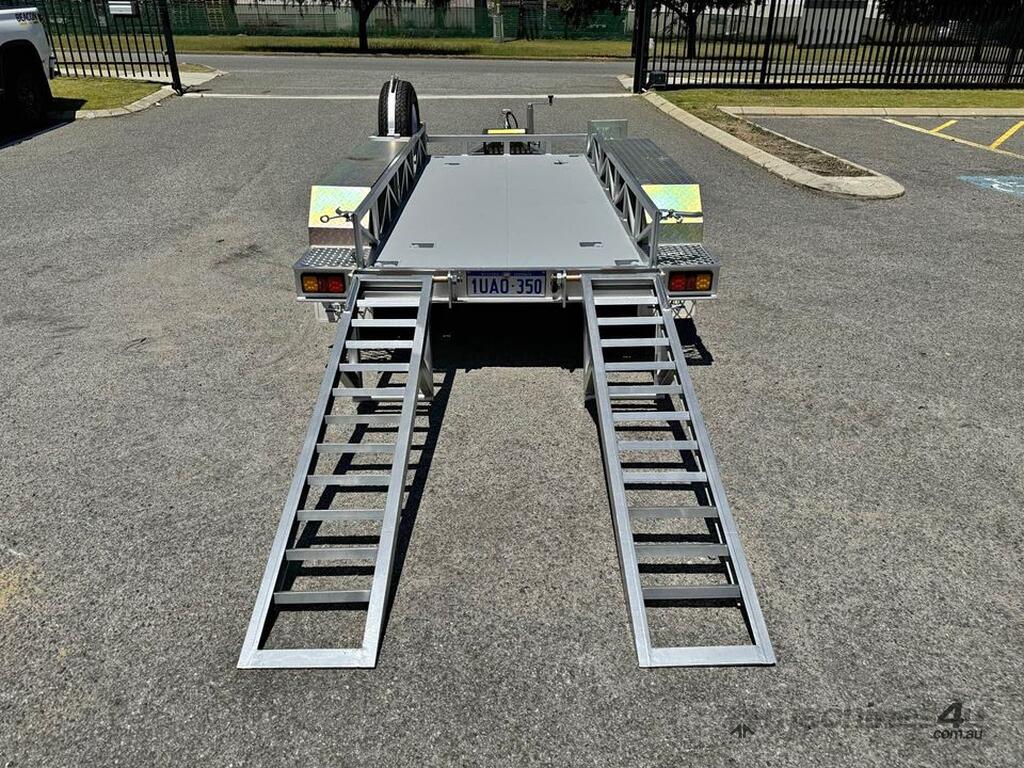

Ramps slide inwards for narrower machines and can be completely removed if loading pallets from the rear
The bucket has multiple tie down locations and a high visibility resting position
Ramps have a unique wedge design that holds them firm in the travel position
8 lashing points welded into the tray are standard
