Under Driven Hydraulic Guillotine: 2500 x 4mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

The EPIC 2500 x 4.0mm Under Driven Hydraulic Guillotines are designed and manufactured in the company's NSW workshop. EPIC has been designing and manufacturing sheet metal processing equipment for more than 40 years. EPIC’s high quality Australian-made machines are built for precision and reliability, and are made to last.

UNIQUE HYDRAULIC SYSTEM TO PREVENT MACHINE TWIST

The unique hydraulic system on EPIC’s under-driven guillotines was designed and manufactured by EPIC to prevent the frame from twisting when overloaded. The sturdy construction and proven design will provide clean accurate cuts over the long life of the machine.

When cutting material heavier than the rated capacity on a standard guillotine with a torsion bar system, the torsion bar will transfer the load to the opposite side and cause the machine to twist before the relief valve has time to react. This twisting can change the gap between the blades leading to ragged cuts or folds in the material that can chip the blades.

With EPIC guillotines, if an operator attempts to cut over capacity then both sides of the guillotine will cease travelling immediately. This prevents twisting and extends the life of the machine.

TOP BEAM GUIDED BY FULLY MACHINED HEAVY-DUTY SLIDES

The top beam on EPIC’s under driven guillotines is guided by fully machined heavy-duty slides. The slides are brass lined to provide an excellent cut and long life. The slides are fully adjustable to allow for regrinds, and have lubrication points.

HYDRAULIC DOUBLE-ACTING CLAMP CYLINDERS

Double-acting clamp cylinders lift the clamp bar off the sheared material allowing the top blade to push the material away as it returns to the top position.

BAR TABLE WITH BALL TRANSFERS FOR DELICATE WORK

The guillotine is fitted with EPIC’s unique bar table and ball transfers, allowing for flat plates to be secured for stainless and delicate sheet work.

OPTIONAL VARIABLE RAKE ADJUSTMENT

EPIC’S variable rake adjustment supports cutting light gauge material with a faster stroke and minimal twist. Adjusting the rake reduces the distance the guillotine has to travel, thereby speeding up the stroke.

EPIC has technical services Australia-wide. Plus, we offer personal customisation and modification of all our machines.

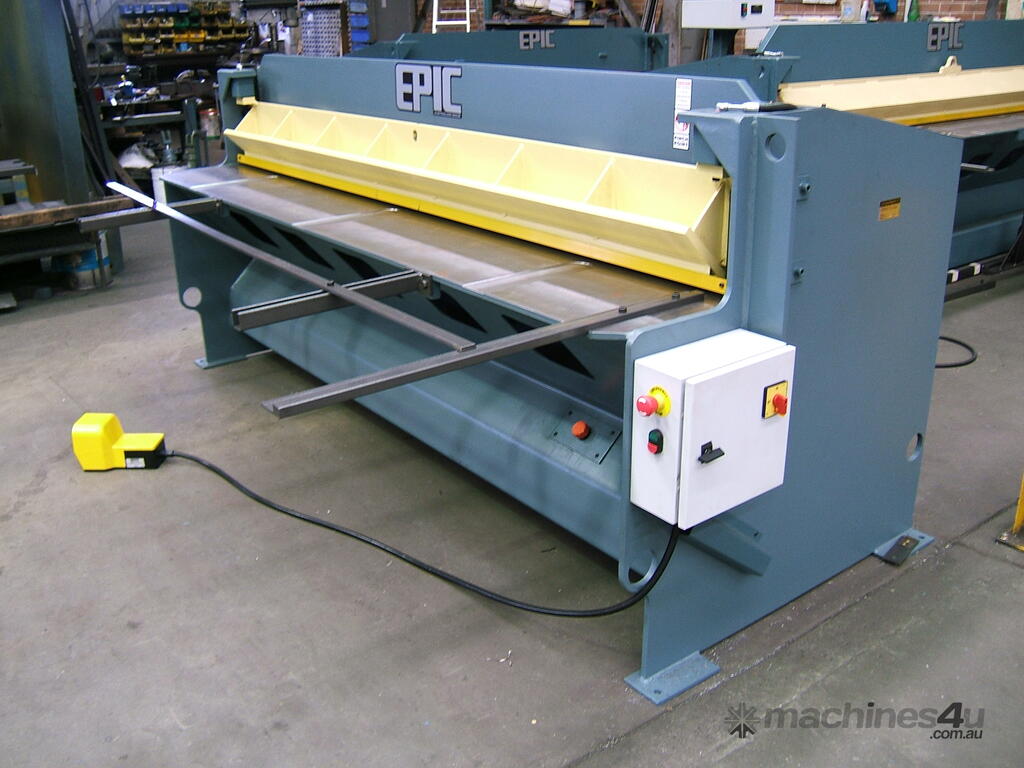

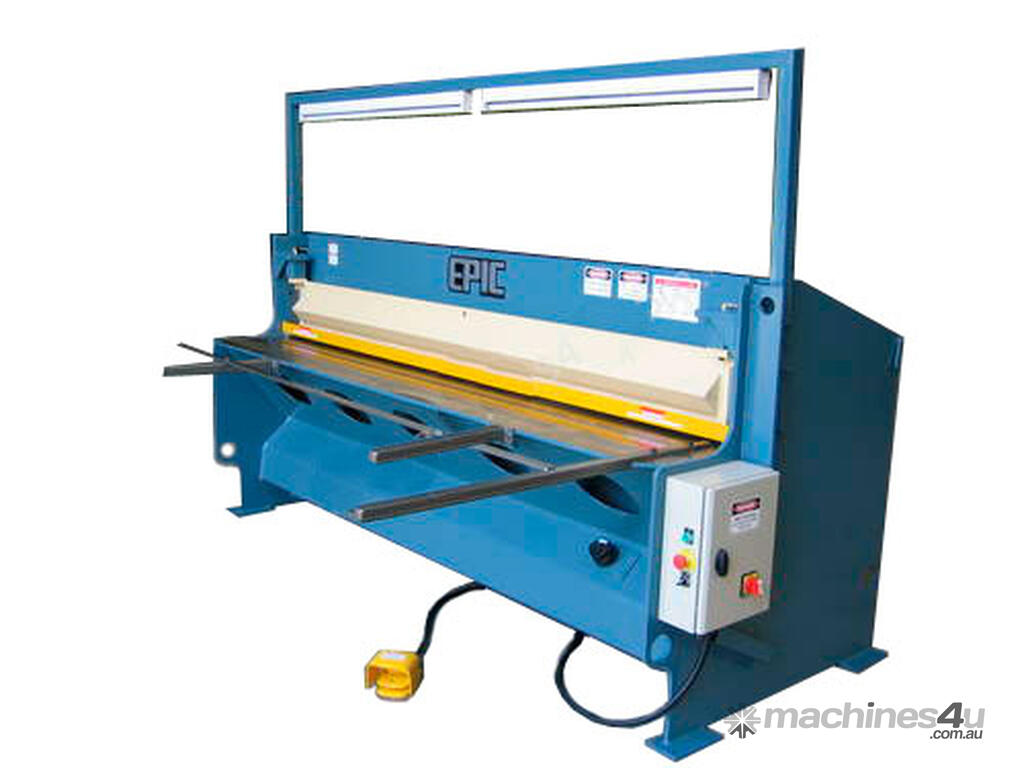

EPIC 2500mm x 4.0mm Under Driven Guillotine
Model No. 2500UD4

Machine Capacity:
- 4.0mm mild steel cutting capacity
- 2500mm cutting length

Standard Features:
- Superior quality Australian-made D2 shearing blades
- Hydraulic shearing and clamping (16 full strokes per/minute)
- Electrics low voltage 24Volt to foot switch with overload protection

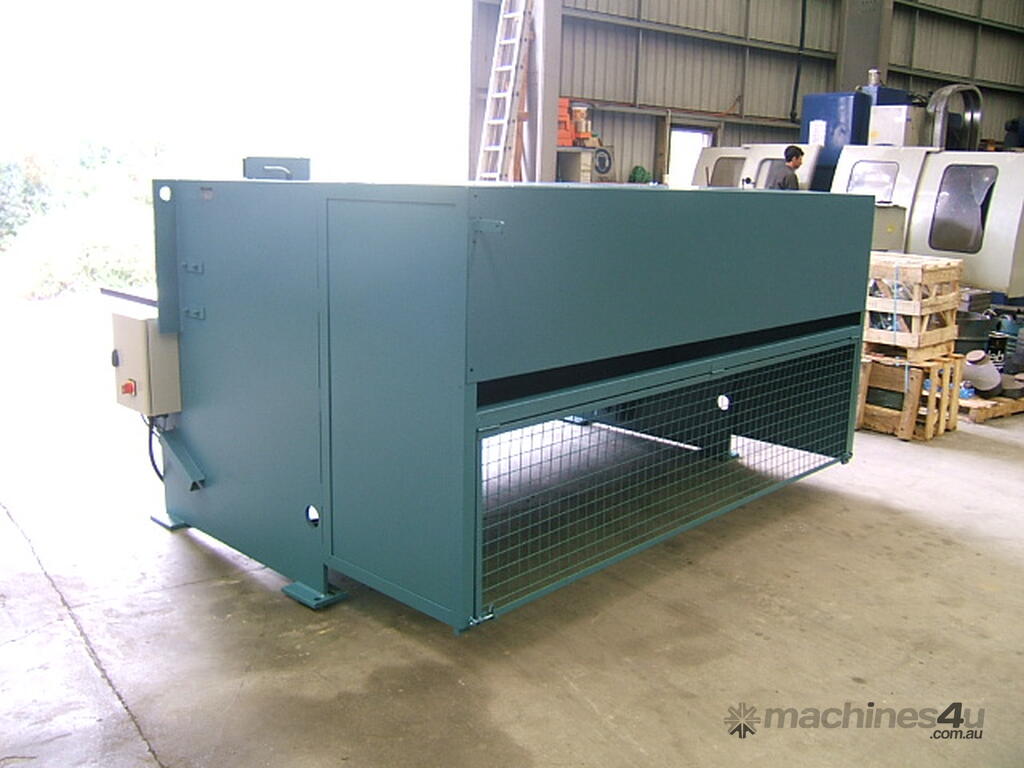

- Rear infrared safety guarding

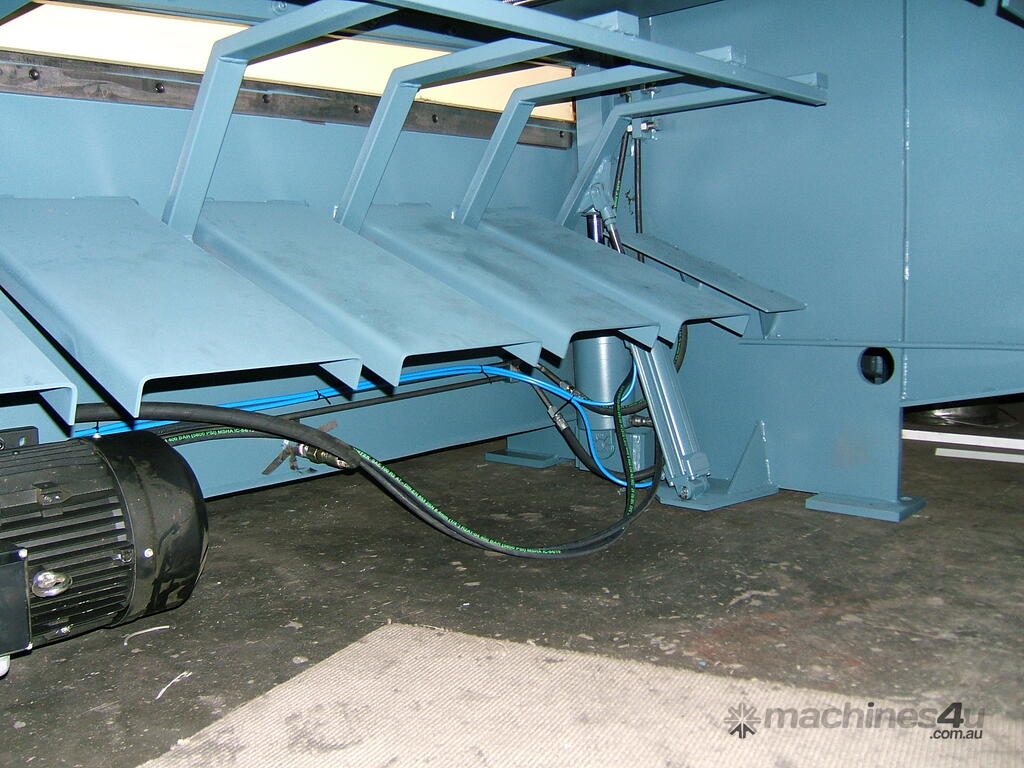

- Cutting operation provided by large diameter hydraulic rams
- Machined squaring arm

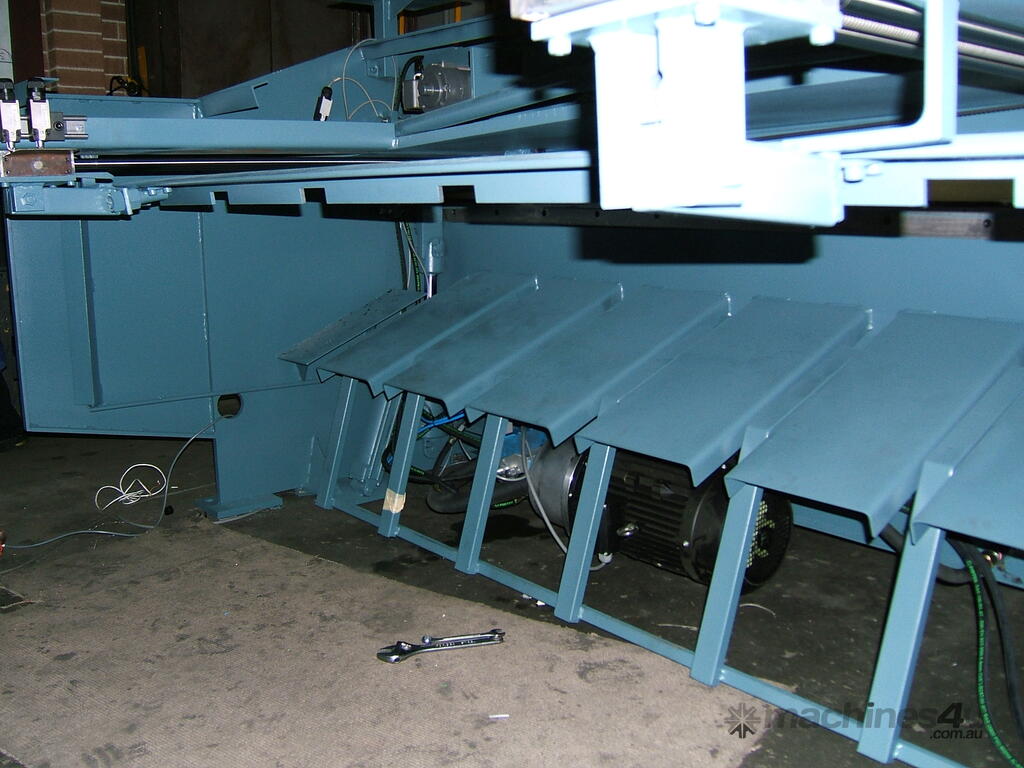

- Fabricated rear chute for off-cut material
- Clamp-type back gauge with fine screw adjustment
- Front sheet supports
- Inching mode
- Fixed rake
- Top beam guided by fully machined brass-lined heavy-duty slides
- Hydraulic double-acting clamp cylinder
- Unique EPIC-designed bar table with ball transfers for attaching flat plates for delicate work
- All wear points with grease fittings for lubrication

Optional Features:
- Machine paint colours
- Pneumatic sheet supports

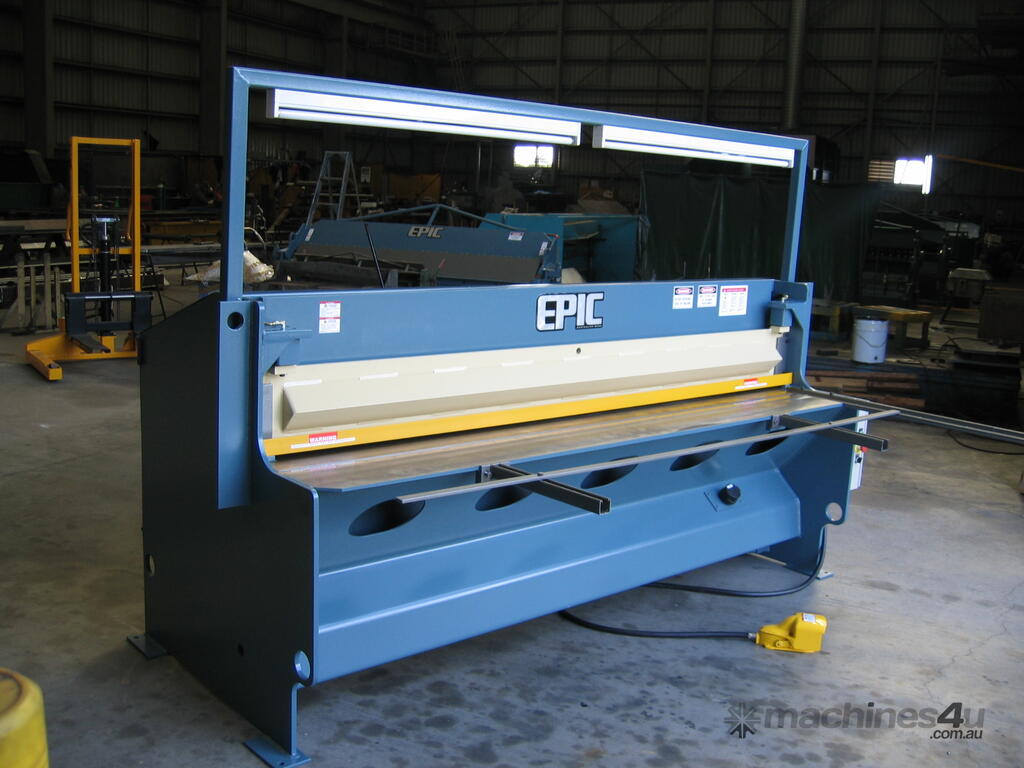

- Shadow line lighting
- Individual clamps
- Variable rake adjustment – cut light gauge material with a faster stroke and minimal twist
- Extra safety options - suitable for government departments
- EPIC electronic control ball screw back gauge with 800mm travel and digital readout

Contact EPIC to discuss freight and financing, plus any personal customisation and modifications you require.

The EPIC 4.0mm and 3.0mm Under Driven Guillotine range:
- 1250mm x 4.0mm mild steel capacity
- 1860mm x 4.0mm mild steel capacity
- 2500mm x 4.0mm mild steel capacity
- 3070mm x 4.0mm mild steel capacity

- 3675mm x 3.0mm mild steel capacity
- 4020mm x 3.0mm mild steel capacity

Get in touch, for more information about our under driven guillotines or any of our sheet metal machinery range.
