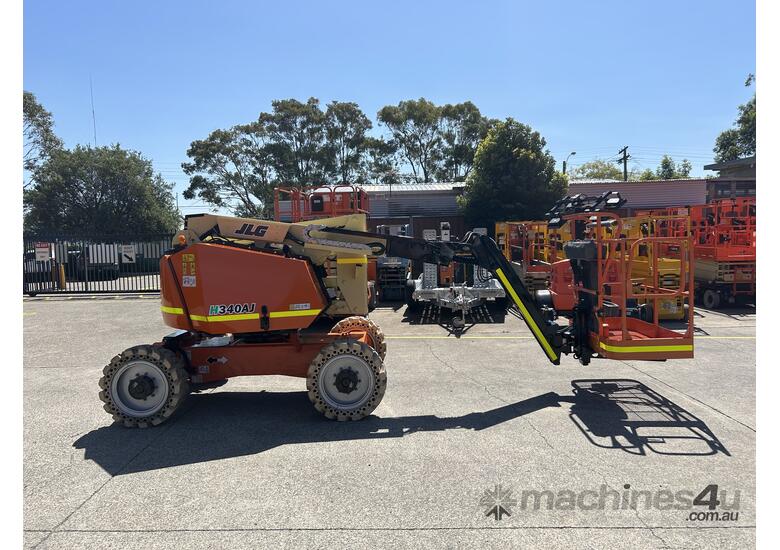

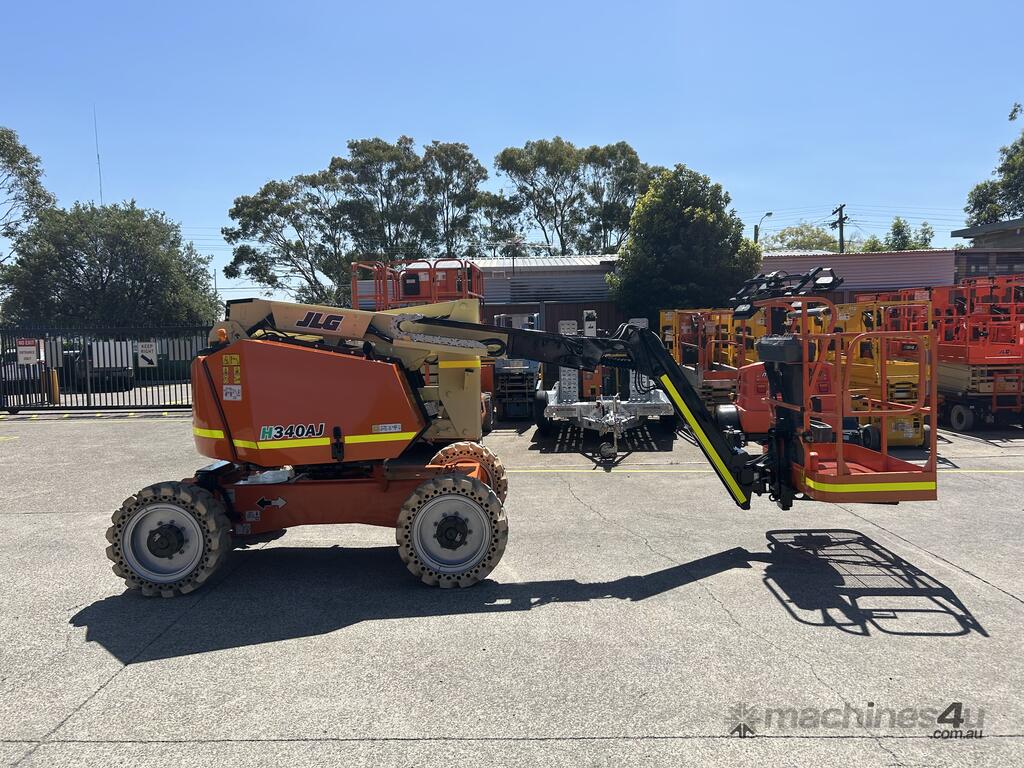

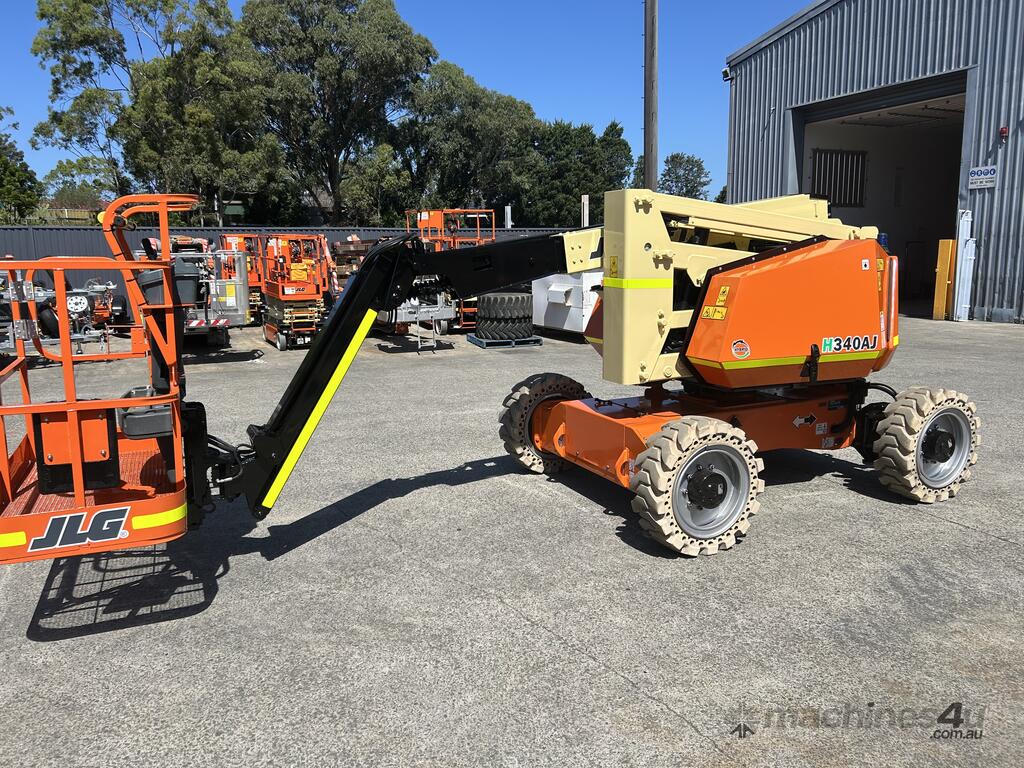

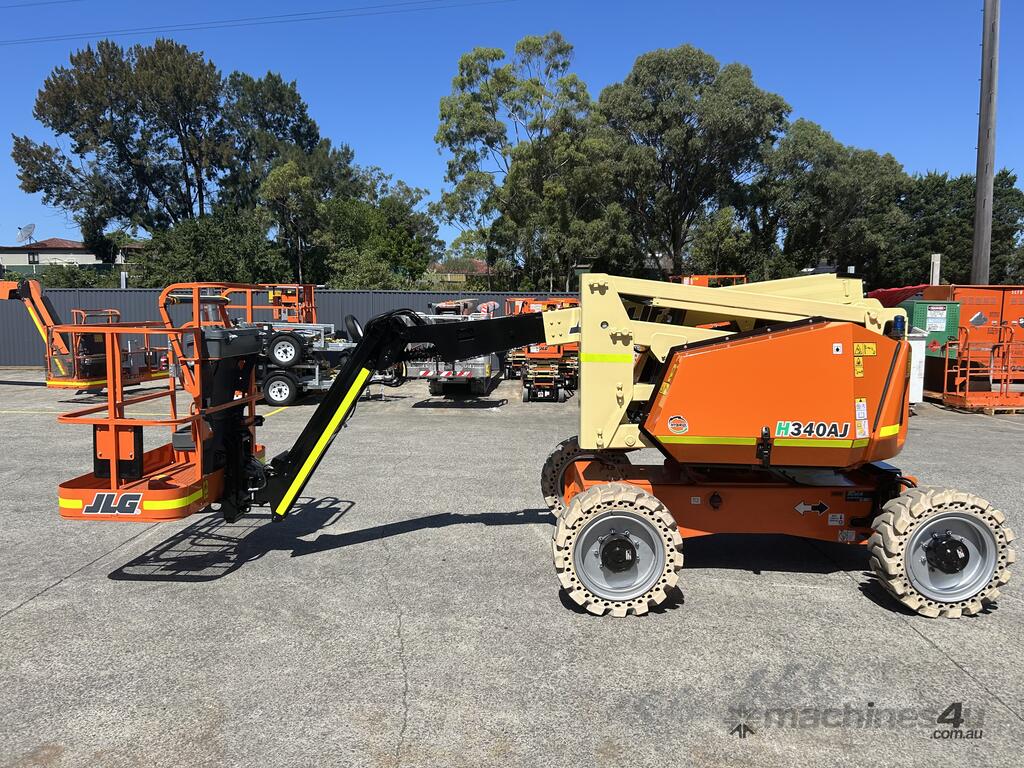

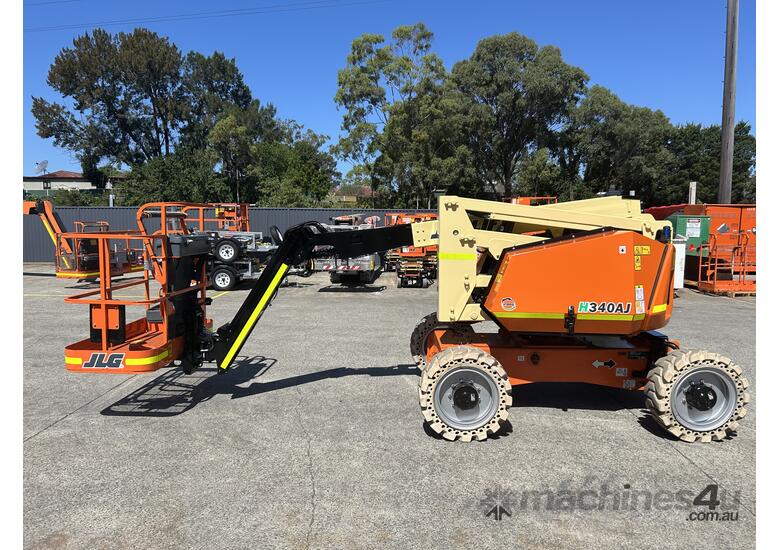

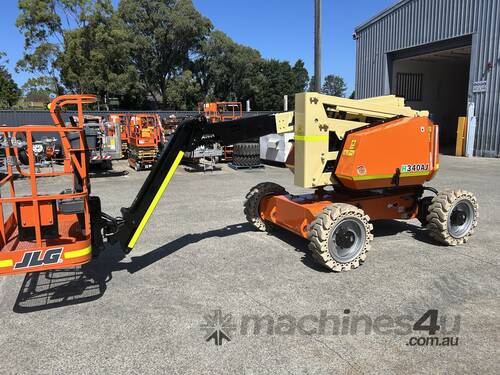

Used JLG 34ft Hybrid Knuckle Boom Lift
Into Service May 2018
Low 990 hours
•
• Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
• Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
• Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
• Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
* Compared to a diesel-powered JLG 340AJ under similar test conditions. Actual results may vary.
• Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Power Source
Batteries 8 x 12V, 100 Amp-Hour
Electrical System 48 Volts DC
Generator / Engine - Brand Kubota
Generator / Engine - Fuel Tank Capacity 13 gal. / 49.21 L
Generator / Engine - Fuel Type Diesel
Generator / Engine - Horsepower / Kilowatts 11.1 hp / 8.28 kW
Performance
Drive Speed - Platform Lowered 3.7 mph / 5.95 km/h
Gradeability - 4WD 45 %
Platform Capacity 500 lb / 226.80 kg
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 13 ft / 3.96 m
Jib - Range of Articulation 139 Degrees

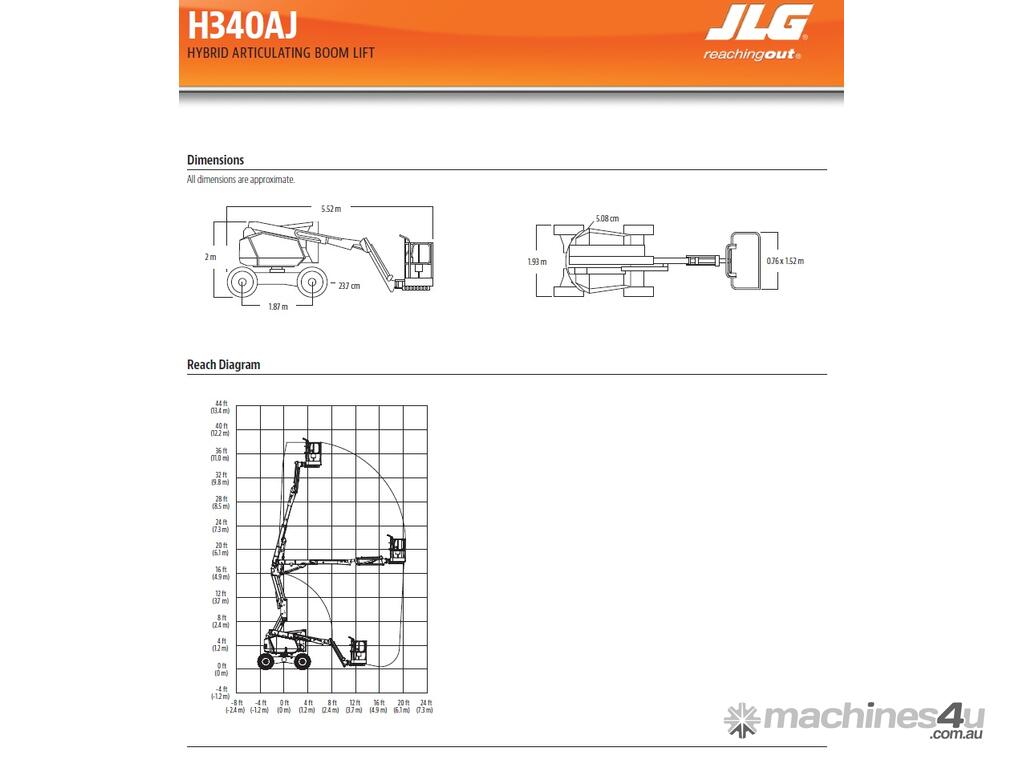

Dimensional Data
Ground Clearance 10 in. / 0.26 m
Machine Height 6 ft 7 in. / 2.01 m
Machine Length 18 ft 2 in. / 5.54 m
Machine Width 6 ft 4 in. / 1.93 m
Platform Dimension A 2 ft 6 in. / 0.76 m
Platform Dimension B 5 ft / 1.52 m
Tailswing 2 in. / 0.05 m
Tire Size 265/50 D20 Foam Filled
Wheelbase 6 ft 2 in. / 1.88 m

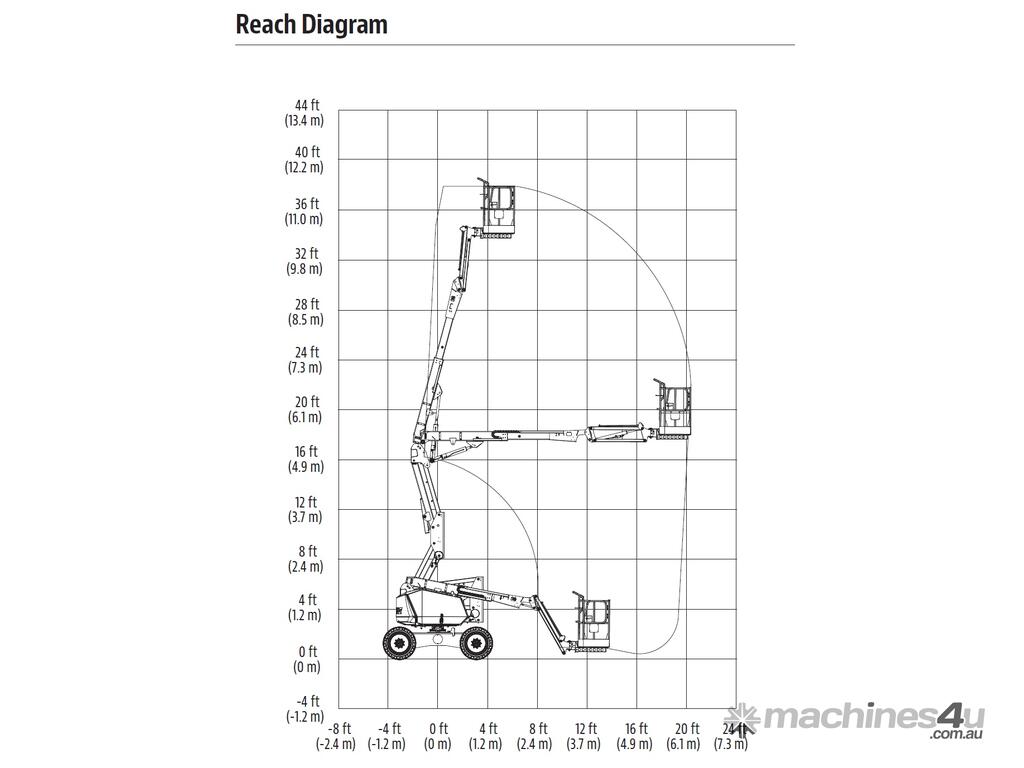

Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 19 ft 11 in. / 6.07 m
Platform Height 33 ft 10 in. / 10.31 m
Up and Over Height 17 ft / 5.18 m
General
Capacity - Hydraulic Reservoir 20.6 gal. / 77.98 L
Machine Weight 9860 lb / 4472.42 kg
Maximum Ground Bearing Pressure 64 psi / 4.48 Kg/cm2
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL
