Used 450AJ Articulating Boom Lift - 45 ft OEM Re-certified

Description
Used 10 year Inspected & Repainted by JLG
450AJ Articulating Boom Lift
Low hours
Located in East Coast
Freight available Australia wide - POA

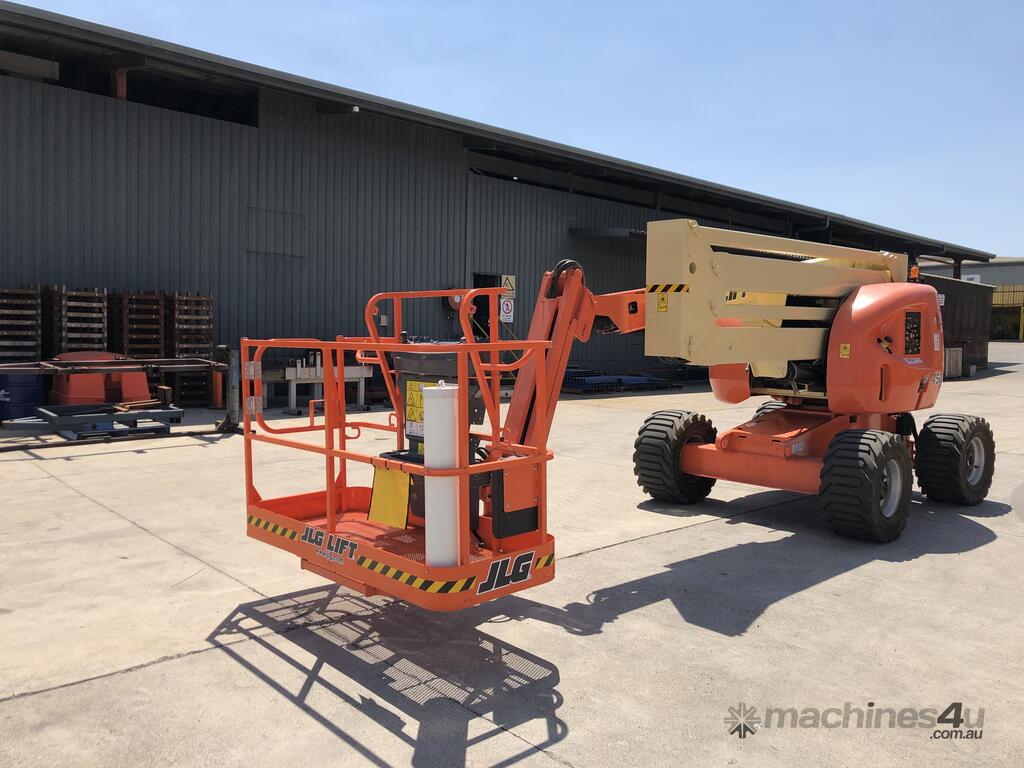

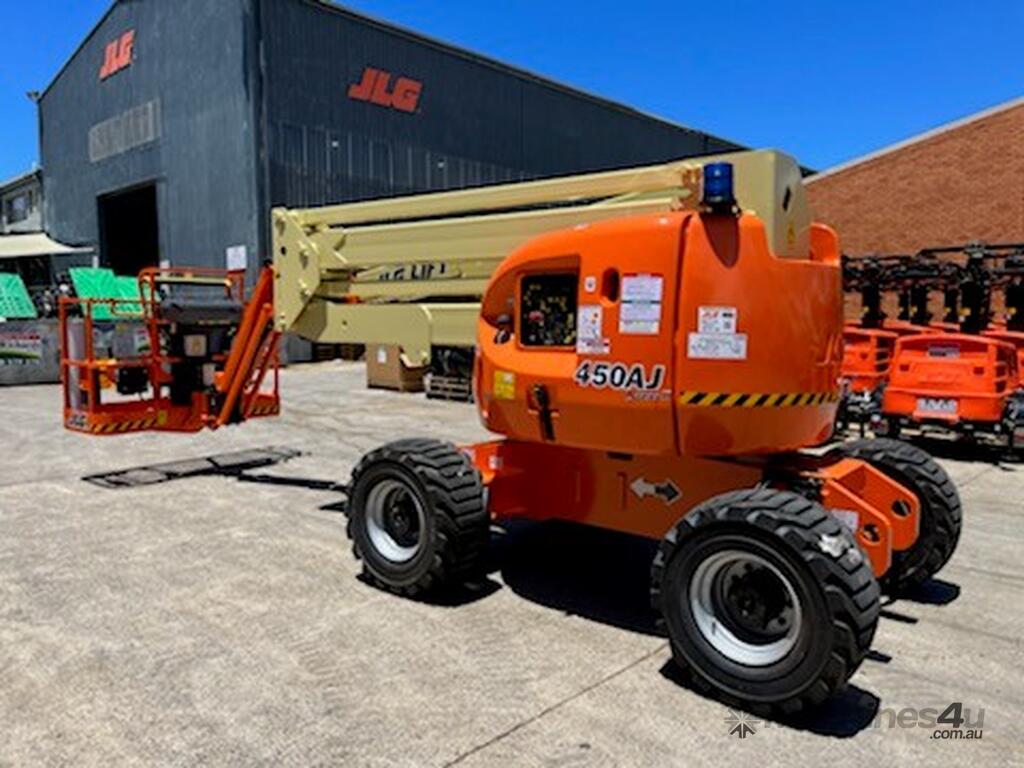

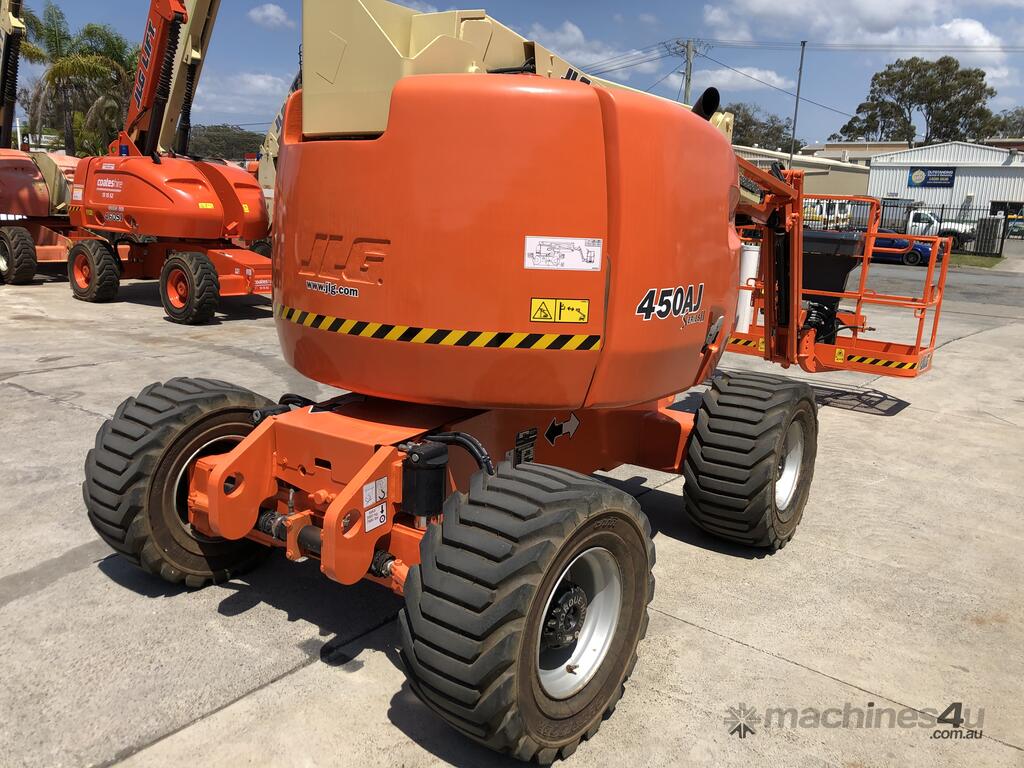

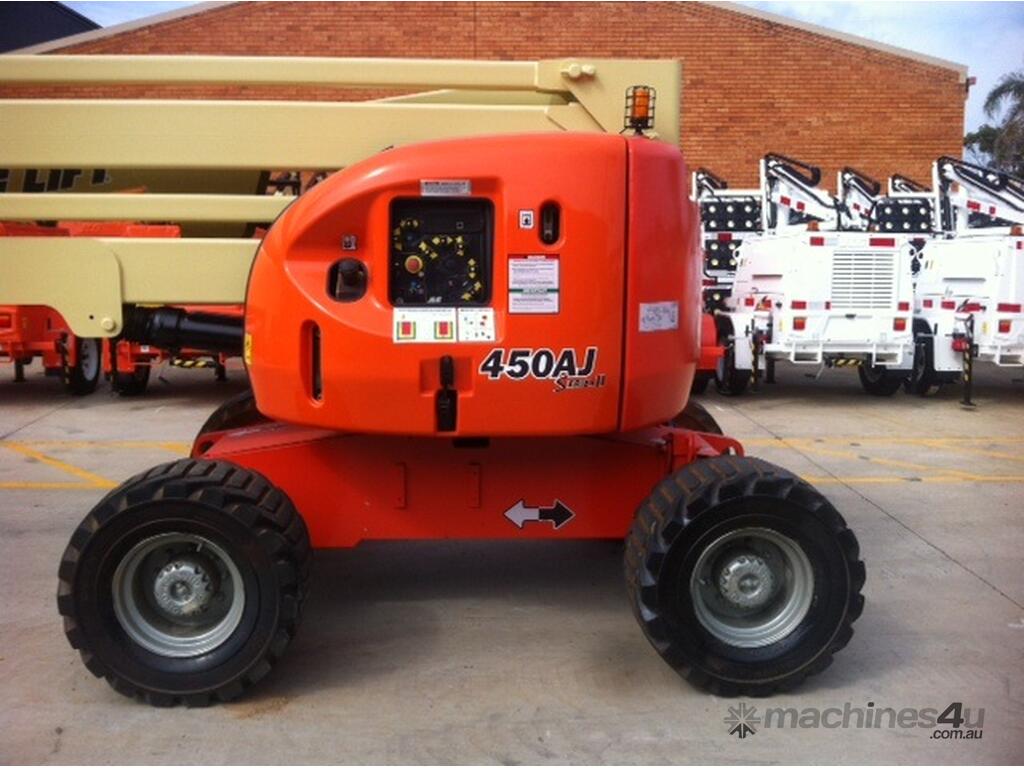

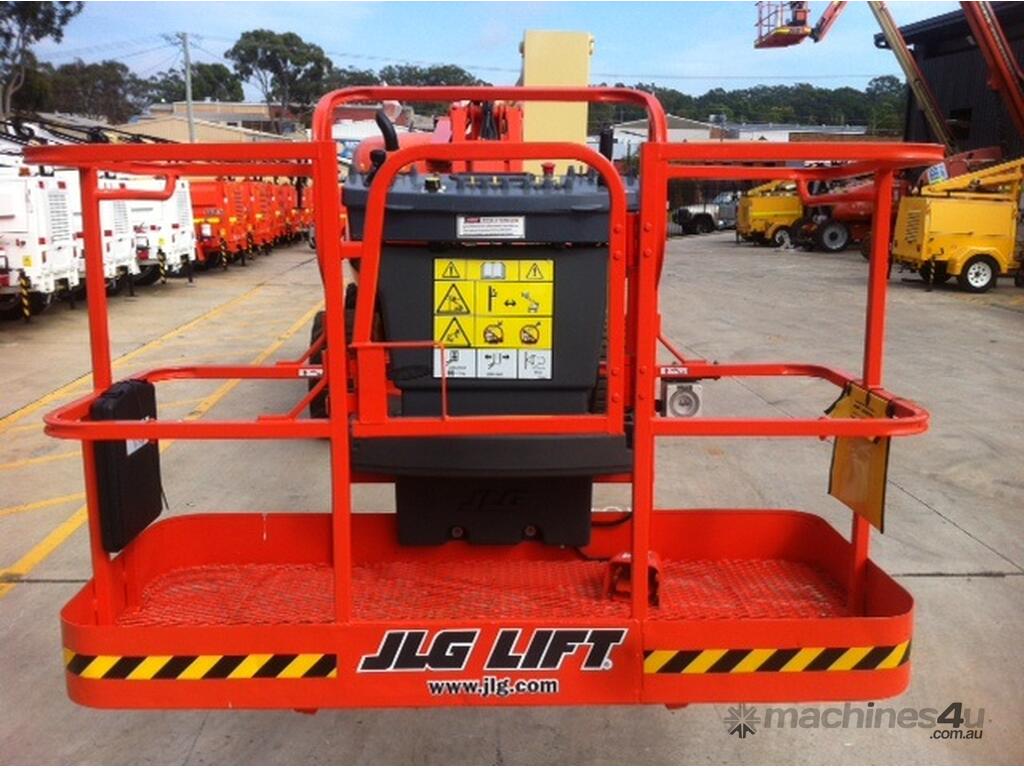

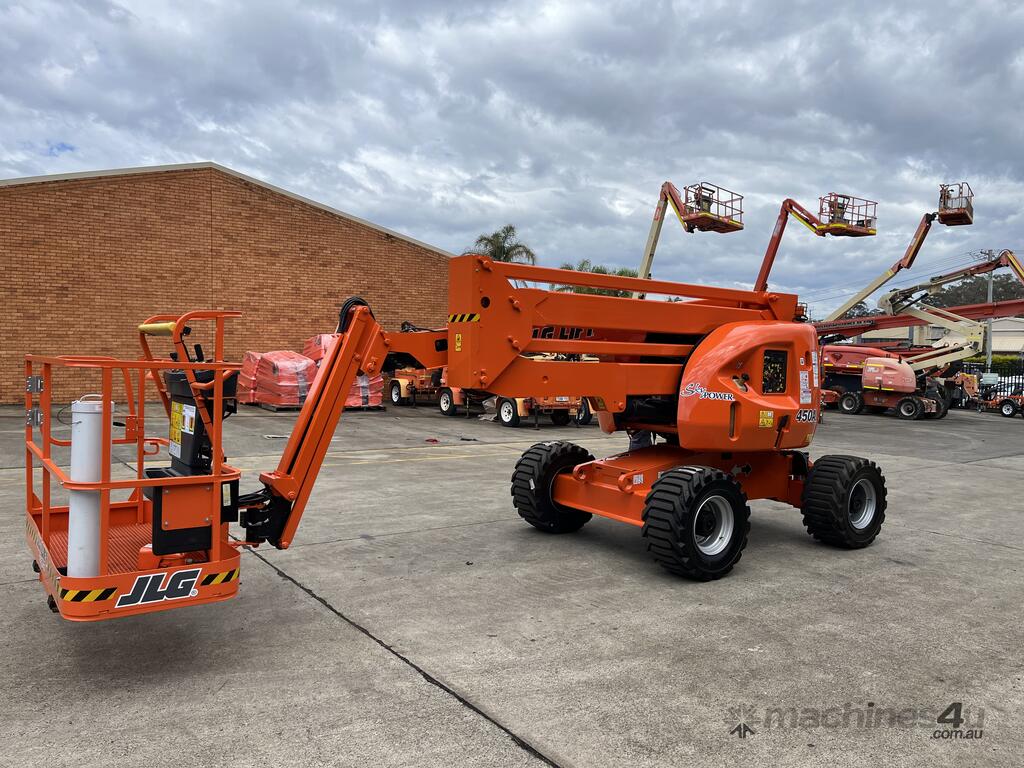

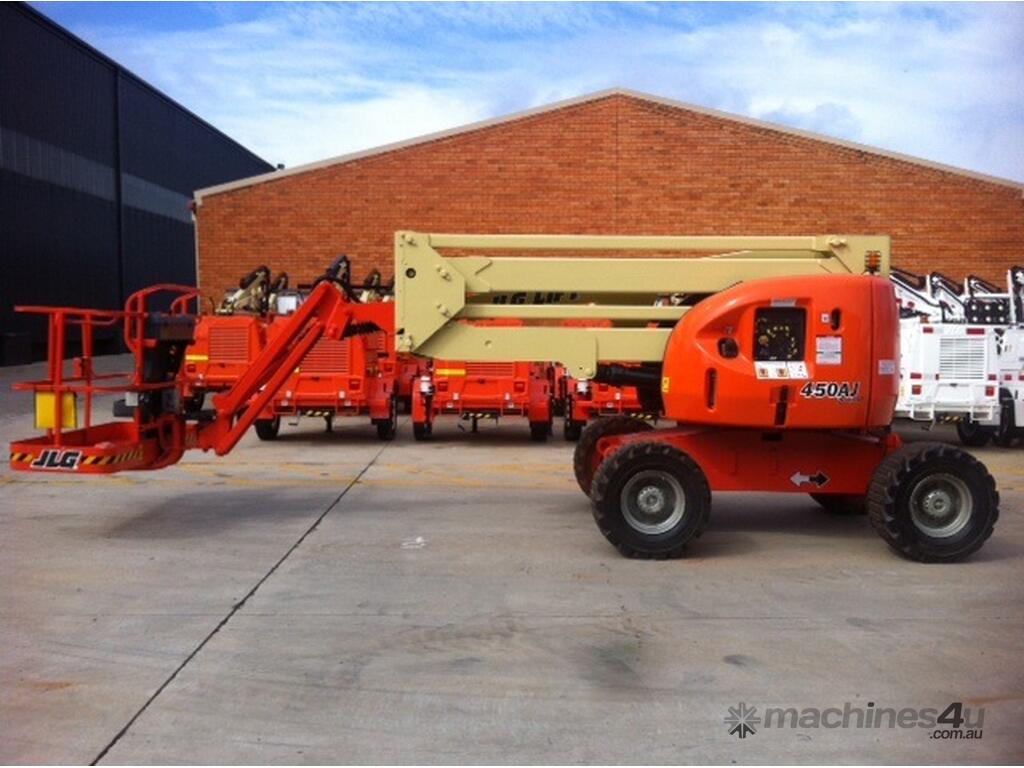

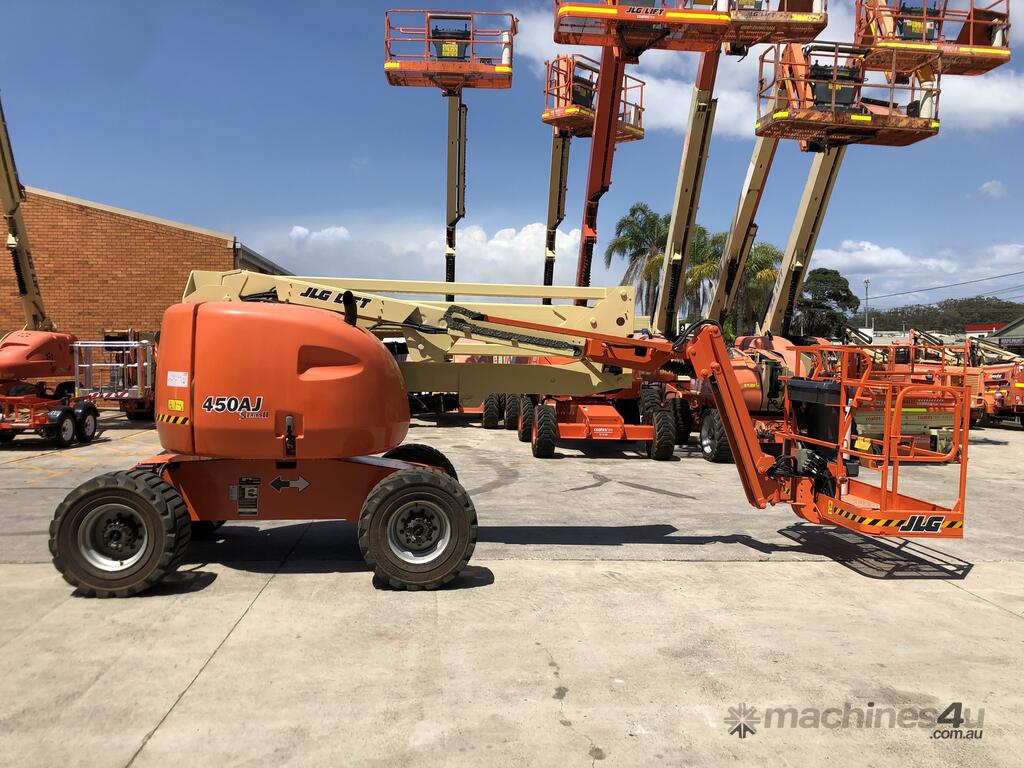

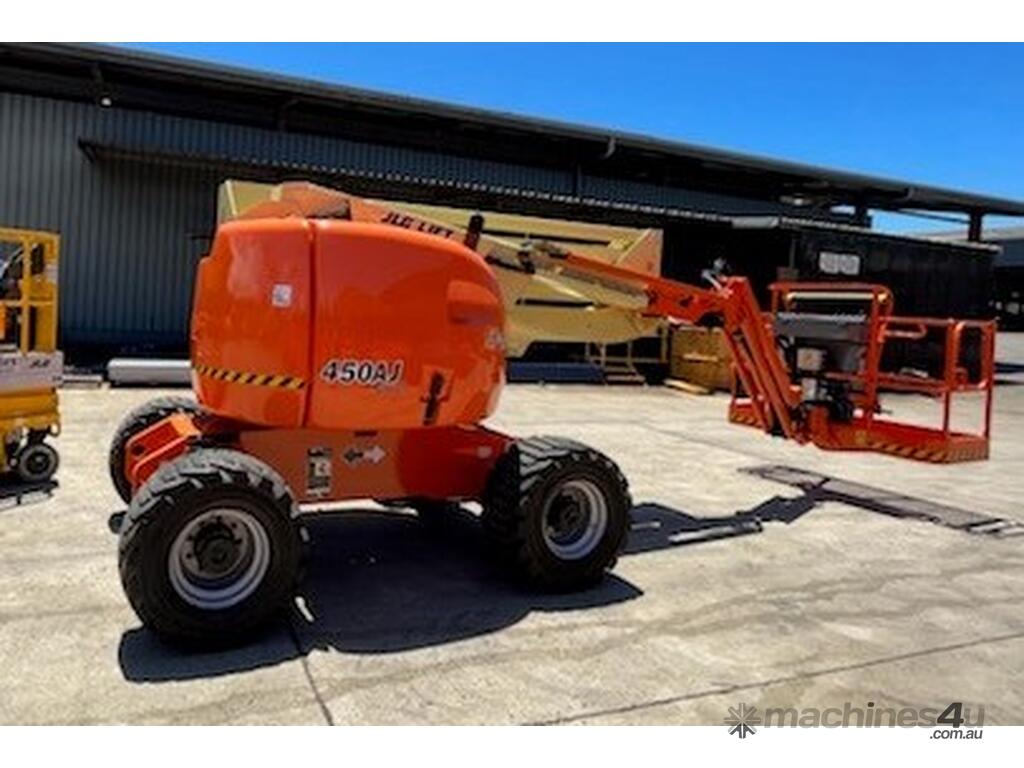

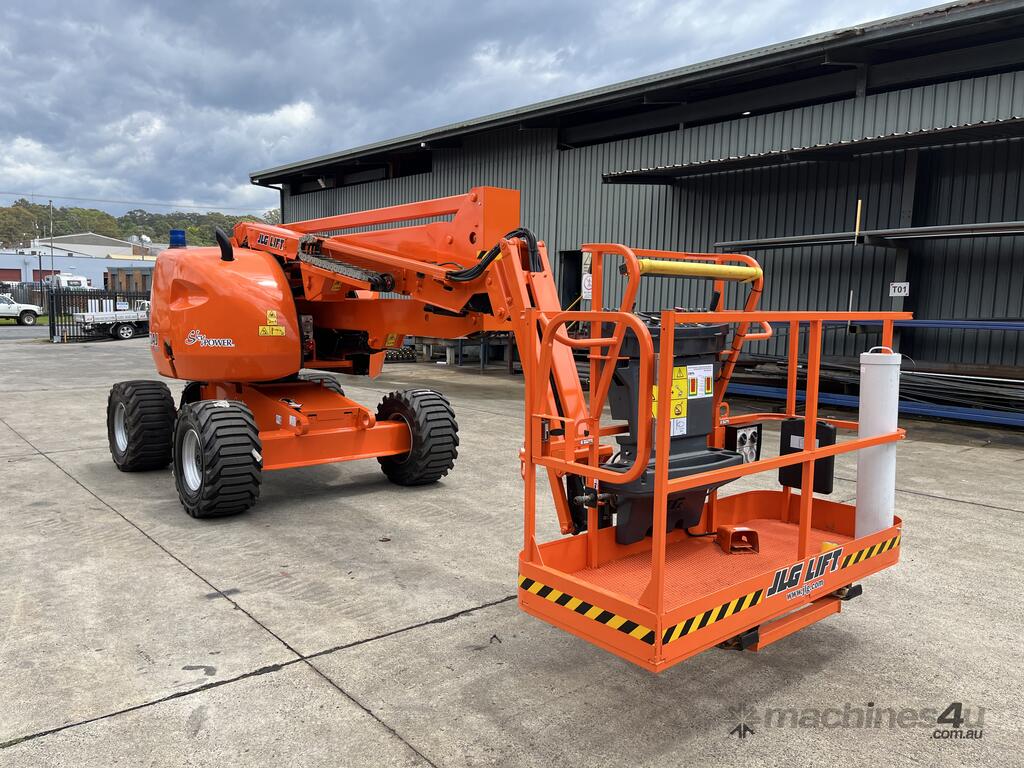

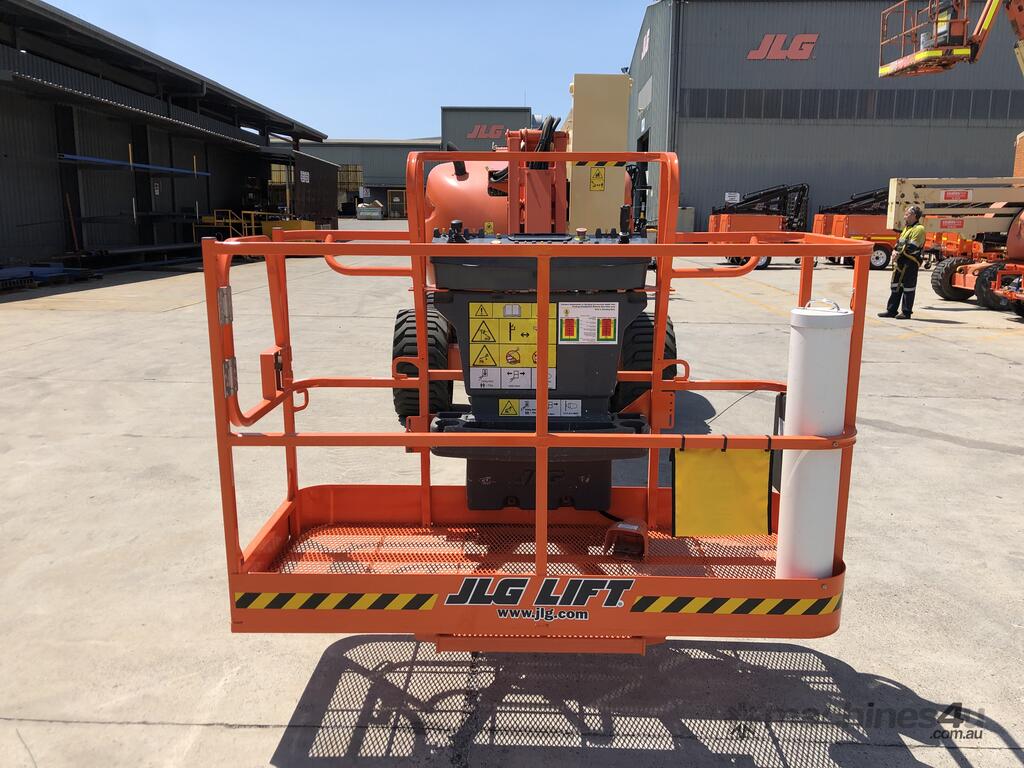

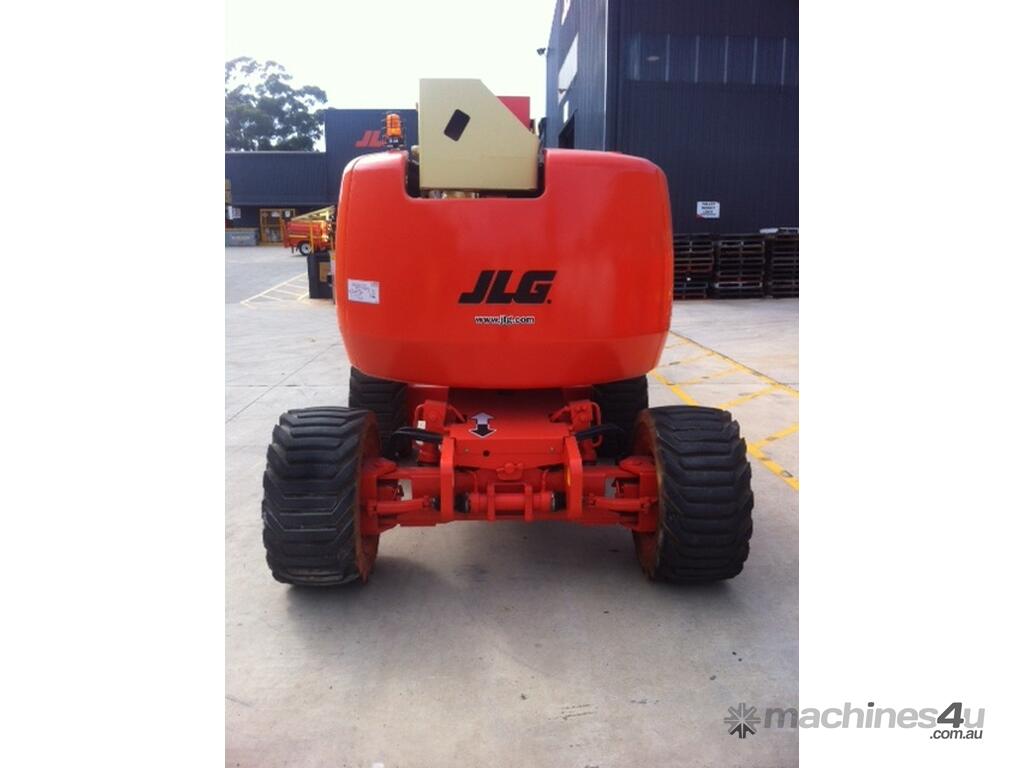

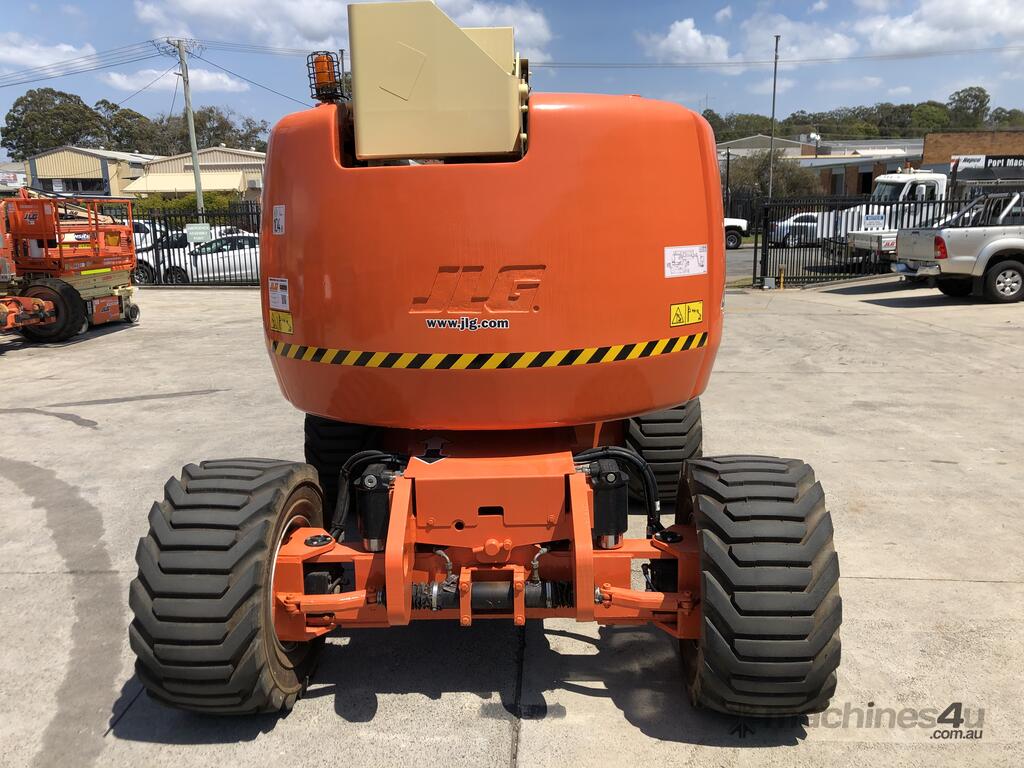

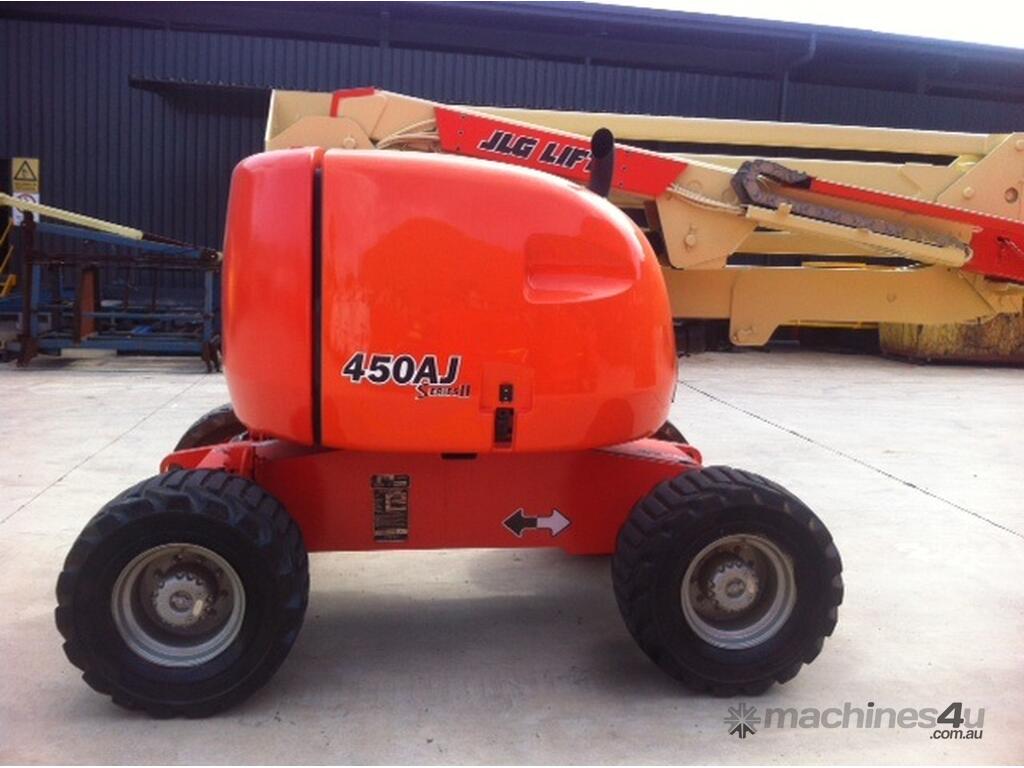

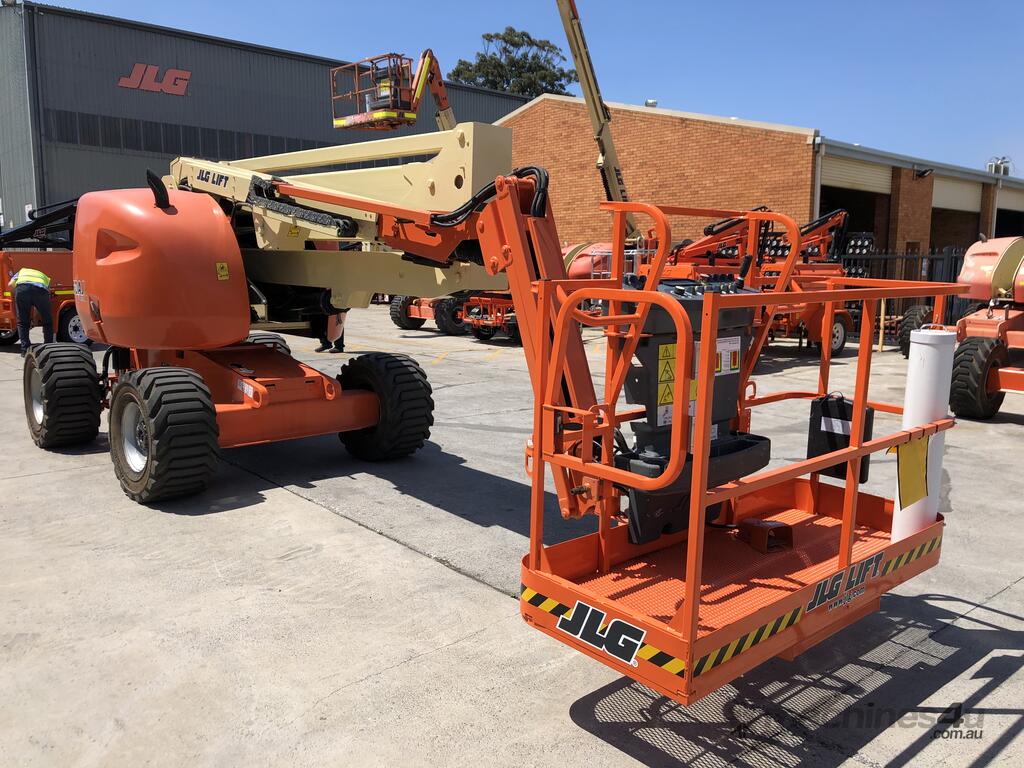

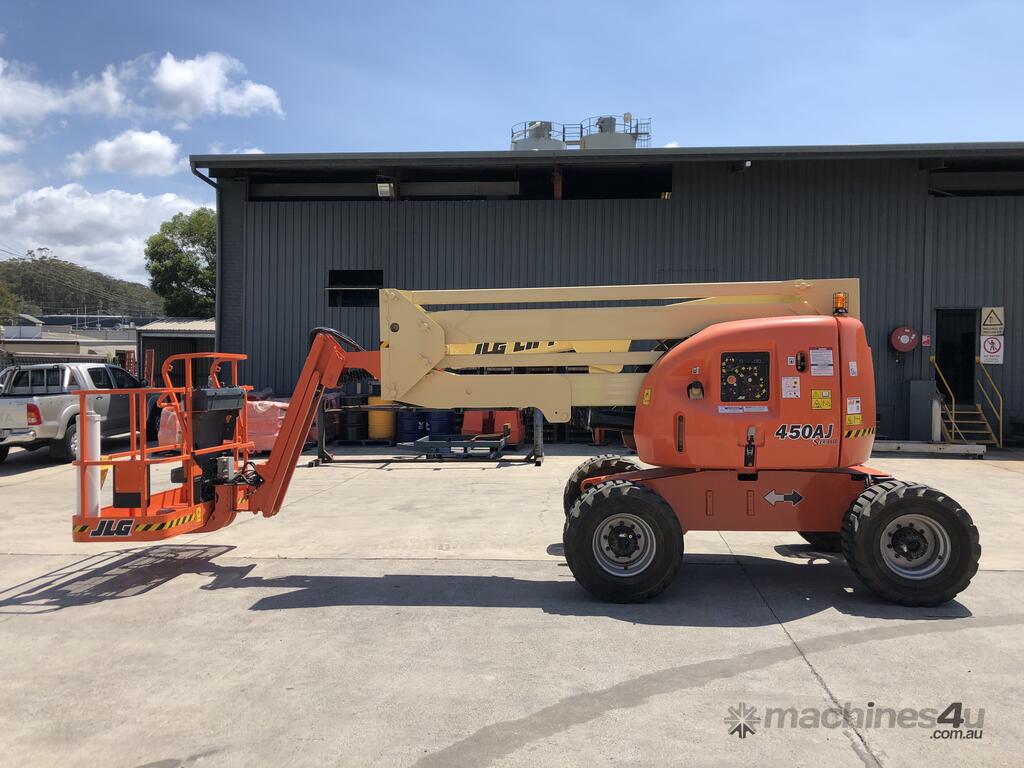

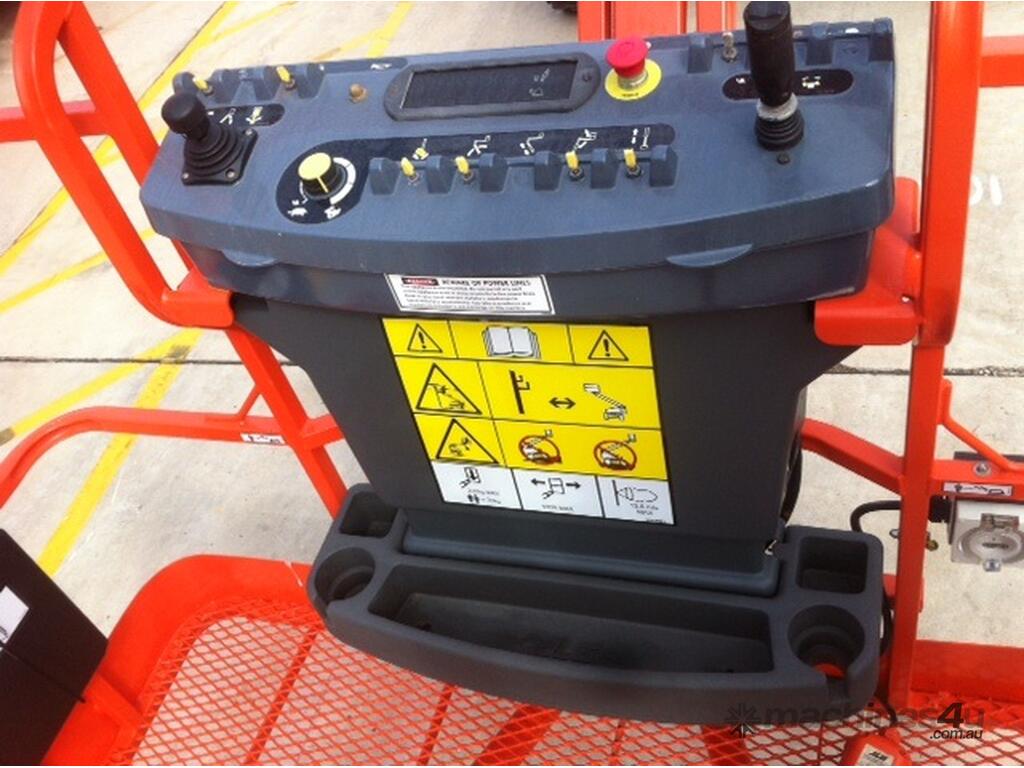

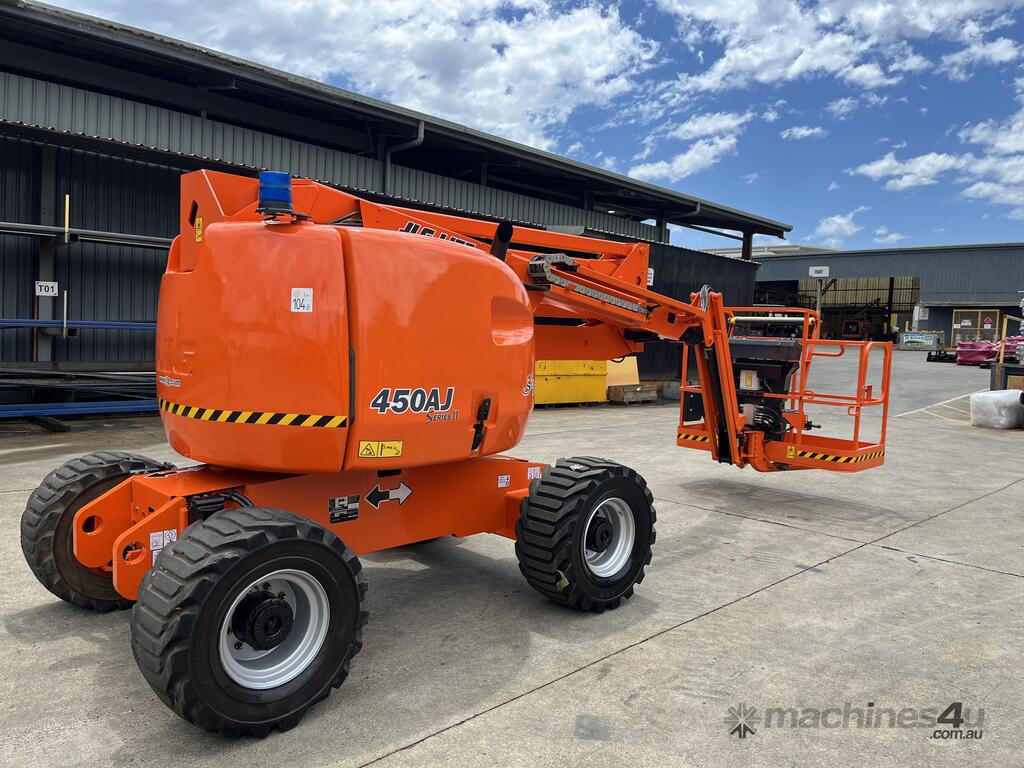

File photos shown - indicative of finished machines

JLG - 450AJ Series II Articulating Boom Lift
Engine Powered Boom Lifts - 450 Series Articulating Boom Lift
JLG engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.

Features:
-Reach those tight spaces that you can’t reach with other lifts
-Best-in-class lift speed increases productivity and efficiency
-Easy-to-use controls reduces training time and increases time on the job

Quick Specs:
Platform Height Elevated: 45 ft (13.72 m)
Overall Width: 6 ft 10 in (2.08 m)
Platform Capacity: 500 lb (227 kg)

Reach Specifications:
Platform Height: 45 ft (13.72 m)
Horizontal Outreach: 24 ft 6 in (7.47 m)
Up and Over Height: 25 ft 2 in (7.67 m)
Swing: 360º Non-Continuous
Platform Capacity: 500 lb (227 kg)
Platform Rotator: 180º Hydraulic
Jib (Range of Articulation): 145º (+78, -67)

Dimensions:
Platform Size: 30 x 72 in (0.76 x 1.83 m)
Overall Width: 6 ft 10 in (2.08 m)
Tailswing: Zero
Stowed Height: 7 ft 5 in (2.26 m)
Stowed Length: 21 ft 5 in (6.53 m)
Wheelbase: 6 ft 6 in (1.98 m)
Ground Clearance: 14 in (36 cm)
Weight: 16,000 lb (7,257 kg)
Max. Ground Bearing Pressure: 36 psi (2.5 kg/cm²)

Power Source:
Dual Fuel Engine: GM Vortec 3000 MPFI, 82 hp (61 kW)
Diesel Engine: Perkins 404C-22, 49 hp (36.5 kW) / Caterpillar C2.2, 50 hp (37.2 kW)
Fuel Tank Capacity: 16.5 gal (62.46 L)
Hydraulic Reservoir: 30 gal (113.56 L)
Auxiliary Power: 12V DC
Noise Level: 70 dBa (7 meters)

Chassis:
Drive Speed (2WD): 3.5 mph (5.6 km/h)
Drive Speed (4WD): 4.5 mph (7.2 km/h)
Gradeability (2WD): 30%
Gradeability (4WD): 45%
Turning Radius (Inside): 5 ft 8 in (1.73 m)
Turning Radius (Outside): 14 ft (4.27 m)
Axle Oscillation: 8 in (20 cm)
Tire Size: 33/1550 x 16.5
Tyre Type: Superwide
Type of Tracks: Open Bar Steel Track
Tracks Width: 12 in (30.5 cm)

Available Options:
Semi-Track
1/2" Air Line to Platform
SkyPower®
Fall Arrest Platform
Cold Weather Kit
Arctic Package

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
