Used 800AJ Articulating Boom Lift - 64 hp OEM Re-certified

Used 10 year inspected & Repainted by JLG

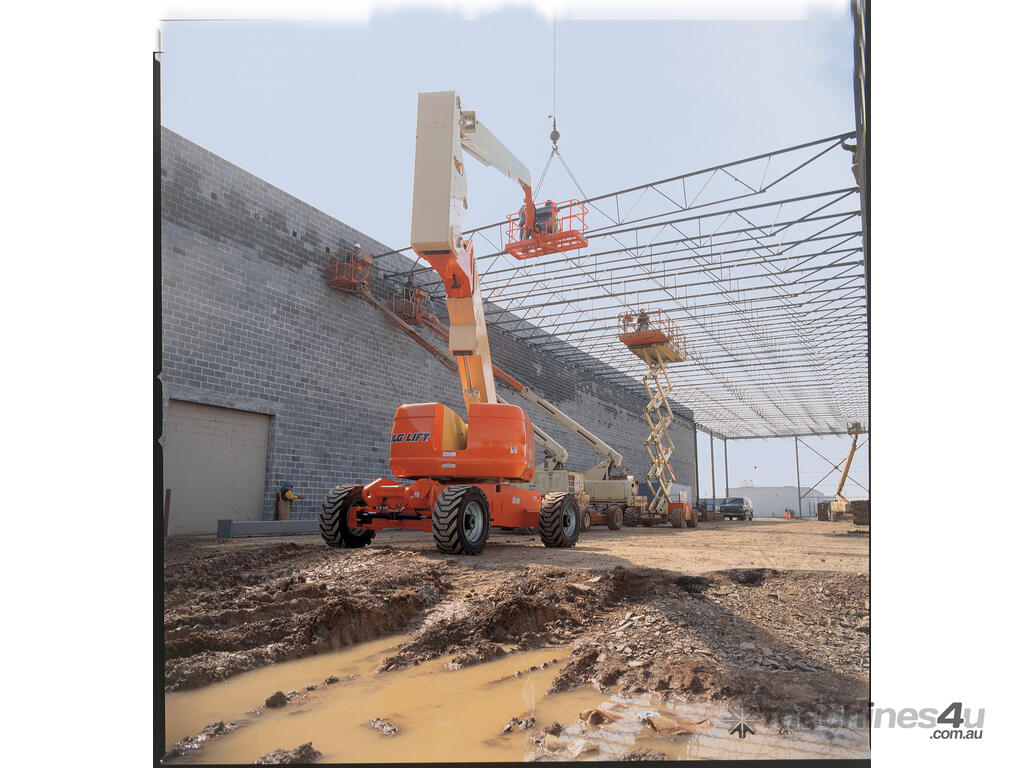

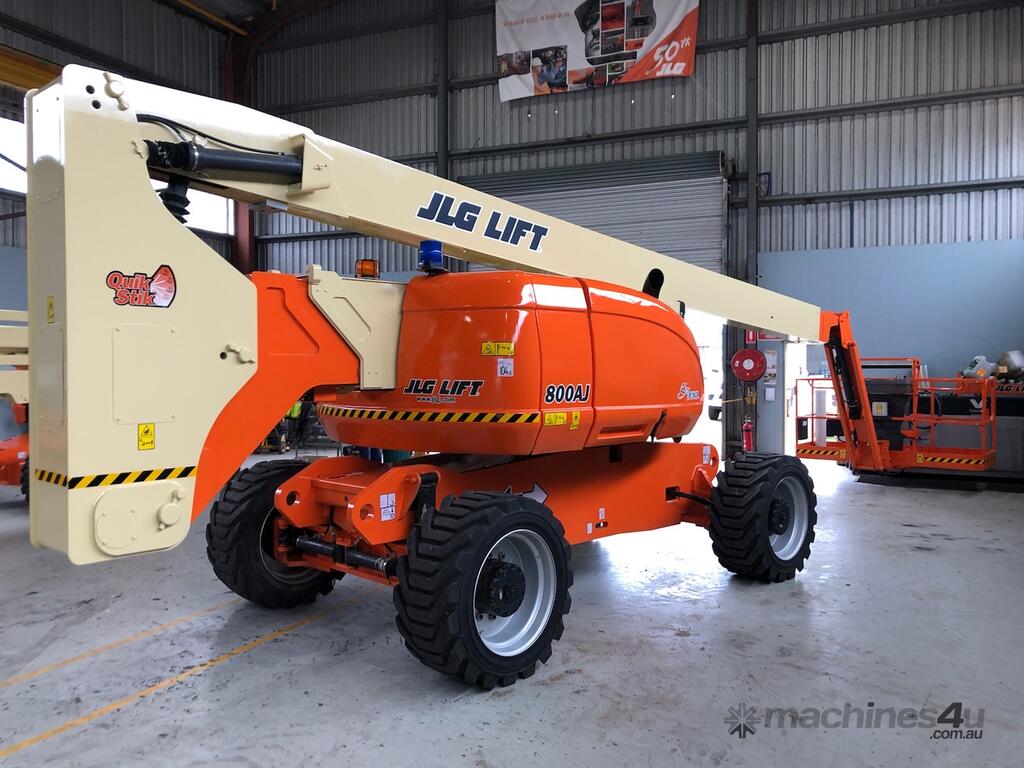

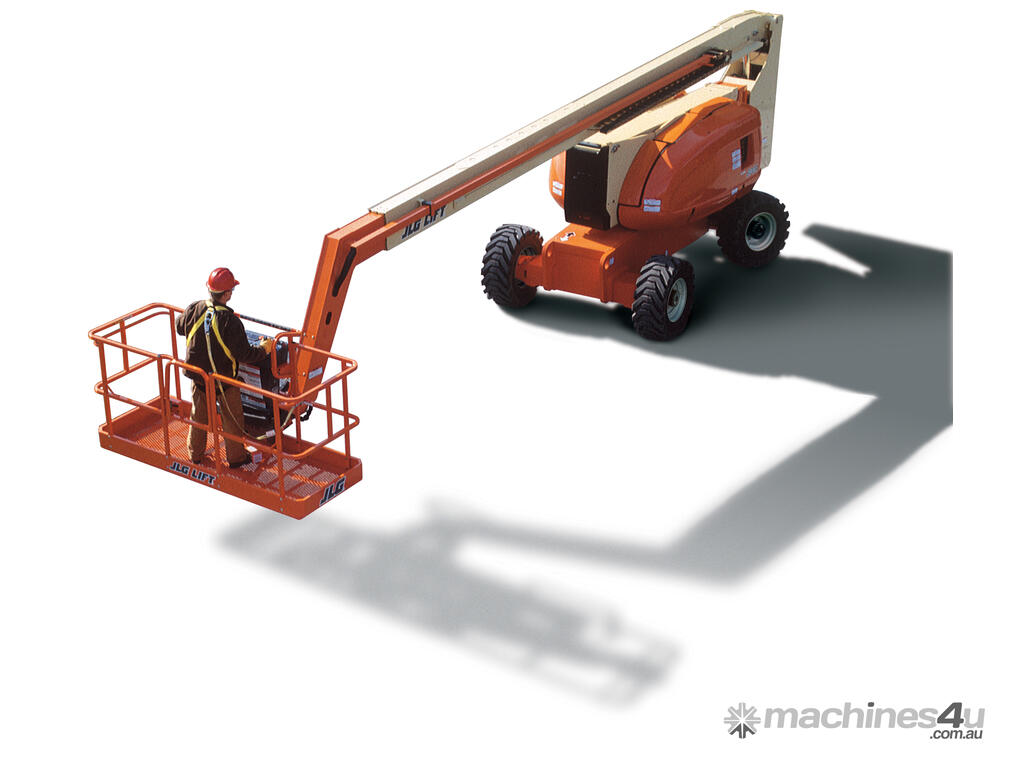

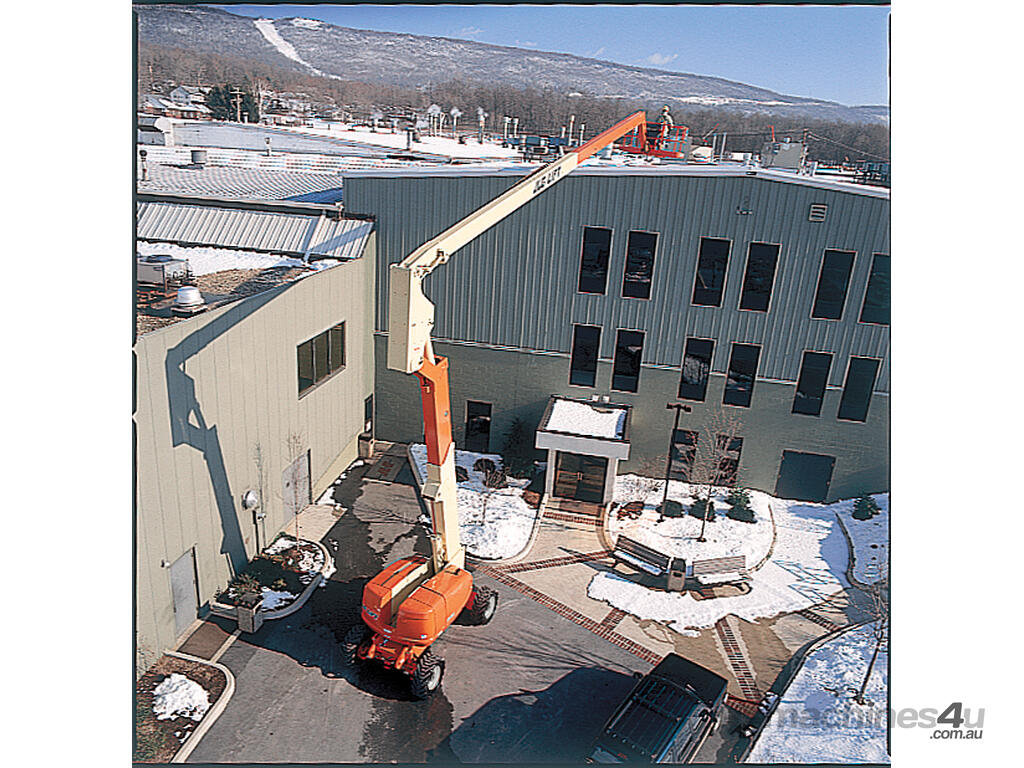

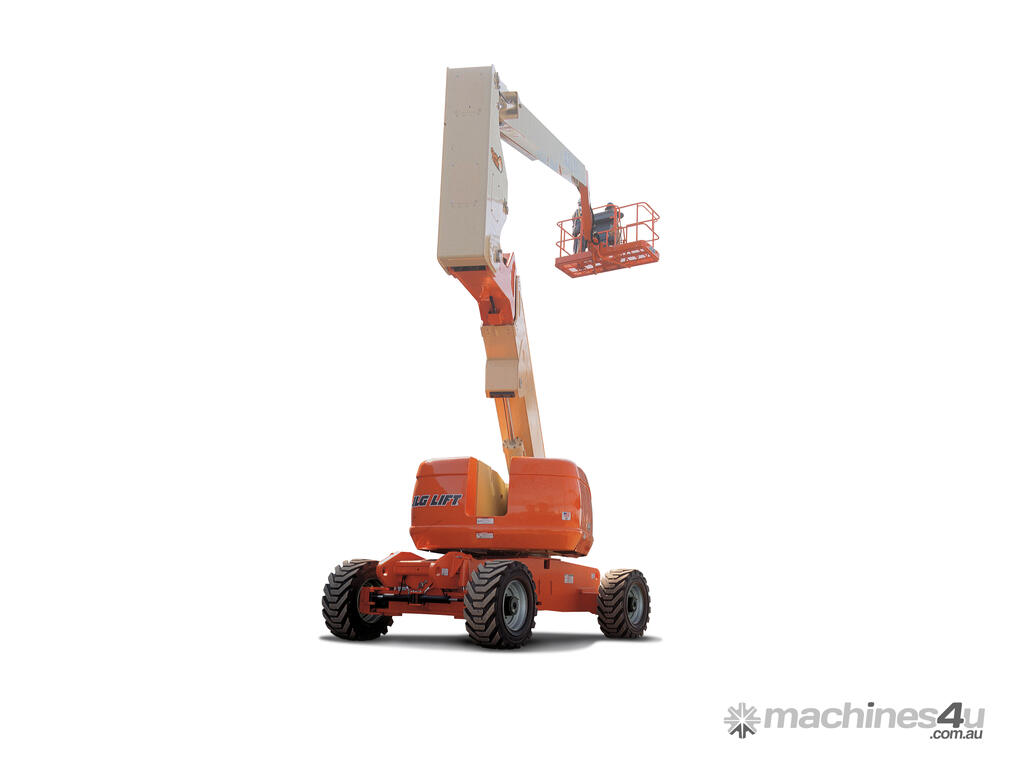

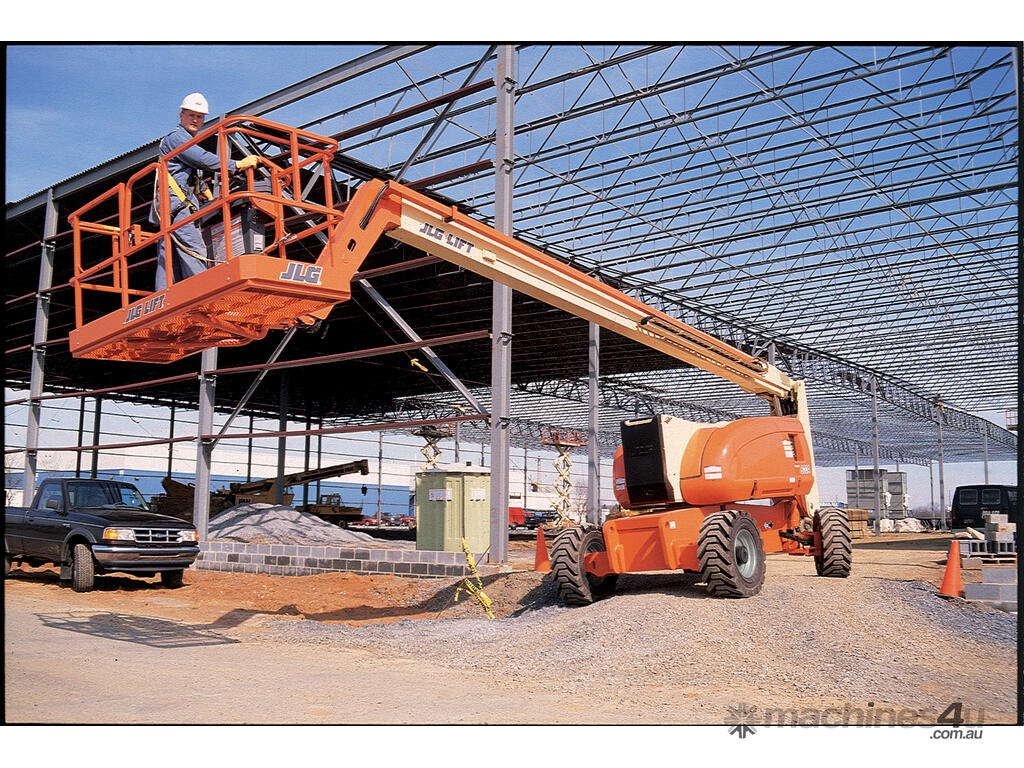

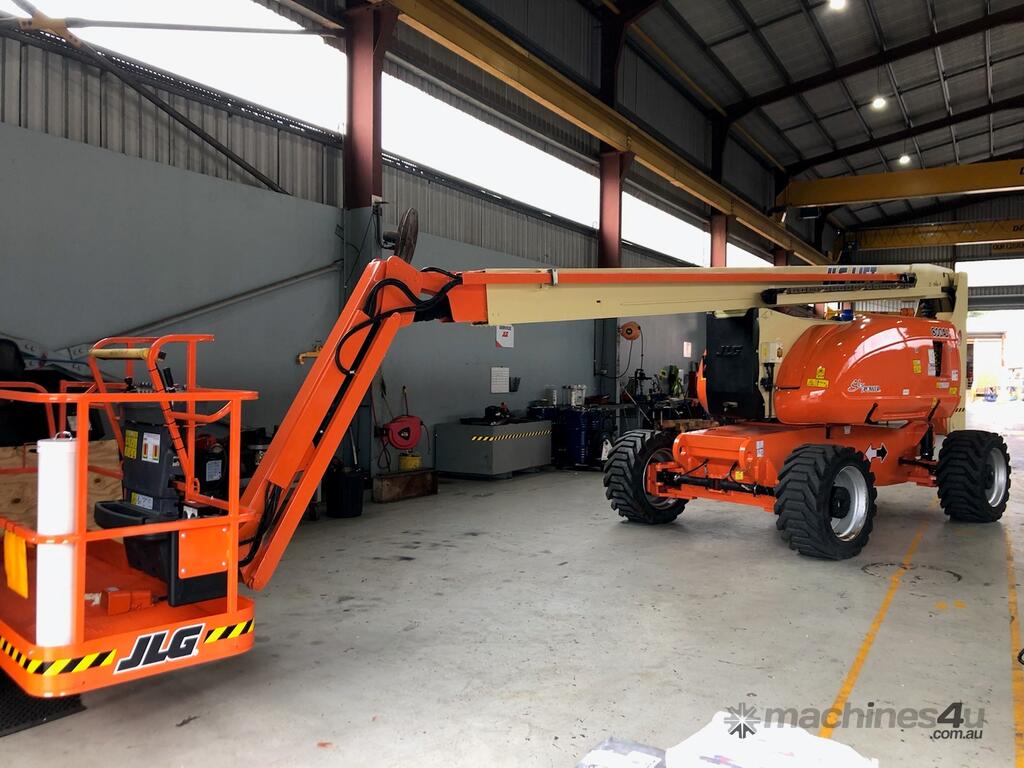

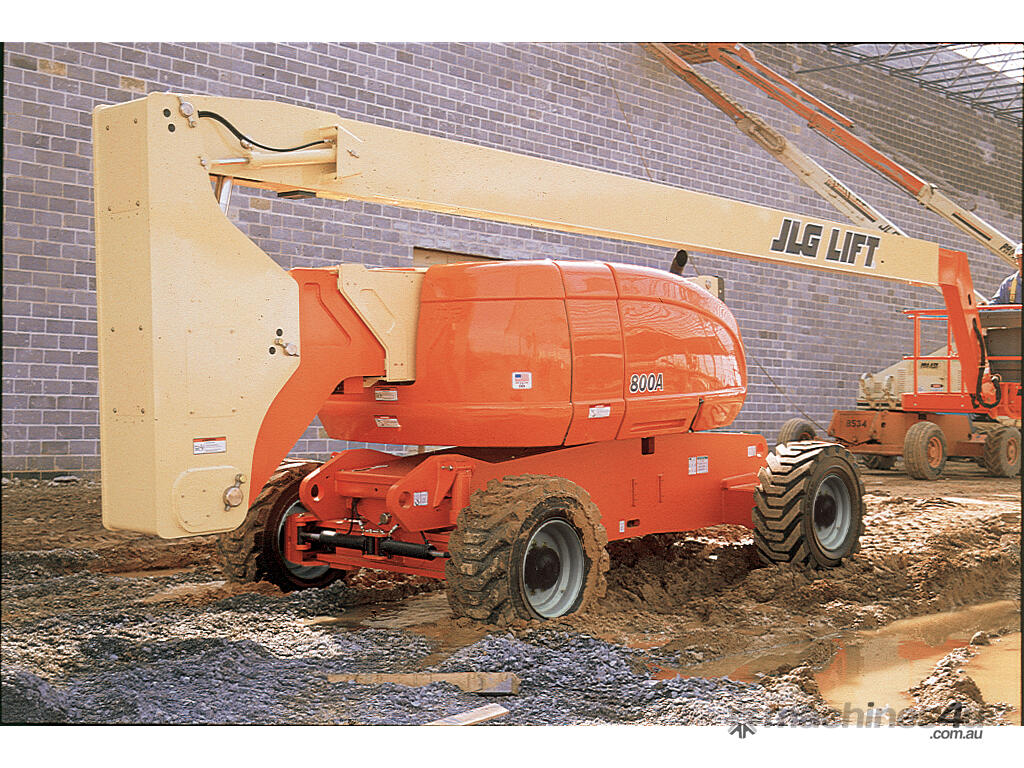

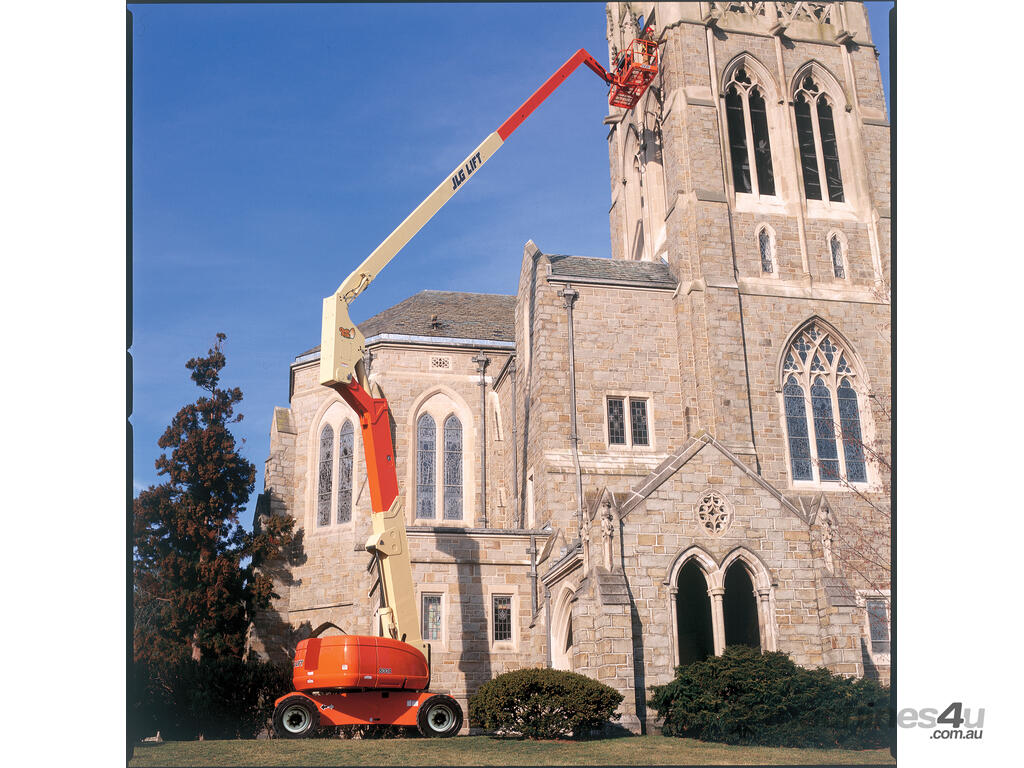

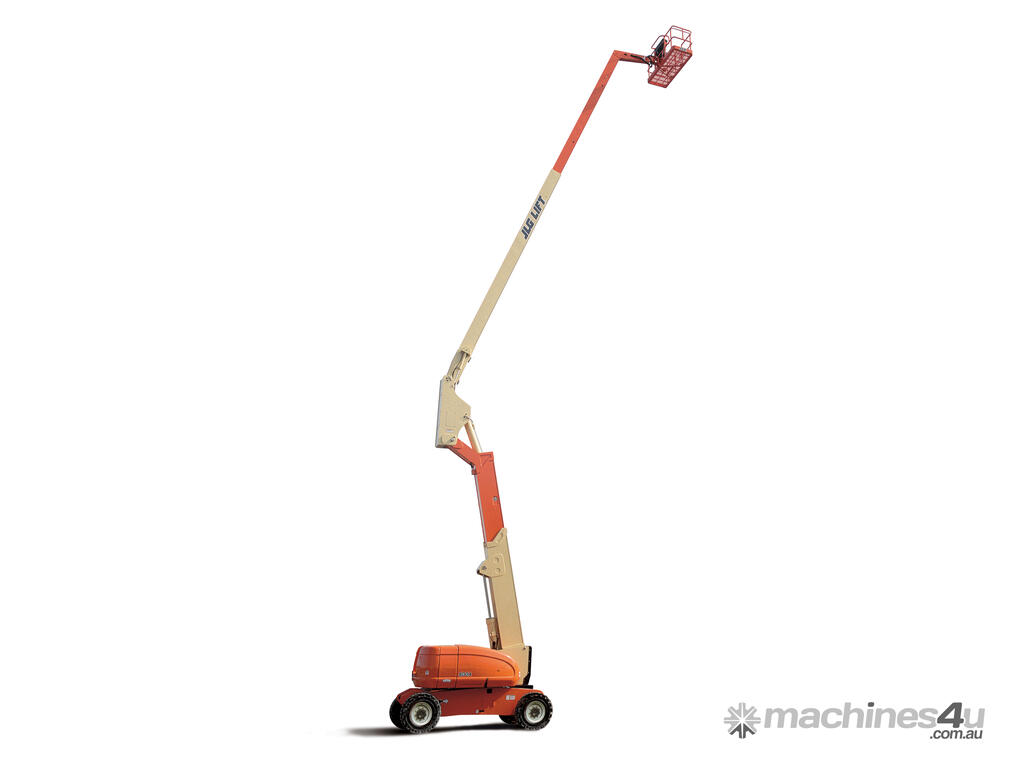

800AJ Articulating Boom Lift
Low hours
Located in East Coast
Freight available Australia wide - POA

Features:
-Get the extra reach and versatility you need with the best reach envelope in the industry
-With Workstation in the Sky accessories, you will have all you need to get the job done
-Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Dimensions:
Platform Size: 36 x 96" (0.91 x 2.44 m)
Overall Width: 8' (2.44 m)
Tailswing: 2' 6" (76 cm)
Stowed Height: 9' 10" (3.0 m)
Stowed Length: 36' 6" (11.13 m)
Wheelbase: 10' (3.05 m)
Ground Clearance: 12" (30 cm)
Weight: 34,300 lb (15,558 kg)
Max. Ground Bearing Pressure: 76 psi (5.3 kg/cm²)

Reach Specifications:
Platform Height: 80' (24.38 m)
Horizontal Outreach: 51' 10" (15.8 m)
Up and Over Height: 32' 1" (9.78 m)
Swing: 360º Continuous
Platform Capacity (Restricted): n/a
Platform Capacity (Unrestricted): 500 lb (227 kg)
Platform Rotator: 180º Hydraulic
Jib (Range of Articulation): 130º (+70, -60)
Chassis:

Drive Speed (2WD or 4WD): 3.0 mph (4.8 km/h)
Gradeability (2WD): 30%
Gradeability (4WD): 45%
Turning Radius (Inside):
2WS: 12' (3.66 m)
4WS: 7' (2.13 m)
Turning Radius (Outside):
2WS: 22' 6" (6.86 m)
4WS: 14' 6" (4.42 m)
Tire Size (4WD): 445/55 x 19.5
Tire Type (4WD): Wide Lug Tread

Power Source:
Diesel Engine:
Deutz D2011L04: 64 hp (47 kW)
Caterpillar 3044C: 63.3 hp (48 kW)
Fuel Tank Capacity: 39 gal. (147.63 L)
Hydraulic Reservoir: 40 gal. (151.42 L)
Auxiliary Power: 12V DC
Noise Level: 70 dBa at 7 meters
