Used Ermaksan Guillotine Shear 3100 mm x 6.0 mm

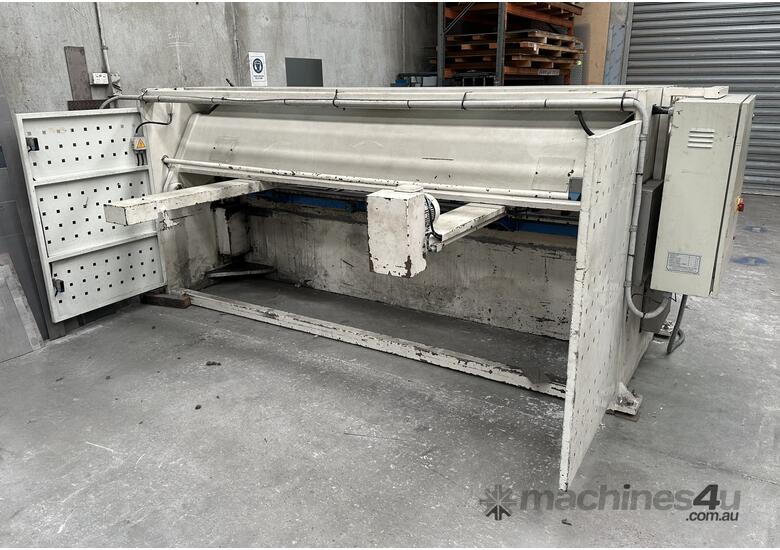

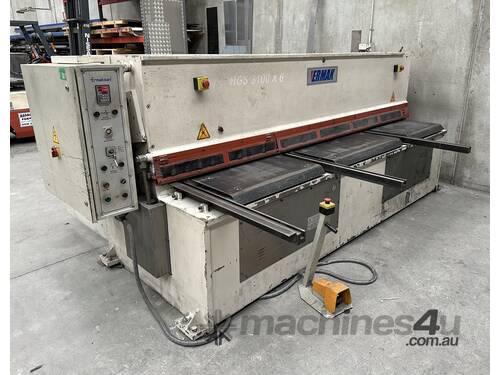

One Used Ermaksan Hydraulic Guillotine Shear Model HGS 3100-6
Capacity: 3100 mm x 6.0 mm
Serial Number: . Year Of Manufacture:

• Heavy duty machine construction from high quality steel
• Infill table complete with ball transfers for easier plate handling
• Fixed rake angle, 1.2?
• Rapid blade gap, manual adjustment
• Individual hydraulic hold downs with the hold down pressure proportional to the cutting force complete with non-marking
pads
• Cutting length adjustment to increase cut stroke rate on short width sheets / plates

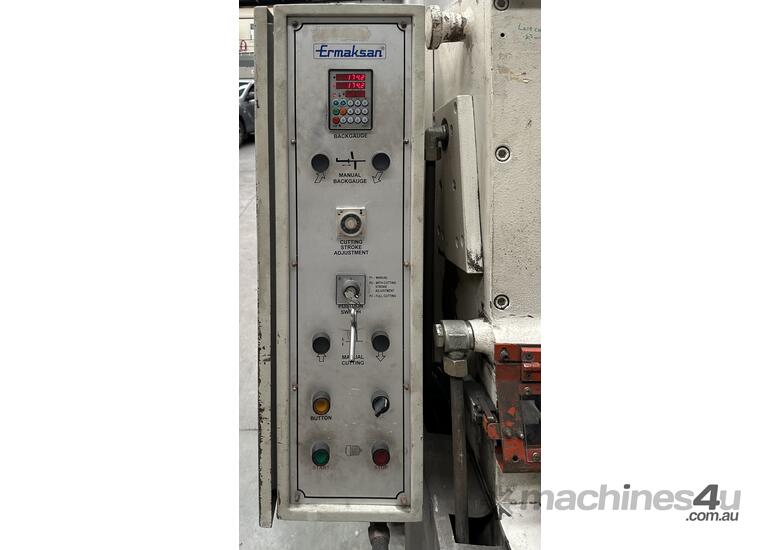

• Motorised back gauge with recirculating ball screw to 1000 mm with programmable control and digital read out (via Elgo NC
Controller)
• Stainless steel quality cutting blades
• 1000 mm side squaring arm with scale and stop
• 2 off 1000 mm front support arm
• Laser shadow line lighting
• Low noise pump and hydraulic unit
• Foot pedal on wandering lead
• Electric and hydraulic overload protection
• Hydraulic oil & Operating and service manual
• Built to C E Regulations
• Machine guarding:
Full length front safety guard and rear fences with photo electric sensors
