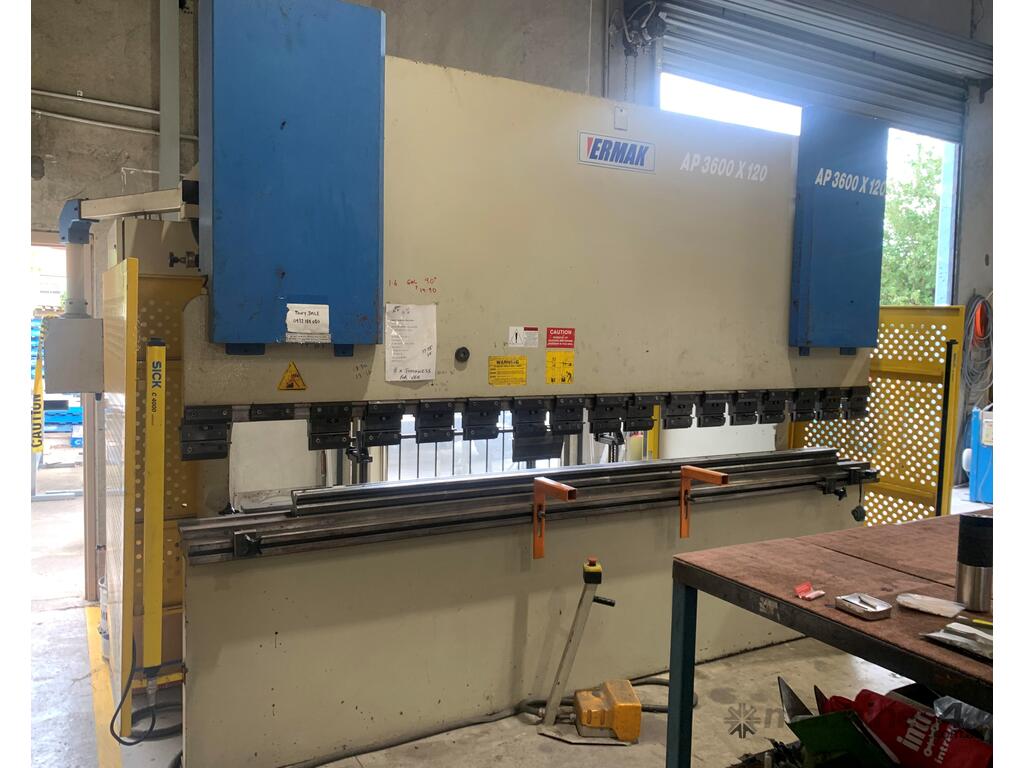

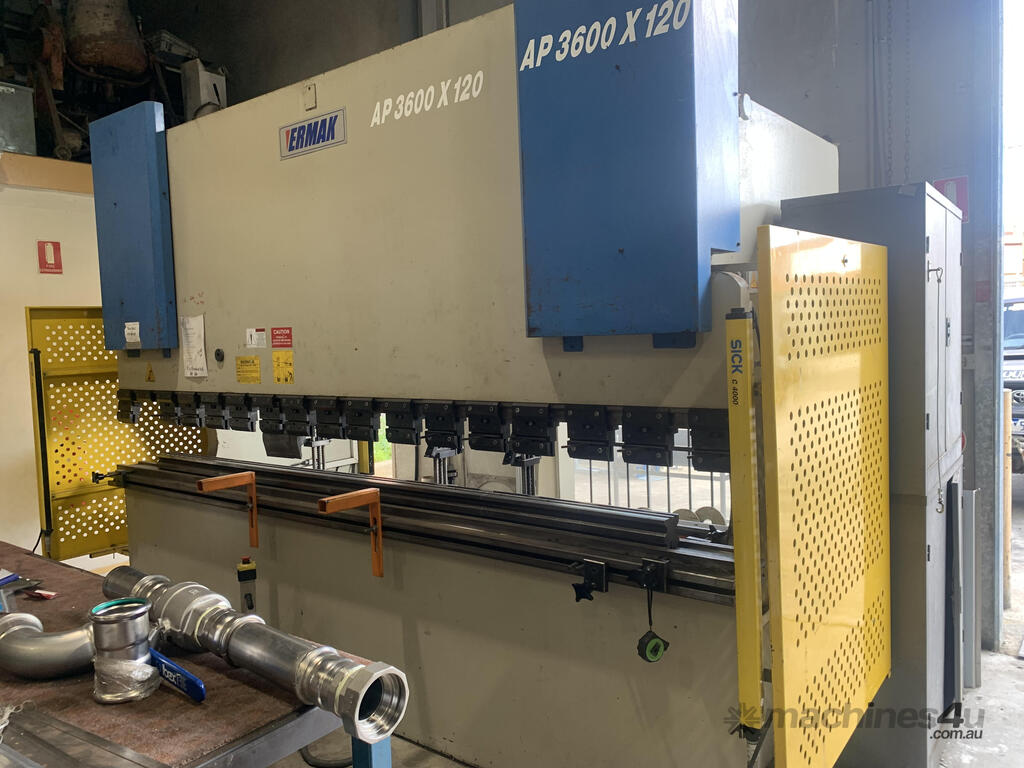

One Used Ermaksan Hydraulic Pressbrake AP 3600 - 120
Capacity: 3100 mm x 120 Tonnes
Serial Number: . Year Of Manufacture:
• Twin cylinder down-stroking
• Heavy duty machine construction from high quality steel

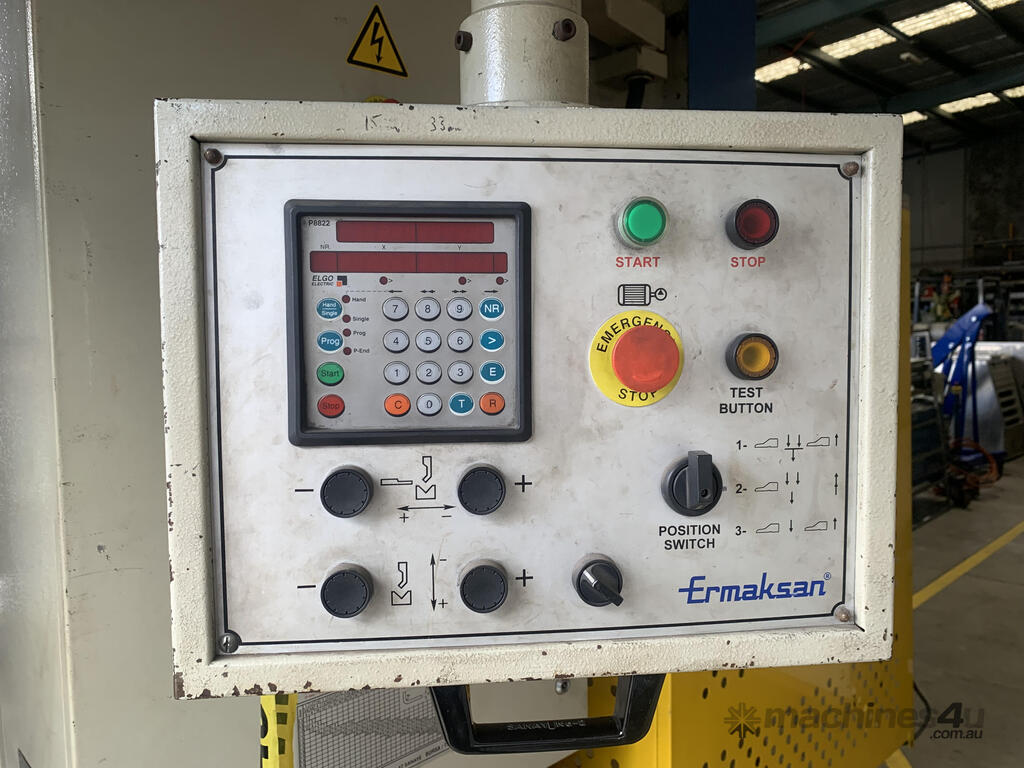

• Motorised mechanical depth stops within the cylinders with programmable control and digital read out (via Elgo
Controller)
• Mechanical Ram parallelism via heavy duty solid anti torsion bar
• Adjustable fast approach / working speed change over point
• Adjustable open day light
• Adjustable Ram stroke
• Tonnage regulator with pressure gauge

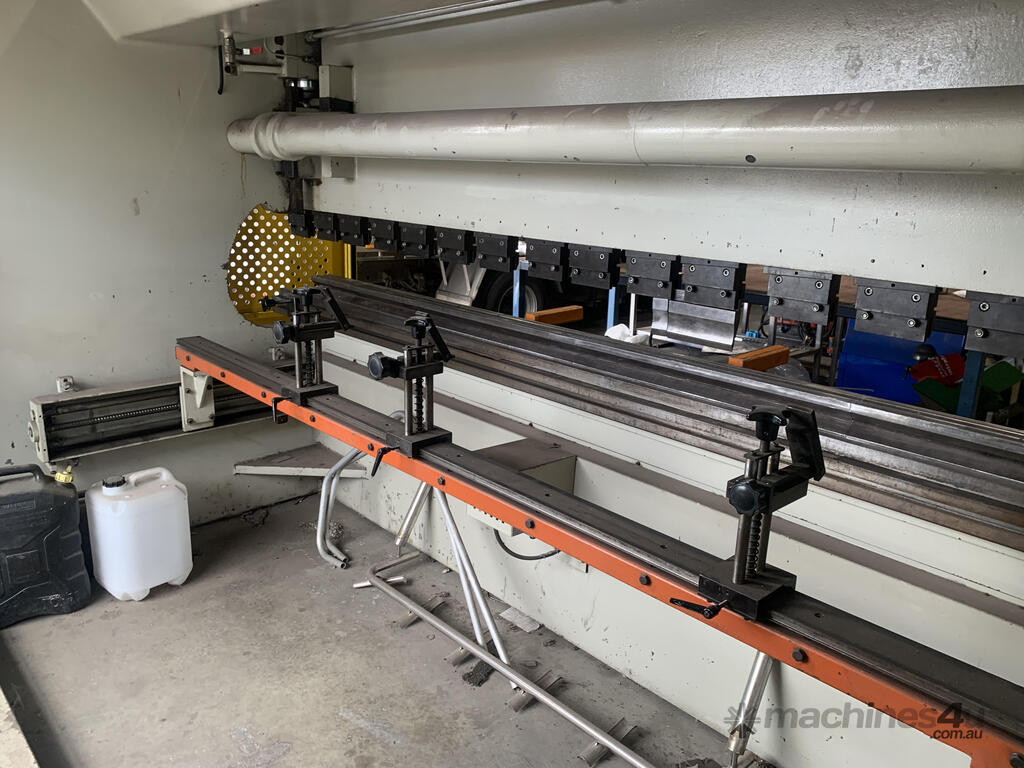

• Motorised back gauge with recirculating ball screws to 800 mm, with programmable control and digital read out
(via Elgo Controller) complete with two heavy-duty flip type gauge fingers
• 2 x 500 mm front support arms

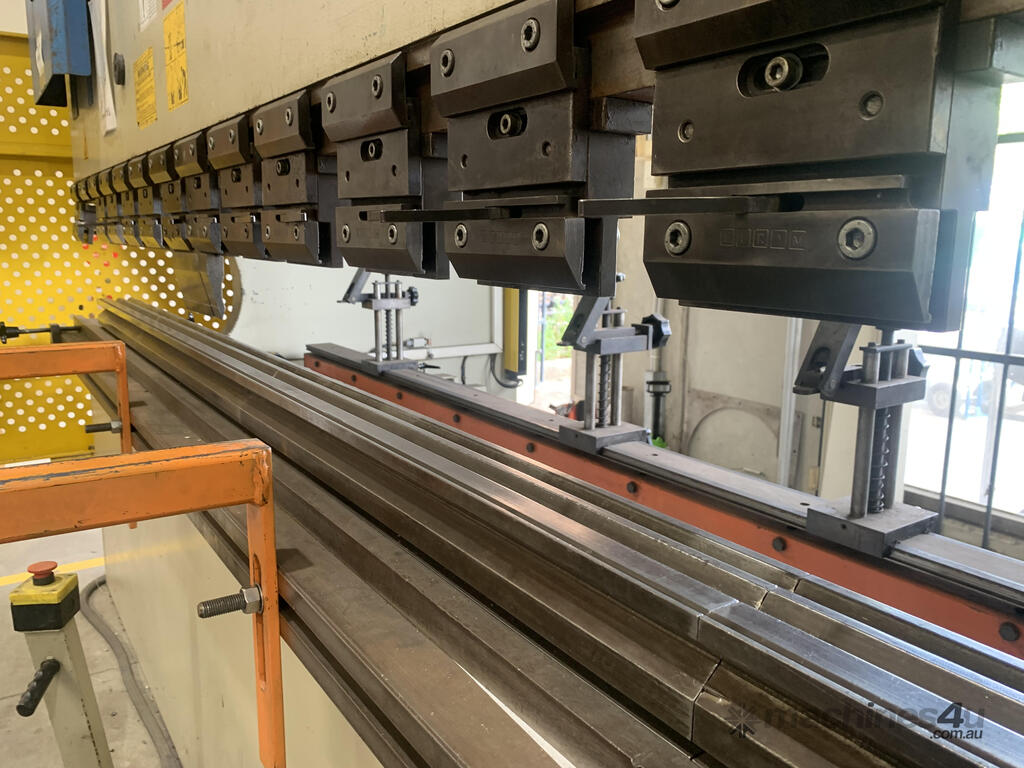

• Euro style adjustable top tool holders & top tools
• Full length multi vee die
• Full tank of hydraulic oil & Operating manual
• Standard colour: Cream & Blue
• Machine guarding:
Vertical light curtains 300mm from top tool, mounted upon powder coated hinged side fences plus rear fences.
