Used JLG 4394RT Diesel Scissor Lift - OEM Re-certified

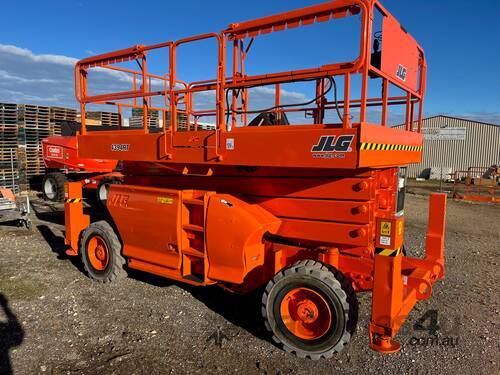

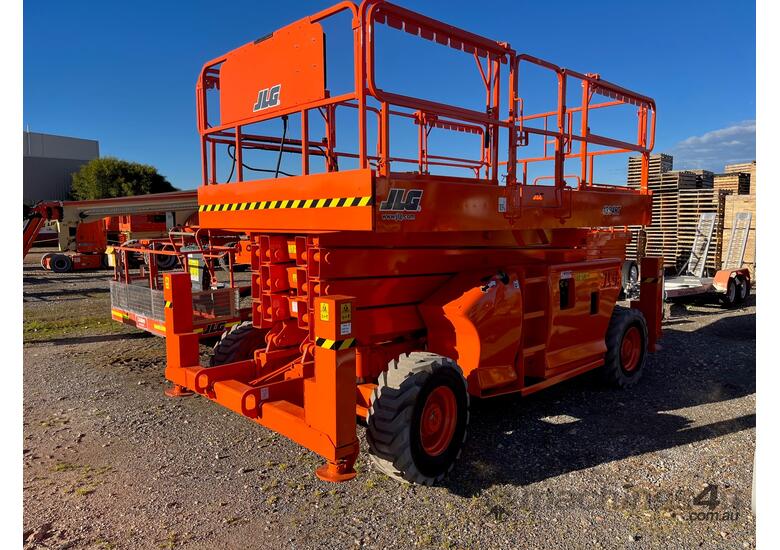

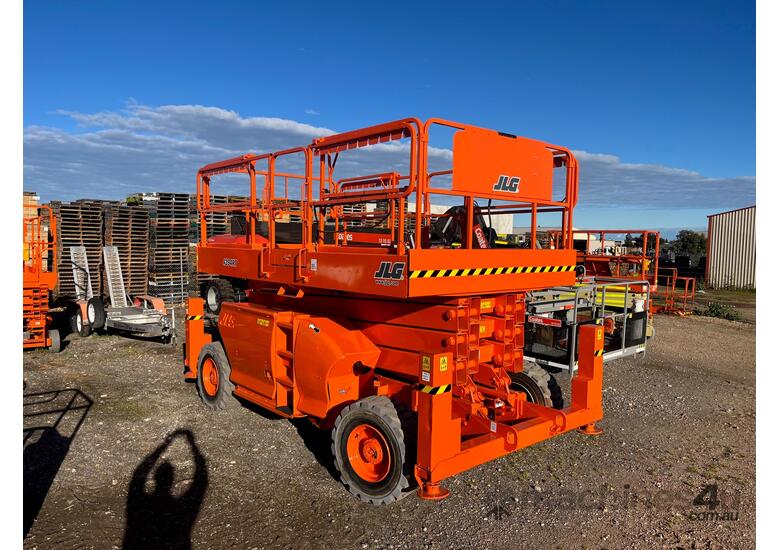

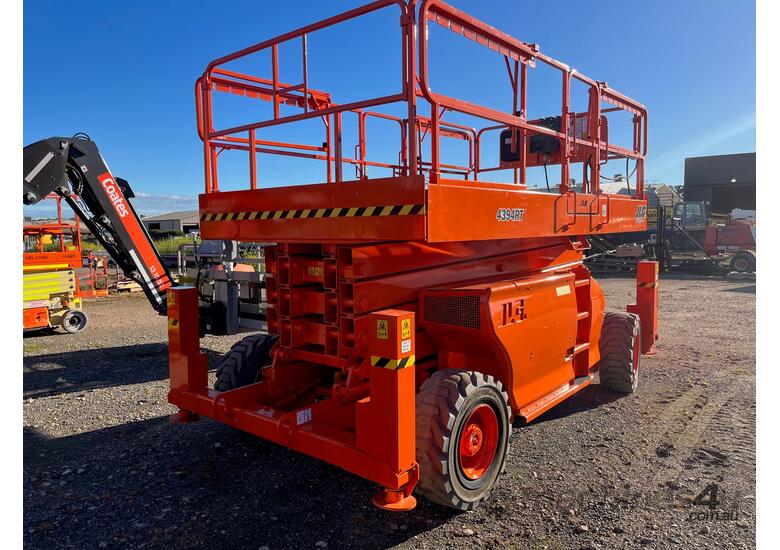

Used re-certified JLG 4394RT Rough Terrain Diesel Scissor Lift
Major inspected, fully serviced and repainted
Will have 5 years compliance from sale
Low hours
Repainted in JLG Orange
Located ex Sydney
Nationwide freight available - P.O.A.



RT Series Scissor Lift:
The job site isn’t always clean and isn’t always easy to get through. With JLG RT Series scissor lifts, you have the power you need to go through mud and ruts. The RT Series scissor lifts have larger platforms with more than 20 ft of deck space and up to 2,250 pounds capacity.


Features:
-Larger platform and increased lift capacity
-Optional one-touch leveling jacks for quicker setup
-Maximum lift and lower time of 43 seconds gives you more time to get your work done
-New twin-pump-powered 4WD for a higher level of performance over rough terrain

Quick Specs:
Platform Height Elevated – 43 ft
Overall Width – 7 ft 10 in
Platform Capacity – 1,250 lb

Power System/Chassis:
Axle Oscillation (Optional) 8" / 20 cm
Brakes Spring Applied
Diesel Engine Kubota D1305
Fuel Tank Capacity 30 gal. / 113.56 L
Hydraulic Reservoir 40 gal. / 151.42 L

Performance Data:
Platform Capacity 1,500 lb / 680 kg
- Capacity on Extension 500 lb / 227 kg
- Capacity w/Dual Extensions 1,250 lb / 567 kg
Lift/Lower Time 40/43 seconds
Maximum Drive Height Full Height
Weight* (ANSI/CSA) 15,300 lb / 6,940 kg
Ground Bearing Pressure** 83 psi / 5.8 kg/cm²
Drive Speed (Lowered - 260MRT) 4 mph / 6.4kmph
Gradeability 45%
Turning Radius - Inside 8' 10.5" / 2.71 m
Turning Radius - Outside 19' 5.5" / 5.93 m
Tire Size 33 x 15.5
Tyre Type Superwide

Dimensions:
Platform Height - Elevated 43' / 13.11 m
Platform Height - Lowered 5' 10.4" / 1.79 m
Platform Railing Height 3' 7.5" / 1.1 m
Overall Height (Rails Lowered - 3394RT & 4394RT) 7' 2.4" / 2.19 m
Stowed Height (Rails Folded) - 260MRT
Platform Dimensions 86 x 150" / 2.18 x 3.81 m
- Platform Extension 4' / 1.22 m
Overall Length 12' 8" / 3.86 m
Overall Width 7' 10" / 2.39 m
Wheelbase 9' 8" / 2.95 m
Ground Clearance 12" / 30 cm
