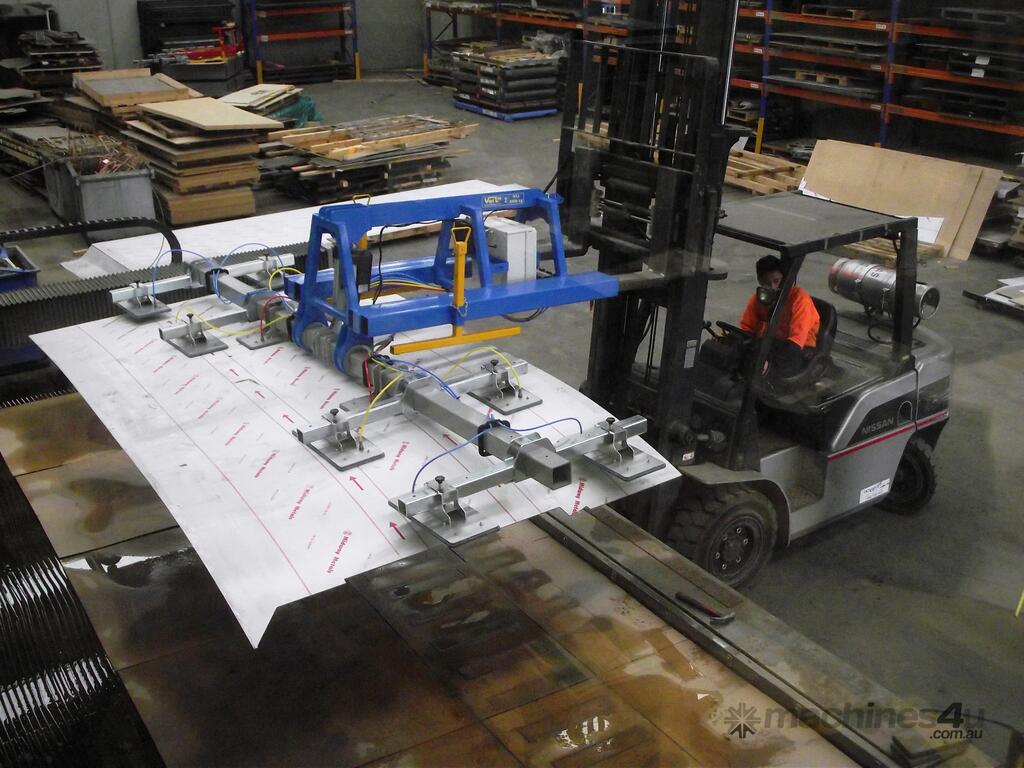

Custom built 2000Kg Forklift VacLift Unit with power tilt - FVL are proving to be the most versatile and cost efficient vacuum lifters on today's market. The units are fully self contained only requiring charging via a 240V charger when not in use.
The units are available with or without tilt, both manual and powered. Slew is also available giving even greater flexibility when placing product vertically or on uneven surfaces.
When not in use, the Vaclift can be placed back on its legs keeping the vacuum pads clear of the floor. FVL's are a total solution for moving sheet around your site, from heavy steel plate to fragile sheets of glass. Providing greater flexibility, time management and added safety to your business Vaclift is a must have for every workshop.

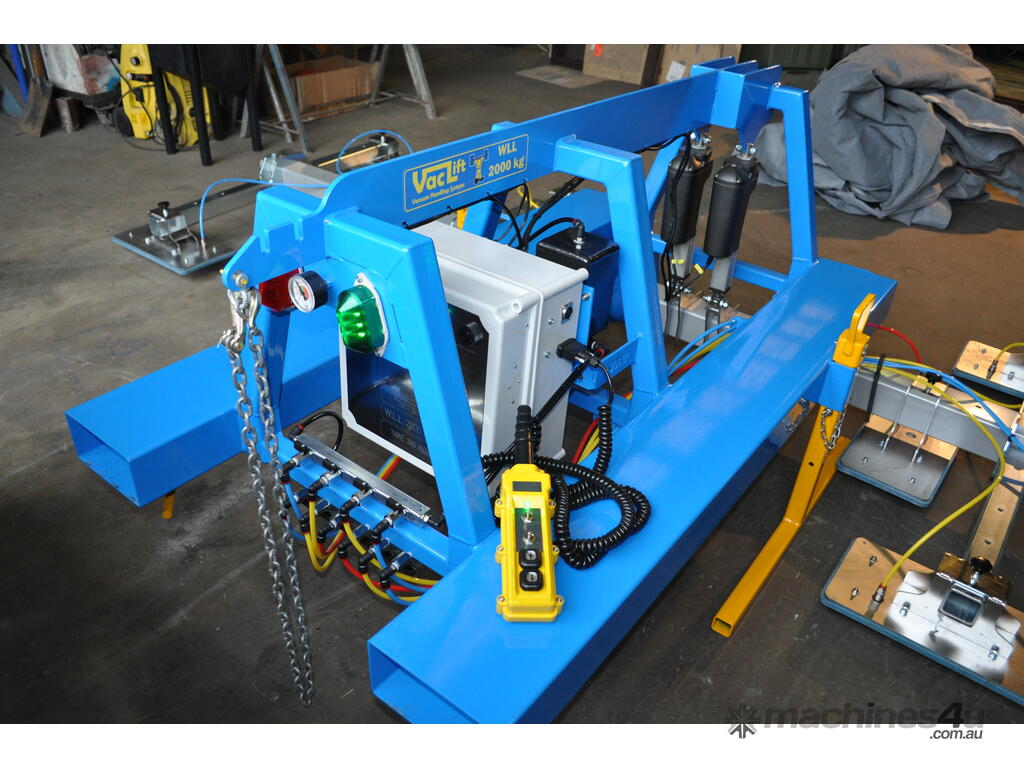

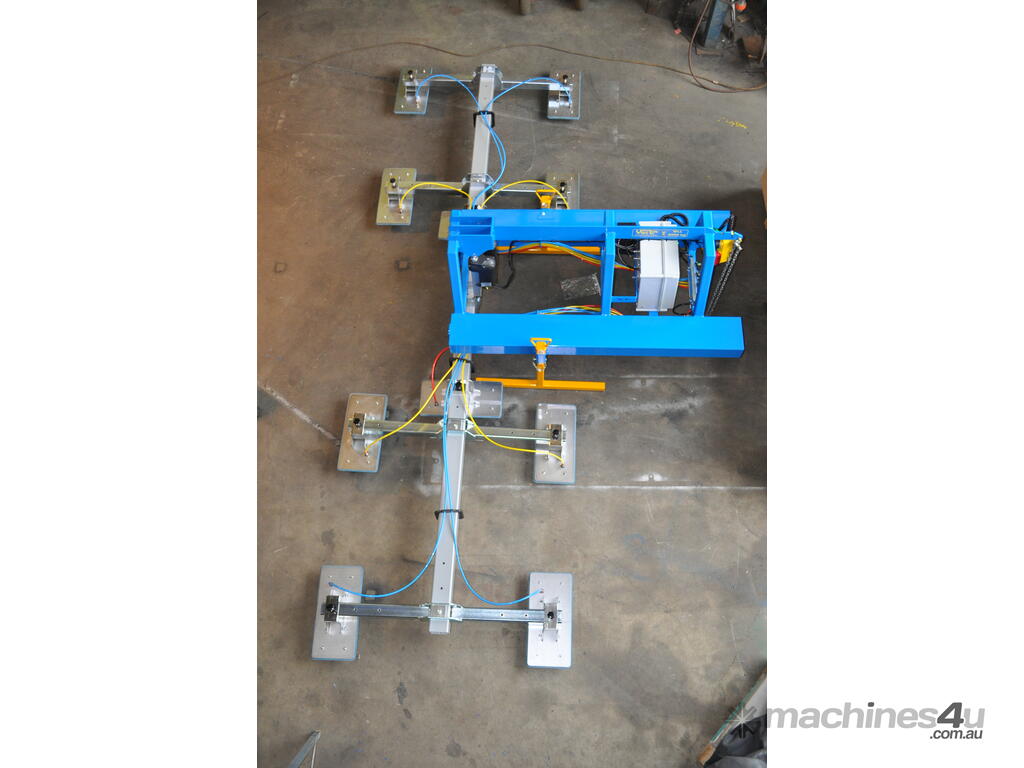

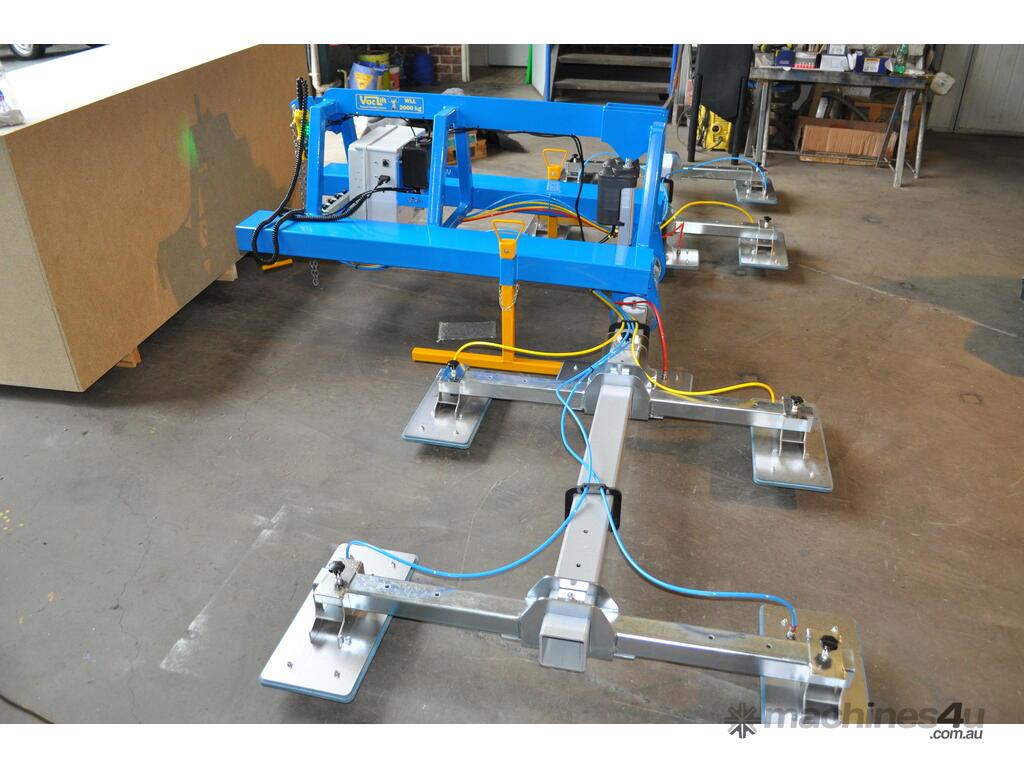

FVL2000PT Vaclift Forklift unit. Fully self contained vacuum supply and battery powered.
Specifications:
2000kgs maximum lifting capacity.
10 Hi Vac pads
Each pad can be independently isolated
Main beam approx 4000mm long
Extended main frame to offer increased reach

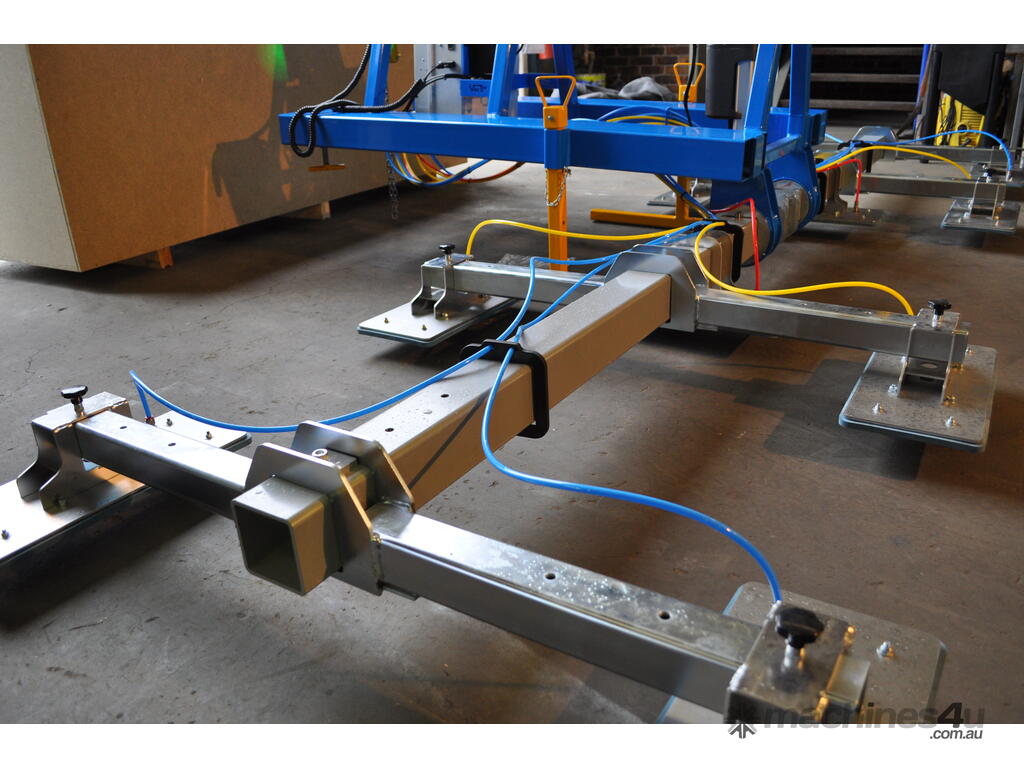

4 spreader beams to increase working area
Fully self contained air supply and battery power.
No need for power or air from the Forklift / Jib-crane.
Power tilt through 90 degrees using twin tilt rams
240v/12v Fully automatic battery charger supplied, to recharge the main battery when required.
Pendant control with curly cord extension cable
Audible and visual alarms to meet Australian standards
Extra large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging. Please note the lifter can still be used when the battery has reached the recharging level but is not yet at a level that the battery is flat.
Set down legs to protect pads when unit is not in use.
Powder coated and zinc finish.
Built to Australian standards.
Full 12 month factory warranty
Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:
- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf
Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.
Vaclift offers a complete range of vacuum lifting equipment to suit almost any situation. Designed and manufactured by Blue Water Engineering, Vaclift is Australian made and designed to save you time, money and injury.
Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.
Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.
* Click on the pdf spec sheet for more information *
