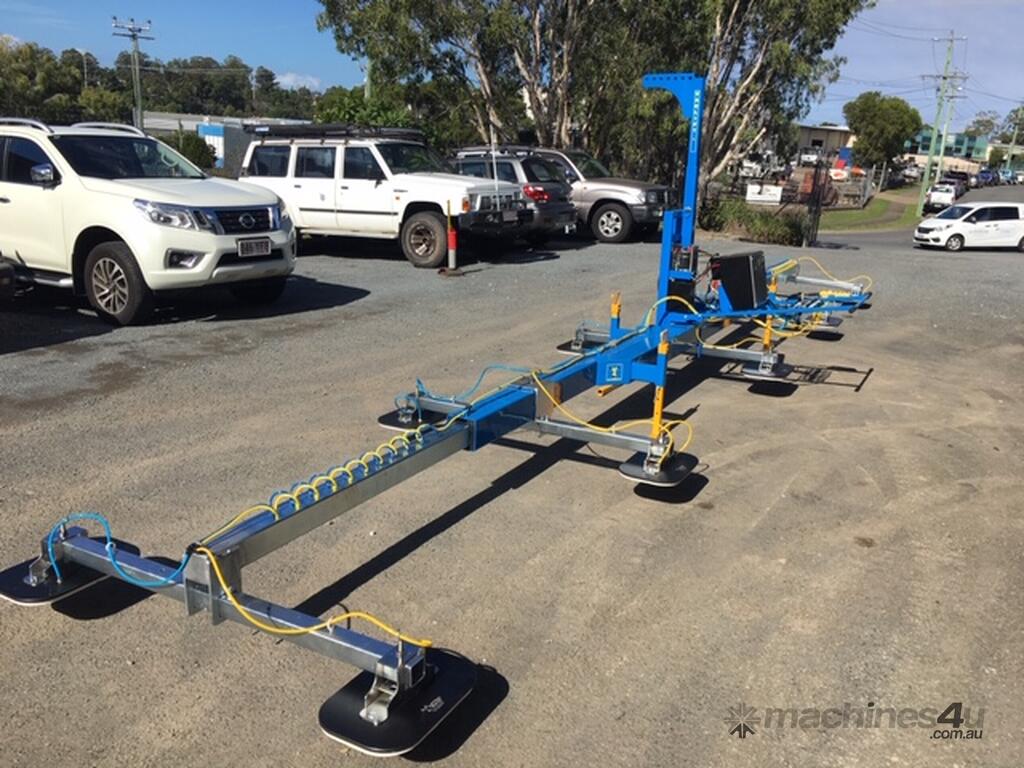

VACLIFT - Crane Vaclift with Power Tilt

Custom built for the Truck and Trailer industry and the manufactures of large (15000mm) composite panels to lift and tilt easily and safely. Also suitable for smaller panels.

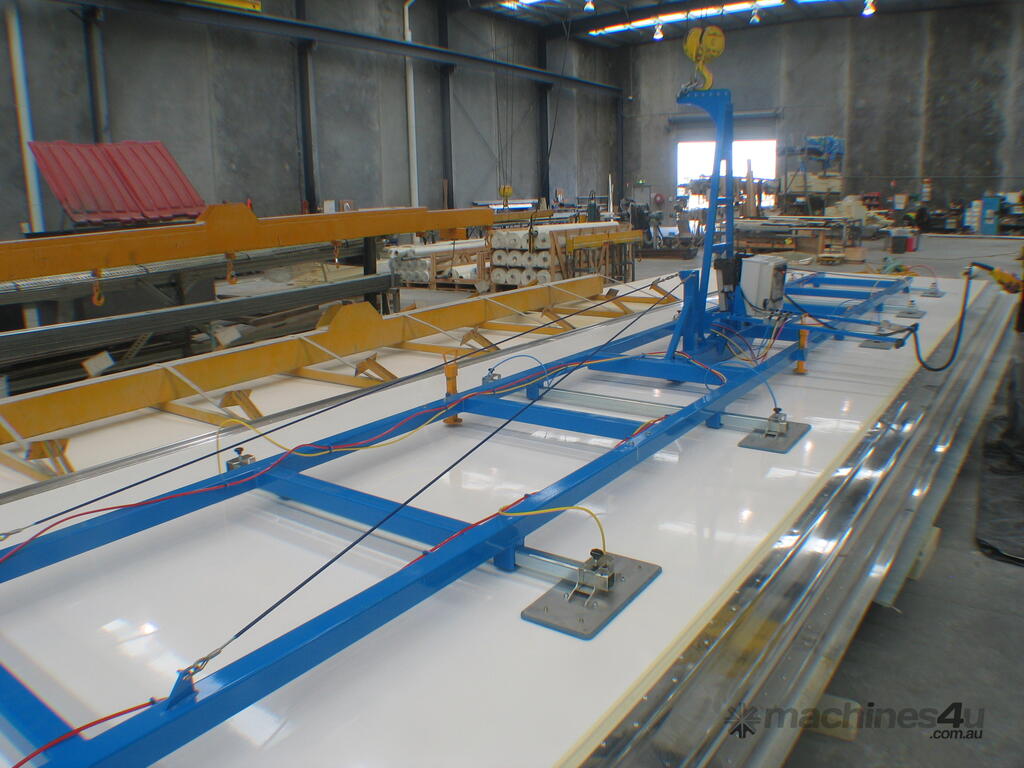

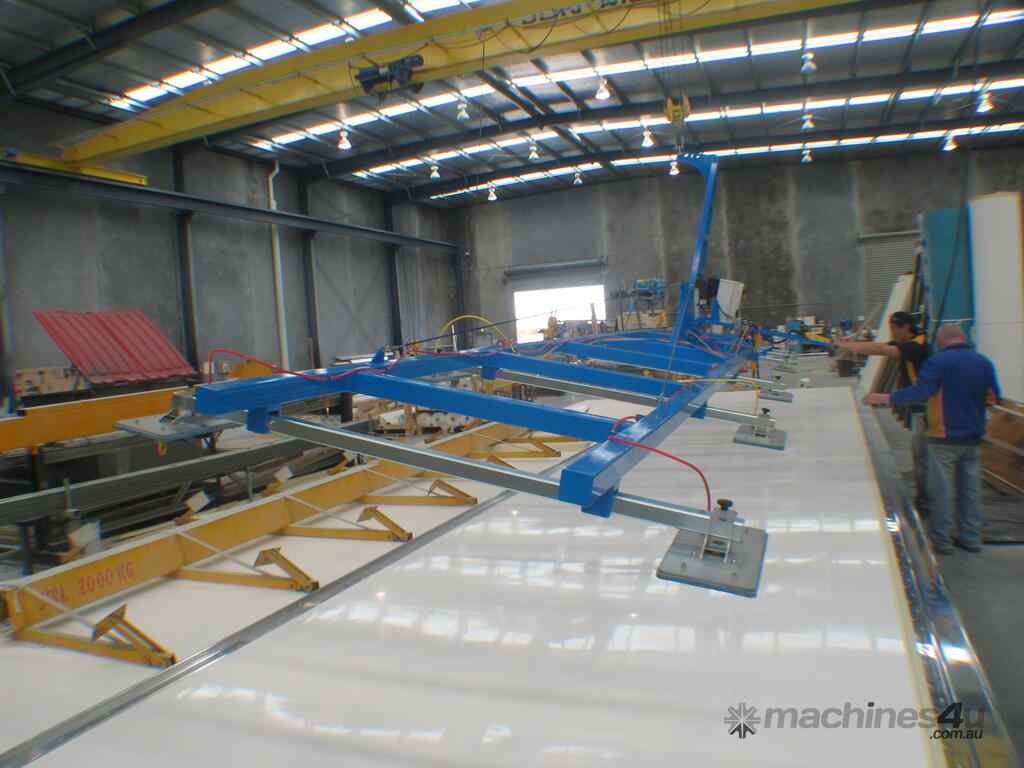

CVL Vaclift Range - Designed primarily for attachment to crane, gantry or jib system and to provide a safe and efficient resolution for moving materials within the workshop, factory or warehouse environment. Ideally suited for moving and installing large composite panels on truck and trailer units.

Fully self contained Batttery unit
1000kg maximum lift.

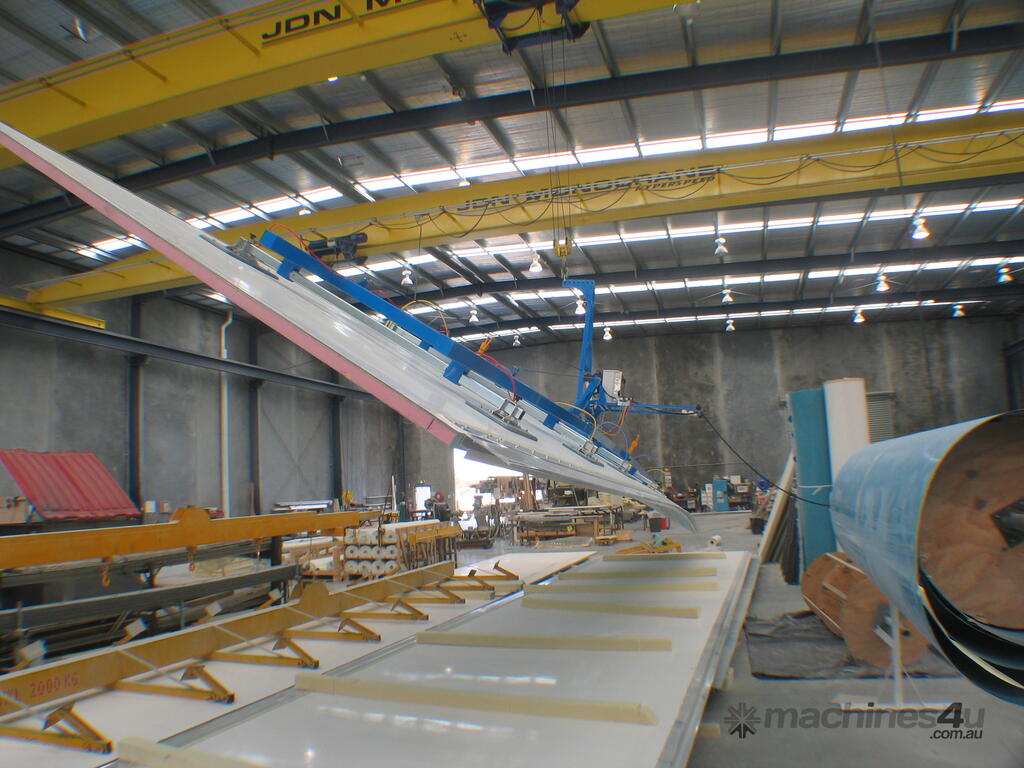

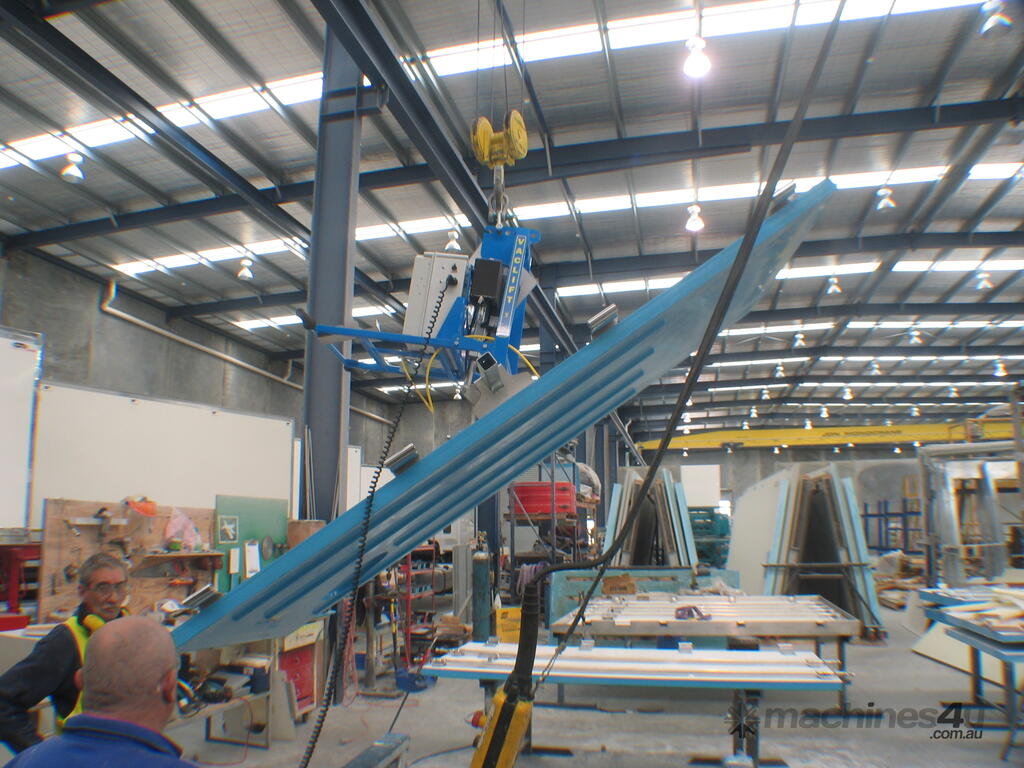

Power tilt through 90deg

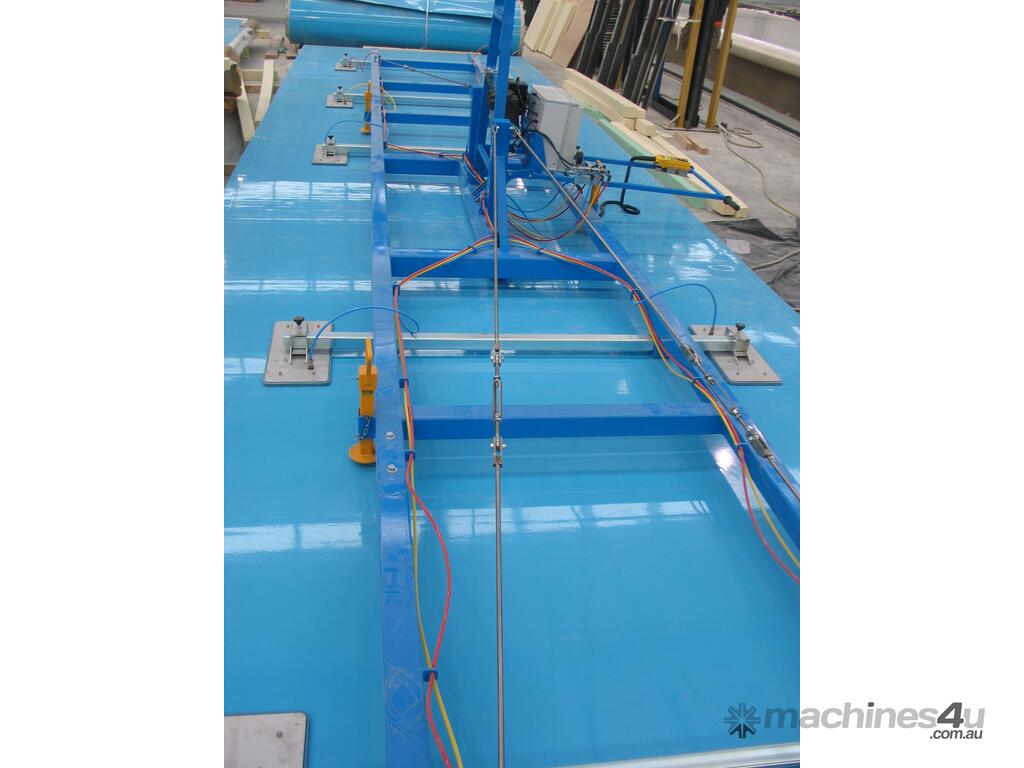

12 Hi vac pads.
Main beam approx 10000mm long or as required
Pads can be individually isolated.

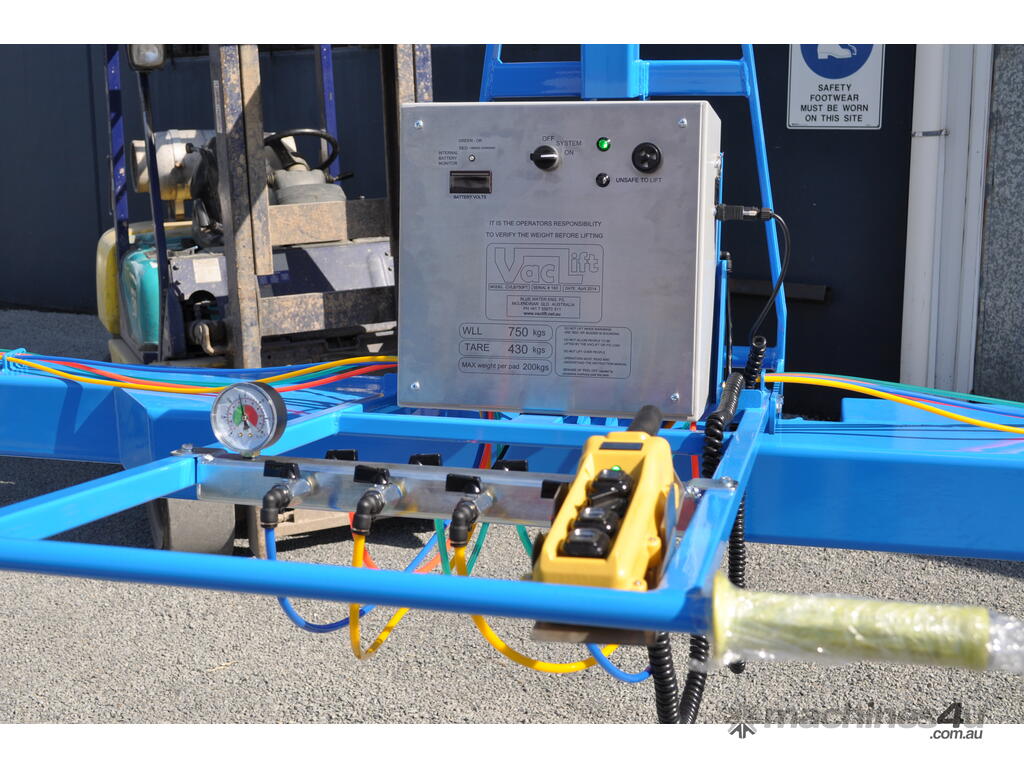

Audible and visual alarms.
Plug in 12 volt battery charger.
Powder coated and zinc finish.

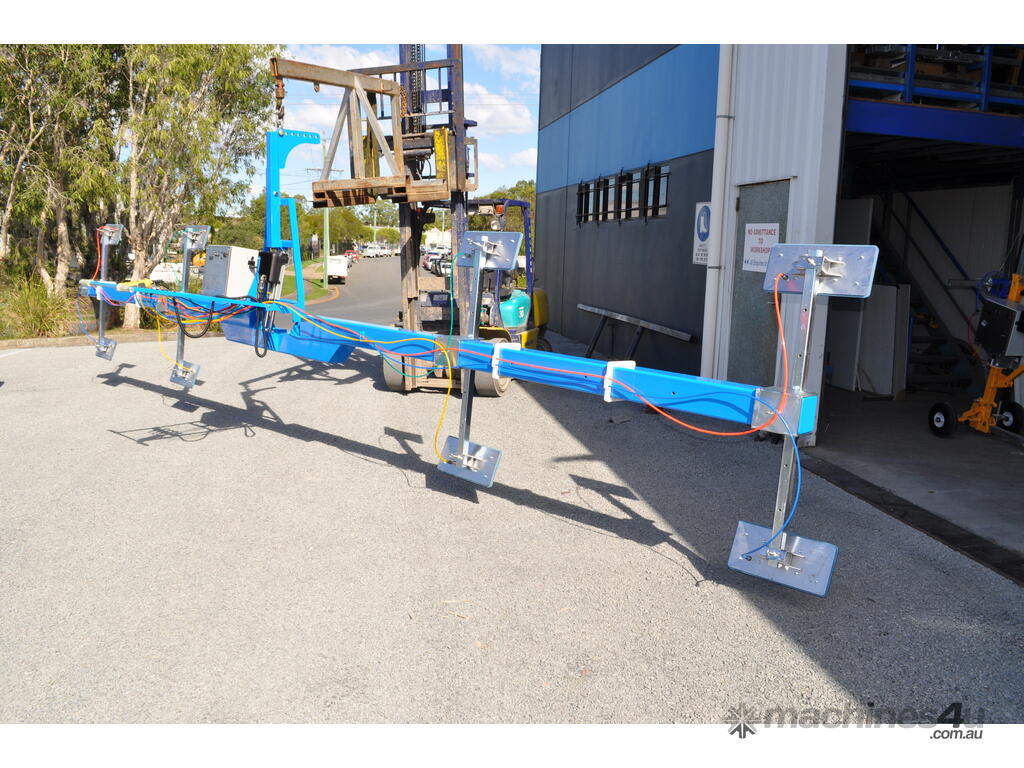

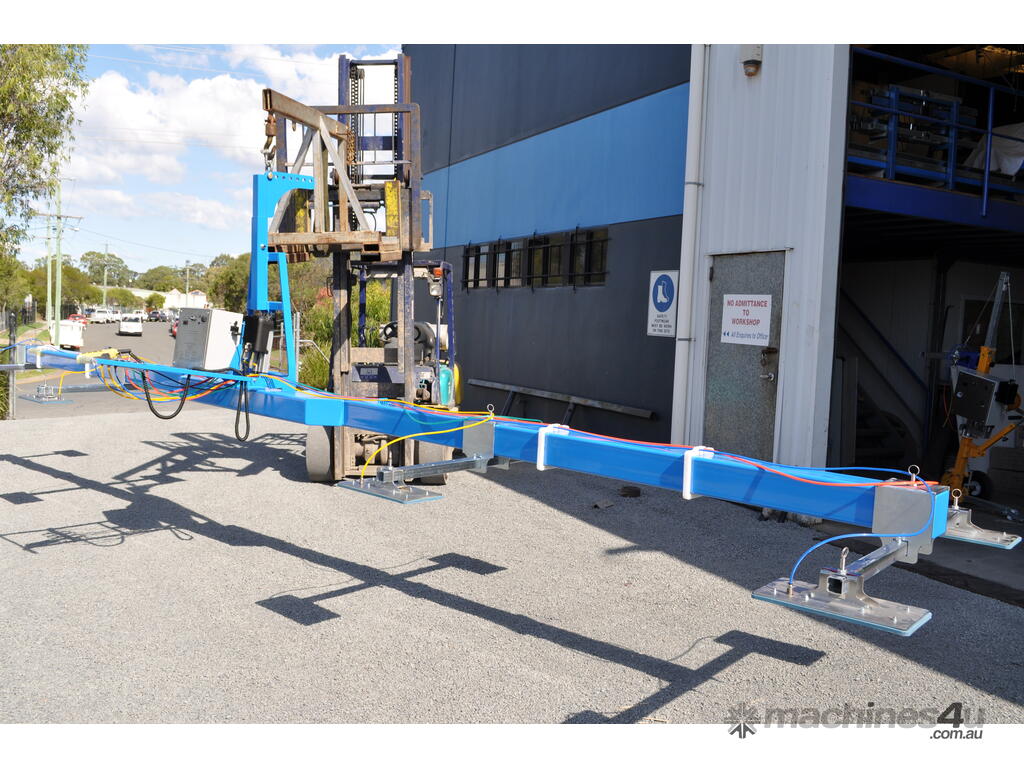

Drop down legs to protect pads when unit is not in use.
Built in Australia to Australian standards.

1000kg Vaclift units with tilt are also available as model CVL1000PT and powered by compressed air supply (Shop air 2.5cfm 80psi)

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.


Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
