VACLIFT - Lift large heavy plates

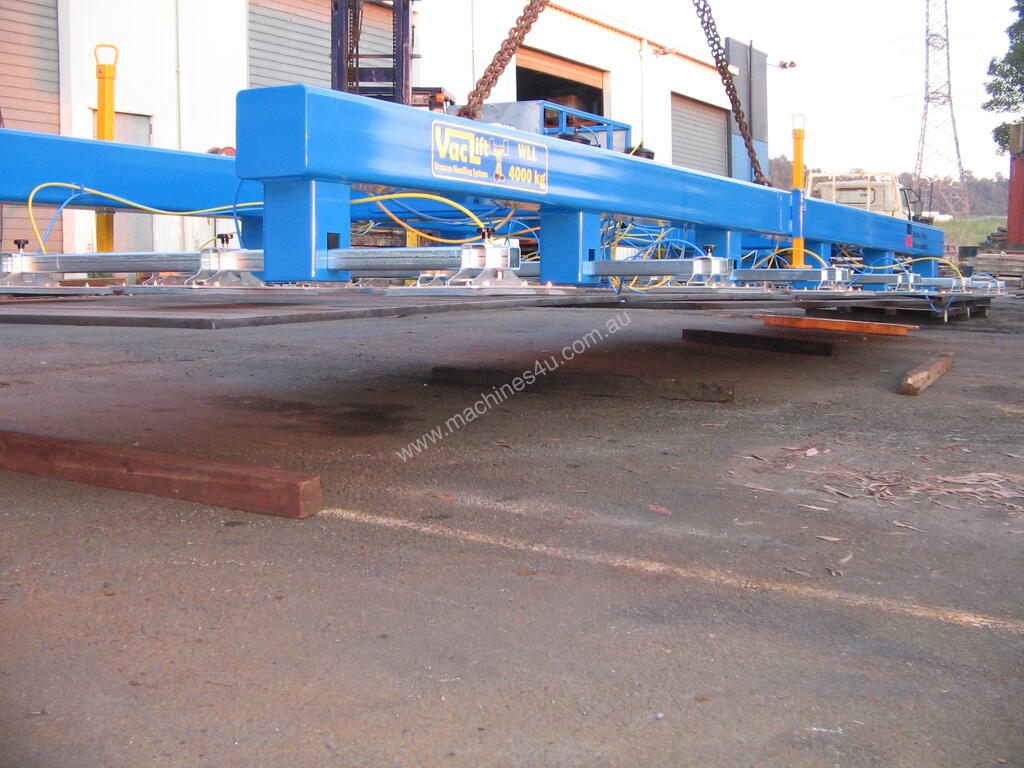

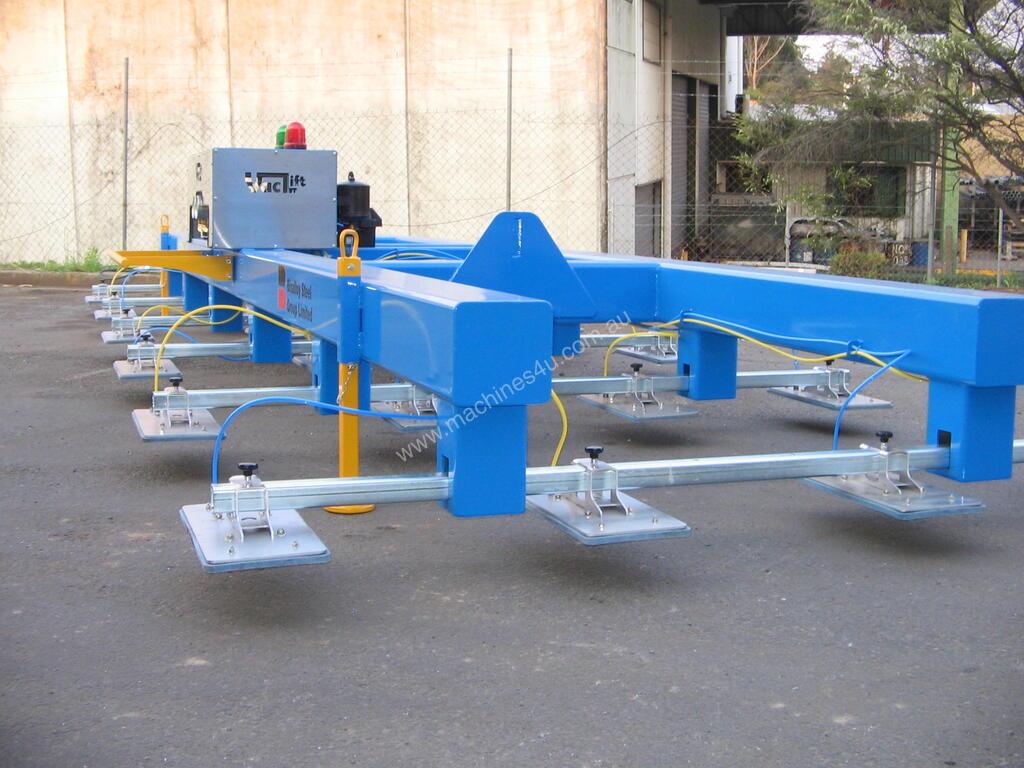

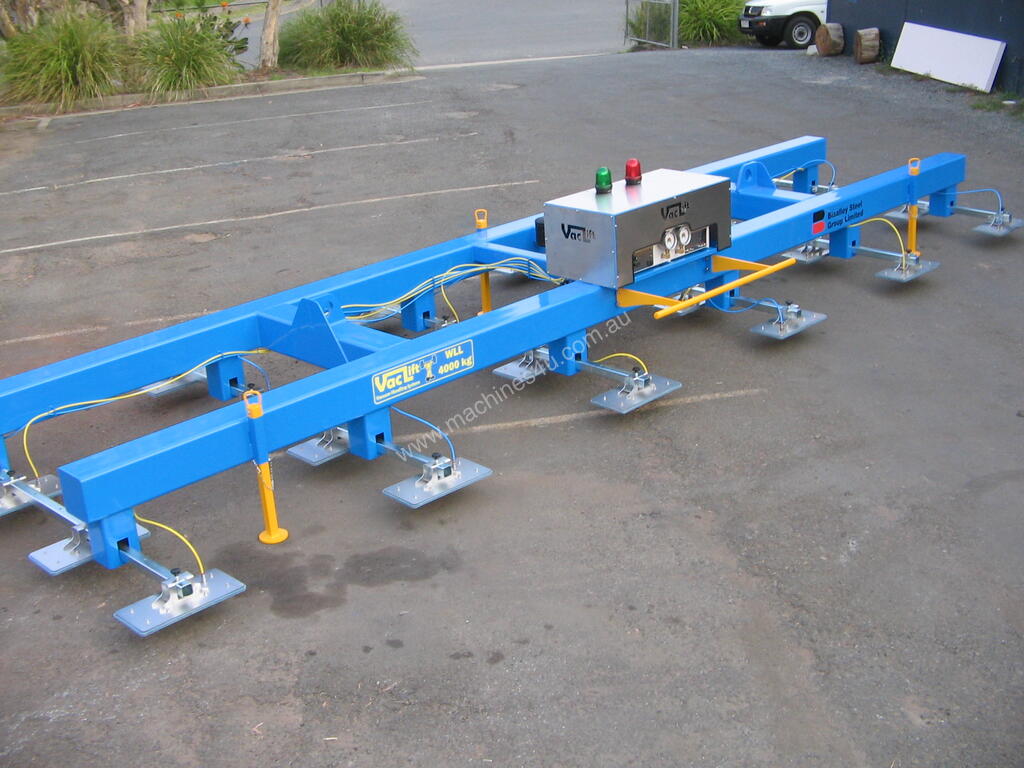

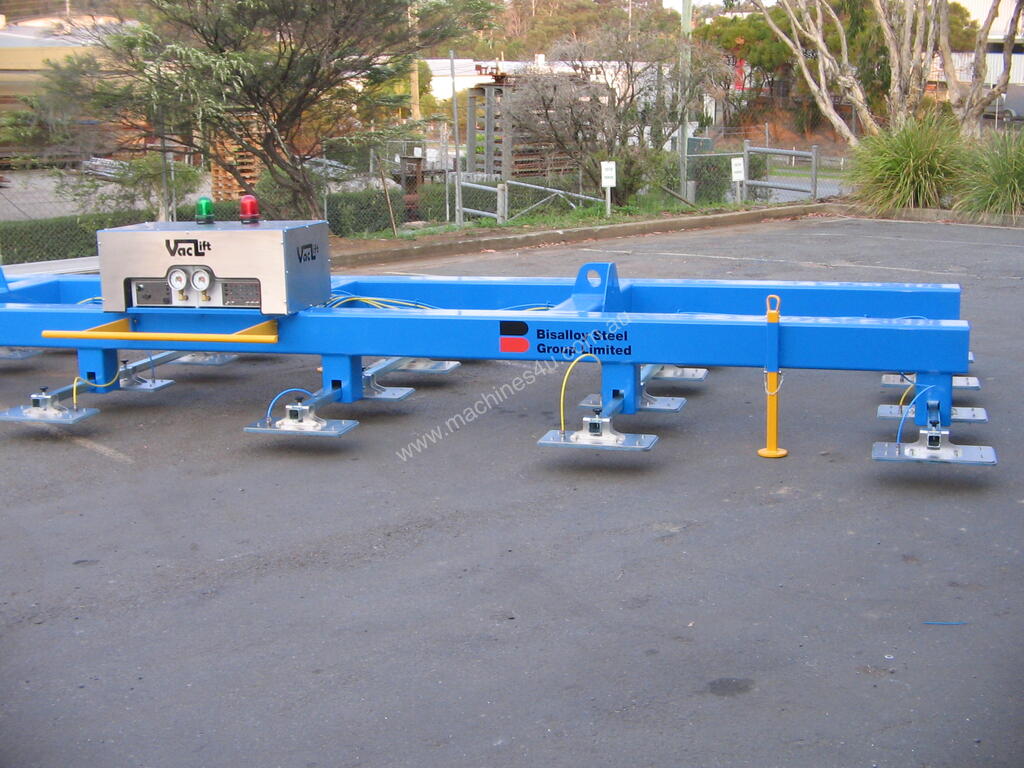

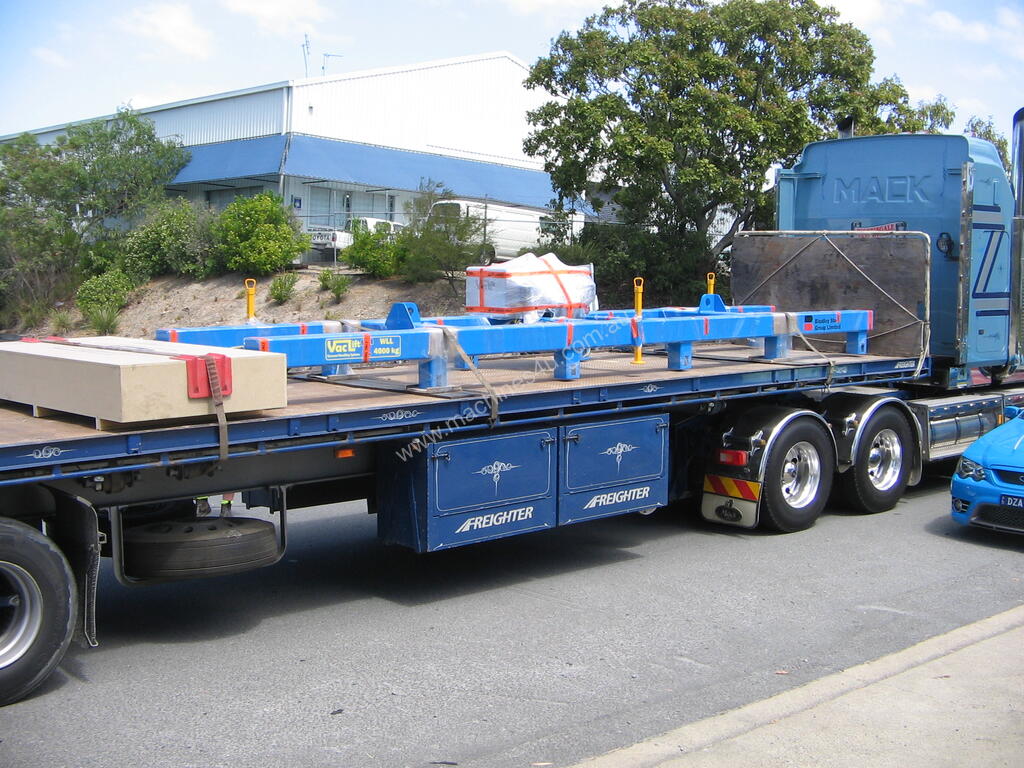

CVL4000 VACLIFT vacuum lifter.

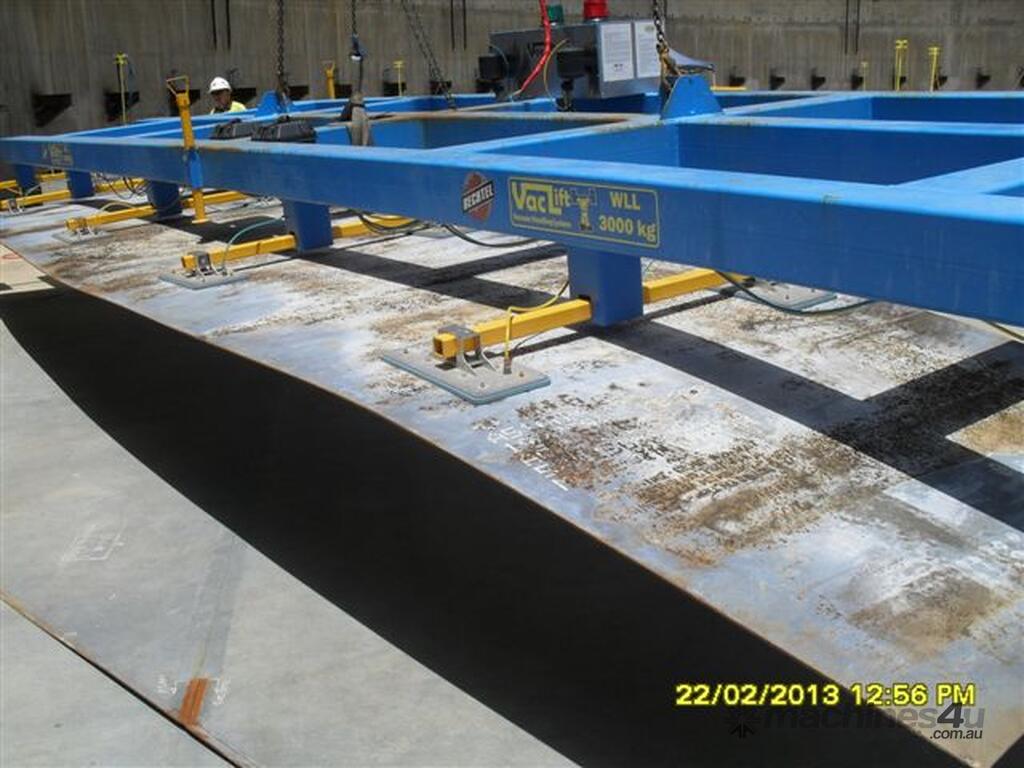

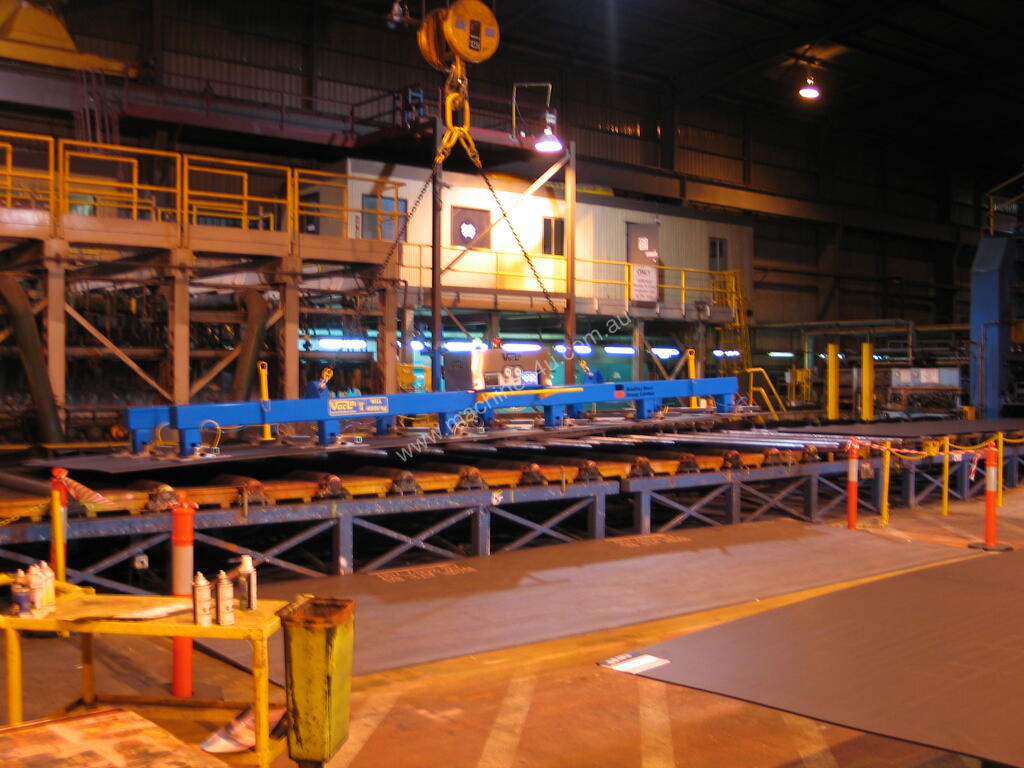

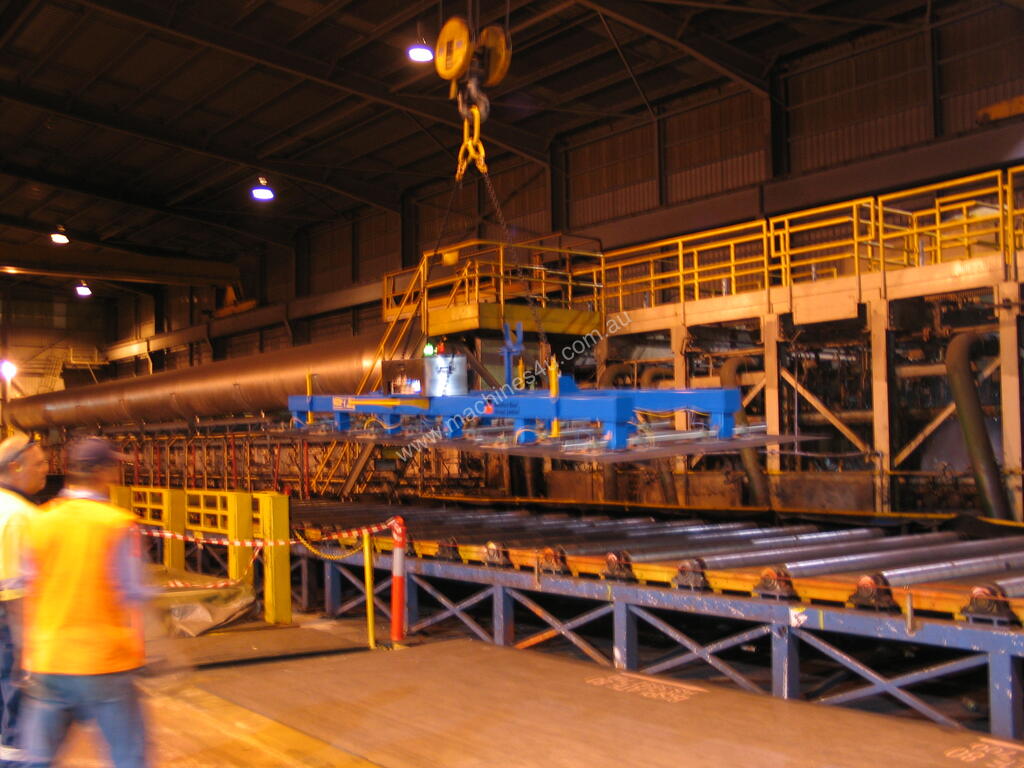

Custom built Vaclift for lifting large plates in heavy industry and mining applications.

As the manufacturers we can custom design and build a Vaclift to your specifications at a competitive price. With a full engineering design team, Blue Water Engineering provides full and easy access to servicing, spare parts, support and onsite training.

Contact us to discusss your specific requirements

CVL4000BWS Specifications:
Dedicated crane unit.
Fully self contained battery powered.
Dual vacuum circuits, both capable of holding the maximum weight individually.
Dual batteries for longer operating life between charges.
Multiple lifting points.
Set down legs to protect pads when not in use.

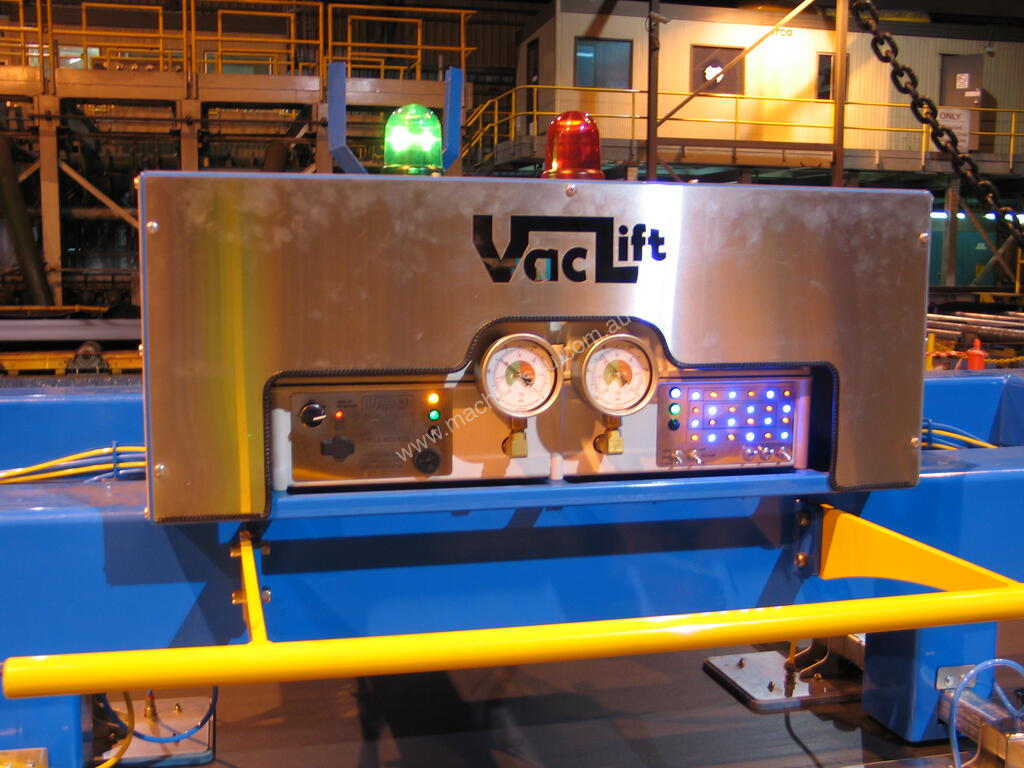

Fully audible/visual alarms and gauges to meet Australian standards.
Painted and zinc finishes.
24 fully vulcanised vacuum pads, all pads can be isolated individually for lifting odd shaped plates.
On site commissioning and training available.
Full 12 month factory warranty

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.

Designed and manufactured by Blue Water Engineering, Vaclift is Australian made and designed to save you time, money and injury.
Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
