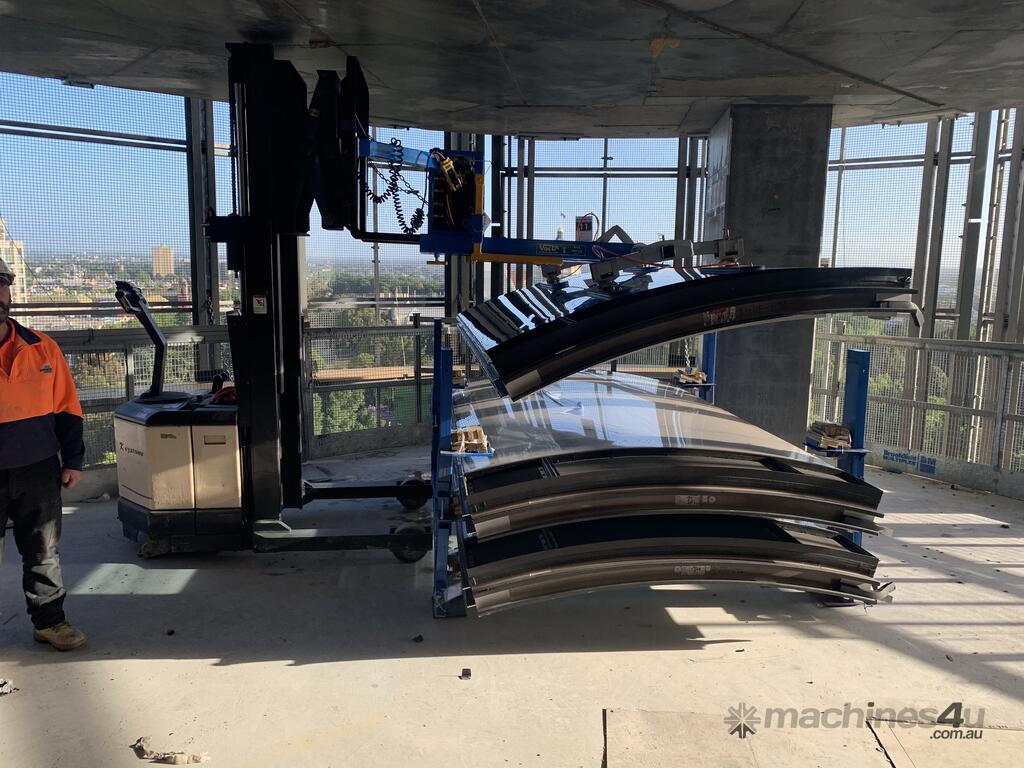

VACLIFT - Rotating unitized curved glass panels

Fully self contained battery powered vacuum system
Specifications:
500kgs WLL maximum lifting capacity

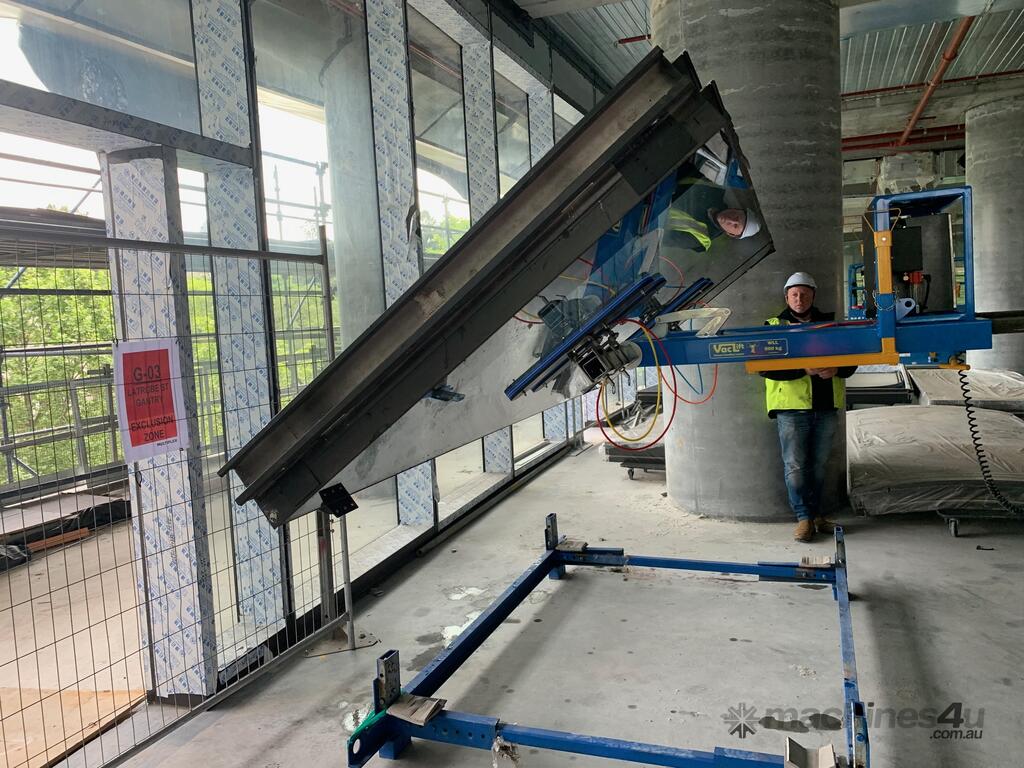

Power tilt through 180 degrees
Fork tyne pockets to suit rotation of Unitised panels
Main bar Approx OA length 2000mm TBC
2 Spreader bars approx 1000mm long TBC

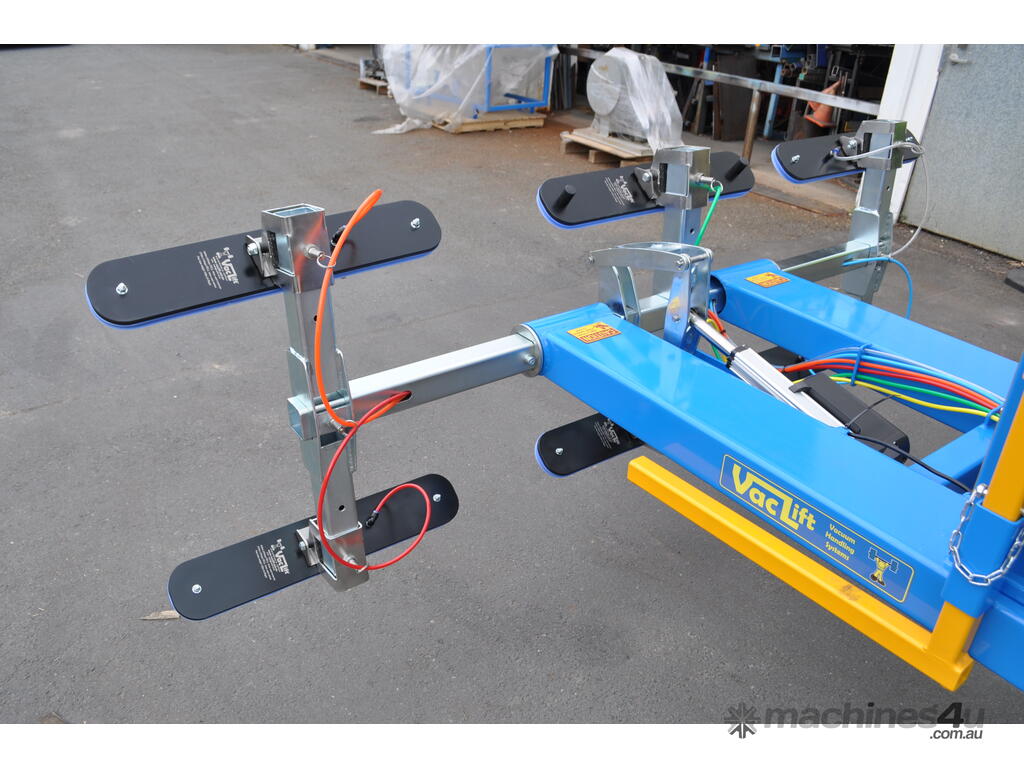

Vaclift contour vacuum pads with swivel mounts to suit curved glass
Pads measure approx 650mm x 120mm
Each pad can be independently isolated
To accommodate varying material sizes pads can be relocated along bar into predetermined positions or be rotated 90 degrees on bars. Our 10mm heavy duty stainless pad latches enable quick changing of pad positions.
Fully self contained vacuum supply and battery power.
No need for power or air from the crane.
240v/12v Fully automatic battery charger supplied, to recharge the main battery when required.

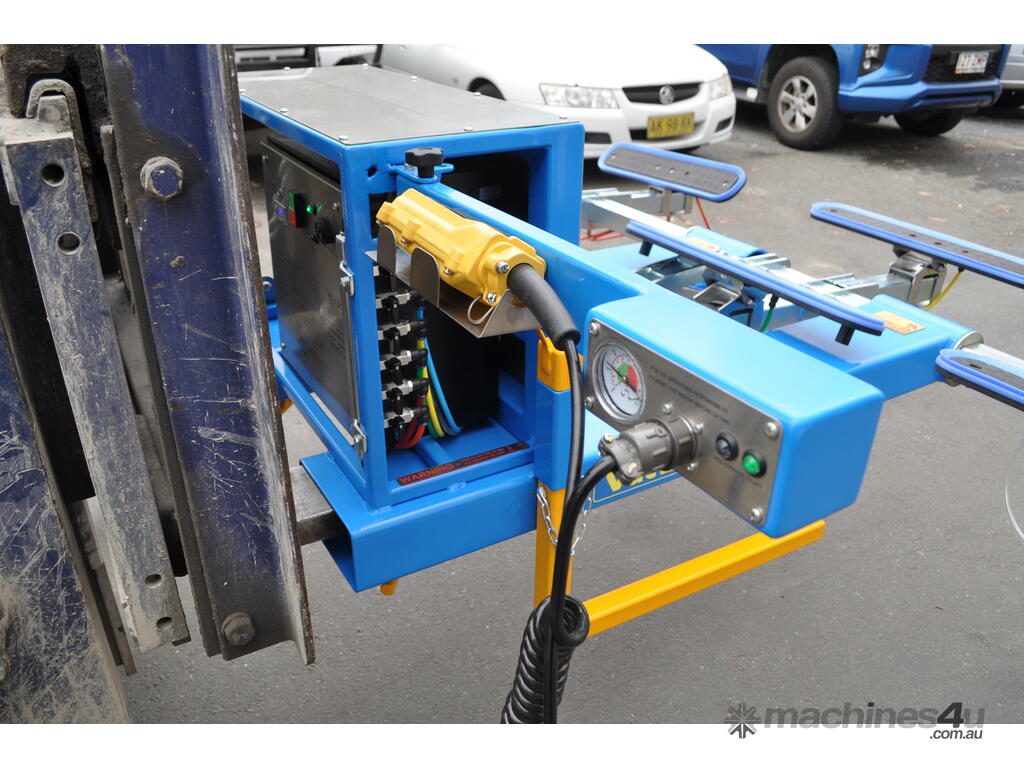

Pendant control with extendable cable
Audible and visual alarms to meet Australian standards
Large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging. Please note the lifter can still be used when the battery has reached the recharging level but is not yet at a level that the battery is flat.
Drop down legs to protect pads when unit is not in use.
Powder coated and zinc finish
Approx Tare weight 210kg
Built to Australian and New Zealand standards AS4991-2004 and
USA standards ASME BTH-1-2017 Design Category “B” Service Class “1”
Full operating, care and maintenance and safety instructions
12 month factory warranty

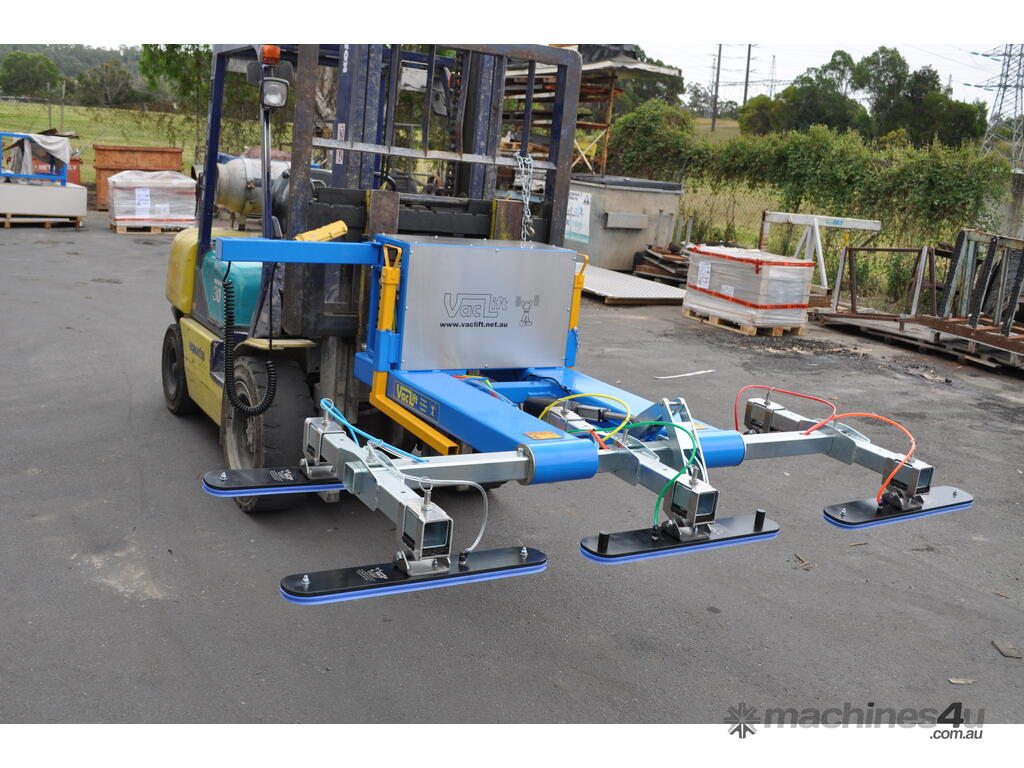

Forklift tine pockets with large screw locks enable the unit to easily and quickly be fitted or removed from the forklift.
Safety chain from Vaclift to Forklift.

As the manufacturers we are able to demonstrate all aspects of Vaclift plus explain our individually design capability and available options that enable us to offer you the perfect lifting solution

Offering a complete range of vacuum lifting equipment to suit almost any situation Blue Water Engineering is a global supplier of Vaclift handling systems - service and support are an important part of purchasing new equipment, we pride ourselves on making sure your Vaclift is supported throughout its working life.

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.
Designed and manufactured by Blue Water Engineering. Vaclift is Australian made and designed to save you time, money and injury.

Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
