VACLIFT - Vaclift and Jib crane package to customer specifications

Designed and built to withstand the industrial pressures of sand and water as found in waterjet cutting operations. Ideal for loading all types of cutting benches. Larger units available for operators loading larger cutting benches or lifting heavier material.

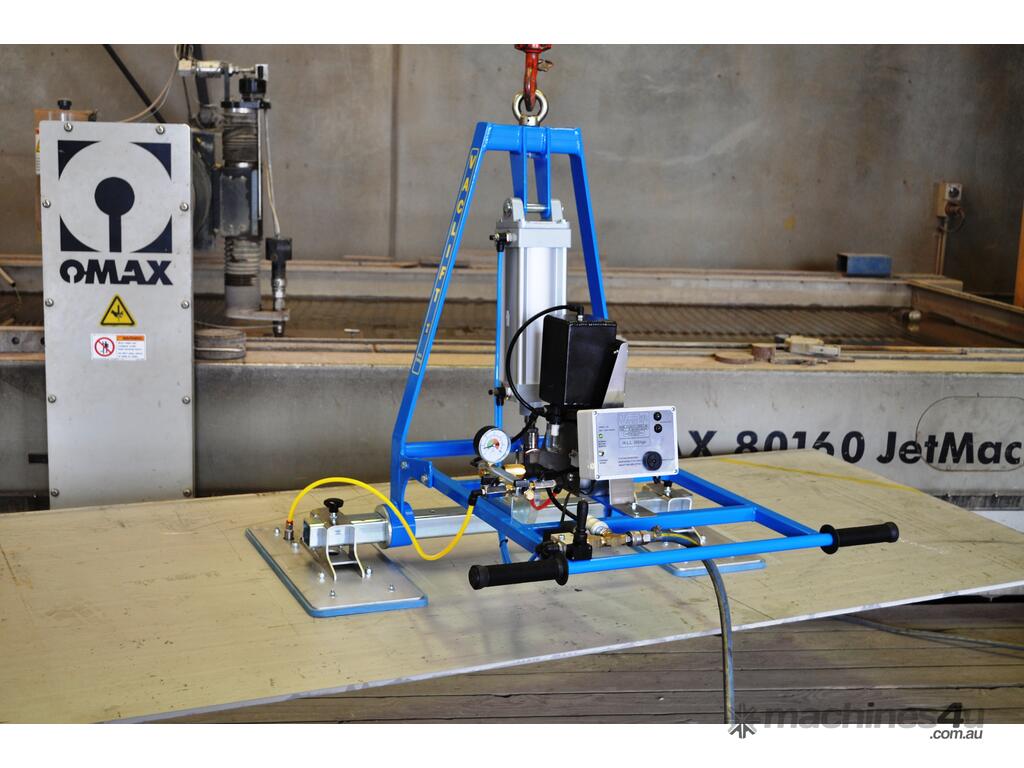

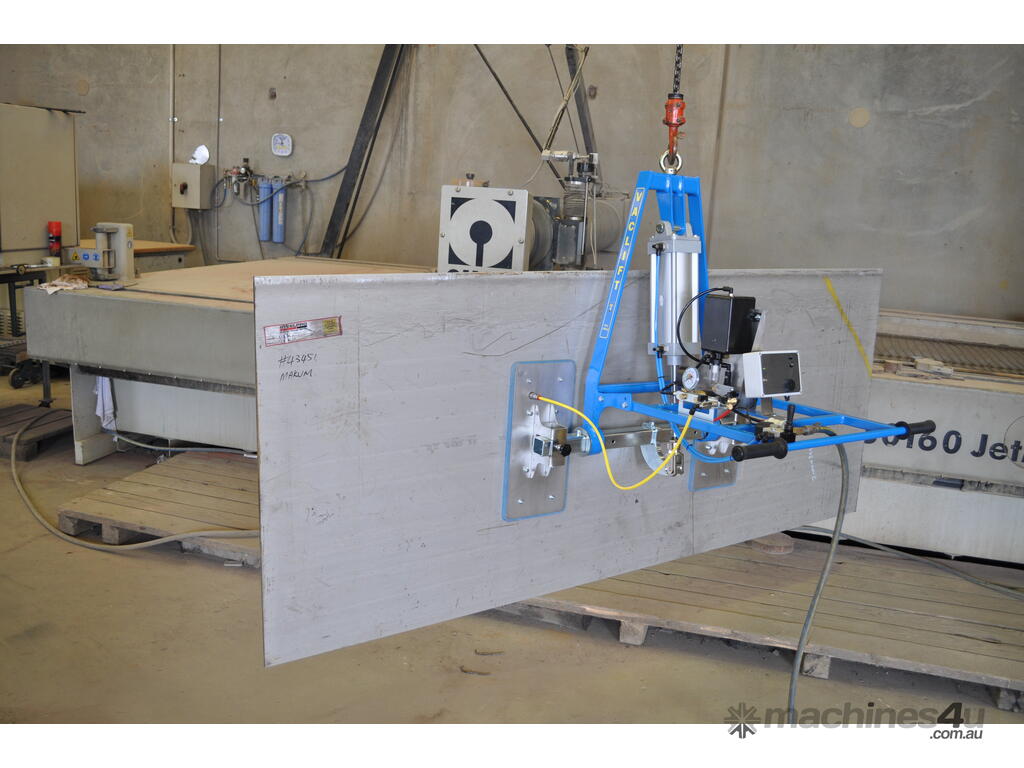

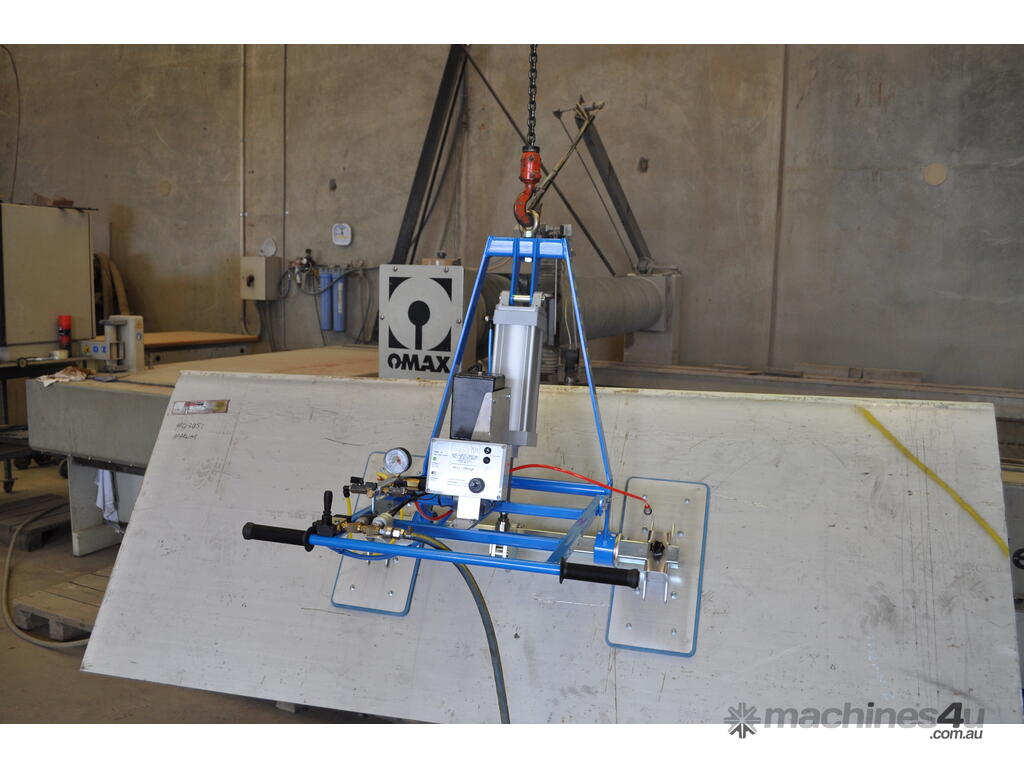

Product specifications:
250kg maximum lift.
Compressed air supply ( Shop air 2.5cfm 80psi ).
Power tilt through 90deg
2 Hi vac pads.
OA length 2300mm
All pads can be isolated individually.
Audible and visual alarms.
Plug in 12 volt battery charger.
Powder coated and zinc finish.
Slide on legs to protect pads when unit is not in use.
Built in Australia to Australian standards.

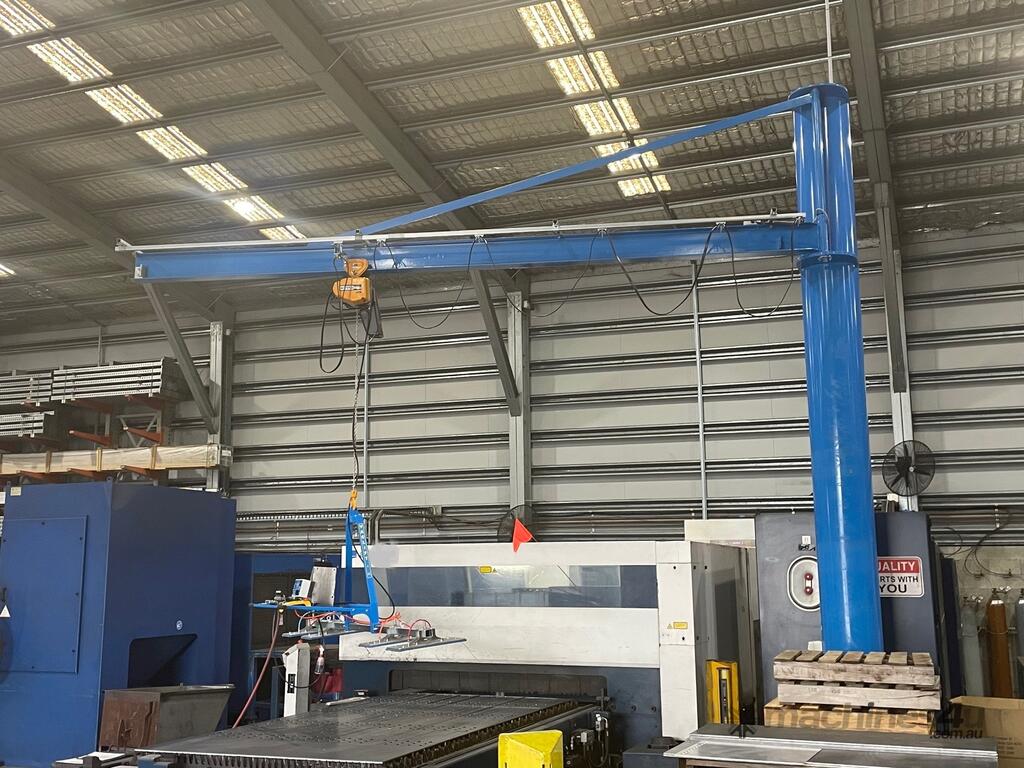

Jib Crane and 300kg 3 phase electric hoist

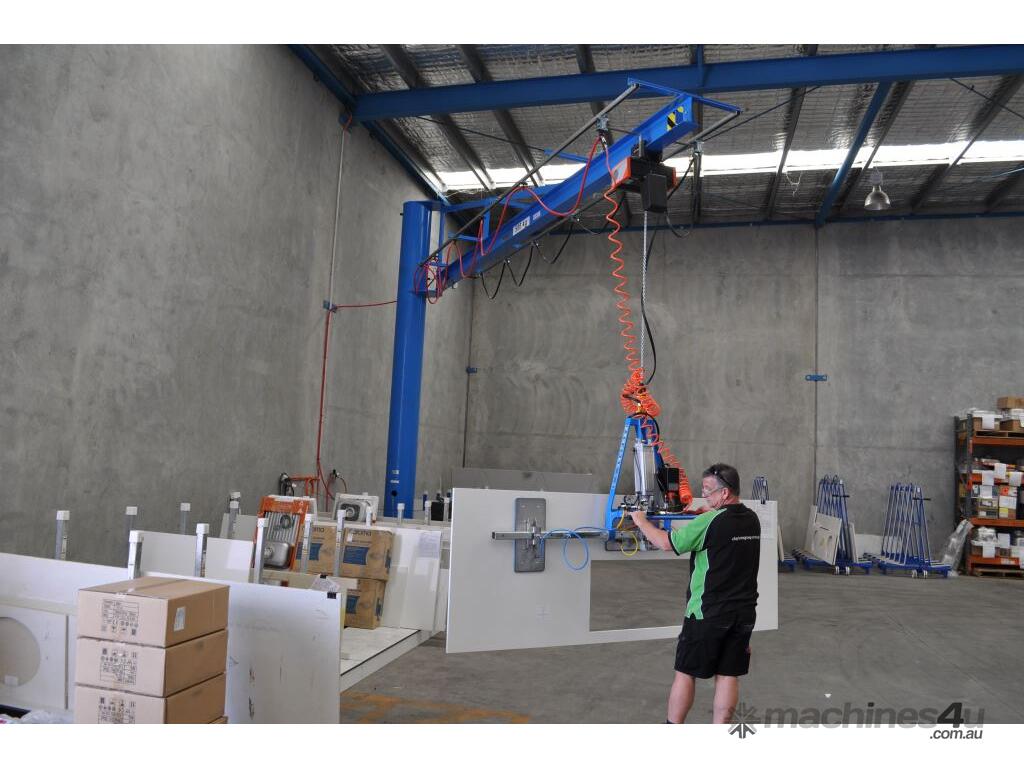

Supplied as a complete Jib/lifter package for applications in a smaller environment or where there is no need for an overhead gantry crane and for those requiring a fixed system to move materials over a shorter distance.

CVL Vaclift Range - Designed primarily for attachment to crane, gantry or jib system and to provide a safe and efficient resolution for moving materials within the workshop, factory or warehouse environment. Ideally suited for loading and unloading workbenches, cutting machines, lasers, routers and the like.

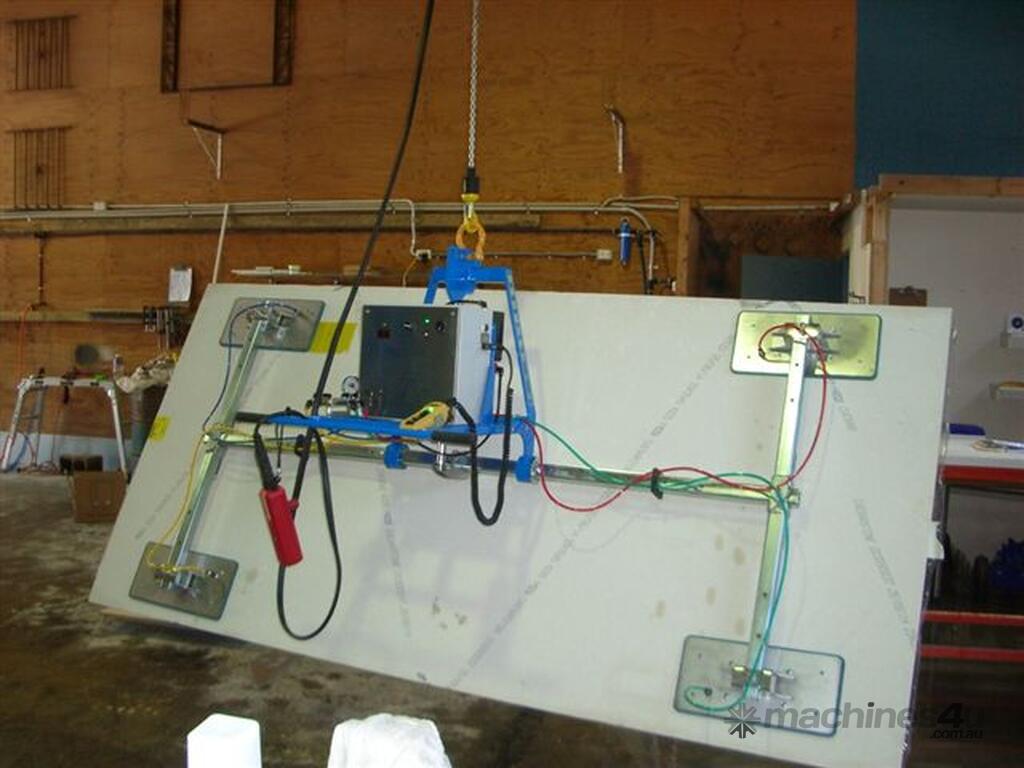

Normally required or supplied as a unit using compressed air supply ( Shop air 2.5cfm 80psi) but also available as a fully self contained battery powered unit with no need for power or air from the crane. Tilt and slew functions plus various pad layouts available to suit individual customers requirements.

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.


Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.
