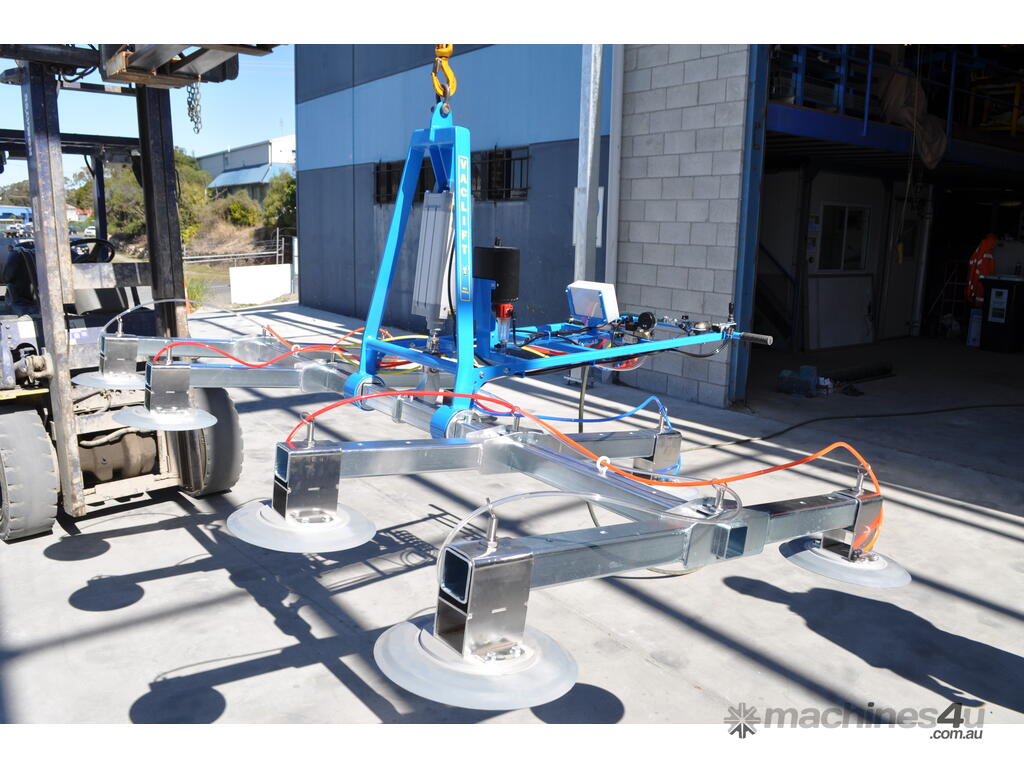

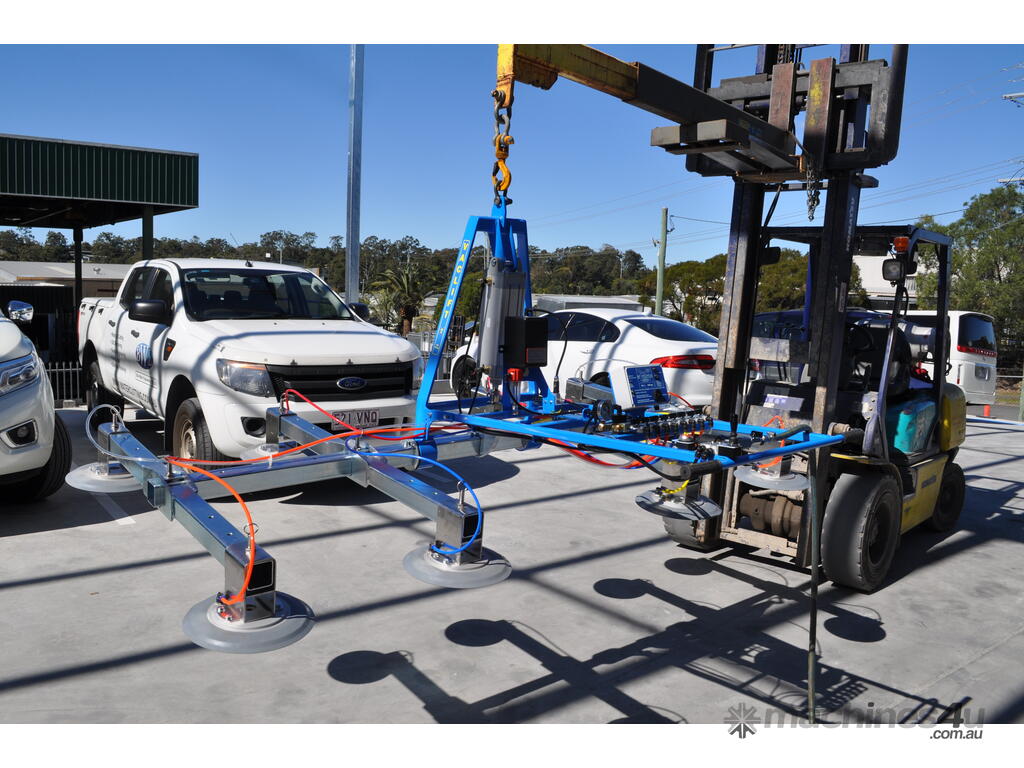

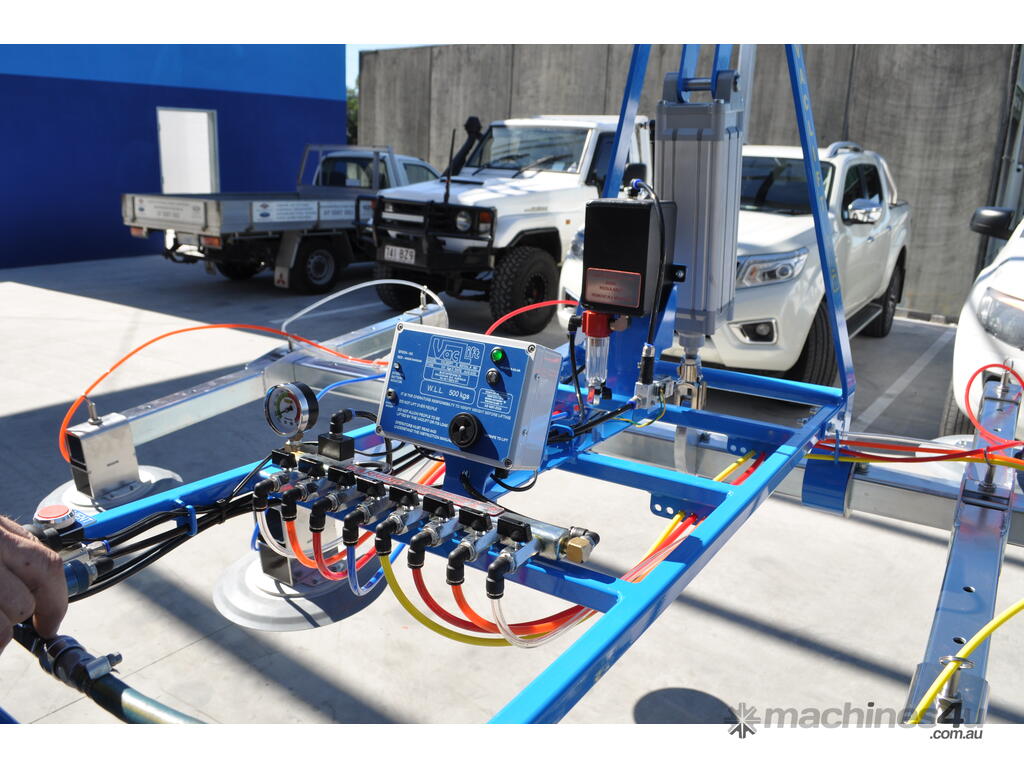

VACLIFT - Vacuum lifter for stone slabs - 500KG

Robust Australian made design ideal for loading all types of cutting benches. Built to withstand the industrial pressures of sand and water as found in waterjet cutting operations. Larger units available for operators loading larger cutting benches or lifting heavier material.

CVL500PT Product specifications:
500kg maximum lift.
Compressed air supply ( Shop air 3.4cfm 80psi ).

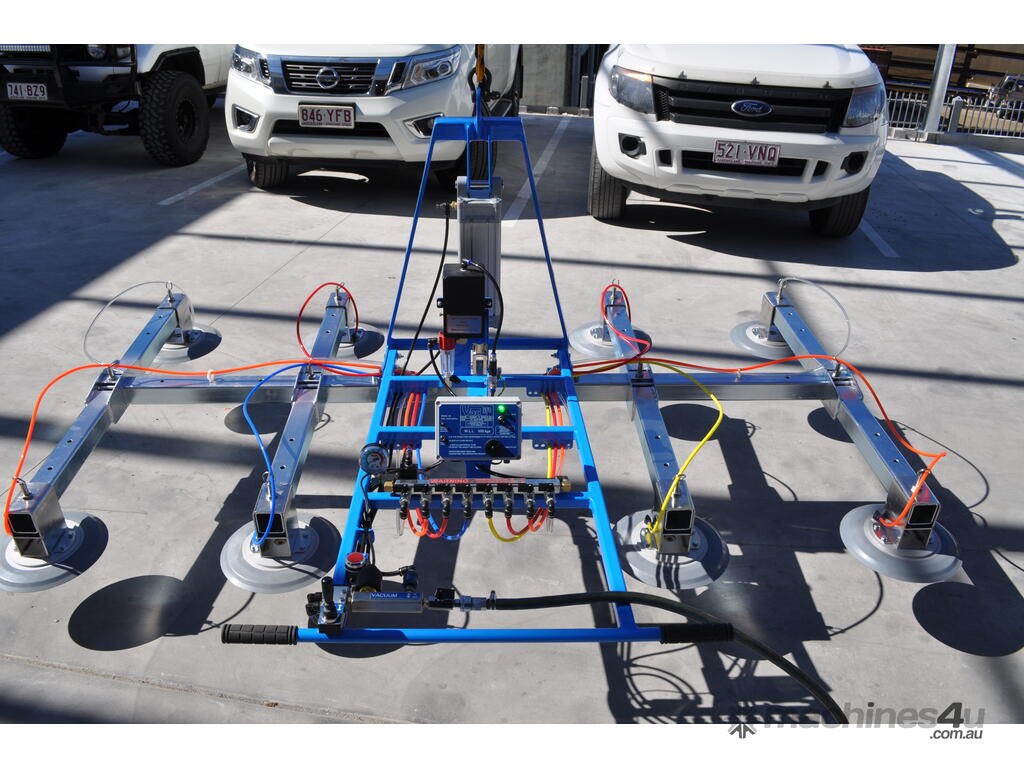

8 vaclift 300mm vacuum pads.
OA length to customer specs
All pads can be isolated individually.
Audible and visual alarms.
Plug in 12 volt battery charger.
Powder coated and zinc finish.
Slide on legs to protect pads when unit is not in use.
Built in Australia to Australian standards.

CVL Vaclift Range - Designed primarily for attachment to crane, gantry or jib system and to provide a safe and efficient resolution for moving materials within the workshop, factory or warehouse environment. Ideally suited for loading and unloading workbenches, CNC machines etc

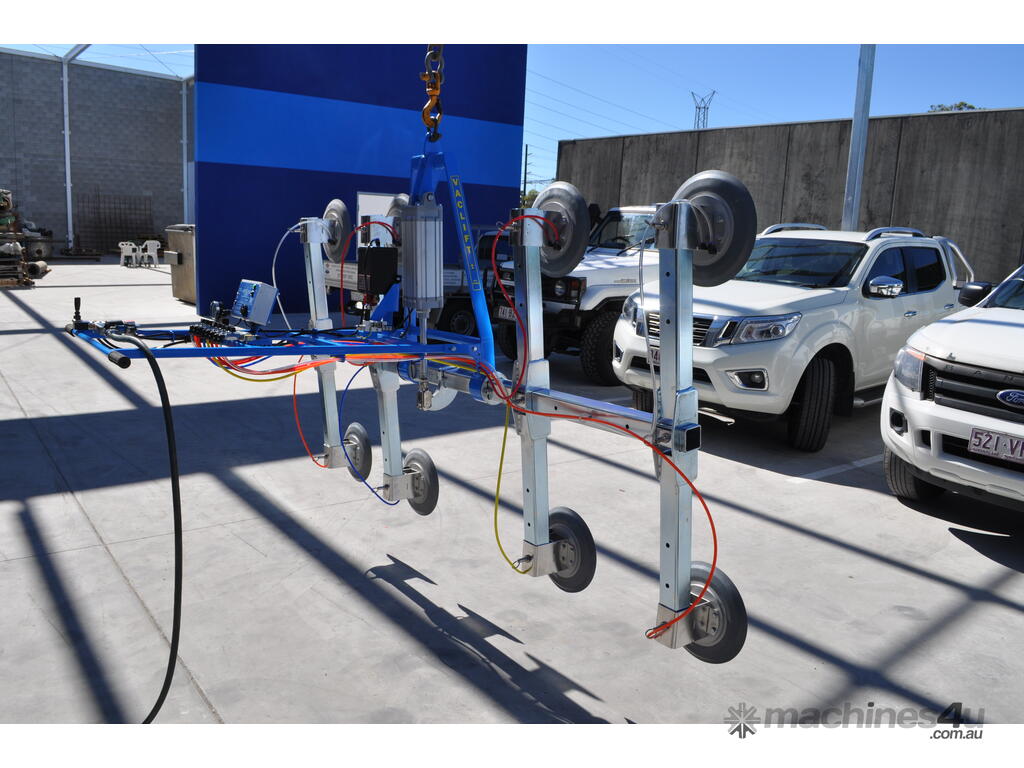

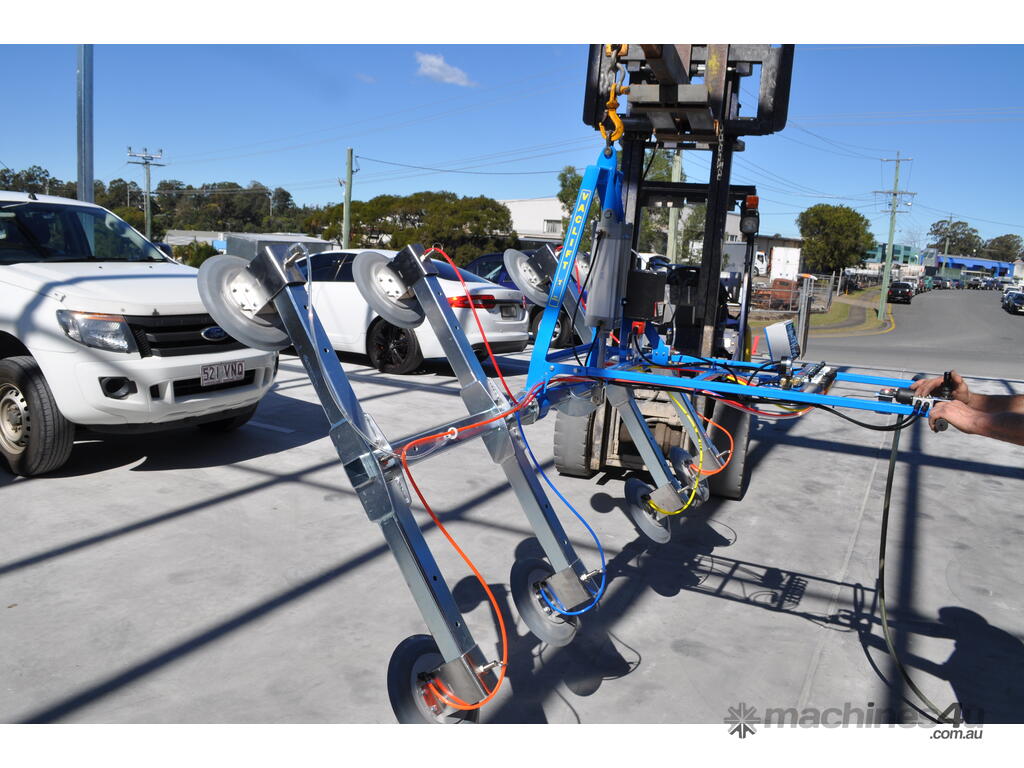

May be supplied as a unit using compressed air supply ( Shop air 3.4cfm 80psi ) or as a fully self contained battery powered unit (CVLB500) with no need for power or air required from the crane. Tilt and slew functions plus various pad layouts available to suit individual customers requirements.

We also able to provide a complete Jib/lifter package for applications where there is no need for a large overhead gantry crane and for those requiring a fixed system to move materials within an arc.

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.


Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
