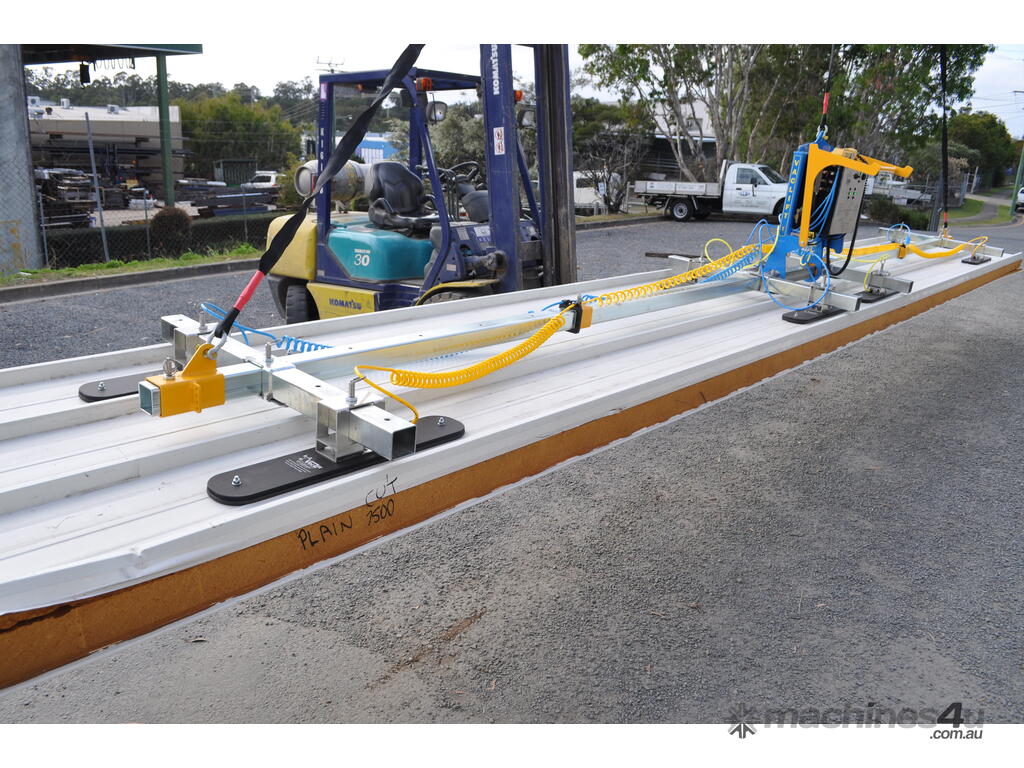

VACLIFT - Vacuum lifter - metal building panels -1000KG

Specifications:
Fully self contained vacuum supply and battery powered vacuum system
Base unit maximum lifting capacity 1000 kg WLL (2200lbs)
Manual tilt with locks
Pendant control for vacuum system operation, includes curly cord extension cable, vacuum pump and vent switching, additional audible and visual alarms
Pads may be relocated along main bar or cross spreader bars and locked into predetermined positions, pads may also be turned 90 degrees on bars. Heavy duty stainless pad latches enable quick changing of pad position
Base unit main bar length approx 1000mm
4 x Cross spreader bars approx 1000mm long Extension bars
4 x 1500mm long (Taking OA main Bar length to approx. 7000mm) Extension bar joiner
2 x bar joiner fittings
8 Vaclift contour Vaclift pads (rated at 115kg each for horizontal and 75kg each for vertical lifting).

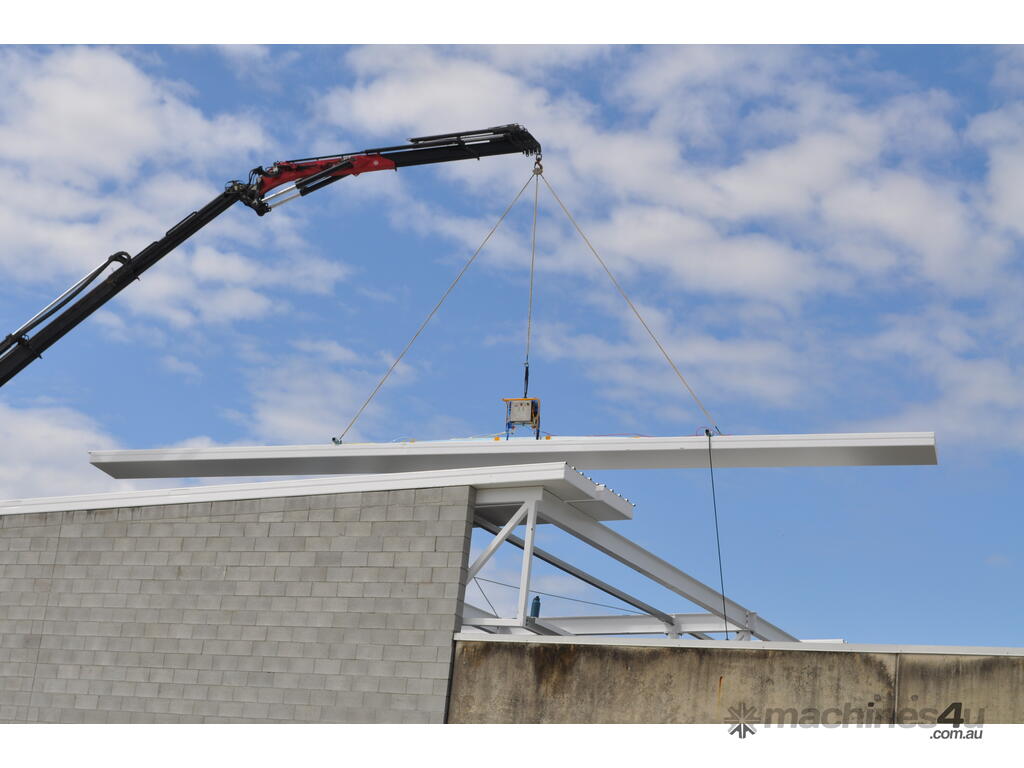

Each pad can be independently isolated3 leg Dynice Lifting sling cable set includes
· 1 x 6mm x centre Dynice/Dyneema Engineered lifting sling - Polyester covered
· 2 x 6mm x outer DyniceDyneema Engineered lifting sling - Polyester covered
· 1 x lifting point head bracket
· 2 x main bar sling cable brackets
Ergonomic handle folds down to form set down leg, for protection of pads when unit is not in use
Powder coated and zinc finish.
2 x Safety straps

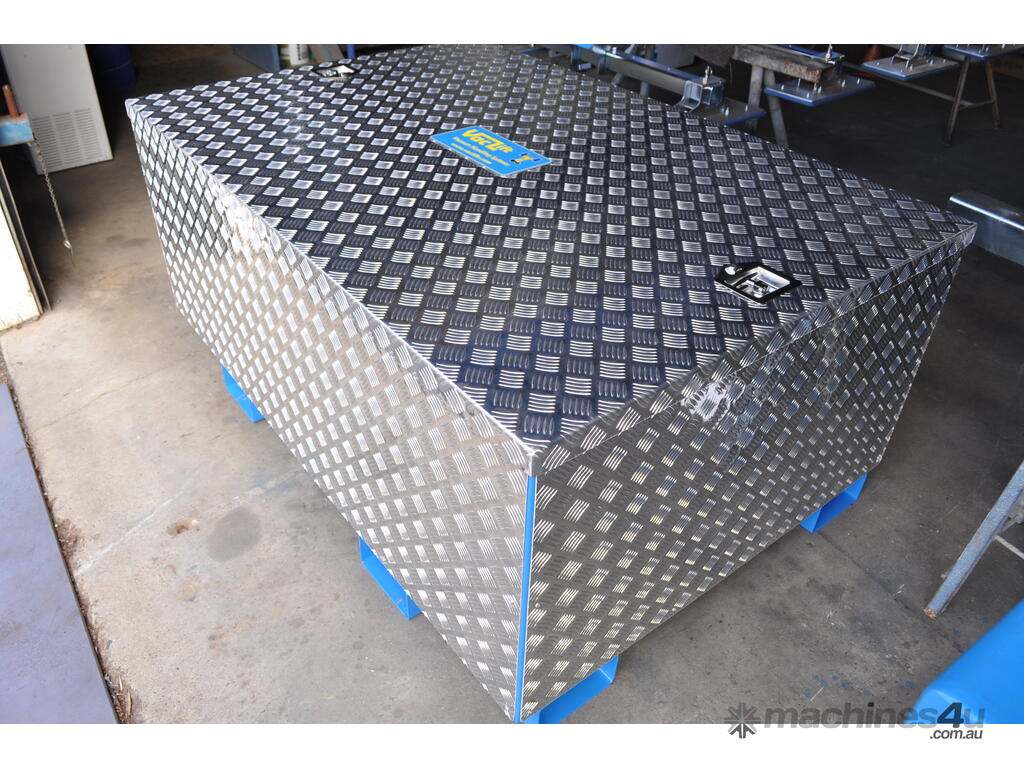

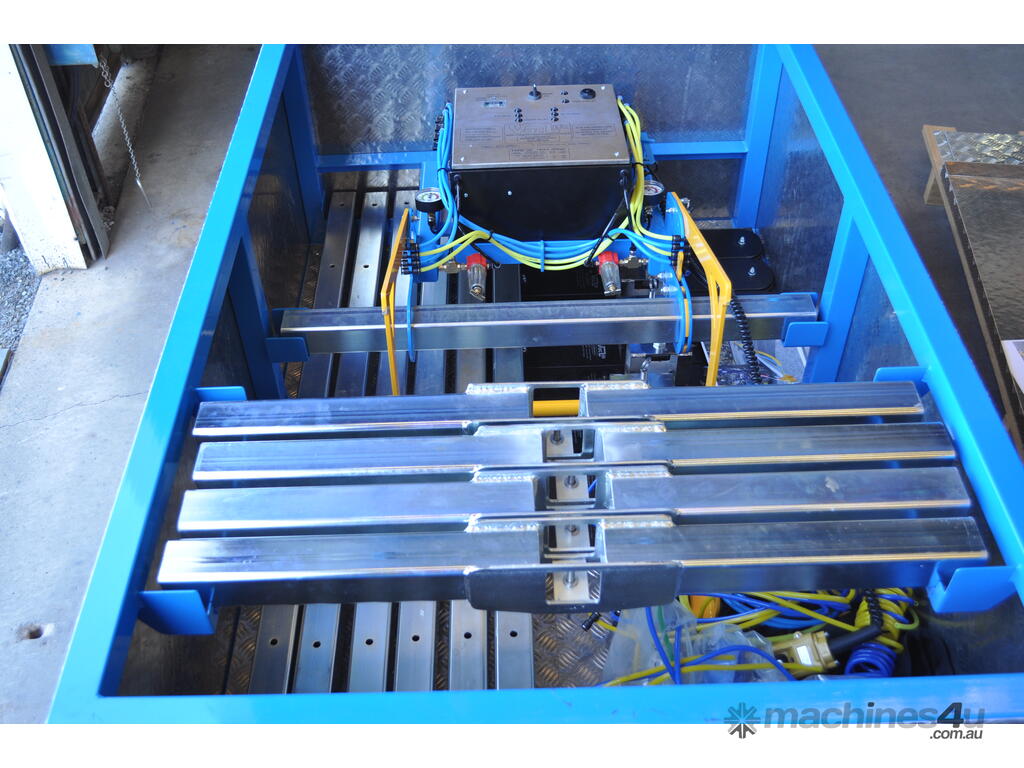

Lockable checker plate & steel frame site/storage box
Built to USA standards ASME B30.20-2010 and Australian standards AS4991-2004
Operating instructions plus care and maintenance instructions included
Full 12 month factory warranty
Single or dual vacuum systems available
Additional extensions, pads, connectors and slings are available to extend Vaclift overall bar length to approx. 16000mm, contact advertiser for details.

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.


Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.
Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
