VACLIFT - Vacuum lifter to suit Jib Crane or other application -500KG

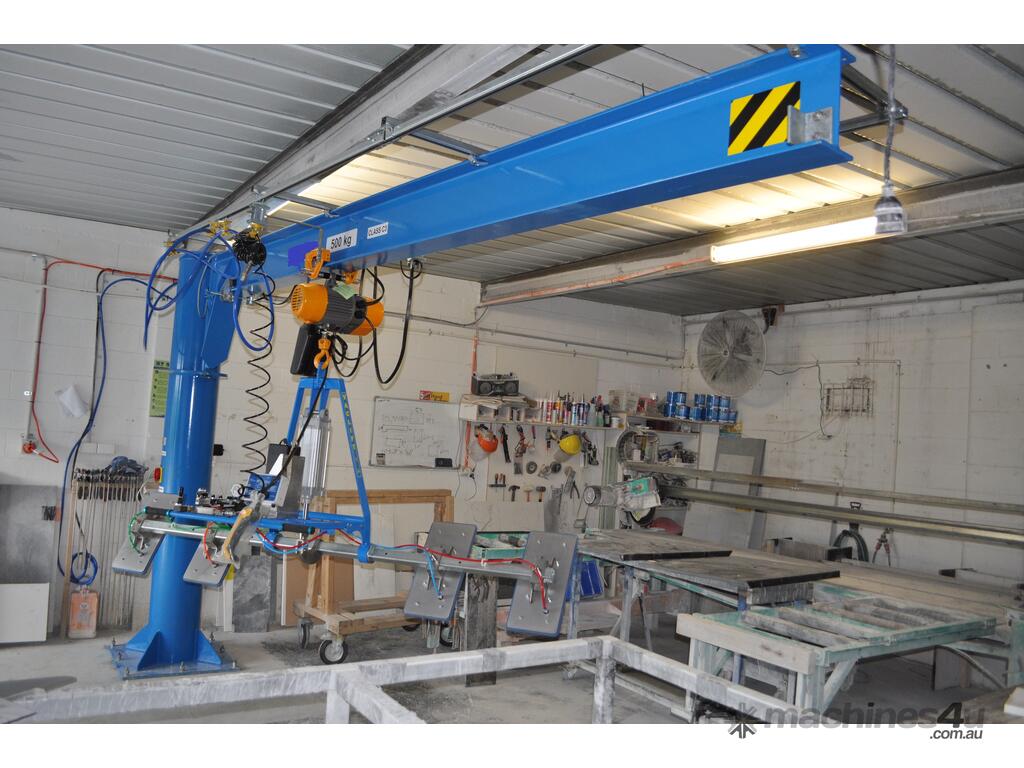

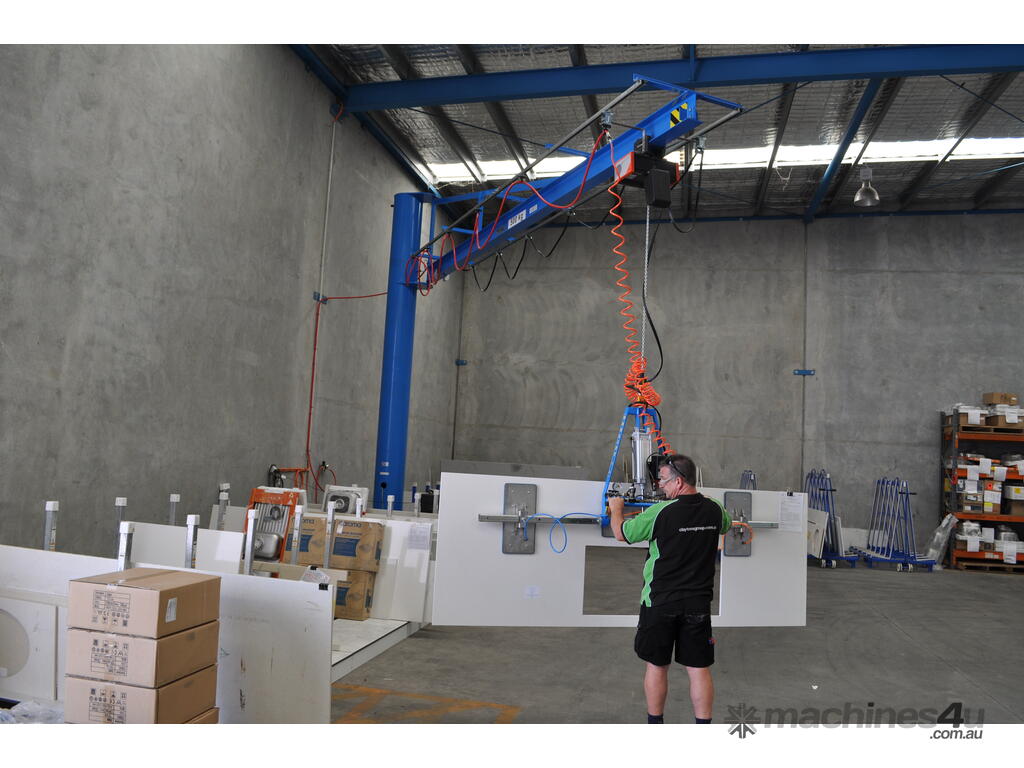

High quality Slewing Jib cranes available from 250 kg upwards. Cranes may be purchased separately or packaged with a suitable Vaclift unit
Cranes built to suit clients requirements and specifications. The following is an example of available specifications

Slewing Jib Cranes in accordance with Australian Standards:-
Type: Free Standing Jib Crane
Crane Class: C3/M3
Capacity: 500 kg
Swing: 5000 mm
Height U/S Jib: 3500 mm
Overall Height: 4783 mm
Slew: 268º Manual
Hoist: 2 Speed Electric Chain Hoist
Hoist Speed: 8.0/1.3 m/min
Hoist Head Room: 475 mm
Trolley: Manual Push/Pull
Height of Lift: 3025 mm
Control: Push Button Pendant Control fixed to Hoist (2 Button + E Stop)
Electrics: Isolator and Catenary System
Operating Current: 415V, 3Ph, 50Hz
Colour: Blaze Blue 1991
Mounting Details: 1050 mm Square base plate fixed to clients concrete

Hoist and Trolley
Full set of electrics on crane (flat cable and catenary system)
Certificate of Compliance
Operating & Maintenance Manual

-All cranes are designed and manufactured in total compliance with the following relevant Australian Codes:
· AS1418.1 Cranes, hoists and winches-General requirements
· AS/NZ ISO 9001:2008 Quality Standard
· AS/NZ 3000: Electrical Installation-Wiring rules
· AS/NZ 3008.1.1: Electrical installations-Selection of cables

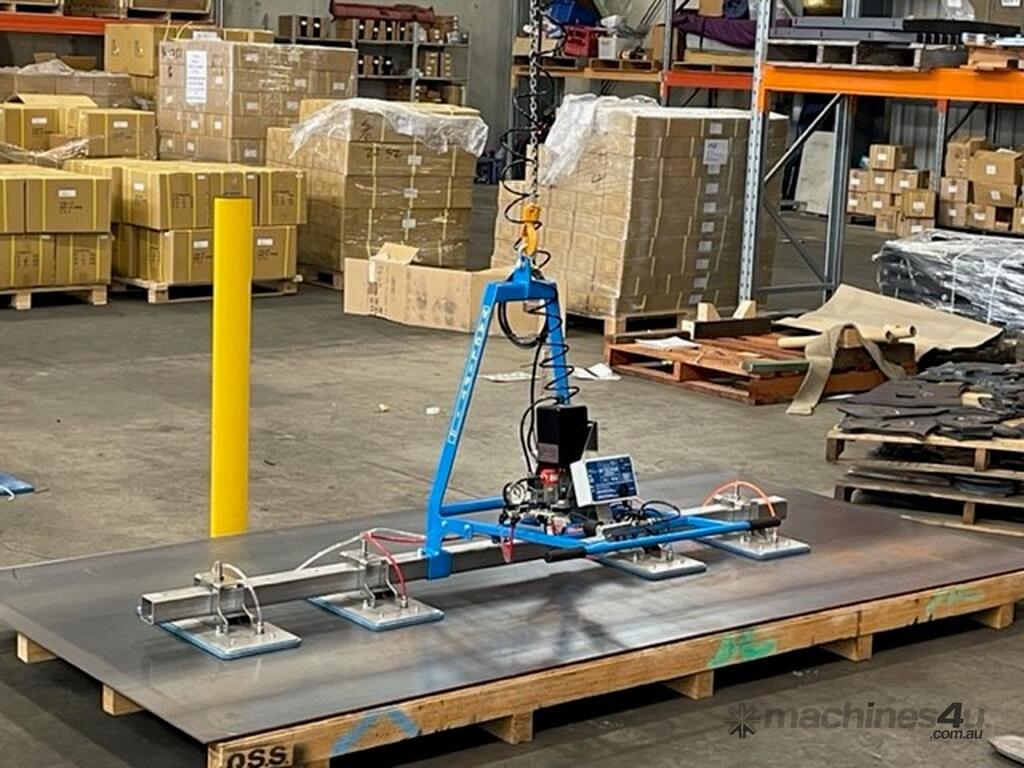

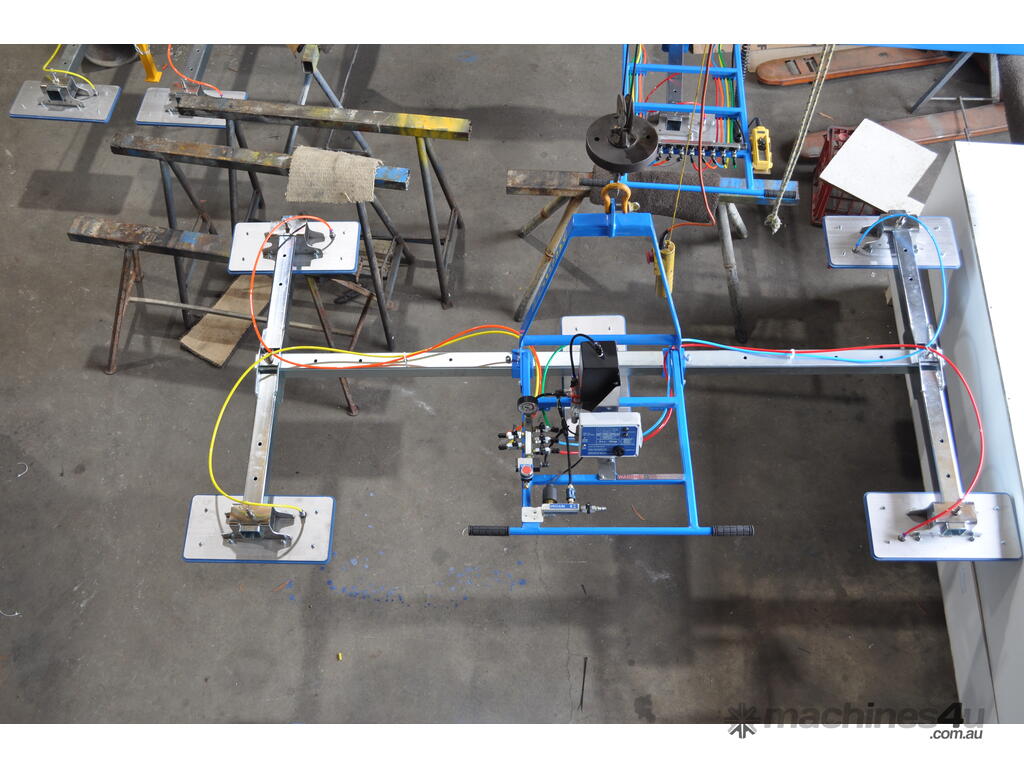

Vaclift uses natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.
Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.
Vaclift means:

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.


Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

Go to the Vaclift showroom on Machines4u to see the range of Vaclift machines, send Vaclift a message about the item you are interestd in or give Vaclift a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet for more information *
