CONCEPT

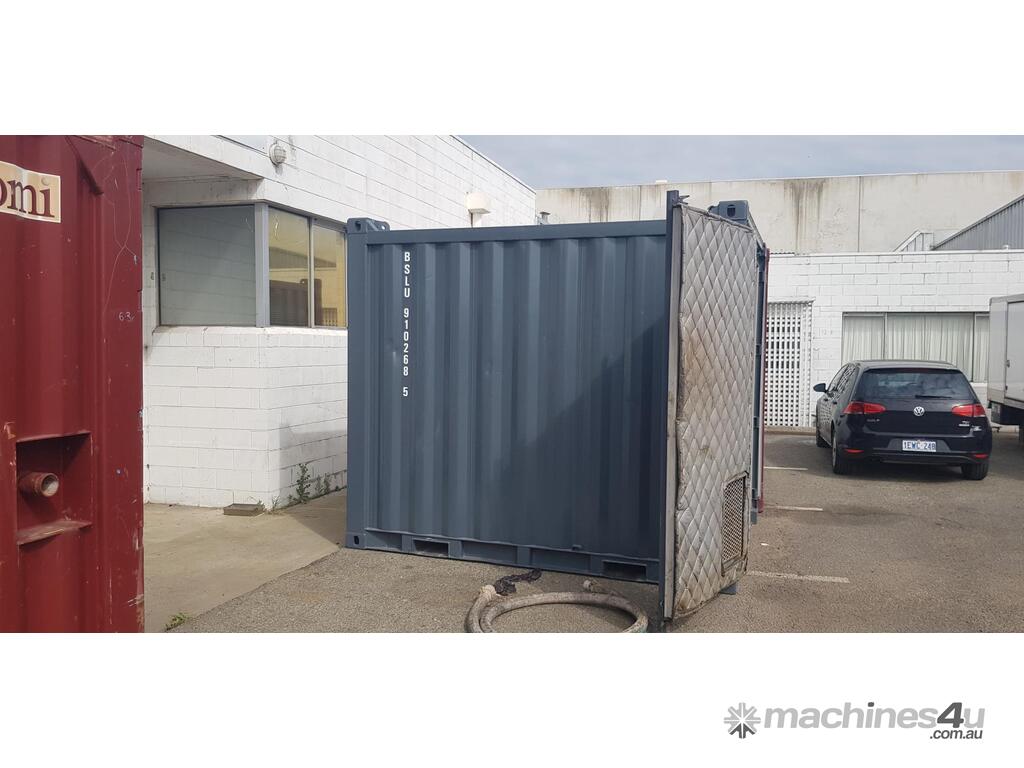

The Offshore Rig-Vac™ containerized vacuum system is a robust skid-mounted vacuum device designed to be centrally located for the reclamation, containment and handling of waste liquids and sludges from both onshore and offshore operations.
A range of two different Offshore Rig-Vac™ containerized vacuum systems is offered – the electrically operated RV-50 HP and RV-100 HP.

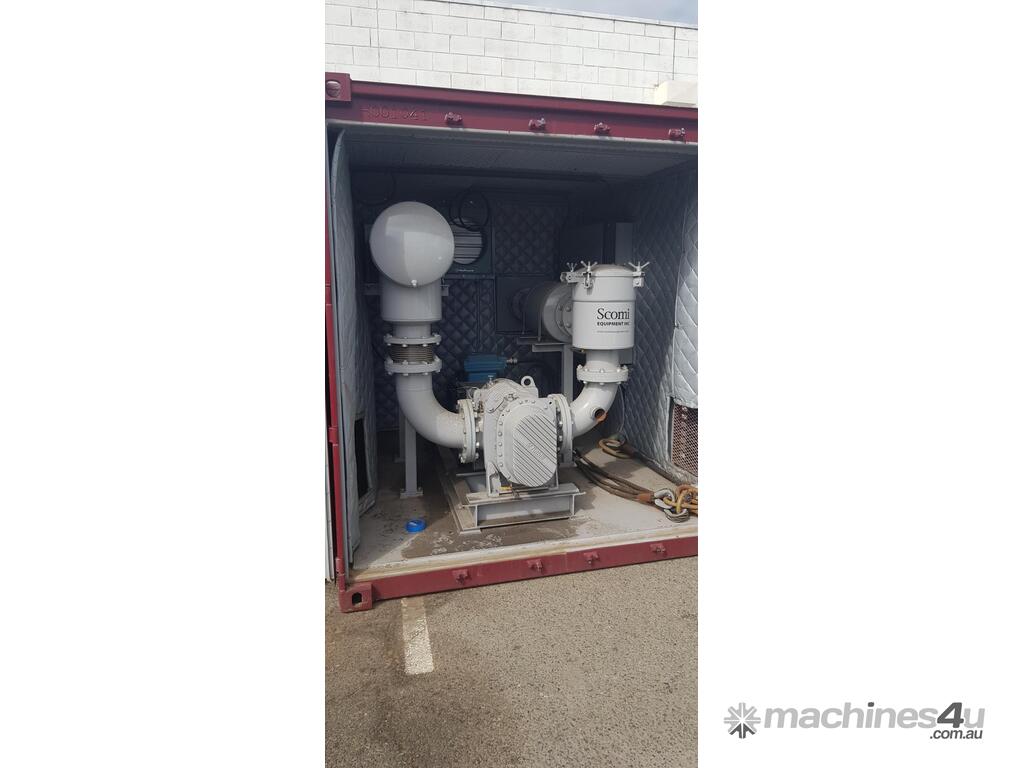

The RV-50 HP and RV-100 HP are two component modular vacuum systems. The first component is a power plant which incorporates a positive displacement blower, muffler, valve manifold and electric motor. The second is a tank skid which is fitted with a tank, suction, discharge and inspection connections.
The RV-100 HP is larger and more powerful than the RV-50 HP. It features a 100 hp electric motor and has a tank capacity of 750 gallon. The RV-50 HP has a 50 hp electric motor and 500 gallon capacity tank.
APPLICATION
The Offshore Rig-Vac™ containerized vacuum system is designed to reclaim drilling fluid spillages caused by tripping, pulling wet strings or accidental spillage. It can also be used for other waste stream spillages such as waste water or drill cuttings. The cleaning of ditches, cellars and sumps plus the skimming of pits and cuttings boxes is also possible.
