VBHU Precision Universal Facing & Boring Head Ø84mm Head, Ø5 - Ø250mm Range Requires Spindle Arbor T

TOOLMASTER VBHU Precision Universal Facing & Boring Head Ø84mm Head, Ø5 - Ø250mm Range Requires Spindle Arbor To Suit Machine
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M185

Manufactured in Taiwan

The Facing And Boring Head is a major accessory of the engineering shop.
This product has the mechanism of manual fine feed, rapid adjustment, and radial automatic feed at various rates.
This allows the head to be used for facing and boring of internal and external bores

Features:
Precision construction allows freedom of adjustment. Auto-feed and stop facility
Rigid construction combined with strength flexibility and accuracy create this unique tool
Two vertical boring tool holes - one for centred and one for offset work
2 speed manual fine feed & rapid
Cutting range 5 to 250mm bore
One cross hole for greater versatility
Balanced for high speed operation

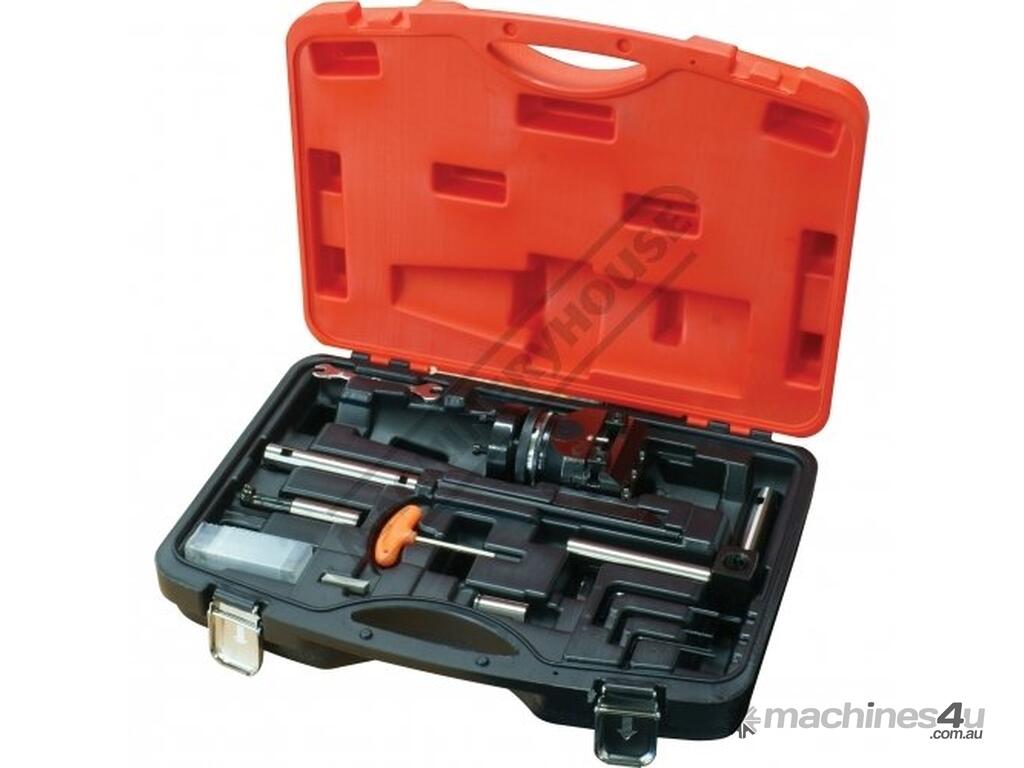

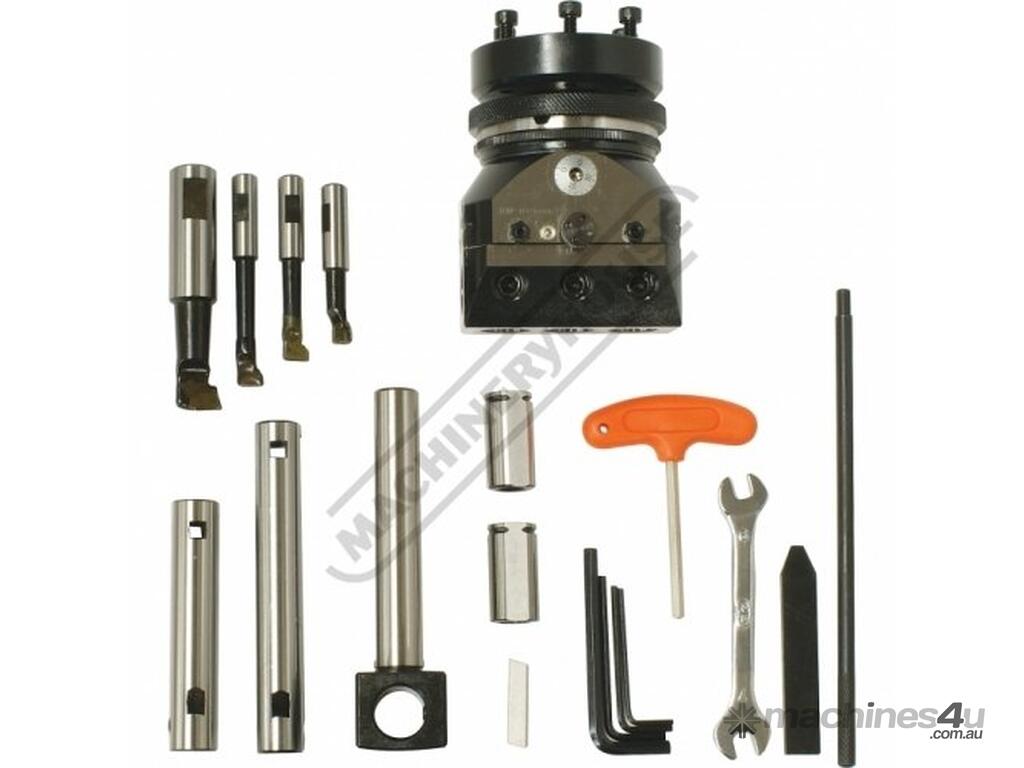

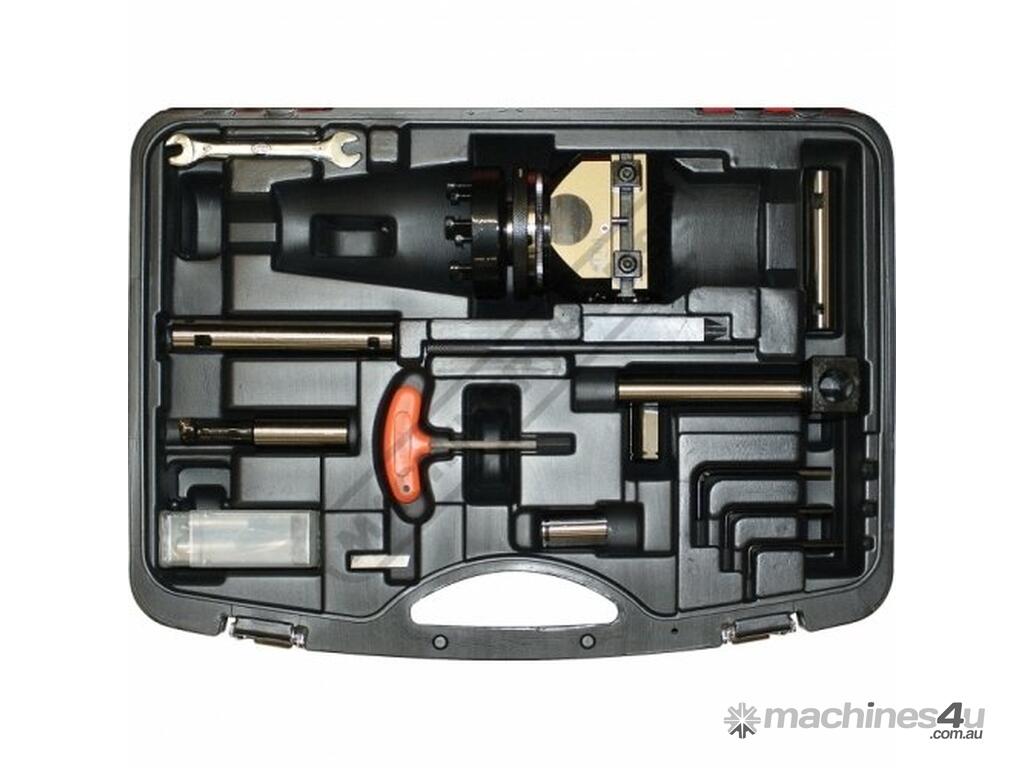

Includes:
- 1 x 60mm long x 10mm shank boring bar
- 1 x 70mm long x 10mm shank boring bar
- 1 x 80mm long x 10mm shank boring bar
- 1 x 90mm long x 18mm shank boring bar
- 1 x 90mm long boring bar holder extension - suits 1/4" HSS
- 1 x 120mm long boring bar holder extension - suits 1/4" HSS
- 1 x 180mm long boring bar holder extension
- 1 x 18-12mm reducer sleeve
- 1 x 18-10mm reducer sleeve
- 1 x 1/4" HSS
- 4 x Hex keys



Specifications:
ORDER CODE: M185
MODEL: VBHU
Type: Boring & Facing
D (mm): 84
H (mm): 80
d (lowercase) (mm): 18
W (mm): 58
h (lowercase) (mm): 28
Cross Hole Diameter (mm): 18
Centre Distance Between Holes (mm): 23
Micro Adjustment Travel (mm): 15
Nett Weight (kg): 7
